LED灯盘

01 伏安特性

一、前言

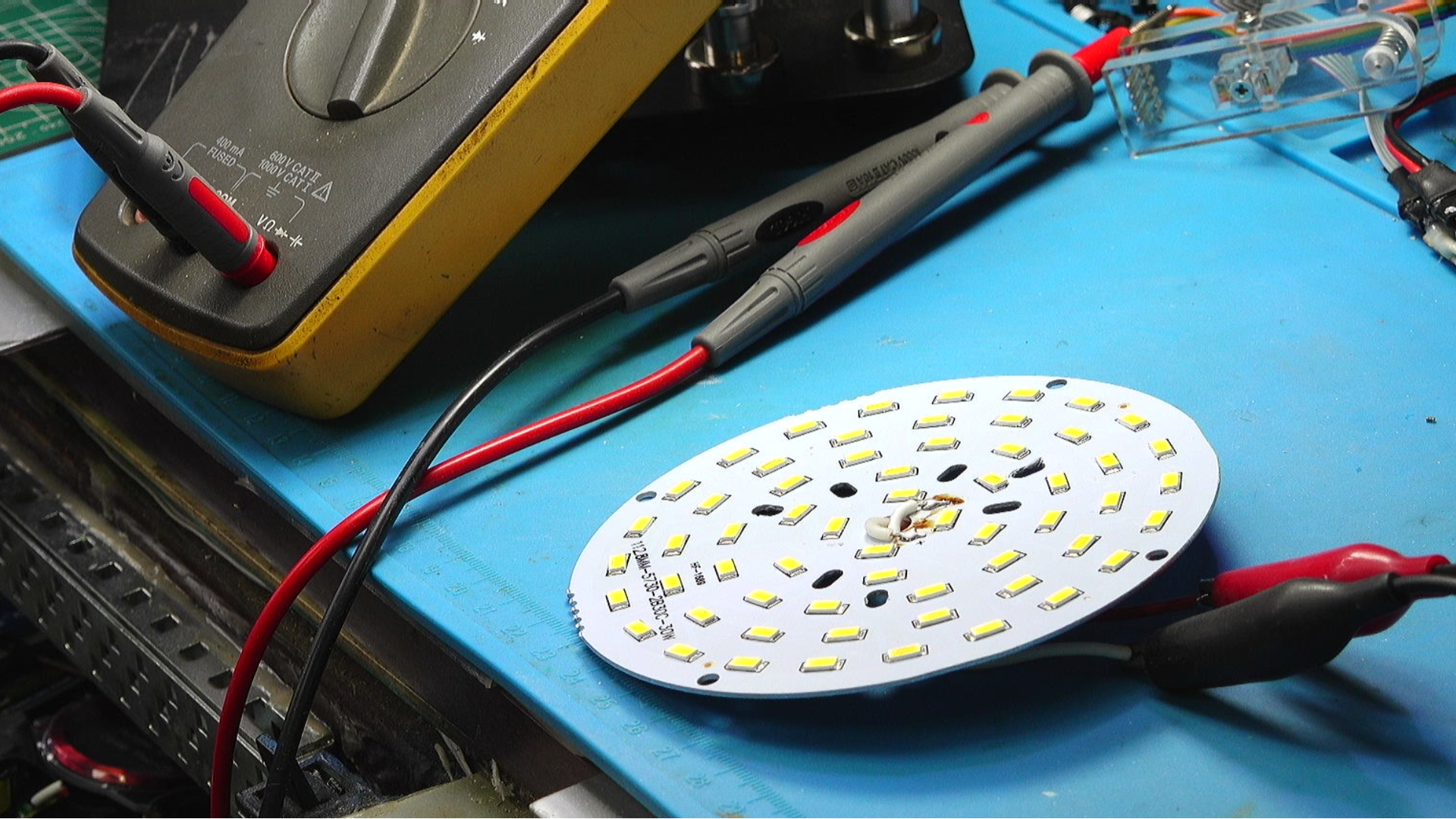

这是一个LED灯盘，是从一个报废的 LED 电灯中拆卸下来。下面简单测试一下它的电压电流特性。推测一下它上面LED 串并联关系。

G4M1727679493_1920_1080.MP4|_-4

二、测量结果

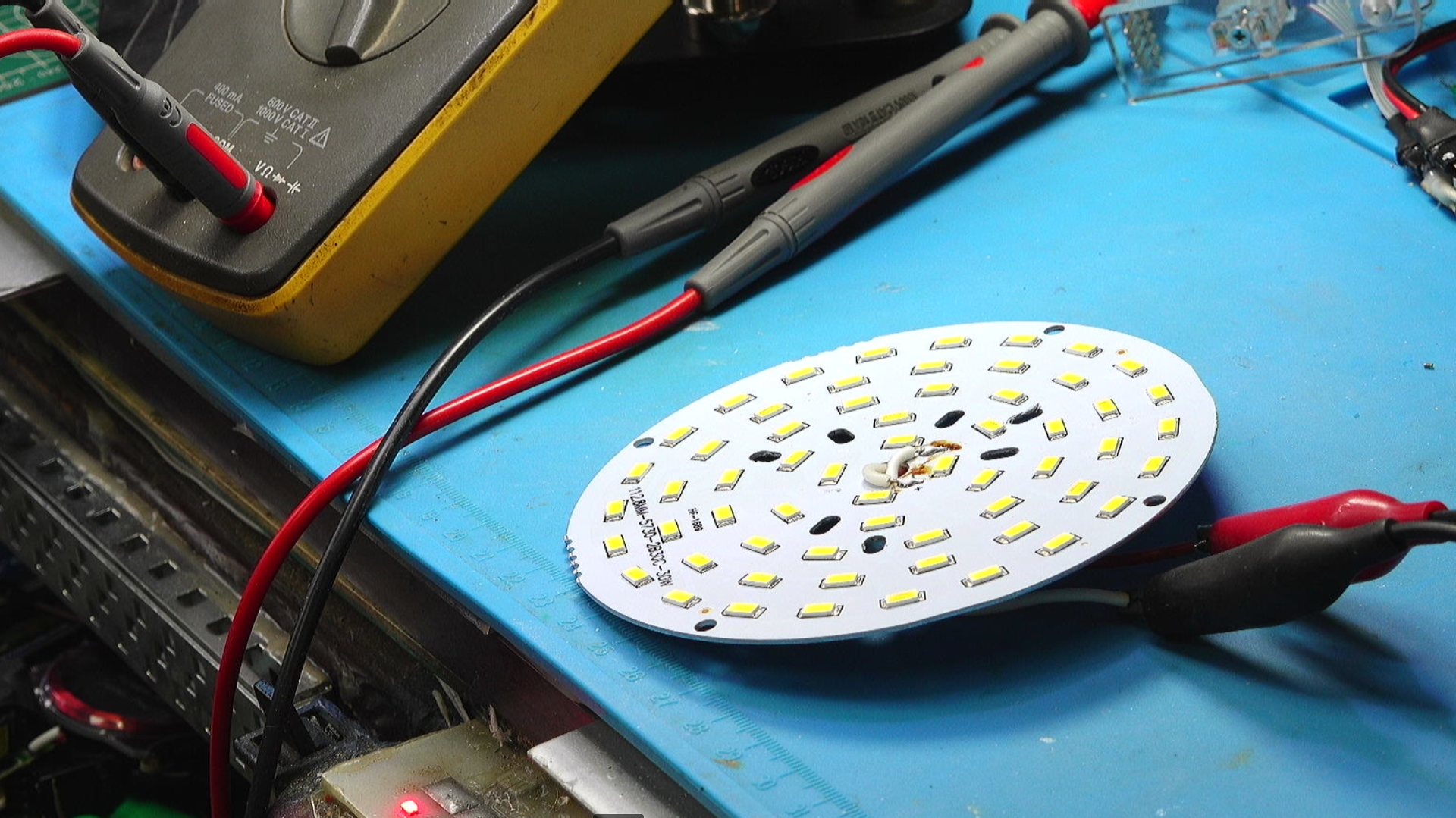

下面测量 LED 灯盘的伏安特性。使用 DH1766 可编程直流电压源，输出从 0V到85V的电压，测量每个电压下对应输出电流。

G3M1727679387_1920_1080.MP4|_-3

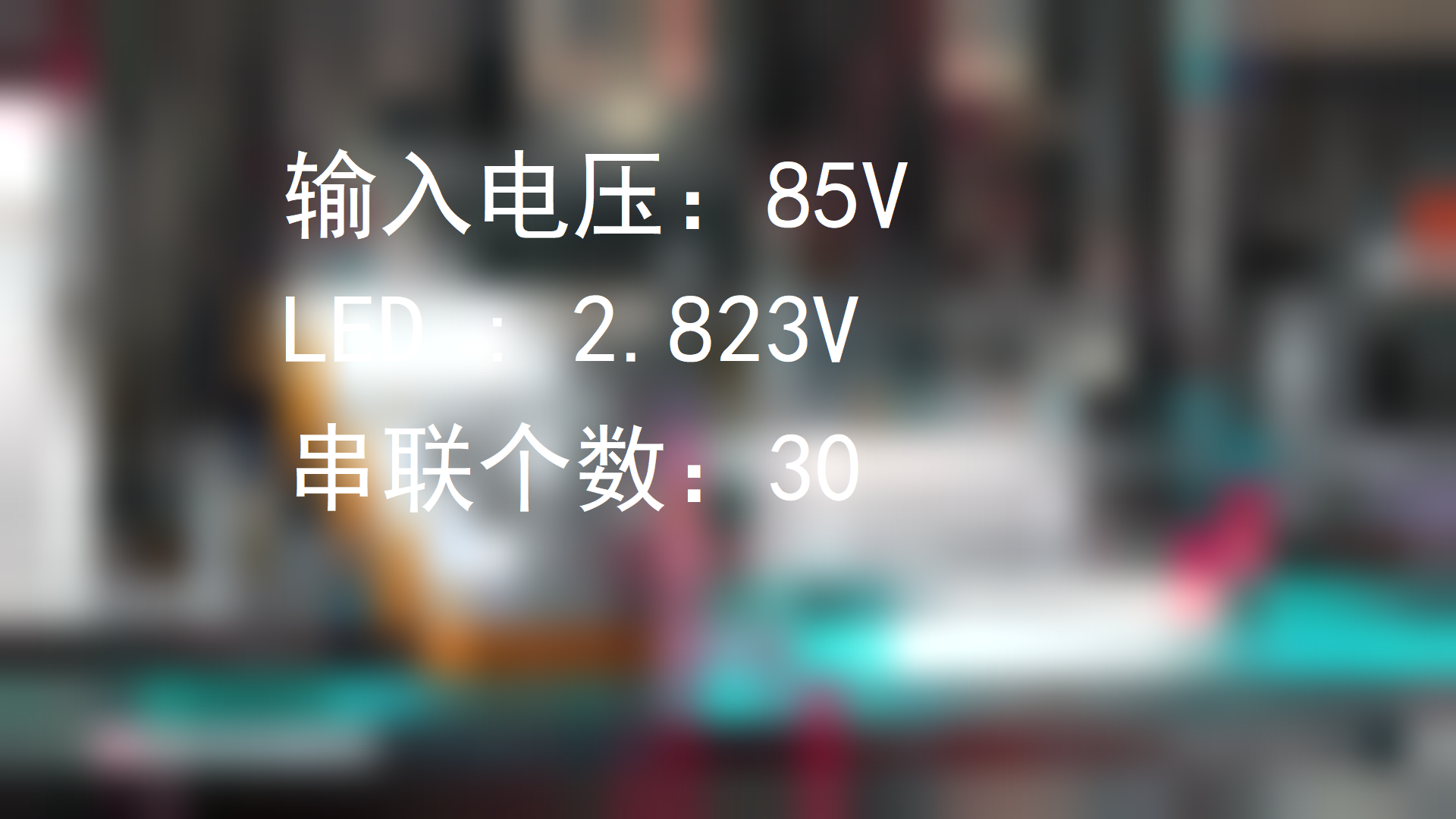

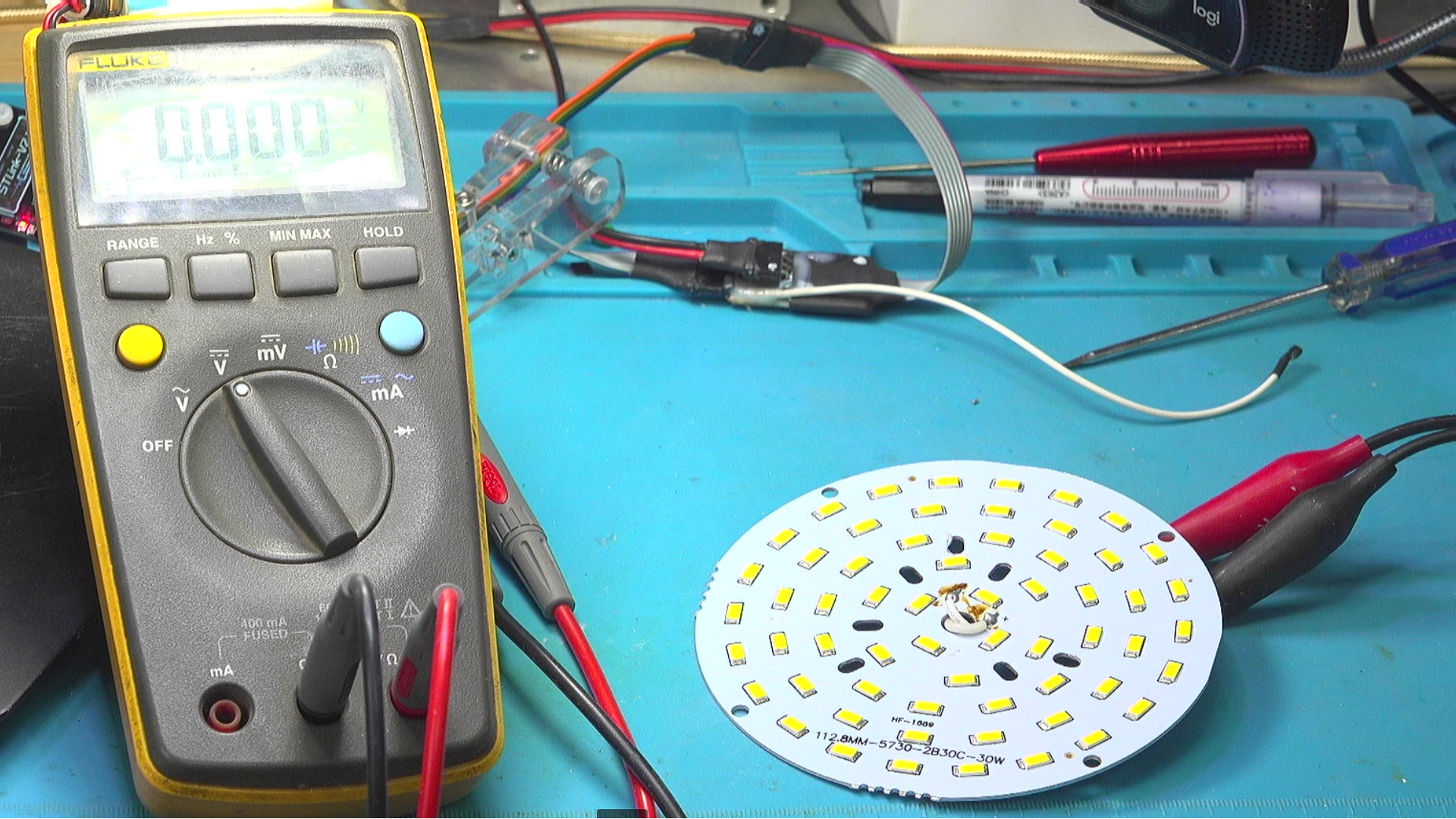

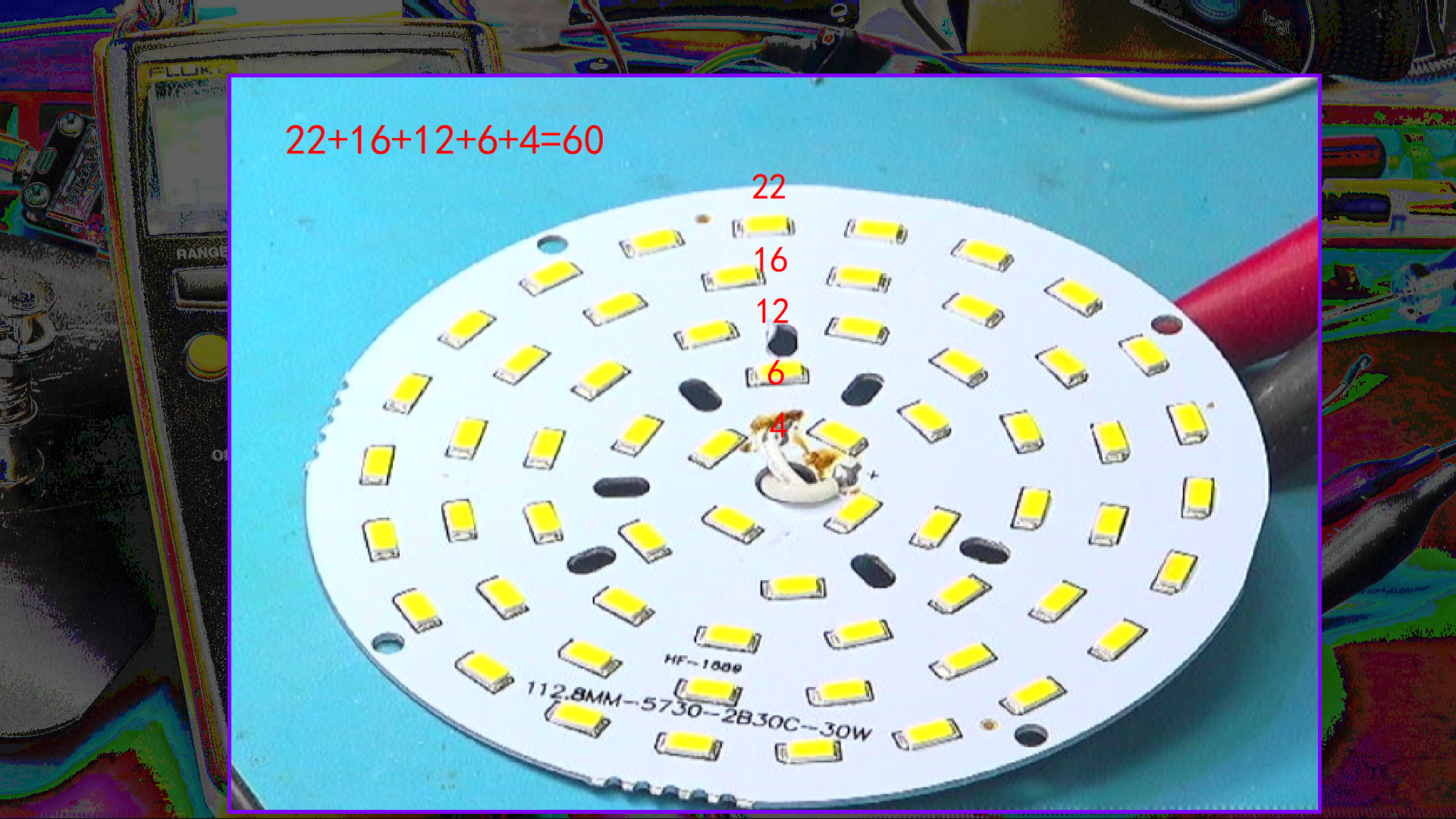

观察测试结果，可以看到整个光盘的伏安特性与单个 LED的伏安特性相似，只是放大了若干倍。在输入电压 85V 的情况下，测量单个 LED上的电压。这样便可以计算出串联的LED的个数。使用输入电压，除以单个LED测量电压，可以计算出串联级数，整个灯盘串联了30个LED。输入电压必须超过75V以上，灯盘才开始发光。

G9M1727678718_1920_1080.MP4|_-9

▲ 图1.2.1 LED灯盘伏安特性

▲ 图1.2.1 LED灯盘伏安特性

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# TEST1.PY                     -- by Dr. ZhuoQing 2024-09-30
#
# Note:
#============================================================
from headm import *
from tsmodule.tsvisa        import *
vdim = linspace(0, 89, 100)
idim = []
for v in vdim:
    dh1766volt1(v)
    time.sleep(1)
    i = dh1766curr1()
    idim.append(i)
    tspsave("led", vdim=vdim, idim=idim)
    printff(v, i)
dh1766volt1(0)
plt.plot(vdim, idim, lw=3)
plt.xlabel("Voltage(V)")
plt.ylabel("Current(A)")
plt.grid(True)
plt.tight_layout()
plt.show()
#------------------------------------------------------------
#        END OF FILE : TEST1.PY
#============================================================

vdim=[0.0000,0.8990,1.7980,2.6970,3.5960,4.4949,5.3939,6.2929,7.1919,8.0909,8.9899,9.8889,10.7879,11.6869,12.5859,13.4848,14.3838,15.2828,16.1818,17.0808,17.9798,18.8788,19.7778,20.6768,21.5758,22.4747,23.3737,24.2727,25.1717,26.0707,26.9697,27.8687,28.7677,29.6667,30.5657,31.4646,32.3636,33.2626,34.1616,35.0606,35.9596,36.8586,37.7576,38.6566,39.5556,40.4545,41.3535,42.2525,43.1515,44.0505,44.9495,45.8485,46.7475,47.6465,48.5455,49.4444,50.3434,51.2424,52.1414,53.0404,53.9394,54.8384,55.7374,56.6364,57.5354,58.4343,59.3333,60.2323,61.1313,62.0303,62.9293,63.8283,64.7273,65.6263,66.5253,67.4242,68.3232,69.2222,70.1212,71.0202,71.9192,72.8182,73.7172,74.6162,75.5152,76.4141,77.3131,78.2121,79.1111,80.0101,80.9091,81.8081,82.7071,83.6061,84.5051,85.4040,86.3030,87.2020,88.1010,89.0000]
idim=[0.0000,0.0001,0.0001,0.0002,0.0001,0.0001,0.0002,0.0001,0.0001,0.0002,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0001,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0000,0.0001,0.0005,0.0015,0.0033,0.0060,0.0098,0.0146,0.0202,0.0265,0.0336,0.0414,0.0498,0.0589,0.0688,0.0792,0.0904]
