apache 的batik生成svg文件和通过swing界面查看效果

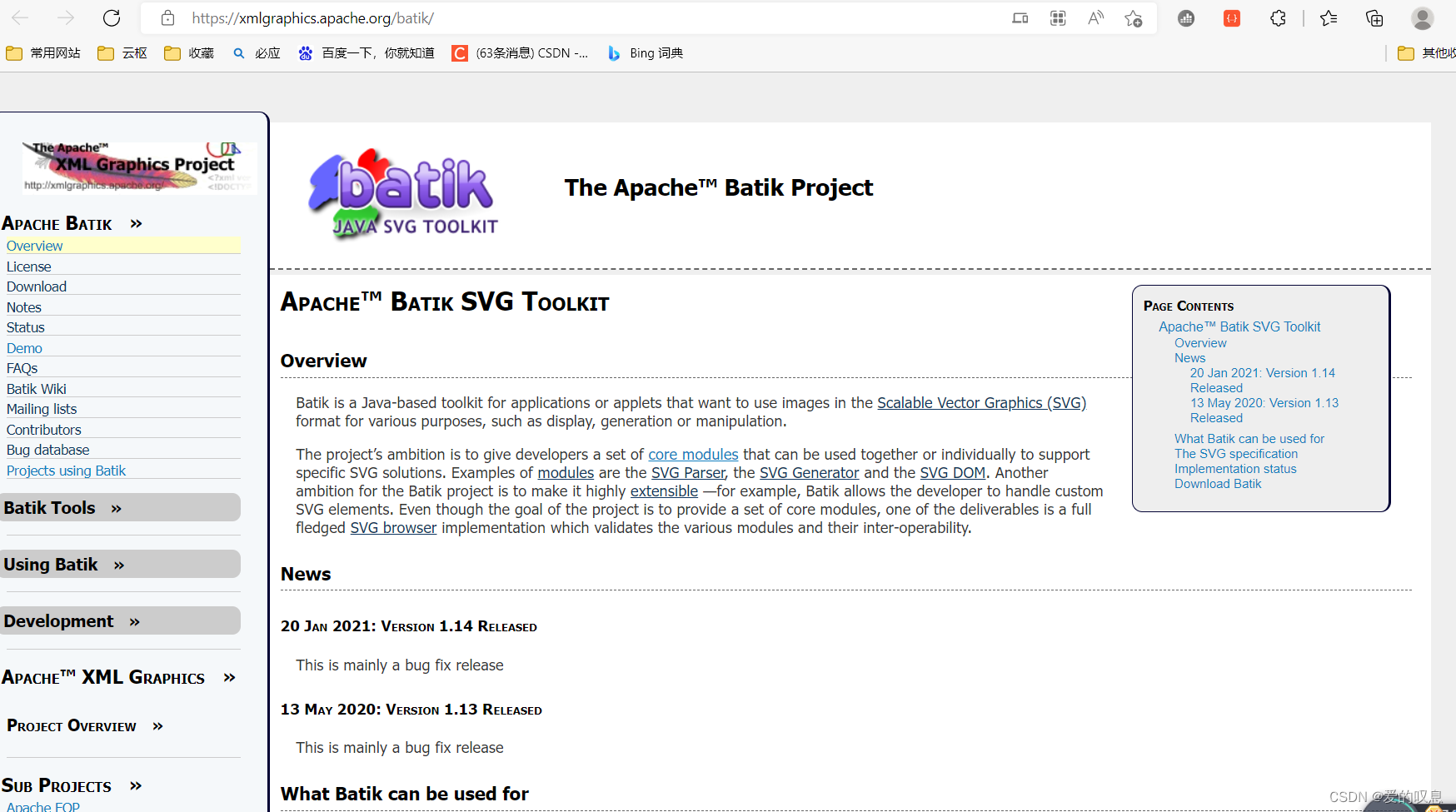

apache的batik官网

Apache(tm) Batik SVG Toolkit - a Java-based toolkit for applications or applets that want to use images in the Scalable Vector Graphics (SVG)https://xmlgraphics.apache.org/batik/

maven依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.burns.batik.svg</groupId>
    <artifactId>batik_svg_test1</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.xmlgraphics</groupId>
            <artifactId>batik-all</artifactId>
            <version>1.14</version>
        </dependency>
        <dependency>
            <groupId>org.apache.xmlgraphics</groupId>
            <artifactId>fop</artifactId>
            <version>2.7</version>
        </dependency>
    </dependencies>

</project>

通过batik生成svg内容并通过界面展示生成效果

代码

package com.burns.batik.svg.test20220527_1;

import org.apache.batik.anim.dom.SVGDOMImplementation;
import org.apache.batik.svggen.SVGGraphics2D;
import org.apache.batik.swing.JSVGCanvas;
import org.w3c.dom.DOMImplementation;
import org.w3c.dom.Element;
import org.w3c.dom.svg.SVGDocument;

import javax.swing.*;
import java.awt.*;
import java.awt.geom.Line2D;
import java.io.OutputStreamWriter;
import java.io.Writer;

public class ViewGeneratedSVGDemo1 {

  public static void main(String[] args) throws Exception{
    // Create an SVG document.
    DOMImplementation impl = SVGDOMImplementation.getDOMImplementation();
    String svgNS = SVGDOMImplementation.SVG_NAMESPACE_URI;
    SVGDocument doc = (SVGDocument) impl.createDocument(svgNS, "svg", null);

    // Create a converter for this document.
    SVGGraphics2D g = new SVGGraphics2D(doc);

    // Do some drawing.
//    Shape circle = new Ellipse2D.Double(0, 0, 50, 50);
//    g.setPaint(Color.red);
//    g.fill(circle);
//    g.translate(60, 0);
//    g.setPaint(Color.green);
//    g.fill(circle);
//    g.translate(60, 0);
//    g.setPaint(Color.blue);
//    g.fill(circle);
//    g.setPaint(Color.YELLOW);
    g.setPaint(Color.BLACK);
//    g.fill(new Rectangle(10, 10, 100, 100));
    g.draw(new Rectangle(10, 10, 100, 100));
    g.draw(new Line2D.Float(110, 55, 200, 55));
    g.draw(new Rectangle(200, 10, 100, 100));
    g.setSVGCanvasSize(new Dimension(800, 300));

    // Populate the document root with the generated SVG content.
    Element root = doc.getDocumentElement();
    g.getRoot(root);

    //输出svg内容
    boolean useCSS = true; // we want to use CSS style attributes
    Writer out = new OutputStreamWriter(System.out, "UTF-8");
    g.stream(out, useCSS);

    // Display the document.
    JSVGCanvas canvas = new JSVGCanvas();
    JFrame f = new JFrame();
    f.getContentPane().add(canvas);
    canvas.setSVGDocument(doc);
    f.pack();
    f.setVisible(true);


  }
}

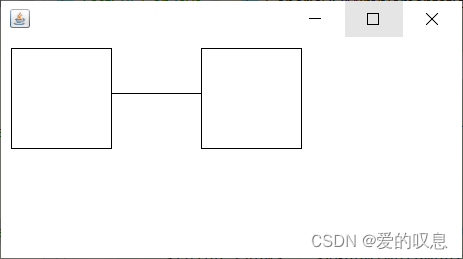

运行后效果

 通过batik生成svg文件内容，并查看内容，我这里是输出到控制台，然后把内容复制放到svg文件中查看的效果

代码

package com.burns.batik.svg.test20220527_1;

import org.apache.batik.anim.dom.SVGDOMImplementation;
import org.apache.batik.dom.GenericDOMImplementation;
import org.apache.batik.svggen.SVGGraphics2D;
import org.apache.batik.swing.JSVGCanvas;
import org.w3c.dom.DOMImplementation;
import org.w3c.dom.Document;
import org.w3c.dom.svg.SVGDocument;

import javax.swing.*;
import java.awt.*;
import java.awt.geom.Line2D;
import java.io.IOException;
import java.io.OutputStreamWriter;
import java.io.Writer;

public class TestSVGGen {

    public void paint(Graphics2D g) {
//        g2d.setPaint(Color.red);
//        g2d.fill(new Rectangle(10, 10, 100, 100));
        g.setPaint(Color.BLACK);
//    g.fill(new Rectangle(10, 10, 100, 100));
        g.draw(new Rectangle(10, 10, 100, 100));
        g.draw(new Line2D.Float(110, 55, 200, 55));
        g.draw(new Rectangle(200, 10, 100, 100));
        g.draw(new Line2D.Float(155, 55, 155, 155));
        g.draw(new Rectangle(105, 155, 100, 100));
    }

    public static void main(String[] args) throws IOException {

        // Get a DOMImplementation.
        DOMImplementation domImpl =
                GenericDOMImplementation.getDOMImplementation();
        DOMImplementation domImpl1 =
                SVGDOMImplementation.getDOMImplementation();

        // Create an instance of org.w3c.dom.Document.
        String svgNS = "http://www.w3.org/2000/svg";
        Document document = domImpl.createDocument(svgNS, "svg", null);

        // Create an instance of the SVG Generator.
        SVGGraphics2D svgGenerator = new SVGGraphics2D(document);

        // Ask the test to render into the SVG Graphics2D implementation.
        TestSVGGen test = new TestSVGGen();
        test.paint(svgGenerator);

        // Finally, stream out SVG to the standard output using
        // UTF-8 encoding.
        boolean useCSS = true; // we want to use CSS style attributes
        Writer out = new OutputStreamWriter(System.out, "UTF-8");
        svgGenerator.stream(out, useCSS);



        // Display the document.
//        JSVGCanvas canvas = new JSVGCanvas();
//        JFrame f = new JFrame();
//        f.getContentPane().add(canvas);
//        canvas.setSVGDocument((SVGDocument) document);
//        f.pack();
//        f.setVisible(true);
    }
}

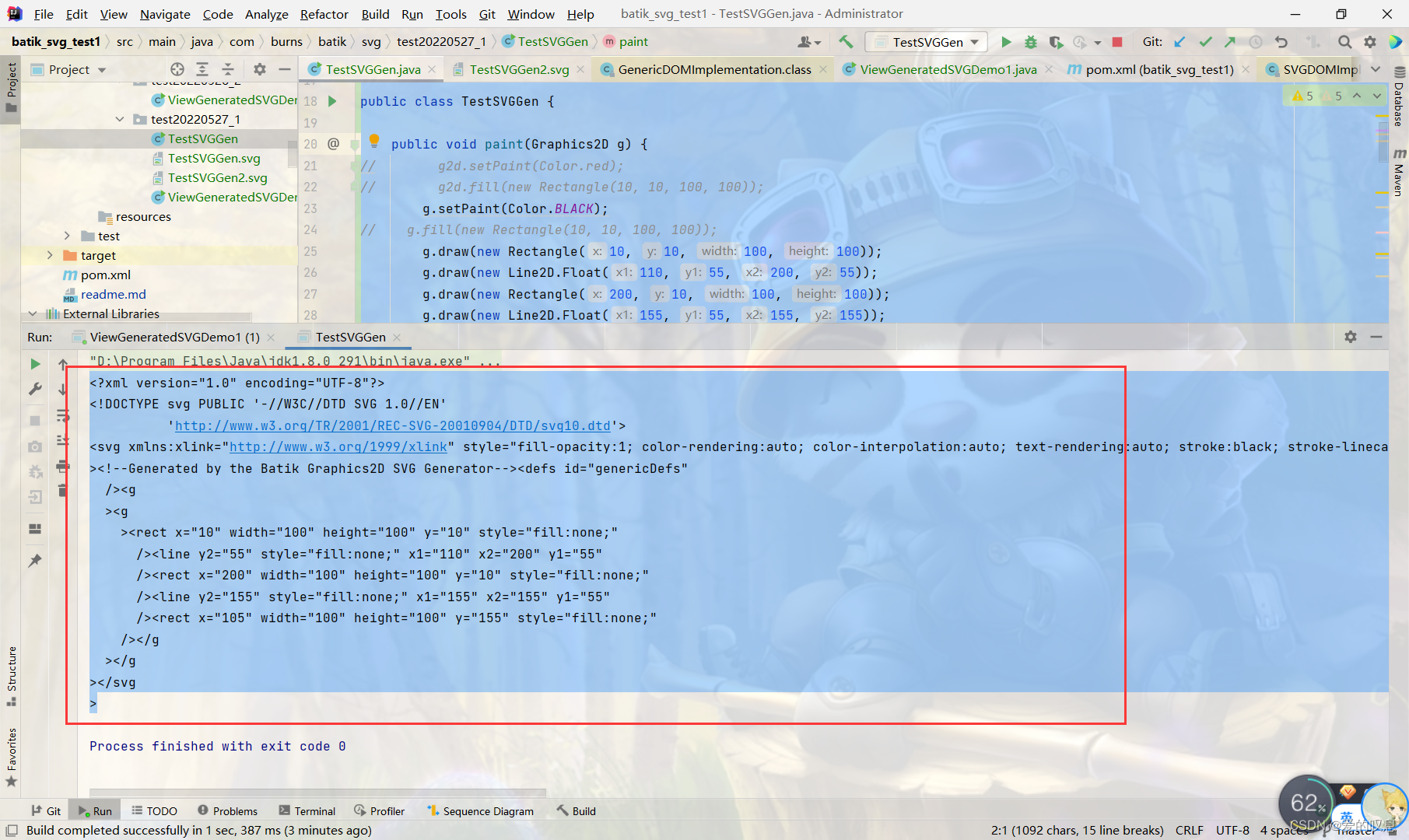

运行后控制台输出

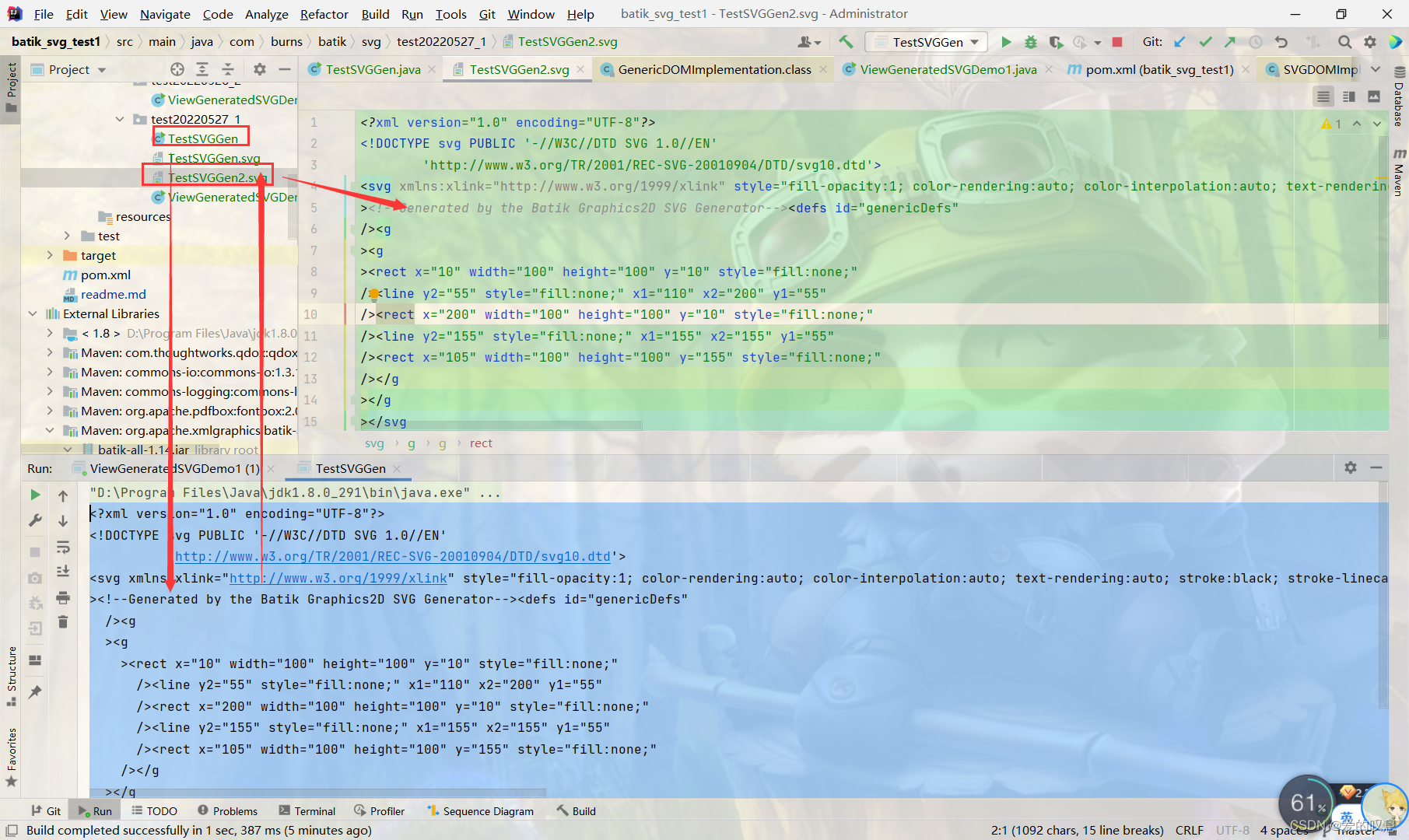

 把内容复制放到svg文件

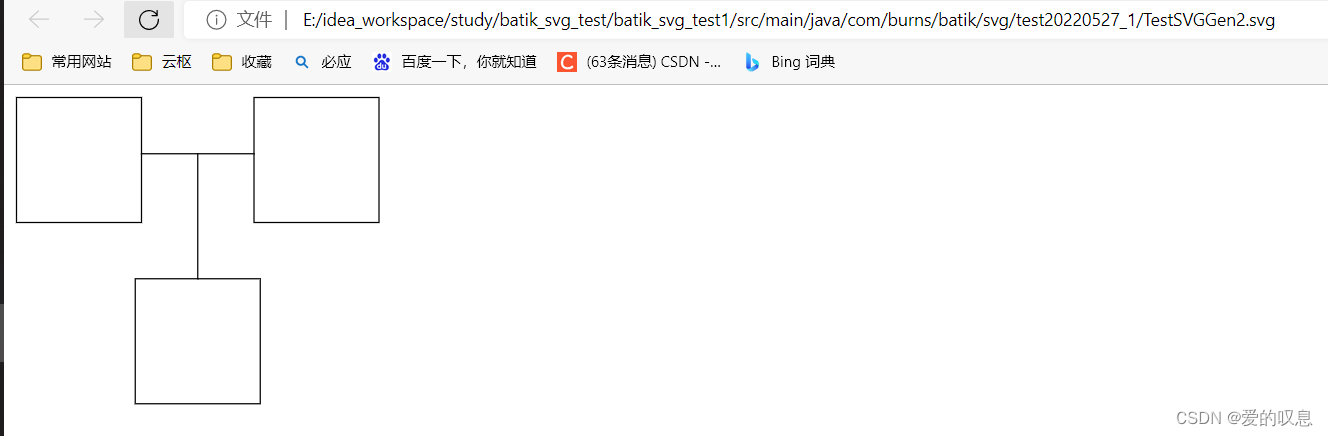

 用浏览器查看svg文件
