raytool制作自定义破碎的绝版教程

不要信引擎的破碎插件。你做过项目就知道那玩意不好用！ raytool制作自定义破碎的绝版教程，如此这般，得到一个光滑的自定破碎组，此教程使用flash绝版制作的破碎用shape的ai文件外，并且还用一个绝妙的方法避免了自相交计算错误！看完记得点赞！

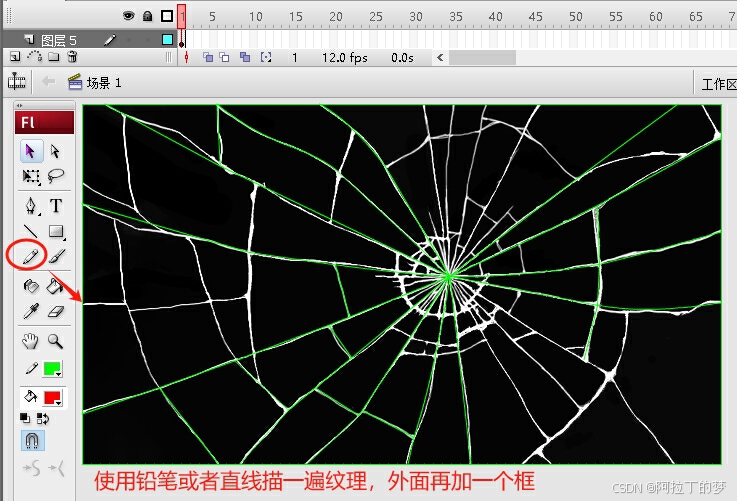

adobe flash cs3，这个版本可以导出ai文件，使用铅笔或者直线描一遍纹理，外面再加一个框png

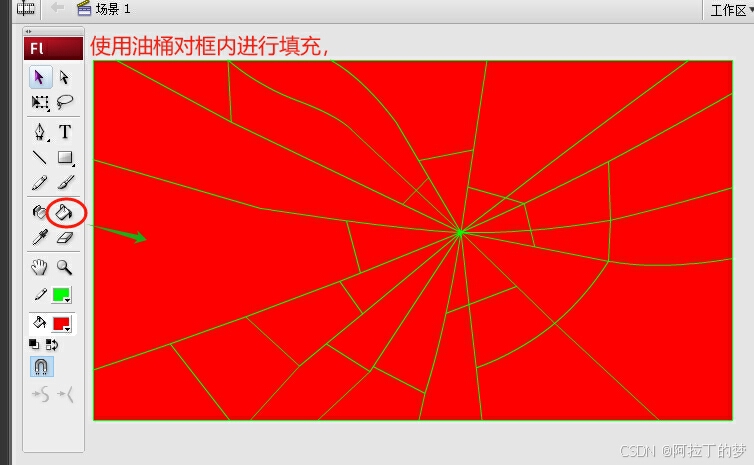

 使用油桶对框内进行填充

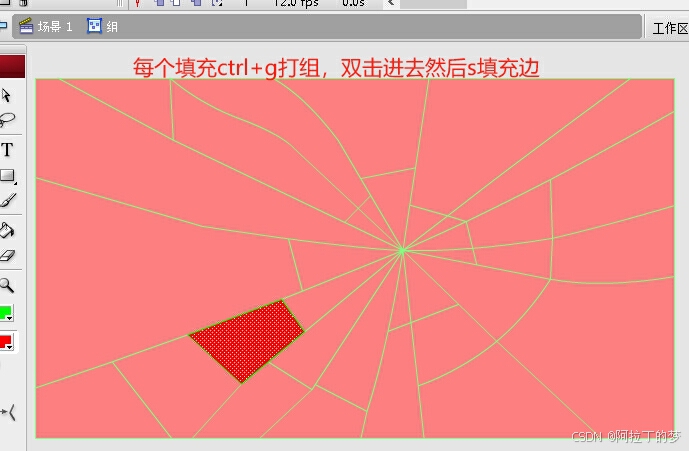

每个填充ctrl+g打组，双击进去然后s填充边

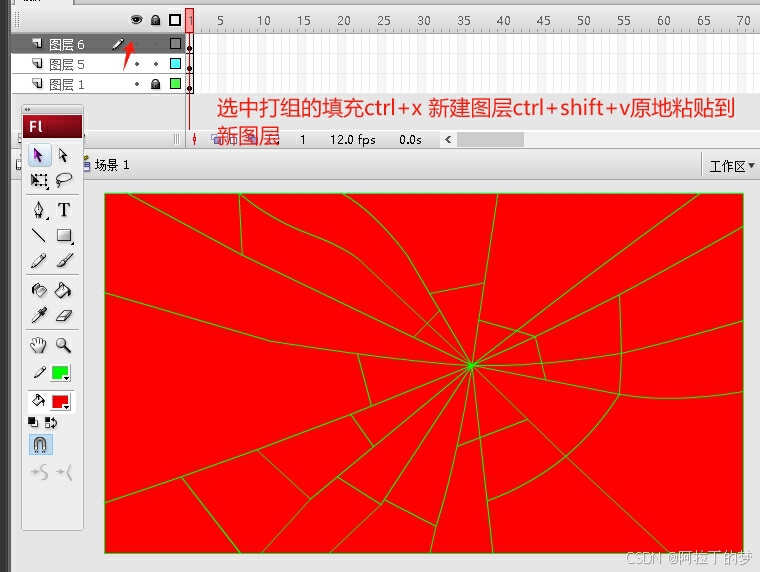

选中打组的填充ctrl+x 新建图层ctrl+shift+v原地粘贴到新的图层

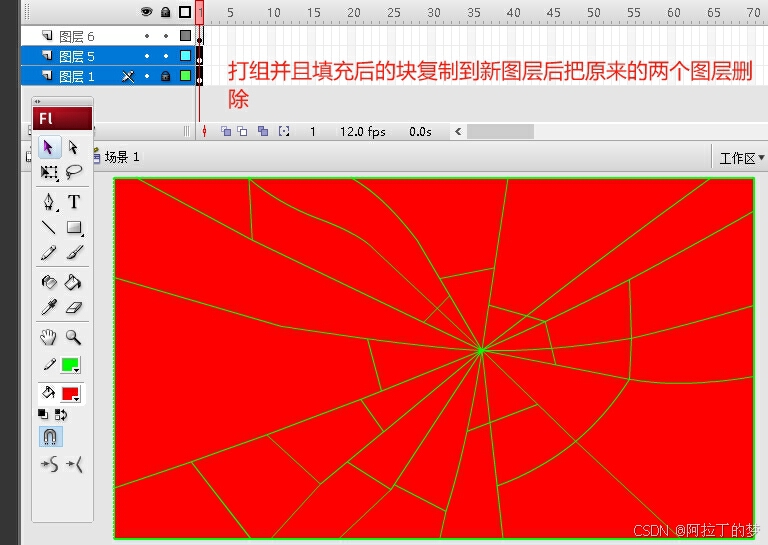

 打组并且填充后的块复制到新图层后把原来的两个图层删除

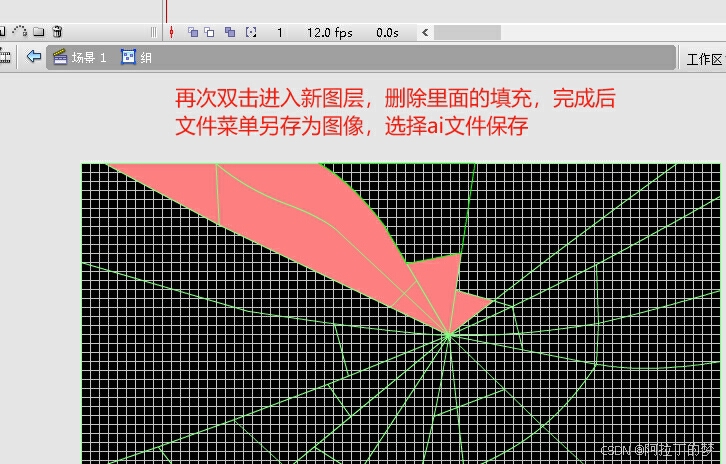

再次双击进入新图层

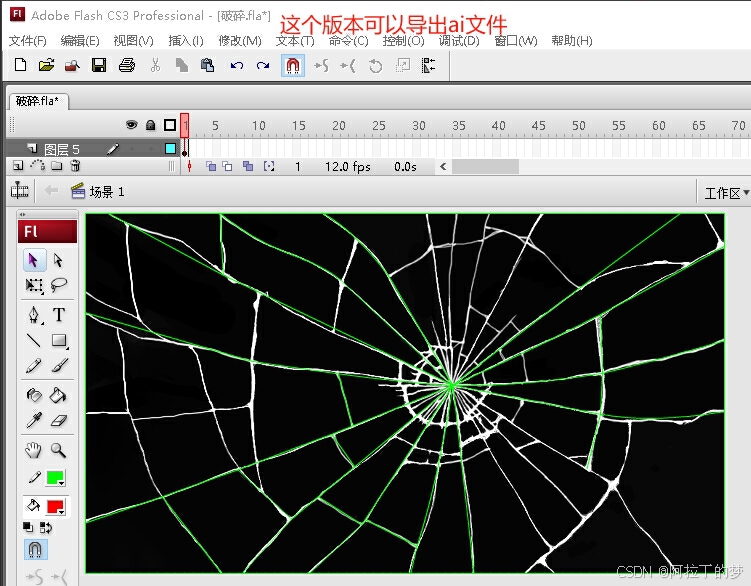

 adobe flash cs3，这个版本可以导出ai文件

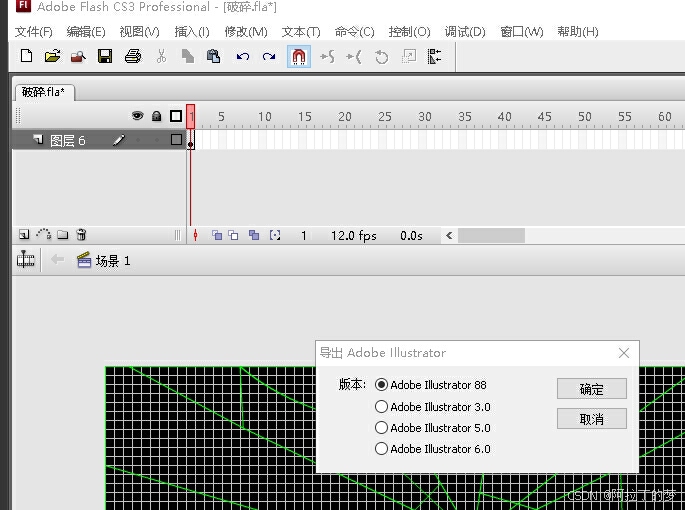

导出ai文件

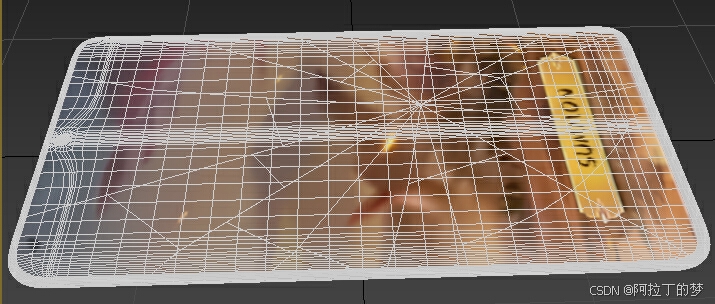

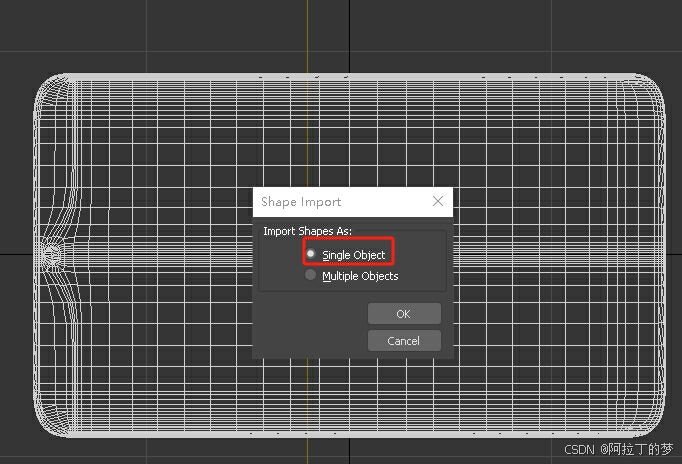

max中导入刚才的ai文件

重点来了！！！修改自相交

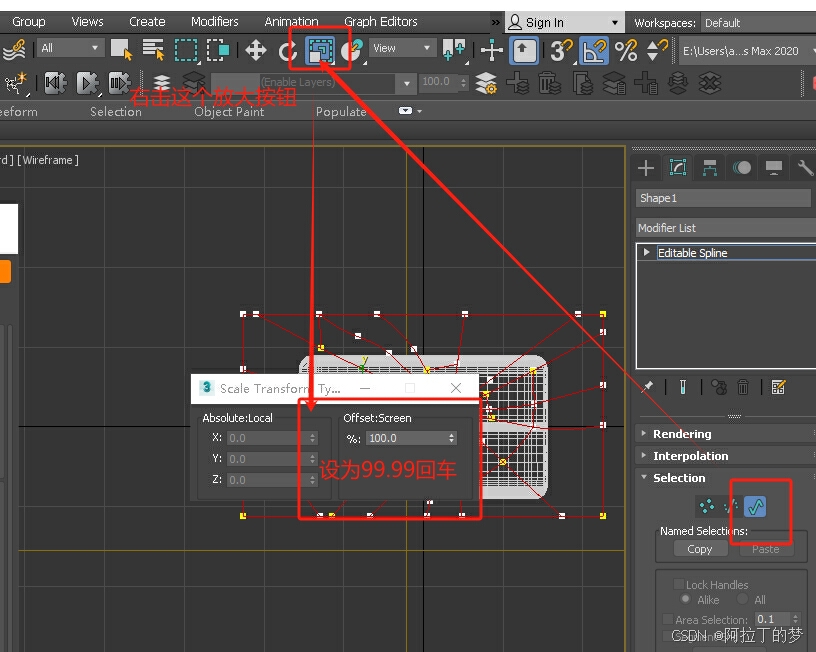

轴心模式改为各自独立，，右击选择和均匀放大按钮，修改offset，screen为99.99,回车，放大到最大看修正了自相交

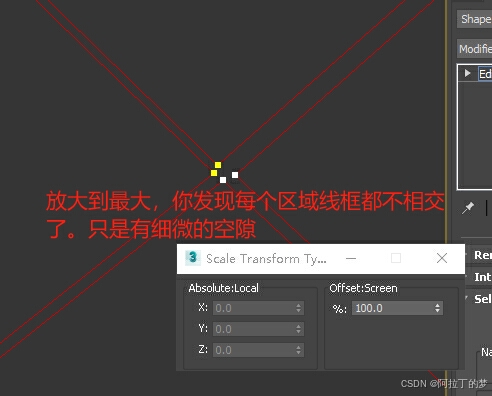

 放大到最大看修正了自相交

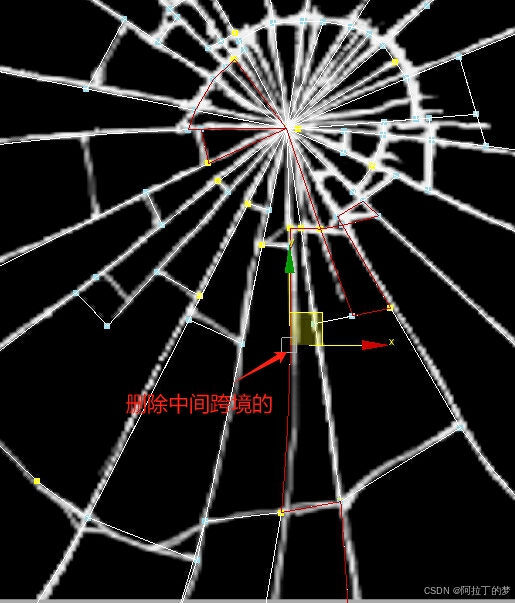

 仔细检查，删除跨境或者中间没有loop封闭的线段。

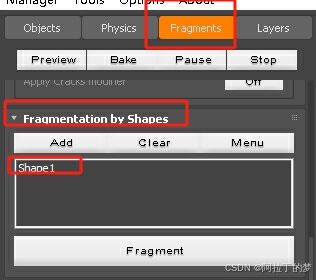

使用图形破碎



 顺利计算完成后把切割体和刚才的切割线 shape删除。大刚里把0级的那个完整的破碎前的物体也删除。

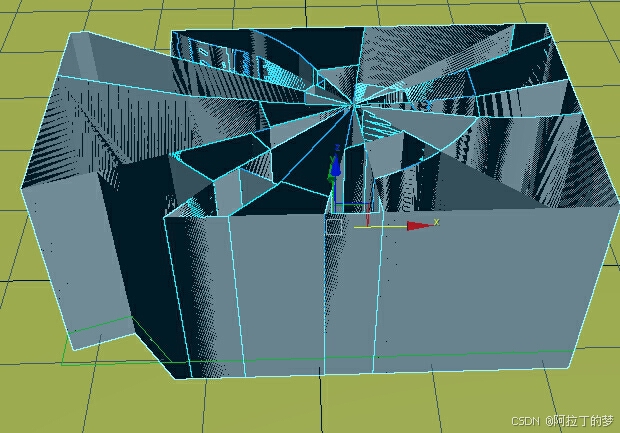

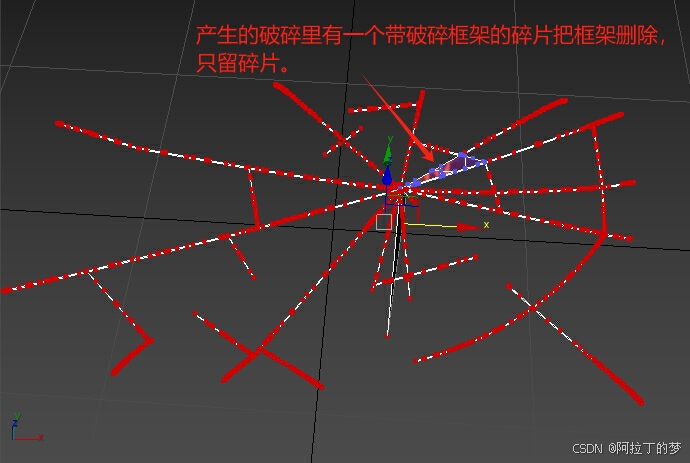

 其中有个碎片，产生出带框架的破碎，这个框架是没有厚度的，删除这些点，只保留碎片。

显示出所有的碎片。

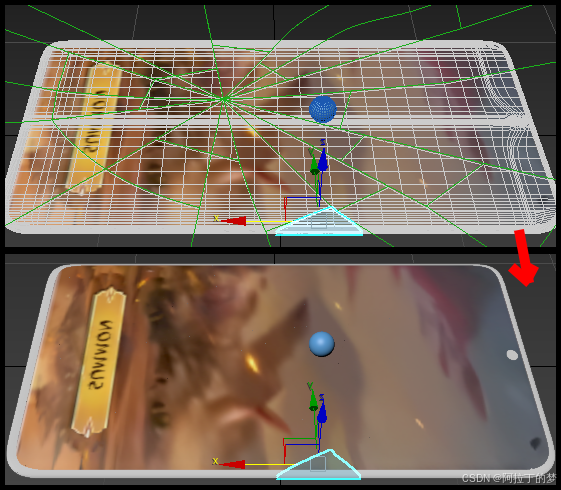

一个完美的自定义破碎体完成！

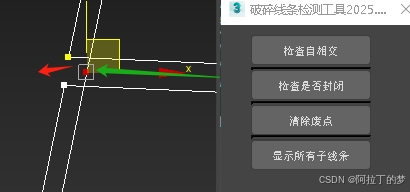

 使用脚本检查自相交，封闭和清除废点

 再搭配cgjoy里我的max破碎绑骨插件便可以完美的导入到unity，ue5里，不要信引擎的破碎插件。你做过项目就知道那玩意不好用！。记住一句话，插件能自动搞好，还要美工干啥？相信ai，母猪能上树。。

脚本代码免费拿！

destroyDialog 破碎线条检测工具
 rollout 破碎线条检测工具 "破碎线条检测工具2025.2.13" width:200 height:200
 (
    button checkIntersectionBtn "检查自相交" width:120 height:30 pos:[30,10]
	progressbar CheckIntersectionProgress "CreateProgressBar" color:(color 20 150 240) pos:[30,42]width:120 height:5  align:#center
    button CheckClosedBtn "检查是否封闭" width:120 height:30 pos:[30,45]
	progressbar CheckClosedProgress "CreateProgressBar" color:(color 20 150 240) pos:[30,76]width:120 height:5  align:#center
    button DelIsoVertex "清除废点" width:120 height:30 pos:[30,80]
	progressbar DelIsoVertexProgress "CreateProgressBar" color:(color 20 150 240) pos:[30,110]width:120 height:5  align:#center
	button showAllBtn "显示所有子线条" width:120 height:30 pos:[30,115]
-- 三维向量叉积的方法
fn ThreeVectorCrossIntersecting p1 p2 p3 p4 = (
    -- 计算方向向量
    local d1 = p2 - p1
    local d2 = p4 - p3
    local r = p3 - p1

    -- 计算叉积
    local crossD1D2 = cross d1 d2
    local crossR1D2 = cross r d2
    local crossR1D1 = cross r d1

    -- 如果叉积的长度接近0，说明线段平行
    local crossLength = length crossD1D2
    local epsilon = 0.0001
    if crossLength < epsilon then return false

    -- 计算参数
    local t = dot crossR1D2 crossD1D2 / (crossLength * crossLength)
    local u = dot crossR1D1 crossD1D2 / (crossLength * crossLength)

    -- 检查参数是否在0到1之间
    if t >= 0.0 and t <= 1.0 and u >= 0.0 and u <= 1.0 then return true
    return false
)

-- 检查两条子样条线是否相交的函数
fn areSubSplinesIntersecting shapeObj splineIndex1 splineIndex2 =
(
    -- 获取子样条线的顶点数量
    local numKnots1 = numKnots shapeObj splineIndex1
    local numKnots2 = numKnots shapeObj splineIndex2

    -- 遍历第一条子样条线的所有线段
    for i = 1 to (numKnots1 - 1) do
    (
        local p1 = getKnotPoint shapeObj splineIndex1 i
        local p2 = getKnotPoint shapeObj splineIndex1 (i + 1)

        -- 遍历第二条子样条线的所有线段
        for j = 1 to (numKnots2 - 1) do
        (
            local p3 = getKnotPoint shapeObj splineIndex2 j
            local p4 = getKnotPoint shapeObj splineIndex2 (j + 1)

            -- 使用三维线段相交检测函数,检测线段是否相交
            if ThreeVectorCrossIntersecting p1 p2 p3 p4 then return true
        )
    )
    return false
)

-- 延迟执行函数
fn delay mytimeNum excudeCMDStr=
(
    global delayTimer
    global excudeCMDStrGlobal= excudeCMDStr
    fn backtop =(
        execute excudeCMDStrGlobal
    )
    if delayTimer == undefined do
    (
        delayTimer = dotnetobject "Windows.Forms.Timer"
        dotnet.AddEventHandler delayTimer "Tick" backtop
    )
    delayTimer.Interval = mytimeNum
    delayTimer.enabled = true
    if delayTimer.enabled == true do
    (
        delayTimer.enabled = false
        --print("定时器已经停止")
    )
)

-- 检查自相交的函数
fn checkSelfIntersection shapeObj =
(
    local TotalSplines = shapeObj.numSplines
    local intersectPairs = #()
	P=1  --进度条初始化
	-- 计算总迭代次数
    totalIterations = (TotalSplines * (TotalSplines - 1)) / 2
    for i = 1 to TotalSplines do
    (
        for j = i + 1 to TotalSplines do
        (
            local isIntersecting = areSubSplinesIntersecting shapeObj i j
            if isIntersecting then
            (
                print "子样条线相交"
                append intersectPairs #(i, j)
            )
            else
            (
                print "子样条线不相交"
            )
			-----进度条-----
			CheckIntersectionProgress.value = 100.0 * P / totalIterations--CreateProgressBar
			if (keyboard.EscPressed==true) then exit
			P+=1
			-----进度条end-----
        )
		print("检查完毕")
    )
    if intersectPairs.count > 0 then
    (
        format ">检测到 % 对相交的子样条线：\n" intersectPairs.count
        for pair in intersectPairs do
        (
            --format ">>子样条线 % 和子样条线 % 相交。选择了它\n" pair[1] pair[2]
            setSplineSelection shapeObj #(pair[1]) keep:1
            setSplineSelection shapeObj #(pair[2]) keep:1
        )
        subobjectLevel = 3
        max select invert
        splineOps.hide shapeObj
    )
    cmdString="subobjectLevel = 3" as string
    delay 200 cmdString
)

-- 检查是否封闭的函数
fn checkClosed shapeObj =
(
    setSplineSelection shapeObj #() keep:0
    local NumerSplines = shapeObj.numSplines
	p=1  -----进度条初始化
    for splineIndex = 1 to NumerSplines do
    (
        local closed = isClosed shapeObj splineIndex
        if closed then
        (
            format "样条线 % 是封闭的。\n" splineIndex
        )
        else
        (
            --format "样条线 % 是开放的。\n" splineIndex
            --print("111"+splineIndex as string)
            setSplineSelection shapeObj #(splineIndex) keep:1
        )
		-----进度条-----
		CheckClosedProgress.value = 100.0 * P / NumerSplines--CreateProgressBar
		if (keyboard.EscPressed==true) then exit
		P+=1
		-----进度条end-----
    )
    subobjectLevel = 3
    max select invert
    splineOps.hide shapeObj
    cmdString="subobjectLevel = 3" as string
    delay 200 cmdString
)

-- 显示所有子线条的函数
fn showAllSubLines shapeObj =
(
    splineOps.unhideAll shapeObj
    setSplineSelection shapeObj #() keep:0
    local numSplines = shapeObj.numSplines
    for i = 1 to numSplines do
    (
        setSplineSelection shapeObj #(i) keep:1
    )
    subobjectLevel = 3
    cmdString="subobjectLevel = 3" as string
    delay 200 cmdString
)
    on checkIntersectionBtn pressed do
    (
        local shapeObj = selection[1]
        if isValidNode shapeObj and classof shapeObj == SplineShape then
        (
            checkSelfIntersection shapeObj
        )
        else
        (
            messagebox "请选择一个有效的样条线对象！"
        )
    )

    on checkClosedBtn pressed do
    (
        local shapeObj = selection[1]
        if isValidNode shapeObj and classof shapeObj == SplineShape then
        (
            checkClosed shapeObj
        )
        else
        (
            messagebox "请选择一个有效的样条线对象！"
        )
    )

    on showAllBtn pressed do
    (
        local shapeObj = selection[1]
        if isValidNode shapeObj and classof shapeObj == SplineShape then
        (
            showAllSubLines shapeObj
			setSplineSelection shapeObj #()keep:0
        )
        else
        (
            messagebox "请选择一个有效的样条线对象！"
        )
    )

	on DelIsoVertex pressed do
	(
		selarray=selection as array
		if selarray.count==0
		then messagebox "请选择物体！" title:"温馨提示"
		else
		(
			P=1  --初始化进度条
			for i=1 to selarray.count do
			(
				wrvarray=#()
				x=selarray[i]
				-- 检查对象是否为可编辑多边形，如果不是则转换
				if classof x != Editable_Poly then
				(
					convertToPoly x
				)
				--移除孤立点
				x.EditablePoly.deleteIsoVerts ()
				--移除同属于两条边并且同属于两个面的废点
				for j = 1 to x.GetNumVertices() do
				(
					x.EditablePoly.SetSelection #Vertex #{j}
					vbarray=x.EditablePoly.getSelection #Vertex
					varray=vbarray as array
					if ((x.GetVertexEdgeCount j)==2 and (x.GetVertexFaceCount j)==2)
					then append wrvarray varray[1]
				)
				x.EditablePoly.SetSelection #Vertex (wrvarray as bitarray)
				x.EditablePoly.Remove selLevel:#Vertex
				--移除开放边上的废点
				wvarray=#()
				for k=1 to x.GetNumVertices() do
				(
					x.EditablePoly.SetSelection #Vertex #{}
					if ((x.GetVertexEdgeCount k)==2 and (x.GetVertexFaceCount k)==1) then
					(
						x.EditablePoly.SetSelection #Vertex #{k}
						x.EditablePoly.ConvertSelection #Vertex #Edge
						eb=x.EditablePoly.getSelection #Edge
						ea=eb as array
						es=#()
						append es ea[1]
						x.EditablePoly.SetSelection #Edge (es as bitarray)
						x.EditablePoly.ConvertSelection #Edge #Vertex
						vb=x.EditablePoly.getSelection #Vertex
						va=vb as array
						if va[1]==k
						then v1=(x.getvertex va[2])-(x.getvertex k)
						else v1=(x.getvertex va[1])-(x.getvertex k)

						es=#()
						va=#()
						append es ea[2]
						x.EditablePoly.SetSelection #Edge (es as bitarray)
						x.EditablePoly.ConvertSelection #Edge #Vertex
						vb=x.EditablePoly.getSelection #Vertex
						va=vb as array
						if va[1]==k
						then v2=(x.getvertex va[2])-(x.getvertex k)
						else v2=(x.getvertex va[1])-(x.getvertex k)
					)
				)
				x.EditablePoly.SetSelection #Vertex (wvarray as bitarray)
				x.EditablePoly.Remove selLevel:#Vertex
				-----进度条-----
				DelIsoVertexProgress.value = 100.0 * P / selarray.count--CreateProgressBar
				if (keyboard.EscPressed==true) then exit
				P+=1
				-----进度条end-----
			)
		)
	)
)

-- 显示 UI 对话框
createDialog 破碎线条检测工具
