1. 流水灯设计设计
设计要求:实现5位Led灯从左向右循环依次每隔1秒点亮
2.不同频率(hz)实践:
1 不可以,只有最初的一个灯亮,不能流水
2 同上
5 可以
10 可以流水
50 闪烁但是间隔时间变慢相对于100,闪烁的更明显
100 闪烁
500 全都亮
800 全都亮
3.源代码:
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2024/12/19 14:09:49
// Design Name:
// Module Name: FlowingLight
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module FlowingLight(
input wire clk, // 时钟信号
input wire rst, // 复位信号(低电平有效)
output reg [4:0] led // 5位LED灯
);
reg [24:0] counter=0;
always @(posedge clk or posedge rst) begin
if (rst) begin
counter <= 0;
led <= 5'b00001; // 初始状态点亮第一个LED
end else begin
if (counter == 100_000_000/5) begin //
counter <= 0;
led <= {led[3:0], led[4]}; // 循环右移
end else begin
counter <= counter + 1;
end
end
end
endmodule

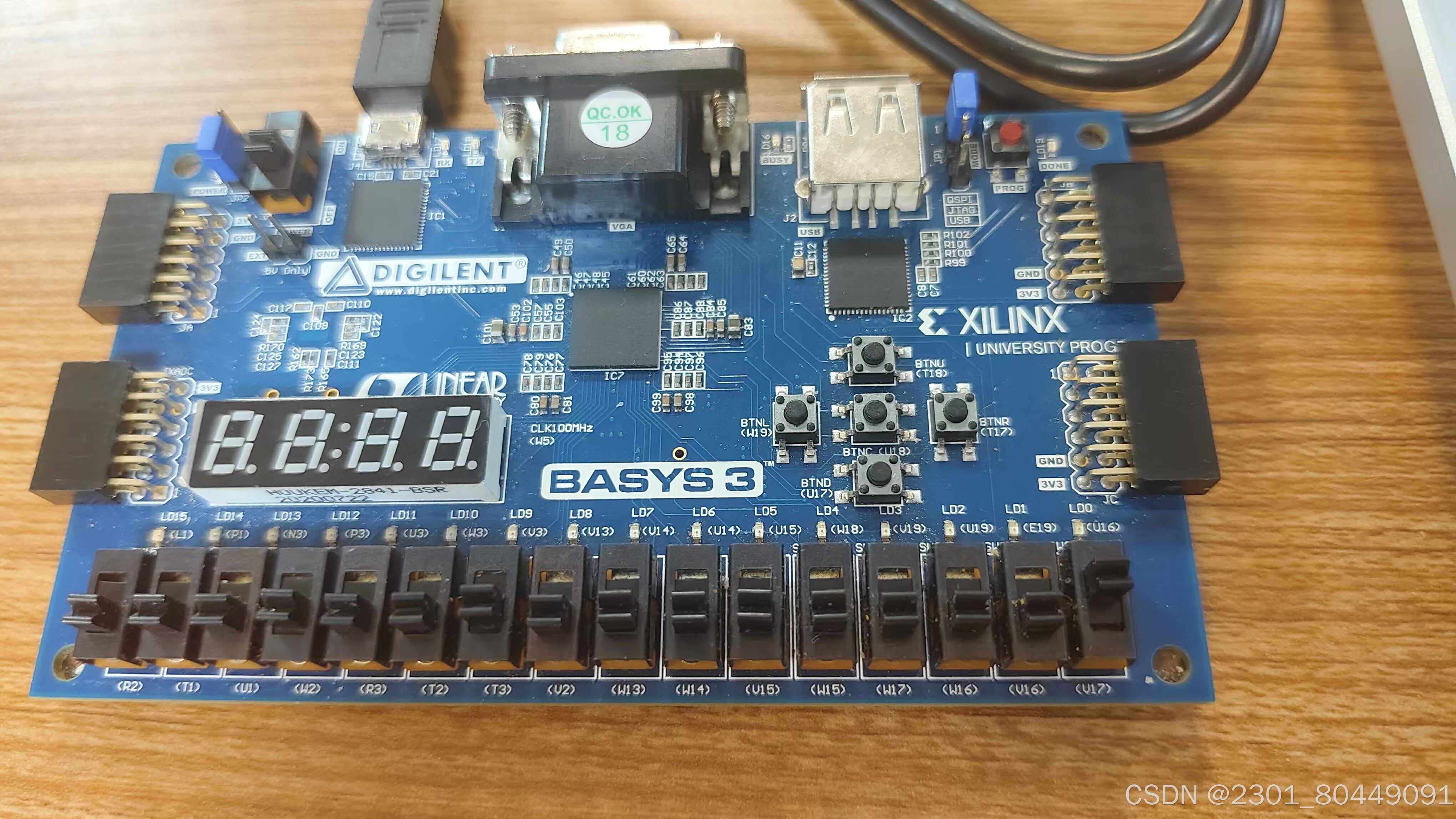

5.引脚约束
set_property IOSTANDARD LVCMOS33 [get_ports {clk}]
set_property IOSTANDARD LVCMOS33 [get_ports {rst}]
set_property IOSTANDARD LVCMOS33 [get_ports {led[*]}]
set_property PACKAGE_PIN W5 [get_ports {clk}]
set_property PACKAGE_PIN V17 [get_ports {rst}]
set_property PACKAGE_PIN L1 [get_ports {led[0]}]
set_property PACKAGE_PIN N3 [get_ports {led[1]}]
set_property PACKAGE_PIN U3 [get_ports {led[2]}]
set_property PACKAGE_PIN V3 [get_ports {led[3]}]
set_property PACKAGE_PIN V14 [get_ports {led[4]}]
6.疑问:
所以怎么才能实现1s一亮?而且我发现只要周期一大,开发板就实现不了了
