MUX VLAN 配置实验

最新推荐文章于 2025-05-07 09:59:18 发布

IT 小旋风

最新推荐文章于 2025-05-07 09:59:18 发布

阅读量214

点赞数 5

文章标签：运维

本文链接：https://blog.csdn.net/2402_86723757/article/details/147743194

版权

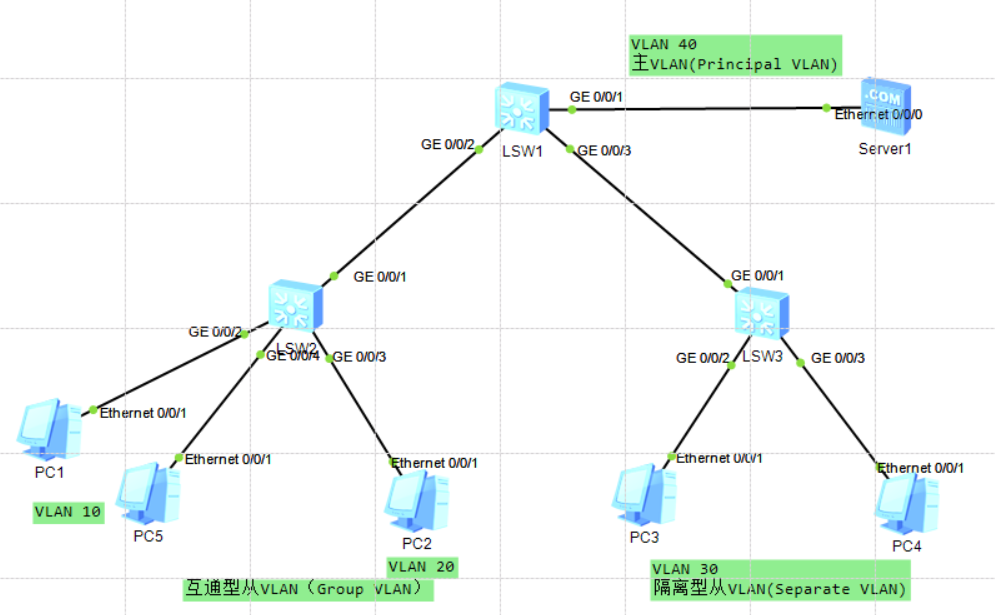

【sw1】
[sw1]vlan batch 10 20 30 40
[sw1]vlan 40
[sw1-vlan40]mux-vlan
[sw1-vlan40]subordinate separate 30
[sw1-vlan40]subordinate group 10 20
[sw1-vlan40]int g 0/0/1
[sw1-GigabitEthernet0/0/1]port link-type access
[sw1-GigabitEthernet0/0/1]port default vlan 40
[sw1-GigabitEthernet0/0/1]port mux-vlan enable
[sw1-GigabitEthernet0/0/1]int g 0/0/2
[sw1-GigabitEthernet0/0/2]port link-type trunk
[sw1-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[sw1-GigabitEthernet0/0/2]int g 0/0/3
[sw1-GigabitEthernet0/0/3]port link-type trunk
[sw1-GigabitEthernet0/0/3]port trunk allow-pass vlan all

【sw2】
[sw2]vlan batch 10 20 30 40
[sw2]vlan 40
[sw2-vlan40]mux-vlan
[sw2-vlan40]subordinate separate 30
[sw2-vlan40]subordinate group 10 20
[sw2-vlan40]int g 0/0/1
[sw2-GigabitEthernet0/0/1]port link-type trunk
[sw2-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[sw2-GigabitEthernet0/0/1]int g 0/0/2
[sw2-GigabitEthernet0/0/2]port link-type access
[sw2-GigabitEthernet0/0/2]port default vlan 10
[sw2-GigabitEthernet0/0/3]port mux-vlan enable
[sw2-GigabitEthernet0/0/2]int g 0/0/3
[sw2-GigabitEthernet0/0/3]port link-type access
[sw2-GigabitEthernet0/0/3]port default vlan 20
[sw2-GigabitEthernet0/0/3]port mux-vlan enable
[sw2-GigabitEthernet0/0/3]int g 0/0/4
[sw2-GigabitEthernet0/0/4]port link-type access
[sw2-GigabitEthernet0/0/4]port default vlan 10
[sw2-GigabitEthernet0/0/4]port mux-vlan enable

【sw3】
[sw3]vlan batch 10 20 30 40
[sw3]vlan 40
[sw3-vlan40]mux-vlan
[sw3-vlan40]subordinate separate 30
[sw3-vlan40]subordinate group 10 20
[sw3-vlan40]int g 0/0/1
[sw3-GigabitEthernet0/0/1]port link-type trunk
[sw3-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[sw3-GigabitEthernet0/0/1]int g 0/0/2
[sw3-GigabitEthernet0/0/2]port link-type access
[sw3-GigabitEthernet0/0/2]port default vlan 30
[sw3-GigabitEthernet0/0/2]port mux-vlan enable
[sw3-GigabitEthernet0/0/2]int g 0/0/3
[sw3-GigabitEthernet0/0/3]port link-type access
[sw3-GigabitEthernet0/0/3]port default vlan 30
[sw3-GigabitEthernet0/0/3]port mux-vlan enable

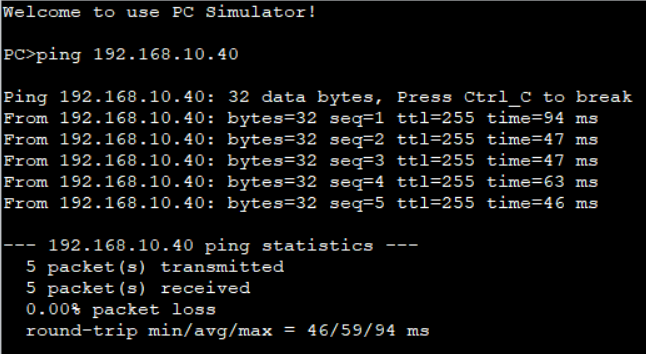

pc1ping 服务器

pc1 ping pc5

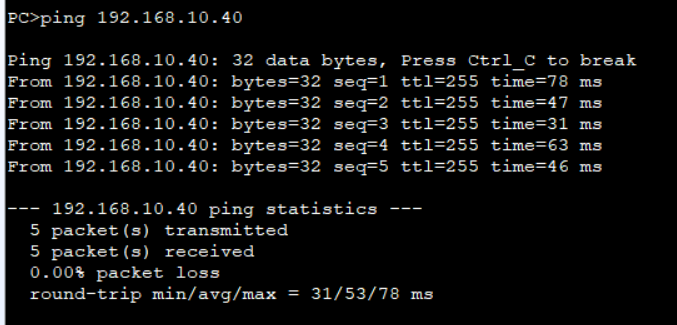

pc3 ping 服务器
