基于FPGA的简易时钟（含verilog源码）
功能分析
1. 具有显示时、分、秒、计时功能，按24小时制计时；(本例实现)
2. 具有校时功能，能够对“时”和“分”进行校时；
3. 具有闹钟功能；
正常计时功能
设计思路
通过FPGA晶振产生的50MHz时钟产生1hz的时钟信号；
得到的1hz时钟作为计时模块的时钟输入，得到时钟模块的时，分，秒的输出；
通过对应的输出通过转换模块将其转换为双位十进制数据；
最后通过LCD数码管显示；

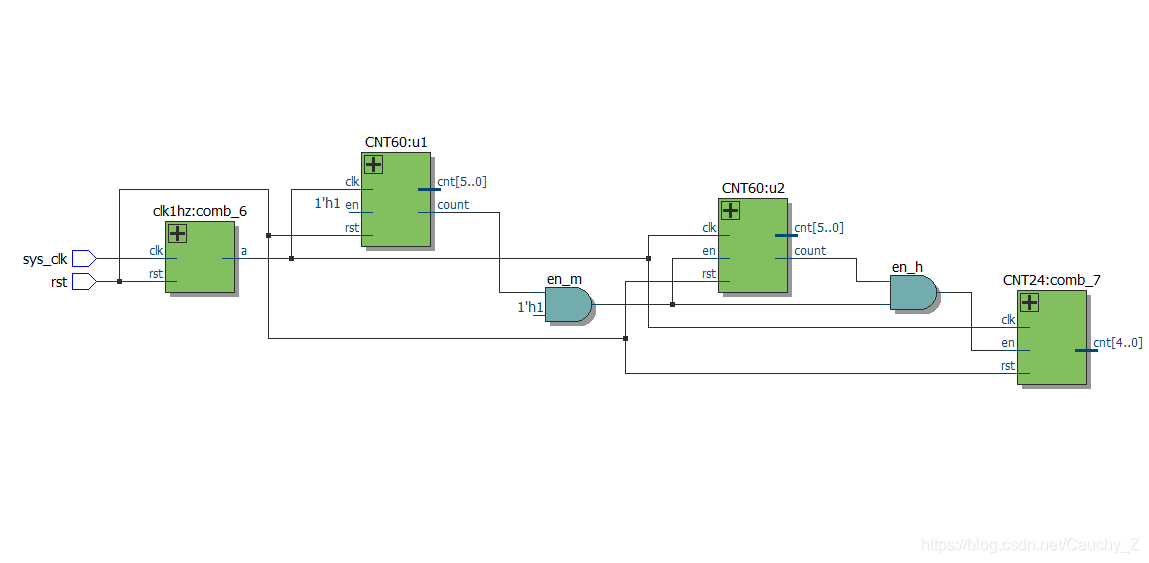

子模块设计如下：
1. 分频模块
2. 计数器模块
实验代码：
顶层模块：
module timer(
input sys_clk,
input rst,
output light,
output S_l,
output S_h,
output M_l,
output M_h,
output H_l,
output H_h
);
wire clk_1hz;
wire count_s;
wire count_m;
wire en_s;
wire en_m;
wire en_h;
assign en_s=1'b1;
assign en_m=count_s && en_s;
assign en_h=count_m && en_m;
clk1hz(
.clk(sys_clk),
.rst(rst),
.a(clk_1hz)
);
CNT60 u1(
.clk(clk_1hz),
.rst(rst),
.en(en_s),
.cnt(Sec),
.count(count_s)
);
CNT60 u2(
.clk(clk_1hz),
.rst(rst),
.en(en_m),
.cnt(Min),
.count(count_m)
);
CNT24(
.clk(clk_1hz),
.rst(rst),
.en(en_h),
.cnt(Hour)
);
endmodule
分频模块
module clk1hz(
input clk,
input rst,
output reg a
);
reg [32:0] tmp;
always @(posedge clk or negedge rst)
begin
if(!rst) begin
tmp <= 0;
a<=0;
end
else begin
if(tmp<29)begin
tmp<=tmp+1;
a<=a;
end
else begin
tmp <=0;
a<=~a;
end
end
end
endmodule
60计数模块
module CNT60(
input clk,
input rst,
input en,
output reg [5:0] cnt,
output reg count)
;
always @(posedge clk or negedge rst)begin
if(!rst) begin
cnt<=0;
end
else begin
if(en==1) begin
if(cnt<59)begin
if(cnt==58)begin
count<=1;
cnt<=cnt+1;
end
else begin
cnt<=cnt+1;
count<=0;
end
end
else begin
cnt<=0;
end
end
end
end
endmodule
24计数模块
module CNT24(
input clk,
input rst,
input en,
output reg [4:0] cnt
);
always @(posedge clk or negedge rst)
begin
if(!rst)
begin
cnt<=0;
end
else
begin
if(en==1) begin
if(cnt<23)begin
cnt<=cnt+1;
end
else begin
cnt<=0;
end
end
end
end
endmodule
该部分实验板测板测式可用。
完整代码功能代码
//多功能时钟
//时钟，调整时间，整点报时，闹钟，秒表
/*
input clk, //50MHz
input rst_n,
input [2:0] key_in, //按键输入
output [5:0] sel, //数码管位选
output [6:0] seg, //数码管段选
output time_led, //整点报时（闪烁）
output all_led //闹钟
*/
//
module top(input clk, //50MHz
input rst_n,
input [2:0] key_in, //按键输入
input [1:0] sw,
output [6:0] h0,
output [6:0] h1,
output [6:0] h2,
output [6:0] h3, //数码管段选
output time_led //整点报时（闪烁）
//output all_led //闹钟
);
endmodule
//按键消抖
module key_filter(
input clk,
input rst_n,
input key_in,
output reg key_state, //预留
output key_flag
);
parameter CNT_MAX = 5; //20ms计数值 1_000_000
reg [19:0] key_H, key_L; //计数变量
//------------------按键为低 计数-------------------------------------------------------------------------------------------------
always@(posedge clk, negedge rst_n) begin
if(!rst_n)
key_H <= 20'd0;
else begin
if(key_in)
key_H <= key_H + 1;
else
key_H <= 20'd0;
end
end
//-------------------按键为高 计数-----------------------------------------------------------------------------------------------------
always@(posedge clk, negedge rst_n) begin
if(!rst_n)
key_L <= 20'd0;
else begin
if(!key_in)
key_L <= key_L + 1;
else
key_L <= 20'd0;
end
end
//-------------------key_state输出判断-------------------------------------------------------------------------------------------------------
always@(posedge clk, negedge rst_n) begin
if(!rst_n)
key_state <= 1'b1;
else begin
if(key_H > CNT_MAX)
key_state <= 1'b1;
else if(key_L > CNT_MAX)
key_state <= 1'b0;
end
end
//---------------------按键按下 下降沿判断-------------------------------------------------------------
reg state1, state2;
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
state1 <= 1'b0;
state2 <= 1'b0;
end
else begin
state1 <= key_state;
state2 <= state1;
end
end
assign key_flag = (!state1) & state2; //按键按下，flag为高
endmodule
//模式转换 状态机
module model_change(
input clk,
input rst_n,
input key_in,
output [1:0] model
);
//------------------------------------------- 模式：00：时钟，01：闹钟，10：秒表，11：调时 --------------------------------------------------------------------------
reg [1:0] cnt;
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
cnt <= 2'd0;
end
else if(key_in) //按键按下
cnt <= cnt + 1'b1; // 00 01 10 11循环
else
cnt <= cnt;
end
assign model = cnt;
endmodule
//---- key1 模式切换 （时间显示，校准时间，闹钟， 秒表）
//---- key2 调时和设置闹钟时，小时、分钟左右切捯
//---- key3 +1
//---- sw0 秒表暂停（开始）切换
//---- sw1 秒表清除
module key_module(
input clk,
input rst_n,
input [2:0] key_in,
input [2:0]sw,
output [1:0] model, //模式：00：时钟，01：闹钟，10：秒表，11：调时
output reg [1:0] adjust_shif, //调整时间时，调整位置：00：秒个位，01：分个位，10：时个位
output key_up, //调整时间+
output reg pause, //秒表暂停/开始 0：暂停，1：开始
output clear //秒表清除
);
//-------------------------------------- 例化key_filter,产生按键对应的高电平脉冲 ----------------------------------------------------------------
wire [2:0] key_out;
genvar i;
generate
for(i = 0; i < 3; i = i + 1) begin: specify7_key_filter //块名
key_filter fliter1(
.clk (clk),
.rst_n (rst_n),
.key_in (key_in[i]),
.key_state (),
.key_flag (key_out[i])
);
end
endgenerate
assign key_up = key_out[3];
assign clear = sw[2];
//-------------------------------------------- 例化 model_change -------------------------------------------------------------------------------------------
model_change model1(
.clk (clk),
.rst_n (rst_n),
.key_in (key_out[1]),
.model (model)
);
//-------------------------------------------- adjust_shif 调整时间位置 ------------------------------------------------------------------------------------
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
adjust_shif <= 2'b00;
end
else begin
if(key_out[2]) begin
adjust_shif <= adjust_shif + 1'b1; //非阻塞赋值，需要到过程块结束才赋新值，所以 adjust_shif == 2'b10，而不是11
if(adjust_shif == 2'b10)
adjust_shif <= 2'b00;
end
if(key_out[1]) // model模式改变时，回到初始位
adjust_shif <= 2'b00;
end
end
//------------------------------------------------ pause 秒表暂停/开始 --------------------------------------------------------------------------------------------------
always@(posedge clk, negedge rst_n) begin
if(!rst_n)
pause <= 1'b0;
else if(sw[1])
pause <= ~pause;
else if(model != 2'b10) //退出秒表模式暂停
pause <= 1'b0;
else
pause <= pause;
end
endmodule
//分频
module clk_div( //clk_out的周期，可在上层模块例化时修改
input clk_in,
input rst_n,
output clk_out
);
//--------------------------------------------------------------------------------
parameter CNT_MAX = 25_000_000; //计数值/2
reg clk_reg;
reg [27:0] cnt;
//-------------------------------------------------------------------------------------
assign clk_out = clk_reg;
always@(posedge clk_in, negedge rst_n) begin
if(!rst_n) begin
clk_reg <= 1'b0;
cnt <= 28'd0;
end
else begin
if(cnt == CNT_MAX - 1) begin
cnt <= 28'd0;
clk_reg <= ~clk_reg;
end
else begin
cnt <= cnt + 1'b1;
clk_reg <= clk_reg;
end
end
end
endmodule
module time_counter(
input clk,
//input clk_1s,
input rst_n,
input [1:0] model,
input date_time_ch, //时间和日期切换标志位Ｄ?o时间，1为日朠
input [23:0] adjust_time_num, //时间调整倠
input [23:0] adjust_date_num, //日期调整倠
output [23:0] time_num,
output [23:0] data_num,
output time_led
);
//---------------------------- 秒表显示变量 --------------------------------
reg [3:0] toc_10ms;
reg [3:0] toc_100ms;
reg [3:0] toc_1s;
reg [3:0] toc_10s;
reg [3:0] toc_1m;
reg [3:0] toc_10m;
//------------------------- 1s时钟上升沿检浭----------------------------------------
wire clk_1s;
clk_div #(.CNT_MAX(10)) clk_div_1s(
.clk_in (clk),
.rst_n (rst_n),
.clk_out (clk_1s)
);
reg clk_reg1, clk_reg2;
wire pos_1s;
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
clk_reg1 <= 1'b0;
clk_reg2 <= 1'b0;
end
else begin
clk_reg1 <= clk_1s;
clk_reg2 <= clk_reg1;
end
end
assign pos_1s = clk_reg1 & (!clk_reg2);
//---------------------正常时间计数（时、分、秒Ｍ-----------------------------
reg [3:0] sec0;
reg [3:0] sec1;
reg [3:0] min0;
reg [3:0] min1;
reg [3:0] hour0;
reg [3:0] hour1;
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
sec0 <= 4'd9; //默认时间23:56:49
sec1 <= 4'd4;
min0 <= 4'd8;
min1 <= 4'd5;
hour0 <= 4'd3;
hour1 <= 4'd2;
end
else begin
if(pos_1s) begin
sec0 <= sec0 + 1'b1;
if(sec0 == 4'd9) begin
sec0 <= 4'd0;
sec1 <= sec1 + 1'b1;
if(sec1 == 4'd5) begin
sec1 <= 4'd0;
min0 <= min0 + 1'b1;
if(min0 == 4'd9) begin
min0 <= 4'd0;
min1 <= min1 + 1'b1;
if(min1 == 4'd5) begin
min1 <= 4'd0;
hour0 <= hour0 + 1'b1;
if(hour0 == 4'd9) begin
hour0 <= 4'd0;
hour1 <= hour1 + 1'b1;
end
end
end
end
end
end
if(hour1 ==4'd2 && hour0 == 4'd4) begin
hour1 <= 4'd0;
hour0 <= 4'd0;
end
if((model == 2'b11) && !date_time_ch) begin //时间校准模式
{hour1, hour0, min1, min0, sec1, sec0} <= adjust_time_num[23:0];
end
end
end
//--------------------- 日期时间（年、月、日Ｍ------------------------------
reg [3:0] day0;
reg [3:0] day1;
reg [3:0] month0; //年、月、日计数变量
reg [3:0] month1;
reg [3:0] year0;
reg [3:0] year1;
localparam mon1 = 8'h31, //每个月天敠
mon2 = 8'h28,
mon3 = 8'h31,
mon4 = 8'h30,
mon5 = 8'h31,
mon6 = 8'h30,
mon7 = 8'h31,
mon8 = 8'h31,
mon9 = 8'h30,
mon10 = 8'h31,
mon11 = 8'h30,
mon12 = 8'h31;
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
day0 <= 4'd8; //为了方便仿真看到变化，默认日期为2020-12-28
day1 <= 4'd2;
month0 <= 4'd2;
month1 <= 4'd1;
year0 <= 4'd0;
year1 <= 4'd2;
end
else begin
if(hour1 ==4'd2 && hour0 == 4'd4) begin //24小时删
day0 <= day0 + 1;
if(day0 == 4'd9) begin
day0 <= 4'd0;
day1 <= day1 + 1'b1;
end
case({month1, month0}) //根据月份，来改变
8'h01:
if({day1, day0} == mon1) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h02:
if({day1, day0} == mon2) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h03:
if({day1, day0} == mon3) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h04:
if({day1, day0} == mon4) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h05:
if({day1, day0} == mon5) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h06:
if({day1, day0} == mon6) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h07:
if({day1, day0} == mon7) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h08:
if({day1, day0} == mon8) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h09:
if({day1, day0} == mon9) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= 4'd0;
month1 <= 4'd1; //月份高位也变
end
8'h10:
if({day1, day0} == mon10) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h11:
if({day1, day0} == mon11) begin
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= month0 + 1'b1;
end
8'h12:
if({day1, day0} == mon12) begin //12月最后一夠
day0 <= 4'd1;
day1 <= 4'd0;
month0 <= 4'd1;
month1 <= 4'd0;
year0 <= year0 + 1'b1; //下一幠
if(year0 == 4'd9) begin
year0 <= 4'd0;
year1 <= year1 + 1'b1;
end
end
default: begin
day0 <= 4'hx; //为了方便仿真,设为x
day1 <= 4'hx;
month0 <= 4'hx;
month1 <= 4'hx;
year0 <= 4'hx;
year1 <= 4'hx;
end
endcase
end
if((model == 2'b11) && date_time_ch) //时间校准模式，并且处于日期显示下
{year1, year0, month1, month0, day1, day0} <= adjust_date_num[23:0];
end
end
//------------------------------------------------------------ 整点报时 ---------------------------------------------------------------------
reg len_flag;
always@(posedge clk, negedge rst_n) begin
if(!rst_n)
len_flag <= 1'b0;
else if(time_num[15:0] == 16'b0) //分钟和秒都归零
len_flag <= 1'b1;
else if(min0 == 4'd1) //1分钟
len_flag <= 1'b0;
else
len_flag <= len_flag;
end
assign time_led = len_flag ? clk_1s : 1'b0; //1s闪烁，持续1分钟
//---------------------------------------------------------- 输出赋值-----------------------------------------------------------------------
assign time_num = {hour1, hour0, min1, min0, sec1, sec0};
assign data_num = {year1, year0, month1, month0, day1, day0};
endmodule
module adjust_module(
input clk,
input rst_n,
input [1:0] model, //模式Ｐ：时钟，01：闹钟，10：秒表，11：调无
input date_time_ch,
input [1:0] adjust_shif, //调整时间时，调整位置Ｐ：秒个位Ｑ：分个位Ｐ：时个位
input key_up, //调整时间+
input key_down, //调整时间-
input [23:0] time_num,
input [23:0] data_num,
output [23:0] adjust_time_num,
output [23:0] adjust_date_num,
output [15:0] adjust_clock_num
);
//---------------------------- 闹钟变量 -------------------------------------------------------------------------------------------
reg [3:0] clock_min0;
reg [3:0] clock_min1;
reg [3:0] clock_hour0;
reg [3:0] clock_hour1;
//----------------------------- 闹钟设置 ------------------------------------------------------------------------------------------------
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
clock_min0 <= 4'd0;
clock_min1 <= 4'd0;
clock_hour0 <= 4'd0;
clock_hour1 <= 4'd0;
end
else if(model == 2'b01) begin //闹钟模式,只有小时、分钟
if(adjust_shif == 2'b00) begin //调分钟个位
if(key_up) begin
clock_min0 <= clock_min0 + 1'b1;
if(clock_min0 == 4'd9)
clock_min0 <= 4'd0;
end
else if(key_down) begin
clock_min0 <= clock_min0 - 1'b1;
if(clock_min0 == 4'd0)
clock_min0 <= 4'd9;
end
end
else if(adjust_shif == 2'b01) begin //调分钟十位
if(key_up) begin
clock_min1 <= clock_min1 + 1'b1;
if(clock_min1 == 4'd5)
clock_min1 <= 4'd0;
end
else if(key_down) begin
clock_min1 <= clock_min1 - 1'b1;
if(clock_min1 == 4'd0)
clock_min1 <= 4'd5;
end
end
else begin //小时个位
if(key_up) begin
clock_hour0 <= clock_hour0 + 1'b1;
if(clock_hour0 == 4'd9) begin
clock_hour0 <= 4'd0;
clock_hour1 <= clock_hour1 + 1'b1;
end
if(clock_hour1 ==4'd2 && clock_hour0 == 4'd3) begin
clock_hour1 <= 4'd0;
clock_hour0 <= 4'd0;
end
end
else if(key_down) begin
clock_hour0 <= clock_hour0 - 1'b1;
if(clock_hour0 == 4'd0) begin
clock_hour0 <= 4'd9;
clock_hour1 <= clock_hour1 - 1'b1;
end
if(clock_hour1 ==4'd0 && clock_hour0 == 4'd0) begin
clock_hour1 <= 4'd2;
clock_hour0 <= 4'd3;
end
end
end
end
end
//-------------------------- 校准时间变量 ------------------------------------------------------------------------------------------------
reg [3:0] adj_sec0;
reg [3:0] adj_sec1;
reg [3:0] adj_min0;
reg [3:0] adj_min1;
reg [3:0] adj_hour0;
reg [3:0] adj_hour1;
/*------------------------*/
reg [3:0] adj_day0;
reg [3:0] adj_day1;
reg [3:0] adj_month0;
reg [3:0] adj_month1;
reg [3:0] adj_year0;
reg [3:0] adj_year1;
//----------------------------- 校准时间和日期--------------------------------------------------------------------------------------------------------
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
adj_sec0 <= 4'd9;
adj_sec1 <= 4'd4;
adj_min0 <= 4'd6;
adj_min1 <= 4'd5;
adj_hour0 <= 4'd3;
adj_hour1 <= 4'd2;
adj_day0 <= 4'd8;
adj_day1 <= 4'd0;
adj_month0 <= 4'd6;
adj_month1 <= 4'd0;
adj_year0 <= 4'd0;
adj_year1 <= 4'd2;
end
else if((model == 2'b11) && !date_time_ch)begin
case(adjust_shif) //调时 位置
2'b00: begin //秒个位
if(key_up) begin
adj_sec0 <= adj_sec0 + 1'b1;
if(adj_sec0 == 4'd9) begin
adj_sec0 <= 4'd0;
adj_sec1 <= adj_sec1 + 1'b1;
if(adj_sec1 == 4'd5) begin
adj_sec1 <= 4'd0;
end
end
end
else if(key_down) begin
adj_sec0 <= adj_sec0 - 1'b1;
if(adj_sec0 == 4'd0) begin
adj_sec0 <= 4'd9;
adj_sec1 <= adj_sec1- 1'b1;
if(adj_sec1 == 4'd0) begin
adj_sec1 <= 4'd5;
end
end
end
end
2'b01: begin //分个位
if(key_up) begin
adj_min0 <= adj_min0 + 1'b1;
if(adj_min0 == 4'd9) begin
adj_min0 <= 4'd0;
adj_min1 <= adj_min1 + 1'b1;
if(adj_min1 == 4'd5) begin
adj_min1 <= 4'd0;
end
end
end
else if(key_down) begin
adj_min0 <= adj_min0 - 1'b1;
if(adj_min0 == 4'd0) begin
adj_min0 <= 4'd9;
adj_min1 <= adj_min1- 1'b1;
if(adj_min1 == 4'd0) begin
adj_min1 <= 4'd5;
end
end
end
end
2'b10: begin //时个位
if(key_up) begin
adj_hour0 <= adj_hour0 + 1'b1;
if(adj_hour0 == 4'd9) begin
adj_hour0 <= 4'd0;
adj_hour1 <= adj_hour1 + 1'b1;
end
if(adj_hour1 ==4'd2 && adj_hour0 == 4'd3) begin
adj_hour1 <= 4'd0;
adj_hour0 <= 4'd0;
end
end
if(key_down) begin
adj_hour0 <= adj_hour0 - 1'b1;
if(adj_hour0 == 4'd0) begin
adj_hour0 <= 4'd9;
adj_hour1 <= adj_hour1 - 1;
end
if(adj_hour1 ==4'd0 && adj_hour0 == 4'd0) begin
adj_hour1 <= 4'd2;
adj_hour0 <= 4'd3;
end
end
end
default: begin
adj_sec0 <= 4'dx;
adj_sec1 <= 4'dx;
adj_min0 <= 4'dx;
adj_min1 <= 4'dx;
adj_hour0 <= 4'dx;
adj_hour1 <= 4'dx;
end
endcase
end
else if((model == 2'b11) && date_time_ch) begin
case(adjust_shif) //调时 位置
2'b00: begin//日个位
if(key_up) begin
adj_day0 <= adj_day0 + 1'b1;
if(adj_day0 == 4'd9) begin
adj_day0 <= 4'd0;
adj_day1 <= adj_day1 + 1;
end
if(adj_day1 == 4'd3 && adj_day0 == 4'd1) begin //为了简化逻辑，调整天数，在0-31号之间
adj_day1 <= 4'd0;
adj_day0 <= 4'd1;
end
end
if(key_down) begin
adj_day0 <= adj_day0 - 1'b1;
if(adj_day0 == 4'd0) begin
adj_day0 <= 4'd9;
adj_day1 <= adj_day1 - 1;
end
if(adj_day1 == 4'd0 && adj_day0 == 4'd1) begin //1号再减一，31号
adj_day1 <= 4'd3;
adj_day0 <= 4'd1;
end
end
end
2'b01: begin //月个位
if(key_up) begin
adj_month0 <= adj_month0 + 1'b1;
if(adj_month0 == 4'd9) begin
adj_month0 <= 4'd0;
adj_month1 <= adj_month1 + 1;
end
if(adj_month1 == 4'd1 && adj_month0 == 4'd2) begin //十二月加一，到十二月
adj_month1 <= 4'd0;
adj_month0 <= 4'd1;
end
end
if(key_down) begin
adj_month0 <= adj_month0 - 1'b1;
if(adj_month0 == 4'd0) begin
adj_month0 <= 4'd9;
adj_month1 <= adj_month1 - 1;
end
if(adj_month1 == 4'd0 && adj_month0 == 4'd1) begin //一月再减一，到十二月
adj_month1 <= 4'd1;
adj_month0 <= 4'd2;
end
end
end
2'b10: begin //年个位
if(key_up) begin
adj_year0 <= adj_year0 + 1'b1;
if(adj_year0 == 4'd9) begin
adj_year0 <= 4'd0;
adj_year1 <= adj_year1 + 1;
if(adj_year1 == 4'd9) begin
adj_year1 <= 4'd0;
end
end
end
if(key_down) begin
adj_year0 <= adj_year0 - 1'b1;
if(adj_year0 == 4'd0) begin
adj_year0 <= 4'd9;
if(adj_year1 > 4'd0)
adj_year1 <= adj_year1 - 1;
end
end
end
default: begin
adj_day0 <= 4'hx; //方便仿真时能看到错误
adj_day1 <= 4'hx;
adj_month0 <= 4'dx;
adj_month1 <= 4'dx;
adj_year0 <= 4'dx;
adj_year1 <= 4'dx;
end
endcase
end
else begin
{adj_hour1, adj_hour0, adj_min1, adj_min0, adj_sec1, adj_sec0} <= time_num; //将当前时间赋给调节变量
{adj_year1, adj_year0, adj_month1, adj_month0, adj_day1, adj_day0} <= data_num; //即：在当前时间的基础上调节
end
end
//------------------------------------------- 输出 ---------------------------------------------------------------------------------
assign adjust_time_num = {adj_hour1, adj_hour0, adj_min1, adj_min0, adj_sec1, adj_sec0};
assign adjust_date_num = {adj_year1, adj_year0, adj_month1, adj_month0, adj_day1, adj_day0};
assign adjust_clock_num = {clock_hour1, clock_hour0, clock_min1, clock_min0};
endmodule
module stop_watch(
input clk,
input rst_n,
input [1:0] model,
input pause, //秒表暂停/开始 0：暂停，1：开始
input clear, //秒表清除
output [23:0] stop_watch_num //输出显示
);
//-------------------------------------- 10ms上升沿 --------------------------------------------------------------------------
wire clk_10ms;
reg clk_10ms_reg1, clk_10ms_reg2;
wire pos_10ms;
clk_div #(.CNT_MAX(20)) clk_div_10ms( //为了缩短仿真时间，参数设为1，即为一个时钟周期
.clk_in (clk),
.rst_n (rst_n),
.clk_out (clk_10ms)
);
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin
clk_10ms_reg1 <= 1'b0;
clk_10ms_reg2 <= 1'b0;
end
else begin
clk_10ms_reg1 <= clk_10ms;
clk_10ms_reg2 <= clk_10ms_reg1;
end
end
assign pos_10ms = clk_10ms_reg1 & (~clk_10ms_reg2);
//-------------------------------------- 10ms_计数 --------------------------------------------------------------------------------
reg [3:0] cnt_ms0;
reg [3:0] cnt_ms1;
reg [3:0] cnt_s0;
reg [3:0] cnt_s1;
reg [3:0] cnt_m0;
reg [3:0] cnt_m1;
always@(posedge clk, negedge rst_n) begin
if(!rst_n) begin //异步复位
cnt_ms0 <= 4'd0;
cnt_ms1 <= 4'd0;
cnt_s0 <= 4'd0;
cnt_s1 <= 4'd0;
cnt_m0 <= 4'd0;
cnt_m1 <= 4'd0;
end
else if(clear) begin //同步清零
cnt_ms0 <= 4'd0;
cnt_ms1 <= 4'd0;
cnt_s0 <= 4'd0;
cnt_s1 <= 4'd0;
cnt_m0 <= 4'd0;
cnt_m1 <= 4'd0;
end
else if(pos_10ms) begin
if(model == 2'b10) begin //秒表模式
if(pause) begin //开始
cnt_ms0 <= cnt_ms0 + 1'b1;
if(cnt_ms0 == 4'd9) begin
cnt_ms0 <= 4'd0;
cnt_ms1 <= cnt_ms1 + 1'b1;
if(cnt_ms1 == 4'd9) begin //99, 1s时间到
cnt_ms1 <= 4'd0;
cnt_s0 <= cnt_s0 + 1'b1;
if(cnt_s0 == 4'd9) begin
cnt_s0 <= 4'd0;
cnt_s1 <= cnt_s1 + 1'b1;
if(cnt_s1 == 4'd5) begin //59s
cnt_s1 <= 4'd0;
cnt_m0 <= cnt_m0 + 1'b1;
if(cnt_m0 == 4'd9) begin
cnt_m0 <= 4'd0;
cnt_m1 <= cnt_m1 + 1'b1;
end
end
end
end
end
end
end
end
else begin
cnt_ms0 <= cnt_ms0;
cnt_ms1 <= cnt_ms1;
cnt_s0 <= cnt_s0;
cnt_s1 <= cnt_s1;
cnt_m0 <= cnt_m0;
cnt_m1 <= cnt_m1;
end
end
//------------------------------------------------------ 输出 --------------------------------------------------------------------
assign stop_watch_num = {cnt_m1, cnt_m0, cnt_s1, cnt_s0, cnt_ms1, cnt_ms0};
endmodule
module alarm_music(
input clk,
input rst_n,
input [15:0] adjust_clock_num, //闹钟调整值,只有小时和分钟
input [23:0] time_num,
output led
);
//------------------------------------- 闹钟使能逻辑 ---------------------------------------------------------------------------------------
reg flag_en;
reg [7:0] state;
always@(posedge clk, negedge rst_n) begin
if(!rst_n)
flag_en <= 1'b0;
else if({adjust_clock_num, 8'd0} == time_num) //闹钟时间到
flag_en <= 1'b1;
else if(state == 8'd63)
flag_en <= 1'b0;
else
flag_en <= flag_en;
end
endmodule
//----------------------------数码管显示-------------------------------------------------------------
module led_seg7_display(
input clk,
input rst_n,
input [1:0] model,
input [23:0] time_num, // 时钟数据
input [23:0] data_num, // 日期数据
input [23:0] adjust_time_num, // 调整时钟数据
input [15:0] adjust_clock_num,// 调整闹钟数据
input [23:0] stop_watch_num, // 秒表
output [3:0] sel, // 数码管位选（选择当前要显示的数码管）
output reg [6:0] seg // 数码管段选（当前要显示的内容）
);
//--------------------------------------------- 显示数据选择 -------------------------------------------------------------------------------
reg [23:0] show_num;
always@(posedge clk, negedge rst_n) begin
if(!rst_n)
show_num <= 24'h0;
else begin
if(model == 2'b00) //常规显示
//显示时间
show_num <= time_num;
else if(model == 2'b01) //闹钟显示
show_num <= {adjust_clock_num, 8'b00000000}; //闹钟只有小时和分钟，这里默认秒位
else if(model == 2'b10) //秒表显示
show_num <= stop_watch_num;
else //调整时间
//调整时间显示
show_num <= adjust_time_num;
end
end
//--------------------------------------------- 数码管显示逻辑 ----------------------------------------------------------------------------------
wire clk_1ms; //数码管扫描1ms
clk_div #(.CNT_MAX(1)) clk_div_1ms( //为了缩短仿真时间
.clk_in (clk),
.rst_n (rst_n),
.clk_out (clk_1ms)
);
reg [3:0]sel_r; //位选缓存
reg [3:0]data_tmp; //数据缓存
always@(posedge clk_1ms or negedge rst_n)
if(!rst_n)
sel_r <= 3'b00_01;
else if(sel_r == 6'b10_00)
sel_r <= 6'b00_01;
else
sel_r <= sel_r << 1;
always@(*)
case(sel_r)
4'b00_01:data_tmp = show_num[3:0];
4'b00_10:data_tmp = show_num[7:4];
4'b01_00:data_tmp = show_num[11:8];
4'b10_00:data_tmp = show_num[15:12];
default: data_tmp = 4'b0000;
endcase
always@(*)
case(data_tmp)
4'h0:seg = 7'b1000000;
4'h1:seg = 7'b1111001;
4'h2:seg = 7'b0100100;
4'h3:seg = 7'b0110000;
4'h4:seg = 7'b0011001;
4'h5:seg = 7'b0010010;
4'h6:seg = 7'b0000010;
4'h7:seg = 7'b1111000;
4'h8:seg = 7'b0000000;
4'h9:seg = 7'b0010000;
default:
seg = 7'b1000000;
endcase
assign sel = sel_r;
endmodule
扫一扫
497
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
