Pairing phenomenon
论文作者在 AlexNet 的模型上做了一个有趣的实验,发现:低层的卷积层中的一些滤波器核存在着负相关程度很高的滤波器核,而层次越高的卷积层,这一现象越不明显。作者把这一现象称为 pairing phenomenon。
设网络的某层卷积层的滤波器组的卷积核的单位向量组表示为
ϕ⃗ 1,ϕ⃗ 2,⋯,ϕ⃗ n
,定义的 pairing filter 为
ϕ⃗ ∗i=argminϕ⃗ j⟨ϕ⃗ i,ϕ⃗ j⟩
,其中
j=1,2,⋯,n
,
n
为该层卷积层的滤波器数目。滤波器
笔者做了相似的实验,实验代码如下:
#coding=utf-8
'''
2017年02月14日
'''
import os
import numpy as np
import matplotlib.pyplot as plt
import caffe
def plotPairFilterCosineHist(net):
filtersList = []
for item in net.params:
if item.startswith('conv'):
filtersList.append( net.params[item][0].data)
layerNum = len(filtersList)
for k, filters in enumerate(filtersList):
filterNum = filters.shape[0]
filters = filters.reshape(filterNum, -1)
filters = filters / np.linalg.norm(filters, axis=1, keepdims=True)
pairFilterCosine = np.empty(filterNum, dtype=np.float)
for i in range(filterNum):
minCosine = 1
for j in range(filterNum):
minCosine = min(minCosine, np.dot(filters[i], filters[j]))
pairFilterCosine[i] = minCosine
plt.subplot(1, layerNum, k + 1)
plt.title('conv{}'.format(k + 1))
plt.hist(pairFilterCosine, 10)
if __name__ == '__main__':
caffe.set_mode_gpu()
modelRoot = r'D:\caffe-master\models\bvlc_reference_caffenet'
deployPrototxt = os.path.join(modelRoot, 'deploy.prototxt')
modelFile = os.path.join(modelRoot, 'bvlc_reference_caffenet.caffemodel')
net = caffe.Net(deployPrototxt, modelFile, caffe.TEST)
plotPairFilterCosineHist(net)

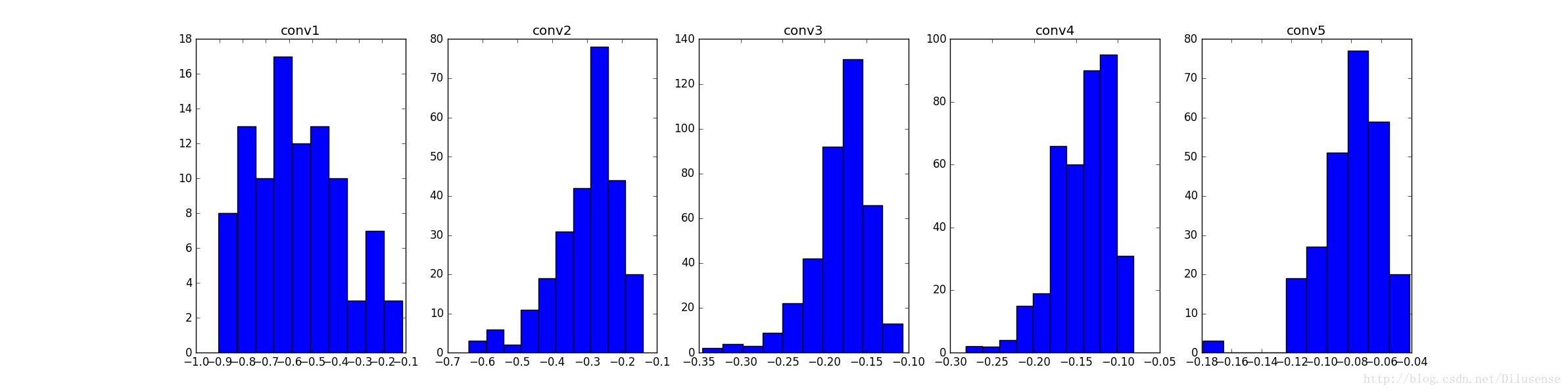

输出结果如下:
由上图可以得到和原论文相似的结论:直方图主要集中于负半轴,且随着卷积层的加深,直方图向右偏移。
CReLU
论文作者基于上面的现象提出了一个假设:
we hypothesize that despite ReLU erasing negative linear responses, the first few convolution layers of a deep CNN manage to capture both negative and positive phase information through learning pairs or groups of negatively correlated filters. This conjecture implies that there exists a redundancy among the filters
为了消除 ReLU 带来的冗余,论文作者提出了一个新的激活机制(activation scheme),称为Concatenated Rectified Linear Units,简称为CReLU。设
[⋅]+=max(⋅,0)
,则 CReLU 定义如下:
注意到其与一般激活函数的不同之处:CReLU有二维输出,而一般的激活函数只有一维输出。所以,论文中提到:CReLU is based on an activation scheme rather than a function, which fundamentally differentiates itself from Leaky ReLU or other variants. 不过笔者觉得将 CReLU 视作一维输入二维输出的激活函数也无妨。
实验和分析
最后作者在三个数据集上验证了CReLU的有效性:CIFAR-10,CIFAR-100和ImageNet。此外论文作者还从正则化和重建角度对CReLU的有效性进行了定性的讨论。
