由于博主的c++大作业必须包含可视化部分，但是却不让使用Qt，因此只好选择使用sfml来完成，可惜博主平时只用dev敲算法比较讨厌冗杂的输出因此在上古dev配置sfml异常困难，所以只好重新下载vscode使用sfml，但是总是遇到问题，找到好的文章却看不了，因此写出此文。

首先在下载好vscode后，你需要下载sfml和对应的mingw，记住版本一定需要对应。你可以直接在sfml的下载界面去下载对应的mingw版本。

接下来在下载成功后将路径放入环境变量。

再接下来分别配置四个所需文件。博主把自己可以正常运行的代码放在下面。

首先是c_cpp_properties.json

  {
    "configurations": [
      {
        "name": "Win64",
        "includePath": [
            "${workspaceFolder}/**",
            "D:\\SFML\\SFML-2.6.1\\include"
        ],
        "defines": ["_DEBUG", "UNICODE", "_UNICODE"],
        "windowsSdkVersion": "10.0.18362.0",
        "compilerPath": "D:/MinGW/MinGW/bin/g++.exe",
        "cStandard": "c17",
        "cppStandard": "c++17",
        "intelliSenseMode": "gcc-x64"
      }
    ],
    "version": 4
  }

然后是launch.json

{
    "version": "0.2.0",
    "configurations": [
      {
        "name": "(gdb) Launch",
        "type": "cppdbg",
        "request": "launch",
        "program": "${fileDirname}\\${fileBasenameNoExtension}.exe",
        "args": [],
        "stopAtEntry": false,
        "cwd": "${workspaceRoot}",
        "environment": [],
        "externalConsole": true,
        "MIMode": "gdb",
        "miDebuggerPath": "D:\\MinGW\\MinGW\\bin\\gdb.exe",
        "preLaunchTask": "g++",
        "setupCommands": [
          {
            "description": "Enable pretty-printing for gdb",
            "text": "-enable-pretty-printing",
            "ignoreFailures": true
          }
        ]
      }
    ]
  }

其次是settings.json

{
    "files.associations": {
      "*.py": "python",
      "iostream": "cpp",
      "*.tcc": "cpp",
      "string": "cpp",
      "unordered_map": "cpp",
      "vector": "cpp",
      "ostream": "cpp",
      "new": "cpp",
      "typeinfo": "cpp",
      "deque": "cpp",
      "initializer_list": "cpp",
      "iosfwd": "cpp",
      "fstream": "cpp",
      "sstream": "cpp",
      "map": "c",
      "stdio.h": "c",
      "algorithm": "cpp",
      "atomic": "cpp",
      "bit": "cpp",
      "cctype": "cpp",
      "clocale": "cpp",
      "cmath": "cpp",
      "compare": "cpp",
      "concepts": "cpp",
      "cstddef": "cpp",
      "cstdint": "cpp",
      "cstdio": "cpp",
      "cstdlib": "cpp",
      "cstring": "cpp",
      "ctime": "cpp",
      "cwchar": "cpp",
      "exception": "cpp",
      "ios": "cpp",
      "istream": "cpp",
      "iterator": "cpp",
      "limits": "cpp",
      "memory": "cpp",
      "random": "cpp",
      "set": "cpp",
      "stack": "cpp",
      "stdexcept": "cpp",
      "streambuf": "cpp",
      "system_error": "cpp",
      "tuple": "cpp",
      "type_traits": "cpp",
      "utility": "cpp",
      "xfacet": "cpp",
      "xiosbase": "cpp",
      "xlocale": "cpp",
      "xlocinfo": "cpp",
      "xlocnum": "cpp",
      "xmemory": "cpp",
      "xstddef": "cpp",
      "xstring": "cpp",
      "xtr1common": "cpp",
      "xtree": "cpp",
      "xutility": "cpp",
      "stdlib.h": "c",
      "string.h": "c"
    },
    "editor.suggest.snippetsPreventQuickSuggestions": false,
    "aiXcoder.showTrayIcon": true
  }

最后是tasks.json

{
    "tasks": [
        {
            "type": "cppbuild",
            "label": "C/C++: g++.exe 生成活动文件",
            "command": "D:\\MinGW\\MinGW\\bin\\g++.exe",
            "args": [
                "-fdiagnostics-color=always",
                "-g",
                "${file}",
                "-o",
                "${fileDirname}\\${fileBasenameNoExtension}.exe",
                "-I",
                "D:/SFML/SFML-2.6.1/include",
                "-L",
                "D:/SFML/SFML-2.6.1/lib",
                "-lsfml-graphics",
                "-lsfml-system",
                "-lsfml-window"
            ],
            "options": {
                "cwd": "${fileDirname}"
            },
            "problemMatcher": [
                "$gcc"
            ],
            "group": {
                "kind": "build",
                "isDefault": true
            },
            "detail": "调试器生成的任务。"
        }
    ],
    "version": "2.0.0"
}

在完成这些后如果你的代码依然无法运行你可以把sfml和mingw的bin文件夹中的所有文件都拖入你的运行代码的文件夹再尝试运行。

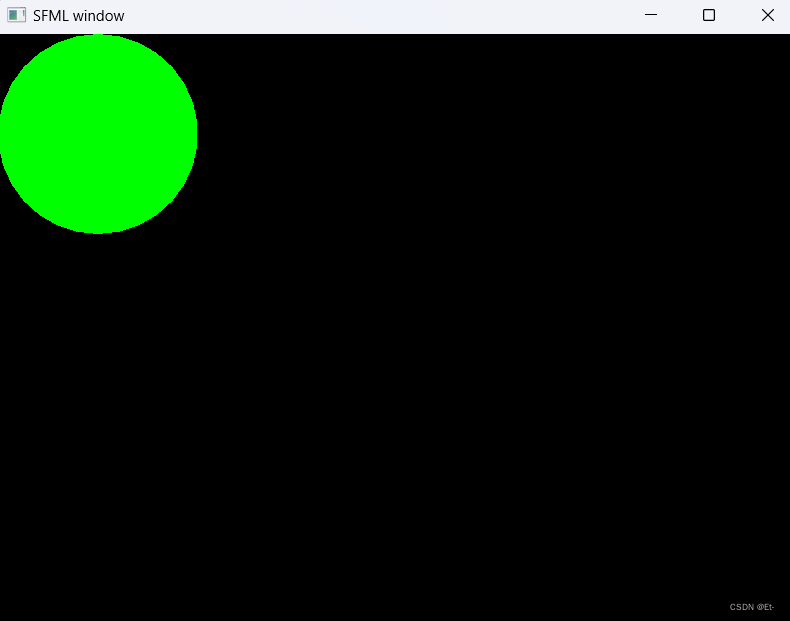

最后是运行结果
