最近有机会测试昇腾NPU，测试了一下用于训练效果还是很不错的（安利一下）。但是关于昇腾和MindSpore的教程文章比较少，所以发博客记录一下。本博客记录一下MindSpore环境安装流程和第一次安装会遇到的一些小问题。本文安装的版本是MindSpore2.4.1，因为感觉MindSpore变动会比较大特意记录一下时间和版本。
参考：MindSpore官方教程（https://www.mindspore.cn/install/）
驱动安装&验证
NPU驱动固件版本（hdk-*-driver-*和hdk-*firmware*）、CANN包版本(cann-kernels-*和cann-toolkit-*必须安装，其他工具包可选)、MindSpore三者按顺序安装（卸载的顺序反过来），版本对应关系查看官网https://www.mindspore.cn/versions
完成安装后检测方法是运行

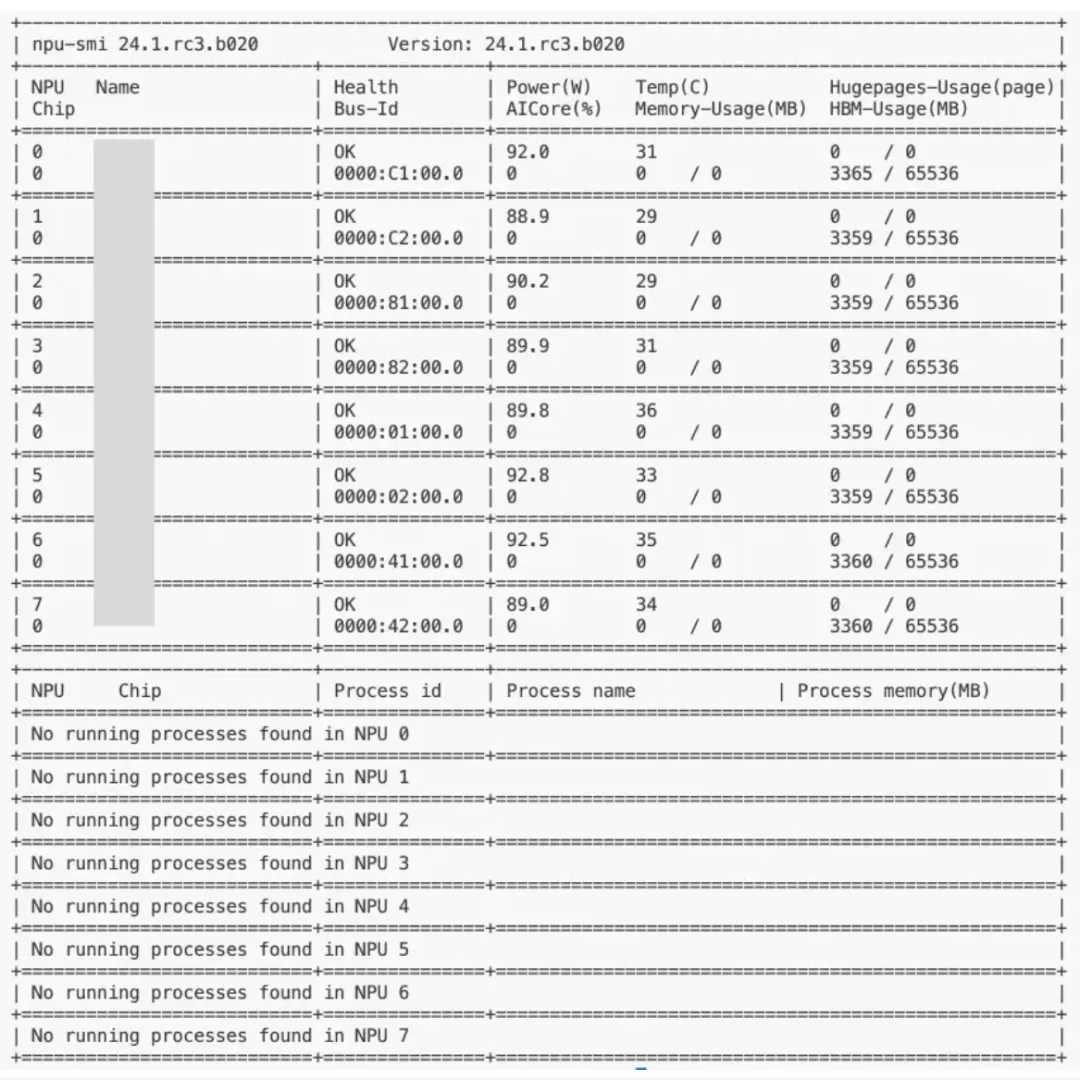

npu-smi info复制可以看到如下信息的话就表示驱动已经安装完成了。
安装MindSpore
如果以前安装过，先卸载老的wh包:
pip uninstall te topi hccl -y复制
pip安装MindSpore命令如下：
pip install https://ms-release.obs.cn-north-4.myhuaweicloud.com/2.4.1/MindSpore/unified/aarch64/mindspore-2.4.1-cp311-cp311-linux_aarch64.whl --trusted-host ms-release.obs.cn-north-4.myhuaweicloud.com -i https://pypi.tuna.tsinghua.edu.cn/simple复制安装完成后可以使用如下命令进行测试：
python -c "import mindspore;mindspore.set_context(device_target='Ascend');mindspore.run_check()"复制如果这步出现报错可以参考本文后面疑难杂症章节。出现版本号信息和计算验证便意味着安装成功。
MindSpore version: 2.4.1
The result of multiplication calculation is correct, MindSpore has been installed on platform [Ascend] successfully!
复制运行神经网络测试

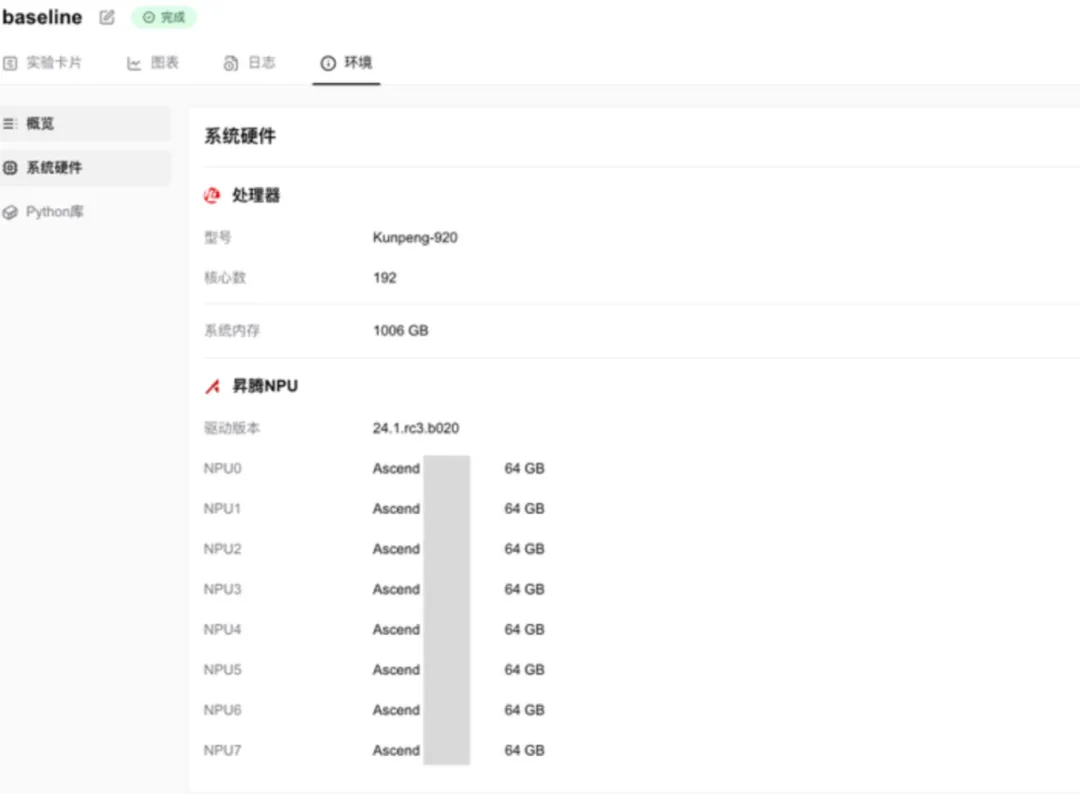

这里提供简单的教程代码仓库SwanLab，一个在线实验日志跟踪看板。可以实际运行测试一下，感觉还是挺好用的。能够检测+监控昇腾设备的运行状况。非常推荐尝试！
疑难杂症
01
可能出现的问题：MindSpore和CANN版本不对应
务必确保MindSpore版本和驱动一致，否则会出现如下报错：
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:11.112.000 [mindspore/run_check/_check_version.py:357] MindSpore version 2.3.1 and Ascend AI software package (Ascend Data Center Solution)version 7.5 does not match, the version of software package expect one of ['7.2', '7.3']. Please refer to the match info on: https://www.mindspore.cn/install
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:549: UserWarning: The value of the smallest subnormal for <class 'numpy.float64'> type is zero.
setattr(self, word, getattr(machar, word).flat[0])
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:89: UserWarning: The value of the smallest subnormal for <class 'numpy.float64'> type is zero.
return self._float_to_str(self.smallest_subnormal)
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:549: UserWarning: The value of the smallest subnormal for <class 'numpy.float32'> type is zero.
setattr(self, word, getattr(machar, word).flat[0])
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:89: UserWarning: The value of the smallest subnormal for <class 'numpy.float32'> type is zero.
return self._float_to_str(self.smallest_subnormal)
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:13.700.000 [mindspore/run_check/_check_version.py:375] MindSpore version 2.3.1 and "te" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:13.701.000 [mindspore/run_check/_check_version.py:382] MindSpore version 2.3.1 and "hccl" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:13.702.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 3
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:14.703.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 2
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:15.704.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 1
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:357] MindSpore version 2.3.1 and Ascend AI software package (Ascend Data Center Solution)version 7.5 does not match, the version of software package expect one of ['7.2', '7.3']. Please refer to the match info on: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:375] MindSpore version 2.3.1 and "te" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:382] MindSpore version 2.3.1 and "hccl" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 3
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:19.609.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 2
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:20.611.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 1
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.614.000 [mindspore/run_check/_check_version.py:357] MindSpore version 2.3.1 and Ascend AI software package (Ascend Data Center Solution)version 7.5 does not match, the version of software package expect one of ['7.2', '7.3']. Please refer to the match info on: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.614.000 [mindspore/run_check/_check_version.py:375] MindSpore version 2.3.1 and "te" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.614.000 [mindspore/run_check/_check_version.py:382] MindSpore version 2.3.1 and "hccl" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.615.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 3
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:22.616.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 2
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:23.617.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 1
MindSpore version: 2.3.1
Segmentation fault (core dumped)复制解决方法：装对版本即可解决。对于MindSpore2.4.1，安装8.0.RC3.beta1驱动。
02
可能出现的问题：少装了前置的包
[ERROR] ME(1051780:281473416683552,MainProcess):2024-12-06-12:39:02.460.00 [mindspore/run_check/_check_version.py:360] CheckFailed: cannot import name 'version' from 'te' (unknown location)
[ERROR] ME(1051780:281473416683552,MainProcess):2024-12-06-12:39:02.460.00 [mindspore/run_check/_check_version.py:361] MindSpore relies on whl packages of "te" and "hccl" in the "latest" folder of the Ascend AI software package (Ascend Data Center Solution). Please check whether they are installed correctly or not, refer to the match info on: https://www.mindspore.cn/install
Traceback (most recent call last):
File "<string>", line 1, in <module>
File "/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/site-packages/mindspore/__init__.py", line 19, in <module>
from mindspore import common, dataset, mindrecord, train, log, amp
...
ImportError: cannot import name 'util' from 'tbe.tvm.topi.cce' (unknown location)
Fatal Python error: PyThreadState_Get: the function must be called with the GIL held, but the GIL is released (the current Python thread state is NULL)
Python runtime state: finalizing (tstate=0x00000000008aceb0)
Aborted (core dumped)复制03
可能出现的问题：pip安装阶段报错opc-tool 0.1.0 requires attrs, which is not installed
若出现如下报错（之前安装的时候有概率pip会报如下错误）：
ERROR: pip's dependency resolver does not currently take into account all the packages that are installed. This behaviour is the source of the following dependency conflicts.
auto-tune 0.1.0 requires decorator, which is not installed.
dataflow 0.0.1 requires jinja2, which is not installed.
opc-tool 0.1.0 requires attrs, which is not installed.
opc-tool 0.1.0 requires decorator, which is not installed.
opc-tool 0.1.0 requires psutil, which is not installed.
schedule-search 0.0.1 requires absl-py, which is not installed.
schedule-search 0.0.1 requires decorator, which is not installed.
te 0.4.0 requires attrs, which is not installed.
te 0.4.0 requires cloudpickle, which is not installed.
te 0.4.0 requires decorator, which is not installed.
te 0.4.0 requires ml-dtypes, which is not installed.
te 0.4.0 requires psutil, which is not installed.
te 0.4.0 requires scipy, which is not installed.
te 0.4.0 requires tornado, which is not installed.复制尝试使用如下命令解决：
pip install attrs cloudpickle decorator jinja2 ml-dtypes psutil scipy tornado absl-py复制04
可能出现的问题：在测试或者实际训练的时候出现KeyError: 'op_debug_dir'
出现如下情况大概率是没有运行环境变量命令。
Traceback (most recent call last):
File "/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/multiprocessing/process.py", line 314, in _bootstrap
self.run()
File "/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/multiprocessing/process.py", line 108, in run
self._target(*self._args, **self._kwargs)
File "/home/huawei/.local/lib/python3.11/site-packages/te_fusion/parallel_compilation.py", line 249, in exec_compilation_task
check_dict_paras(dict_ops)
File "/home/huawei/.local/lib/python3.11/site-packages/te_fusion/parallel_compilation.py", line 183, in check_dict_paras
if dict_ops['op_debug_dir'] == None or dict_ops['op_debug_dir'] == '':
~~~~~~~~^^^^^^^^^^^^^^^^
KeyError: 'op_debug_dir'复制解决方法：使用如下命令设置环境变量。
# control log level. 0-DEBUG, 1-INFO, 2-WARNING, 3-ERROR, 4-CRITICAL, default level is WARNING.
export GLOG_v=2
# environment variables
LOCAL_ASCEND=/usr/local/Ascend # 设置为软件包的实际安装路径
# set environmet variables using script provided by CANN, swap "ascend-toolkit" with "nnae" if you are using CANN-nnae package instead
source ${LOCAL_ASCEND}/ascend-toolkit/set_env.sh复制使用conda的时候发现似乎每次都要运行一次如上命令。如果想要永久解决这个问题，可以使用如下命令解决：
export LOCAL_ASCEND=/usr/local/Ascend # 设置为软件包的实际安装路径
echo "source ${LOCAL_ASCEND}/ascend-toolkit/set_env.sh" >> ~/.bashrc
source ~/.bashrc
