用雷达图绘制各个同学的成绩

首先导入库

import numpy as np
import matplotlib.pyplot as plt

 准备数据

plt.rcParams['font.family'] = 'SimHei'
plt.rcParams['axes.unicode_minus'] = False

# 1.准备大数据专业三位同学各科目成绩
dim_num = 6
radians = np.linspace(0, 2 * np.pi, dim_num, endpoint=False)
radians = np.concatenate((radians, [radians[0]]))

# A同学： '数学','英语','线代','爬虫','数据可视化','吃喝玩乐'  --->   41,38,36,62,68,100
score_a = np.array([41,38,36,62,68,100])
score_a = np.concatenate((score_a, [score_a[0]]))

# B同学：'数学','英语','线代','爬虫','数据可视化','吃喝玩乐'  --->   91,88,83,72,78,26
score_b = np.array([91,88,83,72,78,26])
score_b = np.concatenate((score_b, [score_b[0]]))
# C同学：'数学','英语','线代','爬虫','数据可视化','吃喝玩乐'  --->   81,78,85,76,74,36
score_c = np.array([81,78,85,76,74,36])
score_c = np.concatenate((score_c, [score_c[0]]))

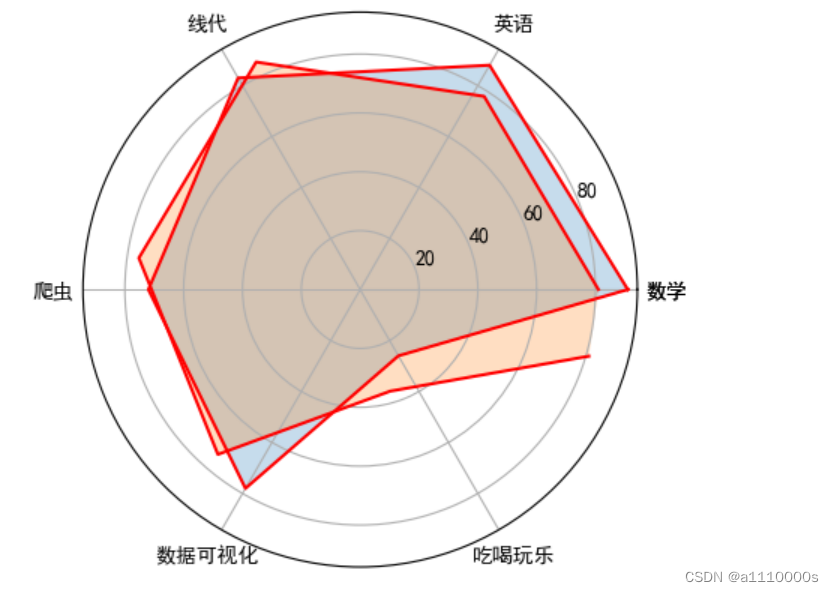

# 2.绘制多边形（雷达图）
plt.polar(radians, score_b, score_c, color='r')

# 3.设置维度标签
radar_labels = ['数学','英语','线代','爬虫','数据可视化','吃喝玩乐']
radar_labels = np.concatenate((radar_labels, [radar_labels[0]]))

# 4.设置极坐标的标签
angles = radians * 180/np.pi
plt.thetagrids(angles, labels=radar_labels)

# 5.填充多边形
plt.fill(radians,score_b,score_c,alpha=0.25)

# 6.展示图表
plt.show()
