Unity 格子布局Item ScrollRect多列无限循环

 关于unity ScrollRect单列无限循环,网上已经有不少了,应该很容易找到,这里就不多说,这里简单说下多列无限循环,至于多行,有需要的自己照着改下就好~ (最近优化用到,备忘下)

 源码地址:https://download.csdn.net/download/bingo105/12922419

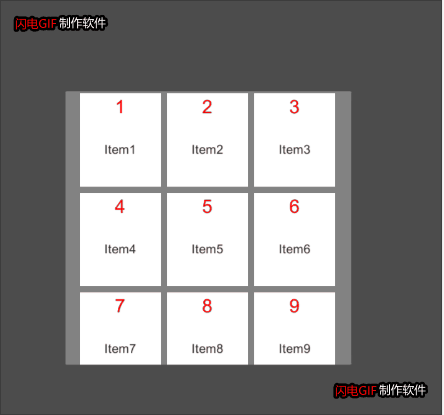

![效果展示](https://img-blog.csdnimg.cn/2020101412060147.gif#pic_center在这里插入图片描述

首先搭下简单的ui

图片: 在这里插入图片描述
空间属性:
在这里插入图片描述
在这里插入图片描述

然后
在这里插入图片描述

我们需要复用的Item在这里插入图片描述

好了,简单的准备工作完成,接着来看看相关代码吧。

新建一个脚本:MyLoopList
代码如下:

using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class ICustomGridItem<T> where T : class
{


    protected T info;
    protected GameObject go;


    public virtual void Init(GameObject go)
    {

        this.go = go;
    }

    public virtual void UpdateView()
    {


    }
    public void SetInfo(T info)
    {

        this.info = info;
        UpdateView();
    }

}


public class MyLoopList<DataType, ItemType> where ItemType : ICustomGridItem<DataType>, new() where DataType : class
{

    RectTransform scrollRect;

    RectTransform contentTR;
    public GameObject ItemGo;

    public int GridHeight;          //
    public int GridWidth;
    public int wholeItemCount;     //格子总数

    public int lineCount;           //每一行的格子数
    public float top;//边距
    public float left;

    public Vector2 space;

    int line;                       //面板里的行数
    float contentHeight;            //content根据grid数量初始化后的高度

    float lastContentRTy;

    int itemCountInView;            //面板里可容纳的最大Item数量
    float scrollViewHeight;         //面板的初始高度

    int firstLineIndex;             //当前面板中的第一个Item的index

    LinkedList<RectTransform> itemList = new LinkedList<RectTransform>();
    Dictionary<GameObject, ICustomGridItem<DataType>> gridList = new Dictionary<GameObject, ICustomGridItem<DataType>>();

    DataType[] datas;

    public void Init(DataType[] datas, float left,float top, Vector2 space, int gridHeight,
    int gridWidth, int lineCount, int wholeItemCount, GameObject itemGo, RectTransform scrollRect)
    {

        this.scrollRect = scrollRect;

        this.datas = datas;
        GridHeight = gridHeight;
        GridWidth = gridWidth;
        this.lineCount = lineCount;
        this.wholeItemCount = wholeItemCount;
        this.space = space;
        this.left = left;
        this.top = top;
        ItemGo = itemGo;

        contentTR = scrollRect.Find("Viewport/Content").GetComponent<RectTransform>();
        if (contentTR == null)
        {

            Debug.LogError("应该有叫'Content'的子物体");
            return;
        }

        var rect = scrollRect.GetComponent<RectTransform>()</
