RocksDB：Memtable读写流程 + InlineSkipList + key encode/decode

InlineSkipList

RocksDB使用skiplist作为内存的基本数据结构，skiplist的介绍可以查看网上资料。

数据结构

class MemTableRep {
  Allocator* allocator_; // 内存分配器
};

struct InlineSkipList<Comparator>::Node {
  // next_[0] is the lowest level link (level 0).  Higher levels are
  // stored _earlier_, so level 1 is at next_[-1].
  std::atomic<Node*> next_[1];
  const char* Key() const { return reinterpret_cast<const char*>(&next_[1]); } // key
};

struct InlineSkipList<Comparator>::Splice {
  // The invariant of a Splice is that prev_[i+1].key <= prev_[i].key <
  // next_[i].key <= next_[i+1].key for all i.  That means that if a
  // key is bracketed by prev_[i] and next_[i] then it is bracketed by
  // all higher levels.  It is _not_ required that prev_[i]->Next(i) ==
  // next_[i] (it probably did at some point in the past, but intervening
  // or concurrent operations might have inserted nodes in between).
  int height_ = 0;
  Node** prev_;
  Node** next_;
};

class InlineSkipList {
  Allocator* const allocator_; // 内存分配器
  Comparator const compare_; // key comparator
  Node* const head_; // head
  std::atomic<int> max_height_;  // Height of the entire list
  Splice* seq_splice_; // splice，一个Node各层的集合，由allocator_分配，一次分配sizeof(Node)*max_height_大小内存，访问时直接使用Node里面的next_数组指针偏移即可，详细见Splice和Node结构体注释。
};

class SkipListRep : public MemTableRep {
	InlineSkipList<const MemTableRep::KeyComparator&> skip_list_; // skip_list_存储kv
	const MemTableRep::KeyComparator& cmp_; // key comparator
};

class MemTable {
  struct KeyComparator : public MemTableRep::KeyComparator {
    const InternalKeyComparator comparator;
  };
  KeyComparator comparator_; // key comparator，用于比较key大小
  std::unique_ptr<MemTableRep> table_; // 真正的memtable
};

根据上面类的定义可以看出，memtable上面记录了table，table里面有InlineSkipList，SlipList由Splice的双向链表组成，Splice中包含了所有level的内存，在不同level间切换使用Node中next_数组下标即可。

SkipList数据访问

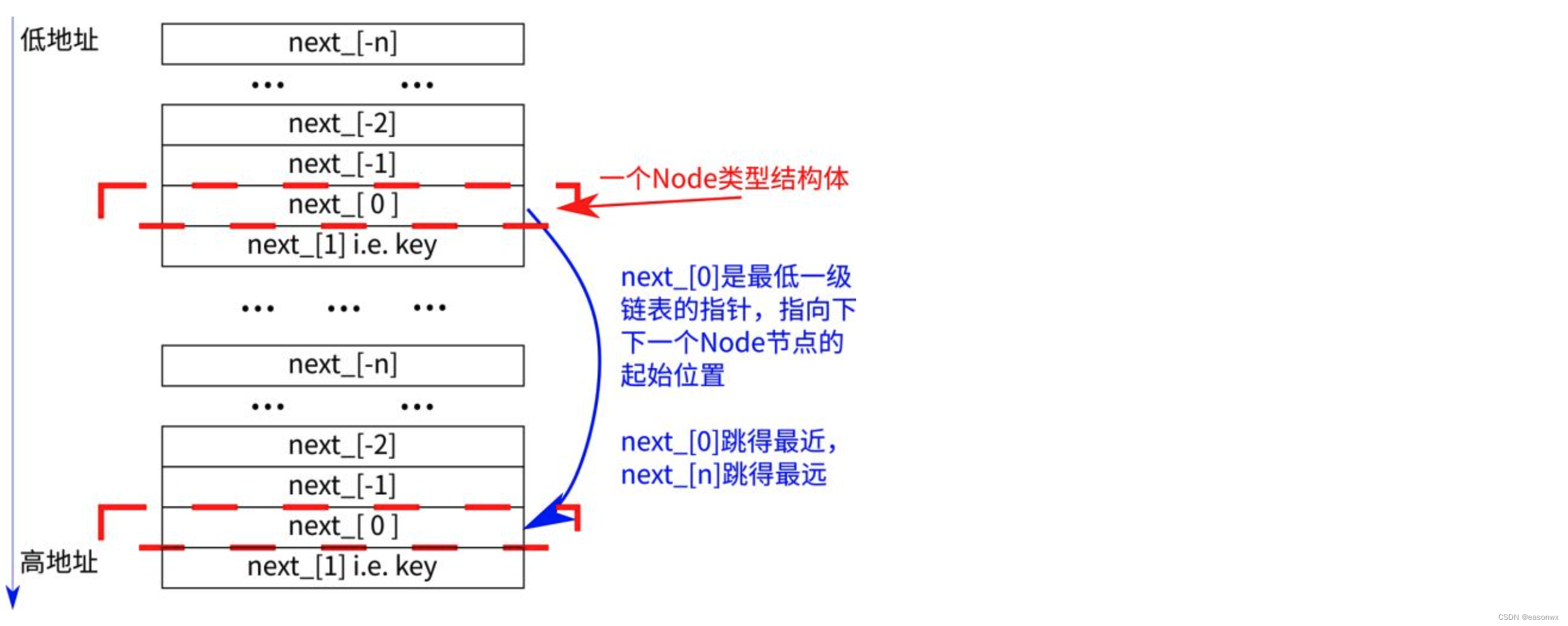

在不同level间切换使用Node中next_数组下标即可。真正的key可以直接访问next_[1]即可。如下图所示，来自https://zhuanlan.zhihu.com/p/444460663。

核心的代码是这一行。

bool InlineSkipList<Comparator>::Insert(const char* key, Splice* splice,
                                        bool allow_partial_splice_fix) {
  // 在insert时，将key的内存强制向前偏移一个Node，访问key就可以使用next_[1]了。
  Node* x = reinterpret_cast<Node*>(const_cast<char*>(key)) - 1;
  ...
}

Memtable Key

key encode：key编码

由于跳表没有kv的概念，因此将key和value进行统一编码。SkipList中的key由如下元素构成：

• key_size：key的size，按照1字节对齐，最大占用5字节。
• key：userkey内容。
• seq_num + type：key写入时的seq_num（每个IO递增）和key的类型，一共占用8字节。
• value_size：value的size，按照1字节对齐，最大占用5字节。
• value：真实的value。

key的编码逻辑如下：

Status MemTable::Add(SequenceNumber s, ValueType type,
                     const Slice& key, /* user key */
                     const Slice& value,
                     const ProtectionInfoKVOS64* kv_prot_info,
                     bool allow_concurrent,
                     MemTablePostProcessInfo* post_process_info, void** hint) {
  ...
  char* p = EncodeVarint32(buf, internal_key_size); // 按照1字节对齐写入keysize
  memcpy(p, key.data(), key_size); // 拷贝key
  p += key_size;
  uint64_t packed = PackSequenceAndType(s, type); // 打包seq_num和type
  EncodeFixed64(p, packed);
  p += 8; // seq_num和type占8字节
  p = EncodeVarint32(p, val_size); // 按照1字节对齐写入valuesize
  memcpy(p, value.data(), val_size); // 拷贝value
  ...
}

key decode：key解码

const DecodedKey key_decoded = compare_.decode_key(key);

virtual DecodedType decode_key(const char* key) const {
  // The format of key is frozen and can be treated as a part of the API
  // contract. Refer to MemTable::Add for details.
  return GetLengthPrefixedSlice(key);
}

inline Slice GetLengthPrefixedSlice(const char* data) {
  uint32_t len = 0;
  // +5: we assume "data" is not corrupted
  // unsigned char is 7 bits, uint32_t is 32 bits, need 5 unsigned char
  // 排除encode过程中前面的keysize，获取keysize到len
  auto p = GetVarint32Ptr(data, data + 5 /* limit */, &len);
  return Slice(p, len);
}

key compare：key比较

key的比较在比较器InternalKeyComparator中实现，其由db_impl逐渐传递到InlineSkipList中。比较的核心函数如下：

int InternalKeyComparator::Compare(const ParsedInternalKey& a,
                                   const ParsedInternalKey& b) const {
  // Order by:
  //    increasing user key (according to user-supplied comparator)
  //    decreasing sequence number
  //    decreasing type (though sequence# should be enough to disambiguate)
  int r = user_comparator_.Compare(a.user_key, b.user_key);
  if (r == 0) {
    if (a.sequence > b.sequence) {
      r = -1;
    } else if (a.sequence < b.sequence) {
      r = +1;
    } else if (a.type > b.type) {
      r = -1;
    } else if (a.type < b.type) {
      r = +1;
    }
  }
  return r;
}

Insert流程

代码流程

根据前文的介绍，Insert代码流程如下：

Status MemTable::Add(SequenceNumber s, ValueType type,
                     const Slice& key, /* user key */
                     const Slice& value,
                     const ProtectionInfoKVOS64* kv_prot_info,
                     bool allow_concurrent,
                     MemTablePostProcessInfo* post_process_info, void** hint) {
  // key encode，见上一章节
  ...
  // 插入key
  bool res = table->InsertKey(handle);
  // 插入bloom filter
  bloom_filter_->Add(key_without_ts);
  ...
}

bool InlineSkipList<Comparator>::Insert(const char* key, Splice* splice,
                                        bool allow_partial_splice_fix) {
  // 生成Node，用于使用next_[1]访问key
  Node* x = reinterpret_cast<Node*>(const_cast<char*>(key)) - 1;
  // key解码
  const DecodedKey key_decoded = compare_.decode_key(key);
  // 通过比较key，将key插入
  ...
}

支持写并发

InlineSkipList是支持写入的，使用CAS操作完成。代码如下：

bool InlineSkipList<Comparator>::Insert(const char* key, Splice* splice,
                                        bool allow_partial_splice_fix) {
  if (UseCAS) {
    for (int i = 0; i < height; ++i) {
      while (true) {
        // 比较key
        ...
        // 使用CAS插入key，若失败则while循环重新比较插入
        if (splice->prev_[i]->CASNext(i, splice->next_[i], x)) {
          // success
          break;
        }
        FindSpliceForLevel<false>(key_decoded, splice->prev_[i], nullptr, i,
                                  &splice->prev_[i], &splice->next_[i]);
      }
    }
  }
}

Get流程

LookupKey

上文介绍key由seq_num和type构成，那么get的时候没有seq_num如何读取呢？RocksDB引入了LookupKey。
根据上面key compare的章节，可以知道读取最新的数据就是seq_num比之前大就可以了，因此LookupKey在encode的时候使用的seqnum为最后一次写入成功的seq_num。代码如下：

class LookupKey {
  LookupKey(const Slice& _user_key, SequenceNumber sequence);
  // We construct a char array of the form:
  //    klength  varint32               <-- start_
  //    userkey  char[klength]          <-- kstart_
  //    tag      uint64
  //                                    <-- end_
  // The array is a suitable MemTable key.
  // The suffix starting with "userkey" can be used as an InternalKey.
  const char* start_;
  const char* kstart_;
  const char* end_;
  char space_[200];      // Avoid allocation for short keys
  // Return an internal key (suitable for passing to an internal iterator)
  Slice internal_key() const {
    return Slice(kstart_, static_cast<size_t>(end_ - kstart_));
  }
  // Return the user key
  Slice user_key() const {
    return Slice(kstart_, static_cast<size_t>(end_ - kstart_ - 8));
  }
};

代码流程

Status DBImpl::GetImpl(const ReadOptions& read_options,
                       ColumnFamilyHandle* column_family, const Slice& key,
                       PinnableSlice* pinnable_val, bool* value_found,
                       ReadCallback* callback, bool* is_blob_index) {
  if (read_options.snapshot != nullptr) {
    // 快照场景，使用快照最后一个IO的seq
    snapshot =
        reinterpret_cast<const SnapshotImpl*>(read_options.snapshot)->number_;
  } else {
    // 非快照场景，使用version的最后一个IO的seq
    snapshot = last_seq_same_as_publish_seq_
                   ? versions_->LastSequence()
                   : versions_->LastPublishedSequence();
  }
  // 生成lookupkey
  LookupKey lkey(key, snapshot);
  // 从memtable读
  if (sv->mem->Get(lkey, get_impl_options.value->GetSelf(), timestamp, &s,
                       &merge_context, &max_covering_tombstone_seq,
                       read_options, get_impl_options.callback,
                       get_impl_options.is_blob_index)) {
        done = true;
        get_impl_options.value->PinSelf();
        RecordTick(stats_, MEMTABLE_HIT);
  }
  // 从immutable读
  ...
  // 从sstable读
  ...
}

bool MemTable::Get(const LookupKey& key, std::string* value,
                   std::string* timestamp, Status* s,
                   MergeContext* merge_context,
                   SequenceNumber* max_covering_tombstone_seq,
                   SequenceNumber* seq, const ReadOptions& read_opts,
                   ReadCallback* callback, bool* is_blob_index, bool do_merge) {
  GetFromTable(key, *max_covering_tombstone_seq, do_merge, callback,
                 is_blob_index, value, timestamp, s, merge_context, seq,
                 &found_final_value, &merge_in_progress);
}

由于seq_num也在key中，因此获取的key是不是我们真正想要的，需要额外判断，memtable使用Saver作为上下文，在回调函数SaveValue中进行处理

void MemTable::GetFromTable(const LookupKey& key,
                            SequenceNumber max_covering_tombstone_seq,
                            bool do_merge, ReadCallback* callback,
                            bool* is_blob_index, std::string* value,
                            std::string* timestamp, Status* s,
                            MergeContext* merge_context, SequenceNumber* seq,
                            bool* found_final_value, bool* merge_in_progress) {
  Saver saver;
  saver.status = s;
  saver.found_final_value = found_final_value;
  saver.merge_in_progress = merge_in_progress;
  saver.key = &key;
  saver.value = value;
  ...
  // 在SkipList中查找key，这里不详细列出代码了
  table_->Get(key, &saver, SaveValue);
  *seq = saver.seq;
}

static bool SaveValue(void* arg, const char* entry) {
  // 先判断获取出来的key是否为userkey，若不是，直接返回
  if (s->mem->GetInternalKeyComparator().user_comparator()->Equal(
          Slice(key_ptr, key_length - 8), s->key->user_key())) {
   case kTypeValue: {
        if (s->inplace_update_support) {
          s->mem->GetLock(s->key->user_key())->ReadLock();
        }
        Slice v = GetLengthPrefixedSlice(key_ptr + key_length);
        *(s->status) = Status::OK();
        if (*(s->merge_in_progress)) {
          ...
        } else if (s->value != nullptr) {
          // 将value值放入saver中，用于返回给用户
          s->value->assign(v.data(), v.size());
        }
        if (s->inplace_update_support) {
          s->mem->GetLock(s->key->user_key())->ReadUnlock();
        }
        *(s->found_final_value) = true;
        if (s->is_blob_index != nullptr) {
          *(s->is_blob_index) = (type == kTypeBlobIndex);
        }
        return false;
      }
      case kTypeDeletion:
      case kTypeSingleDeletion:
      case kTypeRangeDeletion: {
        if (*(s->merge_in_progress)) {
          ...
        } else {
          *(s->status) = Status::NotFound();
        }
        *(s->found_final_value) = true;
        return false;
      }
  }
}

参考文献

http://mysql.taobao.org/monthly/2018/11/05/
https://zhuanlan.zhihu.com/p/444460663
