还是以高通为例子。这次整理并不是很完善，下来会参考一些文档再整理。。。
高通平台手机开发之Bring-up_测试里面bring-up-CSDN博客
https://www.cnblogs.com/schips/p/how_qualcomm_soc_boot.html
【Android SDM660开机流程】- UEFI XBL 代码流程分析_loaddxecorefromfv-CSDN博客

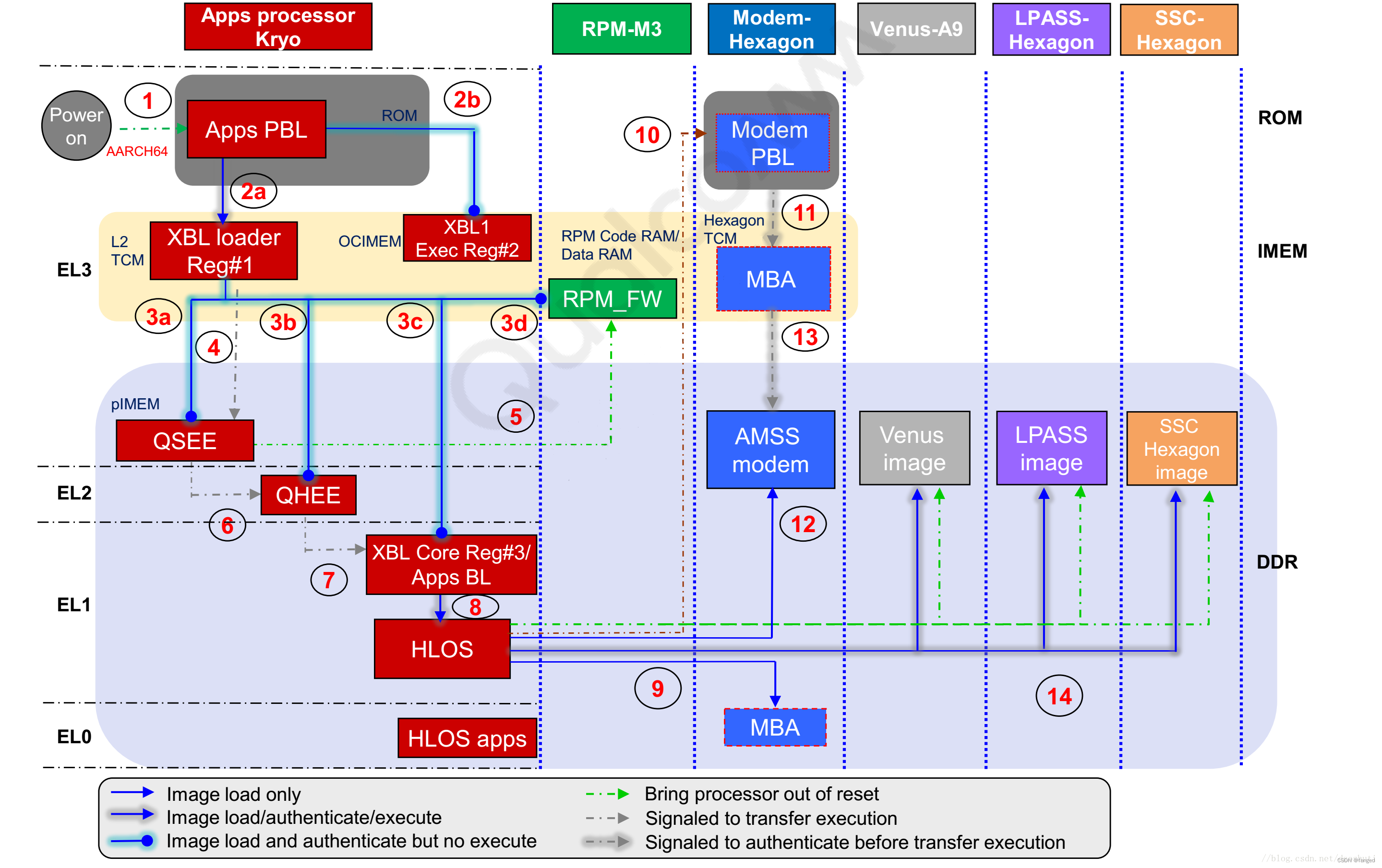

1. 初始启动阶段（Boot ROM）
处理器复位：当设备上电或复位时，处理器首先进入一个预定义的状态。
Boot ROM：处理器执行内置的只读内存（ROM）代码。这段代码是固化在芯片中的，无法修改。
引导装载程序加载：Boot ROM 代码负责初始化一些基本的硬件设置，如时钟、DDR 内存等。接下来，它从预定的启动介质（如 eMMC、UFS 或 SD 卡）加载引导装载程序。
[20:05:20:661] Format: Log Type - Time(microsec) - Message - Optional Info␍␊
[20:05:20:661] Log Type: B - Since Boot(Power On Reset), D - Delta, S - Statistic␍␊
[20:05:20:673] S - QC_IMAGE_VERSION_STRING=BOOT.MXF.2.1.1-00240.1-KAILUA-1␍␊
[20:05:20:673] S - IMAGE_VARIANT_STRING=SocKailuaLAA␍␊
[20:05:20:673] S - OEM_IMAGE_VERSION_STRING=ip-10-195-205-96␍␊
[20:05:20:684] S - Boot Interface: UFS␍␊
[20:05:20:684] S - Secure Boot: Off␍␊
[20:05:20:684] S - Boot Config @ 0x221c8600 = 0x00000001␍␊
[20:05:20:684] S - JTAG ID @ 0x221c8744 = 0x202520e1␍␊
[20:05:20:696] S - OEM ID @ 0x221c8700 = 0x00000594␍␊
[20:05:20:696] S - Serial Number @ 0x221c8610 = 0x00000437b96388dd␍␊
[20:05:20:696] S - OEM Config Row 0 @ 0x221c2110 = 0x0000000000000000␍␊
[20:05:20:707] S - OEM Config Row 1 @ 0x221c2118 = 0x0000059400000000␍␊
[20:05:20:707] S - Feature Config Row 0 @ 0x221c2138 = 0x003fffffffffbf00␍␊
[20:05:20:719] S - Feature Config Row 1 @ 0x221c2140 = 0x0000000000000000␍␊
[20:05:20:719] S - OEM LCS:DEV␍␊
[20:05:20:719] S - Core 0 Frequency, 1363 MHz␍␊2. 初始引导装载程序阶段（Primary Bootloader, PBL）
加载 PBL：Boot ROM 从存储介质加载初始引导装载程序（Primary Bootloader，简称 PBL）。
验证 PBL：PBL 可能会包含安全验证步骤，确保其完整性和真实性。
加载 SBL：PBL 初始化更多硬件组件，并加载次级引导装载程序（Secondary Bootloader，简称 SBL）。
[20:05:20:730] S - PBL Patch Ver: 3␍␊
[20:05:20:730] S - PBL freq: 600 MHZ␍␊
[20:05:20:730] S - -------------------------␍␊
[20:05:20:730] PBL Timestamps (in usecs)␍␊
[20:05:20:730] -------------------------␍␊
[20:05:20:742] APBL start: 345␍␊
[20:05:20:742] APBL Boot Media Detect Start: 9645␍␊
[20:05:20:742] APBL Boot Media Detect End: 45725␍␊
[20:05:20:742] APBL SHELF Load+Auth Start: 45726␍␊
[20:05:20:753] ⇥ APBL ELF MD Load Start: 48098␍␊
[20:05:20:753] ⇥ APBL ELF MD Load End: 48336␍␊
[20:05:20:753] ⇥ APBL ELF Seg Load Start: 48336␍␊
[20:05:20:753] ⇥ APBL ELF Seg Load End: 52300␍␊
[20:05:20:764] ⇥ ⇥ APBL SEQ Valid Set: 52348␍␊
[20:05:20:764] ⇥ ⇥ APBL SEQ SA ACK Rcvd: 54373␍␊
[20:05:20:764] ⇥ APBL ELF MD Load Start: 55618␍␊
[20:05:20:764] ⇥ APBL ELF MD Load End: 56733␍␊
[20:05:20:776] ⇥ APBL ELF Auth Start: 56740␍␊
[20:05:20:776] ⇥ APBL ELF Auth End: 66516␍␊
[20:05:20:776] ⇥ APBL ELF Seg Load Start: 66518␍␊
[20:05:20:776] ⇥ APBL ELF Seg Load End: 78148␍␊
[20:05:20:776] ⇥ APBL ELF Seg Verify Start: 78148␍␊
[20:05:20:787] ⇥ APBL ELF Seg Verify End: 83426␍␊
[20:05:20:787] ⇥ APBL ELF MD Load Start: 84570␍␊
[20:05:20:787] ⇥ APBL ELF MD Load End: 85731␍␊
[20:05:20:787] ⇥ APBL ELF Auth Start: 85733␍␊
[20:05:20:799] ⇥ APBL ELF Auth End: 95483␍␊
[20:05:20:799] ⇥ APBL ELF Seg Load Start: 95485␍␊
[20:05:20:799] ⇥ APBL ELF Seg Load End: 103726␍␊
[20:05:20:799] ⇥ APBL ELF Seg Verify Start: 103726␍␊
[20:05:20:810] ⇥ APBL ELF Seg Verify End: 108188␍␊
[20:05:20:810] APBL SHELF Load+Auth End: 108380␍␊
[20:05:20:810] ⇥ ⇥ APBL TME PBL Exit: 108383␍␊
[20:05:20:810] ⇥ ⇥ APBL XBL_SC Exit Check: 109121␍␊
[20:05:20:822] ⇥ ⇥ APBL XBL_SC Exit Ack: 120336␍␊
[20:05:20:822] APBL Exit: 120343␍␍␊
3. 次级引导装载程序阶段（Secondary Bootloader, SBL）
加载和初始化：SBL 负责进一步初始化硬件，并加载主引导装载程序（Main Bootloader，通常是 Little Kernel，简称 LK）。
安全验证：再次进行安全检查，验证 LK 的完整性和真实性。
启动 LK：一旦验证通过，SBL 将控制权交给 LK。
[20:05:20:822] B - 130204 - SBL1, Start␍␊
[20:05:20:822] B - 318542 - SBL1 BUILD @ 06:40:05 on Jun 22 2023␍␊
[20:05:20:840] B - 329857 - usb: usb_eud_serial , 0xb96388dd␍␊
[20:05:20:840] D - 1373 - sbl1_hw_init␍␊
[20:05:20:840] D - 427 - media_init:1␍␊
[20:05:20:840] D - 0 - blacklist disable␍␊
[20:05:20:851] B - 339800 - OEM_MISC - Image Load, Start␍␊
[20:05:20:851] D - 2562 - Auth Metadata␍␊
[20:05:20:851] D - 9333 - OEM_MISC - Image Loaded, Delta - (5016 Bytes)␍␊
[20:05:20:859] B - 349926 - QTI_MISC - Image Load, Start␍␊
[20:05:20:876] D - 10157 - Auth Metadata␍␊
[20:05:20:876] D - 17904 - QTI_MISC - Image Loaded, Delta - (4624 Bytes)␍␊
[20:05:20:876] B - 368806 - APDP - Image Load, Start␍␊
[20:05:20:887] D - 5764 - APDP - Image Loaded, Delta - (64 Bytes)␍␊
[20:05:20:887] D - 31 - boot_dload_dump_security_regions␍␊
[20:05:20:887] D - 0 - EUD Init␍␊
[20:05:20:892] D - 0 - blacklist enable␍␊
[20:05:20:896] D - 3751 - DP_Milestone␍␊
[20:05:20:908] D - 3325 - Auth Metadata␍␊
[20:05:20:908] D - 4697 - sbl1_xblconfig_init␍␊
[20:05:20:908] B - 400495 - XBL Config - Image Load, Start␍␊
[20:05:20:908] B - 405223 - DTB Found: [pre-ddr-soc][7f025b02000000][0]␍␊
[20:05:20:919] D - 4361 - boot_pre_ddr_dtb_load␍␊
[20:05:20:919] D - 31 - boot_check_wa_boot_sluggish_flag␍␊
[20:05:20:924] D - 61 - boot_check_device_temp␍␊
[20:05:20:942] B - 432276 - BUS: 0, PMIC A:2.1 B:2.0 C:2.0 D:2.0 E:2.0 F:2.0 G:2.0 H:2.0 M:1.1␍␊
[20:05:20:942] B - 438010 - BUS: 1, PMIC␍␊
[20:05:20:942] B - 441365 - PM: SDAM03_MEM092_ADDR = 0x0␍␊
[20:05:20:954] B - 443744 - PM: xVdd reset␍␊
[20:05:20:954] B - 446703 - PM: PON by SYSOK␍␊
[20:05:20:954] B - 451003 - PM: PBS_RAM 0 reloading for sid 0␍␊
[20:05:20:975] B - 471499 - PM: PBS_RAM 1 reloading for sid 0␍␊
[20:05:21:101] B - 597678 - PM: PBS_RAM 2 reloading for sid 0␍␊
[20:05:21:124] B - 620339 - PM: PBS_RAM 3 reloading for sid 7␍␊
[20:05:21:148] B - 638029 - PM: SET_VAL:Skip␍␊
[20:05:21:148] B - 638334 - PM: PSI: b0x00_v0x8e␍␊
[20:05:21:148] B - 644312 - PM: OEM_PSI Start␍␊
[20:05:21:148] B - 644495 - PM: OEM_PSI Done␍␊
[20:05:21:160] B - 647667 - PM: Device Init # SPMI Transn: 7835␍␊
[20:05:21:160] D - 228994 - pm_device_init, Delta␍␊
[20:05:21:160] B - 655445 - pm_driver_init, Start␍␊
[20:05:21:185] B - 674477 - PM: Driver Init # SPMI Transn: 1088␍␊
[20:05:21:185] D - 15555 - pm_driver_init, Delta␍␊
[20:05:21:185] D - 257542 - sbl1_pmic_init␍␊
[20:05:21:215] D - 30256 - media_init:2␍␊
[20:05:21:253] B - 750117 - UFS Spec Version: 3.10␍␊
[20:05:21:265] B - 757254 - UFS INQUIRY ID: SKhynix HN8T05DEHKX073 A002␍␊
[20:05:21:265] B - 760822 - UFS Boot LUN: 1␍␊
[20:05:21:271] B - 767929 - UFS Total Size: 128 GB␍␊
[20:05:21:312] B - 801997 - UFS Speed: Gear 4 Lane 2 Rate B␍␊
[20:05:21:312] D - 92659 - media_init:3␍␊
[20:05:21:312] D - 61 - boot_wdog_disable_check␍␊
[20:05:21:312] D - 61 - init-logstomedia␍␊
[20:05:21:322] D - 0 - shrm_load_cancel␍␊
[20:05:21:322] B - 815783 - SHRM - Image Load, Start␍␊
[20:05:21:335] D - 13207 - Auth Metadata␍␊
[20:05:21:346] D - 19825 - SHRM - Image Loaded, Delta - (53064 Bytes)␍␊
[20:05:21:346] D - 91 - boot_cdt_init␍␊
[20:05:21:346] B - 841068 - CDT - Image Load, Start␍␊
[20:05:21:358] B - 843874 - CDT Version:3,Platform ID:11,Major ID:1,Minor ID:0,Subtype:0␍␊
[20:05:21:358] D - 10827 - sbl1_hw_platform_pre_ddr␍␊
[20:05:21:358] B - 855433 - usb: chgr - SDP_CHARGER␍␊
[20:05:21:369] B - 858483 - usb: qusb_dci_eud_init␍␊
[20:05:21:369] B - 864980 - PM: Battery ID: 7315Ohm␍␊
[20:05:21:369] B - 865803 - PM: debug board connected␍␊
[20:05:21:380] B - 869494 - PM: CHG Init # SPMI Transn: 9023␍␊
[20:05:21:380] B - 873306 - vsense_init, Start␍␊
[20:05:21:380] D - 0 - vsense_init, Delta␍␊
[20:05:21:403] D - 38186 - sbl1_hw_pre_ddr_init␍␊
[20:05:21:403] D - 122 - boot_fedl_check␍␊
[20:05:21:403] D - 0 - boot_dload_handle_forced_dload_timeout␍␊
[20:05:21:403] D - 305 - sbl1_load_ddr_training_data␍␊
[20:05:21:415] B - 904264 - Pre_DDR_clock_init, Start␍␊
[20:05:21:415] D - 0 - Pre_DDR_clock_init, Delta␍␊
[20:05:21:426] D - 12932 - sbl1_ddr_set_params␍␊
[20:05:21:426] B - 915976 - sbl1_ddr_init, Start␍␊
[20:05:21:426] B - 922899 - DDR_INIT with shrm.elf␍␊
[20:05:21:426] B - 922899 - INFO: PXI based read & write training enabled␍␊
[20:05:21:448] B - 937753 - eCDT MRR - Data Starting Address: 0x24056D00␍␊
[20:05:21:448] B - 938729 - Returning from DDR_FW_Init␍␊
[20:05:21:448] B - 943304 - ddr_init = 1 cold boot␍␊
[20:05:21:460] D - 27938 - sbl1_ddr_init, Delta␍␊
[20:05:21:460] B - 950837 - DSF version = 032.00.00␍␊
[20:05:21:460] B - 954223 - Manufacturer ID = 0x6, Device Type = 0x8␍␊
[20:05:21:471] B - 957883 - Rank 0 size = 6144 MB, Rank 1 size = 6144 MB␍␊
[20:05:21:471] D - 47427 - sbl1_ddr_init␍␊
[20:05:21:471] D - 0 - store-logstomedia␍␊
[20:05:21:477] B - 971425 - do_ddr_training, Start␍␊
[20:05:21:501] B - 997289 - DDR: Start of DDR Training Restore␍␊
[20:05:21:518] B - 1007415 - Returning from DDR_FW_Restore␍␊
[20:05:21:518] B - 1007598 - Current DDR Freq = 2739 MHz␍␊
[20:05:21:518] B - 1011624 - Max enabled DDR Freq = 4224 MHz␍␊
[20:05:21:529] B - 1015650 - DDR: End of DDR Training Restore␍␊
[20:05:21:529] D - 45567 - do_ddr_training, Delta␍␊
[20:05:21:529] B - 1026325 - SecLib initiate DARE sequence start␍␊
[20:05:21:541] B - 1028307 - SecLib initiate DARE sequence successful␍␊
[20:05:21:541] B - 1037213 - Returning from DDR_FW_Exit␍␊
[20:05:21:552] B - 1038220 - DDR:set boot freq from device tree␍␊
[20:05:21:552] D - 70577 - xbl_trng_ddi_seq␍␊
[20:05:21:552] D - 0 - store-logstomedia␍␊
[20:05:21:552] D - 1677 - xbl_map_smem␍␊
[20:05:21:564] D - 0 - boot_smem_debug_init␍␊
[20:05:21:564] D - 2349 - boot_smem_init␍␊
[20:05:21:564] D - 122 - boot_ddr_share_data_to_aop␍␊
[20:05:21:575] D - 61 - boot_populate_ddr_details_shared_table␍␊
[20:05:21:575] D - 0 - boot_recovery_partitions_info_smem_init␍␊
[20:05:21:575] B - 1070702 - MTE is DISABLED␍␊
[20:05:21:587] D - 5094 - boot_update_ram_partition_table␍␊
[20:05:21:587] B - 1078693 - Pimem init cmd, entry␍␊
[20:05:21:587] B - 1083390 - (50000e)␍␊
[20:05:21:598] D - 3477 - Pimem init cmd, exit␍␊
[20:05:21:598] B - 1091717 - External heap init, Start␍␊
[20:05:21:598] B - 1092327 - External heap init, End␍␊
[20:05:21:619] D - 30043 - sbl1_post_ddr_init␍␊
[20:05:21:619] D - 0 - sbl1_hw_init_secondary␍␊
[20:05:21:619] B - 1111969 - DDR - Image Load, Start␍␊
[20:05:21:619] B - 1117855 - DTB Found: [soc][7f025b02000000][b00010000000000]␍␊
[20:05:21:631] D - 9486 - boot_post_ddr_dtb_load␍␊
[20:05:21:631] B - 1125450 - usb: UFS Serial - f6f3cc25␍␊
[20:05:21:642] D - 3538 - boot_usb_update_serial␍␊
[20:05:21:642] D - 30 - boot_usb_handle_charger␍␊
[20:05:21:642] D - 61 - sbl1_hw_platform_smem␍␊
[20:05:21:654] D - 30 - ramdump_load_cancel␍␊
[20:05:21:654] B - 1143658 - RamDump - Image Load, Start␍␊
[20:05:21:654] D - 3294 - RamDump - Image Loaded, Delta - (0 Bytes)␍␊
[20:05:21:665] D - 30 - boot_update_abnormal_reset_status␍␊
[20:05:21:665] D - 0 - boot_cache_set_memory_barrier␍␊
[20:05:21:665] D - 31 - boot_smem_alloc_for_minidump␍␊
[20:05:21:677] D - 0 - boot_shrm_mini_dump_init␍␊
[20:05:21:677] D - 30 - boot_minidump_register_regions␍␊
[20:05:21:677] D - 61 - boot_smem_store_pon_status␍␊
[20:05:21:688] D - 31 - boot_clock_init_rpm␍␊
[20:05:21:688] D - 30 - boot_vsense_copy_to_smem␍␊
[20:05:21:688] D - 244 - sbl1_tlmm_init␍␊
[20:05:21:694] D - 0 - sbl1_efs_handle_cookies␍␊
[20:05:21:719] B - 1208440 - PM: PM Total Mem Allocated: 10069 ␍␊
[20:05:21:719] D - 17720 - sbl1_pm_aop_pre_init_wrapper␍␊
[20:05:21:719] B - 1213107 - AOP Config - Image Load, Start␍␊
[20:05:21:724] D - 2623 - Auth Metadata␍␊
[20:05:21:735] D - 13115 - AOP Config - Image Loaded, Delta - (12852 Bytes)␍␊
[20:05:21:735] B - 1231956 - AOP - Image Load, Start␍␊
[20:05:21:749] D - 13725 - Auth Metadata␍␊
[20:05:21:777] D - 34526 - AOP - Image Loaded, Delta - (274916 Bytes)␍␊
[20:05:21:777] D - 0 - aop_loaded␍␊
[20:05:21:777] D - 0 - boot_prepare_cpucp␍␊
[20:05:21:777] B - 1274442 - CPUCPFW - Image Load, Start␍␊
[20:05:21:794] D - 13725 - Auth Metadata␍␊
[20:05:21:854] D - 68625 - CPUCPFW - Image Loaded, Delta - (174908 Bytes)␍␊
[20:05:21:854] B - 1348801 - CPUCP_DTB - Image Load, Start␍␊
[20:05:21:854] D - 92 - CPUCP_DTB - Image Loaded, Delta - (0 Bytes)␍␊
[20:05:21:865] D - 0 - boot_reset_cpucp␍␊
[20:05:21:865] B - 1358714 - QSEE Dev Config - Image Load, Start␍␊
[20:05:21:869] D - 3172 - Auth Metadata␍␊
[20:05:21:880] D - 11437 - QSEE Dev Config - Image Loaded, Delta - (45784 Bytes)␍␊
[20:05:21:880] B - 1375885 - QSEE - Image Load, Start␍␊
[20:05:21:894] D - 14823 - Auth Metadata␍␊
[20:05:21:976] D - 89548 - QSEE - Image Loaded, Delta - (3859579 Bytes)␍␊
[20:05:21:976] B - 1466104 - DTB: Vibration Enabled␍␊
[20:05:21:976] D - 8357 - sbl1_hw_play_vibr␍␊
[20:05:21:988] B - 1474675 - SEC - Image Load, Start␍␊
[20:05:21:988] D - 3263 - SEC - Image Loaded, Delta - (64 Bytes)␍␊
[20:05:21:988] B - 1481568 - QHEE - Image Load, Start␍␊
[20:05:22:003] D - 13878 - Auth Metadata␍␊
[20:05:22:029] D - 36935 - QHEE - Image Loaded, Delta - (1568760 Bytes)␍␊
[20:05:22:029] B - 1518503 - APPSBL - Image Load, Start␍␊
[20:05:22:029] D - 2867 - Auth Metadata␍␊
[20:05:22:059] D - 29250 - APPSBL - Image Loaded, Delta - (2740088 Bytes)␍␊
[20:05:22:059] D - 0 - sbl1_save_appsbl_index␍␊
[20:05:22:059] B - 1554432 - SBL1, End␍␊
[20:05:22:070] D - 1426973 - SBL1, Delta␍␊
4. 主引导装载程序阶段（Little Kernel, LK）
硬件初始化：LK 进行更多硬件初始化工作，如显示、音频、传感器等外围设备的初始化。
加载 ABOOT：LK 负责加载安卓引导装载程序（Android Bootloader，简称 ABOOT）。
进入 ABOOT：LK 完成所有初始化后，将控制权交给 ABOOT。
[20:05:22:070] S - Flash Throughput, 193495 KB/s (8900805 Bytes, 46843 us)␍␊
[20:05:22:070] S - DDR Frequency, 2092 MHz␍␊
[20:05:22:309] 0 1.795712 Hypervisor cold boot, version: gunyah-4b6cc019f prod (Tue Mar 28 05:43:27 2023 UTC)␍␊
[20:05:22:349] [RM]Starting Resource Manager, version: b93d3a62 (Wed Feb 22 06:33:21 2023 UTC)␍␊
[20:05:22:349] [RM]MPD Sanitiser: Unexpected MPD version, skipping.␍␊
[20:05:22:357] [RM]init completed, disabling UART␍␊
[20:05:22:370] ␍␊
[20:05:22:370] ␍␊
[20:05:22:370] UEFI Start [ 1855]␍␊
[20:05:22:370] - 0x0A7001000 [ 1860] Sec.efi␍␊
[20:05:22:370] ASLR : ON␍␊
[20:05:22:370] DEP : ON (RTB)␍␊
[20:05:22:401] Timer Delta : +3 mS␍␊
[20:05:22:401] RAM Entry 0 : Base 0x0080000000 Size 0x0000E00000␍␊
[20:05:22:407] RAM Entry 1 : Base 0x00811D0000 Size 0x0056E30000␍␊
[20:05:22:468] RAM Entry 2 : Base 0x00D8140000 Size 0x0000020000␍␊
[20:05:22:478] RAM Entry 3 : Base 0x00D8800000 Size 0x0000000000␍␊
[20:05:22:478] RAM Entry 4 : Base 0x00E1BB0000 Size 0x001E450000␍␊
[20:05:22:488] RAM Entry 5 : Base 0x0880000000 Size 0x0039A00000␍␊
[20:05:22:498] RAM Entry 6 : Base 0x0980000000 Size 0x0180000000␍␊
[20:05:22:508] RAM Entry 7 : Base 0x08C0000000 Size 0x00C0000000␍␊
[20:05:22:518] RAM Available : 12026 MB (0x02EFAA0000)␍␊
[20:05:22:518] RAM Installed : 12288 MB (0x0300000000)␍␊
[20:05:22:528] Minidump : ON␍␊
[20:05:22:528] Continue booting UEFI on Core 0␍␊
[20:05:22:538] UEFI Ver : 6.0.240612.BOOT.MXF.2.1.1-00240.1-KAILUA-1␍␊
[20:05:22:548] Build Info : 64b Jun 12 2024 15:17:42␍␊
[20:05:22:558] Boot Device : UFS␍␊
[20:05:22:558] PROD Mode : TRUE␍␊
[20:05:22:558] Retail : FALSE␍␊
[20:05:22:566] IsArmV8Smc() return TRUE ␍␊
[20:05:22:617] Protective MBR validation might be needed. ␍␊
[20:05:22:638] Protective MBR validation might be needed. ␍␊
[20:05:22:699] HW Wdog Setting from PCD : Disabled␍␊
[20:05:22:718] QseeResponse->result = 0xE␍␊
[20:05:22:741] Status = 0x7␍␊
[20:05:22:741] QseeResponse->result = 0xE␍␊
[20:05:22:741] Status = 0x7␍␊
[20:05:22:756] DisplayFeatureEnablerExecute FeatureEnablerSendCommandTAs failed: eStatus=0, rsp.status=3␍␊
[20:05:22:762] Setvariable returned Success␍␊
[20:05:22:769] DisplayUtils: no string from fastboot, set Panel override command as none␍␊
[20:05:22:776] Failed to get QseeDiagLogEnableFlag, Status=Success␍␊
[20:05:22:789] Failed to get QseeDiagLogEnableFlag, Status=Success␍␊
[20:05:22:789] RemoteObj_invoke count 1 ␍␊
[20:05:22:799] time for license check including RTIC and qwes TA 5351 uS ␍␊
[20:05:22:819] Overriding PIL cfg by caller␍␊
[20:05:22:859] UsbConfigLibOpenProtocols: PMI version (0x47)␍␊
[20:05:22:864] platform: : 110000␍␊
[20:05:22:864] Platform :: 11␍␊
[20:05:22:864] usb_repeater_init, tuning_allowed: 1␍␊
[20:05:22:879] WRITING: reg: 0xFD51, data: 13, res = 0␍␊
[20:05:22:879] WRITING: reg: 0xFD53, data: 6, res = 0␍␊
[20:05:22:901] WRITING: reg: 0xFD54, data: 3, res = 0␍␊
[20:05:22:909] WRITING: reg: 0xFD57, data: 7, res = 0␍␊
[20:05:22:909] UsbConfigLibOpenProtocols: PMI version (0x47)␍␊
[20:05:22:919] ConnectSts : Attach, Data Role : UFP (DEVICE Mode), Lane : CC2, CoreNum : 0␍␊
[20:05:22:930] ButtonsDxeTest: Keypress SDAM data payload 0 ␍␊
[20:05:22:947] RemoteObj_invoke count 1 ␍␊
[20:05:22:947] WaitParallelThreads InIt [ 2415] ␍␊
[20:05:22:960] UEFI Ver : 6.0.240612.BOOT.MXF.2.1.1-00240.1-KAILUA-1␍␊
[20:05:22:969] Platform : QRD␍␊
[20:05:22:969] Subtype : 0␍␊
[20:05:22:975] Boot Device : UFS␍␊
[20:05:22:975] Chip Name : QCS_KAILUA␍␊
[20:05:22:981] Chip Ver : 2.0␍␊
[20:05:22:981] Chip ECID : 0x0437B96388DD␍␊
[20:05:22:990] -----------------------------␍␊
[20:05:22:990] SOM Version:1 DK Version:0 Subtype Version:0 ␍␊
[20:05:23:048] XBL Software Version:[TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054]␍␊
[20:05:23:060] -----------------------------␍␊
[20:05:23:060] UEFI Total : 590 ms␍␊
[20:05:23:070] POST Time [ 2445] OS Loader␍␊
[20:05:23:070] [2452]Loader Build Info: Jun 12 2024 12:03:52␍␊
[20:05:23:079] VB: Non-secure device: Security State: (0xDDD3F)␍␊
[20:05:23:089] VB: RWDeviceState: Succeed using devinfo!␍␊
[20:05:23:089] VB: Non-secure device: Security State: (0xDDD3F)␍␊
[20:05:23:099] VB: RWDeviceState: Succeed using devinfo!␍␊
[20:05:23:121] VB: Non-secure device: Security State: (0xDDD3F)␍␊
[20:05:23:130] VB: RWDeviceState: Succeed using devinfo!␍␊
[20:05:23:130] VB: Non-secure device: Security State: (0xDDD3F)␍␊
[20:05:23:142] VB: RWDeviceState: Succeed using devinfo!␍␊
[20:05:23:150] [2467]Total DDR Size: 0x00000002EFAA0000 ␍␊
[20:05:23:208] [2467]SOM Version:1 DK Version:0 Subtype Version:0␍␊
[20:05:23:208] [2467]KeyPress:0, BootReason:0␍␊
[20:05:23:219] [2467]Fastboot=0, Recovery:0␍␊
[20:05:23:219] [2467]SilentBoot Mode:11␍␊
[20:05:23:226] [2468]Loading Image recovery_a Done : 0 ms, Image size : 4096 Bytes␍␊
[20:05:23:233] [2469]Loading Image init_boot_a Done : 1 ms, Image size : 4096 Bytes␍␊
[20:05:23:239] [2470]Booting from slot (_a)␍␊
[20:05:23:239] [2470]Booting Into Mission Mode␍␊
[20:05:23:249] [2472]Loading Image boot_a Done : 1 ms, Image size : 4096 Bytes␍␊
[20:05:23:259] [2472]Load Image vbmeta_a total time: 0 ms ␍␊
[20:05:23:269] [2472]avb_vbmeta_image.c[2472]:[2472]207[2472]: ERROR: [2473]Hash does not match!␍␊
[20:05:23:279] [2473]avb_slot_verify.c[2473]:[2473]805[2473]: ERROR: [2473]vbmeta_a[2473]: Error verifying vbmeta image: [2473]HASH_MISMATCH[2473]␍␊
[20:05:23:299] [2473]Load Image recovery_a total time: 0 ms ␍␊
[20:05:23:309] [2474]Load Image recovery_a total time: 1 ms ␍␊
[20:05:23:309] [2478]Load Image vbmeta_system_a total time: 1 ms ␍␊
[20:05:23:319] [2541]Load Image boot_a total time: 55 ms ␍␊
[20:05:23:329] [2613]Load Image dtbo_a total time: 17 ms ␍␊
[20:05:23:339] [2635]Load Image init_boot_a total time: 8 ms ␍␊
[20:05:23:339] [2700]Load Image vendor_boot_a total time: 55 ms ␍␊
[20:05:23:349] [2719]ReadPersistentValue 0xE ␍␊
[20:05:23:359] [2720]Ftr OsVer:0x34000 SPL:0x2975␍␊
[20:05:23:359] QseeResponse->result = 0xE␍␊
[20:05:23:369] Status = 0x7␍␊
[20:05:23:369] [2725]VB2: Authenticate complete! boot state is: orange␍␊
[20:05:23:379] [2725]VB2: boot state: orange(1)␍␊
[20:05:23:379] [2726]Failed to get the graphics output protocol.␍␊
[20:05:23:389] [2726]Failed to get the graphics output protocol.␍␊
[20:05:23:399] [2726]Failed to get width or height␍␊
[20:05:23:399] [2726]Failed to get the graphics output protocol.␍␊
[20:05:23:409] [2726]Failed to get the graphics output protocol.␍␊
[20:05:23:419] [2726]Unable to show verified menu on screen: Out of Resources␍␊
[20:05:23:429] [2726]Device is unlocked, Skipping boot verification␍␊
[20:05:23:439] QseeResponse->result = 0xE␍␊
[20:05:23:439] Status = 0x7␍␊
[20:05:23:449] [2727]Hyp version: 1␍␊
[20:05:23:449] [2727]Silent Mode value: 11␍␊
[20:05:23:449] [2728]Memory Base Address: 0x80000000␍␊
[20:05:23:459] [2735]Override DTB: GetBlkIOHandles failed loading user_dtbo!␍␊
[20:05:23:592] [3076]0 3.076715 hyp_notify_rtic_dtb_location Entry␍␊
[20:05:23:592] ␍␊
[20:05:23:592] 0 3.083476 KP: Kernel VA is 0, PA is a8000000␍␊
[20:05:23:592] Apply Overlay total time: 341 ms ␍␊
[20:05:23:597] [3094]Unable to get hw fence Config, Not Found␍␊
[20:05:23:602] [3094]Unable to get GPU Preempt Config, Not Found␍␊
[20:05:23:608] VB: Non-secure device: Security State: (0xDDD3F)␍␊
[20:05:23:614] VB: RWDeviceState: Succeed using devinfo!␍␊
[20:05:23:614] [3099]XBLTurboxid: TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054 ␍␊
[20:05:23:633] [3099]Turbox ABL Software Version: TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054 ␍␊
[20:05:23:642] [3099]Cmdline: video=vfb:640x400,bpp=32,memsize=3072000 ro.turbox.build.id.kernel=TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054 ro.turbox.build.id.system=TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054 nosoftlockup bootconfig buildvariant=userdebug and[3100]Final RAM Partitions␍␊
[20:05:23:708] [3100]Add Base: 0x0000000080000000 Available Length: 0x0000000000E00000 ␍␊
[20:05:23:719] [3100]Add Base: 0x00000000811D0000 Available Length: 0x0000000056E30000 ␍␊
[20:05:23:730] [3101]Add Base: 0x00000000D8140000 Available Length: 0x0000000000020000 ␍␊
[20:05:23:730] [3101]Add Base: 0x00000000D8800000 Available Length: 0x0000000000000000 ␍␊
[20:05:23:742] [3101]Add Base: 0x00000000E1BB0000 Available Length: 0x000000001E450000 ␍␊
[20:05:23:742] [3101]Add Base: 0x0000000880000000 Available Length: 0x0000000039A00000 ␍␊
[20:05:23:753] [3102]Add Base: 0x0000000980000000 Available Length: 0x0000000180000000 ␍␊
[20:05:23:765] [3102]Add Base: 0x00000008C0000000 Available Length: 0x00000000C0000000 ␍␊
[20:05:23:765] [3107]ERROR: Could not find the ramdump reg property␍␊
[20:05:23:776] [3125]PartialGoods Value: 0x0␍␊
[20:05:23:776] [3134]Update Device Tree total time: 34 ms ␍␊
[20:05:23:776] [3134]␍␊
[20:05:23:776] Shutting Down UEFI Boot Services: 3134 ms␍␊
5. 安卓引导装载程序阶段（Android Bootloader, ABOOT）
引导选项：ABOOT 提供一个接口，允许用户进入恢复模式、引导安卓系统或刷入新固件。用户可以通过按下特定按键组合进入这些模式。
加载内核和设备树：ABOOT 从存储介质中加载安卓内核（Kernel）和设备树二进制文件（Device Tree Blob，简称 DTB）。
加载 Ramdisk：ABOOT 还加载 initramfs（Initial Ramdisk），它包含引导时所需的临时文件系统。
[20:05:23:788] Start EBS [ 3134] ␍␊
[20:05:23:788] App Log Flush : 91 ms␍␊
[20:05:23:788] RemoteObj_invoke count 1 ␍␊
[20:05:23:788] RemoteObj_invoke count 1 ␍␊
[20:05:23:788] RemoteObj_invoke count 1 ␍␊
[20:05:23:799] RemoteObj_invoke count 1 ␍␊
[20:05:23:799] ScmArmV8ExitBootServicesHandler, Status = 0x0. ␍␊
[20:05:23:799] ExitBootServicesScmDxeV8EventHandler TZ SMC call t=167ms␍␊
[20:05:23:804] Exit EBS [ 3278] UEFI End␍␊
[20:05:23:830] 0 3.323000 Hypervisor UART is disabled!␍␊
[20:05:23:830] ␍␊
6. 内核引导阶段（Kernel Booting）
内核初始化：内核开始执行，初始化各种驱动程序和硬件组件。
挂载文件系统：内核挂载根文件系统（Root Filesystem），这是设备上的主要文件系统。
启动 init 进程：内核启动第一个用户态进程 init，这个进程是所有其他用户态进程的祖先。
[20:05:26:863] [ 0.000000][ T0] Linux version 5.15.78-qki-consolidate-ab5674 (build-user@build-host) (Android (8508608, based on r450784e) clang version 14.0.7 (https://android.googlesource.com/toolchain/llvm-project 4c603efb0cca074e9238af8b4106c30add4418f6), LLD 14.0.7) #1 SMP PREEMPT Wed Jun 12 11:39:12 CST 2024␍␊
[20:05:26:886] [ 0.000000][ T0] random: crng init done␍␊
[20:05:26:886] [ 0.000000][ T0] **********************************************************␍␊
[20:05:26:897] [ 0.000000][ T0] ** NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE **␍␊
[20:05:26:909] [ 0.000000][ T0] ** **␍␊
[20:05:26:909] [ 0.000000][ T0] ** This system shows unhashed kernel memory addresses **␍␊
[20:05:26:920] [ 0.000000][ T0] ** via the console, logs, and other interfaces. This **␍␊
[20:05:26:932] [ 0.000000][ T0] ** might reduce the security of your system. **␍␊
[20:05:26:932] [ 0.000000][ T0] ** **␍␊
[20:05:26:943] [ 0.000000][ T0] ** If you see this message and you are not debugging **␍␊
[20:05:26:943] [ 0.000000][ T0] ** the kernel, report this immediately to your system **␍␊
[20:05:26:955] [ 0.000000][ T0] ** administrator! **␍␊
[20:05:26:966] [ 0.000000][ T0] ** **␍␊
[20:05:26:966] [ 0.000000][ T0] ** NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE **␍␊
[20:05:26:978] [ 0.000000][ T0] **********************************************************␍␊
[20:05:26:989] [ 0.000000][ T0] Memory limited to 7930MB␍␊
[20:05:26:989] [ 0.000000][ T0] Kernel command line: kasan.stacktrace=off stack_depot_disable=off page_owner=on no_hash_pointers panic_on_taint=0x20 cgroup_disable=pressure console=ttyMSM0,115200n8 loglevel=6 kpti=0 log_buf_len=256K kernel.panic_on_rcu_stall=1 service_locator.enable=1 msm_rtb.filter=0x237 rcupdate.rcu_expedited=1 rcu_nocbs=0-7 ftrace_dump_on_oops swiotlb=noforce loop.max_part=7 fw_devlink.strict=1 allow_mismatched_32bit_el0 cpufreq.default_governor=performance printk.console_no_auto_verbose=1 kasan=off sysctl.kernel.sched_pelt_multiplier=4 can.stats_timer=0 pcie_ports=compat irqaffinity=0-2 disable_dma32=on no-steal-acc cgroup.memory=nokmem,nosocket slub_debug=- video=vfb:640x400,bpp=32,memsize=3072000 ro.turbox.build.id.kernel=TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054 ro.turbox.build.id.system=TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054 nosoftlockup bootconfig buildvariant=userdebug androidboot.serialno=ZT3BWS18004V androidboot.btmac= ro.turbox.build.id.xb␍␊
[20:05:27:080] [ 0.000000][ T0] Turbox Software Version in kernel: TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054␍␊
[20:05:27:092] [ 0.000000][ T0] Turbox Software Version in system: TurboX_C8550_xx.xx_LA1.0.v.userdebug.20240612.1054␍␊
[20:05:27:103] [ 0.000000][ T0] Unknown kernel command line parameters "buildvariant=userdebug", will be passed to user space.␍␊
[20:05:27:114] [ 0.000000][ T0] ITS@0x0000000017140000: Devices Table too large, reduce ids 32->19␍␊
[20:05:27:114] [ 0.000000][ T0] ITS@0x0000000017140000: Devices too large, reduce ITS pages 1024->256␍␊
[20:05:27:126] [ 0.016700][ T0] CPU features: SANITY CHECK: Unexpected variation in SYS_ID_AA64MMFR1_EL1. Boot CPU: 0x00000011212122, CPU3: 0x00000010212122␍␊
[20:05:27:137] [ 0.016710][ T0] CPU features: Unsupported CPU feature variation detected.␍␊
[20:05:27:149] [ 0.018638][ T0] CPU features: SANITY CHECK: Unexpected variation in SYS_ID_AA64MMFR1_EL1. Boot CPU: 0x00000011212122, CPU4: 0x00000010212122␍␊
[20:05:27:160] [ 0.020492][ T0] CPU features: SANITY CHECK: Unexpected variation in SYS_ID_AA64MMFR1_EL1. Boot CPU: 0x00000011212122, CPU5: 0x00000010212122␍␊
[20:05:27:172] [ 0.020496][ T0] CPU features: SANITY CHECK: Unexpected variation in SYS_ID_MMFR4_EL1. Boot CPU: 0x00000001021111, CPU5: 0x00000001021110␍␊
[20:05:27:183] [ 0.022147][ T0] CPU features: SANITY CHECK: Unexpected variation in SYS_ID_AA64MMFR1_EL1. Boot CPU: 0x00000011212122, CPU6: 0x00000010212122␍␊
[20:05:27:195] [ 0.022151][ T0] CPU features: SANITY CHECK: Unexpected variation in SYS_ID_MMFR4_EL1. Boot CPU: 0x00000001021111, CPU6: 0x00000001021110␍␊
[20:05:27:217] [ 0.024091][ T0] CPU features: SANITY CHECK: Unexpected variation in SYS_ID_AA64MMFR1_EL1. Boot CPU: 0x00000011212122, CPU7: 0x00000010212122␍␊
[20:05:27:229] [ 0.159957][ T1] Registered cp15_barrier emulation handler␍␊
[20:05:27:229] [ 0.159971][ T1] Registered setend emulation handler␍␊
[20:05:27:240] [ 0.163947][ T83] audit: type=2000 audit(0.144:1): state=initialized audit_enabled=0 res=1␍␊
[20:05:27:240] [ 0.184356][ T1] OF: /soc/spf_core_platform/lpass-cdc/va-macro@6D44000: could not get #gpio-cells for /soc/interrupt-controller@17100000␍␊
[20:05:27:263] [ 0.241775][ T1] SCSI subsystem initialized␍␊
[20:05:27:263] [ 0.253430][ T1] VFS: Disk quotas dquot_6.6.0␍␊
[20:05:27:263] [ 0.272530][ T1] Initialise system trusted keyrings␍␊
[20:05:27:275] [ 0.284754][ T1] Key type asymmetric registered␍␊
[20:05:27:275] [ 0.284760][ T1] Asymmetric key parser 'x509' registered␍␊
[20:05:27:286] [ 0.304781][ T1] Loading compiled-in X.509 certificates␍␊
[20:05:27:286] [ 0.305742][ T1] Loaded X.509 cert 'Build time autogenerated kernel key: 9418d2693caa0155f80bd6dc0349b72491e6b27b'␍␊
[20:05:27:297] [ 0.307973][ T1] Key type .fscrypt registered␍␊
[20:05:27:309] [ 0.307976][ T1] Key type fscrypt-provisioning registered␍␊
[20:05:27:309] [ 0.308002][ T1] pstore: Invalid compression size for deflate: 0␍␊
[20:05:27:320] [ 0.312886][ T1] Warning: unable to open an initial console.␍␊
[20:05:27:320] [ 0.343014][ T120] qcom_rimps: module verification failed: signature and/or required key missing - tainting kernel␍␊
[20:05:27:332] [ 0.353239][ T10] arm-scmi soc:qcom,scmi: SCMI protocol 129 not implemented␍␊
[20:05:27:343] [ 0.358887][ T120] arm-scmi soc:qcom,scmi: version 1.0␍␊
[20:05:27:343] [ 0.360710][ T119] qtee shmbridge registered default bridge with size 4194304 bytes␍␊
[20:05:27:355] [ 0.362448][ T119] shmbridge is enabled␍␊
[20:05:27:355] [ 0.363766][ T119] qcom-scm: scm_mem_protection_init_do: SCM call failed 0, resp 7␍␊
[20:05:27:366] [ 0.363772][ T119] MEM protection Not enabled, 7␍␊
[20:05:27:366] [ 0.366830][ T140] msm_custom_socinfo_attrs index = 48␍␊
[20:05:27:378] [ 0.366840][ T140] SOM Version:1 DK Version:0 Subtype Version:0␍␊
[20:05:27:378] [ 0.403489][ T135] spmi spmi-0: pmic_arb_wait_for_done: 0xa 0x104: transaction failed (0x3)␍␊
[20:05:27:389] [ 0.403526][ T135] ------------[ cut here ]------------␍␊
[20:05:27:400] [ 0.403528][ T135] WARNING: CPU: 6 PID: 135 at drivers/spmi/spmi-pmic-arb.c:311 pmic_arb_wait_for_done+0x148/0x1a8 [spmi_pmic_arb]␍␊
[20:05:27:412] [ 0.403538][ T135] Modules linked in: thermal_minidump(E) pinctrl_crow(E) crypto_qti_hwkm(E) gunyah(E) qcom_wdt_core(E) thermal_pause(E+) qcom_dload_mode(E) memory_dump_v2(E) pinctrl_msm(E) qcom_pdc(E) qcom_ipc_logging(E) minidump(E) nvme(E) qcom_pmu_lib(E) stub_regulator(E) sched_walt(E) secure_buffer(E) gh_rm_drv(E) gdsc_regulator(E) hwkm(E) mdt_loader(E) llcc_qcom(E) socinfo(E) qcom_spmi_pmic(E) nvme_core(E) c1dcvs_scmi(E) mem_offline(E) c1dcvs_vendor(E) qcom_llcc_pmu(E) gh_arm_drv(E) rtc_pm8xxx(E) smem(E) qcom_scm(E) debug_regulator(E) regmap_spmi(E) gh_ctrl(E) pmu_vendor(E) qcom_reboot_reason(E) proxy_consumer(E) msm_dma_iommu_mapping(E) qnoc_qos(E) tmecom_intf(E) gh_dbl(E) gh_msgq(E) sched_walt_debug(E) iommu_logger(E) nvmem_qcom_spmi_sdam(E) spmi_pmic_arb(E) qcom_cpufreq_hw(E) mem_hooks(E) debug_symbol(E) icc_debug(E) cpu_hotplug(E) cmd_db(E) qti_regmap_debugfs(E) qcom_ipcc(E) cqhci(E) qcom_hwspinlock(E) qcom_rimps(E)␍␊
[20:05:27:492] [ 0.403578][ T135] CPU: 6 PID: 135 Comm: kworker/u16:3 Tainted: G S E 5.15.78-qki-consolidate-ab5674 #1␍␊
[20:05:27:503] [ 0.403580][ T135] Hardware name: Qualcomm Technologies, Inc. Kalama QRD (DT)␍␊
[20:05:27:515] [ 0.403582][ T135] Workqueue: events_unbound async_run_entry_fn.cfi_jt␍␊
[20:05:27:515] [ 0.403590][ T135] pstate: 604000c5 (nZCv daIF +PAN -UAO -TCO -DIT -SSBS BTYPE=--)␍␊
[20:05:27:532] [ 0.403593][ T135] pc : pmic_arb_wait_for_done+0x148/0x1a8 [spmi_pmic_arb]␍␊
[20:05:27:532] [ 0.403598][ T135] lr : pmic_arb_wait_for_done+0x144/0x1a8 [spmi_pmic_arb]␍␊
[20:05:27:543] [ 0.403602][ T135] sp : ffffffc00928b400␍␊
[20:05:27:543] [ 0.403603][ T135] x29: ffffffc00928b410 x28: 00000000000000c0 x27: ffffff80375bac68␍␊
[20:05:27:555] [ 0.403607][ T135] x26: 0000000000000000 x25: 000000000000000a x24: 00000000fffffc1a␍␊
[20:05:27:566] [ 0.403609][ T135] x23: ffffffc009303528 x22: 0000000000000003 x21: 000000000000000a␍␊
[20:05:27:566] [ 0.403611][ T135] x20: 0000000000000104 x19: ffffff80375ba800 x18: ffffffc008955118␍␊
[20:05:27:577] [ 0.403614][ T135] x17: ffffffffffffffff x16: 0000000000000000 x15: 0000000000000004␍␊
[20:05:27:589] [ 0.403616][ T135] x14: ffffff8970d50000 x13: 0000000000001fff x12: 0000000000000003␍␊
[20:05:27:589] [ 0.403619][ T135] x11: 00000000ffffdfff x10: 0000000000000003 x9 : 3b3073f8d7f63f00␍␊
[20:05:27:600] [ 0.403621][ T135] x8 : 3b3073f8d7f63f00 x7 : 205b5d3938343330 x6 : 342e30202020205b␍␊
[20:05:27:612] [ 0.403623][ T135] x5 : ffffffd3ea7f52ac x4 : ffffffc00928b01f x3 : 0000000000000000␍␊
[20:05:27:612] [ 0.403626][ T135] x2 : 0000000000000000 x1 : ffffffc00928b0d8 x0 : 00000000fffffffb␍␊
[20:05:27:623] [ 0.403629][ T135] Call trace:␍␊
[20:05:27:623] [ 0.403630][ T135] pmic_arb_wait_for_done+0x148/0x1a8 [spmi_pmic_arb]␍␊
[20:05:27:635] [ 0.403634][ T135] pmic_arb_read_cmd+0x154/0x28c [spmi_pmic_arb]␍␊
[20:05:27:646] [ 0.403638][ T135] spmi_read_cmd+0xcc/0x244␍␊
[20:05:27:646] [ 0.403644][ T135] spmi_ext_register_readl+0x48/0x58␍␊
[20:05:27:646] [ 0.403646][ T135] regmap_spmi_ext_read+0xa8/0xe0 [regmap_spmi]␍␊
[20:05:27:658] [ 0.403650][ T135] _regmap_raw_read+0x264/0x488␍␊
[20:05:27:658] [ 0.403654][ T135] _regmap_bus_read+0x48/0xc0␍␊
[20:05:27:669] [ 0.403657][ T135] _regmap_read+0xb0/0x24c␍␊
[20:05:27:669] [ 0.403659][ T135] regmap_read+0x74/0x104␍␊
[20:05:27:681] [ 0.403661][ T135] pmic_spmi_show_revid+0x4c/0x19c [qcom_spmi_pmic]␍␊
[20:05:27:681] [ 0.403664][ T135] pmic_spmi_probe+0x80/0xa4 [qcom_spmi_pmic]␍␊
[20:05:27:692] [ 0.403666][ T135] spmi_drv_probe+0x6c/0x15c␍␊
[20:05:27:692] [ 0.403669][ T135] call_driver_probe+0x78/0x16c␍␊
[20:05:27:692] [ 0.403672][ T135] really_probe+0x250/0x608␍␊
[20:05:27:703] [ 0.403674][ T135] __driver_probe_device+0x2a4/0x33c␍␊
[20:05:27:703] [ 0.403676][ T135] driver_probe_device+0x48/0x21c␍␊
[20:05:27:715] [ 0.403677][ T135] __device_attach_driver+0x1c8/0x2e0␍␊
[20:05:27:715] [ 0.403679][ T135] __device_attach+0x17c/0x2bc␍␊
[20:05:27:726] [ 0.403681][ T135] bus_probe_device+0x44/0x100␍␊
[20:05:27:726] [ 0.403683][ T135] device_add+0x3e8/0x754␍␊
[20:05:27:726] [ 0.403686][ T135] spmi_device_add+0x38/0xac␍␊
[20:05:27:738] [ 0.403689][ T135] of_spmi_register_devices+0x134/0x200␍␊
[20:05:27:738] [ 0.403691][ T135] spmi_controller_add+0x34/0x84␍␊
[20:05:27:749] [ 0.403693][ T135] spmi_pmic_arb_probe+0x580/0x66c [spmi_pmic_arb]␍␊
[20:05:27:749] [ 0.403697][ T135] platform_probe+0x70/0x194␍␊
[20:05:27:761] [ 0.403700][ T135] call_driver_probe+0x78/0x16c␍␊
[20:05:27:761] [ 0.403702][ T135] really_probe+0x250/0x608␍␊
[20:05:27:772] [ 0.403704][ T135] __driver_probe_device+0x2a4/0x33c␍␊
[20:05:27:772] [ 0.403706][ T135] driver_probe_device+0x48/0x21c␍␊
[20:05:27:772] [ 0.403707][ T135] __device_attach_driver+0x1c8/0x2e0␍␊
[20:05:27:784] [ 0.403709][ T135] __device_attach_async_helper+0xa0/0x140␍␊
[20:05:27:784] [ 0.403711][ T135] async_run_entry_fn+0x114/0x3e4␍␊
[20:05:27:795] [ 0.403716][ T135] process_one_work+0x1cc/0x528␍␊
[20:05:27:795] [ 0.403719][ T135] worker_thread+0x398/0x6c0␍␊
[20:05:27:807] [ 0.403721][ T135] kthread+0x17c/0x1e0␍␊
[20:05:27:807] [ 0.403724][ T135] ret_from_fork+0x10/0x20␍␊
[20:05:27:807] [ 0.403727][ T135] ---[ end trace 89493b3ee4ccf75b ]---␍␊
[20:05:27:818] [ 0.461557][ T167] platform 16f0000.anoc_1_qtb: TBU failed probe, QSMMUV500 cannot continue!␍␊
[20:05:27:830] [ 0.461906][ T168] [168]: __qmp_rx_worker: RX int without negotiation ack␍␊
[20:05:27:830] [ 0.481298][ T164] rpmh_regulator_probe: ldok1: could not find RPMh address for resource␍␊
[20:05:27:841] [ 0.481331][ T164] rpmh_regulator_probe: ldok2: could not find RPMh address for resource␍␊
[20:05:27:852] [ 0.481357][ T164] rpmh_regulator_probe: ldok3: could not find RPMh address for resource␍␊
[20:05:27:852] [ 0.481383][ T164] rpmh_regulator_probe: ldok4: could not find RPMh address for resource␍␊
[20:05:27:864] [ 0.481409][ T164] rpmh_regulator_probe: ldok5: could not find RPMh address for resource␍␊
[20:05:27:875] [ 0.481436][ T164] rpmh_regulator_probe: ldok6: could not find RPMh address for resource␍␊
[20:05:27:887] [ 0.481463][ T164] rpmh_regulator_probe: ldok7: could not find RPMh address for resource␍␊
[20:05:27:887] [ 0.481489][ T164] rpmh_regulator_probe: ldol3: could not find RPMh address for resource␍␊
[20:05:27:898] [ 0.481514][ T164] rpmh_regulator_probe: ldol4: could not find RPMh address for resource␍␊
[20:05:27:909] [ 0.481540][ T164] rpmh_regulator_probe: ldol5: could not find RPMh address for resource␍␊
[20:05:27:921] [ 0.481567][ T164] rpmh_regulator_probe: ldol6: could not find RPMh address for resource␍␊
[20:05:27:921] [ 0.481594][ T164] rpmh_regulator_probe: ldol7: could not find RPMh address for resource␍␊
[20:05:27:932] [ 0.482708][ T164] rpmh_regulator_probe: ldon1: could not find RPMh address for resource␍␊
[20:05:27:944] [ 0.482734][ T164] rpmh_regulator_probe: ldon2: could not find RPMh address for resource␍␊
[20:05:27:955] [ 0.482762][ T164] rpmh_regulator_probe: ldon3: could not find RPMh address for resource␍␊
[20:05:27:955] [ 0.482788][ T164] rpmh_regulator_probe: ldon4: could not find RPMh address for resource␍␊
[20:05:27:967] [ 0.482814][ T164] rpmh_regulator_probe: ldon5: could not find RPMh address for resource␍␊
[20:05:27:978] [ 0.482841][ T164] rpmh_regulator_probe: ldon6: could not find RPMh address for resource␍␊
[20:05:27:978] [ 0.482868][ T164] rpmh_regulator_probe: ldon7: could not find RPMh address for resource␍␊
[20:05:27:989] [ 0.495282][ T190] qnoc-kalama soc:interconnect@1: failed to register ICC provider␍␊
[20:05:28:001] [ 0.497236][ T190] qnoc-kalama 1780000.interconnect: failed to register ICC provider␍␊
[20:05:28:012] [ 0.497304][ T190] qnoc-kalama 24100000.interconnect: failed to register ICC provider␍␊
[20:05:28:012] [ 2.653637][ T8] platform 16f0000.anoc_1_qtb: TBU failed probe, QSMMUV500 cannot continue!␍␊
[20:05:28:024] [ 2.654402][ T8] qnoc-kalama soc:interconnect@1: failed to register ICC provider␍␊
[20:05:28:035] [ 2.655185][ T8] qnoc-kalama 1780000.interconnect: failed to register ICC provider␍␊
[20:05:28:035] [ 2.655340][ T8] qnoc-kalama 24100000.interconnect: failed to register ICC provider␍␊
[20:05:28:047] [ 2.677587][ T8] platform 16f0000.anoc_1_qtb: TBU failed probe, QSMMUV500 cannot continue!␍␊
[20:05:28:058] [ 2.684617][ T8] arm-smmu 15000000.apps-smmu: probing hardware configuration...␍␊
[20:05:28:070] [ 2.684620][ T8] arm-smmu 15000000.apps-smmu: SMMUv2 with:␍␊
[20:05:28:070] [ 2.684640][ T8] arm-smmu 15000000.apps-smmu: ⇥ stage 1 translation␍␊
[20:05:28:081] [ 2.684643][ T8] arm-smmu 15000000.apps-smmu: ⇥ coherent table walk␍␊
[20:05:28:081] [ 2.684645][ T8] arm-smmu 15000000.apps-smmu: ⇥ stream matching with 105 register groups␍␊
[20:05:28:092] [ 2.684656][ T8] arm-smmu 15000000.apps-smmu: ⇥ 70 context banks (0 stage-2 only)␍␊
[20:05:28:104] [ 2.684687][ T8] arm-smmu 15000000.apps-smmu: ⇥ Supported page sizes: 0x61311000␍␊
[20:05:28:104] [ 2.684689][ T8] arm-smmu 15000000.apps-smmu: ⇥ Stage-1: 36-bit VA -> 36-bit IPA␍␊
[20:05:28:115] [ 2.690757][ T8] qcom-bwmon: Zone thres larger than hw limit: hi:267 med:400 lo:0␍␊
[20:05:28:127] [ 2.796000][ T10] scsi 0:0:0:49488: Well-known LUN SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:138] [ 2.805414][ T10] scsi 0:0:0:49476: Well-known LUN SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:138] [ 2.827614][ T10] scsi 0:0:0:49456: Well-known LUN SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:150] [ 2.842870][ T10] scsi 0:0:0:0: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:161] [ 2.857393][ T10] scsi 0:0:0:1: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:172] [ 2.858292][ T135] sd 0:0:0:0: [sda] 28053504 4096-byte logical blocks: (115 GB/107 GiB)␍␊
[20:05:28:184] [ 2.858377][ T135] sd 0:0:0:0: [sda] Write Protect is off␍␊
[20:05:28:184] [ 2.858538][ T135] sd 0:0:0:0: [sda] Disabling FUA␍␊
[20:05:28:184] [ 2.858541][ T135] sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:195] [ 2.866374][ T216] sdhci_msm 8804000.sdhci: nvmem cell get failed␍␊
[20:05:28:207] [ 2.879248][ T216] sdhci_msm 8804000.sdhci: get slot index failed -19␍␊
[20:05:28:218] [ 2.879398][ T216] sdhci_msm 8804000.sdhci: no qcom,vdd-io-voltage-level property␍␊
[20:05:28:218] [ 2.879401][ T216] sdhci_msm 8804000.sdhci: no qcom,vdd-io-current-level property␍␊
[20:05:28:230] [ 2.880476][ T216] sdhci_msm 8804000.sdhci: TCXO clk not present (-2)␍␊
[20:05:28:230] [ 2.954183][ T10] scsi 0:0:0:2: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:241] [ 2.954559][ T217] sd 0:0:0:1: [sdb] 5120 4096-byte logical blocks: (21.0 MB/20.0 MiB)␍␊
[20:05:28:253] [ 2.954637][ T217] sd 0:0:0:1: [sdb] Write Protect is off␍␊
[20:05:28:253] [ 2.954788][ T217] sd 0:0:0:1: [sdb] Disabling FUA␍␊
[20:05:28:264] [ 2.954791][ T217] sd 0:0:0:1: [sdb] Write cache: disabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:275] [ 2.958222][ T217] sd 0:0:0:1: [sdb] Attached SCSI disk␍␊
[20:05:28:275] [ 2.961604][ T135] sd 0:0:0:0: [sda] Attached SCSI disk␍␊
[20:05:28:287] [ 2.970382][ T10] scsi 0:0:0:3: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:298] [ 2.970776][ T216] sd 0:0:0:2: [sdc] 5120 4096-byte logical blocks: (21.0 MB/20.0 MiB)␍␊
[20:05:28:298] [ 2.970853][ T216] sd 0:0:0:2: [sdc] Write Protect is off␍␊
[20:05:28:310] [ 2.970995][ T216] sd 0:0:0:2: [sdc] Disabling FUA␍␊
[20:05:28:310] [ 2.970998][ T216] sd 0:0:0:2: [sdc] Write cache: disabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:321] [ 2.974412][ T216] sd 0:0:0:2: [sdc] Attached SCSI disk␍␊
[20:05:28:333] [ 2.983008][ T121] mmc1: sdhci_msm_init_card: failed to init wakeup: -12␍␊
[20:05:28:333] [ 2.989273][ T10] scsi 0:0:0:4: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:344] [ 2.989745][ T217] sd 0:0:0:3: [sdd] 8192 4096-byte logical blocks: (33.6 MB/32.0 MiB)␍␊
[20:05:28:355] [ 2.989831][ T217] sd 0:0:0:3: [sdd] Write Protect is off␍␊
[20:05:28:355] [ 2.989999][ T217] sd 0:0:0:3: [sdd] Disabling FUA␍␊
[20:05:28:367] [ 2.990002][ T217] sd 0:0:0:3: [sdd] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:367] [ 2.993813][ T217] sd 0:0:0:3: [sdd] Attached SCSI disk␍␊
[20:05:28:386] [ 4.252421][ T10] scsi 0:0:0:5: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:398] [ 4.263186][ T10] scsi 0:0:0:6: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:398] [ 4.263215][ T217] sd 0:0:0:4: [sde] 1048576 4096-byte logical blocks: (4.29 GB/4.00 GiB)␍␊
[20:05:28:410] [ 4.273238][ T135] sd 0:0:0:5: [sdf] 8192 4096-byte logical blocks: (33.6 MB/32.0 MiB)␍␊
[20:05:28:421] [ 4.273425][ T10] scsi 0:0:0:7: Direct-Access SKhynix HN8T05DEHKX073 A002 PQ: 0 ANSI: 6␍␊
[20:05:28:433] [ 4.273964][ T216] sd 0:0:0:6: [sdg] 1048576 4096-byte logical blocks: (4.29 GB/4.00 GiB)␍␊
[20:05:28:433] [ 4.274067][ T216] sd 0:0:0:6: [sdg] Write Protect is off␍␊
[20:05:28:444] [ 4.274242][ T216] sd 0:0:0:6: [sdg] Disabling FUA␍␊
[20:05:28:444] [ 4.274246][ T216] sd 0:0:0:6: [sdg] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:456] [ 4.275167][ T95] sd 0:0:0:7: [sdh] 1048576 4096-byte logical blocks: (4.29 GB/4.00 GiB)␍␊
[20:05:28:467] [ 4.275239][ T95] sd 0:0:0:7: [sdh] Write Protect is off␍␊
[20:05:28:467] [ 4.275402][ T95] sd 0:0:0:7: [sdh] Disabling FUA␍␊
[20:05:28:478] [ 4.275404][ T95] sd 0:0:0:7: [sdh] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:490] [ 4.277106][ T216] sd 0:0:0:6: [sdg] Attached SCSI disk␍␊
[20:05:28:490] [ 4.277914][ T95] sd 0:0:0:7: [sdh] Attached SCSI disk␍␊
[20:05:28:501] [ 4.280807][ T217] sd 0:0:0:4: [sde] Write Protect is off␍␊
[20:05:28:501] [ 4.289487][ T135] sd 0:0:0:5: [sdf] Write Protect is off␍␊
[20:05:28:513] [ 4.298562][ T217] sd 0:0:0:4: [sde] Disabling FUA␍␊
[20:05:28:513] [ 4.307080][ T135] sd 0:0:0:5: [sdf] Disabling FUA␍␊
[20:05:28:513] [ 4.312115][ T217] sd 0:0:0:4: [sde] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:524] [ 4.317130][ T135] sd 0:0:0:5: [sdf] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA␍␊
[20:05:28:536] [ 4.347596][ T135] sd 0:0:0:5: [sdf] Attached SCSI disk␍␊
[20:05:28:545] [ 4.415507][ T217] sd 0:0:0:4: [sde] Attached SCSI disk␍␊
[20:05:28:587] [ 4.455759][ T1] F2FS-fs (sda9): Mounted with checkpoint version = 19a56e56␍␊
[20:05:28:788] [ 4.656567][ T1] F2FS-fs (dm-7): Mounted with checkpoint version = b6392f5␍␊
[20:05:28:821] [ 4.689760][ T1] F2FS-fs (dm-7): Mounted with checkpoint version = b6392f5␍␊
7. 用户空间启动阶段（User Space Initialization）
init 进程：init 进程执行 init.rc 脚本，设置系统属性、启动守护进程和服务。
启动系统服务：init 启动关键的系统服务，如 adbd、servicemanager、vold 等。
启动 Zygote：init 启动 Zygote 进程，Zygote 是安卓应用进程的孵化器，负责生成应用程序进程。
启动 System Server：Zygote 启动 System Server 进程，System Server 管理所有核心系统服务。
[20:05:29:109] [ 4.977746][ T1] printk: init: 265 output lines suppressed due to ratelimiting␍␊
[20:05:29:216] [ 5.081726][ T1] init: Failed to open package /system/etc/selinux/apex/SEPolicy.zip: No such file or directory␍␊
[20:05:29:362] [ 5.227265][ T83] audit: type=1400 audit(9.315:2): avc: denied { getattr } for pid=1 comm="init" name="plat_sepolicy.cil" dev="dm-2" ino=2095 scontext=u:r:kernel:s0 tcontext=u:object_r:sepolicy_file:s0 tclass=file permissive=1␍␊
[20:05:29:374] [ 5.248372][ T83] audit: type=1400 audit(9.315:3): avc: denied { getattr } for pid=1 comm="init" name="libdl_android.so" dev="dm-2" ino=3332 scontext=u:r:kernel:s0 tcontext=u:object_r:system_bootstrap_lib_file:s0 tclass=file permissive=1␍␊
[20:05:29:397] [ 5.270461][ T83] audit: type=1400 audit(9.315:4): avc: denied { getattr } for pid=1 comm="init" name="bootstrap" dev="dm-2" ino=3329 scontext=u:r:kernel:s0 tcontext=u:object_r:system_bootstrap_lib_file:s0 tclass=dir permissive=1␍␊
[20:05:29:420] [ 5.291800][ T83] audit: type=1400 audit(9.315:5): avc: denied { getattr } for pid=1 comm="init" name="upper" dev="dm-7" ino=22 scontext=u:r:kernel:s0 tcontext=u:object_r:system_dlkm_file:s0 tclass=dir permissive=1␍␊
[20:05:29:442] [ 5.311817][ T83] audit: type=1403 audit(9.359:6): auid=4294967295 ses=4294967295 lsm=selinux res=1␍␊
[20:05:29:477] [ 5.342393][ T1] init: Init cannot set 'ro.boot.serialno' to 'ZT3BWS18004V': Read-only property was already set␍␊
[20:05:29:492] [ 5.357073][ T1] init: Couldn't load property file '/vendor/default.prop': open() failed: No such file or directory: No such file or directory␍␊
[20:05:29:507] [ 5.371825][ T1] init: Overriding previous property 'dalvik.vm.heapsize':'36m' with new value '512m'␍␊
[20:05:29:507] [ 5.381665][ T1] init: Overriding previous property 'persist.backup.ntpServer':'"0.pool.ntp.org"' with new value '0.pool.ntp.org'␍␊
[20:05:29:530] [ 5.394472][ T1] init: Overriding previous property 'debug.sf.enable_hwc_vds':'1' with new value '0'␍␊
[20:05:29:530] [ 5.404245][ T1] init: Overriding previous property 'debug.stagefright.ccodec':'1' with new value '4'␍␊
[20:05:29:552] [ 5.416757][ T1] init: Couldn't load property file '/odm_dlkm/etc/build.prop': open() failed: No such file or directory: No such file or directory␍␊
[20:05:29:567] [ 5.432097][ T1] init: Overriding previous property 'audio.sys.noisy.broadcast.delay':'600' with new value '500'␍␊
[20:05:29:671] [ 5.536264][ T251] linkerconfig: Unable to access VNDK APEX at path: /apex/com.android.vndk.v33: No such file or directory␍␊
[20:05:29:683] [ 5.547820][ T251] linkerconfig: Unable to access VNDK APEX at path: /apex/com.android.vndk.v33: No such file or directory␍␊
[20:05:29:711] [ 5.578680][ T252] ueventd: /vendor/etc/ueventd.rc: 69: ignoring duplicate subsystem entry␍␊
[20:05:29:724] [ 5.588538][ T252] ueventd: /vendor/etc/ueventd.rc: 233: /sys/ lines must have 5 or 6 entries␍␊
[20:05:29:724] [ 5.597637][ T252] ueventd: /vendor/etc/ueventd.rc: 421: /sys/ lines must have 5 or 6 entries␍␊
[20:05:29:753] [ 5.621586][ T253] printk: apexd: 26 output lines suppressed due to ratelimiting␍␊
[20:05:29:792] [ 5.656565][ T83] audit: type=1400 audit(9.743:7): avc: denied { mounton } for pid=1 comm="init" path="/sys/kernel/tracing" dev="tracefs" ino=1 scontext=u:r:init:s0 tcontext=u:object_r:debugfs_tracing_debug:s0 tclass=dir permissive=1␍␊
[20:05:30:077] [ 5.947167][ T350] msm_hang_detect_probe: Missing cluster-id.␍␊
[20:05:30:200] [ 6.067260][ T311] spmi spmi-0: pmic_arb_wait_for_done: 0xa 0x8804: transaction failed (0x3)␍␊
[20:05:30:211] [ 6.077757][ T345] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:224] [ 6.089024][ T135] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:224] [ 6.089507][ T311] qcom-spmi-gpio c42d000.qcom,spmi:qcom,pmr735d@a:pinctrl@8800: read 0x4 failed␍␊
[20:05:30:243] [ 6.107819][ T311] spmi spmi-0: pmic_arb_wait_for_done: 0xb 0x8804: transaction failed (0x3)␍␊
[20:05:30:243] [ 6.108971][ T135] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:261] [ 6.125907][ T311] qcom-spmi-gpio c42d000.qcom,spmi:qcom,pmr735d@b:pinctrl@8800: read 0x4 failed␍␊
[20:05:30:261] [ 6.128878][ T364] arm-scmi soc:qcom,scmi: Failed. SCMI protocol 129 not active.␍␊
[20:05:30:273] [ 6.137810][ T95] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:287] [ 6.154566][ T95] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:306] [ 6.173406][ T95] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:321] [ 6.186302][ T383] msm_geni_serial a88000.qcom,qup_uart: IRQ index 1 not found␍␊
[20:05:30:321] [ 6.189365][ T95] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:343] [ 6.210631][ T95] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:362] [ 6.227236][ T383] msm_geni_serial 894000.qcom,qup_uart: IRQ index 1 not found␍␊
[20:05:30:362] [ 6.228522][ T405] spmi spmi-2: pmic_arb_debug_wait_for_done: transaction failed (0x3)␍␊
[20:05:30:374] [ 6.234316][ T95] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:392] [ 6.259472][ T217] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:418] [ 6.285124][ T217] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:437] [ 6.304343][ T404] spi_geni 880000.spi: spi_geni_mas_setup:Err getting HW version 805896192␍␊
[20:05:30:448] [ 6.314956][ T217] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:509] [ 6.374149][ T438] kobject_add_internal failed for i2c-12 with -EEXIST, don't try to register things with the same name in the same directory.␍␊
[20:05:30:558] [ 6.425282][ T217] cdsp-loader soc:qcom,msm-cdsp-loader: cdsp_loader_probe: rproc not found␍␊
[20:05:30:698] [ 6.564290][ T529] uaudio-qmi soc:usb_audio_qmi_dev: failed to register disconnect callback ret = 0␍␊
[20:05:30:708] [ 6.576331][ T423] register_kretprobe failed for trace_dwc3_ctrl_req, returned -2␍␊
[20:05:30:782] [ 6.650609][ T423] register_kretprobe failed for trace_dwc3_ep_queue, returned -2␍␊
[20:05:30:845] [ 6.659816][ T558] spf_core_platform_driver_probe␍␊
[20:05:30:845] [ 6.710311][ T448] spmi spmi-0: pmic_arb_wait_for_done: 0xa 0xa04: transaction failed (0x3)␍␊
[20:05:30:866] [ 6.731269][ T448] spmi-temp-alarm c42d000.qcom,spmi:qcom,pmr735d@a:pmr735d-k-temp-alarm@a00: could not read type␍␊
[20:05:30:877] [ 6.745252][ T609] [Awinic][4-0034]aw882xx_i2c_probe: power-gpio request successfull␍␊
[20:05:30:901] [ 6.767930][ T448] spmi spmi-0: pmic_arb_wait_for_done: 0xb 0xa04: transaction failed (0x3)␍␊
[20:05:30:918] [ 6.785651][ T423] register_kretprobe failed for trace_dwc3_ep_dequeue, returned -2␍␊
[20:05:30:942] [ 6.806376][ T448] spmi-temp-alarm c42d000.qcom,spmi:qcom,pmr735d@b:pmr735d-l-temp-alarm@a00: could not read type␍␊
[20:05:30:942] [ 6.817233][ T692] smcinvoke: smcinvoke_start_adci_thread: ADCI feature is not supported on this chipsets, ret = 2␍␊
[20:05:30:964] [ 6.833262][ T535] woal_init_module [11693] wlan: Loading MWLAN driver␍␊
[20:05:30:977] [ 6.845204][ T633] bt_dt_parse_clk_info: clocks is not provided in device tree␍␊
[20:05:30:987] [ 6.857680][ T535] wlan: Register to Bus Driver...␍␊
[20:05:31:002] [ 6.866553][ T535] wlan: SDIOMMC␍␊
[20:05:31:002] [ 6.867546][ T448] spmi spmi-0: pmic_arb_wait_for_done: 0xd 0x2404: transaction failed (0x3)␍␊
[20:05:31:013] [ 6.867947][ T448] spmi-temp-alarm c42d000.qcom,spmi:qcom,pm8010@d:pm8010-n-temp-alarm@2400: could not read type␍␊
[20:05:31:022] [ 6.877176][ T423] register_kretprobe failed for trace_dwc3_gadget_giveback, returned -2␍␊
[20:05:31:040] [ 6.910138][ T573] btfm_slim_probe: is_laddr_valid is true␍␊
[20:05:31:045] [ 6.916072][ T573] btfmslim-driver btfmslim_slave: ␍␊
[20:05:31:052] [ 6.921725][ T535] vendor=0x02DF device=0x9149 class=0 function=1␍␊
[20:05:31:061] [ 6.930758][ T535] Attach moal handle ops, card interface type: 0x105␍␊
[20:05:31:078] [ 6.948272][ T535] No module param cfg file specified␍␊
[20:05:31:093] [ 6.963516][ T535] SDIO: max_segs=128 max_seg_size=65536␍␊
[20:05:31:107] [ 6.978807][ T535] rx_work=1 cpu_num=8␍␊
[20:05:31:128] [ 6.995565][ T423] register_kretprobe failed for trace_dwc3_gadget_ep_cmd, returned -2␍␊
[20:05:31:202] [ 7.070022][ T423] register_kretprobe failed for trace_dwc3_prepare_trb, returned -2␍␊
[20:05:31:226] [ 7.091201][ T538] kalama-pinctrl f000000.pinctrl: pin GPIO_80 already requested by 8804000.sdhci; cannot claim for b0000000.qcom,cnss-qca-converged␍␊
[20:05:31:235] [ 7.091572][ T535] Request firmware: sduart8987_combo.bin␍␊
[20:05:31:253] [ 7.118108][ T538] kalama-pinctrl f000000.pinctrl: pin-80 (b0000000.qcom,cnss-qca-converged) status -22␍␊
[20:05:31:253] [ 7.127966][ T538] kalama-pinctrl f000000.pinctrl: could not request pin 80 (GPIO_80) from group gpio80 on device f000000.pinctrl␍␊
[20:05:31:265] [ 7.140235][ T538] cnss2 b0000000.qcom,cnss-qca-converged: Error applying setting, reverse things back␍␊
[20:05:31:276] [ 7.149983][ T538] cnss: Failed to select wlan_en active state, err = -22␍␊
[20:05:31:288] [ 7.155891][ T423] register_kretprobe failed for trace_dwc3_event, returned -2␍␊
[20:05:31:295] [ 7.157132][ T538] cnss: Failed to select pinctrl state, err = -22␍␊
[20:05:31:299] console:/ $ [ 7.196075][ T423] msm-dwc3 a600000.ssusb: IRQ hs_phy_irq not found␍␊
[20:05:31:487] [ 7.355505][ T831] (NULL device *): msm_gsi_probe:5903 No MSIs configured␍␊
[20:05:31:602] [ 7.467166][ T824] rtc6226: rtc6226_i2c_probe: rtc6226,vdd-load val 15000␍␊
[20:05:31:602] [ 7.474297][ T824] rtc6226: rtc6226_pinctrl_init: target does not use pinctrl␍␊
[20:05:31:614] [ 7.481792][ T824] rtc6226: rtc6226_i2c_probe: rtc6226_pinctrl_init returned -19␍␊
[20:05:31:657] [ 7.525907][ T508] tmc_etr_usb_init: ETR usb property is not configured!␍␊
[20:05:31:670] [ 7.535151][ T224] ipa ipa_smmu_perph_cb_probe:10960 cb 1 is disabled␍␊
[20:05:31:670] [ 7.541890][ T224] ipa ipa_smmu_perph_cb_probe:10960 cb 2 is disabled␍␊
[20:05:31:682] [ 7.548697][ T224] ipa ipa_smmu_uc_cb_probe:11074 UC SMMU is disabled␍␊
[20:05:31:682] [ 7.555438][ T224] ipa ipa_smmu_11ad_cb_probe:11407 11AD SMMU is disabled␍␊
[20:05:31:693] [ 7.555443][ T224] ipa ipa_smmu_perph_cb_probe:10960 cb 5 is disabled␍␊
[20:05:31:693] [ 7.569242][ T224] ipa ipa_smmu_perph_cb_probe:10960 cb 6 is disabled␍␊
[20:05:32:050] [ 7.919803][ T834] [0x0 mhi_dma_provide_ops] MHI is NULL, defering␍␊
[20:05:32:696] [ 8.562902][ T224] gsi soc:qcom,msm_gsi: gsi_register_device:1548 GSI irq is wake enabled 204␍␊
[20:05:32:724] [ 8.593412][ T224] ipa ipa_init_teth_stats:894 prod 1 doesn't have cons␍␊
[20:05:32:736] [ 8.601256][ T224] ipa ipa_hw_stats_init:434 init teth stats fails␍␊
[20:05:32:736] [ 8.607808][ T224] ipa ipa3_post_init:8239 fail to init stats -22␍␊
[20:05:32:751] [ 8.615821][ T224] ipa ipa3_register_rmnet_ctl_cb:137 low lat pipes are not supported␍␊
[20:05:32:751] [ 8.615826][ T224] rmnet_ctl_ipa_ready: -6␍␊
[20:05:32:762] [ 8.628327][ T224] ipa ipa3_register_rmnet_ll_cb:294 low lat data pipes are not supported␍␊
[20:05:32:762] [ 8.628331][ T224] rmnet_ll_ipa_ready(): Registering IPA LL callback failed with rc -6␍␊
[20:05:32:781] [ 8.645627][ T224] ipa-lnx-stats ipa_tlpd_stats_ioctl_init:1905 IPA ipa_lnx_stats_ioctl major(465) initial ok :>>>>␍␊
[20:05:32:781] [ 8.656459][ T224] ipa-lnx-stats ipa_tlpd_stats_init:1928 IPA_LNX_STATS_IOCTL init success␍␊
[20:05:33:155] [ 9.023292][ T535] WLAN FW is active␍␊
[20:05:33:155] [ 9.027056][ T535] on_time is 9003969006␍␊
[20:05:33:239] [ 9.109644][ T535] Register NXP 802.11 Adapter wlan0␍␊
[20:05:33:248] [ 9.119199][ T535] Register NXP 802.11 Adapter uap0␍␊
[20:05:33:263] [ 9.127462][ T535] Register NXP 802.11 Adapter wfd0␍␊
[20:05:33:263] [ 9.132607][ T535] wlan: version = SD8987----16.92.21.p69.3-MM5X16366.p5-GPL-(FP92) ␍␊
[20:05:33:277] [ 9.142998][ T535] wlan: Register to Bus Driver Done␍␊
[20:05:33:277] [ 9.148238][ T535] wlan: Driver loaded successfully␍␊
[20:05:34:252] [ 10.117730][ T1] WARNING: Unprivileged eBPF is enabled, data leaks possible via Spectre v2 BHB attacks!␍␊
[20:05:34:817] [ 10.681514][ T1283] synx: session 0 not available, pid: 1283␍␊
[20:05:34:817] [ 10.687417][ T1283] synx: synx_uninitialize: invalid session id 0␍␊
[20:05:34:890] [ 10.756783][ T1349] smcinvoke: process_accept_req: Setting pid:1349, server id : 32 state to defunct␍␊
[20:05:34:900] [ 10.766628][ T1348] smcinvoke: process_accept_req: Setting pid:1348, server id : 32 state to defunct␍␊
[20:05:34:910] [ 10.777059][ T1346] smcinvoke: process_accept_req: Setting pid:1346, server id : 32 state to defunct␍␊
[20:05:34:920] [ 10.786838][ T1345] smcinvoke: process_accept_req: Setting pid:1345, server id : 32 state to defunct␍␊
[20:05:34:931] [ 10.798066][ T1365] smcinvoke: process_accept_req: Setting pid:1365, server id : 33 state to defunct␍␊
[20:05:34:941] [ 10.807863][ T1361] smcinvoke: process_accept_req: Setting pid:1361, server id : 33 state to defunct␍␊
[20:05:34:951] [ 10.817938][ T1354] smcinvoke: process_accept_req: Setting pid:1354, server id : 33 state to defunct␍␊
[20:05:34:972] [ 10.838506][ T1353] smcinvoke: process_accept_req: Setting pid:1353, server id : 33 state to defunct␍␊
[20:05:35:084] [ 10.948595][ T1483] smcinvoke: process_accept_req: Setting pid:1483, server id : 39 state to defunct␍␊
[20:05:35:084] [ 10.951657][ T1482] smcinvoke: process_accept_req: Setting pid:1482, server id : 39 state to defunct␍␊
[20:05:35:154] [ 11.019510][ T1498] smcinvoke: prepare_send_scm_msg: Secure side is busy,will retry after 30 ms, retry_count = 0␍␊
[20:05:35:337] [ 11.208505][ T1443] audit: backlog limit exceeded␍␊
[20:05:35:343] [ 11.214621][ T1443] audit: backlog limit exceeded␍␊
[20:05:35:365] [ 11.236254][ T1443] audit: backlog limit exceeded␍␊
[20:05:35:884] [ 11.755447][ T673] spf_core_probe␍␊
[20:05:35:892] [ 11.760908][ T144] spf_core_add_child_devices:enumarate machine driver␍␊
[20:05:35:902] [ 11.768305][ T144] spf-core-platform soc:spf_core_platform: __spf_core_is_apm_ready: send_command ret␍␊
[20:05:35:908] [ 11.778729][ T673] audio_prm_probe: prm probe success␍␊
[20:05:35:922] [ 11.786585][ T144] qcom,gpr 3000000.remoteproc-adsp:glink-edge.adsp_apps.-1.-1: gpr_send_pkt: domain_id[2], Still Dsp is not Up␍␊
[20:05:35:971] [ 11.838887][ T8] PMIC_GLINK: pmic_glink_rx_callback: No client present for 32778␍␊
[20:05:35:984] [ 11.848670][ T8] PMIC_GLINK: pmic_glink_rx_callback: No client present for 32778␍␊
[20:05:35:984] [ 11.856726][ T8] PMIC_GLINK: pmic_glink_rx_callback: No client present for 32778␍␊
[20:05:35:995] [ 11.858637][ T144] spf-core-platform soc:spf_core_platform: __spf_core_is_apm_ready: send_command ret␍␊
[20:05:36:008] [ 11.860970][ T144] spf-core-platform soc:spf_core_platform: spf_core_add_child_devices: apm is up␍␊
[20:05:36:017] [ 11.864661][ T8] PMIC_GLINK: pmic_glink_rx_callback: No client present for 32778␍␊
[20:05:36:036] [ 11.901319][ T144] msm-audio-ion soc:spf_core_platform:qcom,msm-audio-ion: msm_audio_ion_probe: msm_audio_ion_probe␍␊
[20:05:36:059] [ 11.924122][ T144] msm-audio-ion soc:spf_core_platform:qcom,msm-audio-ion-cma: msm_audio_ion_probe: msm_audio_ion_probe␍␊
[20:05:36:168] [ 12.036691][ T663] msm_cdc_pinctrl_get_gpiodata: platform device not found!␍␊
[20:05:36:178] [ 12.044929][ T663] lpass_cdc_va_macro va-macro: lpass_cdc_va_macro_probe: failed to get swr pin state␍␊
[20:05:36:236] [ 12.100628][ T663] lpass_cdc_tx_macro tx-macro: lpass_cdc_tx_macro_probe: va-macro not registered yet, defer␍␊
[20:05:36:236] [ 12.101339][ T217] msm_cdc_pinctrl_get_gpiodata: platform device not found!␍␊
[20:05:36:247] [ 12.118245][ T217] lpass_cdc_va_macro va-macro: lpass_cdc_va_macro_probe: failed to get swr pin state␍␊
[20:05:36:269] [ 12.134517][ T663] lpass_cdc_rx_macro rx-macro: lpass_cdc_rx_macro_probe: va-macro not registered yet, defer␍␊
[20:05:36:321] [ 12.187954][ T217] spf-core-platform soc:spf_core_platform: __spf_core_is_apm_ready: send_command ret␍␊
[20:05:36:335] [ 12.202210][ T217] kalama-asoc-snd soc:spf_core_platform:sound: ASoC: DAPM unknown pin Headset␍␊
[20:05:36:482] [ 12.349437][ T1606] msm_mem_dump soc:mem_dump: Couldn't add system reg config, no enough memory␍␊
[20:05:36:633] [ 12.501156][ T224] PMIC_GLINK: pmic_glink_rx_callback: No client present for 32778␍␊
[20:05:36:698] [ 12.570186][ T1443] chipid =0x1704 ␍␊
[20:05:36:813] [ 12.680336][ T224] msm-usb-ssphy-qmp 88e8000.ssphy: USB DP QMP PHY: Update TYPEC CTRL(3)␍␊
[20:05:36:831] [ 12.698823][ T224] msm-usb-ssphy-qmp 88e8000.ssphy: USB DP QMP PHY: Update TYPEC CTRL(3)␍␊
[20:05:37:018] [ 12.882442][ T217] aw882xx_smartpa 5-0034: Direct firmware load for aw882xx_acf.bin failed with error -2␍␊
[20:05:37:018] [ 12.892369][ T217] aw882xx_smartpa 5-0034: Falling back to sysfs fallback for: aw882xx_acf.bin␍␊
[20:05:37:068] [ 12.932875][ T2077] ------------[ cut here ]------------␍␊
[20:05:37:068] [ 12.938409][ T2077] WARNING: CPU: 6 PID: 2077 at drivers/thermal/thermal_core.c:499 thermal_zone_device_update+0x4f4/0x5c8␍␊
[20:05:37:080] [ 12.950134][ T2077] ---[ end trace 89493b3ee4ccf765 ]---␍␊
[20:05:37:092] [ 12.957902][ T217] aw882xx_smartpa 4-0034: Direct firmware load for aw882xx_acf.bin failed with error -2␍␊
[20:05:37:101] [ 12.968053][ T217] aw882xx_smartpa 4-0034: Falling back to sysfs fallback for: aw882xx_acf.bin␍␊
[20:05:37:168] [ 13.039020][ T217] msm_set_upd_config component is NULL␍␊
[20:05:37:382] [ 13.247312][ T2340] Config b/1 of g1 needs at least one function.␍␊
[20:05:37:382] [ 13.253662][ T2340] udc a600000.dwc3: failed to start g1: -22␍␊
[20:05:37:781] [ 13.652722][ T541] 3.5mm headphone not find␍␊
[20:05:37:791] [ 13.657633][ T541] kalama-asoc-snd soc:spf_core_platform:sound: ASoC: DAPM unknown pin Headset␍␊
[20:05:38:325] [ 14.196530][ T541] 3.5mm headphone not find␍␊
[20:05:38:334] [ 14.201223][ T541] kalama-asoc-snd soc:spf_core_platform:sound: ASoC: DAPM unknown pin Headset␍␊
[20:05:38:968] [ 14.837594][ T673] msm_eusb2_phy 88e3000.hsphy: Could not get usb psy␍␊
[20:05:39:235] [ 15.103961][ T673] msm_eusb2_phy 88e3000.hsphy: Could not get usb psy␍␊
[20:05:39:290] [ 15.155430][ T1443] ------------[ cut here ]------------␍␊
[20:05:39:290] [ 15.160895][ T1443] WARNING: CPU: 7 PID: 1443 at drivers/clk/clk.c:971 clk_core_disable+0xa8/0xf4␍␊
[20:05:39:306] [ 15.170779][ T1443] ---[ end trace 89493b3ee4ccf766 ]---␍␊
[20:05:39:306] [ 15.176469][ T1443] ------------[ cut here ]------------␍␊
[20:05:39:306] [ 15.181979][ T1443] WARNING: CPU: 7 PID: 1443 at drivers/clk/clk.c:831 clk_core_unprepare+0xe4/0x298␍␊
[20:05:39:321] [ 15.191988][ T1443] ---[ end trace 89493b3ee4ccf767 ]---␍␊
[20:05:39:744] [ 15.610753][ T1443] ------------[ cut here ]------------␍␊
[20:05:39:755] [ 15.623058][ T1443] WARNING: CPU: 7 PID: 1443 at drivers/clk/clk.c:971 clk_core_disable+0xa8/0xf4␍␊[20:05:39:800] [ 15.669721][ T1443] WARNING: CPU: 7 PID: 1443 at drivers/clk/clk.c:831 clk_core_unprepare+0xe4/0x298␍␊[20:05:39:823] [ 15.688289][ T1443] ---[ end trace 89493b3ee4ccf769 ]---␍␊
[20:05:39:878] [ 15.743710][ T1] init: Control message: Could not find 'android.frameworks.sensorservice@1.0::ISensorManager/default' for ctl.interface_start from pid: 649 (/system/bin/hwservicemanager)␍␊
[20:05:44:572] [ 20.436669][ T1] init: Control message: Could not find 'aidl/android.hardware.health.IHealth/default' for ctl.interface_start from pid: 648 (/system/bin/servicemanager)␍␊
[20:05:44:881] [ 20.746375][ T1] init: Control message: Could not find 'android.frameworks.sensorservice@1.0::ISensorManager/default' for ctl.interface_start from pid: 649 (/system/bin/hwservicemanager)␍␊
[20:05:44:935] [ 20.799763][ T1311] android.hardware.health-service.qti: Cannot open battery/capacity, fd=-1␍␊
[20:05:44:947] [ 20.818176][ T1311] healthd: No battery devices found␍␊
[20:05:44:955] [ 20.826530][ T1311] healthd: battery none chg=u␍␊
[20:05:44:961] [ 20.832164][ T1311] healthd: battery none chg=u␍␊
[20:05:45:556] [ 21.421511][ T2878] lpass_cdc_va_macro va-macro: lpass_cdc_va_macro_enable_micbias:regulator not provided in dtsi␍␊
[20:05:45:566] [ 21.432408][ T2878] lpass-cdc soc:spf_core_platform:lpass-cdc: ASoC: PRE_PMU: VA MIC BIAS event failed: -22␍␊
[20:05:45:644] [ 21.513410][ T217] [Awinic]aw_check_dsp_ready: rx topo id is 0x0␍␊
[20:05:46:355] [ 22.219746][ T3236] process_accept_req: 6 callbacks suppressed␍␊
[20:05:46:355] [ 22.219752][ T3236] smcinvoke: process_accept_req: Setting pid:3236, server id : 44 state to defunct␍␊
[20:05:46:375] [ 22.241393][ T3235] smcinvoke: process_accept_req: Setting pid:3235, server id : 44 state to defunct␍␊
[20:05:46:385] [ 22.252052][ T3234] smcinvoke: process_accept_req: Setting pid:3234, server id : 44 state to defunct␍␊
[20:05:46:395] [ 22.262166][ T3233] smcinvoke: process_accept_req: Setting pid:3233, server id : 44 state to defunct␍␊
[20:05:47:733] [ 23.598103][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Direct firmware load for trustedvm.mdt failed with error -2␍␊
[20:05:47:745] [ 23.609909][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Falling back to sysfs fallback for: trustedvm.mdt␍␊
[20:05:47:777] [ 23.642498][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Direct firmware load for trustedvm.b04 failed with error -2␍␊
[20:05:47:804] [ 23.668797][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Falling back to sysfs fallback for: trustedvm.b04␍␊
[20:05:47:870] [ 23.734801][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Direct firmware load for trustedvm.b01 failed with error -2␍␊
[20:05:47:881] [ 23.746638][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Falling back to sysfs fallback for: trustedvm.b01␍␊
[20:05:47:901] [ 23.766211][ T3638] audit: audit_lost=4 audit_rate_limit=5 audit_backlog_limit=64␍␊
[20:05:47:901] [ 23.773979][ T3638] audit: rate limit exceeded␍␊
[20:05:47:999] [ 23.863606][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Direct firmware load for trustedvm.b02 failed with error -2␍␊
[20:05:48:012] [ 23.876851][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Falling back to sysfs fallback for: trustedvm.b02␍␊
[20:05:48:092] [ 23.957471][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Direct firmware load for trustedvm.b03 failed with error -2␍␊
[20:05:48:106] [ 23.970848][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Falling back to sysfs fallback for: trustedvm.b03␍␊
[20:05:48:347] [ 24.216228][ T3616] gh_rm_call: Reply for seq:10 failed with RM err: 2␍␊
[20:05:48:356] [ 24.224055][ T3616] gh_rm_vm_auth_image: Unable to send VM_AUTH_IMAGE to RM: -22␍␊
[20:05:48:362] [ 24.232140][ T3616] gunyah: VM_AUTH_IMAGE failed for VM:45 -22␍␊
[20:05:48:380] [ 24.245241][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Configuring secure VM trustedvm to memory failed 4294967274␍␊
[20:05:48:392] [ 24.257401][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Loading Secure VM trustedvm failed -22␍␊
[20:05:48:392] [ 24.267338][ T3616] gh_secure_vm_loader soc:gh-secure-vm-loader@0: Loading secure VM trustedvm to memory failed -22␍␊
[20:05:48:490] [ 24.360950][ T3616] gunyah: VM:45 is not running␍␊
[20:05:48:501] [ 24.366209][ T3616] gh_rm_call: Reply for seq:11 failed with RM err: -1␍␊
[20:05:48:501] [ 24.373085][ T3616] gh_rm_vm_reset: VM_RESET failed with err: -1␍␊
[20:05:48:510] [ 24.380703][ T3616] gunyah: Reset is unsuccessful for VM:45␍␊
[20:05:48:522] [ 24.386631][ T3616] gunyah: Requested Secure VM not supported␍␊
[20:05:48:522] [ 24.392717][ T3616] gunyah: Failed to reclaim mem VMID: 45: -22␍␊
[20:05:48:534] [ 24.399204][ T3616] gh_rm_call: Reply for seq:12 failed with RM err: -1␍␊
[20:05:48:534] [ 24.406184][ T3616] gh_rm_vm_dealloc_vmid: VM_DEALLOCATE failed with err: -1␍␊
[20:05:48:543] [ 24.413787][ T3616] gunyah: Failed to dealloc VMID: 45: -1␍␊
[20:05:49:429] [ 25.300172][ T2747] audit: rate limit exceeded␍␊
[20:05:50:767] [ 26.638276][ T2747] audit: rate limit exceeded␍␊
8. 系统启动完成（System Ready）
启动 Home 应用：System Server 启动 Launcher（Home 应用），呈现用户界面。
系统就绪：至此，设备已完成启动，用户可以开始使用设备。
5846
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
