LDD3学习9--USB驱动2（Device HID实操）

1 前言

正好之前写过一个USB的基础：LDD3学习8--USB驱动1（理论）_brcmf set channel-CSDN博客

最近又在看RTOS，刚好两个东西可以一起看了。。。那就是在树莓派PICO上弄一下基于RTOS的USB device。本来LDD3的系列应该是基于Linux来弄，不过这次只有先不用了。

这次的例子是HID。其实想做的还是树莓派PICO的UAC device，不过先看看HID也可以。。。

2 TinyUSB

看tinyusb是因为貌似这个就是pico的官方指定usb库，很多example，都是用的tinyusb。首先就是一个问题有点奇怪，pico上很多硬件接口，i2c，spi也没说需要一个上层库来支持啊，为什么usb就需要一个tinyusb呢？

看一下主页：https://docs.tinyusb.org/en/latest/

上面也大概说了下，大意就是HCD，DCD这几个controller是硬件实现的，但是上层的TUH（TinyUSB Host），TUD（TinyUSB Device），USBH（USB Host），USBD（USB Device）这几个还是软件实现的。

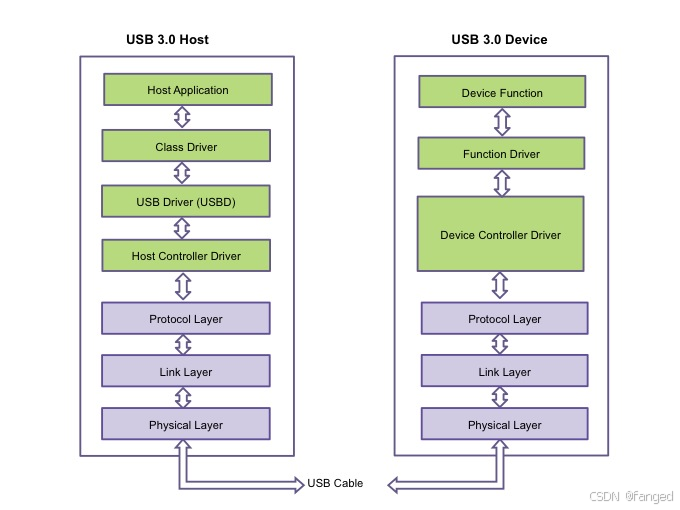

大致看了下USB的划分，好像也确实如此（The USB 3.0 functional layer），物理层，链路层，协议层划到硬件那边的。

这个设计和TCP/IP就非常类似了，物理层和数据链路层是用硬件实现，其余的则基本是软件实现。好吧，这样一下就能理解了。

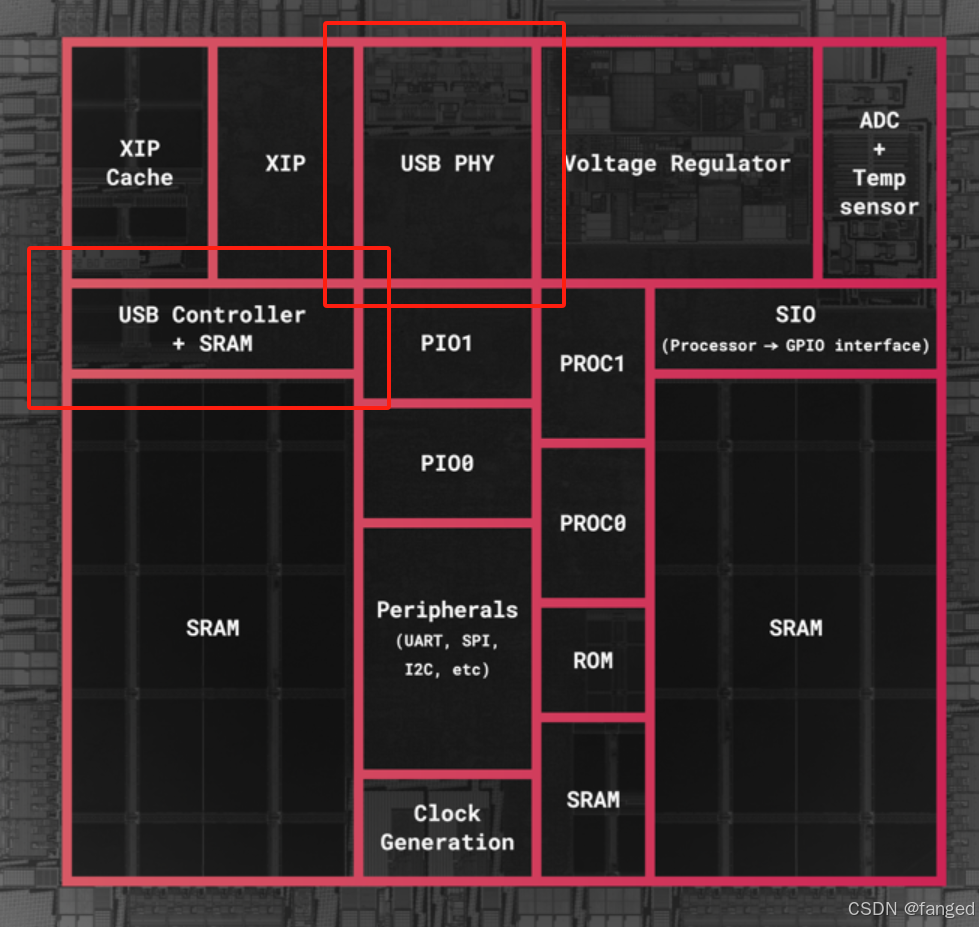

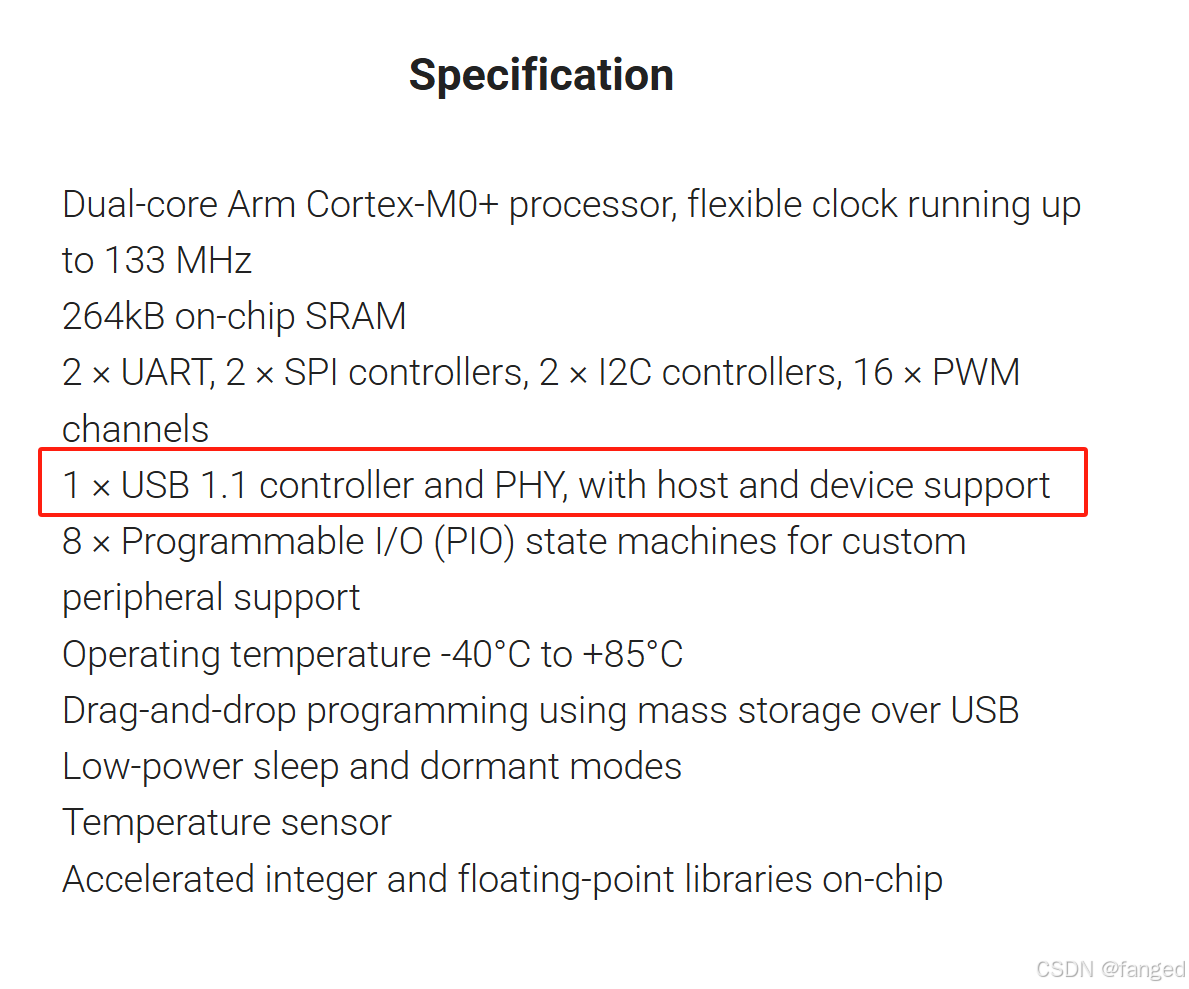

再看一下PICO的芯片RP2040。https://www.raspberrypi.com/products/rp2040/specifications/

是只集成了USB1.1的controller和phy。

https://www.raspberrypi.com/products/rp2040/

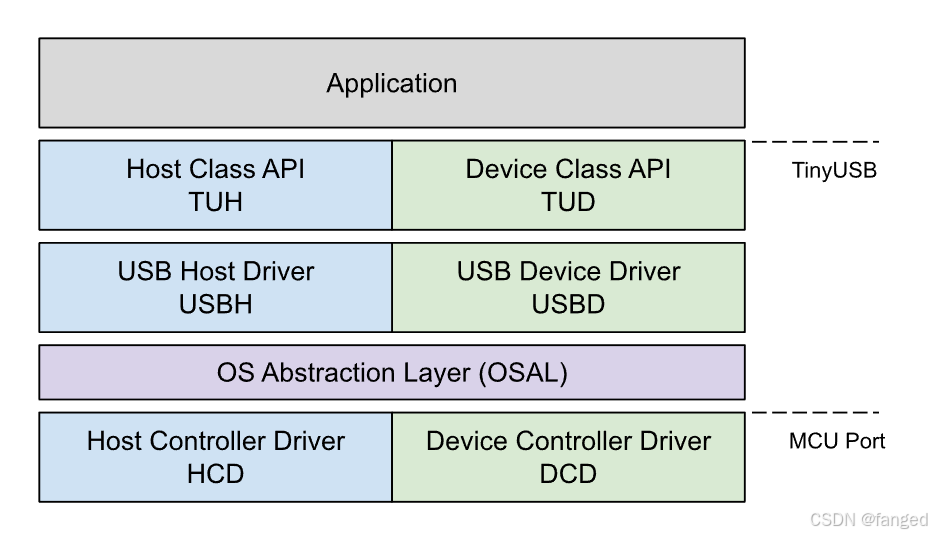

按照这个理解，那么tinyusb首先提供了两个基础的usb，就是USBH（USB Host），USBD（USB Device）。基于这两个基础，又提供了一些应用。如下：

Device Stack

Supports multiple device configurations by dynamically changing USB descriptors, low power functions such like suspend, resume, and remote wakeup. The following device classes are supported:

• Audio Class 2.0 (UAC2)

• Bluetooth Host Controller Interface (BTH HCI)

• Communication Device Class (CDC)

• Device Firmware Update (DFU): DFU mode (WIP) and Runtime

• Human Interface Device (HID): Generic (In & Out), Keyboard, Mouse, Gamepad etc …

• Mass Storage Class (MSC): with multiple LUNs

• Musical Instrument Digital Interface (MIDI)

• Network with RNDIS, Ethernet Control Model (ECM), Network Control Model (NCM)

• Test and Measurement Class (USBTMC)

• Video class 1.5 (UVC): work in progress

• Vendor-specific class support with generic In & Out endpoints. Can be used with MS OS 2.0 compatible descriptor to load winUSB driver without INF file.

• WebUSB with vendor-specific class

If you have a special requirement, usbd_app_driver_get_cb() can be used to write your own class driver without modifying the stack. Here is how the RPi team added their reset interface raspberrypi/pico-sdk#197

Host Stack

• Human Interface Device (HID): Keyboard, Mouse, Generic

• Mass Storage Class (MSC)

• Communication Device Class: CDC-ACM

• Vendor serial over USB: FTDI, CP210x, CH34x

• Hub with multiple-level support

Similar to the Device Stack, if you have a special requirement, usbh_app_driver_get_cb() can be used to write your own class driver without modifying the stack.

好吧，东西看来也不少。。。

3 编译和运行

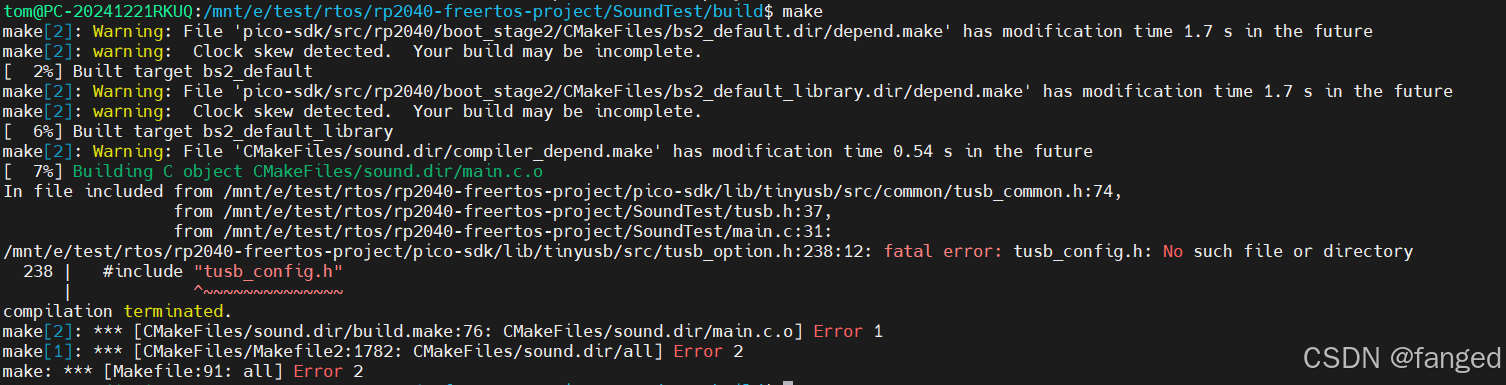

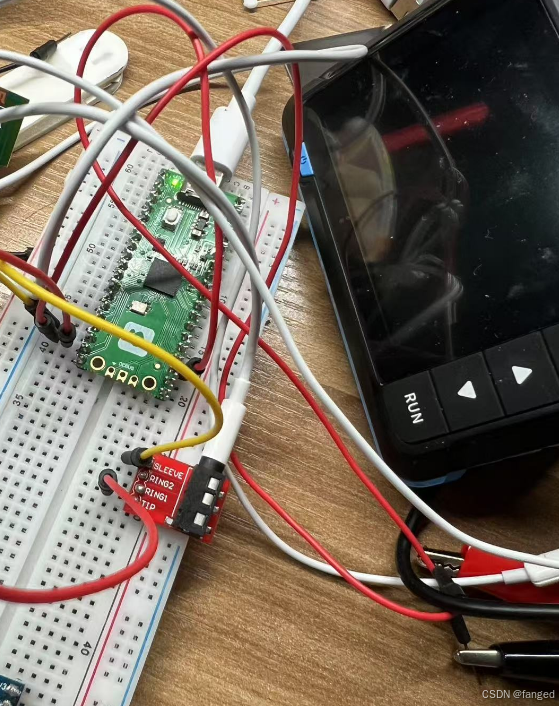

最早是想把tinyusb加到自己的pwm那个工程，不过遇到不少的编译问题。

 试了好几个方法都还是不行。cmake也不是很熟悉，后面还要再看看。

重新看了一下pico的sdk，sdk里面的tingusb自己就带了很多example，这个应该可以正常运行了吧。

cmake的时候带一个平台参数，直接就可以了。

cmake .. -DFAMILY=rp2040

编译的过程很长，这里就不细说了。

tom@PC-20241221RKUQ:/mnt/e/test/pico/pico-sdk/lib/tinyusb/examples/device/hid_composite/build$ make
BOARD not specified, defaulting to pico_sdk
PICO_SDK_PATH is /mnt/e/test/pico/pico-sdk
Target board (PICO_BOARD) is 'pico'.
Using board configuration from /mnt/e/test/pico/pico-sdk/src/boards/include/boards/pico.h
Pico Platform (PICO_PLATFORM) is 'rp2040'.
Build type is Release
TinyUSB available at /mnt/e/test/pico/pico-sdk/lib/tinyusb/src/portable/raspberrypi/rp2040; enabling build support for USB.
BTstack available at /mnt/e/test/pico/pico-sdk/lib/btstack
cyw43-driver available at /mnt/e/test/pico/pico-sdk/lib/cyw43-driver
lwIP available at /mnt/e/test/pico/pico-sdk/lib/lwip
mbedtls available at /mnt/e/test/pico/pico-sdk/lib/mbedtls
-- Configuring done (3.6s)
-- Generating done (6.3s)
-- Build files have been written to: /mnt/e/test/pico/pico-sdk/lib/tinyusb/examples/device/hid_composite/build
make[1]: Warning: File 'CMakeFiles/Makefile2' has modification time 0.25 s in the future
make[2]: Warning: File 'pico-sdk/src/rp2040/boot_stage2/CMakeFiles/bs2_default.dir/depend.make' has modification time 0.25 s in the future
make[2]: warning:  Clock skew detected.  Your build may be incomplete.
[  2%] Built target bs2_default
make[2]: Warning: File 'pico-sdk/src/rp2040/boot_stage2/CMakeFiles/bs2_default_library.dir/depend.make' has modification time 0.23 s in the future
make[2]: warning:  Clock skew detected.  Your build may be incomplete.
[  5%] Built target bs2_default_library
make[2]: Warning: File 'CMakeFiles/hid_composite.dir/compiler_depend.make' has modification time 1.8 s in the future
make[2]: warning:  Clock skew detected.  Your build may be incomplete.
[100%] Built target hid_composite
make[1]: warning:  Clock skew detected.  Your build may be incomplete.
tom@PC-20241221RKUQ:/mnt/e/test/pico/pico-sdk/lib/tinyusb/examples/device/hid_composite/build$ make
[  2%] Built target bs2_default
[  5%] Built target bs2_default_library
[100%] Built target hid_composite

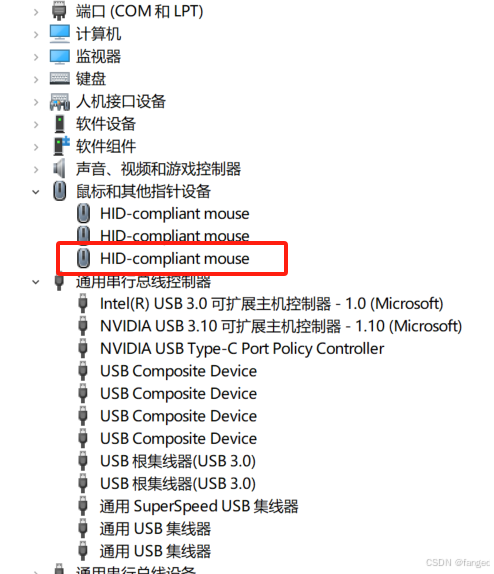

直接将编译好的uf2文件拷贝到pico中，就可以看到led在闪，同时也有新的HID设备。

4 代码

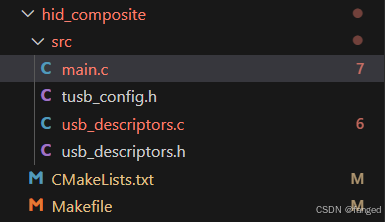

详细看一下代码，其实真多。翻来覆去就是5个文件。除了CMakeLists.txt，两个头文件，两个源文件。真的算挺简单的。

4.1 整体流程

main.c

/*
 * The MIT License (MIT)
 *
 * Copyright (c) 2019 Ha Thach (tinyusb.org)
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
 * THE SOFTWARE.
 *
 */

#include <stdlib.h>
#include <stdio.h>
#include <string.h>

#include "bsp/board_api.h"
#include "tusb.h"

#include "usb_descriptors.h"

//--------------------------------------------------------------------+
// MACRO CONSTANT TYPEDEF PROTYPES
//--------------------------------------------------------------------+

/* Blink pattern
 * - 250 ms  : device not mounted
 * - 1000 ms : device mounted
 * - 2500 ms : device is suspended
 */
enum  {
  BLINK_NOT_MOUNTED = 250,
  BLINK_MOUNTED = 1000,
  BLINK_SUSPENDED = 2500,
};

static uint32_t blink_interval_ms = BLINK_NOT_MOUNTED;

void led_blinking_task(void);
void hid_task(void);

/*------------- MAIN -------------*/
int main(void)
{
  board_init();

  // init device stack on configured roothub port
  tud_init(BOARD_TUD_RHPORT);

  if (board_init_after_tusb) {
    board_init_after_tusb();
  }

  while (1)
  {
    tud_task(); // tinyusb device task
    led_blinking_task();

    hid_task();
  }
}

//--------------------------------------------------------------------+
// Device callbacks
//--------------------------------------------------------------------+

// Invoked when device is mounted
void tud_mount_cb(void)
{
  blink_interval_ms = BLINK_MOUNTED;
}

// Invoked when device is unmounted
void tud_umount_cb(void)
{
  blink_interval_ms = BLINK_NOT_MOUNTED;
}

// Invoked when usb bus is suspended
// remote_wakeup_en : if host allow us  to perform remote wakeup
// Within 7ms, device must draw an average of current less than 2.5 mA from bus
void tud_suspend_cb(bool remote_wakeup_en)
{
  (void) remote_wakeup_en;
  blink_interval_ms = BLINK_SUSPENDED;
}

// Invoked when usb bus is resumed
void tud_resume_cb(void)
{
  blink_interval_ms = tud_mounted() ? BLINK_MOUNTED : BLINK_NOT_MOUNTED;
}

//--------------------------------------------------------------------+
// USB HID
//--------------------------------------------------------------------+

static void send_hid_report(uint8_t report_id, uint32_t btn)
{
  // skip if hid is not ready yet
  if ( !tud_hid_ready() ) return;

  switch(report_id)
  {
    case REPORT_ID_KEYBOARD:
    {
      // use to avoid send multiple consecutive zero report for keyboard
      static bool has_keyboard_key = false;

      if ( btn )
      {
        uint8_t keycode[6] = { 0 };
        keycode[0] = HID_KEY_A;

        tud_hid_keyboard_report(REPORT_ID_KEYBOARD, 0, keycode);
        has_keyboard_key = true;
      }else
      {
        // send empty key report if previously has key pressed
        if (has_keyboard_key) tud_hid_keyboard_report(REPORT_ID_KEYBOARD, 0, NULL);
        has_keyboard_key = false;
      }
    }
    break;

    case REPORT_ID_MOUSE:
    {
      int8_t const delta = 5;

      // no button, right + down, no scroll, no pan
      tud_hid_mouse_report(REPORT_ID_MOUSE, 0x00, delta, delta, 0, 0);
    }
    break;

    case REPORT_ID_CONSUMER_CONTROL:
    {
      // use to avoid send multiple consecutive zero report
      static bool has_consumer_key = false;

      if ( btn )
      {
        // volume down
        uint16_t volume_down = HID_USAGE_CONSUMER_VOLUME_DECREMENT;
        tud_hid_report(REPORT_ID_CONSUMER_CONTROL, &volume_down, 2);
        has_consumer_key = true;
      }else
      {
        // send empty key report (release key) if previously has key pressed
        uint16_t empty_key = 0;
        if (has_consumer_key) tud_hid_report(REPORT_ID_CONSUMER_CONTROL, &empty_key, 2);
        has_consumer_key = false;
      }
    }
    break;

    case REPORT_ID_GAMEPAD:
    {
      // use to avoid send multiple consecutive zero report for keyboard
      static bool has_gamepad_key = false;

      hid_gamepad_report_t report =
      {
        .x   = 0, .y = 0, .z = 0, .rz = 0, .rx = 0, .ry = 0,
        .hat = 0, .buttons = 0
      };

      if ( btn )
      {
        report.hat = GAMEPAD_HAT_UP;
        report.buttons = GAMEPAD_BUTTON_A;
        tud_hid_report(REPORT_ID_GAMEPAD, &report, sizeof(report));

        has_gamepad_key = true;
      }else
      {
        report.hat = GAMEPAD_HAT_CENTERED;
        report.buttons = 0;
        if (has_gamepad_key) tud_hid_report(REPORT_ID_GAMEPAD, &report, sizeof(report));
        has_gamepad_key = false;
      }
    }
    break;

    default: break;
  }
}

// Every 10ms, we will sent 1 report for each HID profile (keyboard, mouse etc ..)
// tud_hid_report_complete_cb() is used to send the next report after previous one is complete
void hid_task(void)
{
  // Poll every 10ms
  const uint32_t interval_ms = 10;
  static uint32_t start_ms = 0;

  if ( board_millis() - start_ms < interval_ms) return; // not enough time
  start_ms += interval_ms;

  uint32_t const btn = board_button_read();

  // Remote wakeup
  if ( tud_suspended() && btn )
  {
    // Wake up host if we are in suspend mode
    // and REMOTE_WAKEUP feature is enabled by host
    tud_remote_wakeup();
  }else
  {
    // Send the 1st of report chain, the rest will be sent by tud_hid_report_complete_cb()
    send_hid_report(REPORT_ID_KEYBOARD, btn);
  }
}

// Invoked when sent REPORT successfully to host
// Application can use this to send the next report
// Note: For composite reports, report[0] is report ID
void tud_hid_report_complete_cb(uint8_t instance, uint8_t const* report, uint16_t len)
{
  (void) instance;
  (void) len;

  uint8_t next_report_id = report[0] + 1u;

  if (next_report_id < REPORT_ID_COUNT)
  {
    send_hid_report(next_report_id, board_button_read());
  }
}

// Invoked when received GET_REPORT control request
// Application must fill buffer report's content and return its length.
// Return zero will cause the stack to STALL request
uint16_t tud_hid_get_report_cb(uint8_t instance, uint8_t report_id, hid_report_type_t report_type, uint8_t* buffer, uint16_t reqlen)
{
  // TODO not Implemented
  (void) instance;
  (void) report_id;
  (void) report_type;
  (void) buffer;
  (void) reqlen;

  return 0;
}

// Invoked when received SET_REPORT control request or
// received data on OUT endpoint ( Report ID = 0, Type = 0 )
void tud_hid_set_report_cb(uint8_t instance, uint8_t report_id, hid_report_type_t report_type, uint8_t const* buffer, uint16_t bufsize)
{
  (void) instance;

  if (report_type == HID_REPORT_TYPE_OUTPUT)
  {
    // Set keyboard LED e.g Capslock, Numlock etc...
    if (report_id == REPORT_ID_KEYBOARD)
    {
      // bufsize should be (at least) 1
      if ( bufsize < 1 ) return;

      uint8_t const kbd_leds = buffer[0];

      if (kbd_leds & KEYBOARD_LED_CAPSLOCK)
      {
        // Capslock On: disable blink, turn led on
        blink_interval_ms = 0;
        board_led_write(true);
      }else
      {
        // Caplocks Off: back to normal blink
        board_led_write(false);
        blink_interval_ms = BLINK_MOUNTED;
      }
    }
  }
}

//--------------------------------------------------------------------+
// BLINKING TASK
//--------------------------------------------------------------------+
void led_blinking_task(void)
{
  static uint32_t start_ms = 0;
  static bool led_state = false;

  // blink is disabled
  if (!blink_interval_ms) return;

  // Blink every interval ms
  if ( board_millis() - start_ms < blink_interval_ms) return; // not enough time
  start_ms += blink_interval_ms;

  board_led_write(led_state);
  led_state = 1 - led_state; // toggle
}

里面很多个回调函数cb，这部分应该是在框架中，main函数如下：

int main(void)
{
  board_init();

  // init device stack on configured roothub port
  tud_init(BOARD_TUD_RHPORT);

  if (board_init_after_tusb) {
    board_init_after_tusb();
  }

  while (1)
  {
    tud_task(); // tinyusb device task
    led_blinking_task();

    hid_task();
  }
}

首先是板子的初始化，然后usb device的初始化，最后是板子的再初始化（如果有的话）。

这个是没有操作系统的，所以直接就是while1。

tud_task()应该是框架提供的，感觉是支持了下面的几个回调，tud_mount_cb，tud_umount_cb，tud_suspend_cb，tud_resume_cb。这里主要是usb拔插的事件处理。

void led_blinking_task(void)是控制led的，主要是闪烁的间隔时间，这个时间根据上面的usb拔插时间决定。

4.2 描述符

描述符是在usb_descriptors.h和usb_descriptors.c。这部分基本上只要把内容填好，在框架中就会处理发送这些内容。就是tud_init(BOARD_TUD_RHPORT)。

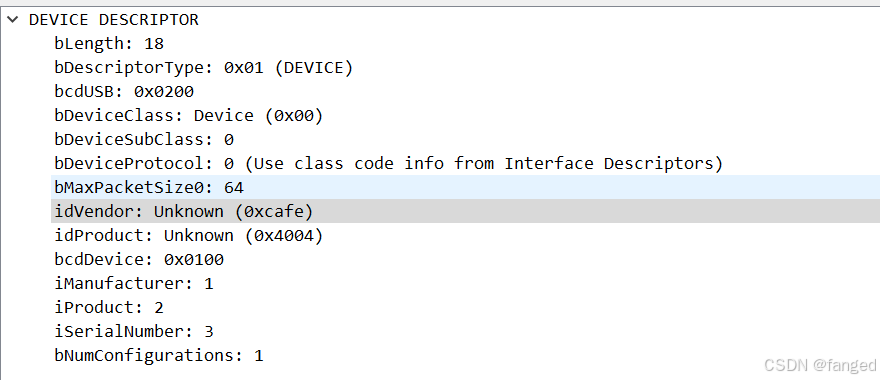

从交互来看，就是PC发送GET_DESCRIPTOR，然后PICO返回。这里tinyusb依然是做了封装。

基本上就是三个。

tud_descriptor_device_cb这个要求返回描述符。

返回的就是这个：

#define USB_PID           (0x4000 | _PID_MAP(CDC, 0) | _PID_MAP(MSC, 1) | _PID_MAP(HID, 2) | \
                           _PID_MAP(MIDI, 3) | _PID_MAP(VENDOR, 4) )

#define USB_VID   0xCafe
#define USB_BCD   0x0200

//--------------------------------------------------------------------+
// Device Descriptors
//--------------------------------------------------------------------+
tusb_desc_device_t const desc_device =
{
    .bLength            = sizeof(tusb_desc_device_t),
    .bDescriptorType    = TUSB_DESC_DEVICE,
    .bcdUSB             = USB_BCD,
    .bDeviceClass       = 0x00,
    .bDeviceSubClass    = 0x00,
    .bDeviceProtocol    = 0x00,
    .bMaxPacketSize0    = CFG_TUD_ENDPOINT0_SIZE,

    .idVendor           = USB_VID,
    .idProduct          = USB_PID,
    .bcdDevice          = 0x0100,

    .iManufacturer      = 0x01,
    .iProduct           = 0x02,
    .iSerialNumber      = 0x03,

    .bNumConfigurations = 0x01
};

之后是tud_hid_descriptor_report_cb，这个应该当PC发现是HID设备之后，要求发送HID描述符。此时发送的是这个。

uint8_t const desc_hid_report[] =
{
  TUD_HID_REPORT_DESC_KEYBOARD( HID_REPORT_ID(REPORT_ID_KEYBOARD         )),
  TUD_HID_REPORT_DESC_MOUSE   ( HID_REPORT_ID(REPORT_ID_MOUSE            )),
  TUD_HID_REPORT_DESC_CONSUMER( HID_REPORT_ID(REPORT_ID_CONSUMER_CONTROL )),
  TUD_HID_REPORT_DESC_GAMEPAD ( HID_REPORT_ID(REPORT_ID_GAMEPAD          ))
};

最后是tud_descriptor_string_cb，这个说的是收到GET STRING DESCRIPTOR请求时返回的数据。返回的内容如下：

uint16_t const *tud_descriptor_string_cb(uint8_t index, uint16_t langid) {
  (void) langid;
  size_t chr_count;

  switch ( index ) {
    case STRID_LANGID:
      memcpy(&_desc_str[1], string_desc_arr[0], 2);
      chr_count = 1;
      break;

    case STRID_SERIAL:
      chr_count = board_usb_get_serial(_desc_str + 1, 32);
      break;

    default:
      // Note: the 0xEE index string is a Microsoft OS 1.0 Descriptors.
      // https://docs.microsoft.com/en-us/windows-hardware/drivers/usbcon/microsoft-defined-usb-descriptors

      if ( !(index < sizeof(string_desc_arr) / sizeof(string_desc_arr[0])) ) return NULL;

      const char *str = string_desc_arr[index];

      // Cap at max char
      chr_count = strlen(str);
      size_t const max_count = sizeof(_desc_str) / sizeof(_desc_str[0]) - 1; // -1 for string type
      if ( chr_count > max_count ) chr_count = max_count;

      // Convert ASCII string into UTF-16
      for ( size_t i = 0; i < chr_count; i++ ) {
        _desc_str[1 + i] = str[i];
      }
      break;
  }

  // first byte is length (including header), second byte is string type
  _desc_str[0] = (uint16_t) ((TUSB_DESC_STRING << 8) | (2 * chr_count + 2));

  return _desc_str;
}

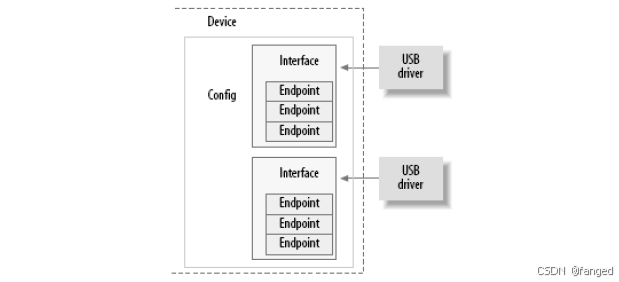

根据之前的理论学习，一个USB设备是这样的：

在这个例子中，Device就是厂商，里面的信息都是我们在回调里面定义的。Config描述的就是供电这些（感觉现在Device和config可以合并。。。），在这里的Interface就是HID，Endpoint和后面的传输有关，这里是0x81，表示端点1的IN，从设备到主机。

最后看看实际的抓包（Windows10主机）：

这里的2.12.0就是设备地址，2是URB总线编号，也就是主板上的U口编号，12是设备编号，这个下来可以再看看。

可以看到，一共是有4次来回，分别是GET_DESCRIPTOR DEVICE，GET_DESCRIPTOR CONFIGURATION，SET CONFIGURATION和GET_DESCRIPTOR HID Report。

第一个GET_DESCRIPTOR DEVICE，就是tud_descriptor_device_cb里面填的值。

GET_DESCRIPTOR CONFIGURATION，是从tud_descriptor_configuration_cb回调返回。

SET CONFIGURATION这个没看到。

最后的GET_DESCRIPTOR HID Report，则是从HID的处理中发送的。

4.3 HID处理

重点的还是下面的hid_task();

// Every 10ms, we will sent 1 report for each HID profile (keyboard, mouse etc ..)
// tud_hid_report_complete_cb() is used to send the next report after previous one is complete
void hid_task(void)
{
  // Poll every 10ms
  const uint32_t interval_ms = 10;
  static uint32_t start_ms = 0;

  if ( board_millis() - start_ms < interval_ms) return; // not enough time
  start_ms += interval_ms;

  uint32_t const btn = board_button_read();

  // Remote wakeup
  if ( tud_suspended() && btn )
  {
    // Wake up host if we are in suspend mode
    // and REMOTE_WAKEUP feature is enabled by host
    tud_remote_wakeup();
  }else
  {
    // Send the 1st of report chain, the rest will be sent by tud_hid_report_complete_cb()
    send_hid_report(REPORT_ID_KEYBOARD, btn);
  }
}

可以看到，在mcu中，估计是因为没有操作系统的原因，所以等待，全部用的是时间检查来做的，即读取最新时间，来判断是否达到了需要等待的事件。

btn就是pico板子上唯一的那个按钮，写了BOOTSEL的那个。按下之后，发送REPORT_ID_KEYBOARD键盘事件。

当发送成功之后，会有一个回调tud_hid_report_complete_cb，在这里，发送了鼠标和游戏手柄事件，还有一个音量控制的事件。

这里就不多看了，主要看看鼠标吧。

    case REPORT_ID_MOUSE:
    {
      int8_t const delta = 5;

      // no button, right + down, no scroll, no pan
      tud_hid_mouse_report(REPORT_ID_MOUSE, 0x00, delta, delta, 0, 0);
    }
    break;

可以看到，应该还是tinyusb对mouse进行了封装，封装是在hid_device.c里面。最后调用的还是tud_hid_n_report。

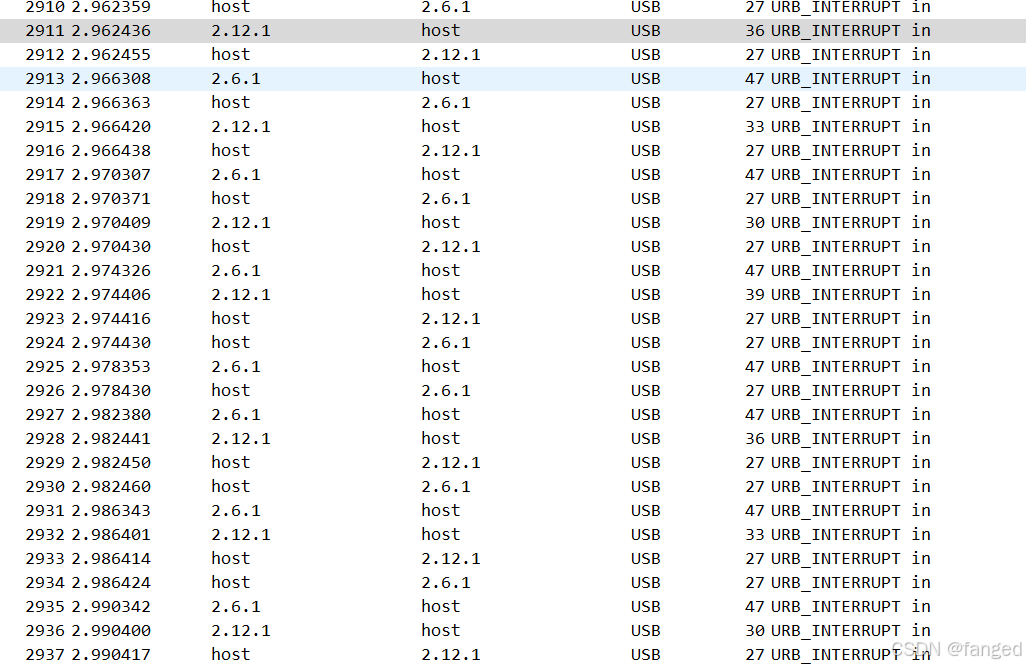

看了一下实际发送的抓包：

是以URB中断的形式发上去的。

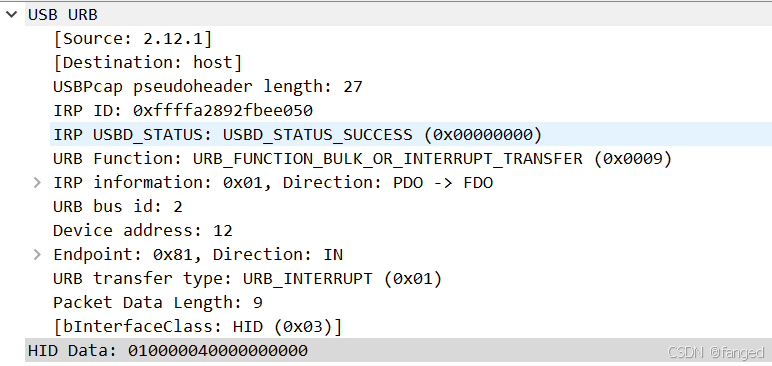

Endpoint这里是0x81，表示端点1的IN，从设备到主机。 URB传输类型是中断。

关于HID的数据在最下面，也不长，不过wireshark中也没有解析。

好了，先看到这里吧。。。

参考：

How does a USB keyboard work?
