屏蔽箱隔离度测试方法（Isolation Test)

1.1 测试环境 Environment

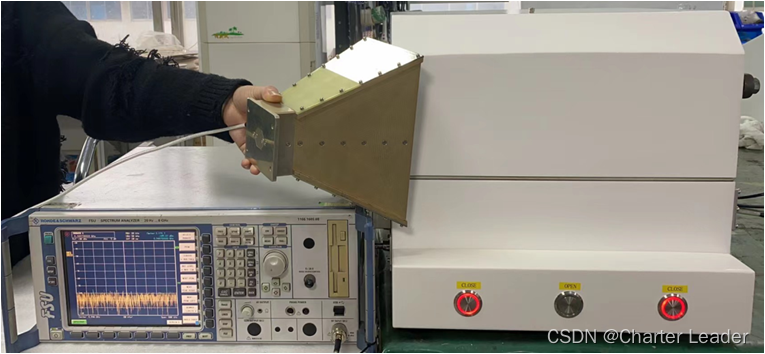

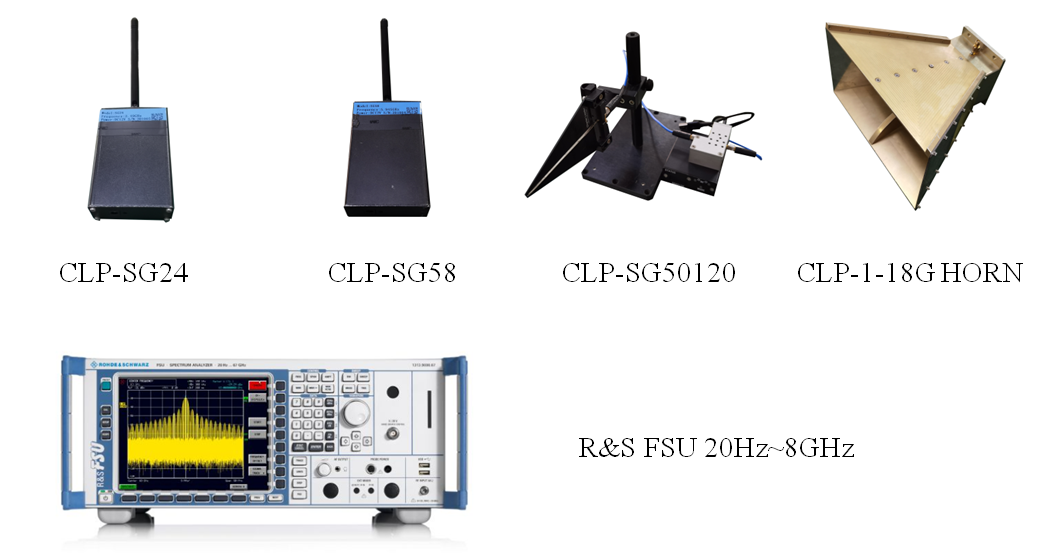

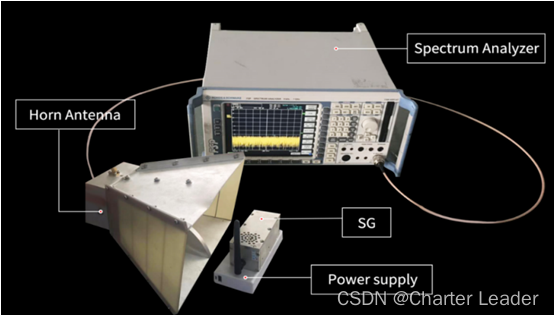

 1.2 测试设备 Test Equipment

Instrument	Manufacturer	Type No.	Cal. Date
Spectrum Analyzer	R&S	FSU(20Hz-8GHz)	2023/05/11	√
Signal Generator	Charter Leader	CLP-SG24/SG58	2023/05/11	√
Signal Generator	Charter Leader	CLP-SG50120（可调发射源）	2023/05/11	√
Directive Antenna	Charter Leader	CLP-2-8 LPA	2023/05/11	√
Horn Antenna	Charter Leader	CLP-1-18G HORN	2023/05/11	√





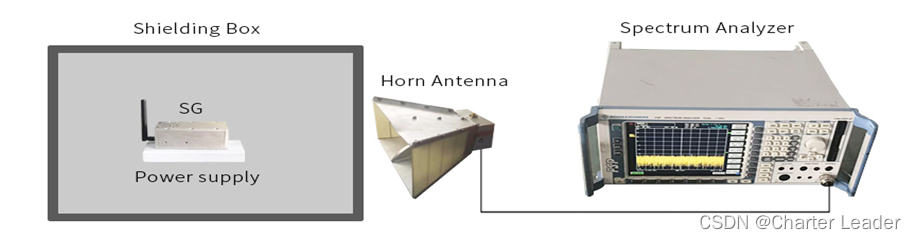

Result
Side	Front	Back	Left	Right
Frequency (Hz)	Isolation（dB）
2.49G	-82	-82	-82	-81
5.945G	-81	-81	-81	-80
7.125G	-81	-81	-81	-80

     *隔离度至少-70dB以上才能避免相互间干扰。

     *频谱的量程要够大，重点测量箱体开合处以及滤波器接口，取最小值作为屏蔽箱的隔离度。
