西门子触摸屏如何用一页动态显示所有IO变量

图1, 建立DB块 , 存放注释和按钮的IO信号

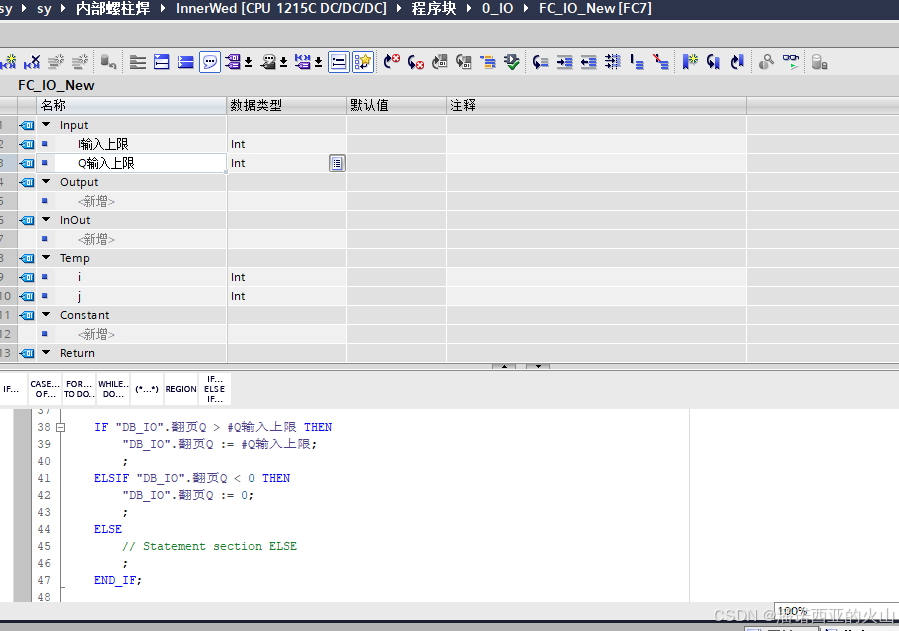

图2, FC块的IO变量定义

REGION 输入
    FOR #i := 0 TO 7 DO
        "DB_IO".注释I[#i] := "DB_IO".翻页I * 8 + #i;
        ;
    END_FOR;

    IF "DB_IO".翻页I > #I输入上限 THEN
        "DB_IO".翻页I := #I输入上限;
        ;
    ELSIF "DB_IO".翻页I < 0 THEN
        "DB_IO".翻页I := 0;
        ;
    ELSE
        // Statement section ELSE
        ;
    END_IF;


    POKE_BLK(area_src := 16#81,
             dbNumber_src := 0,
             byteOffset_src := "DB_IO".翻页I,
             area_dest := 16#84,
             dbNumber_dest := 100,
             byteOffset_dest := 18,
             count := 1);

END_REGION


REGION 输出
    FOR #i := 0 TO 7 DO
        "DB_IO".注释Q[#i] := "DB_IO".翻页Q * 8 + #i;
        ;
    END_FOR;

    IF "DB_IO".翻页Q > #Q输入上限 THEN
        "DB_IO".翻页Q := #Q输入上限;
        ;
    ELSIF "DB_IO".翻页Q < 0 THEN
        "DB_IO".翻页Q := 0;
        ;
    ELSE
        // Statement section ELSE
        ;
    END_IF;


    POKE_BLK(area_src := 16#82,
             dbNumber_src := 0,
             byteOffset_src := "DB_IO".翻页Q,
             area_dest := 16#84,
             dbNumber_dest := 100,
             byteOffset_dest := 38,
             count := 1);

END_REGION

代码1: 写FC块, 将IO 区的变量映射到DB区中

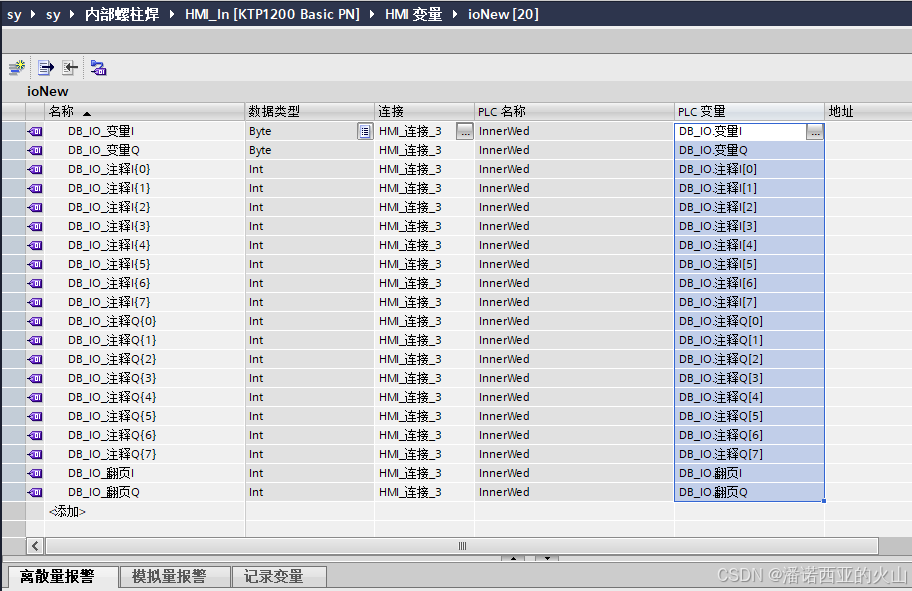

图3: HMI变量和PLC变量的映射

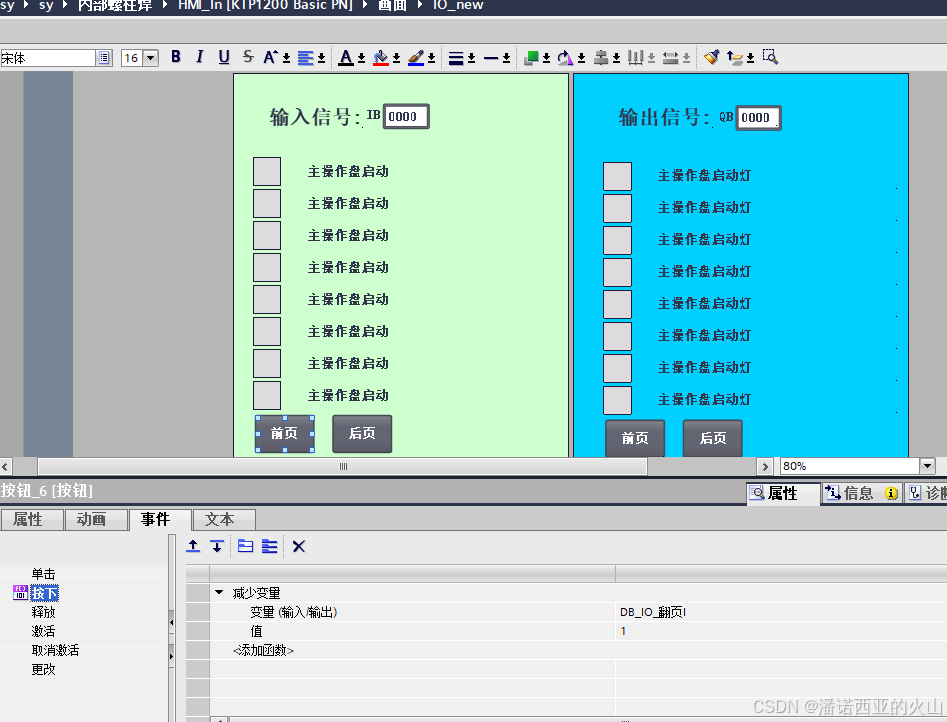

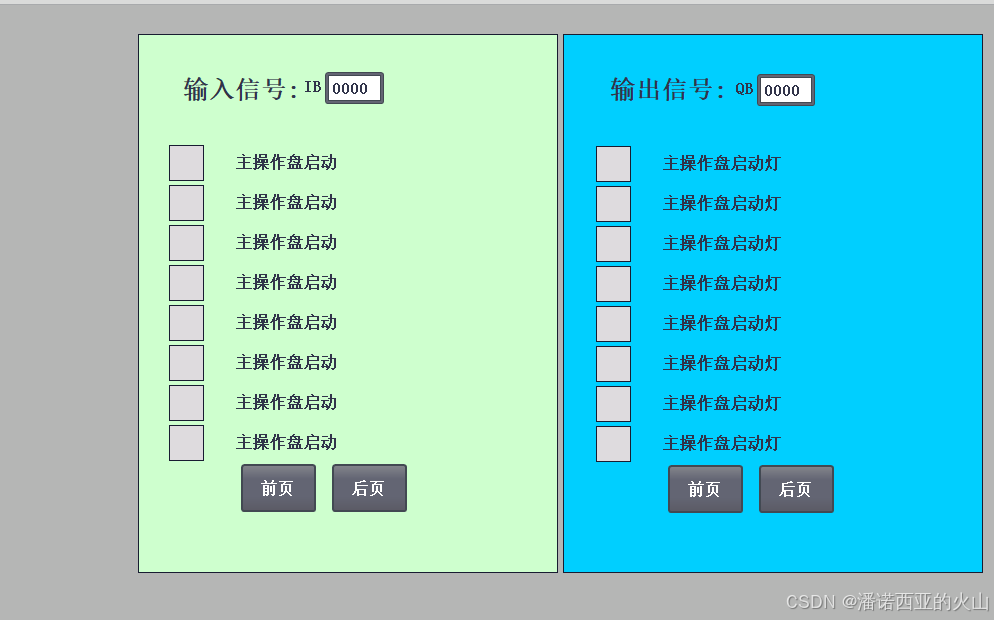

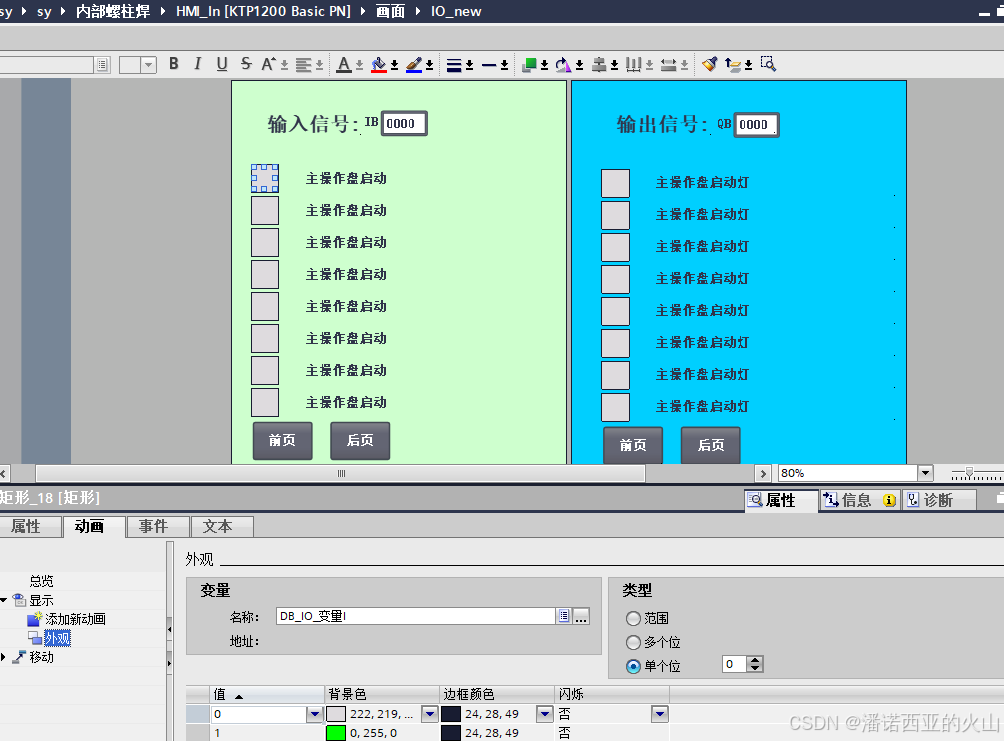

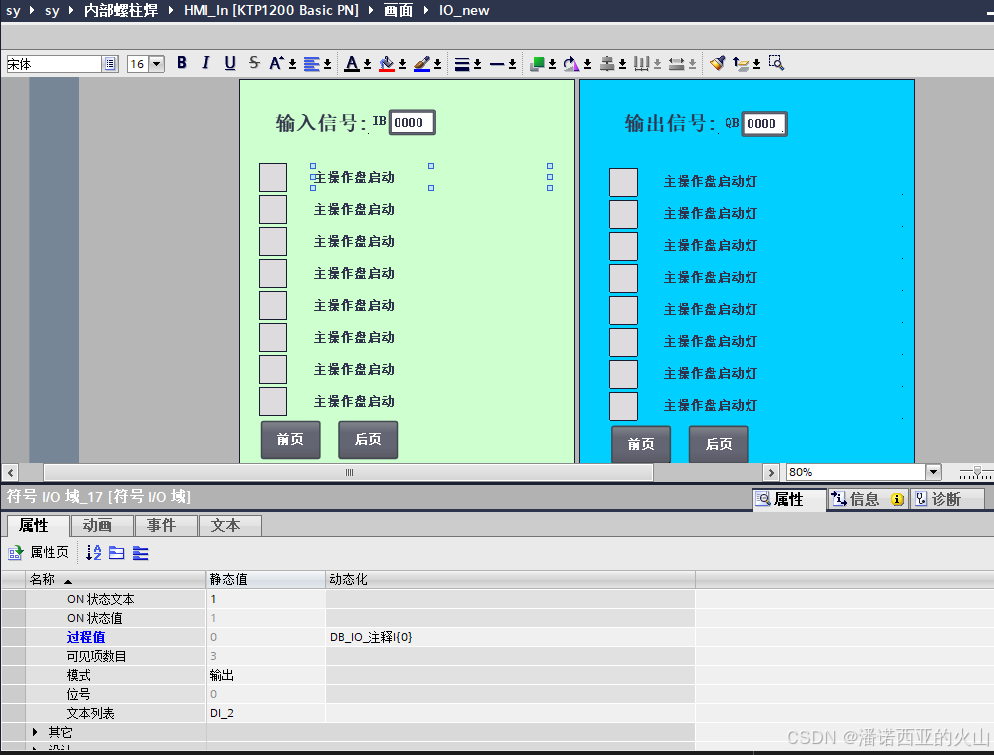

图4: 触摸屏画面

状态

注释

翻页按钮

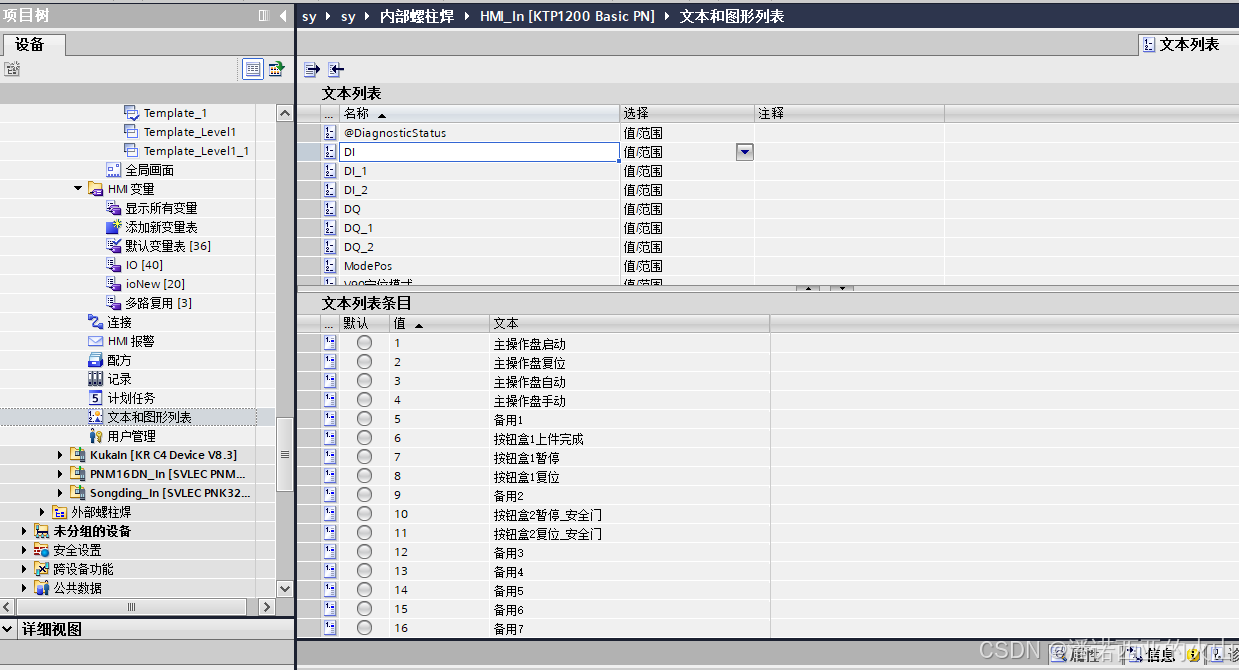

文本和图形列表
