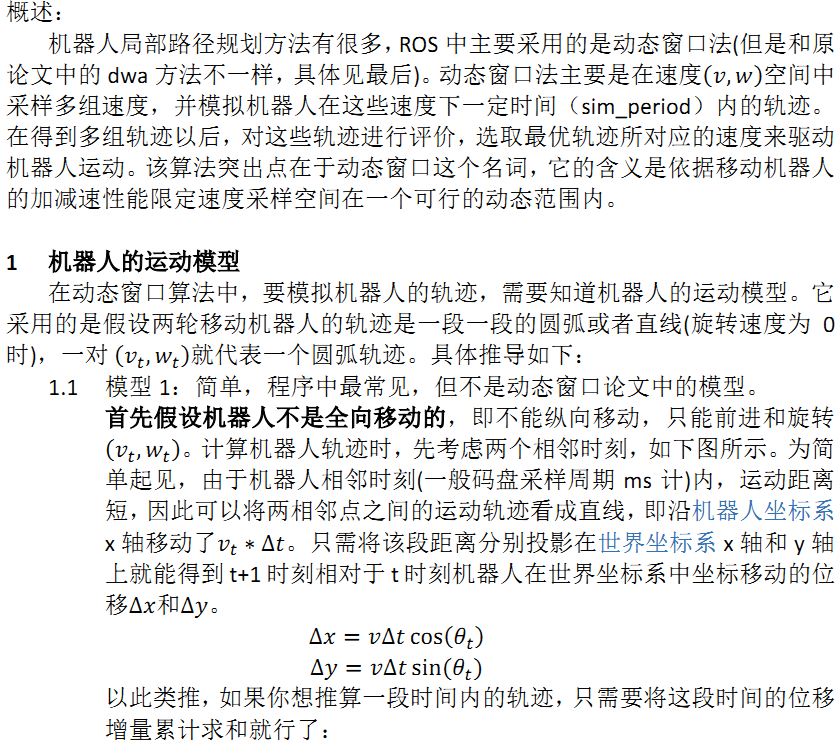

机器人局部避障的动态窗口法(dynamic window approach)

版权声明:本文为博主原创文章,未经博主允许不得转载。 https://blog.csdn.net/heyijia0327/article/details/44983551

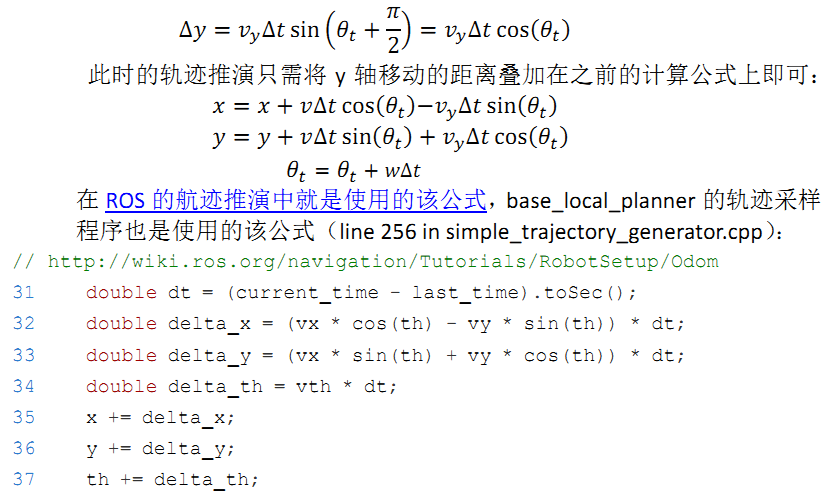

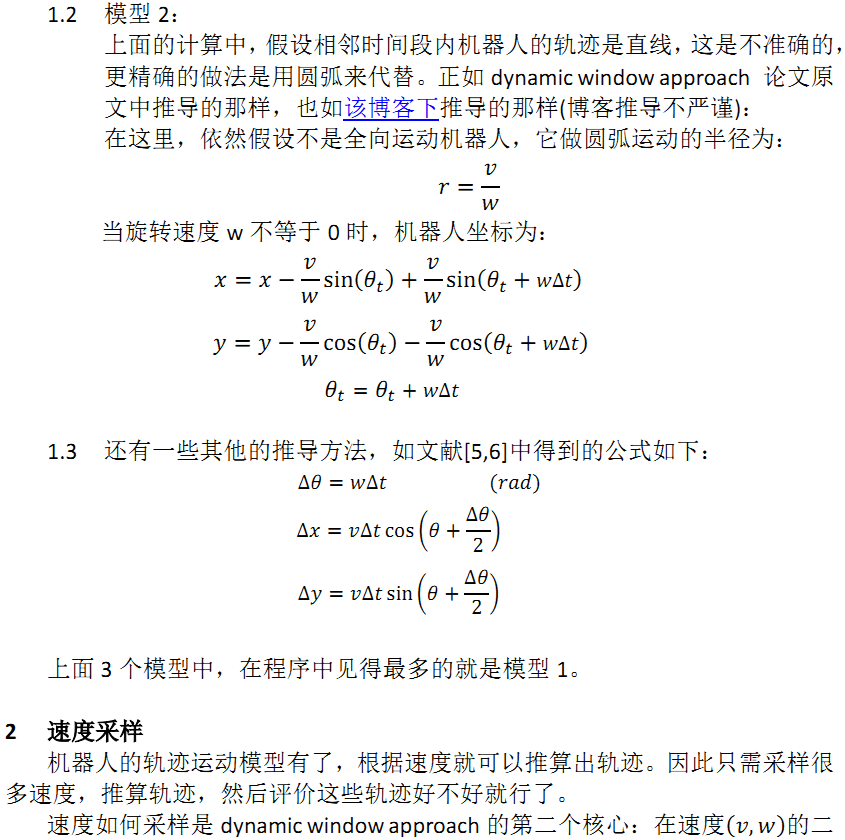

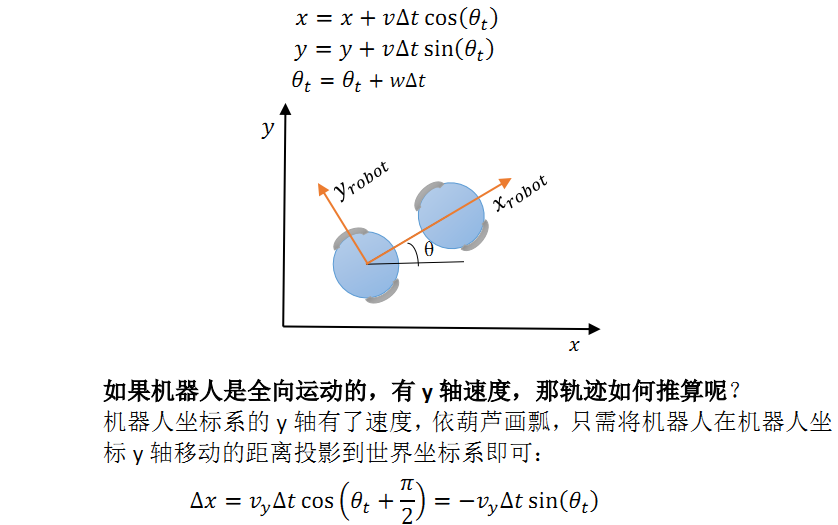

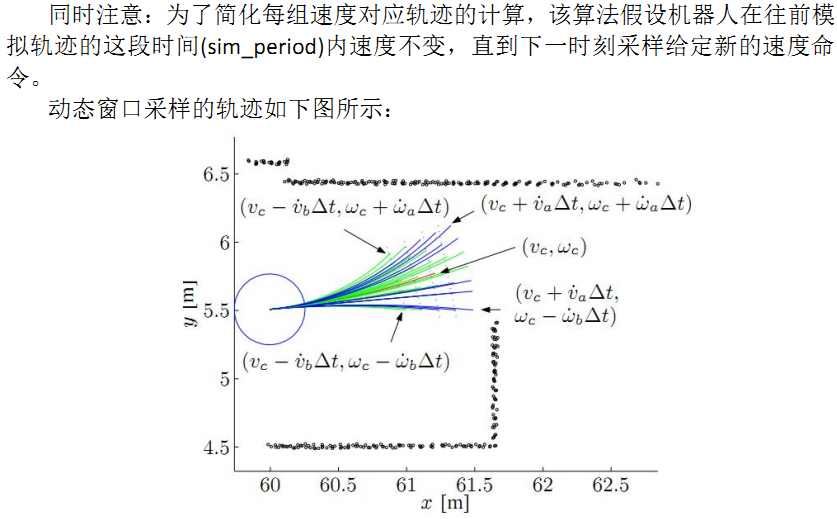

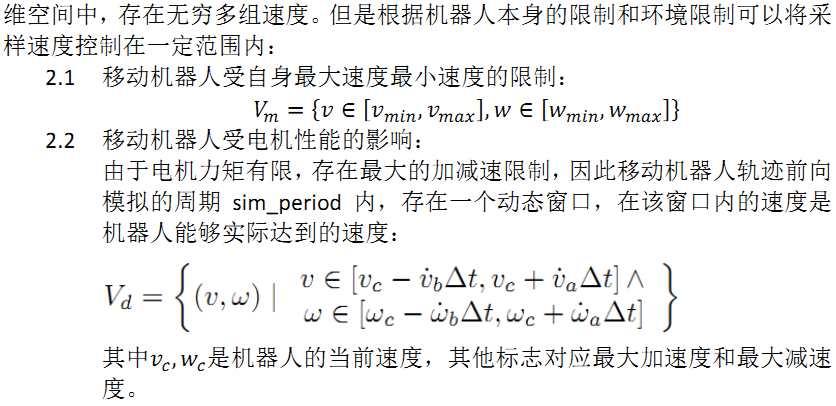

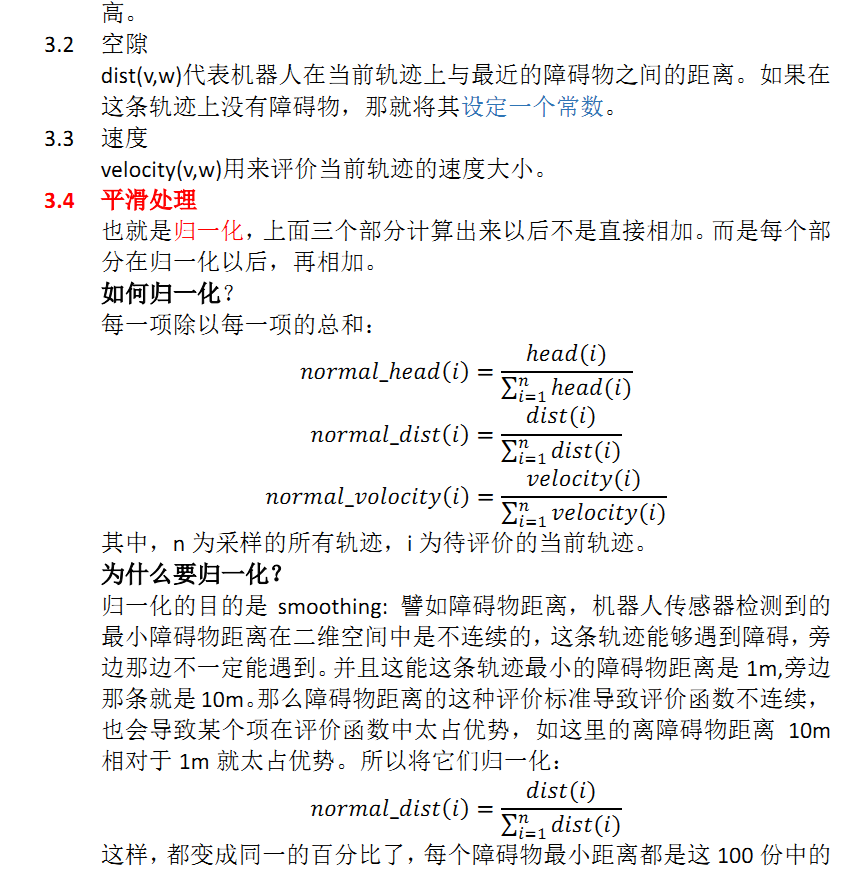

首先在V_m∩V_d的范围内采样速度:
allowable_v = generateWindow(robotV, robotModel)
allowable_w  = generateWindow(robotW, robotModel)

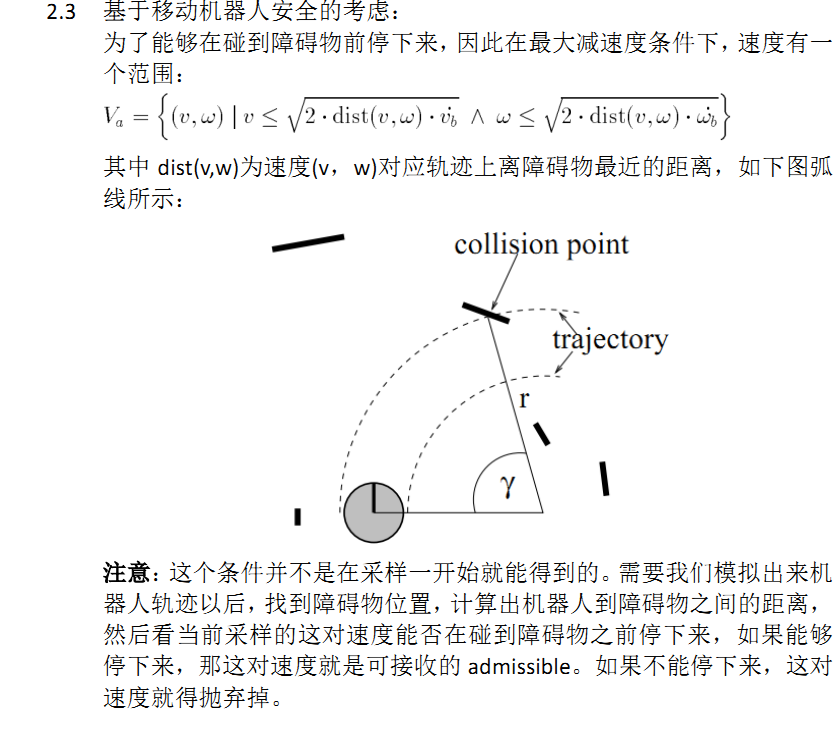

然后根据能否及时刹车剔除不安全的速度:
    for each v in allowable_v
       for each w in allowable_w
       dist = find_dist(v,w,laserscan,robotModel)
       breakDist = calculateBreakingDistance(v)//刹车距离
       if (dist > breakDist)  //如果能够及时刹车,该对速度可接收
	如果这组速度可接受,接下来利用评价函数对其评价,找到最优的速度组

来源:http://adrianboeing.blogspot.com/2012/05/dynamic-window-algorithm-motion.html
BEGIN DWA(robotPose,robotGoal,robotModel)
   laserscan = readScanner()
   allowable_v = generateWindow(robotV, robotModel)
   allowable_w  = generateWindow(robotW, robotModel)
   for each v in allowable_v
      for each w in allowable_w
      dist = find_dist(v,w,laserscan,robotModel)
      breakDist = calculateBreakingDistance(v)
      if (dist > breakDist)  //can stop in time
         heading = hDiff(robotPose,goalPose, v,w)
          //clearance与原论文稍不一样
         clearance = (dist-breakDist)/(dmax - breakDist)
         cost = costFunction(heading,clearance, abs(desired_v - v))
         if (cost > optimal)
            best_v = v
            best_w = w
            optimal = cost
    set robot trajectory to best_v, best_w
END




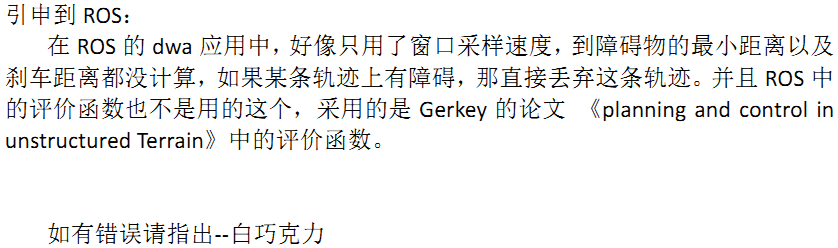

(转载请注明作者和出处:http://blog.csdn.net/heyijia0327 未经允许请勿用于商业用途)



参考:

dwa:

1.Fox.《The Dynamic Window Approach To CollisionAvoidance》

2.MarijaSeder. 《dynamic window based approach tomobile robot motion control in the presence of moving obstacles》

3.http://adrianboeing.blogspot.com/2012/05/dynamic-window-algorithm-motion.html



运动模型:

4. http://adrianboeing.blogspot.com.au/2010/09/circular-motion-in-2d-for-graphics-and.html

5.https://www.cs.princeton.edu/courses/archive/fall11/cos495/COS495-Lecture5-Odometry.pdf

6.http://rossum.sourceforge.net/papers/DiffSteer/


最后贴出matlab仿真代码

% -------------------------------------------------------------------------
%
% File : DynamicWindowApproachSample.m
%
% Discription : Mobile Robot Motion Planning with Dynamic Window Approach
%
% Environment : Matlab
%
% Author : Atsushi Sakai
%
% Copyright (c): 2014 Atsushi Sakai
%
% License : Modified BSD Software License Agreement
% -------------------------------------------------------------------------

function [] = DynamicWindowApproachSample()

close all;
clear all;

disp('Dynamic Window Approach sample program start!!')

x=[0 0 pi/2 0 0]';% 机器人的初期状态[x(m),y(m),yaw(Rad),v(m/s),w(rad/s)]
goal=[10,10];% 目标点位置 [x(m),y(m)]
% 障碍物位置列表 [x(m) y(m)]
% obstacle=[0 2;
%           4 2;
%           4 4;
%           5 4;
%           5 5;
%           5 6;
%           5 9
%           8 8
%           8 9
%           7 9];
obstacle=[0 2;
          4 2;
          4 4;
          5 4;
          5 5;
          5 6;
          5 9
          8 8
          8 9
          7 9
          6 5
          6 3
          6 8
          6 7
          7 4
          9 8
          9 11
          9 6];

obstacleR=0.5;% 冲突判定用的障碍物半径
global dt; dt=0.1;% 时间[s]

% 机器人运动学模型
% 最高速度m/s],最高旋转速度[rad/s],加速度[m/ss],旋转加速度[rad/ss],
% 速度分辨率[m/s],转速分辨率[rad/s]]
Kinematic=[1.0,toRadian(20.0),0.2,toRadian(50.0),0.01,toRadian(1)];

% 评价函数参数 [heading,dist,velocity,predictDT]
evalParam=[0.05,0.2,0.1,3.0];
area=[-1 11 -1 11];% 模拟区域范围 [xmin xmax ymin ymax]

% 模拟实验的结果
result.x=[];
tic;
% movcount=0;
% Main loop
for i=1:5000
    % DWA参数输入
    [u,traj]=DynamicWindowApproach(x,Kinematic,goal,evalParam,obstacle,obstacleR);
    x=f(x,u);% 机器人移动到下一个时刻

    % 模拟结果的保存
    result.x=[result.x; x'];

    % 是否到达目的地
    if norm(x(1:2)-goal')<0.5
        disp('Arrive Goal!!');break;
    end

    %====Animation====
    hold off;
    ArrowLength=0.5;%
    % 机器人
    quiver(x(1),x(2),ArrowLength*cos(x(3)),ArrowLength*sin(x(3)),'ok');hold on;
    plot(result.x(:,1),result.x(:,2),'-b');hold on;
    plot(goal(1),goal(2),'*r');hold on;
    plot(obstacle(:,1),obstacle(:,2),'*k');hold on;
    % 探索轨迹
    if ~isempty(traj)
        for it=1:length(traj(:,1))/5
            ind=1+(it-1)*5;
            plot(traj(ind,:),traj(ind+1,:),'-g');hold on;
        end
    end
    axis(area);
    grid on;
    drawnow;
    %movcount=movcount+1;
    %mov(movcount) = getframe(gcf);%
end
toc
%movie2avi(mov,'movie.avi');


function [u,trajDB]=DynamicWindowApproach(x,model,goal,evalParam,ob,R)

% Dynamic Window [vmin,vmax,wmin,wmax]
Vr=CalcDynamicWindow(x,model);

% 评价函数的计算
[evalDB,trajDB]=Evaluation(x,Vr,goal,ob,R,model,evalParam);

if isempty(evalDB)
    disp('no path to goal!!');
    u=[0;0];return;
end

% 各评价函数正则化
evalDB=NormalizeEval(evalDB);

% 最终评价函数的计算
feval=[];
for id=1:length(evalDB(:,1))
    feval=[feval;evalParam(1:3)*evalDB(id,3:5)'];
end
evalDB=[evalDB feval];

[maxv,ind]=max(feval);% 最优评价函数
u=evalDB(ind,1:2)';%

function [evalDB,trajDB]=Evaluation(x,Vr,goal,ob,R,model,evalParam)
%
evalDB=[];
trajDB=[];
for vt=Vr(1):model(5):Vr(2)
    for ot=Vr(3):model(6):Vr(4)
        % 轨迹推测; 得到 xt: 机器人向前运动后的预测位姿; traj: 当前时刻 到 预测时刻之间的轨迹
        [xt,traj]=GenerateTrajectory(x,vt,ot,evalParam(4),model);  %evalParam(4),前向模拟时间;
        % 各评价函数的计算
        heading=CalcHeadingEval(xt,goal);
        dist=CalcDistEval(xt,ob,R);
        vel=abs(vt);
        % 制动距离的计算
        stopDist=CalcBreakingDist(vel,model);
        if dist>stopDist %
            evalDB=[evalDB;[vt ot heading dist vel]];
            trajDB=[trajDB;traj];
        end
    end
end

function EvalDB=NormalizeEval(EvalDB)
% 评价函数正则化
if sum(EvalDB(:,3))~=0
    EvalDB(:,3)=EvalDB(:,3)/sum(EvalDB(:,3));
end
if sum(EvalDB(:,4))~=0
    EvalDB(:,4)=EvalDB(:,4)/sum(EvalDB(:,4));
end
if sum(EvalDB(:,5))~=0
    EvalDB(:,5)=EvalDB(:,5)/sum(EvalDB(:,5));
end

function [x,traj]=GenerateTrajectory(x,vt,ot,evaldt,model)
% 轨迹生成函数
% evaldt:前向模拟时间; vt、ot当前速度和角速度;
global dt;
time=0;
u=[vt;ot];% 输入值
traj=x;% 机器人轨迹
while time<=evaldt
    time=time+dt;% 时间更新
    x=f(x,u);% 运动更新
    traj=[traj x];
end

function stopDist=CalcBreakingDist(vel,model)
% 根据运动学模型计算制动距离,这个制动距离并没有考虑旋转速度,不精确吧!!!
global dt;
stopDist=0;
while vel>0
    stopDist=stopDist+vel*dt;% 制动距离的计算
    vel=vel-model(3)*dt;%
end

function dist=CalcDistEval(x,ob,R)
% 障碍物距离评价函数

dist=100;
for io=1:length(ob(:,1))
    disttmp=norm(ob(io,:)-x(1:2)')-R;%僷僗偺埵抲偲忈奞暔偲偺僲儖儉岆嵎傪寁嶼
    if dist>disttmp% 离障碍物最小的距离
        dist=disttmp;
    end
end

% 障碍物距离评价限定一个最大值,如果不设定,一旦一条轨迹没有障碍物,将太占比重
if dist>=2*R
    dist=2*R;
end

function heading=CalcHeadingEval(x,goal)
% heading的评价函数计算

theta=toDegree(x(3));% 机器人朝向
goalTheta=toDegree(atan2(goal(2)-x(2),goal(1)-x(1)));% 目标点的方位

if goalTheta>theta
    targetTheta=goalTheta-theta;% [deg]
else
    targetTheta=theta-goalTheta;% [deg]
end

heading=180-targetTheta;

function Vr=CalcDynamicWindow(x,model)
%
global dt;
% 车子速度的最大最小范围
Vs=[0 model(1) -model(2) model(2)];

% 根据当前速度以及加速度限制计算的动态窗口
Vd=[x(4)-model(3)*dt x(4)+model(3)*dt x(5)-model(4)*dt x(5)+model(4)*dt];

% 最终的Dynamic Window
Vtmp=[Vs;Vd];
Vr=[max(Vtmp(:,1)) min(Vtmp(:,2)) max(Vtmp(:,3)) min(Vtmp(:,4))];

function x = f(x, u)
% Motion Model
% u = [vt; wt];当前时刻的速度、角速度
global dt;

F = [1 0 0 0 0
     0 1 0 0 0
     0 0 1 0 0
     0 0 0 0 0
     0 0 0 0 0];

B = [dt*cos(x(3)) 0
    dt*sin(x(3)) 0
    0 dt
    1 0
    0 1];

x= F*x+B*u;

function radian = toRadian(degree)
% degree to radian
radian = degree/180*pi;

function degree = toDegree(radian)
% radian to degree
degree = radian/pi*180;
