自定义View一：绘制-Canvas

1、概念

画布，通过画笔绘制几何图形、文本、路径和位图等。

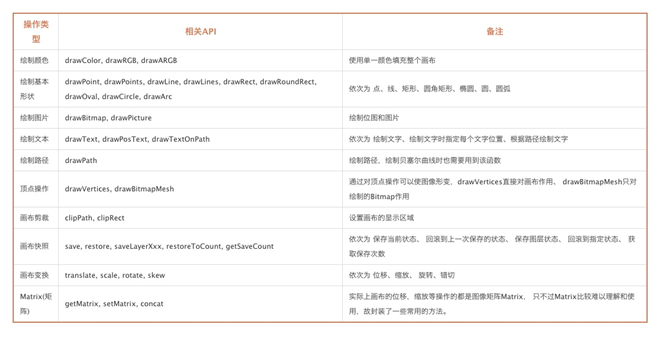

2、常用API

常用API分为绘制、变换、状态保存和恢复

2.1 绘制颜色

1.	canvas.drawColor(Color.GREEN);

2.2 绘制集合图形

//绘制点
float[] pts = {200, 300, 200, 400, 200, 500};
canvas.drawPoints(pts, mPaint);
//绘制线
canvas.drawLine(200, 200, 200, 400, mPaint);
//绘制矩形
RectF rect = new RectF(100, 100, 400, 400);
canvas.drawRect(rect, mPaint);
//绘制圆角矩形
canvas.drawRoundRect(rect, 20, 20, mPaint);
//绘制圆
canvas.drawCircle(200, 200, 100, mPaint);
//绘制椭圆
canvas.drawOval(rect, mPaint);
//绘制圆弧
canvas.drawArc(rect, -180, 180, true, mPaint);

2.3 绘制文本

canvas.drawText(text, 50, 50, mPaint);
Path path = new Path();
path.addArc(100, 100, 300, 300, -180, 360);
canvas.drawPath(path, mPaint);
canvas.drawTextOnPath(text, path, 10, -10, mPaint);

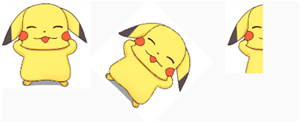

2.4 绘制位图

canvas.drawBitmap(bitmap, 0, 0, mPaint);

Matrix matrix = new Matrix();
matrix.postRotate(45);
matrix.postTranslate(400, 0);
canvas.drawBitmap(bitmap, matrix, mPaint);

Rect src = new Rect(0, 0, 100, 200);
Rect dst = new Rect(600, 0, 700, 200);
canvas.drawBitmap(bitmap, src, dst, mPaint);

2.5 绘制路径

Path path = new Path();
path.moveTo(0,0);
path.lineTo(100,100);
path.lineTo(300,200);
canvas.drawPath(path, mPaint);

2.6 变换

//平移
canvas.translate(100, 100);
//旋转
canvas.rotate(45);
canvas.rotate(45, 100,100);
//缩放
canvas.scale(0.5f, 0.5f);
canvas.scale(0.5f, 0.5f, 100,100);
//错切
canvas.skew(0.1f, 0.5f);

2.6.1 rotate

可以叠加，而且这里实际上移动的是坐标，画布的位置并没有变，也就是说坐标原点变到了原来（100，100）的位置。

注意：rotate(float degrees, float px, float py)

canvas.rotate(45, 100, 100);

源码：

/**
 * Preconcat the current matrix with the specified rotation.
 *
 * @param degrees The amount to rotate, in degrees
 * @param px The x-coord for the pivot point (unchanged by the rotation)
 * @param py The y-coord for the pivot point (unchanged by the rotation)
 */
public final void rotate(float degrees, float px, float py) {
    if (degrees == 0.0f) return;
	translate(px, py);
	rotate(degrees);
	translate(-px, -py);
}

根据源码可以很明显的看到，其实就是先平移到指定位置，在指定位置进行了旋转之后又对画布做了返回平移处理，这样就实现了以自定义点为中心旋转画布的效果。

2.6.2 scale

scale(float sx, float sy, float px, float py);

源码：

/**
 * Preconcat the current matrix with the specified scale.
 *
 * @param sx The amount to scale in X
 * @param sy The amount to scale in Y
 * @param px The x-coord for the pivot point (unchanged by the scale)
 * @param py The y-coord for the pivot point (unchanged by the scale)
 */
public final void scale(float sx, float sy, float px, float py) {
    if (sx == 1.0f && sy == 1.0f) return;
    translate(px, py);
    scale(sx, sy);
    translate(-px, -py);
}

 同理，也是先实现平移，在指定位置缩放之后又对画布做了返回平移处理，从而实现了以自定义点为中心缩放画布的效果。

2.6.3 skew

/**
 * @params sx 将画布在x方向上倾斜相应的角度，sx倾斜角度的tan值，其实就是将y逆时针旋转相应的角度
 * @params sy 将画布在y方向上倾斜相应的角度，sx倾斜角度的tan值，其实就是将x顺时针旋转相应的角度
 *
 * 水平错切
 */
canvas.skew(1, 0);
canvas.drawRect(rect, mPaint);



对于点p(x0, y0),错切skew(sx，sy)后坐标(x,y)，经过下面的转换：

x=x0 + sx*y0

y=y0 + sy*x0

当sx=1时，即将画布在x方向上旋转45度，其实就是x轴保持方向不变，y轴逆时针旋转45度。

当sy=1时，即将画布在y方向上旋转45度，其实就是y轴保持方向不变，x轴顺时针旋转45度。

3、状态保存与恢复

3.1 saveFlags

3.2 save

//画布状态保存与恢复，
int layerId = canvas.save();
canvas.restore();
canvas.restoreToCount(layerId);

3.3 saveLayer

关键方法：

//新建图层
public int saveLayer(float left, float top, float right, float bottom, Paint paint, int saveFlags)
//切换到指定图层的上一级图层
public void restoreToCount(int saveCount) {
//获取图层数量
public int getSaveCount()

代码：

canvas.saveLayer(0, 0, 200, 200, mPaint);
canvas.saveLayerAlpha(0, 0, 200, 200, 100);
canvas.restore();
canvas.restore();

4、应用

4.1 时钟

重写onDraw方法：

@Override
protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);
    // 绘制时间
    drawTime(canvas);
    // 绘制刻度盘
    drawPanel(canvas);
}

   绘制刻度盘：

for (int i = 1; i <= 60; i++) {
    canvas.save();
    canvas.rotate(360 / 60 * i, mWidth / 2, mHeight / 2);
    canvas.translate(mWidth / 2, 0);
    if (i % 5 == 0) {
        canvas.drawLine(0, 0, 0, 30, mPaint);
        //显示数字
        String text = i / 5 + "";
        //获取数字的宽度
        mPaint.getTextBounds(text, 0, text.length(), mRect);
        canvas.drawText(text, (0 - mRect.width()) / 2, 40 + mRect.height(), mPaint);
    } else {
        canvas.drawLine(0, 0, 0, 15, mPaint);
    }
    canvas.restore();
}

   绘制时间：

//时针
canvas.save();
canvas.rotate(360 * mHour / 12, mWidth / 2, mHeight / 2);
canvas.drawLine(mWidth / 2, mHeight / 2, mWidth / 2, 160, mPaint);
canvas.restore();

//分钟
canvas.save();
canvas.rotate(360 * mMinutes / 60, mWidth / 2, mHeight / 2);
canvas.drawLine(mWidth / 2, mHeight / 2, mWidth / 2, 140, mPaint);
canvas.restore();

//秒针
canvas.save();
canvas.rotate(360 * mSeconds / 60, mWidth / 2, mHeight / 2);
canvas.drawLine(mWidth / 2, mHeight / 2, mWidth / 2, 100, mPaint);
canvas.restore();

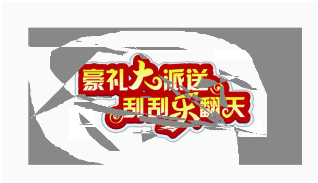

4.2 刮刮乐

初始化画笔：

mPaint = new Paint();
mPaint.setColor(Color.GRAY);

mPathPaint = new Paint();
mPathPaint.setColor(Color.GRAY);
mPathPaint.setStrokeWidth(30);
mPathPaint.setStyle(Paint.Style.FILL);
mPathPaint.setStrokeJoin(Paint.Join.ROUND);
//采用XOR绘制，擦除灰色蒙层，从而显示出底部奖品图
mPathPaint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.XOR));

绘制：

@Override
protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);

    //绘制奖品结果图
    canvas.drawBitmap(mBitmap,
            (mWidth - mBitmap.getWidth()) / 2,
            (mHeight - mBitmap.getHeight()) / 2, mPaint);
    //绘制灰色蒙层
    canvas.drawBitmap(mGrayBm, 0, 0, mPaint);

    mGrayCanvas.drawRect(0, 0, mWidth, mHeight, mPaint);
    mGrayCanvas.drawPath(mPath, mPathPaint);
}

滑动事件处理：

private float mMoveX, mMoveY;
@Override
public boolean onTouchEvent(MotionEvent event) {
    mMoveX = event.getX();
    mMoveY = event.getY();
    switch (event.getAction()) {
        case MotionEvent.ACTION_DOWN:
            mPath.moveTo(mMoveX, mMoveY);
            invalidate();
            return true;
        case MotionEvent.ACTION_MOVE:
            float endX = event.getX();
            float endY = event.getY();
            mPath.quadTo((endX - mMoveX) / 2 + mMoveX,
                    (endY - mMoveY) / 2 + mMoveY, endX, endY);
            invalidate();
            return true;
    }
    return super.onTouchEvent(event);
}
