序言
平时在使用Cocos开发移动端的项目时,总会遇到适配类的问题,索性写了一个适配的组件,最近在整理之前的项目和经验,把组件优化了一下,提供给大家使用。
使用方法
- 挂载到所需适配的节点上
- 往规则列表添加适配规则
适配规则
该适配组件可自适配移动端屏幕,提供多种适配规则:

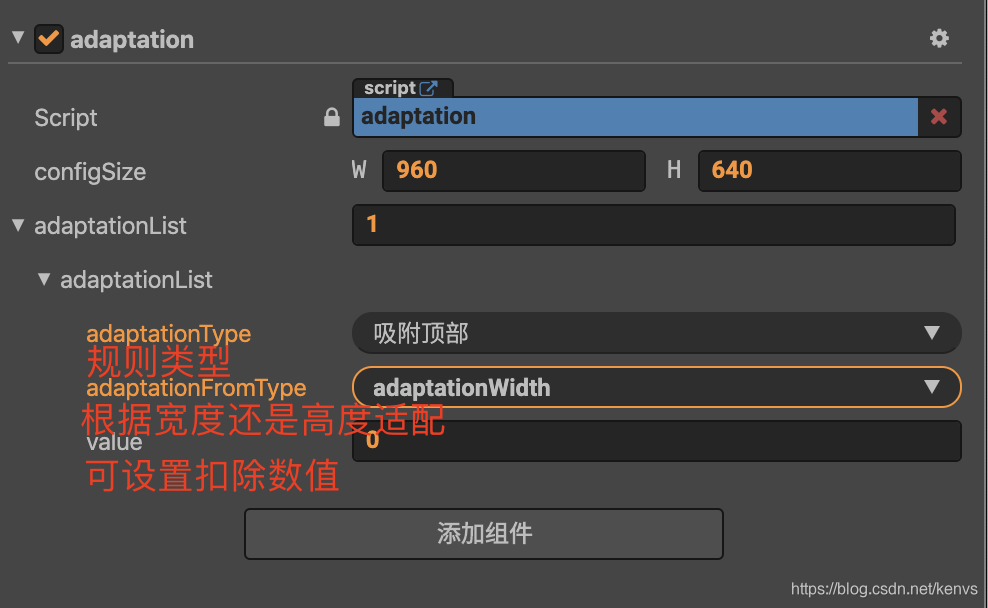

- 吸附顶部、底部、左边、右边,可设置上下或左右扣除的值(为1以下小数时为当前屏幕宽度、高度乘于该值,为1以上的值时为当前屏幕宽度、高度减去该值)

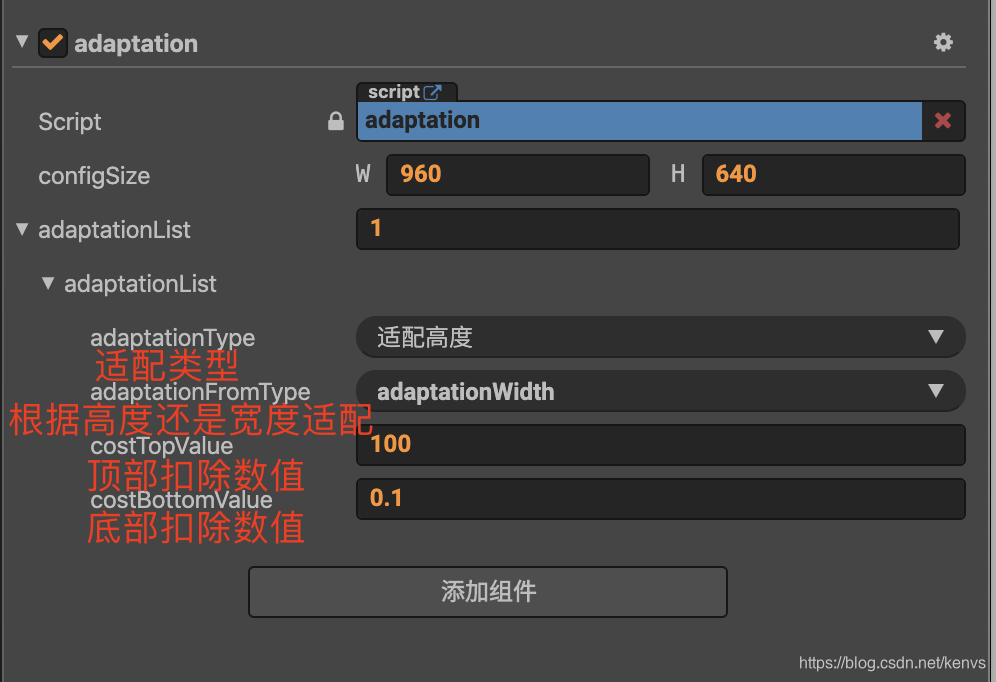

- 适配宽度、高度,即铺满当前屏幕的宽度、高度,可设置上下或左右扣除的值(为1以下小数时为当前屏幕宽度、高度乘于该值,为1以上的值时为当前屏幕宽度、高度减去该值)
- 根据范围,自适应吸附顶部、底部、左边、右边。在屏幕尺寸大于等于最大范围下,吸附值为最小值,在屏幕尺寸小于等于最小范围下,吸附值为最大值。
如果还是不太清楚,给你们放一下示例的图片:
我们来根据这张图片来分析一下,在最大尺寸1624下,取值为100,在小尺寸下,取值则在100-200之间浮动。
这样在大屏幕下,不会出现主要元素都处于安全区,出现其他区域很空的状况。显示效果更好
小屏幕下,也不会出现主要元素被裁剪的情况。 - 根据范围显示或不显示滚动条,在屏幕尺寸小于范围下会显示滚动条,防止元素被截取不可操作。在屏幕尺寸大于范围的情况,则不会显示滚动条。
添加这个规则,是防止出现极端尺寸下(列如:iframe嵌套),主要元素和按钮等被遮挡不可操作。
这个是github地址:https://github.com/kenvschen/ListView-for-CocosCreator
为了方便不使用github的同学,我这边也把代码copy出来,如有疑问和错误,欢迎大家指出问题所在。
const { ccclass, property } = cc._decorator;
const config = {
gameWidth: 0,
gameHeight: 0
};
const adaptationType = cc.Enum({
// 吸附顶部,距离为 value,判断基准固定为高度
吸附顶部: 0,
// 吸附底部,距离为 value,判断基准固定为高度
吸附底部: 1,
// 吸附左边,距离为 value,判断基准固定为宽度
吸附左边: 2,
// 吸附右边,距离为 value,判断基准固定为宽度
吸附右边: 3,
// 适配高度,可设置上下扣除高度或扣除百分比高度
适配高度: 4,
// 适配宽度,可设置左右扣除宽度或扣除百分比宽度
适配宽度: 5,
// 根据最大范围和最小范围来自适应吸附顶部,数值必须是固定值
根据范围自适应吸附顶部: 6,
// 根据最大范围和最小范围来自适应吸附底部,数值必须是固定值
根据范围自适应吸附底部: 7,
// 根据最大范围和最小范围来自适应吸附左边,数值必须是固定值
根据范围自适应吸附左边: 8,
// 根据最大范围和最小范围来自适应吸附右边,数值必须是固定值
根据范围自适应吸附右边: 9,
// 适配是否在范围内,如果小于范围则显示滚动条,适配极端尺寸
自适应显示滚动条: 10,
});
const szieType = cc.Enum({
/**
* 根据宽度适配
*/
adaptationWidth: 0,
/**
* 根据高度适配
*/
adaptationHeight: 1
});
@ccclass('adaptationListClass')
class adaptationListClass {
// 类型
@property({
type: adaptationType,
displayName: 'adaptationType',
tooltip: '适配规则类型'
})
type = adaptationType.吸附顶部;
@property({
type: szieType,
displayName: 'adaptationFromType',
tooltip: '适配规则判断标准'
})
szieType = szieType.adaptationWidth;
// 数值
@property({
visible() {
return (this.type != adaptationType.适配宽度 && this.type != adaptationType.适配高度 && this.type != adaptationType.根据范围自适应吸附顶部 && this.type != adaptationType.根据范围自适应吸附底部 && this.type != adaptationType.根据范围自适应吸附左边 && this.type != adaptationType.根据范围自适应吸附右边 && this.type != adaptationType.自适应显示滚动条);
},
displayName: 'value',
tooltip: '根据规则扣除的数值,1以下小数为百分比,其他为固定扣除'
})
value: number = 0;
// 固定顶部数值
@property({
visible() {
return (this.type == adaptationType.适配高度);
},
displayName: 'costTopValue',
tooltip: '距离顶边扣除数值, 1以下小数为百分比,其他为固定扣除'
})
costTopValue: number = 0;
// 固定底部数值
@property({
visible() {
return (this.type == adaptationType.适配高度);
},
displayName: 'costBottomValue',
tooltip: '距离底边扣除数值, 1以下小数为百分比,其他为固定扣除'
})
costBottomValue: number = 0;
// 固定左边数值
@property({
visible() {
return (this.type == adaptationType.适配宽度);
},
displayName: 'costLeftValue',
tooltip: '距离左边扣除数值, 1以下小数为百分比,其他为固定扣除'
})
costLeftValue: number = 0;
// 右边数值(1以下小数为百分比,其他为固定扣除)
@property({
visible() {
return (this.type == adaptationType.适配宽度);
},
displayName: 'costRightValue',
tooltip: '距离右边扣除数值, 1以下小数为百分比,其他为固定扣除'
})
costRightValue: number = 0;
// 最大范围的情况下,适配的数值
@property({
visible() {
return (this.type == adaptationType.根据范围自适应吸附顶部 || this.type == adaptationType.根据范围自适应吸附底部 || this.type == adaptationType.根据范围自适应吸附左边 || this.type == adaptationType.根据范围自适应吸附右边);
},
displayName: 'minValue',
tooltip: '最大范围下的数值,如正常尺寸下的适配数值'
})
minValue: number = 0;
// 高度最小范围的情况下,距离顶部的数值
@property({
visible() {
return (this.type == adaptationType.根据范围自适应吸附顶部 || this.type == adaptationType.根据范围自适应吸附底部 || this.type == adaptationType.根据范围自适应吸附左边 || this.type == adaptationType.根据范围自适应吸附右边);
},
displayName: 'maxValue',
tooltip: '最小范围下的数值,如安全区下的适配数值'
})
maxValue: number = 0;
// 最小范围
@property({
visible() {
return (this.type == adaptationType.根据范围自适应吸附顶部 || this.type == adaptationType.根据范围自适应吸附底部 || this.type == adaptationType.根据范围自适应吸附左边 || this.type == adaptationType.根据范围自适应吸附右边 || this.type == adaptationType.自适应显示滚动条);
},
displayName: 'minRange',
tooltip: '最小范围数值,如设计稿最小安全区尺寸'
})
minRange: number = 0;
// 最大范围
@property({
visible() {
return (this.type == adaptationType.根据范围自适应吸附顶部 || this.type == adaptationType.根据范围自适应吸附底部 || this.type == adaptationType.根据范围自适应吸附左边 || this.type == adaptationType.根据范围自适应吸附右边);
},
displayName: 'maxRange',
tooltip: '最大范围数值,如设计稿最大尺寸'
})
maxRange: number = 0;
}
@ccclass
export default class adaptation extends cc.Component {
// 设计稿尺寸
@property({
displayName: 'configSize',
tooltip: '设计稿尺寸'
})
configSize: cc.Size = cc.size(0, 0);
@property({
type: [adaptationListClass],
displayName: 'adaptationList',
tooltip: '适配规则列表,从头到底一条条执行'
})
adaptationList: adaptationListClass[] = [];
// LIFE-CYCLE CALLBACKS:
private nowSize: cc.Size = null;
private firstAdaptation: boolean = true;
onLoad() {
this.nowSize = cc.size(cc.winSize.width, cc.winSize.height);
// cc.log(cc.winSize);
this.setWidget();
this.firstAdaptation = false;
}
/**
* 开始适配规则
*/
setWidget() {
// 系统尺寸
let winSize = cc.size(cc.winSize.width, cc.winSize.height);
// 设计尺寸
let configSize = this.returnConfigSize();
// 对齐组件
let widget: cc.Widget = null;
let _top: number, _bottom: number, _left: number, _right: number;
let _height: number, _width: number;
cc.log('winSize', winSize);
cc.log('configSize', configSize);
if (this.adaptationList.length > 0) {
widget = this.node.getComponent(cc.Widget) ? this.node.getComponent(cc.Widget) : this.node.addComponent(cc.Widget);
} else {
// this.node.removeComponent(cc.Widget);
this.node.getComponent(cc.Widget) ? this.node.getComponent(cc.Widget).enabled = false : void(0);
}
this.adaptationList.map(value => {
value.value = Math.abs(value.value);
value.costBottomValue = Math.abs(value.costBottomValue);
value.costTopValue = Math.abs(value.costTopValue);
value.costLeftValue = Math.abs(value.costLeftValue);
value.costRightValue = Math.abs(value.costRightValue);
switch (value.type) {
// 吸附顶部
case adaptationType.吸附顶部:
_top = (configSize.height - winSize.height) / 2;
cc.log('吸附顶部', _top);
widget.enabled = true;
widget.top = (value.value < 1 && value.value != 0) ? _top + winSize.height * value.value : _top + value.value;
widget.isAlignTop = true;
widget.updateAlignment();
break;
// 吸附底部
case adaptationType.吸附底部:
let _bottom = (configSize.height - winSize.height) / 2;
cc.log('吸附底部', _bottom);
widget.enabled = true;
widget.bottom = (value.value < 1 && value.value != 0) ? _bottom + winSize.height * value.value : _bottom + value.value;
widget.isAlignBottom = true;
widget.updateAlignment();
break;
// 吸附左边
case adaptationType.吸附左边:
_left = (configSize.width - winSize.width) / 2;
cc.log('吸附左边', _left);
widget.enabled = true;
widget.left = (value.value < 1 && value.value != 0) ? _left + winSize.width * value.value : _left + value.value;
widget.isAlignLeft = true;
widget.updateAlignment();
break;
// 吸附右边
case adaptationType.吸附右边:
_right = (configSize.width - winSize.width) / 2;
cc.log('吸附右边', _right);
widget.enabled = true;
widget.right = (value.value < 1 && value.value != 0) ? _right + winSize.width * value.value : _right + value.value;
widget.isAlignRight = true;
widget.updateAlignment();
break;
// 适配高度
case adaptationType.适配高度:
_top = value.costTopValue < 1 && value.costTopValue != 0 ? value.costTopValue * winSize.height : value.costTopValue;
_bottom = value.costBottomValue < 1 && value.costBottomValue != 0 ? value.costBottomValue * winSize.height : value.costBottomValue;
if (_top + _bottom > winSize.height) {
_top = winSize.height / 2;
_bottom = winSize.height / 2;
}
_height = winSize.height - _top - _bottom;
cc.log('适配高度', _height);
this.node.height = _height;
break;
// 适配宽度
case adaptationType.适配宽度:
_left = value.costLeftValue < 1 && value.costLeftValue != 0 ? value.costLeftValue * winSize.width : value.costLeftValue;
_right = value.costRightValue < 1 && value.costRightValue != 0 ? value.costRightValue * winSize.width : value.costRightValue;
if (_left + _right > winSize.width) {
_left = winSize.width / 2;
_right = winSize.width / 2;
}
_width = winSize.width - _left - _right;
cc.log('适配宽度', _width);
this.node.width = _width;
break;
// 根据范围自适应吸附顶部,在最大范围时,适配取值为最小值,最小范围下,适配取值为最大值
case adaptationType.根据范围自适应吸附顶部:
if (value.minRange > (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_top = value.maxValue;
} else if (value.maxRange < (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_top = value.minValue;
} else {
_top = ((1 - ((value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height) - value.minRange) / (value.maxRange - value.minRange)) * (value.maxValue - value.minValue)) + value.minValue;
}
cc.log('根据范围自适应吸附顶部', _top);
widget.enabled = true;
widget.top = _top;
widget.isAlignTop = true;
widget.updateAlignment();
break;
// 根据范围自适应吸附底部,在最大范围时,适配取值为最小值,最小范围下,适配取值为最大值
case adaptationType.根据范围自适应吸附底部:
// cc.log('minRange: ' + value.minRange + ' winSize.width:' + winSize.width);
if (value.minRange > (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_bottom = value.maxValue;
// cc.log('高度小于最小值', _bottom);
} else if (value.maxRange < (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_bottom = value.minValue;
// cc.log('高度大于最大值', _bottom);
} else {
_bottom = ((1 - ((value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height) - value.minRange) / (value.maxRange - value.minRange)) * (value.maxValue - value.minValue)) + value.minValue;
// cc.log('范围', _bottom);
}
widget.enabled = true;
widget.bottom = _bottom;
widget.isAlignBottom = true;
widget.updateAlignment();
break;
// 根据范围自适应吸附左边,在最大范围时,适配取值为最小值,最小范围下,适配取值为最大值
case adaptationType.根据范围自适应吸附左边:
// let _left = null;
if (value.minRange > (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_left = value.maxValue;
} else if (value.maxRange < (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_left = value.minValue;
} else {
_left = ((1 - ((value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height) - value.minRange) / (value.maxRange - value.minRange)) * (value.maxValue - value.minValue)) + value.minValue;
}
widget.enabled = true;
widget.left = _left;
widget.isAlignLeft = true;
widget.updateAlignment();
break;
// 根据范围自适应吸附右边,在最大范围时,适配取值为最小值,最小范围下,适配取值为最大值
case adaptationType.根据范围自适应吸附右边:
// let _right = null;
if (value.minRange > (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_right = value.maxValue;
} else if (value.maxRange < (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
_right = value.minValue;
} else {
_right = ((1 - ((value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height) - value.minRange) / (value.maxRange - value.minRange)) * (value.maxValue - value.minValue)) + value.minValue;
}
widget.enabled = true;
widget.right = _right;
widget.isAlignRight = true;
widget.updateAlignment();
break;
// 适配是否在范围内,如果小于范围则显示滚动条
case adaptationType.自适应显示滚动条:
let scrollView = this.node.getComponent(cc.ScrollView);
if (!scrollView) {
scrollView = this.node.addComponent(cc.ScrollView);
scrollView.vertical = false;
scrollView.horizontal = false;
// 生成遮罩节点
let viewNode = new cc.Node('view');
viewNode.setContentSize(winSize);
// 添加mask组件
let mask = viewNode.addComponent(cc.Mask);
mask.type = cc.Mask.Type.RECT;
mask.enabled = true;
// 生成content节点
let contentNode = new cc.Node('content');
contentNode.setContentSize(this.node.getContentSize());
let childrens = this.node.children.concat([]);
this.node.removeAllChildren(false);
childrens.map(item => {
// cc.log('item', item, item.getComponent(cc.Camera));
if (!item.getComponent(cc.Camera)) {
// item.removeFromParent(false);
contentNode.addChild(item, item.zIndex);
}
});
contentNode.parent = viewNode;
viewNode.parent = this.node;
scrollView.content = contentNode;
} else {
// 设置遮罩节点尺寸
scrollView.content.parent.setContentSize(winSize);
// 设置content尺寸
scrollView.content.setContentSize(this.node.getContentSize());
}
if (value.minRange > (value.szieType == szieType.adaptationWidth ? winSize.width : winSize.height)) {
cc.log('屏幕尺寸不足开启滚动, 滚动至居中');
scrollView.enabled = true;
if (value.szieType == szieType.adaptationWidth) {
scrollView.horizontal = true;
scrollView.horizontalScrollBar ? scrollView.horizontalScrollBar.node.active = true : void (0);
} else {
scrollView.vertical = true;
scrollView.verticalScrollBar ? scrollView.verticalScrollBar.node.active = true : void (0);
}
cc.director.once(cc.Director.EVENT_AFTER_DRAW, () => {
scrollView.scrollToOffset(cc.v2(value.szieType == szieType.adaptationWidth ? (configSize.width - winSize.width) / 2 : 0, value.szieType == szieType.adaptationWidth ? 0 : (configSize.height - winSize.height) / 2));
});
} else {
cc.log('屏幕尺寸足够不开启滚动');
scrollView.enabled = false;
scrollView.verticalScrollBar ? scrollView.verticalScrollBar.node.active = false : void (0);
scrollView.horizontalScrollBar ? scrollView.horizontalScrollBar.node.active = false : void (0);
}
break;
}
});
}
/**
* 返回屏幕尺寸
* 如设置了config里的宽高不为0,则使用config里的数据作为基准
* 否则使用configSize里的数据为基准
*/
returnConfigSize (): cc.Size {
if (config.gameWidth !== 0 && config.gameHeight !== 0) {
return cc.size(config.gameWidth, config.gameHeight);
} else {
return this.configSize;
}
}
// start () {}
update (dt: number) {
if (!this.firstAdaptation && (cc.winSize.width != this.nowSize.width || cc.winSize.height != this.nowSize.height)) {
this.nowSize = cc.size(cc.winSize.width, cc.winSize.height);
this.setWidget();
}
}
}
