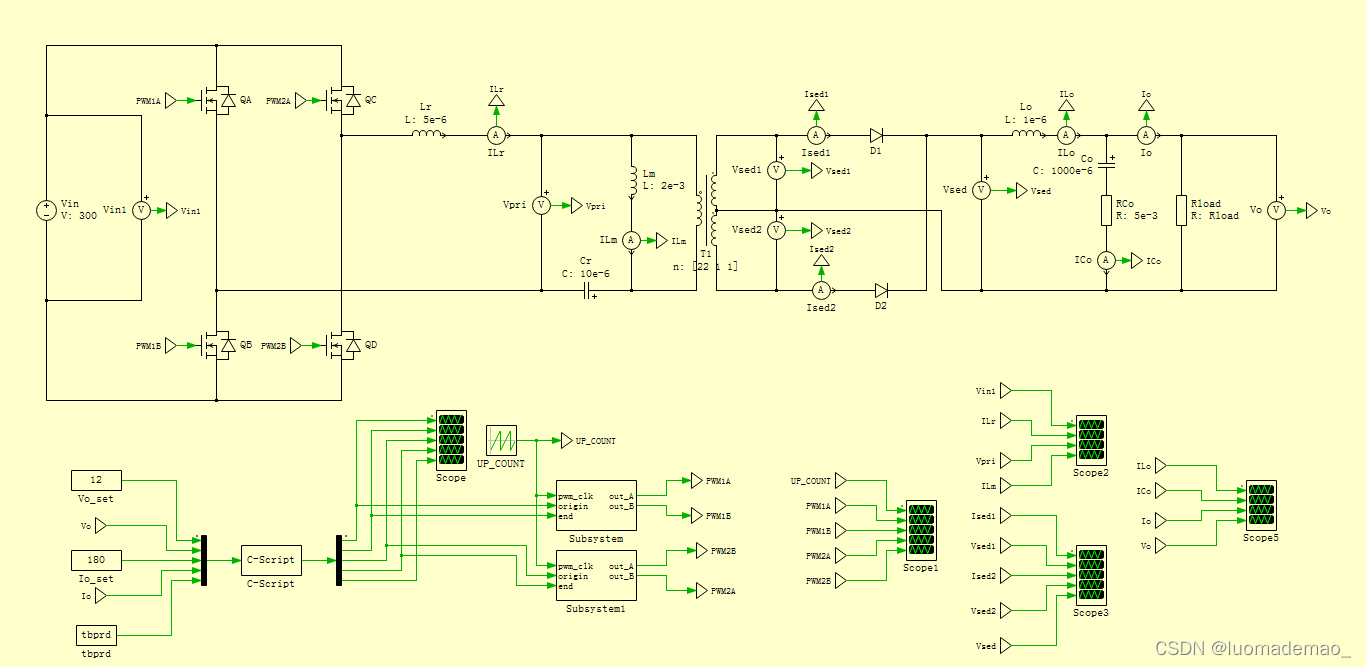

PSFB



Vo = 12;

Po = 2e3;

Rload = (Vo * Vo) / Po;

fsw = 65e3;

td = 100e-9;

tbprd = (1/fsw) / 10e-9;

half_prd = 0.5 * tbprd;

Tsw = ((1/fsw) * 0.5) ;

tpwm = 10e-9;

//

// PSFB control method

// By: yangshuai

// DATA:2020/03/06

#include "math.h"

//DEFINE IO

float vo_set = InputSignal(0, 0);

float vo = InputSignal(0, 1);

float io_set = InputSignal(0, 2);

float io = InputSignal(0, 3);

float pwm_count = InputSignal(0, 4);

//

// Fcuntion

//

const float vloop = ctrl_2p2z_
