【i.MX6ULL】linux驱动bh1750模块

I2C-BH1750

1、设备地址

• 引脚说明

VCC	5V
GND	GND
SCL	PB6
SDA	PB7
ADDR	VCC/GND

bh1750设备的地址由引脚 ADDR 来决定

• ADDR接GND

  当ADDR引脚接地时设备bh1750的地址为：0x23(7bit)

• ADDR接VCC

  当ADDR引脚接地时设备bh1750的地址为：0x5c(7bit)

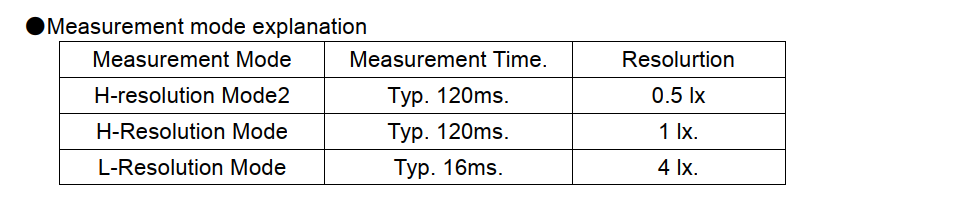

2、工作模式

BH1750FVI模块共有六种工作模式：连续H-分辨率模式、连续H-分辨率模式2、连续L-分辨率模式、一次H分辨率模式、一次H分辨率模式2、一次性L分辨率模式

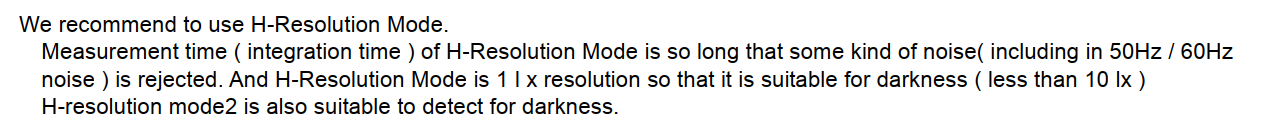

手册中建议使用 连续H-分辨率模式

连续H-分辨率模式 每次转换时间为120ms

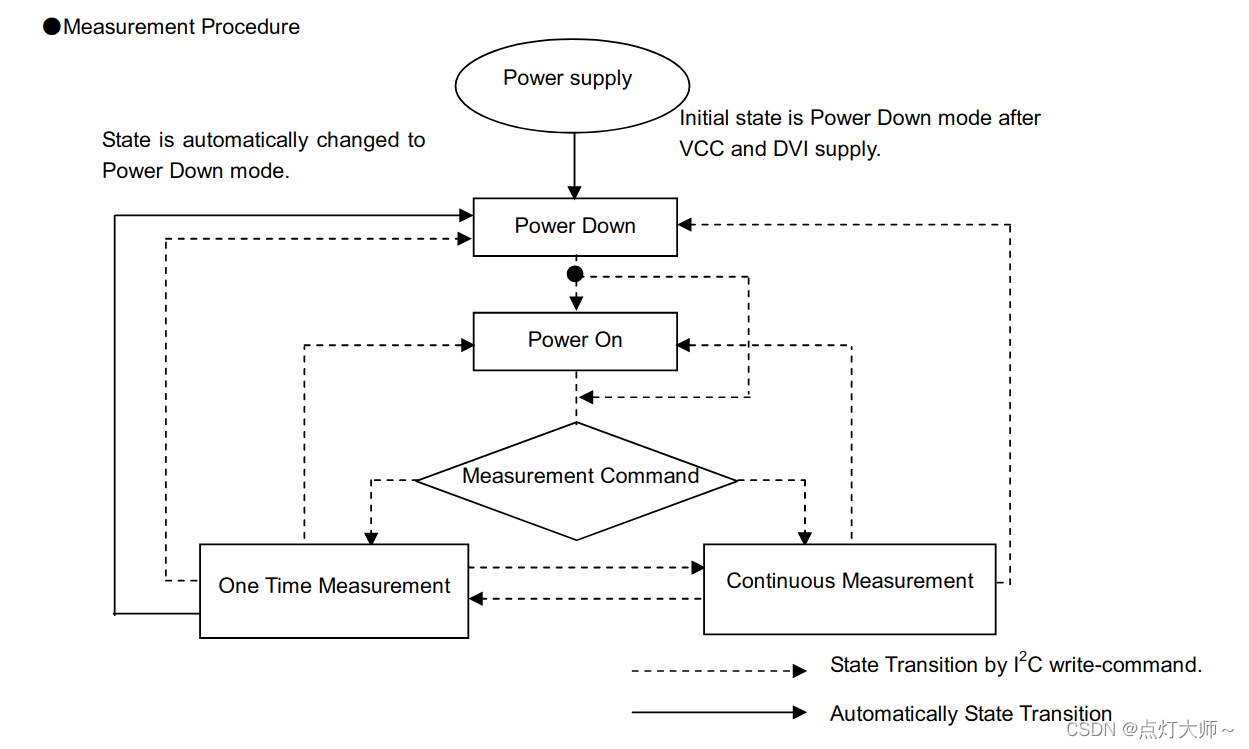

3、读取数据流程

每个芯片都有固有的读取数据流程，下面我们来看一下bh1750模块的读取流程，以连续H-分辨率模式为例大致流程为：通电指令 -> 工作模式指令 -> 获取数据

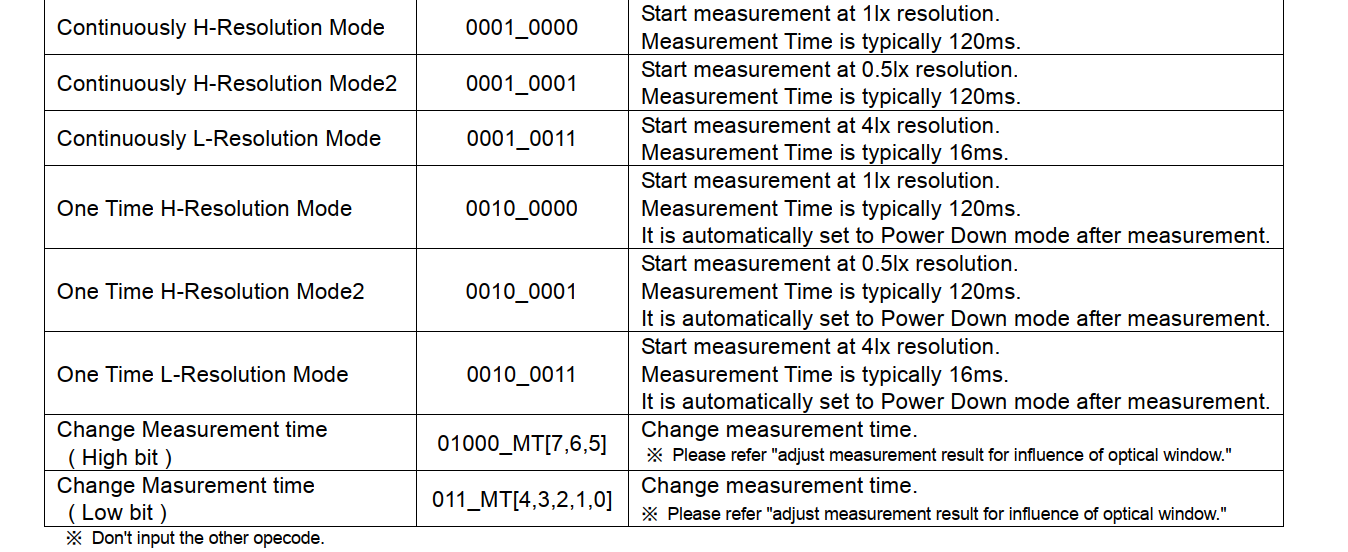

4、ROM指令

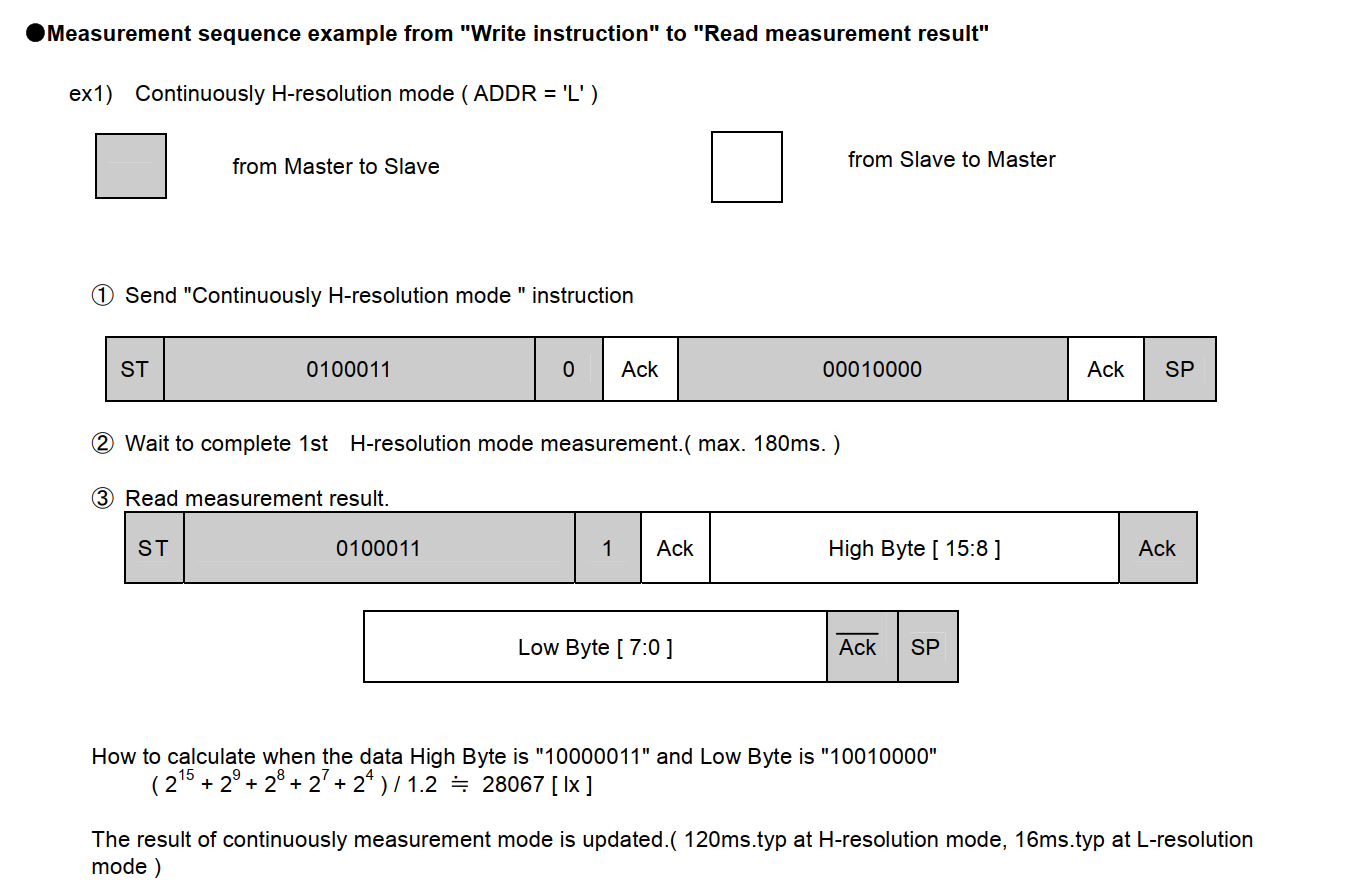

5、读写时序

以连续H-分辨率模式并且ADDR与GND相连的读写时序如下：

总上，读取数据全过程为：
第一步：通过I2C总线，主机给bh1750设备发送数据：0x01 ——> (Power on)
第二步：通过I2C总线，主机给bh1750设备发送数据：0x10 ——> (Continuously H-resolution mode)
第三步：通过I2C总线，主机读取设备bh1750采集到的数据

6、添加设备信息

找到开发板对应的设备树文件dts，在i2c1的节点下面添加bh1750设备信息（我这里将bh1750连接到了i2c1控制器下）：

&i2c1 {
      clock-frequency = <100000>;
      pinctrl-names = "default";
      pinctrl-0 = <&pinctrl_i2c1>;
      status = "okay";

      bh1750@23 {
          compatible = "gy302,bh1750";
          reg = <0x23>;
      };

7、驱动代码

#include <asm-generic/errno-base.h>
#include <linux/types.h>
#include <linux/kernel.h>
#include <linux/delay.h>
#include <linux/ide.h>
#include <linux/init.h>
#include <linux/module.h>
#include <linux/errno.h>
#include <linux/gpio.h>
#include <linux/cdev.h>
#include <linux/device.h>
#include <linux/of_gpio.h>
#include <linux/semaphore.h>
#include <linux/timer.h>
#include <linux/i2c.h>
#include <asm/mach/map.h>
#include <asm/uaccess.h>
#include <asm/io.h>
#include <linux/miscdevice.h>
#include "acpi/acoutput.h"
#include "asm-generic/int-ll64.h"
#include "linux/export.h"
#include "linux/printk.h"
#include "uapi/linux/i2c.h"
#include <linux/delay.h>

//Rom指令
#define POWER_ON           0x01
#define H_RESOLUTION_MODE  0x10

struct bh1750_device {
    void *private_data;
};

static struct bh1750_device bh1750_dev;

static int bh1750_read_regs(struct bh1750_device *dev, void *val, int len)
{
    int ret = 0;
    struct i2c_client *client = (struct i2c_client *)dev->private_data;

     struct i2c_msg msgs[1] = {
        [0] = {  //寄存器的值
            .addr = client->addr,
            .flags = I2C_M_RD,
            .buf = val,
            .len = len,
        }
    };

    ret = i2c_transfer(client->adapter, msgs, 1);

    if (ret != 1) {
        printk("i2c rd failed=%d len=%d\n",ret, len);
        ret = -EINVAL;
    } else {
        ret = 0;
    }

    return ret;
}

/* bh1750写数据 */
static int bh1750_write_regs(struct bh1750_device *dev, u8 *buf, u8 len)
{
    struct i2c_client *client = (struct i2c_client *)dev->private_data;
    u8 data[256];

    struct i2c_msg msgs;

    memcpy(data, buf, len);

    msgs.addr = client->addr;
    msgs.flags = 0;
    msgs.buf = data;
    msgs.len = len;

    return i2c_transfer(client->adapter, &msgs, 1);
}

static void bh1750_write_reg(struct bh1750_device *dev, u8 data)
{
    int ret;

    ret = bh1750_write_regs(dev, &data, 1);
    if (ret != 1) {
        printk("i2c write fail: %d\n", ret);
    }
}

/* bh1750字符集 */
int bh1750_open(struct inode *inode, struct file *file)
{
    bh1750_write_reg(&bh1750_dev, POWER_ON);
    bh1750_write_reg(&bh1750_dev, H_RESOLUTION_MODE);
    mdelay(200);
    return 0;
}

ssize_t bh1750_read(struct file* filp, char __user* buf, size_t count, loff_t* ppos)
{
    u8 data[2];
    int err;

    bh1750_read_regs(&bh1750_dev, data, 2);


	err = copy_to_user(buf, data, sizeof(data));

    return 0;
}

int bh1750_close(struct inode *inode, struct file *file)
{
    return 0;
}

struct file_operations bh1750_fops = {
    .open = bh1750_open,
    .release = bh1750_close,
    .read = bh1750_read,
};

struct miscdevice bh1750_misc = {
    .name = "bh1750",
    .fops = &bh1750_fops,
    .minor = 255,
};

static const struct of_device_id bh1750_of_device_id[] = {
    { .compatible = "gy302,bh1750" },
    { /* END OF LIST */ }
};

struct i2c_device_id bh1750_device_id[] = {
    {.name = "gy302,bh1750", },
    { /* END OF LIST */ }
};

int bh1750_probe(struct i2c_client *client, const struct i2c_device_id *dev)
{
    int ret;
    printk("%s %s %d\n", __FILE__, __FUNCTION__, __LINE__);

    ret = misc_register(&bh1750_misc);
    if (ret < 0) {
        printk(KERN_WARNING "ac.o: Unable to register misc device\n");
        goto MISC_REGISTER_FAIL;
    }

    /* 获得iic_client */
    bh1750_dev.private_data = client;

    printk("bh1750 addr: %#x\r\n", client->addr);

    return 0;

MISC_REGISTER_FAIL:
    return ret;
}

int bh1750_remove(struct i2c_client *client)
{
    printk("%s %s %d\n", __FILE__, __FUNCTION__, __LINE__);

    misc_deregister(&bh1750_misc);

    return 0;
}

struct i2c_driver bh1750_driver = {
    .id_table = bh1750_device_id,
    .driver = {
        .owner = THIS_MODULE,
        .name = "bh1750",
        .of_match_table = bh1750_of_device_id,
    },
    .probe = bh1750_probe,
    .remove = bh1750_remove,
};

/* 入口 */
static int __init bh1750_driver_init(void)
{
    return i2c_add_driver(&bh1750_driver);
}

static void __exit bh1750_driver_exit(void)
{
    i2c_del_driver(&bh1750_driver);
}

module_init(bh1750_driver_init);
module_exit(bh1750_driver_exit);
MODULE_LICENSE("GPL");
MODULE_AUTHOR("lighting master");

应用层代码就你们自己写吧~
