InternImage训练流程

1.json格式转mask—批量

  我是用ADE20k格式训练的数据，先说一个我踩过的坑，刚开始只知道语义分割需要将json转为灰度mask，我的数据集加上背景，算是三分类问题，为了区分每个类别像素点，分别将将灰度值设为了[0,0,0],[34,34,34],[78,78,78]，到训练时就出问题了，除了背景可以识别到，剩下两个类别指标全为0，后来通过这篇博客才知道，json转mask时对于灰度值是有要求的，灰度值取值范围必须在[0,num_classes]之间，我的应该在[0,2]范围内训练才能得到正常指标。

  OK，下面看一下目录结构设置

images:存放原始图像
labelme_json:存放json格式数据
masks:新建masks文件夹，用来存放转换后的png格式

import seedir as sd
import os
import json
import numpy as np
import cv2
import shutil

from tqdm import tqdm
#查看目录结构
sd.seedir('coalData', style='emoji', depthlimit=1)
Dataset_Path = 'coalData'

# 0-背景，从 1 开始
# 每个类别信息及画mask顺序(按照由大到小，由粗到精的顺序)
# 修改自己的label，我的第一类是belt，第二类是coal
class_info = [
    {'label':'belt', 'type':'polygon', 'color':1},   # 使用ploygon多点标记
    {'label':'coal', 'type':'polygon', 'color':2},
]
#单张图像转mask
def labelme2mask_single_img(img_path, labelme_json_path):
    '''
    输入原始图像路径和labelme标注路径，输出 mask
    '''
    img_bgr = cv2.imread(img_path)
    img_mask = np.zeros(img_bgr.shape[:2])  # 创建空白图像 0-背景

    with open(labelme_json_path, 'r', encoding='utf-8') as f:
        labelme = json.load(f)

    for one_class in class_info:  # 按顺序遍历每一个类别
        for each in labelme['shapes']:  # 遍历所有标注，找到属于当前类别的标注
            if each['label'] == one_class['label']:
                if one_class['type'] == 'polygon':  # polygon 多段线标注
                    # 获取点的坐标
                    points = [np.array(each['points'], dtype=np.int32).reshape((-1, 1, 2))]
                    # 在空白图上画 mask（闭合区域）
                    img_mask = cv2.fillPoly(img_mask, points, color=one_class['color'])
                elif one_class['type'] == 'line' or one_class['type'] == 'linestrip':  # line 或者 linestrip 线段标注
                    # 获取点的坐标
                    points = [np.array(each['points'], dtype=np.int32).reshape((-1, 1, 2))]
                    # 在空白图上画 mask（非闭合区域）
                    img_mask = cv2.polylines(img_mask, points, isClosed=False, color=one_class['color'],
                                             thickness=one_class['thickness'])
                elif one_class['type'] == 'circle':  # circle 圆形标注
                    points = np.array(each['points'], dtype=np.int32)
                    center_x, center_y = points[0][0], points[0][1]  # 圆心点坐标
                    edge_x, edge_y = points[1][0], points[1][1]  # 圆周点坐标
                    radius = np.linalg.norm(np.array([center_x, center_y] - np.array([edge_x, edge_y]))).astype(
                        'uint32')  # 半径
                    img_mask = cv2.circle(img_mask, (center_x, center_y), radius, one_class['color'],
                                          one_class['thickness'])
                else:
                    print('未知标注类型', one_class['type'])

    return img_mask
# labelme转mask - 批量
os.chdir(Dataset_Path)
#os.mkdir('masks')
os.chdir('images')
for img_path in tqdm(os.listdir()):
    try:
        labelme_json_path = os.path.join('../', 'labelme_jsons', '.'.join(img_path.split('.')[:-1]) + '.json')
        img_mask = labelme2mask_single_img(img_path, labelme_json_path)
        mask_path = img_path.split('.')[0] + '.png'
        cv2.imwrite(os.path.join('../', 'masks', mask_path), img_mask)
    except Exception as E:
        print(img_path, '转换失败', E)

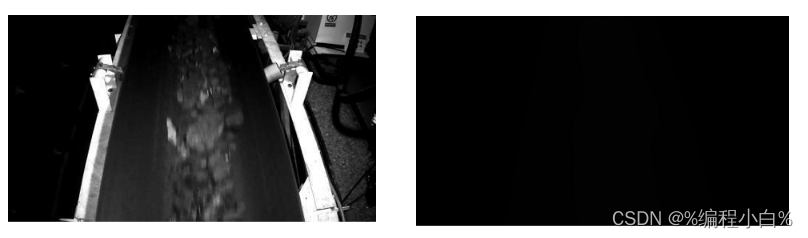

  原图和转换后的图像如下图所示：

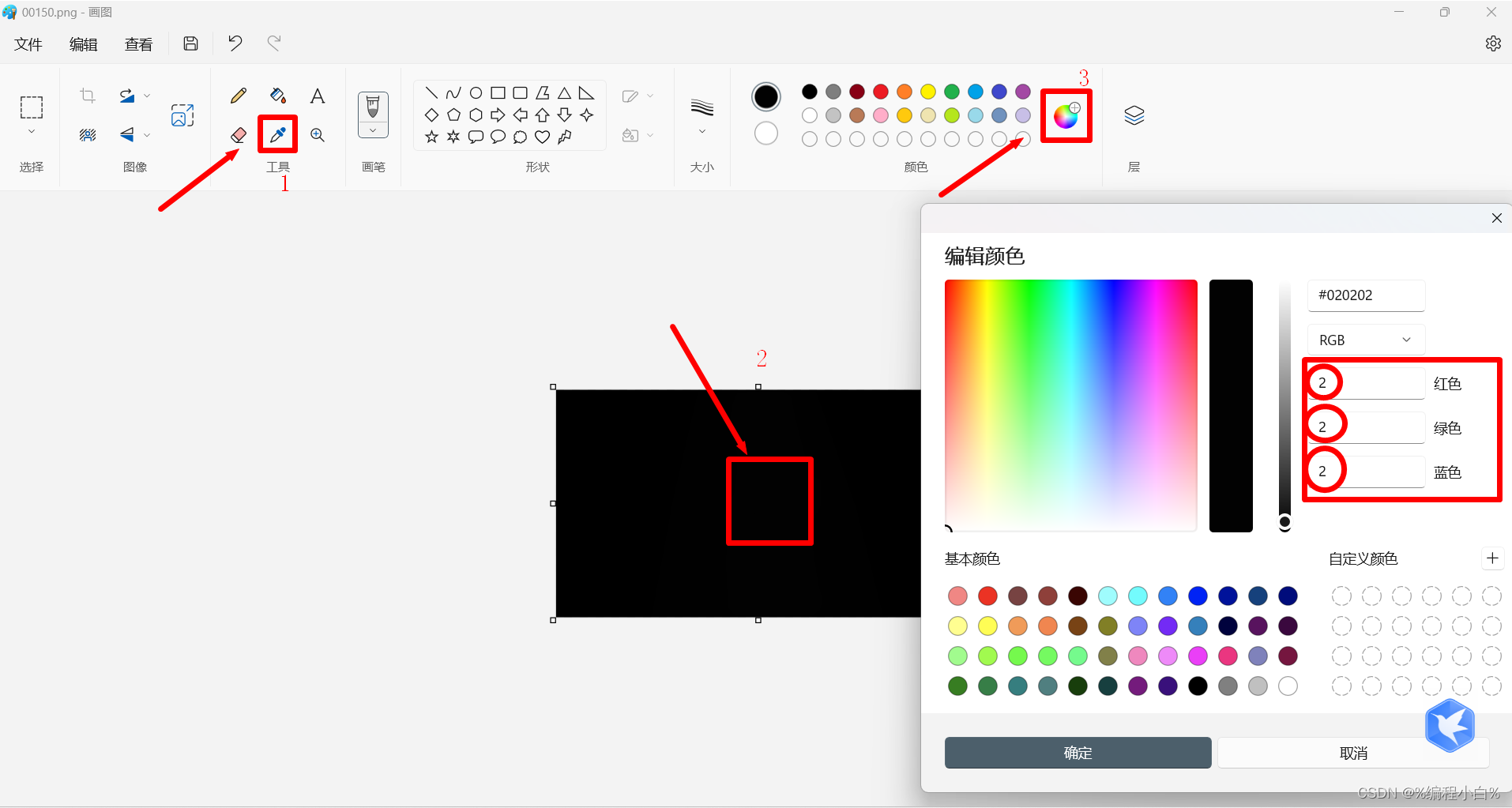

  由于种类太少，转换后的像素值分布在[0,2]之间，这样是看不出来的，可以用电脑自带的画图工具查看是否转换正确

2.划分训练测试集

  按照8:2划分训练集和测试集

import os
import shutil
import random

from tqdm import tqdm
#指定数据集路径
Dataset_Path = 'coalData'
#查看数据集目录结构
import seedir as sd
sd.seedir(Dataset_Path, style='emoji', depthlimit=1)
#创建训练、测试文件夹
os.chdir(Dataset_Path)
os.mkdir('training')
os.mkdir('validation')

len(os.listdir('images'))
len(os.listdir('masks'))

# 划分训练测试集
test_frac = 0.2  # 测试集比例
random.seed(123) # 随机数种子，便于复现
folder = 'images'

img_paths = os.listdir(folder)
random.shuffle(img_paths) # 随机打乱

val_number = int(len(img_paths) * test_frac) # 测试集文件个数
train_files = img_paths[val_number:]         # 训练集文件名列表
val_files = img_paths[:val_number]           # 测试集文件名列表

print('数据集文件总数', len(img_paths))
print('训练集文件个数', len(train_files))
print('测试集文件个数', len(val_files))

# 将训练集移入training目录
for each in tqdm(train_files):
    src_path = os.path.join(folder, each)
    dst_path = os.path.join('training', each)
    shutil.move(src_path, dst_path)

# 将测试集移入validation目录
for each in tqdm(val_files):
    src_path = os.path.join(folder, each)
    dst_path = os.path.join('validation', each)
    shutil.move(src_path, dst_path)

# 将training和validation剪切至images
len(os.listdir('training')) + len(os.listdir('validation'))
shutil.move('training', 'images/training')
shutil.move('validation', 'images/validation')

# 在标注文件夹中，划分训练集和测试集
folder = 'masks'
os.mkdir('training')
os.mkdir('validation')

# 将训练集移动至training目录中
for each in tqdm(train_files):
    src_path = os.path.join(folder, each.split('.')[0]+'.png')
    dst_path = os.path.join('training', each.split('.')[0]+'.png')
    shutil.move(src_path, dst_path)

# 将测试集移动到validation目录中
for each in tqdm(val_files):
    src_path = os.path.join(folder, each.split('.')[0]+'.png')
    dst_path = os.path.join('validation', each.split('.')[0]+'.png')
    shutil.move(src_path, dst_path)

# 将training和validation剪切至masks中
len(os.listdir('training')) + len(os.listdir('validation'))
shutil.move('training', 'masks/training')
shutil.move('validation', 'masks/validation')

3.修改配置文件

  在虚拟环境路径下的mmseg/datasets/ 下面对数据集进行初始定义，我的路径是这样的home/amax/anaconda3/envs/internImage/lib/python3.7/site-packages/mmseg/datasets
在./mmseg/datasets路径下将stare.py文件复制一份，命名为my_dataset.py,根据自己数据集进行修改
需要修改如下地方：
STAREDataset:数据名称，根据自己的数据集取一个名字即可
CLASSES：数据类别名称，建议尽量和前面json转mask时数据名称顺序一致
PALETTE：着色板，这个RGB设置与前面的转格式那块的灰度值无关，可以任意取值，用做最后的测试mask用
img_suffix：原图后缀名
seg_map_suffix：mask图像后缀

# Copyright (c) OpenMMLab. All rights reserved.
import os.path as osp

from .builder import DATASETS
from .custom import CustomDataset


@DATASETS.register_module()
#修改为自己的数据集
class CoalDataset(CustomDataset):
    """STARE dataset.

    In segmentation map annotation for STARE, 0 stands for background, which is
    included in 2 categories. ``reduce_zero_label`` is fixed to False. The
    ``img_suffix`` is fixed to '.png' and ``seg_map_suffix`` is fixed to
    '.ah.png'.
    """
    #
    CLASSES = ('background', 'belt','coal')#改为自己的标注类型

    #PALETTE = [[0,0,0], [38, 38, 38],[75,75,75]] #添加RGB值
    PALETTE = [[0, 0, 0], [128, 0, 0], [0, 128, 0]]  # 添加RGB值
    def __init__(self, **kwargs):
        super(CoalDataset, self).__init__( #更改数据集名称
            img_suffix='.jpg',#修改图像后缀
            seg_map_suffix='.png',#mask后缀
            reduce_zero_label=False,
            **kwargs)
        assert osp.exists(self.img_dir)

  打开./mmseg/dataset文件夹下的__init__.py，对自己的数据集进行注册

# Copyright (c) OpenMMLab. All rights reserved.
from .ade import ADE20KDataset
from .builder import DATASETS, PIPELINES, build_dataloader, build_dataset
from .chase_db1 import ChaseDB1Dataset
from .cityscapes import CityscapesDataset
from .coco_stuff import COCOStuffDataset
from .custom import CustomDataset
from .dark_zurich import DarkZurichDataset
from .dataset_wrappers import (ConcatDataset, MultiImageMixDataset,
                               RepeatDataset)
from .drive import DRIVEDataset
from .hrf import HRFDataset
from .isaid import iSAIDDataset
from .isprs import ISPRSDataset
from .loveda import LoveDADataset
from .night_driving import NightDrivingDataset
from .pascal_context import PascalContextDataset, PascalContextDataset59
from .potsdam import PotsdamDataset
from .stare import STAREDataset
from .voc import PascalVOCDataset
from .my_dataset import CoalDataset #添加自己的数据集名称，和前面修改的名称一致

__all__ = [
    'CustomDataset', 'build_dataloader', 'ConcatDataset', 'RepeatDataset',
    'DATASETS', 'build_dataset', 'PIPELINES', 'CityscapesDataset',
    'PascalVOCDataset', 'ADE20KDataset', 'PascalContextDataset',
    'PascalContextDataset59', 'ChaseDB1Dataset', 'DRIVEDataset', 'HRFDataset',
    'STAREDataset', 'DarkZurichDataset', 'NightDrivingDataset',
    'COCOStuffDataset', 'LoveDADataset', 'MultiImageMixDataset',
    'iSAIDDataset', 'ISPRSDataset', 'PotsdamDataset','CoalDataset'# 将自己的数据集名称写入
]

  回到代码中，在./InternImage/segmentation/configs/base/datasets/ 文件夹下，找到stare.py 文件，复制一份，重命名为 my_dataset.py，打开文件进行修改。

# dataset settings
dataset_type = 'CoalDataset' # 自己的数据集名称
data_root = 'data/coalData' # 数据集存储路径
img_norm_cfg = dict(
    mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
img_scale = (512, 288) #自己的图像大小
crop_size = (128, 128) # 数据增强时裁剪大小，根据情况修改
train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='LoadAnnotations'),
    dict(type='Resize', img_scale=img_scale, ratio_range=(0.5, 2.0)),
    dict(type='RandomCrop', crop_size=crop_size, cat_max_ratio=0.75),
    dict(type='RandomFlip', prob=0.5),
    dict(type='PhotoMetricDistortion'),
    dict(type='Normalize', **img_norm_cfg),
    dict(type='Pad', size=crop_size, pad_val=0, seg_pad_val=255),
    dict(type='DefaultFormatBundle'),
    dict(type='Collect', keys=['img', 'gt_semantic_seg'])
]
test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        type='MultiScaleFlipAug',
        img_scale=img_scale,
        # img_ratios=[0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2.0],
        flip=False,
        transforms=[
            dict(type='Resize', keep_ratio=True),
            dict(type='RandomFlip'),
            dict(type='Normalize', **img_norm_cfg),
            dict(type='ImageToTensor', keys=['img']),
            dict(type='Collect', keys=['img'])
        ])
]

data = dict(
    samples_per_gpu=4, #相当于batch_size
    workers_per_gpu=4,
    train=dict(
        type='RepeatDataset',
        times=40000,
        dataset=dict(
            type=dataset_type,
            data_root=data_root,
            img_dir='images/training', #训练图像路径
            ann_dir='annotations/training', # 训练mask路径
            pipeline=train_pipeline)),
    val=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir='images/validation', # 验证图像路径
        ann_dir='annotations/validation', # 验证mask路径
        pipeline=test_pipeline),
    test=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir='images/validation', # 测试图像路径
        ann_dir='annotations/validation', # 测试图像mask路径
        pipeline=test_pipeline))

修改关联数据集读取文件
  在 ./segmentation/configs/ade20k/ 文件夹下，找到upernet_internimage_h_896_160k_ade20k 文件，复制一份，重命名为upernet_internimage_h_896_160k_coal.py，打开文件进行修改,这块使用的配置文件不同，根据具体情况进行修改。

# --------------------------------------------------------
# InternImage
# Copyright (c) 2022 OpenGVLab
# Licensed under The MIT License [see LICENSE for details]
# --------------------------------------------------------
_base_ = [
    '../_base_/models/upernet_r50.py', #自己的网络骨架，可以修改，注意单卡训练，需要将里面的SyncBN改为BN
    '../_base_/datasets/my_dataset.py', # 换成自己定义的数据集
    '../_base_/default_runtime.py',
    '../_base_/schedules/schedule_160k.py'
]
#pretrained = 'https://huggingface.co/OpenGVLab/InternImage/resolve/main/internimage_h_jointto22k_384.pth'
pretrained = '/home/amax/PycharmProjects/InternImage-master/segmentation/checkpoint_dir/seg/upernet_internimage_h_896_160k_ade20k.pth'
model = dict(
    backbone=dict(
        _delete_=True,
        type='InternImage',
        core_op='DCNv3',
        channels=320,
        depths=[6, 6, 32, 6],
        groups=[10, 20, 40, 80],
        mlp_ratio=4.,
        drop_path_rate=0.5,
        norm_layer='LN',
        layer_scale=None,
        offset_scale=1.0,
        post_norm=False,
        dw_kernel_size=5, # for InternImage-H/G
        res_post_norm=True, # for InternImage-H/G
        level2_post_norm=True, # for InternImage-H/G
        level2_post_norm_block_ids=[5, 11, 17, 23, 29], # for InternImage-H/G
        center_feature_scale=True, # for InternImage-H/G
        with_cp=False,
        out_indices=(0, 1, 2, 3),
        init_cfg=dict(type='Pretrained', checkpoint=pretrained)
    ),
    decode_head=dict(num_classes=3, in_channels=[320, 640, 1280, 2560]), # 将num_classes修改为自己的种类
    auxiliary_head=dict(num_classes=3, in_channels=1280), #将num_classes修改为自己的种类
    test_cfg=dict(mode='whole'))
img_norm_cfg = dict(
    mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
crop_size = (896, 896)
train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='LoadAnnotations', reduce_zero_label=True),
    dict(type='Resize', img_scale=(3584, 896), ratio_range=(0.5, 2.0)),
    dict(type='RandomCrop', crop_size=crop_size, cat_max_ratio=0.75),
    dict(type='RandomFlip', prob=0.5),
    dict(type='PhotoMetricDistortion'),
    dict(type='Normalize', **img_norm_cfg),
    dict(type='Pad', size=crop_size, pad_val=0, seg_pad_val=255),
    dict(type='DefaultFormatBundle'),
    dict(type='Collect', keys=['img', 'gt_semantic_seg']),
]
test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        type='MultiScaleFlipAug',
        img_scale=(3584, 896),
        # img_ratios=[0.5, 0.75, 1.0, 1.25, 1.5, 1.75],
        flip=False,
        transforms=[
            dict(type='Resize', keep_ratio=True),
            dict(type='ResizeToMultiple', size_divisor=32),
            dict(type='RandomFlip'),
            dict(type='Normalize', **img_norm_cfg),
            dict(type='ImageToTensor', keys=['img']),
            dict(type='Collect', keys=['img']),
        ])
]
optimizer = dict(
    _delete_=True, type='AdamW', lr=0.00002, betas=(0.9, 0.999), weight_decay=0.05,
    constructor='CustomLayerDecayOptimizerConstructor',
    paramwise_cfg=dict(num_layers=50, layer_decay_rate=0.95,
                       depths=[6, 6, 32, 6], offset_lr_scale=1.0))
lr_config = dict(_delete_=True, policy='poly',
                 warmup='linear',
                 warmup_iters=1500,
                 warmup_ratio=1e-6,
                 power=1.0, min_lr=0.0, by_epoch=False)
# By default, models are trained on 16 GPUs with 1 images per GPU
data = dict(samples_per_gpu=1,
            train=dict(pipeline=train_pipeline),
            val=dict(pipeline=test_pipeline),
            test=dict(pipeline=test_pipeline))
runner = dict(type='IterBasedRunner')
optimizer_config = dict(_delete_=True, grad_clip=dict(max_norm=0.1, norm_type=2))
checkpoint_config = dict(by_epoch=False, interval=1000, max_keep_ckpts=1)
evaluation = dict(interval=1600, metric='mIoU', save_best='mIoU')
# fp16 = dict(loss_scale=dict(init_scale=512))

  进入segmentation目录下，使用命令进行训练，格式为:

python train.py {配置文件} --work-dir={路径}

  其中配置文件是最后上一步修改好的.py文件，我的是segmentation/configs/ade20k/upernet_internimage_h_896_160k_ade20k.py
work-dir是结果保存路径

python train.py /home/amax/PycharmProjects/InternImagemaster/segmentation/configs/ade20k/upernet_internimage_h_896_160k_coal.py --work-dir=/home/amax/PycharmProjects/InternImage-master/segmentation/runs/coal_upernet_h2

  可以看到各项指标正常

参考链接：
labelme2mask
InternImage segmentation部分代码复现及训练自己的数据集（二）
mmsegmentation教程1:自定义数据集、config文件修改、训练教程

  最后插播一个消息，自己建了一个图像分割群，里面有用yolov8做实例分割的，有做语义分割，如果做这方面课题，或者对图像分割感兴趣的话欢迎私信，拉你进群。
