ESP32（一）点亮LED

点亮LED

from machine import Pin #导入Pin模块
pin16=Pin(16,Pin.OUT) #将GPIO16口设置为输出口
pin16.value(1) #输出高电平

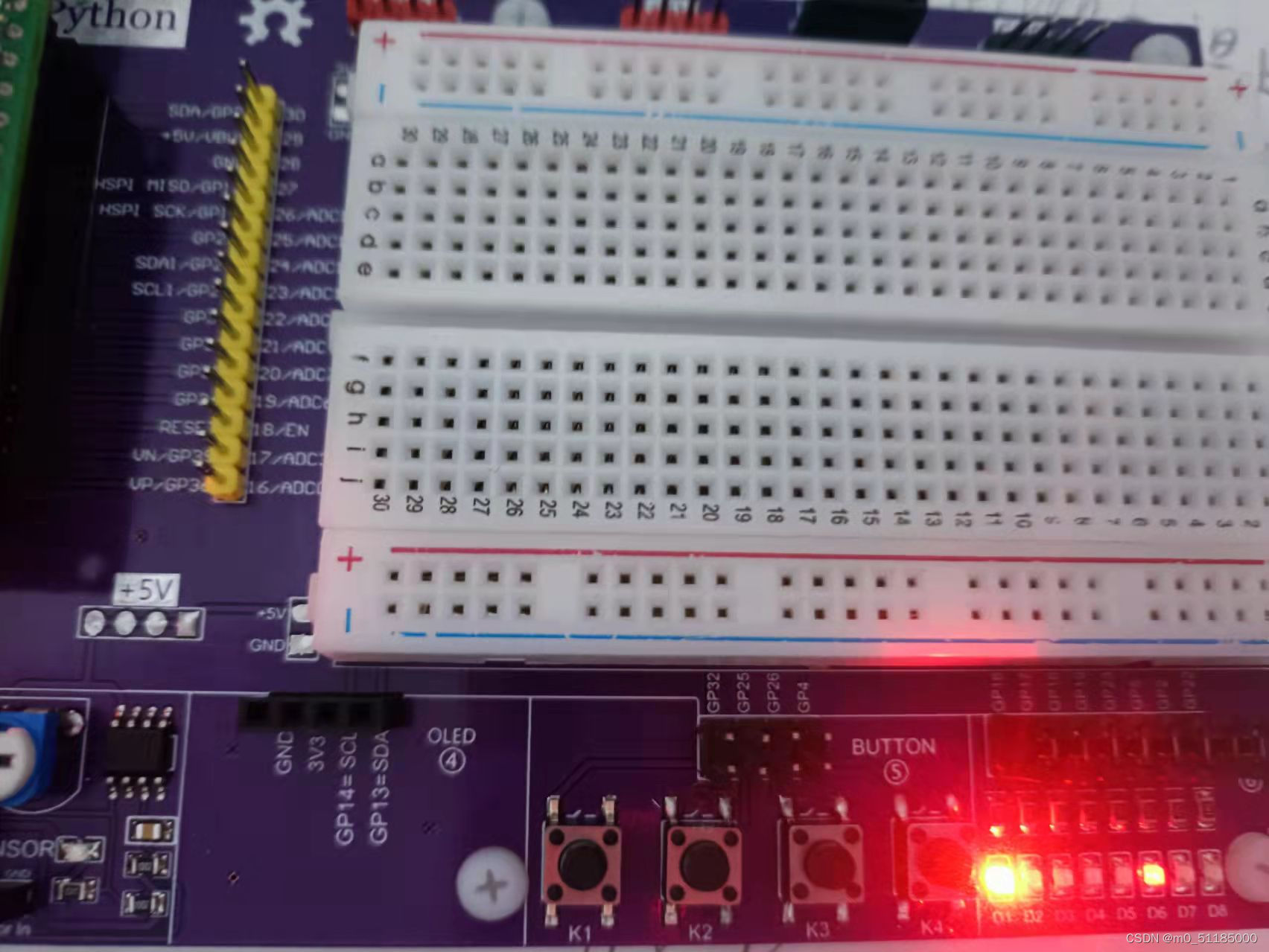

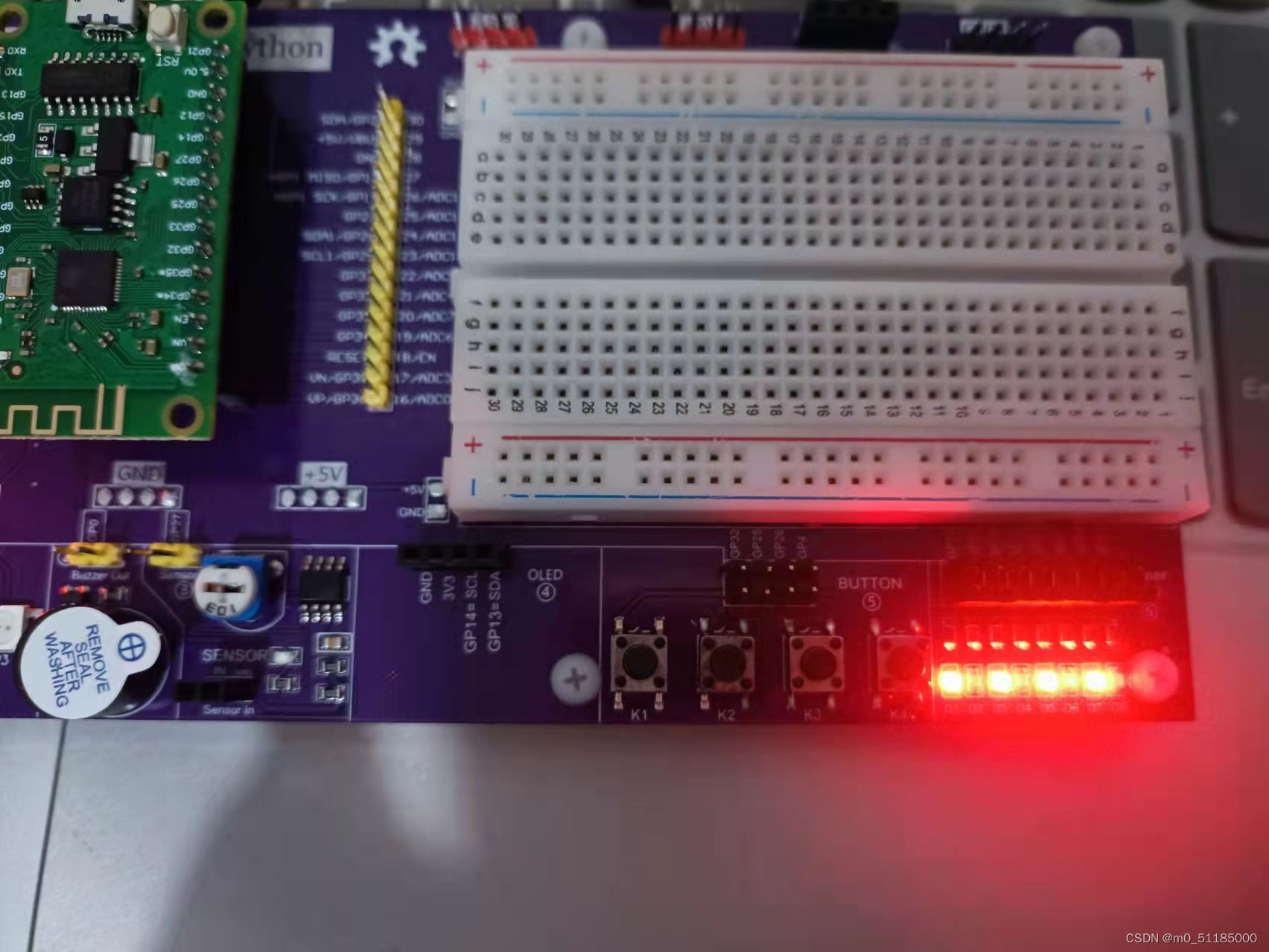

from machine import Pin
pin16=Pin(16,Pin.OUT)
pin16.value(1)
pin18=Pin(18,Pin.OUT)
pin18.value(1)
pin23=Pin(23,Pin.OUT)
pin23.value(1)
pin2=Pin(2,Pin.OUT)
pin2.value(1)

输出高电平找到对应GPIO然后通过on( )或这value(1)，输出低电平让灯灭调用off( )或者value(0).
Pin(xx,Pin.OUT)
Pin.OUT定义起引脚为输出引脚，打开时会输出电压点亮LED.

流水灯效果

#!/usr/bin/env python3
#-*-coding:utf-8-*-
#说明:板载LED流水灯实验
#---------------------
from machine import Pin
from utime import sleep_ms

#定义LED管脚，可在扩展板底座找到对应GP口编号
led=[16,17,18,19,23,5,2,22]
#将对应的GPIO口都设置为输出模式
leds=[Pin(led[i],Pin.OUT) for i in range (0,8)]#pin=Pin(led[],Pin.OUT)
#循环语句
while True:
    for n in range(0,8): #依次点亮
        leds[n].value(1)
        sleep_ms(50)
    for n in range(0,8): #依次熄灭
        leds[n].value(0)
        sleep_ms(50)

点亮三色灯

红绿蓝1秒交替闪烁

#
#
# 说明：WS2812B三色LED灯实验交替闪烁 红绿蓝1秒交替闪烁

from  machine import Pin     #
from utime import sleep_ms   #
import machine,neopixel      #neopixel三色彩灯控制库

numpix=4                     #WS2812B 灯数量
p=15                         #GP15 彩灯对应的GPIO口15
strip=neopixel.NeoPixel(machine.Pin(p),numpix)

while True:
    #熄灭
    strip[0]=(0,0,0)
    strip.write()
    strip[1]=(0,0,0)
    strip.write()
    strip[2]=(0,0,0)
    strip.write()
    strip[3]=(0,0,0)
    strip.write()
    sleep_ms(1000)
    #红色
    strip[0]=(30,0,0)
    strip.write()
    strip[1]=(30,0,0)
    strip.write()
    strip[2]=(30,0,0)
    strip.write()
    strip[3]=(30,0,0)
    strip.write()
    sleep_ms(1000)
    #绿色
    strip[0]=(0,30,0)
    strip.write()
    strip[1]=(0,30,0)
    strip.write()
    strip[2]=(0,30,0)
    strip.write()
    strip[3]=(0,30,0)
    strip.write()
    sleep_ms(1000)
    #蓝色
    strip[0]=(0,0,30)
    strip.write()
    strip[1]=(0,0,30)
    strip.write()
    strip[2]=(0,0,30)
    strip.write()
    strip[3]=(0,0,30)
    strip.write()
    sleep_ms(1000)


炫彩灯带

#
#
# 说明：三色LED炫彩灯带

from  machine import Pin     #
from utime import sleep_ms   #
import machine,neopixel      #neopixel三色彩灯控制库

numpix=4                     #WS2812B 灯数量
p=15                         #GP15 彩灯对应的GPIO口15
strip=neopixel.NeoPixel(machine.Pin(p),numpix)

while True:
    r=0
    g=0
    b=0
    while r<255: #红灯顺序点亮
        for n in range(0,4):
            strip[n]=(r,0,0)
            strip.write()
            r=r+10
            sleep_ms(200)
    while g<255: # 绿灯顺序点亮
        for n in range(0,4):
            strip[n]=(0,g,0)
            strip.write()
            g=g+10
            sleep_ms(200)
    while b<255: #蓝灯顺序点亮
        for n in range(0,4):
            strip[n]=(0,0,b)
            strip.write()
            b=b+10
            sleep_ms(200)
