AT32 SC7A20H模块驱动例程代码

@chao( ˝ᗢ̈˝ )

已于 2024-07-16 13:15:19 修改

阅读量2.8k

点赞数 18

文章标签：单片机

于 2024-07-16 13:10:30 首次发布

本文链接：https://blog.csdn.net/m0_55707162/article/details/136297368

版权

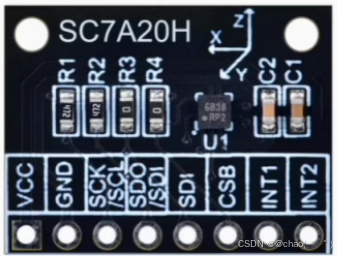

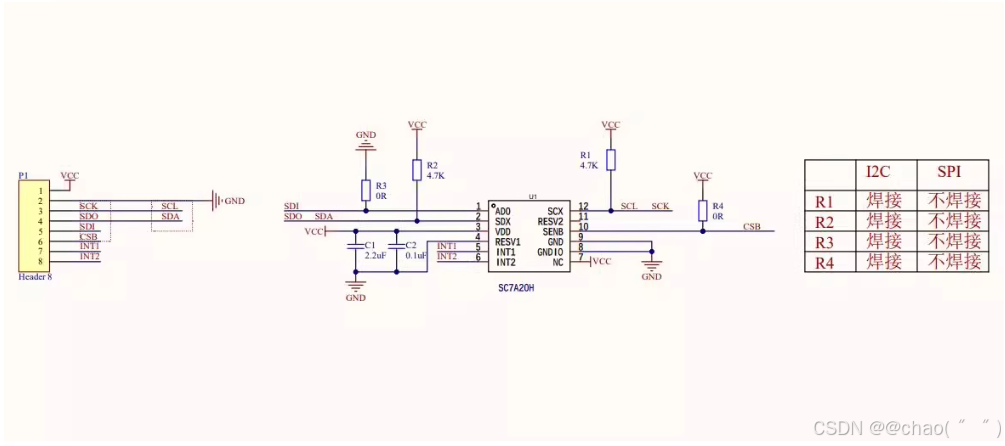

采用IIC方式与SC7A20H模块通信

底层驱动：

void SL_SC7A20H_Driver_Init(void)
{
   uint8_t i=0;
   uint8_t id1=0;
   uint8_t id2=0;

   i2c_memory_read(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x31, 0x0F, &id1, 1, 0xFFFFFFF);
   printf("0x%X\n",id1);
   i2c_memory_read(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x31, 0x70, &id2, 1, 0xFFFFFFF);
   printf("0x%X\n",id2);

if ((id1 != 0x11) || (id2 != 0x28))

{

printf("error\n");

}

   uint8_t t1 = 0x47;
       i2c_memory_write(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x30, 0x20, &t1, 1, 0xFFFFFFF);
       //50Hz+正常模式xyz使能

i2c_memory_write(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x30, 0x21, 0X00, 1, 0xFFFFFFF);
//关闭滤波器，手册上面没有滤波器截止频率设置说明，开启后无法测量静止状态下的重力加速度

       i2c_memory_write(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x30, 0x22, 0X00, 1, 0xFFFFFFF);
       //关闭中断
       uint8_t t2 = 0x88;
       i2c_memory_write(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x30, 0x23, &t2, 1, 0xFFFFFFF);
       //读取完成再更新，小端模式，、2g+正常模式，高精度模式
}

unsigned char SL_SC7A20H_Read_FIFO_Buf(signed short *x_buf,signed short *y_buf,signed short *z_buf)
{
   unsigned char i=0;
   unsigned char sc7a20_data[7];
   unsigned char SL_FIFO_ACCEL_NUM;
   uint8_t t3=0x4F;

i2c_memory_read(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x31, 0x2F, &SL_FIFO_ACCEL_NUM, 1, 0xFFFFFFF);

   if (SL_FIFO_ACCEL_NUM & 0x40)
       SL_FIFO_ACCEL_NUM = 32;
   else
       SL_FIFO_ACCEL_NUM = SL_FIFO_ACCEL_NUM&0x1f;

   //for(i=0;i<SL_FIFO_ACCEL_NUM;i++)
   for(i=0;i<3;i++)
   {
       i2c_memory_read(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x31, 0xA8, &sc7a20_data[1], 6, 0xFFFFFFF);

       x_buf[i] =(signed short int)(((unsigned char)sc7a20_data[2] * 256 ) + (unsigned char)sc7a20_data[1]);
       y_buf[i] =(signed short int)(((unsigned char)sc7a20_data[4] * 256 ) + (unsigned char)sc7a20_data[3]);
       z_buf[i] =(signed short int)(((unsigned char)sc7a20_data[6] * 256 ) + (unsigned char)sc7a20_data[5]);

printf("x_buf[%d]: 0x%04X, y_buf[%d]: 0x%04X, z_buf[%d]: 0x%04X\n", i, (unsigned short)x_buf[i], i, (unsigned short)y_buf[i], i, (unsigned short)z_buf[i]);
}

i2c_memory_write(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x30, 0X2E, 0X00, 1, 0xFFFFFFF);
i2c_memory_write(&hi2cx, I2C_MEM_ADDR_WIDIH_8, 0x30, 0X2E, &t3, 1, 0xFFFFFFF);

return SL_FIFO_ACCEL_NUM;
}
