『网盘赛』基于自定义训练模板的文档阴影消除

「🍔自定义训练模板🍔」基于文档阴影消除网盘赛的示例

在使用Paddle写项目的时候，相信你也有和我一样的困惑：

高级API的封装太好，需要定制一些函数功能的时候不好添加；低级的API功能又很单一，要实现很多功能需要额外写很多代码。

如果能有一个模板，本身就具有比较完善的功能，只需要修改一部分代码就能快速实现自己的想法就好了。

基于这个想法，我完成了一套训练模型的模板，具有定制输出，模型中断后继续训练，保存最优模型等功能。

大家可以基于这个模板，快速修改并实现自己的想法。

📖 0 项目背景

生活中在使用手机进行文档扫描时，由于角度原因，难免会在照片中留下举手拍摄时遗留的恼人阴影。为了帮助人们解决这样的问题，减少阴影带来的干扰，选手需要通过深度学习技术训练模型，对给定的真实场景下采集得到的带有阴影的图片进行处理，还原图片原本的样子，并最终输出处理后的结果图片。

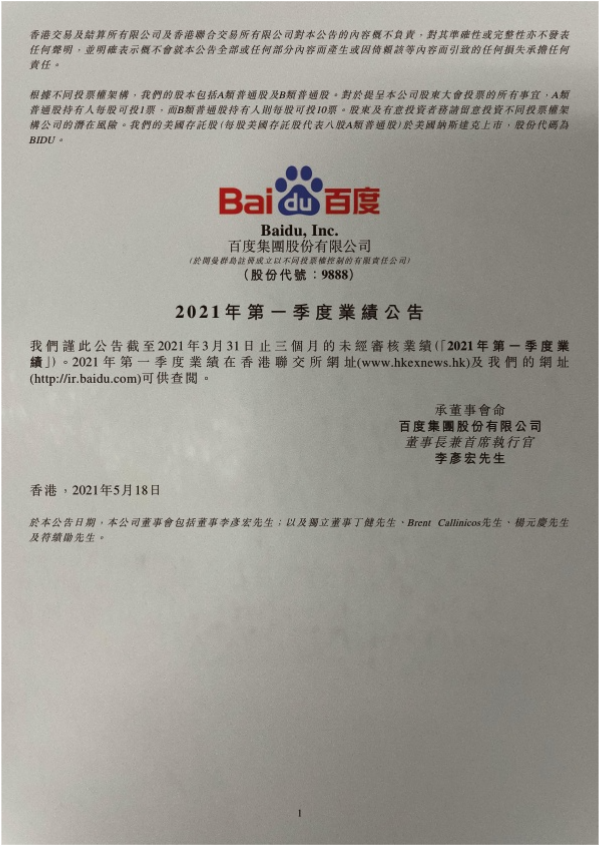

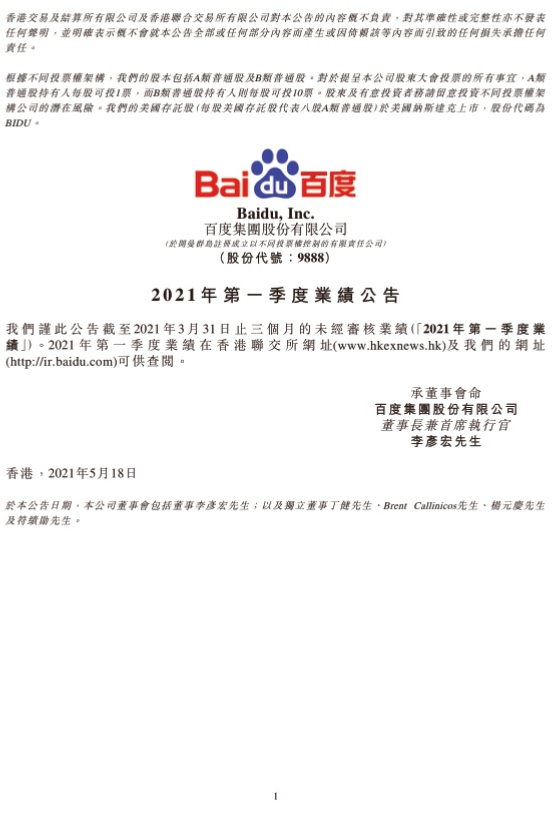

有阴影图片	无阴影图片

🥦 1 数据介绍

• 本次比赛最新发布的数据集共包含训练集、A榜测试集、B榜测试集三个部分，其中，训练集共1410个样本（图片编号非连续），A榜测试集共300个样本（图片编号连续），B榜测试集共397个样本；

• images为带阴影的源图像数据，gts为无阴影的真值数据；(测试数据集的GT不开放)

• images与gts中的图片根据图片名称一一对应。

🌰 2 模板已实现功能

💡 1 :每个epoch输出定制信息,使用tqdm进度条实时查看每个epoch运行时间（修正windows终端或异常中断tqdm出现的混乱）

💡 2 :可以直接定义并修改损失函数和模型，并给出示例

💡 3 :可以选择传入模型继续训练或从头训练

💡 4 :在训练完成后，以csv形式保存log文件

💡 5 :自定义评价指标，并根据评价指标结果自动保存最优模型

💡 6 :完成数据增强，模型训练，测试，推理全流程代码

💡 7 :实现输入图像的分块，能有效提升图像类任务精度

---

• 参考项目:牛尾扫暗影，虎头开盲盒。三卷网盘赛，榜评0.59168

⚙️ 3 代码实现及讲解

# 解压数据集
!unzip  -o data/data125945/shadowRemovalOfDoc.zip

!unzip delight_testA_dataset.zip -d data/ >>/dev/null
!unzip delight_train_dataset.zip -d data/ >>/dev/null

# 安装需要的库函数
!pip install scikit_image==0.15.0

⚔️ 3.1 图像分块

---

• 该部分代码用于将图像分割成小块后保存起来，包括翻转，旋转等七种不同组合的数据增强方法。

---

prepare_data( patch_size=256, stride=200, aug_times=1)

• patch_size：切分的正方形块的大小

• stride：切分步长，每隔切分步长进行切块

• aug_times：增强次数，每个图块生成几张增强图像

CODE 4 第32行 scales = [1] # 对数据进行随机放缩

• 该参数是一个List，用于对图像进行缩放。

[1，1.2] 表示原图和将图像扩大1.2倍后进行切分，这样增加训练数据量为 [1] 的两倍

---

# 定义离线数据增强方法
def data_augmentation(image,label, mode):
    out = np.transpose(image, (1,2,0))
    out_label = np.transpose(label, (1,2,0))
    if mode == 0:
        # original
        out = out
        out_label = out_label
    elif mode == 1:
        # flip up and down
        out = np.flipud(out)
        out_label = np.flipud(out_label)
    elif mode == 2:
        # rotate counterwise 90 degree
        out = np.rot90(out)
        out_label = np.rot90(out_label)
    elif mode == 3:
        # rotate 90 degree and flip up and down
        out = np.rot90(out)
        out = np.flipud(out)

        out_label = np.rot90(out_label)
        out_label = np.flipud(out_label)
    elif mode == 4:
        # rotate 180 degree
        out = np.rot90(out, k=2)
        out_label = np.rot90(out_label, k=2)
    elif mode == 5:
        # rotate 180 degree and flip
        out = np.rot90(out, k=2)
        out = np.flipud(out)

        out_label = np.rot90(out_label, k=2)
        out_label = np.flipud(out_label)
    elif mode == 6:
        # rotate 270 degree
        out = np.rot90(out, k=3)

        out_label = np.rot90(out_label, k=3)

    elif mode == 7:
        # rotate 270 degree and flip
        out = np.rot90(out, k=3)
        out = np.flipud(out)

        out_label = np.rot90(out_label, k=3)
        out_label = np.flipud(out_label)

    return  out,out_label

## 制作分块数据集
import cv2
import numpy as np
import math
import glob
import os

def Im2Patch(img, win, stride=1):
    k = 0
    endc = img.shape[0]
    endw = img.shape[1]
    endh = img.shape[2]
    patch = img[:, 0:endw-win+0+1:stride, 0:endh-win+0+1:stride]
    TotalPatNum = patch.shape[1] * patch.shape[2]
    Y = np.zeros([endc, win*win,TotalPatNum], np.float32)
    for i in range(win):
        for j in range(win):
            patch = img[:,i:endw-win+i+1:stride,j:endh-win+j+1:stride]
            Y[:,k,:] = np.array(patch[:]).reshape(endc, TotalPatNum)
            k = k + 1
    return Y.reshape([endc, win, win, TotalPatNum])

def prepare_data(patch_size, stride, aug_times=1):
    '''
    该函数用于将图像切成方块，并进行数据增强
    patch_size： 图像块的大小，本项目200*200
        stride： 步长，每个图像块的间隔
     aug_times： 数据增强次数，默认从八种增强方式中选择一种
    '''
    # train
    print('process training data')
    scales = [1] # 对数据进行随机放缩
    files = glob.glob(os.path.join('data/delight_train_dataset/images', '*.jpg'))
    files.sort()

    img_folder = 'work/img_patch'
    if  not os.path.exists(img_folder):
        os.mkdir(img_folder)

    label_folder = 'work/label_patch'
    if  not os.path.exists(label_folder):
        os.mkdir(label_folder)

    train_num = 0
    for i in range(len(files)):
        img = cv2.imread(files[i])
        label = cv2.imread(files[i].replace('images','gts'))
        h, w, c = img.shape
        for k in range(len(scales)):
            Img = cv2.resize(img, (int(h*scales[k]), int(w*scales[k])), interpolation=cv2.INTER_CUBIC)
            Label = cv2.resize(label, (int(h*scales[k]), int(w*scales[k])), interpolation=cv2.INTER_CUBIC)

            Img = np.transpose(Img, (2,0,1))
            Label = np.transpose(Label, (2,0,1))

            Img = np.float32(np.clip(Img,0,255))
            Label = np.float32(np.clip(Label,0,255))

            patches = Im2Patch(Img, win=patch_size, stride=stride)
            label_patches = Im2Patch(Label, win=patch_size, stride=stride)
            print("file: %s scale %.1f # samples: %d" % (files[i], scales[k], patches.shape[3]*aug_times))

            for n in range(patches.shape[3]):

                data = patches[:,:,:,n].copy()
                label_data = label_patches[:,:,:,n].copy()

                for m in range(aug_times):
                    data_aug,label_aug = data_augmentation(data,label_data, np.random.randint(1,8))
                    label_name = os.path.join(label_folder,str(train_num)+"_aug_%d" % (m+1)+'.jpg')
                    image_name = os.path.join(img_folder,str(train_num)+"_aug_%d" % (m+1)+'.jpg')

                    cv2.imwrite(image_name, data_aug,[int( cv2.IMWRITE_JPEG_QUALITY), 100])
                    cv2.imwrite(label_name, label_aug,[int( cv2.IMWRITE_JPEG_QUALITY), 100])

                    train_num += 1

    print('training set, # samples %d\n' % train_num)

## 生成数据

prepare_data( patch_size=256, stride=200, aug_times=1)

⚔️ 3.2 重写数据读取类

---

• 该部分代码使用了paddle.vision.transforms内置的图像增强方法

  ---

# 重写数据读取类
import paddle
import paddle.vision.transforms as T
import numpy as np
import glob
import cv2

# 重写数据读取类
class DEshadowDataset(paddle.io.Dataset):

    def __init__(self,mode = 'train',is_transforms = False):

        label_path_ ='work/label_patch/*.jpg'
        jpg_path_ ='work/img_patch/*.jpg'
        self.label_list_ = glob.glob(label_path_)
        self.jpg_list_ = glob.glob(jpg_path_)

        self.is_transforms = is_transforms
        self.mode = mode

        scale_point = 0.95

        self.transforms =T.Compose([
            T.Normalize(data_format='HWC',),
            T.HueTransform(0.4),
            T.SaturationTransform(0.4),
            T.HueTransform(0.4),
            T.ToTensor(),
            ])


        # 选择前95%训练，后5%验证
        if self.mode == 'train':
            self.jpg_list_ = self.jpg_list_[:int(scale_point*len(self.jpg_list_))]
            self.label_list_ = self.label_list_[:int(scale_point*len(self.label_list_))]

        else:
            self.jpg_list_ = self.jpg_list_[int(scale_point*len(self.jpg_list_)):]
            self.label_list_ = self.label_list_[int(scale_point*len(self.label_list_)):]

    def __getitem__(self, index):
        jpg_ = self.jpg_list_[index]
        label_ =  self.label_list_[index]

        data = cv2.imread(jpg_) # 读取和代码处于同一目录下的 lena.png # 转为 0-1
        mask = cv2.imread(label_)

        data = cv2.cvtColor(data, cv2.COLOR_BGR2RGB) # BGR 2 RGB
        mask = cv2.cvtColor(mask, cv2.COLOR_BGR2RGB) # BGR 2 RGB

        data = np.uint8(data)
        mask = np.uint8(mask)

        if self.is_transforms:
            data = self.transforms(data)
            data = data/255
            mask = T.functional.to_tensor(mask)

        return  data,mask

    def __len__(self):
        return len(self.jpg_list_)


# 数据读取及增强可视化
import paddle.vision.transforms as T
import matplotlib.pyplot as plt
from PIL import Image

dataset = DEshadowDataset(mode='train',is_transforms = False )
print('=============train dataset=============')
img_,mask_ = dataset[3] # mask 始终大于 img

img = Image.fromarray(img_)
mask = Image.fromarray(mask_)

#当要保存的图片为灰度图像时，灰度图像的 numpy 尺度是 [1, h, w]。需要将 [1, h, w] 改变为 [h, w]

plt.figure(figsize=(12, 6))
plt.subplot(1,2,1),plt.xticks([]),plt.yticks([]),plt.imshow(img)
plt.subplot(1,2,2),plt.xticks([]),plt.yticks([]),plt.imshow(mask)
plt.show()

⚔️ 3.3 重写模型

---

• 该部分代码定义KIUnet 和UNet_3Plus作为示例。

网络介绍详情请点击链接查看。

# 定义KIUnet
import paddle
import paddle.nn as nn
import paddle.nn.functional as F
from paddle.nn import initializer

def init_weights(init_type='kaiming'):
    if init_type == 'normal':
        return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.Normal())
    elif init_type == 'xavier':
        return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.XavierNormal())
    elif init_type == 'kaiming':
        return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.KaimingNormal)
    else:
        raise NotImplementedError('initialization method [%s] is not implemented' % init_type)


class kiunet(nn.Layer):
    def __init__(self ,in_channels = 3, n_classes =3):
        super(kiunet,self).__init__()

        self.in_channels = in_channels
        self.n_class = n_classes

        self.encoder1 = nn.Conv2D(self.in_channels, 16, 3, stride=1, padding=1)  # First Layer GrayScale Image , change to input channels to 3 in case of RGB
        self.en1_bn = nn.BatchNorm(16)
        self.encoder2=   nn.Conv2D(16, 32, 3, stride=1, padding=1)
        self.en2_bn = nn.BatchNorm(32)
        self.encoder3=   nn.Conv2D(32, 64, 3, stride=1, padding=1)
        self.en3_bn = nn.BatchNorm(64)

        self.decoder1 =   nn.Conv2D(64, 32, 3, stride=1, padding=1)
        self.de1_bn = nn.BatchNorm(32)
        self.decoder2 =   nn.Conv2D(32,16, 3, stride=1, padding=1)
        self.de2_bn = nn.BatchNorm(16)
        self.decoder3 =   nn.Conv2D(16, 8, 3, stride=1, padding=1)
        self.de3_bn = nn.BatchNorm(8)

        self.decoderf1 =   nn.Conv2D(64, 32, 3, stride=1, padding=1)
        self.def1_bn = nn.BatchNorm(32)
        self.decoderf2=   nn.Conv2D(32, 16, 3, stride=1, padding=1)
        self.def2_bn = nn.BatchNorm(16)
        self.decoderf3 =   nn.Conv2D(16, 8, 3, stride=1, padding=1)
        self.def3_bn = nn.BatchNorm(8)

        self.encoderf1 =   nn.Conv2D(in_channels, 16, 3, stride=1, padding=1)  # First Layer GrayScale Image , change to input channels to 3 in case of RGB
        self.enf1_bn = nn.BatchNorm(16)
        self.encoderf2=   nn.Conv2D(16, 32, 3, stride=1, padding=1)
        self.enf2_bn = nn.BatchNorm(32)
        self.encoderf3 =   nn.Conv2D(32, 64, 3, stride=1, padding=1)
        self.enf3_bn = nn.BatchNorm(64)

        self.intere1_1 = nn.Conv2D(16,16,3, stride=1, padding=1)
        self.inte1_1bn = nn.BatchNorm(16)
        self.intere2_1 = nn.Conv2D(32,32,3, stride=1, padding=1)
        self.inte2_1bn = nn.BatchNorm(32)
        self.intere3_1 = nn.Conv2D(64,64,3, stride=1, padding=1)
        self.inte3_1bn = nn.BatchNorm(64)

        self.intere1_2 = nn.Conv2D(16,16,3, stride=1, padding=1)
        self.inte1_2bn = nn.BatchNorm(16)
        self.intere2_2 = nn.Conv2D(32,32,3, stride=1, padding=1)
        self.inte2_2bn = nn.BatchNorm(32)
        self.intere3_2 = nn.Conv2D(64,64,3, stride=1, padding=1)
        self.inte3_2bn = nn.BatchNorm(64)

        self.interd1_1 = nn.Conv2D(32,32,3, stride=1, padding=1)
        self.intd1_1bn = nn.BatchNorm(32)
        self.interd2_1 = nn.Conv2D(16,16,3, stride=1, padding=1)
        self.intd2_1bn = nn.BatchNorm(16)
        self.interd3_1 = nn.Conv2D(64,64,3, stride=1, padding=1)
        self.intd3_1bn = nn.BatchNorm(64)

        self.interd1_2 = nn.Conv2D(32,32,3, stride=1, padding=1)
        self.intd1_2bn = nn.BatchNorm(32)
        self.interd2_2 = nn.Conv2D(16,16,3, stride=1, padding=1)
        self.intd2_2bn = nn.BatchNorm(16)
        self.interd3_2 = nn.Conv2D(64,64,3, stride=1, padding=1)
        self.intd3_2bn = nn.BatchNorm(64)

        self.final = nn.Sequential(
            nn.Conv2D(8,self.n_class,1,stride=1,padding=0),
            nn.AdaptiveAvgPool2D(output_size=1))

        # initialise weights
        for m in self.sublayers ():
            if isinstance(m, nn.Conv2D):
                m.weight_attr = init_weights(init_type='kaiming')
                m.bias_attr = init_weights(init_type='kaiming')
            elif isinstance(m, nn.BatchNorm):
                m.param_attr =init_weights(init_type='kaiming')
                m.bias_attr = init_weights(init_type='kaiming')

    def forward(self, x):
        # input: c * h * w -> 16 * h/2 * w/2
        out = F.relu(self.en1_bn(F.max_pool2d(self.encoder1(x),2,2)))  #U-Net branch
        # c * h * w -> 16 * 2h * 2w
        out1 = F.relu(self.enf1_bn(F.interpolate(self.encoderf1(x),scale_factor=(2,2),mode ='bicubic'))) #Ki-Net branch
        # 16 * h/2 * w/2
        tmp = out
        # 16 * 2h * 2w -> 16 * h/2 * w/2
        out = paddle.add(out,F.interpolate(F.relu(self.inte1_1bn(self.intere1_1(out1))),scale_factor=(0.25,0.25),mode ='bicubic')) #CRFB
        # 16 * h/2 * w/2 -> 16 * 2h * 2w
        out1 = paddle.add(out1,F.interpolate(F.relu(self.inte1_2bn(self.intere1_2(tmp))),scale_factor=(4,4),mode ='bicubic')) #CRFB

        # 16 * h/2 * w/2
        u1 = out  #skip conn
        # 16 * 2h * 2w
        o1 = out1  #skip conn

        # 16 * h/2 * w/2 -> 32 * h/4 * w/4
        out = F.relu(self.en2_bn(F.max_pool2d(self.encoder2(out),2,2)))
        # 16 * 2h * 2w -> 32 * 4h * 4w
        out1 = F.relu(self.enf2_bn(F.interpolate(self.encoderf2(out1),scale_factor=(2,2),mode ='bicubic')))
        #  32 * h/4 * w/4
        tmp = out
        # 32 * 4h * 4w -> 32 * h/4 *w/4
        out = paddle.add(out,F.interpolate(F.relu(self.inte2_1bn(self.intere2_1(out1))),scale_factor=(0.0625,0.0625),mode ='bicubic'))
        # 32 * h/4 * w/4 -> 32 *4h *4w
        out1 = paddle.add(out1,F.interpolate(F.relu(self.inte2_2bn(self.intere2_2(tmp))),scale_factor=(16,16),mode ='bicubic'))

        #  32 * h/4 *w/4
        u2 = out
        #  32 *4h *4w
        o2 = out1

        # 32 * h/4 *w/4 -> 64 * h/8 *w/8
        out = F.relu(self.en3_bn(F.max_pool2d(self.encoder3(out),2,2)))
        # 32 *4h *4w -> 64 * 8h *8w
        out1 = F.relu(self.enf3_bn(F.interpolate(self.encoderf3(out1),scale_factor=(2,2),mode ='bicubic')))
        #  64 * h/8 *w/8
        tmp = out
        #  64 * 8h *8w -> 64 * h/8 * w/8
        out = paddle.add(out,F.interpolate(F.relu(self.inte3_1bn(self.intere3_1(out1))),scale_factor=(0.015625,0.015625),mode ='bicubic'))
        #  64 * h/8 *w/8 -> 64 * 8h * 8w
        out1 = paddle.add(out1,F.interpolate(F.relu(self.inte3_2bn(self.intere3_2(tmp))),scale_factor=(64,64),mode ='bicubic'))

        ### End of encoder block

        ### Start Decoder

        # 64 * h/8 * w/8 -> 32 * h/4 * w/4
        out = F.relu(self.de1_bn(F.interpolate(self.decoder1(out),scale_factor=(2,2),mode ='bicubic')))  #U-NET
        # 64 * 8h * 8w -> 32 * 4h * 4w
        out1 = F.relu(self.def1_bn(F.max_pool2d(self.decoderf1(out1),2,2))) #Ki-NET
        # 32 * h/4 * w/4
        tmp = out
        # 32 * 4h * 4w  -> 32 * h/4 * w/4
        out = paddle.add(out,F.interpolate(F.relu(self.intd1_1bn(self.interd1_1(out1))),scale_factor=(0.0625,0.0625),mode ='bicubic'))
        # 32 * h/4 * w/4  -> 32 * 4h * 4w
        out1 = paddle.add(out1,F.interpolate(F.relu(self.intd1_2bn(self.interd1_2(tmp))),scale_factor=(16,16),mode ='bicubic'))

        # 32 * h/4 * w/4
        out = paddle.add(out,u2)  #skip conn
        # 32 * 4h * 4w
        out1 = paddle.add(out1,o2)  #skip conn

        # 32 * h/4 * w/4 -> 16 * h/2 * w/2
        out = F.relu(self.de2_bn(F.interpolate(self.decoder2(out),scale_factor=(2,2),mode ='bicubic')))
        # 32 * 4h * 4w  -> 16 * 2h * 2w
        out1 = F.relu(self.def2_bn(F.max_pool2d(self.decoderf2(out1),2,2)))
        # 16 * h/2 * w/2
        tmp = out
        # 16 * 2h * 2w -> 16 * h/2 * w/2
        out = paddle.add(out,F.interpolate(F.relu(self.intd2_1bn(self.interd2_1(out1))),scale_factor=(0.25,0.25),mode ='bicubic'))
        # 16 * h/2 * w/2 -> 16 * 2h * 2w
        out1 = paddle.add(out1,F.interpolate(F.relu(self.intd2_2bn(self.interd2_2(tmp))),scale_factor=(4,4),mode ='bicubic'))

        # 16 * h/2 * w/2
        out = paddle.add(out,u1)
        # 16 * 2h * 2w
        out1 = paddle.add(out1,o1)

        # 16 * h/2 * w/2 -> 8 * h * w
        out = F.relu(self.de3_bn(F.interpolate(self.decoder3(out),scale_factor=(2,2),mode ='bicubic')))
        # 16 * 2h * 2w -> 8 * h * w
        out1 = F.relu(self.def3_bn(F.max_pool2d(self.decoderf3(out1),2,2)))

        # 8 * h * w
        out = paddle.add(out,out1) # fusion of both branches

        # 最后一层用sigmoid激活函数
        out = F.sigmoid(self.final(out))  #1*1 conv

        return out

import paddle
import paddle.nn as nn
import paddle.nn.functional as F
from paddle.nn import initializer

def init_weights(init_type='kaiming'):
    if init_type == 'normal':
        return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.Normal())
    elif init_type == 'xavier':
        return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.XavierNormal())
    elif init_type == 'kaiming':
        return paddle.framework.ParamAttr(initializer=paddle.nn.initializer.KaimingNormal)
    else:
        raise NotImplementedError('initialization method [%s] is not implemented' % init_type)

class unetConv2(nn.Layer):
    def __init__(self, in_size, out_size, is_batchnorm, n=2, ks=3, stride=1, padding=1):
        super(unetConv2, self).__init__()
        self.n = n
        self.ks = ks
        self.stride = stride
        self.padding = padding
        s = stride
        p = padding
        if is_batchnorm:
            for i in range(1, n + 1):
                conv = nn.Sequential(nn.Conv2D(in_size, out_size, ks, s, p),
                                     nn.BatchNorm(out_size),
                                     nn.ReLU(), )
                setattr(self, 'conv%d' % i, conv)
                in_size = out_size
        else:
            for i in range(1, n + 1):
                conv = nn.Sequential(nn.Conv2D(in_size, out_size, ks, s, p),
                                     nn.ReLU(), )
                setattr(self, 'conv%d' % i, conv)
                in_size = out_size
        # initialise the blocks
        for m in self.children():
            m.weight_attr=init_weights(init_type='kaiming')
            m.bias_attr=init_weights(init_type='kaiming')
    def forward(self, inputs):
        x = inputs
        for i in range(1, self.n + 1):
            conv = getattr(self, 'conv%d' % i)
            x = conv(x)
        return x

'''
    UNet 3+
'''
class UNet_3Plus(nn.Layer):
    def __init__(self, in_channels=3, n_classes=1, is_deconv=True, is_batchnorm=True, end_sigmoid=True):
        super(UNet_3Plus, self).__init__()
        self.is_deconv = is_deconv
        self.in_channels = in_channels
        self.is_batchnorm = is_batchnorm
        self.end_sigmoid = end_sigmoid
        filters = [16, 32, 64, 128, 256]
        ## -------------Encoder--------------
        self.conv1 = unetConv2(self.in_channels, filters[0], self.is_batchnorm)
        self.maxpool1 = nn.MaxPool2D(kernel_size=2)
        self.conv2 = unetConv2(filters[0], filters[1], self.is_batchnorm)
        self.maxpool2 = nn.MaxPool2D(kernel_size=2)
        self.conv3 = unetConv2(filters[1], filters[2], self.is_batchnorm)
        self.maxpool3 = nn.MaxPool2D(kernel_size=2)
        self.conv4 = unetConv2(filters[2], filters[3], self.is_batchnorm)
        self.maxpool4 = nn.MaxPool2D(kernel_size=2)
        self.conv5 = unetConv2(filters[3], filters[4], self.is_batchnorm)
        ## -------------Decoder--------------
        self.CatChannels = filters[0]
        self.CatBlocks = 5
        self.UpChannels = self.CatChannels * self.CatBlocks
        '''stage 4d'''
        # h1->320*320, hd4->40*40, Pooling 8 times
        self.h1_PT_hd4 = nn.MaxPool2D(8, 8, ceil_mode=True)
        self.h1_PT_hd4_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
        self.h1_PT_hd4_bn = nn.BatchNorm(self.CatChannels)
        self.h1_PT_hd4_relu = nn.ReLU()
        # h2->160*160, hd4->40*40, Pooling 4 times
        self.h2_PT_hd4 = nn.MaxPool2D(4, 4, ceil_mode=True)
        self.h2_PT_hd4_conv = nn.Conv2D(filters[1], self.CatChannels, 3, padding=1)
        self.h2_PT_hd4_bn = nn.BatchNorm(self.CatChannels)
        self.h2_PT_hd4_relu = nn.ReLU()
        # h3->80*80, hd4->40*40, Pooling 2 times
        self.h3_PT_hd4 = nn.MaxPool2D(2, 2, ceil_mode=True)
        self.h3_PT_hd4_conv = nn.Conv2D(filters[2], self.CatChannels, 3, padding=1)
        self.h3_PT_hd4_bn = nn.BatchNorm(self.CatChannels)
        self.h3_PT_hd4_relu = nn.ReLU()
        # h4->40*40, hd4->40*40, Concatenation
        self.h4_Cat_hd4_conv = nn.Conv2D(filters[3], self.CatChannels, 3, padding=1)
        self.h4_Cat_hd4_bn = nn.BatchNorm(self.CatChannels)
        self.h4_Cat_hd4_relu = nn.ReLU()
        # hd5->20*20, hd4->40*40, Upsample 2 times
        self.hd5_UT_hd4 = nn.Upsample(scale_factor=2, mode='bilinear')  # 14*14
        self.hd5_UT_hd4_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
        self.hd5_UT_hd4_bn = nn.BatchNorm(self.CatChannels)
        self.hd5_UT_hd4_relu = nn.ReLU()
        # fusion(h1_PT_hd4, h2_PT_hd4, h3_PT_hd4, h4_Cat_hd4, hd5_UT_hd4)
        self.conv4d_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1)  # 16
        self.bn4d_1 = nn.BatchNorm(self.UpChannels)
        self.relu4d_1 = nn.ReLU()
        '''stage 3d'''
        # h1->320*320, hd3->80*80, Pooling 4 times
        self.h1_PT_hd3 = nn.MaxPool2D(4, 4, ceil_mode=True)
        self.h1_PT_hd3_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
        self.h1_PT_hd3_bn = nn.BatchNorm(self.CatChannels)
        self.h1_PT_hd3_relu = nn.ReLU()
        # h2->160*160, hd3->80*80, Pooling 2 times
        self.h2_PT_hd3 = nn.MaxPool2D(2, 2, ceil_mode=True)
        self.h2_PT_hd3_conv = nn.Conv2D(filters[1], self.CatChannels, 3, padding=1)
        self.h2_PT_hd3_bn = nn.BatchNorm(self.CatChannels)
        self.h2_PT_hd3_relu = nn.ReLU()
        # h3->80*80, hd3->80*80, Concatenation
        self.h3_Cat_hd3_conv = nn.Conv2D(filters[2], self.CatChannels, 3, padding=1)
        self.h3_Cat_hd3_bn = nn.BatchNorm(self.CatChannels)
        self.h3_Cat_hd3_relu = nn.ReLU()
        # hd4->40*40, hd4->80*80, Upsample 2 times
        self.hd4_UT_hd3 = nn.Upsample(scale_factor=2, mode='bilinear')  # 14*14
        self.hd4_UT_hd3_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
        self.hd4_UT_hd3_bn = nn.BatchNorm(self.CatChannels)
        self.hd4_UT_hd3_relu = nn.ReLU()
        # hd5->20*20, hd4->80*80, Upsample 4 times
        self.hd5_UT_hd3 = nn.Upsample(scale_factor=4, mode='bilinear')  # 14*14
        self.hd5_UT_hd3_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
        self.hd5_UT_hd3_bn = nn.BatchNorm(self.CatChannels)
        self.hd5_UT_hd3_relu = nn.ReLU()
        # fusion(h1_PT_hd3, h2_PT_hd3, h3_Cat_hd3, hd4_UT_hd3, hd5_UT_hd3)
        self.conv3d_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1)  # 16
        self.bn3d_1 = nn.BatchNorm(self.UpChannels)
        self.relu3d_1 = nn.ReLU()
        '''stage 2d '''
        # h1->320*320, hd2->160*160, Pooling 2 times
        self.h1_PT_hd2 = nn.MaxPool2D(2, 2, ceil_mode=True)
        self.h1_PT_hd2_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
        self.h1_PT_hd2_bn = nn.BatchNorm(self.CatChannels)
        self.h1_PT_hd2_relu = nn.ReLU()
        # h2->160*160, hd2->160*160, Concatenation
        self.h2_Cat_hd2_conv = nn.Conv2D(filters[1], self.CatChannels, 3, padding=1)
        self.h2_Cat_hd2_bn = nn.BatchNorm(self.CatChannels)
        self.h2_Cat_hd2_relu = nn.ReLU()
        # hd3->80*80, hd2->160*160, Upsample 2 times
        self.hd3_UT_hd2 = nn.Upsample(scale_factor=2, mode='bilinear')  # 14*14
        self.hd3_UT_hd2_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
        self.hd3_UT_hd2_bn = nn.BatchNorm(self.CatChannels)
        self.hd3_UT_hd2_relu = nn.ReLU()
        # hd4->40*40, hd2->160*160, Upsample 4 times
        self.hd4_UT_hd2 = nn.Upsample(scale_factor=4, mode='bilinear')  # 14*14
        self.hd4_UT_hd2_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
        self.hd4_UT_hd2_bn = nn.BatchNorm(self.CatChannels)
        self.hd4_UT_hd2_relu = nn.ReLU()
        # hd5->20*20, hd2->160*160, Upsample 8 times
        self.hd5_UT_hd2 = nn.Upsample(scale_factor=8, mode='bilinear')  # 14*14
        self.hd5_UT_hd2_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
        self.hd5_UT_hd2_bn = nn.BatchNorm(self.CatChannels)
        self.hd5_UT_hd2_relu = nn.ReLU()
        # fusion(h1_PT_hd2, h2_Cat_hd2, hd3_UT_hd2, hd4_UT_hd2, hd5_UT_hd2)
        self.Conv2D_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1)  # 16
        self.bn2d_1 = nn.BatchNorm(self.UpChannels)
        self.relu2d_1 = nn.ReLU()
        '''stage 1d'''
        # h1->320*320, hd1->320*320, Concatenation
        self.h1_Cat_hd1_conv = nn.Conv2D(filters[0], self.CatChannels, 3, padding=1)
        self.h1_Cat_hd1_bn = nn.BatchNorm(self.CatChannels)
        self.h1_Cat_hd1_relu = nn.ReLU()
        # hd2->160*160, hd1->320*320, Upsample 2 times
        self.hd2_UT_hd1 = nn.Upsample(scale_factor=2, mode='bilinear')  # 14*14
        self.hd2_UT_hd1_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
        self.hd2_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
        self.hd2_UT_hd1_relu = nn.ReLU()
        # hd3->80*80, hd1->320*320, Upsample 4 times
        self.hd3_UT_hd1 = nn.Upsample(scale_factor=4, mode='bilinear')  # 14*14
        self.hd3_UT_hd1_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
        self.hd3_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
        self.hd3_UT_hd1_relu = nn.ReLU()
        # hd4->40*40, hd1->320*320, Upsample 8 times
        self.hd4_UT_hd1 = nn.Upsample(scale_factor=8, mode='bilinear')  # 14*14
        self.hd4_UT_hd1_conv = nn.Conv2D(self.UpChannels, self.CatChannels, 3, padding=1)
        self.hd4_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
        self.hd4_UT_hd1_relu = nn.ReLU()
        # hd5->20*20, hd1->320*320, Upsample 16 times
        self.hd5_UT_hd1 = nn.Upsample(scale_factor=16, mode='bilinear')  # 14*14
        self.hd5_UT_hd1_conv = nn.Conv2D(filters[4], self.CatChannels, 3, padding=1)
        self.hd5_UT_hd1_bn = nn.BatchNorm(self.CatChannels)
        self.hd5_UT_hd1_relu = nn.ReLU()
        # fusion(h1_Cat_hd1, hd2_UT_hd1, hd3_UT_hd1, hd4_UT_hd1, hd5_UT_hd1)
        self.conv1d_1 = nn.Conv2D(self.UpChannels, self.UpChannels, 3, padding=1)  # 16
        self.bn1d_1 = nn.BatchNorm(self.UpChannels)
        self.relu1d_1 = nn.ReLU()
        # output
        self.outconv1 = nn.Conv2D(self.UpChannels, n_classes, 3, padding=1)
        # initialise weights
        for m in self.sublayers ():
            if isinstance(m, nn.Conv2D):
                m.weight_attr = init_weights(init_type='kaiming')
                m.bias_attr = init_weights(init_type='kaiming')
            elif isinstance(m, nn.BatchNorm):
                m.param_attr =init_weights(init_type='kaiming')
                m.bias_attr = init_weights(init_type='kaiming')
    def forward(self, inputs):
        ## -------------Encoder-------------
        h1 = self.conv1(inputs)  # h1->320*320*64
        h2 = self.maxpool1(h1)
        h2 = self.conv2(h2)  # h2->160*160*128
        h3 = self.maxpool2(h2)
        h3 = self.conv3(h3)  # h3->80*80*256
        h4 = self.maxpool3(h3)
        h4 = self.conv4(h4)  # h4->40*40*512
        h5 = self.maxpool4(h4)
        hd5 = self.conv5(h5)  # h5->20*20*1024
        ## -------------Decoder-------------
        h1_PT_hd4 = self.h1_PT_hd4_relu(self.h1_PT_hd4_bn(self.h1_PT_hd4_conv(self.h1_PT_hd4(h1))))
        h2_PT_hd4 = self.h2_PT_hd4_relu(self.h2_PT_hd4_bn(self.h2_PT_hd4_conv(self.h2_PT_hd4(h2))))
        h3_PT_hd4 = self.h3_PT_hd4_relu(self.h3_PT_hd4_bn(self.h3_PT_hd4_conv(self.h3_PT_hd4(h3))))
        h4_Cat_hd4 = self.h4_Cat_hd4_relu(self.h4_Cat_hd4_bn(self.h4_Cat_hd4_conv(h4)))
        hd5_UT_hd4 = self.hd5_UT_hd4_relu(self.hd5_UT_hd4_bn(self.hd5_UT_hd4_conv(self.hd5_UT_hd4(hd5))))
        hd4 = self.relu4d_1(self.bn4d_1(self.conv4d_1(
            paddle.concat([h1_PT_hd4, h2_PT_hd4, h3_PT_hd4, h4_Cat_hd4, hd5_UT_hd4], 1)))) # hd4->40*40*UpChannels
        h1_PT_hd3 = self.h1_PT_hd3_relu(self.h1_PT_hd3_bn(self.h1_PT_hd3_conv(self.h1_PT_hd3(h1))))
        h2_PT_hd3 = self.h2_PT_hd3_relu(self.h2_PT_hd3_bn(self.h2_PT_hd3_conv(self.h2_PT_hd3(h2))))
        h3_Cat_hd3 = self.h3_Cat_hd3_relu(self.h3_Cat_hd3_bn(self.h3_Cat_hd3_conv(h3)))
        hd4_UT_hd3 = self.hd4_UT_hd3_relu(self.hd4_UT_hd3_bn(self.hd4_UT_hd3_conv(self.hd4_UT_hd3(hd4))))
        hd5_UT_hd3 = self.hd5_UT_hd3_relu(self.hd5_UT_hd3_bn(self.hd5_UT_hd3_conv(self.hd5_UT_hd3(hd5))))
        hd3 = self.relu3d_1(self.bn3d_1(self.conv3d_1(
            paddle.concat([h1_PT_hd3, h2_PT_hd3, h3_Cat_hd3, hd4_UT_hd3, hd5_UT_hd3], 1)))) # hd3->80*80*UpChannels
        h1_PT_hd2 = self.h1_PT_hd2_relu(self.h1_PT_hd2_bn(self.h1_PT_hd2_conv(self.h1_PT_hd2(h1))))
        h2_Cat_hd2 = self.h2_Cat_hd2_relu(self.h2_Cat_hd2_bn(self.h2_Cat_hd2_conv(h2)))
        hd3_UT_hd2 = self.hd3_UT_hd2_relu(self.hd3_UT_hd2_bn(self.hd3_UT_hd2_conv(self.hd3_UT_hd2(hd3))))
        hd4_UT_hd2 = self.hd4_UT_hd2_relu(self.hd4_UT_hd2_bn(self.hd4_UT_hd2_conv(self.hd4_UT_hd2(hd4))))
        hd5_UT_hd2 = self.hd5_UT_hd2_relu(self.hd5_UT_hd2_bn(self.hd5_UT_hd2_conv(self.hd5_UT_hd2(hd5))))
        hd2 = self.relu2d_1(self.bn2d_1(self.Conv2D_1(
            paddle.concat([h1_PT_hd2, h2_Cat_hd2, hd3_UT_hd2, hd4_UT_hd2, hd5_UT_hd2], 1)))) # hd2->160*160*UpChannels
        h1_Cat_hd1 = self.h1_Cat_hd1_relu(self.h1_Cat_hd1_bn(self.h1_Cat_hd1_conv(h1)))
        hd2_UT_hd1 = self.hd2_UT_hd1_relu(self.hd2_UT_hd1_bn(self.hd2_UT_hd1_conv(self.hd2_UT_hd1(hd2))))
        hd3_UT_hd1 = self.hd3_UT_hd1_relu(self.hd3_UT_hd1_bn(self.hd3_UT_hd1_conv(self.hd3_UT_hd1(hd3))))
        hd4_UT_hd1 = self.hd4_UT_hd1_relu(self.hd4_UT_hd1_bn(self.hd4_UT_hd1_conv(self.hd4_UT_hd1(hd4))))
        hd5_UT_hd1 = self.hd5_UT_hd1_relu(self.hd5_UT_hd1_bn(self.hd5_UT_hd1_conv(self.hd5_UT_hd1(hd5))))
        hd1 = self.relu1d_1(self.bn1d_1(self.conv1d_1(
            paddle.concat([h1_Cat_hd1, hd2_UT_hd1, hd3_UT_hd1, hd4_UT_hd1, hd5_UT_hd1], 1)))) # hd1->320*320*UpChannels
        d1 = self.outconv1(hd1)  # d1->320*320*n_classes
        if self.end_sigmoid:
            out = F.sigmoid(d1)
        else:
            out = d1
        return out

# 查看网络结构
KIunet = kiunet(in_channels = 3, n_classes =3)
Unet3p = UNet_3Plus( in_channels=3, n_classes=3)


model = paddle.Model(Unet3p)
model.summary((2,3, 256, 256))

⚔️ 3.4 训练函数介绍

该部分介绍模板的具体使用：

---

• 模型运行

参数	self.is_Train	self.PATH
False	进行推理	从头训练
True	进行训练	读取模型继续训练

注意： self.PATH的True指输入模型路径，例如：当self.is_Train为False时， self.PATH为模型路径，此时不需要训练，直接进行推理生成结果。

---

• 损失函数

在work目录下loss.py文件中实现了：

---- TVLoss

---- SSIMLoss

---- LossVGG19（感知损失）

…

可以根据自己的需求进行修改或添加

---

• 最优模型

在Eval方法中定义了score变量，该变量记录验证集上的评价指标。

每个EPOCH会计算一次验证集上的score。

只有当获得更高的score时，才会删除原模型，记录新的最优模型。

注意： 需要自定义评价指标时，只需修改score的计算即可

---

• 保存结果

函数会zi’dong在work目录下生成一系列目录：

• log

  用于保存训练过程的结果

• outputs

  用于以模型名称为文件夹保存推理的结果

• saveModel

  用于记录最优的模型，名称为模型名+验证集score分数

注意： 需要自定义修改self.Modelname，用于区分不同模型的生成结果

## 主函数定义 Baseline
# 基本假设 干净图像 + 噪声 = 受污染图像
# 阴影部分的像素值要低一些，因此，需要对受污染图像的像素值进行增强
# 受污染图像 + 阴影 = 干净图像
"""
@author: xupeng
"""

from work.loss import *
from work.util import batch_psnr_ssim
from PIL import Image
import numpy as np
import pandas as pd
from tqdm import tqdm
import os
import matplotlib.pyplot as plt
import glob
from PIL import Image
from skimage.measure.simple_metrics import compare_psnr
import skimage
import paddle.vision.transforms as T
import cv2

class Solver(object):
    def __init__(self):
        self.model = None
        self.lr = 1e-4 # 学习率
        self.epochs = 10  # 训练的代数
        self.batch_size = 4 # 训练批次数量
        self.optimizer = None
        self.scheduler = None
        self.saveSetDir = r'data/delight_testA_dataset/images/' # 测试集地址

        self.train_set = None
        self.eval_set = None
        self.train_loader = None
        self.eval_loader = None

        self.Modelname = 'Unet3p' # 使用的网络声明（生成的文件会以该声明为区分）

        self.evaTOP = 0
        self.is_Train = True # #是否对执行模型训练，当为False时，给出self.PATH,直接进行推理
        self.PATH = False #False# 用于记录最优模型的名称,需要预训练时，此项不为空


    def InitModeAndData(self):
        print("---------------trainInit:---------------")
        # API文档搜索：vision.transforms 查看数据增强方法

        is_transforms = True

        self.train_set =  DEshadowDataset(mode='train',is_transforms = is_transforms)
        self.eval_set  =  DEshadowDataset(mode='eval',is_transforms = is_transforms)

        # 使用paddle.io.DataLoader 定义DataLoader对象用于加载Python生成器产生的数据

        self.train_loader = paddle.io.DataLoader(self.train_set, batch_size=self.batch_size, shuffle=True)
        self.eval_loader = paddle.io.DataLoader(self.eval_set, batch_size=self.batch_size, shuffle=False)

        self.model = UNet_3Plus( in_channels=3, n_classes=3)

        if self.is_Train and self.PATH: # 已经有模型还要训练时，进行二次训练
            params = paddle.load(self.PATH)
            self.model.set_state_dict(params)
            self.evaTOP = float(self.PATH.split(self.Modelname)[-1].replace('.pdparams',''))

        self.scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=self.lr, T_max=30, verbose=False)
        self.optimizer = paddle.optimizer.Adam(parameters=self.model.parameters(), learning_rate=self.scheduler,beta1=0.5, beta2=0.999)

        # 创建文件夹
        for item in ['log','outputs','saveModel']:
            make_folder = os.path.join('work',item)
            if  not os.path.exists(make_folder):
                os.mkdir(make_folder)

    def train(self,epoch):

        print("=======Epoch:{}/{}=======".format(epoch,self.epochs))
        self.model.train()
        TV_criterion = nTVLoss()    # 用于规范图像噪声
        ssim_criterion = SSIMLoss() # 用于对原图进行
        lossnet = LossVGG19() # 感知loss
        l1_loss = paddle.nn.L1Loss()
        Mse_loss = nn.MSELoss()

        try: # 使用这种写法(try-except 和 ascii=True)，可以避免windows终端或异常中断tqdm出现的混乱
            with tqdm(enumerate(self.train_loader),total=len(self.train_loader), ascii=True) as tqdmData:
                mean_loss = []

                for idx, (img_train,mask_train) in tqdmData:
                    tqdmData.set_description('train')

                    img_train = paddle.to_tensor(img_train,dtype="float32")
                    mask_train =  paddle.to_tensor(mask_train,dtype="float32")


                    # MODEL
                    outputs_noise = self.model(img_train) # mask > img  因此需要增加像素值
                    mask_noise = mask_train - img_train # 真实图像与阴影的差值


                    # 恢复出来的图像
                    restore_trian =img_train + outputs_noise
                    '''
                    # 去均值
                    tensor_c = paddle.to_tensor(np.array([123.6800, 116.7790, 103.9390]).astype(np.float32).reshape((1, 3, 1, 1)))

                    # 感知损失
                    # preceptual loss
                    loss_fake_B = lossnet(restore_trian * 255 - tensor_c)
                    loss_real_B = lossnet(mask_train * 255 - tensor_c)
                    p0 = l1_loss(restore_trian * 255 - tensor_c, mask_train * 255 - tensor_c) * 2
                    p1 = l1_loss(loss_fake_B['relu1'], loss_real_B['relu1']) / 2.6
                    p2 = l1_loss(loss_fake_B['relu2'], loss_real_B['relu2']) / 4.8

                    loss_p = p0 + p1 + p2

                    loss = loss_p  + ssim_criterion(restore_trian,mask_train) + 10*l1_loss(outputs_noise,mask_noise)
                    '''

                    loss = l1_loss(restore_trian,mask_train)

                    self.optimizer.clear_grad()
                    loss.backward()
                    self.optimizer.step()

                    self.scheduler.step() ### 改优化器记得改这个

                    mean_loss.append(loss.item())

        except KeyboardInterrupt:
            tqdmData.close()
            os._exit(0)
        tqdmData.close()
        # 清除中间变量，释放内存
        del loss,img_train,mask_train,outputs_noise,mask_noise,restore_trian
        paddle.device.cuda.empty_cache()
        return {'Mean_trainLoss':np.mean(mean_loss)}

    def Eval(self,modelname):

        self.model.eval()
        temp_eval_psnr ,temp_eval_ssim= [],[]
        with paddle.no_grad():
            try:
                with tqdm(enumerate(self.eval_loader),total=len(self.eval_loader), ascii=True) as tqdmData:
                    for idx, (img_eval,mask_eval) in tqdmData:
                        tqdmData.set_description(' eval')

                        img_eval=  paddle.to_tensor(img_eval,dtype="float32")
                        mask_eval = paddle.to_tensor(mask_eval,dtype="float32")

                        outputs_denoise = self.model(img_eval) # 模型输出
                        outputs_denoise = img_eval + outputs_denoise # 恢复后的图像

                        psnr_test,ssim_test = batch_psnr_ssim(outputs_denoise, mask_eval, 1.)
                        temp_eval_psnr.append(psnr_test)
                        temp_eval_ssim.append(ssim_test)

            except KeyboardInterrupt:
                tqdmData.close()
                os._exit(0)
            tqdmData.close()
            paddle.device.cuda.empty_cache()

            # 打印test psnr & ssim
        # print('eval_psnr:',np.mean(temp_eval_psnr),'eval_ssim:',np.mean(temp_eval_ssim))
        # 实现评价指标
        score = 0.05*np.mean(temp_eval_psnr)+0.5*np.mean(temp_eval_ssim)

        return {'eval_psnr':np.mean(temp_eval_psnr),'eval_ssim':np.mean(temp_eval_ssim),'SCORE':score}

    def saveModel(self,trainloss,modelname):

        trainLoss = trainloss['SCORE']
        if trainLoss < self.evaTOP and self.evaTOP!=0:

            return 0
        else:
            folder = 'work/saveModel/'
            self.PATH = folder+modelname+str(trainLoss)+'.pdparams'
            removePATH = folder+modelname+str(self.evaTOP)+'.pdparams'
            paddle.save(self.model.state_dict(), self.PATH)

            if self.evaTOP!=0:
                os.remove(removePATH)

            self.evaTOP = trainLoss
            return 1

    def saveResult(self):
        print("---------------saveResult:---------------")

        self.model.set_state_dict(paddle.load(self.PATH))
        self.model.eval()

        paddle.set_grad_enabled(False)
        paddle.device.cuda.empty_cache()

        data_dir = glob.glob(self.saveSetDir+'*.jpg')

        # 创建保存文件夹
        make_save_result = os.path.join('work/outputs',self.Modelname)
        if  not os.path.exists(make_save_result):
            os.mkdir(make_save_result)

        saveSet = pd.DataFrame()
        tpsnr,tssim = [],[]

        for idx,ori_path in enumerate(data_dir):
            print(len(data_dir),'|',idx+1,end = '\r',flush = True)

            ori = cv2.imread(ori_path) # W,H,C
            ori = cv2.cvtColor(ori, cv2.COLOR_BGR2RGB) # BGR 2 RGB
            ori_w,ori_h,ori_c = ori.shape

            # normalize_test = T.Normalize(
            # [0.610621, 0.5989216, 0.5876396],
            # [0.1835931, 0.18701428, 0.19362564],
            # data_format='HWC')

            #ori = normalize_test(ori)

            ori = T.functional.resize(ori,(1024,1024),interpolation = 'bicubic') ###不切块送进去 1024,1024 上采样

            # from HWC to CHW ,[0,255] to [0,1]
            ori = np.transpose(ori,(2,0,1))/255


            ori_img = paddle.to_tensor(ori,dtype="float32")
            ori_img = paddle.unsqueeze(ori_img,0) # N C W H

            out_noise = self.model(ori_img) #不切块送进去
            out_noise = ori_img + out_noise #加上恢复的像素

            img_cpu = out_noise.cpu().numpy()
            #保存结果
            img_cpu = np.squeeze(img_cpu)
            img_cpu = np.transpose(img_cpu,(1,2,0)) # C,W,H to W,H,C

            img_cpu = np.clip(img_cpu, 0., 1.)
            savepic = np.uint8(img_cpu*255)

            savepic = T.functional.resize(savepic,(ori_w,ori_h),interpolation = 'bicubic') ## 采样回原始大小

            # 保存路径
            savedir = os.path.join(make_save_result,ori_path.split('/')[-1])

            savepic = cv2.cvtColor(savepic, cv2.COLOR_RGB2BGR) # BGR
            cv2.imwrite(savedir, savepic, [int( cv2.IMWRITE_JPEG_QUALITY), 100])

    def run(self):

        self.InitModeAndData()

        if self.is_Train:
            modelname = self.Modelname #  使用的网络名称

            result = pd.DataFrame()


            for epoch in range(1, self.epochs + 1):

                trainloss = self.train(epoch)
                evalloss =  self.Eval(modelname)#

                Type = self.saveModel(evalloss,modelname)

                type_ = {'Type':Type}
                trainloss.update(evalloss)#
                trainloss.update(type_)

                result = result.append(trainloss,ignore_index=True)
                print('Epoch:',epoch,trainloss)

                #self.scheduler.step()

            evalloss =  self.Eval(modelname)#

            result.to_csv('work/log/' +modelname+str(evalloss['SCORE'])+'.csv')#

            self.saveResult()

        else:

            self.saveResult()

def main():
    solver = Solver()
    solver.run()

if __name__ == '__main__':
    main()

进入输出路径创建readme.txt文件，输入要求的内容：

训练框架：PaddlePaddle

代码运行环境：V100

是否使用GPU：是

单张图片耗时/s：1

模型大小：45

其他说明：算法参考UNet+++

# %cd /home/aistudio/work/outputs/Unet3p
# !zip result.zip *.jpg *.txt

🐅4 项目总结

• 项目实现了一套简单的训练模板。

• 项目基于文档阴影消除任务创建，提交结果为0.59951

欢迎大家在该基础上修改自己的算法！

---

注意：模型没调参，仅保证模板正常使用，需要更高精度可以在项目下留言，关注人多的话会再更新。

---

有任何问题，欢迎评论区留言交流。
