HDLBits练习 105-106 Counters

105 countbcd

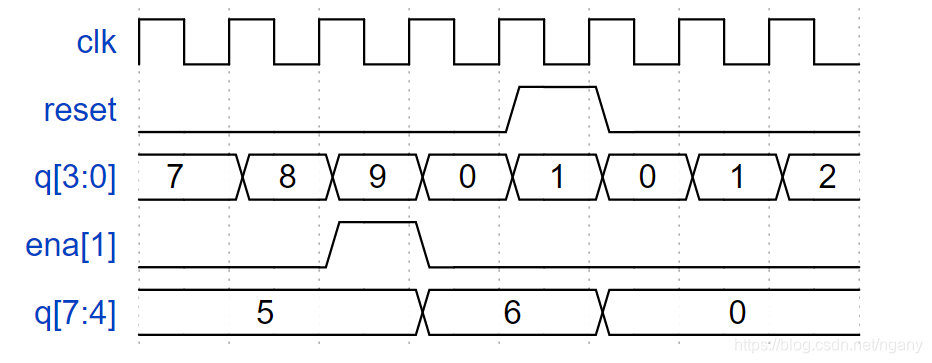

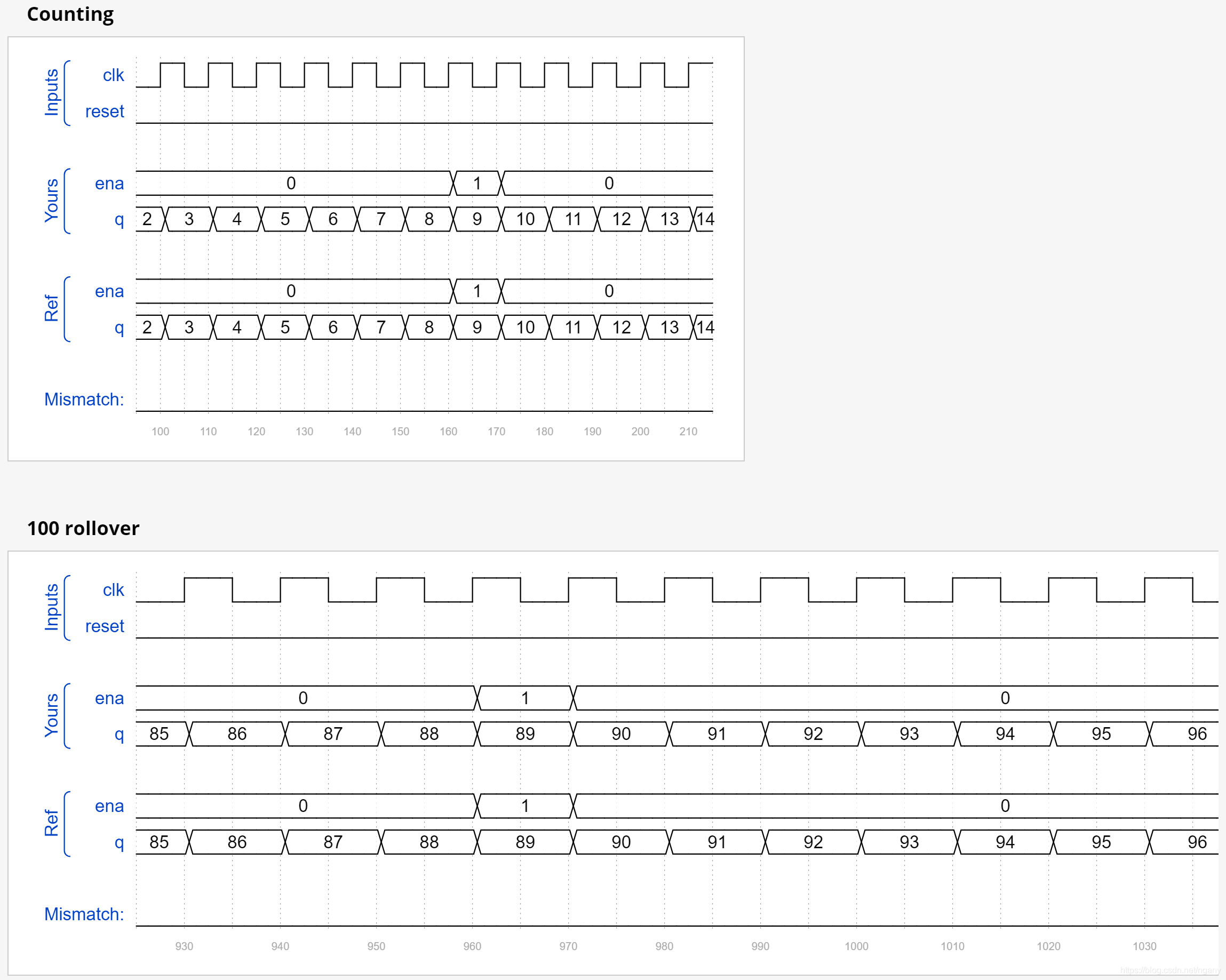

Build a 4-digit BCD (binary-coded decimal) counter. Each decimal digit is encoded using 4 bits: q[3:0] is the ones digit, q[7:4] is the tens digit, etc. For digits [3:1], also output an enable signal indicating when each of the upper three digits should be incremented.

You may want to instantiate or modify some one-digit decade counters.

module top_module (
    input clk,
    input reset,   // Synchronous active-high reset
    output [3:1] ena,
    output [15:0] q);

    BCD_counter u0
    (
        .clk		(clk),
        .reset		(reset),
        .enable		(1),
        .q			(q[3:0])
    );

    BCD_counter u1
    (
        .clk		(clk),
        .reset		(reset),
        .enable		(ena[1]),
        .q			(q[7:4])
    );

    BCD_counter u2
    (
        .clk		(clk),
        .reset		(reset),
        .enable		(ena[2]),
        .q			(q[11:8])
    );

    BCD_counter u3
    (
        .clk		(clk),
        .reset		(reset),
        .enable		(ena[3]),
        .q			(q[15:12])
    );

    assign ena[1] = (q[3:0] == 9);
    assign ena[2] = ((q[7:4] == 9)&(q[3:0] == 9));
    assign ena[3] = ((q[11:8] == 9)&(q[7:4] == 9)&(q[3:0] == 9));

endmodule



module BCD_counter(
    input clk,
    input reset,        // Synchronous active-high reset
    input enable,
    output [3:0] q);
    always@(posedge clk)
        begin
            if(reset)
                q<= 0;
            else
                begin
                    if(enable)
                        begin
                            if(q<4'd9)
                                q<=q+4'd1;
                            else
                                q<=4'd0;
                    	end
                end
        end
endmodule



106 count_clock

Create a set of counters suitable for use as a 12-hour clock (with am/pm indicator). Your counters are clocked by a fast-running clk, with a pulse on ena whenever your clock should increment (i.e., once per second).

reset resets the clock to 12:00 AM. pm is 0 for AM and 1 for PM. hh, mm, and ss are two BCD (Binary-Coded Decimal) digits each for hours (01-12), minutes (00-59), and seconds (00-59). Reset has higher priority than enable, and can occur even when not enabled.

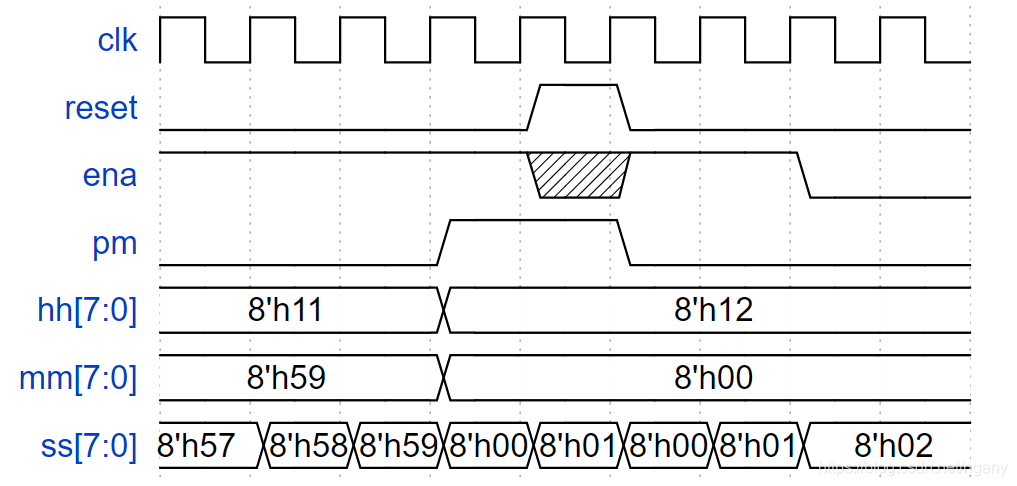

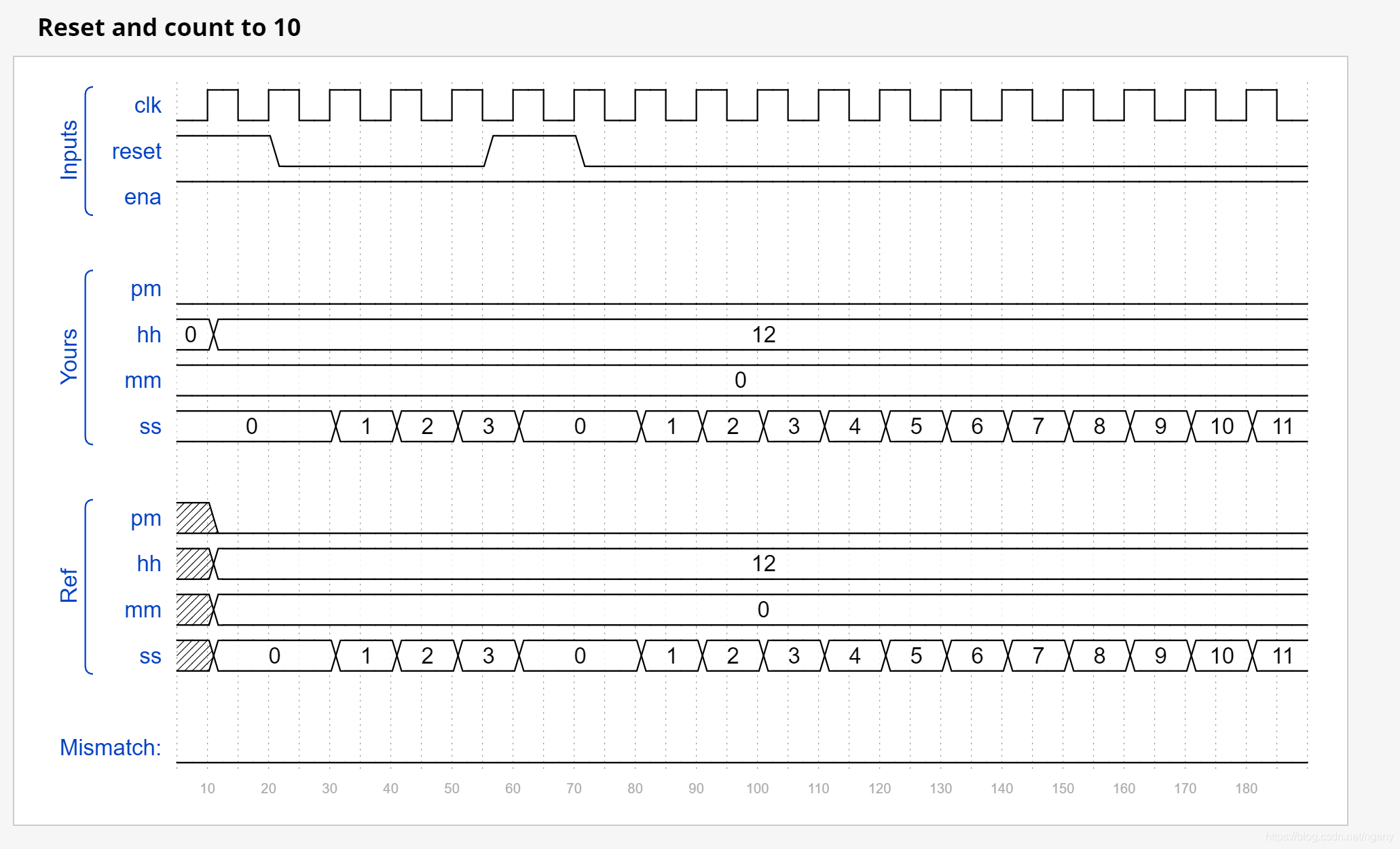

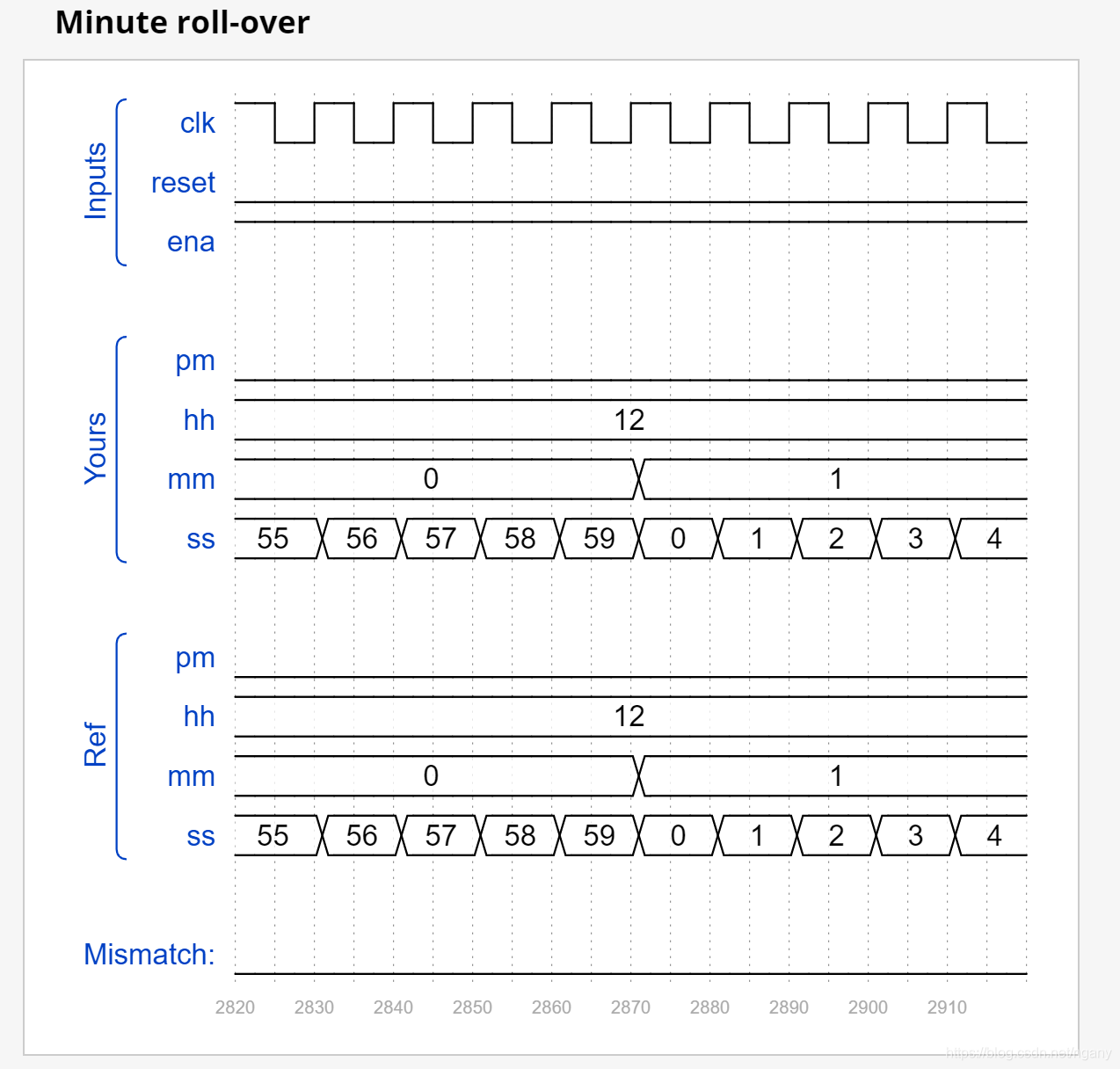

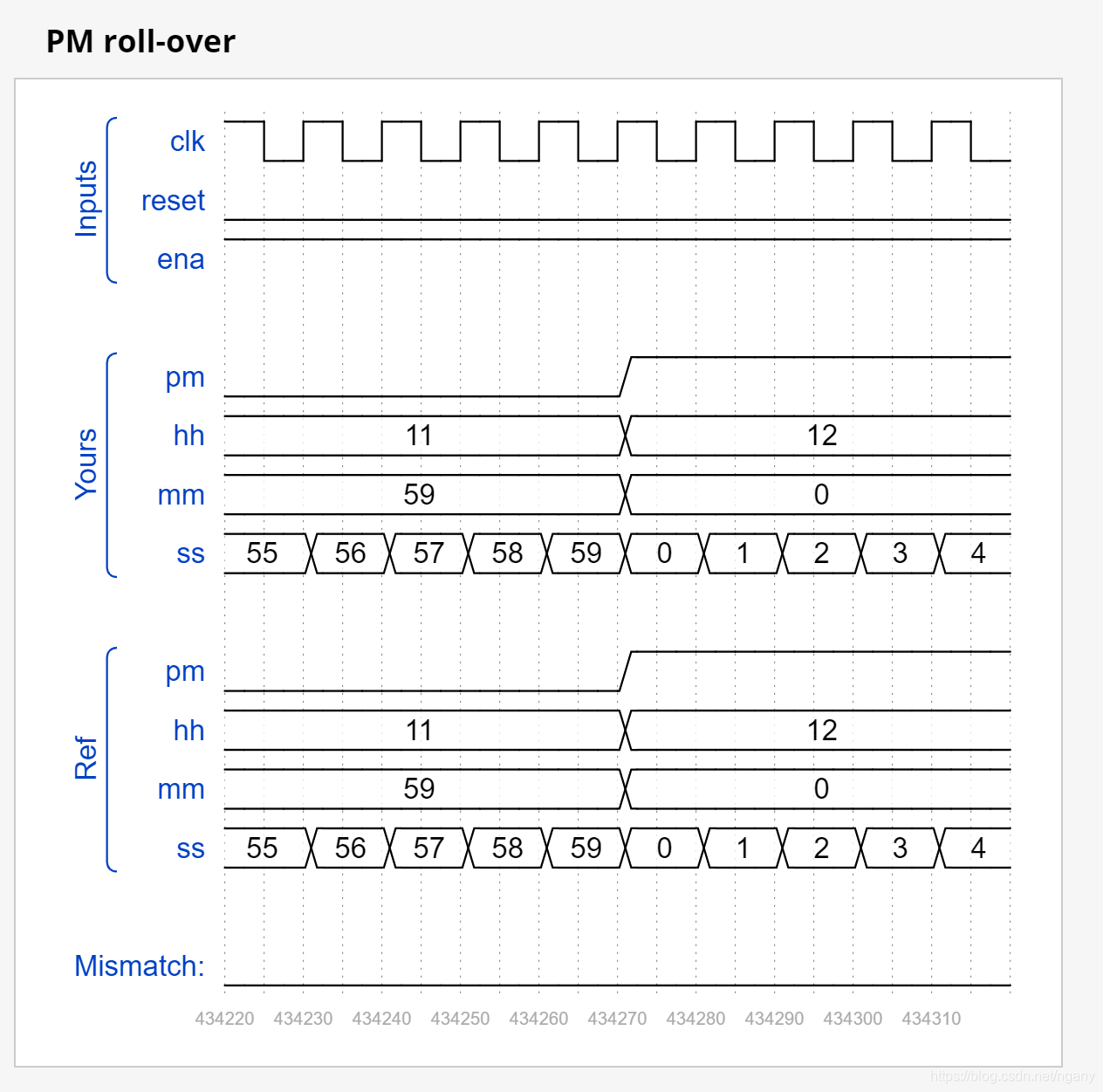

The following timing diagram shows the rollover behaviour from 11:59:59 AM to 12:00:00 PM and the synchronous reset and enable behaviour.

 Hint...

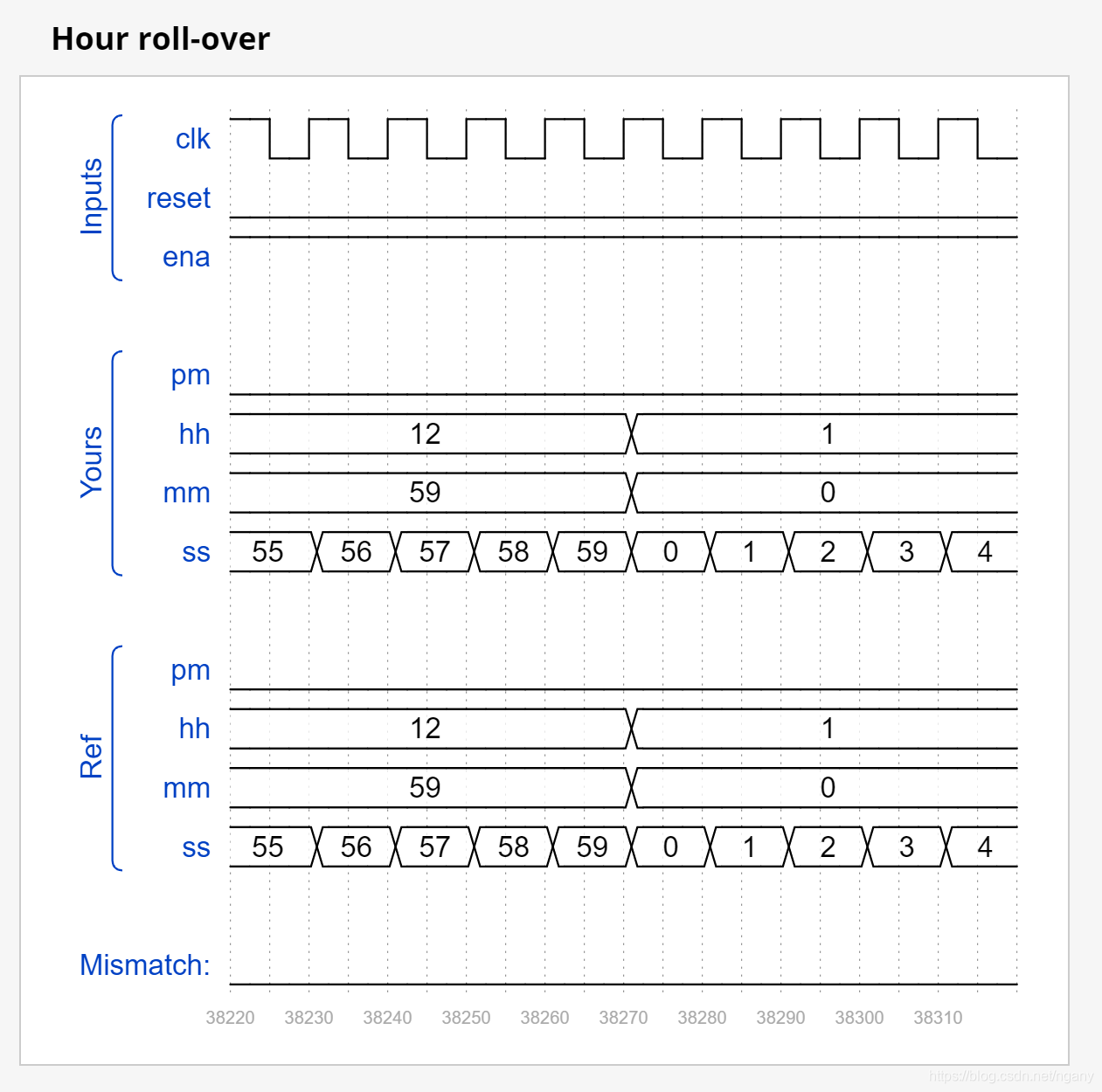

Note that 11:59:59 PM advances to 12:00:00 AM, and 12:59:59 PM advances to 01:00:00 PM. There is no 00:00:00.

module top_module(
    input clk,
    input reset,
    input ena,
    output pm,
    output [7:0] hh,
    output [7:0] mm,
    output [7:0] ss);

    wire reset_ss,reset_mm,reset_hh;
    wire enable_ss,enable_mm,enable_hh;
    assign reset_ss = reset;
    assign reset_mm = reset;
    assign reset_hh = reset;
    assign enable_ss = ena;
    assign enable_mm = (ss == {4'd5,4'd9})&ena;
    assign enable_hh = (ss == {4'd5,4'd9})&(mm == {4'd5,4'd9})&ena;

    wire [7:0]d_hh;
    assign d_hh = (reset)?{4'd1,4'd2}:{8'd1};

    always@(posedge clk)
        begin
            if(reset)
        		pm <= 0;
            else if((ss == {4'd5,4'd9})&(mm == {4'd5,4'd9})&(hh=={4'd1,4'd1}))
                pm <= ~pm;
            else
                pm<=pm;
        end

    BCD_counter_8bits u0_ss
    (
        .clk(clk),
        .reset(reset_ss),
        .enable(enable_ss),
        .d(0),
        .max({4'd5,4'd9}),
        .q(ss)
    );

    BCD_counter_8bits u1_mm
    (
        .clk(clk),
        .reset(reset_mm),
        .enable(enable_mm),
        .d(0),
        .max({4'd5,4'd9}),
        .q(mm)
    );

    BCD_counter_8bits u2_hh
    (
        .clk(clk),
        .reset(reset_hh),
        .enable(enable_hh),
        .d(d_hh),
        .max({4'd1,4'd2}),
        .q(hh)
    );

endmodule


module BCD_counter_8bits(
	input clk,
    input reset,
    input enable,
    input [7:0]d,
    input [7:0]max,
    output [7:0]q
);
    always@(posedge clk)
        begin
            if(reset)
                q<=d;
            else
                begin
                    if(enable)
                        begin
                            if(q==max)
                                q=d;
                            else if(q[3:0]==4'd9)begin
                                q[7:4] <= q[7:4]+1'd1;
                                q[3:0] <= 4'd0;
                            end
                            else
                                begin
                                    q[3:0]<=q[3:0]+1'd1;
                                end
                        end
                end
        end

endmodule
