球几何体(2)-构造完整球

球几何体(2)-构造完整球

接上一篇,球几何体(1)-制作1/8圆

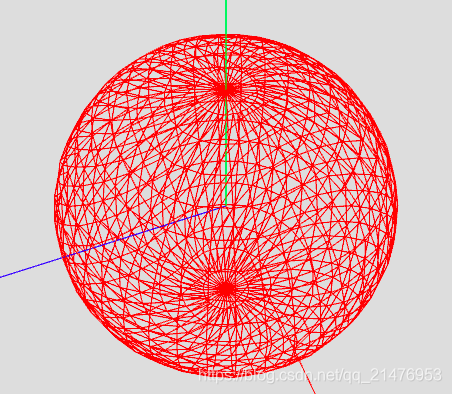

最终效果:

将其他1/8圆补全即可。

export default class SphereGeometry extends THREE.BufferGeometry {
  constructor(radius,) {
    super()
    window.lm = this
    this.parameters = {
      radiusSegments: 10
    }

    this.indices = []
		this.rs1 = this.parameters.radiusSegments + 1
    this.cornerVertNumber = this.rs1 * this.parameters.radiusSegments + 1
    this.lastVertex = this.rs1 * this.parameters.radiusSegments
		this.totalVertexCount = (this.rs1 * this.parameters.radiusSegments + 1) << 3;

		let positions = new THREE.BufferAttribute( new Float32Array( this.totalVertexCount * 3 ), 3 );
		this.vertexPool = []
		// [0~-90],[90~180],[180~270],[270~360]
		this.getVer({yy:1,ii:0})
		this.doCorners(0)

			this.getVer({yy:1,ii:1})
		this.doCorners(1)

		this.getVer({yy:1,ii:2})
		this.doCorners(2)

			this.getVer({yy:1,ii:3})
		this.doCorners(3)

		this.getVer({yy:-1,ii:0})
		this.doCorners(4)

			this.getVer({yy:-1,ii:1})
		this.doCorners(5)

			this.getVer({yy:-1,ii:2})
		this.doCorners(6)

		this.getVer({yy:-1,ii:3})
    this.doCorners(7)

    // this.vertexPool = vertexPool
    for (var i = 0; i < this.vertexPool.length; i++){
			positions.setXYZ(
				i,
        this.vertexPool[i].x ,
        this.vertexPool[i].y ,
        this.vertexPool[i].z
			);
		}

    this.setIndex(new THREE.BufferAttribute(new Uint16Array(this.indices), 1));
    this.setAttribute('position', positions);
  }

  doCorners(i) {
    const { radiusSegments } = this.parameters
    const { rs1 ,indices,lastVertex} = this
		var cornerOffset = this.cornerVertNumber * i;

		var lastRowOffset = rs1 * ( radiusSegments - 1 );

		// 每次循环产生一行的顶点索引
		for (var v = 0; v < radiusSegments - 1; v++){
			var r1 = v * rs1; 		//row offset
			var r2 = (v + 1) * rs1; //next row

			// 每次循环产生2个三角形,6个顶点索引
			for (var u = 0; u < radiusSegments; u++){

				var u1 = u + 1;
				var a = cornerOffset+r1 + u;
				var b = cornerOffset+r1 + u1;
				var c = cornerOffset+r2 + u;
				var d = cornerOffset+r2 + u1;
				// console.error(a);

				indices.push( a );
				indices.push( c );
				indices.push( b );

				indices.push( b );
				indices.push( c );
				indices.push(d);
			}
		}

		// 最后最上面一行的三角形
		for (var u = 0; u < radiusSegments; u++){
			// console.error(89);

			var a = cornerOffset+lastRowOffset + u;
			var b = cornerOffset+lastRowOffset + u + 1;
			var c = cornerOffset+lastVertex;
			indices.push( a );
			indices.push( c );
			indices.push( b );
		}
  }

	getVer({yy,ii}) {
    let vertex = new THREE.Vector3()
    const radius = 1
    const { radiusSegments } = this.parameters
    var PIhalf = Math.PI / 2;
		let { vertexPool } = this

		// 每次循环产生一行的顶点
    for (var y = 0; y <= radiusSegments; y++) {
			var v = y / radiusSegments;
			// φ
      var va = v * PIhalf; //arrange in 90 deg
      var cosVa = Math.cos(va); //scale of vertical angle
			var sinVa = Math.sin(va);

			// 最后一个点
      if (y == radiusSegments) {
        vertex.set(0, 1*yy, 0);
        var vert = vertex.clone().multiplyScalar(radius)
        vertexPool.push( vert );
        continue; //skip row loop
      }

			// 每次循环产生一个顶点
			for (var x = 0; x <= radiusSegments; x++) {
				// θ
				var u = x / radiusSegments;
				var ha = u * PIhalf + ii * PIhalf;

				//make 1/8 sphere points
				vertex.x = cosVa * Math.cos( ha );
				vertex.y = sinVa*yy;
        vertex.z = cosVa * Math.sin(ha);

        vertex.x = +vertex.x.toFixed(2)
        vertex.y = +vertex.y.toFixed(2)
        vertex.z = +vertex.z.toFixed(2)

				var vert = vertex.clone()
				vertexPool.push( vert );
			}
    }

    return vertexPool
  }
}
