Linux x86-64 IOMMU详解(五)——Intel IOMMU初始化流程

整体流程图

长图预警!!!

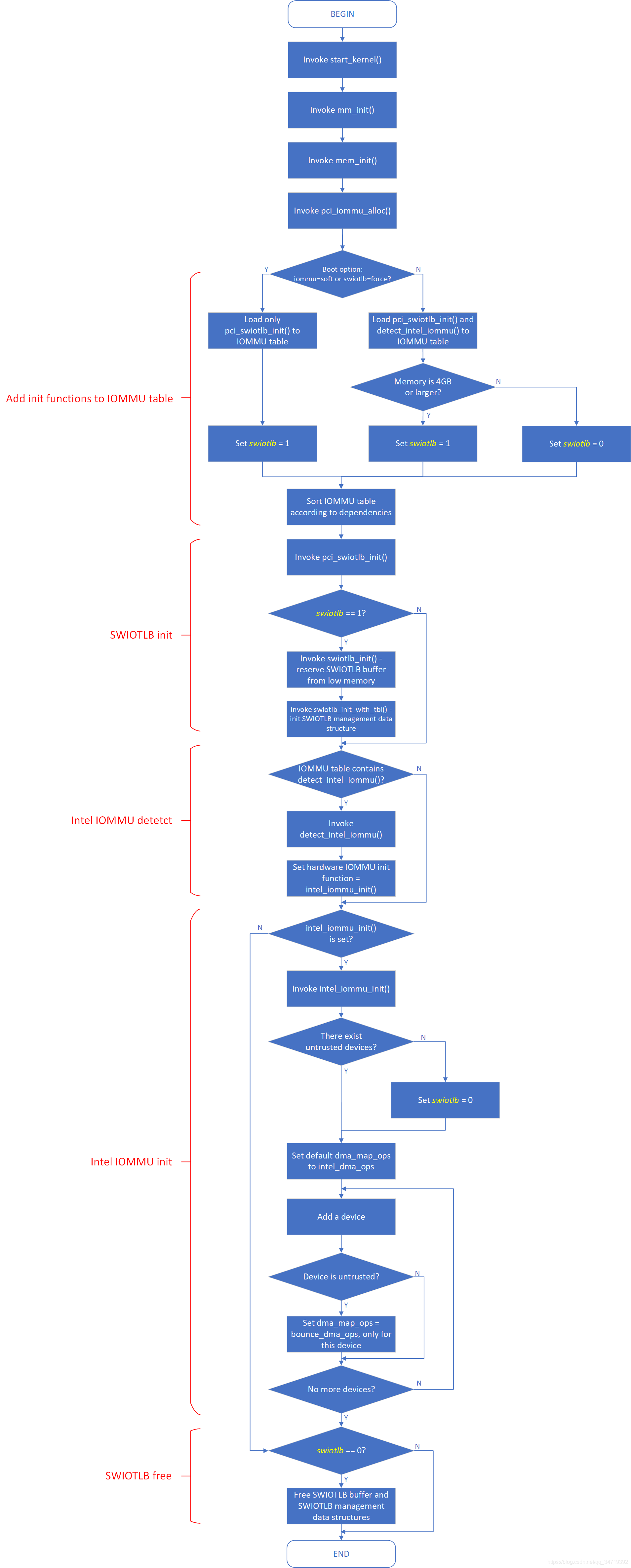

下图完整展示了Intel IOMMU的初始化流程,是对本文所有内容的总结。只要看懂这张图,读者就能够完全理解Intel IOMMU的初始化流程。
接下来,笔者将按流程图的顺序,结合代码,介绍Intel IOMMU初始化流程的一些关键步骤。图中部分细节,本文可能并未提到,读者可结合代码自行理解。

在这里插入图片描述

Intel IOMMU初始化前的准备工作

函数调用树

start_kernel ->
	mm_init ->
		mem_init ->
			pci_iommu_alloc ->
				pci_swiotlb_init ->
					swiotlb_init
				detect_intel_iommu

其中的核心函数是pci_iommu_alloc()。

pci_iommu_alloc()

下面展示该函数的代码。其中,for循环内被注释的部分是原始代码,而为了调试方便,笔者对代码略作改动,在不改变其逻辑的前提下,输出一些关键信息。注:printk()函数中的格式控制字符串"%ps",能够输出函数指针所指向的函数名的字符串。

void __init pci_iommu_alloc(void)
{
        struct iommu_table_entry *p;

        sort_iommu_table(__iommu_table, __iommu_table_end);
        check_iommu_entries(__iommu_table, __iommu_table_end);

        for (p = __iommu_table; p < __iommu_table_end; p++) {
                /*
                if (p && p->detect && p->detect() > 0) {
                        p->flags |= IOMMU_DETECTED;

                        if (p->early_init)
                                p->early_init();
                        if (p->flags & IOMMU_FINISH_IF_DETECTED)
                                break;
                }
                */
                if (p && p->detect) {
                        int p_detect_ret = p->detect();
                        printk("[sh-debug] In pci_iommu_alloc(), p is %ps(); p->detect is %ps(); %ps() returns %d.",
                                        p, p->detect, p->detect, p_detect_ret);

                        if (p_detect_ret > 0) {
                                p->flags |= IOMMU_DETECTED;

                                printk("[sh-debug] In pci_iommu_alloc(), p->early_init is %ps().", p->early_init);
                                if (p->early_init)
                                        p->early_init();
                                if (p->flags & IOMMU_FINISH_IF_DETECTED)
                                        break;
                        }
                }
        }
}

首先看for循环之前的代码。在执行pci_iommu_alloc()之前,内核已经通过汇编指令,将IOMMU相关的启动函数,加载到IOMMU Table中。
那么,IOMMU Table中到底有哪些启动函数呢?
根据上一篇文章所述,为了启用Intel IOMMU,我们进行了如下配置:
在.config文件中:

CONFIG_INTEL_IOMMU=y

在启动参数文件中:

iommu=force intel_iommu=on

基于如上配置,编译并重启内核后,使用dmesg过滤输出信息:

dmesg | grep "pci_iommu_alloc"

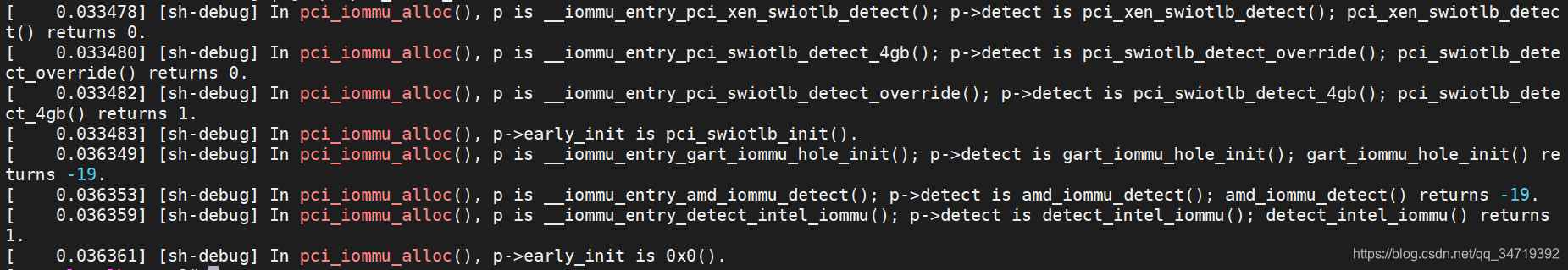

结果如下:
在这里插入图片描述

在pci_iommu_alloc()代码的for循环中,p每次指向一个IOMMU table entry,而每个entry包含detect和early_init两个函数指针(其实还有第三个函数指针,late_init,在本文末尾介绍pci_iommu_init()函数时会涉及到)。pci_iommu_alloc()会先调用p->detect,只有当该函数返回值大于0时,才会调用p->early_init。
那么,哪些detect函数的返回值是正数,从而会调用对应的early_init函数呢?在上图中,只有两个。

  1. p->detect = pci_swiotlb_detect_4gb。该detect函数返回1,之后调用对应的early_init函数,pci_swiotlb_init(),用于初始化SWIOTLB。
  2. p->detect = detect_intel_iommu。该detect函数返回1,但并没有对应的early_init函数(看截图最后一行,p->early_init is 0x0)。

看到这里,读者想必会有两个疑问:

  1. 我们不是已经在启动参数中指定使用Intel IOMMU了吗?按照之前文章的说法,Intel IOMMU与SWIOTLB不能共存。那么这里为什么还会初始化SWIOTLB?
  2. 既然detect_intel_iommu()没有对应的early_init函数,那么Intel IOMMU的初始化函数,是如何被调用的呢?

对于这两个疑问,接下来我们逐一解答。

为什么会初始化SWIOTLB

对于第一个问题,我们需要看SWIOTLB的detect函数——pci_swiotlb_detect_4gb()代码。

/*
 * If 4GB or more detected (and iommu=off not set) or if SME is active
 * then set swiotlb to 1 and return 1.
 */
int __init pci_swiotlb_detect_4gb(void)
{
        /* don't initialize swiotlb if iommu=off (no_iommu=1) */
        if (!no_iommu && max_possible_pfn > MAX_DMA32_PFN)
                swiotlb = 1;

        /*
         * If SME is active then swiotlb will be set to 1 so that bounce
         * buffers are allocated and used for devices that do not support
         * the addressing range required for the encryption mask.
         */
        if (sme_active())
                swiotlb = 1;

        return swiotlb;
}

需要说明的是,在上述代码中,swiotlb是一个全局变量,它决定了SWIOTLB是否被初始化。相关代码很简单:

void __init pci_swiotlb_init(void)
{
        if (swiotlb)
                swiotlb_init(0);
}

可见,只有swiotlb = 1时,SWIOTLB初始化函数swiotlb_init()才会被调用——这个函数在本系列第二篇中进行过详细介绍。在调用pci_swiotlb_init()之前,有若干函数可能会将swiotlb的值置为1,上面提到的pci_swiotlb_detect_4gb()便是其中之一。
我们只需关注pci_swiotlb_detect_4gb()的第一个if语句:

if (!no_iommu && max_possible_pfn > MAX_DMA32_PFN)
        swiotlb = 1;

对于第一个子条件,顾名思义,!no_iommu显然为true(我们已经启用了Intel IOMMU,显然不是No IOMMU)。重点解释一下第二个子条件。MAX_DMA32_PFN是32位设备能够寻址到的最大页数。所以,如果“物理内存中的页数 > MAX_DMA32_PFN”,则将swiotlb置为1。
对于条件“物理内存中的页数 > MAX_DMA32_PFN”,我们把不等式两边同时乘以PAGE_SIZE(页的大小),这个条件实际上等价于:“物理内存 > 32位设备能够寻址的最大内存”。
而我们知道,32位设备能够寻址的最大内存为232 = 4GB。因此,这个判断条件最终转换为:
“物理内存 > 4GB”
现在就非常明确了:如果物理内存大于4GB,那么pci_swiotlb_detect_4gb()就会将swiotlb置为1,从而导致后续swiotlb_init()被调用,以初始化SWIOTLB。

笔者用free命令查看自己机器的可用物理内存,确实大于4GB。

free -h

在这里插入图片描述

作为对比测试,我们在启动参数中,新增一项"mem=1G",将可用物理内存限制为1GB。

iommu=force intel_iommu=on mem=1G

重启内核,首先用:

free -h

确认可用物理内存确实为1GB。

在这里插入图片描述

而后用:

dmesg | grep "pci_iommu_alloc"

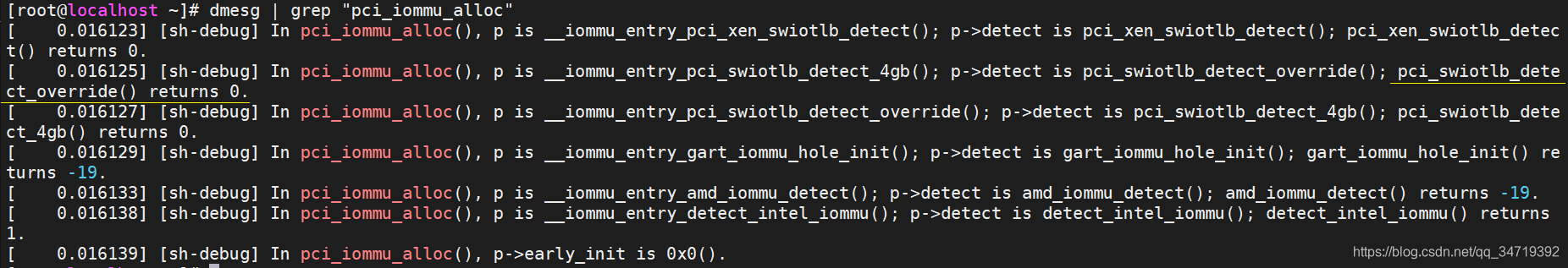

查看内核日志,如下图所示。
在这里插入图片描述

这次我们可以看到,在可用内存不大于4GB时,detect函数pci_swiotlb_detect_4gb()返回值是0,从而不会调用early_init函数pci_swiotlb_init(),因而不会初始化SWIOTLB。

Intel IOMMU的初始化函数是如何被调用的

现在解答第二个疑问。
虽然detect函数detect_intel_iommu()对应的early_init函数是空函数,不过,detect_intel_iommu()函数会将x86_init.iommu.iommu_init设置为intel_iommu_init,后者正是Intel IOMMU的初始化函数。

int __init detect_intel_iommu(void)
{
        int ret;
        /* ...... */
#ifdef CONFIG_X86
        if (!ret) {
                /* 设置iommu_init函数为intel_iommu_init */
                x86_init.iommu.iommu_init = intel_iommu_init;
                x86_platform.iommu_shutdown = intel_iommu_shutdown;
        }

#endif

        /* ...... */
        return ret ? ret : 1;
}

那么,intel_iommu_init()何时会被调用呢?相关的调用流程如下:

kernel_init ->
	kernel_init_freeable ->
		do_one_initcall ->
			pci_iommu_init ->
				x86_init.iommu.iommu_init	/* i.e. intel_iommu_init */

以下展示pci_iommu_init()的代码。此处调用x86_init.iommu.iommu_init(),实际上就是调用intel_iommu_init()。

static int __init pci_iommu_init(void)
{
        struct iommu_table_entry *p;

        x86_init.iommu.iommu_init();

        for (p = __iommu_table; p < __iommu_table_end; p++) {
                if (p && (p->flags & IOMMU_DETECTED) && p->late_init)
                        p->late_init();
        }

        return 0;
}

不能共存?

讲到这里,细心的读者会发现,笔者还是没有回答“Intel IOMMU与SWIOTLB不能共存”这一疑问——根据上述分析,如果物理内存大于4GB,那么SWIOTLB就会被初始化;而根据我们配置的启动参数,Intel IOMMU也会被初始化。既然二者都被初始化,那它们不就共存了吗?
这时,我们就要引用一句古话:“一山难容二虎”。聪明的读者应该能立即理解此言的含义。不理解也没关系,请看后续章节的分析。

intel_iommu_init()的主要工作

intel_iommu_init()是Intel IOMMU的初始化函数,其主要的函数调用树如下:

intel_iommu_init ->
	init_dmars ->
		init g_iommus
		intel_iommu_enable_qi ->
			dmar_enable_qi
		iommu_init_domains
		iommu_alloc_root_entry
	SET swiotlb = 0

这个函数完成了Intel IOMMU所必需数据结构的初始化工作,本文对此不展开介绍。重点关注最后一行:“SET swiotlb = 0”。这不是一个函数名,而只是一个行为:将全局变量swiotlb置为0。以下展示相关代码,非常简单:

int __init intel_iommu_init(void)
{
	/* ...... */
#if defined(CONFIG_X86) && defined(CONFIG_SWIOTLB)
        /*
         * If the system has no untrusted device or the user has decided
         * to disable the bounce page mechanisms, we don't need swiotlb.
         * Mark this and the pre-allocated bounce pages will be released
         * later.
         */
        if (!has_untrusted_dev() || intel_no_bounce)
                swiotlb = 0;
#endif
	/* ...... */
}

我们看到,如果.config文件中CONFIG_X86和CONFIG_SWIOTLB都为y(在我们的实验机器上确实如此),那么这个if判断就会执行。结合代码与注释,可以得知:如果系统没有检测到不可信设备(untrusted device),或者全局变量intel_no_bounce为1,那么swiotlb就会被置为0。
那么,这两个条件是否成立呢?
一般情况下,系统并不会加载不可信设备。在我们的实验机器上也是如此。因此,第一个条件是成立的。由于这个if语句是条件或,所以直接返回true,"swiotlb = 0"会被执行。
至于intel_no_bounce,我们也顺带介绍一下。它是一个全局变量,默认值为0,代表Intel IOMMU会用到bounce buffer(就是先前文章提到的SWIOTLB bounce机制)。除非在启动参数中进行如下配置,才会将其置为1,代表禁用bounce buffer机制:

intel_iommu=nobounce

我们并没有进行如此配置,所以它等于默认值0。因此,如果对第二个条件进行判断,那么会返回false——当然,根据if语句的短路原则,在第一个条件返回true的情况下,第二个条件根本不会进行判断。

释放已分配的SWIOTLB Buffer和SWIOTLB管理数据结构

是时候水到渠成地解释“一山难容二虎”的含义了。
上一节我们讲到,一般情况下,Intel IOMMU初始化过程中,也就是函数intel_iommu_init()函数体内,会将全局变量swiotlb置为0。前面我们已经介绍过swiotlb的作用——如果它为0,那么内核后续就不会调用swiotlb_init(),从而不会初始化SWIOTLB。可是,假如内存大于4GB,那么现在SWIOTLB都已经初始化完成,此时再将swiotlb置为0,岂不是为时已晚?

答案就在如下函数调用流程中。

pci_iommu_init ->
	intel_iommu_init	/* SET swiotlb = 0 */
	pci_swiotlb_late_init ->	/* If swiotlb == 0, invoke swiotlb_exit() */
		swiotlb_exit

再次看pci_iommu_init()函数代码:

static int __init pci_iommu_init(void)
{
        struct iommu_table_entry *p;

        x86_init.iommu.iommu_init();

        for (p = __iommu_table; p < __iommu_table_end; p++) {
                if (p && (p->flags & IOMMU_DETECTED) && p->late_init)
                        p->late_init();
        }

        return 0;
}

该函数在for循环中,会遍历IOMMU table entry,调用对应的p->late_init函数。SWIOTLB对应的late_init函数为pci_swiotlb_late_init(),其代码如下:

void __init pci_swiotlb_late_init(void)
{
	/* An IOMMU turned us off. */
	if (!swiotlb)
		swiotlb_exit();
	else {
		printk(KERN_INFO "PCI-DMA: "
		       "Using software bounce buffering for IO (SWIOTLB)\n");
		swiotlb_print_info();
	}
}

很明显,当swiotlb为0时,函数swiotlb_exit()将会被调用。以下展示swiotlb_exit()的代码,它释放了已分配的SWIOTLB Buffer和所有SWIOTLB管理数据结构。

void __init swiotlb_exit(void)
{
	if (!io_tlb_orig_addr)
		return;

	if (late_alloc) {
		free_pages((unsigned long)io_tlb_orig_addr,
			   get_order(io_tlb_nslabs * sizeof(phys_addr_t)));
		free_pages((unsigned long)io_tlb_list, get_order(io_tlb_nslabs *
								 sizeof(int)));
		free_pages((unsigned long)phys_to_virt(io_tlb_start),
			   get_order(io_tlb_nslabs << IO_TLB_SHIFT));
	} else {
		memblock_free_late(__pa(io_tlb_orig_addr),
				   PAGE_ALIGN(io_tlb_nslabs * sizeof(phys_addr_t)));
		memblock_free_late(__pa(io_tlb_list),
				   PAGE_ALIGN(io_tlb_nslabs * sizeof(int)));
		memblock_free_late(io_tlb_start,
				   PAGE_ALIGN(io_tlb_nslabs << IO_TLB_SHIFT));
	}
	swiotlb_cleanup();
}

如此,SWIOTLB便不复存在,只剩下Intel IOMMU。
