Binomial Distribution

原创已于 2023-08-04 10:42:55 修改 · 66 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#算法 #c# #开发语言

于 2023-08-04 10:39:06 首次发布

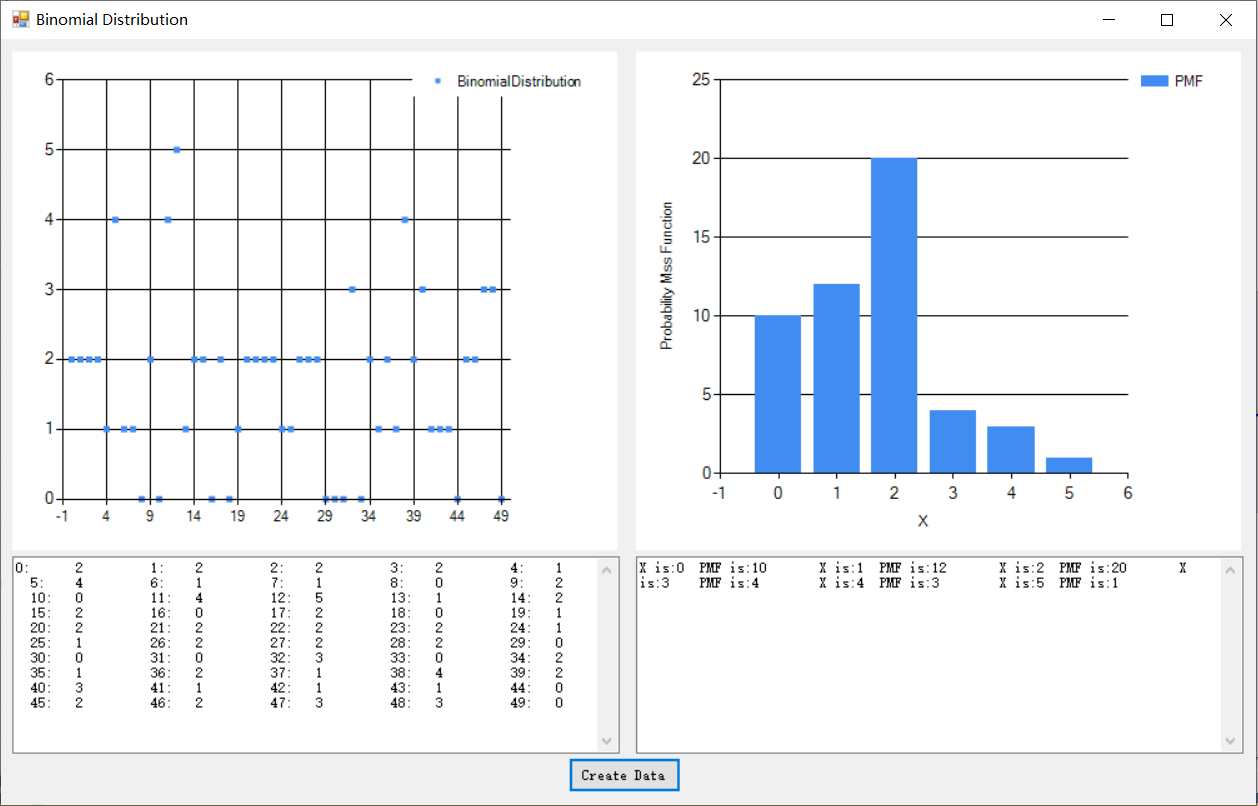

本文介绍了如何在C#中实现二项式分布的随机数生成，包括生成(0,1)区间随机数以及计算概率质量函数(PMF)。通过代码展示了如何绘制二项式分布散点图和PMF图表，用于数据分析和理解。

using System;
using System.Drawing;
using System.Windows.Forms;
using System.Windows.Markup;

namespace BinomialDistribution
{
    public partial class BinomialFrom : Form
    {   //Binomial distribution is discrete,
        //Widely used in (0,1) probability distribution analysis

        //generate(0,1)interval random number
        Random rd = new Random(Guid.NewGuid().GetHashCode());
        //double uniform(double double int*)
        public BinomialFrom()
        {
            InitializeComponent();
        }
        int bin(int n,double p){
            int r = 0;
            for(int i = 0; i < n;i++) r += bern(p);
            return r;
        }
        int bern(double p) //bernoulli function
        { //
            int t; double r;
            r = rd.NextDouble();
            t =(r<=p)? 0 : 1;
            return t;
        }
        private void btCreateData_Click(object sender, EventArgs e)
        {
            int r, n=5; double p = 0.7; //binomial parameter
            double[] value = new double[50];

            for (int i = 0; i < value.Length; i++){
                value[i] = 0.0;
            }
            tbPointData.Clear();
            tbDensityData.Clear();
            foreach (var series in chart_PointDistribute.Series){
                series.Points.Clear();
            }
            foreach (var series in chart_MakeCurve.Series){
                series.Points.Clear();
            }
            //Binomial scatter diagram
            for (int i = 0; i < 10; i++){
                for (int j = 0; j < 5; j++){
                    r=bin(n,p);
                    value[i * 5 + j] = r;
                    this.chart_PointDistribute.Series[0].Points.AddXY(i * 5 + j, r);
                    tbPointData.AppendText((i * 5 + j).ToString() + ": \t" + r.ToString() + "\t\n  ");
                }
            }
            //PMF probability mass function
            int[] pmf = new int[6];
            for (int i = 0; i < 50; i++){
                for (int j = 0; j <= 5; j++){
                    if (j == value[i]) pmf[j] += 1;
                }
            }
            //make PMF diagram
            for (int i = 0;i <=5; i++){
                this.chart_MakeCurve.Series[0].Points.AddXY(i, pmf[i]);
            }
            for (int i = 0; i <= 5; i++){
                tbDensityData.AppendText("X is:" + i.ToString("f0") + "\t" + "PMF is:" + pmf[i].ToString() + "\t\n");
            }
        }
    }
}
