本文通过使用Gaussian Mixture Model (GMM)进行参数调优，对比了不同方差类型下模型的错误率和Bayesian Information Criterion (BIC)，并展示了如何选择最优的covariance_type来提高模型性能。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

# !/usr/bin/python
# -*- coding:utf-8 -*-

import numpy as np
from sklearn.mixture import GaussianMixture
import matplotlib as mpl
import matplotlib.colors
import matplotlib.pyplot as plt

mpl.rcParams['font.sans-serif'] = [u'SimHei']
mpl.rcParams['axes.unicode_minus'] = False


def expand(a, b, rate=0.05):
    d = (b - a) * rate
    return a-d, b+d


def accuracy_rate(y1, y2):
    acc = np.mean(y1 == y2)
    return acc if acc > 0.5 else 1-acc


if __name__ == '__main__':
    np.random.seed(0)
    cov1 = np.diag((1, 2))
    N1 = 500
    N2 = 300
    N = N1 + N2
    x1 = np.random.multivariate_normal(mean=(1, 2), cov=cov1, size=N1)
    m = np.array(((1, 1), (1, 3)))
    x1 = x1.dot(m)
    x2 = np.random.multivariate_normal(mean=(-1, 10), cov=cov1, size=N2)
    x = np.vstack((x1, x2))
    y = np.array([0]*N1 + [1]*N2)

    types = ('spherical', 'diag', 'tied', 'full')
    err = np.empty(len(types))
    bic = np.empty(len(types))
    for i, type in enumerate(types):
        gmm = GaussianMixture(n_components=2, covariance_type=type, random_state=0)
        gmm.fit(x)
        err[i] = 1 - accuracy_rate(gmm.predict(x), y)
        bic[i] = gmm.bic(x)
    print '错误率：', err.ravel()
    print 'BIC：', bic.ravel()
    xpos = np.arange(4)
    ax = plt.axes()
    b1 = ax.bar(xpos-0.3, err, width=0.3, color='#77E0A0')
    b2 = ax.twinx().bar(xpos, bic, width=0.3, color='#FF8080')
    plt.grid(True)
    bic_min, bic_max = expand(bic.min(), bic.max())
    plt.ylim((bic_min, bic_max))
    plt.xticks(xpos, types)
    plt.legend([b1[0], b2[0]], (u'错误率', u'BIC'))
    plt.title(u'不同方差类型的误差率和BIC', fontsize=18)
    plt.show()

    optimal = bic.argmin()
    gmm = GaussianMixture(n_components=2, covariance_type=types[optimal], random_state=0)
    gmm.fit(x)

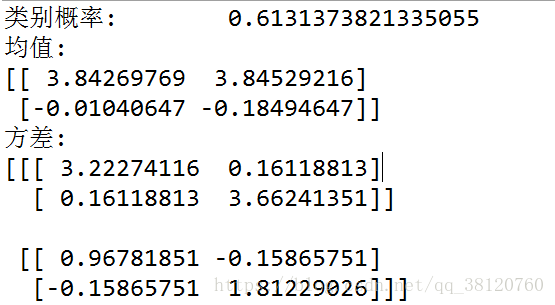

    print '均值 = \n', gmm.means_
    print '方差 = \n', gmm.covariances_
    y_hat = gmm.predict(x)

    cm_light = mpl.colors.ListedColormap(['#FF8080', '#77E0A0'])
    cm_dark = mpl.colors.ListedColormap(['r', 'g'])
    x1_min, x1_max = x[:, 0].min(), x[:, 0].max()
    x2_min, x2_max = x[:, 1].min(), x[:, 1].max()
    x1_min, x1_max = expand(x1_min, x1_max)
    x2_min, x2_max = expand(x2_min, x2_max)
    x1, x2 = np.mgrid[x1_min:x1_max:500j, x2_min:x2_max:500j]
    grid_test = np.stack((x1.flat, x2.flat), axis=1)
    grid_hat = gmm.predict(grid_test)
    grid_hat = grid_hat.reshape(x1.shape)
    if gmm.means_[0][0] > gmm.means_[1][0]:
        z = grid_hat == 0
        grid_hat[z] = 1
        grid_hat[~z] = 0
    plt.figure(figsize=(9, 7), facecolor='w')
    plt.pcolormesh(x1, x2, grid_hat, cmap=cm_light)
    plt.scatter(x[:, 0], x[:, 1], s=30, c=y, marker='o', cmap=cm_dark, edgecolors='k')

    ax1_min, ax1_max, ax2_min, ax2_max = plt.axis()
    plt.xlim((x1_min, x1_max))
    plt.ylim((x2_min, x2_max))
    plt.title(u'GMM调参：covariance_type=%s' % types[optimal], fontsize=20)
    plt.grid()
    plt.show()
