深度图，亮度图，点云图获取以及深度图转点云图

前言：

        本文中图像采集选取硬件为3D轮廓传感器，也称3D线激光或3D相机，至于其硬件采图原理（三角测量法）这里就不做详细说明，想了解的小伙伴可以去网上搜索相关资料，这里我们着重讲解基于halcon算子，获取深度图，亮度图，以及如何将深度图转换成点云图，并进行显示。

1） 连接外部3D相机后，我们一般需要设置帧/行触发方式，以及图像行高，保证产品扫描的完整性；然后采集过程中，不论使用轮询采集或者图像回调的方式，在图像数据返回的事件中，取得图像的源数据（指针，数组，实例对象，图像信息包括图像格式，行高等），然后通过halcon算子“GenImage1”即可完整数据的转换，最终可输出halcon数据对象hobject表示的图像，下面所示代码即对此做出具体演示

图像轮询线程：

 /// <summary>
 /// 轮询取图流程
 /// </summary>
 private void ReceiveThreadProcess()
 {
     int nRet = (int)Mv3dLpSDK.MV3D_LP_OK;

     STC_DataSet pDataSet = IntPtr.Zero;
     UInt32 nTimeOut = 50;

     while (m_bGrabbing)
     {
         Thread.Sleep(1);
         MV3D_LP_IMAGE_DATA pstImage = new MV3D_LP_IMAGE_DATA();
         nRet = Mv3dLpSDK.MV3D_LP_GetImage(m_DevHandle, pstImage, nTimeOut);
         if (0 == nRet)
         {
             try
             {

                 nRet = DisplayImage(pstImage);//存储原始数据，方便后续获取其他图像
                 GrabFlagEvent?.Invoke((int)Mv3dLpSDK.MV3D_LP_OK == nRet);//原始输出存储完成

                 if ((int)Mv3dLpSDK.MV3D_LP_OK != nRet)
                 {
                     throw new ArgumentException(nRet.ToString());
                 }
             }
             catch
             {
                 Console.WriteLine("ERROR  !\r\n");
             }
         }
         else
         {
             continue;
         }
     }
 }

 图像数据缓存：

 /// <summary>
 /// 图像显示
 /// </summary>
 /// <param name="pstImage"></param>
 /// <returns></returns>
 private int DisplayImage(MV3D_LP_IMAGE_DATA pstImage)
 {
     int nRet = (int)Mv3dLpSDK.MV3D_LP_OK;
     Monitor.Enter(Lock);
     m_stImageInfo.nWidth = pstImage.nWidth;
     m_stImageInfo.nHeight = pstImage.nHeight;
     m_stImageInfo.nDataLen = pstImage.nDataLen;
     m_stImageInfo.nIntensityDataLen = pstImage.nIntensityDataLen;
     m_stImageInfo.enImageType = pstImage.enImageType;
     m_stImageInfo.nFrameNum = pstImage.nFrameNum;
     m_stImageInfo.fXScale = pstImage.fXScale;
     m_stImageInfo.fYScale = pstImage.fYScale;
     m_stImageInfo.fZScale = pstImage.fZScale;
     m_stImageInfo.nXOffset = pstImage.nXOffset;
     m_stImageInfo.nYOffset = pstImage.nYOffset;
     m_stImageInfo.nZOffset = pstImage.nZOffset;
     if (m_nMaxImageSize < pstImage.nDataLen)
     {
         m_pcDataBuf = new byte[pstImage.nDataLen];
         m_nMaxImageSize = pstImage.nDataLen;

     }
     if (m_nMaxImageSize2 < pstImage.nIntensityDataLen)
     {
         m_pcDataBuf2 = new byte[pstImage.nIntensityDataLen];
         m_nMaxImageSize2 = pstImage.nIntensityDataLen;

     }
     m_stImageInfo.pData = Marshal.UnsafeAddrOfPinnedArrayElement(m_pcDataBuf, 0);
     m_stImageInfo.pIntensityData = Marshal.UnsafeAddrOfPinnedArrayElement(m_pcDataBuf2, 0);
     Marshal.Copy(pstImage.pData, m_pcDataBuf, 0, (int)pstImage.nDataLen);
     Marshal.Copy(pstImage.pIntensityData, m_pcDataBuf2, 0, (int)pstImage.nIntensityDataLen);
     Monitor.Exit(Lock);
     //不在此处显示
     //nRet = Mv3dLpSDK.MV3D_LP_DisplayImage(pstImage, m_hWnd, Mv3dLpSDK.DisplayType_Auto, 0, 0);

     return nRet;
 }

通过源数据生成深度图hobject

  /// <summary>
  /// 获取深度图（.tiff）
  /// </summary>
  /// <returns></returns>
  public HObject GetDepthImage()
  {
      HObject ho_Image = null;
      Monitor.Enter(Lock);
      GCHandle hBuf = GCHandle.Alloc(m_pcDataBuf, GCHandleType.Pinned);
      IntPtr ptr = hBuf.AddrOfPinnedObject();
      HOperatorSet.GenImage1(out ho_Image, "int2", m_stImageInfo.nWidth, m_stImageInfo.nHeight, ptr.ToInt64());
      Monitor.Exit(Lock);
      if (hBuf.IsAllocated)
      {
          hBuf.Free();
      }
      //if (null != ho_Image)
      //{
      //    // 保存深度图 | Save Depth
      //    string strtiffName = "./Halcon_Image_";
      //    strtiffName += m_stImageInfo.nFrameNum;
      //    strtiffName += ".tiff";
      //    HOperatorSet.WriteImage(ho_Image, "tiff", 0, strtiffName);
      //}
      return ho_Image;
  }

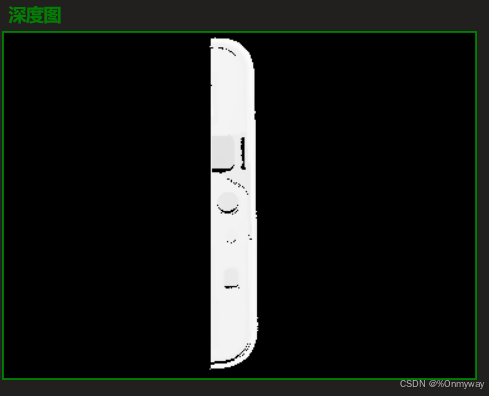

下图为显示的深度图：

2）通过相似的方法我们可以获取亮度图

/// <summary>
/// 获取亮度图（.bmp）
/// </summary>
/// <returns></returns>
public HObject GetIntensityImage()
{

    HObject ho_Image = null;
    Monitor.Enter(Lock);
    GCHandle hBuf = GCHandle.Alloc(m_pcDataBuf2, GCHandleType.Pinned);
    IntPtr ptr = hBuf.AddrOfPinnedObject();
    HOperatorSet.GenImage1(out ho_Image, "byte", m_stImageInfo.nWidth, m_stImageInfo.nHeight, ptr.ToInt64());
    Monitor.Exit(Lock);

    if (hBuf.IsAllocated)
    {
        hBuf.Free();
    }
    //if (null != ho_Image)
    //{
    //    // 保存深度图 | Save Depth
    //    string strtiffName = "./Halcon_Image_";
    //    strtiffName += m_stImageInfo.nFrameNum;
    //    strtiffName += ".bmp";
    //    HOperatorSet.WriteImage(ho_Image, "bmp", 0, strtiffName);
    //}
    return ho_Image;
}

3）点云图的获取可以直接通过客户端SDK中相应的接口来完成，这里不做说明，我们着重说明下如何通过halcon算子将源数据生成点云图，获取点云对象（HTuple）

  /// <summary>
  /// 获取点云对象（object handle）
  /// </summary>
  /// <returns></returns>
  public HTuple GetObjectModel3D()
  {
      MV3D_LP_IMAGE_DATA stImageInfoTmp = new MV3D_LP_IMAGE_DATA();
      Monitor.Enter(Lock);
      GCHandle hBuf = GCHandle.Alloc(m_pcDataBuf, GCHandleType.Pinned);
      IntPtr ptr = hBuf.AddrOfPinnedObject();
      stImageInfoTmp.enImageType = m_stImageInfo.enImageType;
      stImageInfoTmp.nFrameNum = m_stImageInfo.nFrameNum;
      stImageInfoTmp.nWidth = m_stImageInfo.nWidth;
      stImageInfoTmp.nHeight = m_stImageInfo.nHeight;
      stImageInfoTmp.nDataLen = m_stImageInfo.nDataLen;
      stImageInfoTmp.pData = ptr;
      stImageInfoTmp.fXScale = m_stImageInfo.fXScale;
      stImageInfoTmp.fYScale = m_stImageInfo.fYScale;
      stImageInfoTmp.fZScale = m_stImageInfo.fZScale;
      stImageInfoTmp.nXOffset = m_stImageInfo.nXOffset;
      stImageInfoTmp.nYOffset = m_stImageInfo.nYOffset;
      stImageInfoTmp.nZOffset = m_stImageInfo.nZOffset;
      MV3D_LP_IMAGE_DATA plyData = new MV3D_LP_IMAGE_DATA();
      //先通过接口将深度图转点云图
      Mv3dLpSDK.MV3D_LP_MapDepthToPointCloud(stImageInfoTmp, plyData);

      //再将点云数据转换成halcon 可用的对象指针
      HTuple hObjectModel3D = null;
      HTuple hv_X = new HTuple();
      HTuple hv_Y = new HTuple();
      HTuple hv_Z = new HTuple();
      float[] ConvertData = new float[plyData.nDataLen / 4];
      Marshal.Copy(plyData.pData, ConvertData, 0, (int)plyData.nDataLen / 4);
      for (int j = 0; j < plyData.nWidth * plyData.nHeight; j++)
      {
          hv_X[j] = ConvertData[j * 3];
          hv_Y[j] = ConvertData[j * 3 + 1];
          hv_Z[j] = ConvertData[j * 3 + 2];
      }
      HOperatorSet.GenObjectModel3dFromPoints(hv_X, hv_Y, hv_Z, out hObjectModel3D);

      Monitor.Exit(Lock);

      if (hBuf.IsAllocated)
      {
          hBuf.Free();
      }
      //if (null != hObjectModel3D)
      //{
      //    // 保存点云图 | Save PointCloud
      //    string strPlyName = "./Halcon_Image_";
      //    strPlyName += plyData.nFrameNum;
      //    strPlyName += ".ply";
      //    HOperatorSet.WriteObjectModel3d(hObjectModel3D, "ply", strPlyName, "invert_normals", "false");

      //}
      return hObjectModel3D;
  }

代码中设计到的XYZ缩放以及偏移，均可通过硬件技术资料获取，有关像素坐标到物理坐标的计算公式不同的硬件有些许的差异，大家不用担心；在这个转换工程中会使用一个关键的halcon算子“GenObjectModel3dFromPoints”

 gen_object_model_3d_from_points( : : X, Y, Z : ObjectModel3D)

  函数说明： 创建表示点云的三维对象模型。这些点由参数x、y和z坐标描述。

  函数参数：
    X：输入三维点云中点的x坐标;
    Y：输入 三维点云中点的y坐标;
    Z：输入 三维点云中点的y坐标;
    ObjectModel3D：输出 3D对象模型句柄;

4）上面显示如何将相机源数据转换成点云对象模型句柄Htuple,其实我们可以只获取相机的深度图，然后通过方法将深度图转换成点云图并进行操作和显示，如下将说明转换的具体方法

/// <summary>
/// 深度图转点云图
/// </summary>
/// <param name="ho_ImageH">输入深度图</param>
/// <param name="hv_XScale">转点云坐标X缩放</param>
/// <param name="hv_XOffset">转点云坐标X偏移</param>
/// <param name="hv_YScale">转点云坐标Y缩放</param>
/// <param name="hv_YOffset">转点云坐标Y偏移</param>
/// <param name="hv_ZScale">转点云坐标Z缩放</param>
/// <param name="hv_ZOffset">转点云坐标Z偏移</param>
/// <returns></returns>
public static HTuple DepthImg2PointCloud(HObject ho_ImageH,
    double hv_XScale, double hv_XOffset,
     double hv_YScale, double hv_YOffset,
      double hv_ZScale, double hv_ZOffset,
      out HObject ho_ImageX, out HObject ho_ImageY, out HObject ho_ImageZ)
{
    //对象变量
    HObject ho_Domain, ho_ImageSurface;
    HObject ho_ImageSurface1, ho_Region1;
    HObject ho_Region2, ho_RegionDifference, ho_ImageReduced;
    HObject ho_ImageHReal;
    //转化比例
    HTuple hv_Width = new HTuple();
    HTuple hv_Height = new HTuple(), hv_Min = new HTuple();
    HTuple hv_Max = new HTuple(), hv_Range = new HTuple();
    HTuple hv_ObjectModel3D = new HTuple();
    //初始化
    HOperatorSet.GenEmptyObj(out ho_Domain);
    HOperatorSet.GenEmptyObj(out ho_ImageSurface);
    HOperatorSet.GenEmptyObj(out ho_ImageSurface1);
    HOperatorSet.GenEmptyObj(out ho_ImageX);
    HOperatorSet.GenEmptyObj(out ho_ImageY);
    HOperatorSet.GenEmptyObj(out ho_Region1);
    HOperatorSet.GenEmptyObj(out ho_Region2);
    HOperatorSet.GenEmptyObj(out ho_RegionDifference);
    HOperatorSet.GenEmptyObj(out ho_ImageReduced);
    HOperatorSet.GenEmptyObj(out ho_ImageHReal);
    HOperatorSet.GenEmptyObj(out ho_ImageZ);

    //* 单位mm
    //hv_ZScale = 0.001;

    //using (HDevDisposeHelper dh = new HDevDisposeHelper())
    //{
    //    hv_ZOffset = -10.0 / 1000;
    //}
    //hv_XScale.Dispose();
    //hv_XScale = 0.020;
    //hv_XOffset.Dispose();
    //using (HDevDisposeHelper dh = new HDevDisposeHelper())
    //{
    //    hv_XOffset = -7051.0 / 1000;
    //}
    //hv_YScale.Dispose();
    //hv_YScale = -0.020;
    //hv_YOffset.Dispose();
    //hv_YOffset = 0.0;

    //xyz三通道的深度图
    hv_Width.Dispose(); hv_Height.Dispose();
    HOperatorSet.GetImageSize(ho_ImageH, out hv_Width, out hv_Height);
    ho_Domain.Dispose();
    HOperatorSet.GetDomain(ho_ImageH, out ho_Domain);
    //生成xy坐标的图像映射，乘以分辨率就是xy的相对值
    yImage
    ho_ImageSurface.Dispose();
    HOperatorSet.GenImageSurfaceFirstOrder(out ho_ImageSurface, "real", 1.0, 0.0,
        0.0, 0.0, 0.0, hv_Width, hv_Height);
    xImage
    ho_ImageSurface1.Dispose();
    HOperatorSet.GenImageSurfaceFirstOrder(out ho_ImageSurface1, "real", 0.0, 1.0,
        0.0, 0.0, 0.0, hv_Width, hv_Height);
    ho_ImageX.Dispose();
    HOperatorSet.ScaleImage(ho_ImageSurface1, out ho_ImageX, hv_XScale, hv_XOffset);
    ho_ImageY.Dispose();
    HOperatorSet.ScaleImage(ho_ImageSurface, out ho_ImageY, hv_YScale, hv_YOffset);

    //使用算子scale_image将图像灰度值转实际高度，并提取最大最小高度
    ho_Domain.Dispose();
    HOperatorSet.GetDomain(ho_ImageH, out ho_Domain);
    hv_Min.Dispose(); hv_Max.Dispose(); hv_Range.Dispose();
    HOperatorSet.MinMaxGray(ho_Domain, ho_ImageH, 0, out hv_Min, out hv_Max, out hv_Range);
    ho_Region1.Dispose();
    HOperatorSet.Threshold(ho_ImageH, out ho_Region1, hv_Min, hv_Max);
    using (HDevDisposeHelper dh = new HDevDisposeHelper())
    {
        ho_Region2.Dispose();
        HOperatorSet.Threshold(ho_ImageH, out ho_Region2, hv_Min, hv_Min + 2);
    }
    ho_RegionDifference.Dispose();
    HOperatorSet.Difference(ho_Region1, ho_Region2, out ho_RegionDifference);
    ho_ImageReduced.Dispose();
    HOperatorSet.ReduceDomain(ho_ImageH, ho_RegionDifference, out ho_ImageReduced
        );
    ho_ImageHReal.Dispose();
    HOperatorSet.ConvertImageType(ho_ImageReduced, out ho_ImageHReal, "real");
    ho_ImageZ.Dispose();
    HOperatorSet.ScaleImage(ho_ImageHReal, out ho_ImageZ, hv_ZScale, hv_ZOffset);
    //ho_MultiChannelImage.Dispose();
    //HOperatorSet.Compose3(ho_ImageX, ho_ImageY, ho_ImageZ, out ho_MultiChannelImage
    //    );
    hv_ObjectModel3D.Dispose();
    HOperatorSet.XyzToObjectModel3d(ho_ImageX, ho_ImageY, ho_ImageZ, out hv_ObjectModel3D);
    //点云保存
    //HOperatorSet.WriteObjectModel3d(hv_ObjectModel3D, "ply", "transply.ply",
    //    new HTuple(), new HTuple());
    ho_Domain.Dispose();
    ho_ImageSurface.Dispose();
    ho_ImageSurface1.Dispose();
    //ho_ImageX.Dispose();
    //ho_ImageY.Dispose();
    ho_Region1.Dispose();
    ho_Region2.Dispose();
    ho_RegionDifference.Dispose();
    ho_ImageReduced.Dispose();
    ho_ImageHReal.Dispose();
    //ho_ImageZ.Dispose();

    return hv_ObjectModel3D;
}

上图代码中都有详细的注解，所以就不做进一步说明，不过最后会使用一个关键的算子“XyzToObjectModel3d”来进行转换

xyz_to_object_model_3d
(X, Y, Z : : : ObjectModel3D)
将3D点从图像转换为3D对象模型。

输入：

X (input_object) 单通道图像→object (real)
用三维点的x坐标和三维点ROI区域。
Y (input_object) 单通道图像→object (real)
图像与三维点的y坐标。
Z (input_object) 单通道图像→object (real)
图像与三维点的z坐标。
输出：

ObjectModel3D (output_control)
3D对象模型的句柄。

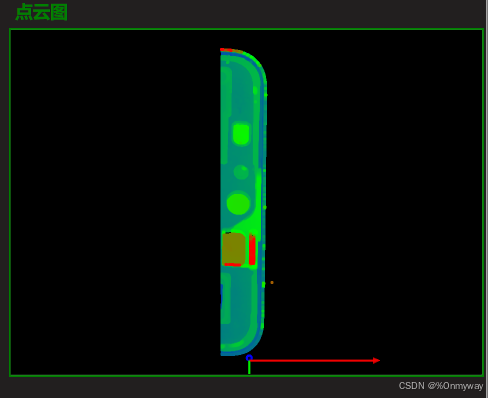

5）通过上面的方法转换后，咱们在这将点云显示出来看看

点云的查看会用到一个重要的算子“visualize_object_model_3d”

visualize_object_model_3d( : : WindowHandle, ObjectModel3D, CamParam, PoseIn, GenParamName, GenParamValue, Title, Label, Information : PoseOut)

WindowHandle：显示窗口句柄

ObjectModel3D：需要展示的3d模型

CamParam：假想的观察这个模型的一个面阵相机的内参

PoseIn：这个模型的3d姿态

GenParamName：参数名

GenParamValue：参数值

Title：展示在窗口左上角的文字

Label：在每个3d模型位置显示的文本

Information：窗口左下角显示的信息

PoseOut：用户调整模型姿态后输出这个3d姿态

6）附件：我们来看看转换后的点云如何查看和操作

点云查看器

该文章主要讲解了图像的来源以及他们之间如何进行转换，并且生成可通过halcon操作的对象，后面的文件我们会一一讲解图像显示控件以及点云的相关操作算法，敬请期待！！！
