XGBoost如何画出树分裂图，用代码绘制多棵CART回归树

XGBoost预测时如果遇到缺失值(missing)默认往左子树。

XGBoost解决二分类问题代码（绘制CART回归树）

GBDT是能进行二分类的，因为我们要明确一点就是GBDT 每轮的训练是在上一轮的训练的残差基础之上进行训练的， 而这里的残差指的就是当前模型的负梯度值， 这个就要求每轮迭代的时候，弱分类器的输出的结果相减是有意义的， 而GBDT无论用于分类还是回归一直都是使用的CART 回归树，至于具体怎么做分类任务，可以看这两个回答：1，2

XGBoost解决二分类问题的代码并画出CART回归决策树

运行下面代码需要安装 graphviz

import xgboost as xgb
from xgboost import plot_tree
import matplotlib.pyplot as plt
import numpy as np

# 分类问题数据集
np.random.seed(1234)
train_x = np.random.rand(100,5)
train_y = np.random.randint(0,2,100)
test_x = np.random.rand(20,5)
test_y = np.random.randint(0,2,20)

dtrain = xgb.DMatrix(train_x, label = train_y)
dtest = xgb.DMatrix(test_x, label = test_y)

print('*' * 25, '开始模型训练', '*' * 25)
model = xgb.train(params={
    'booster': 'gbtree',
    'objective': 'binary:logistic',
    'eval_metric': [ 'logloss','auc'],
    'max_depth': 4},
          dtrain=dtrain,
          verbose_eval=True,
          evals=[(dtrain, "train"), (dtest, "valid")],
          early_stopping_rounds=10,
          num_boost_round = 1000
                  )
print('*' * 25, '模型训练结束', '*' * 25)
print('*' * 25, '开始模型结构绘制', '*' * 25)

print("model.best_ntree_limit:", model.best_ntree_limit)

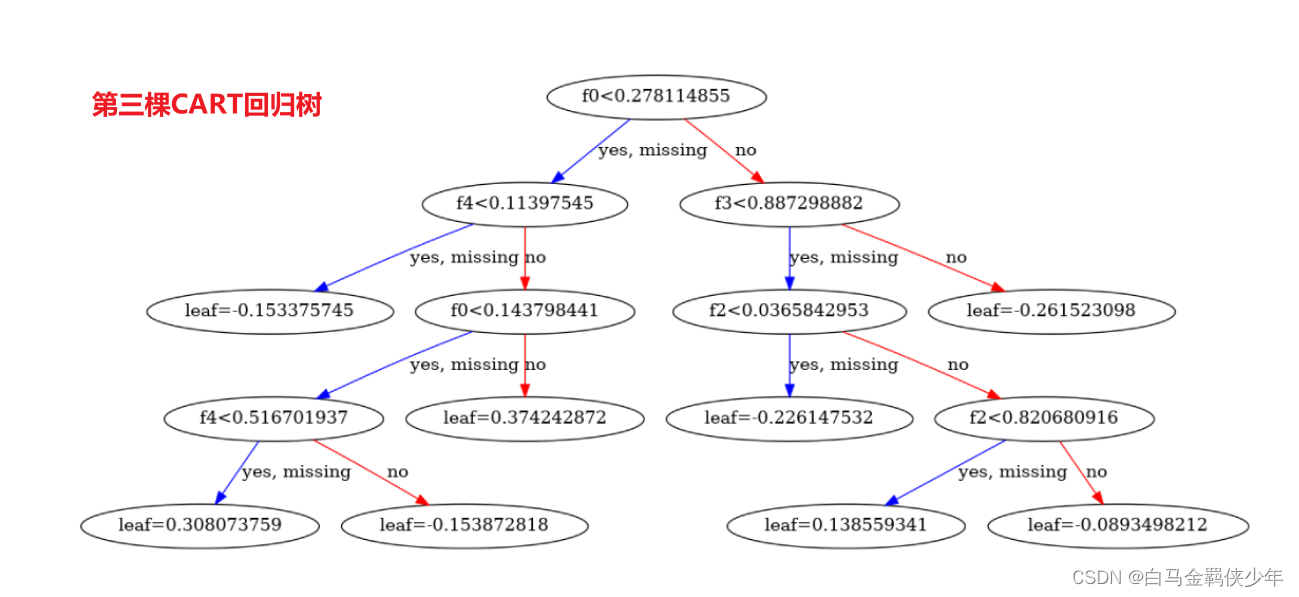

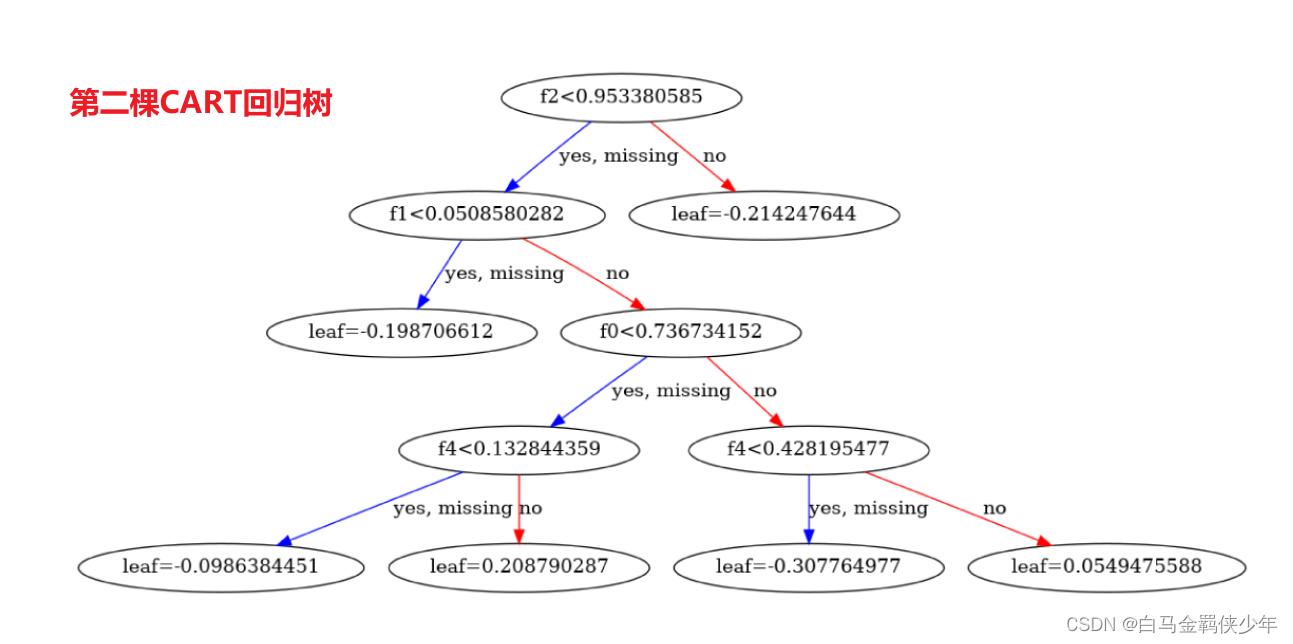

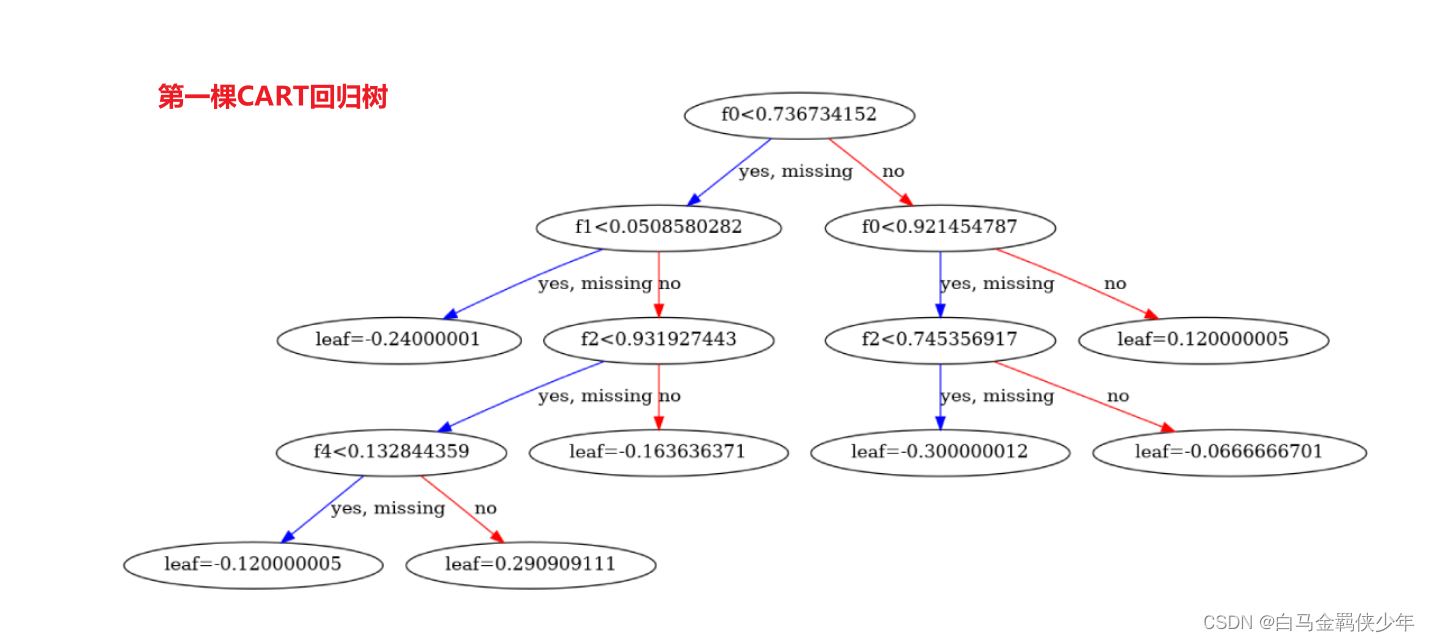

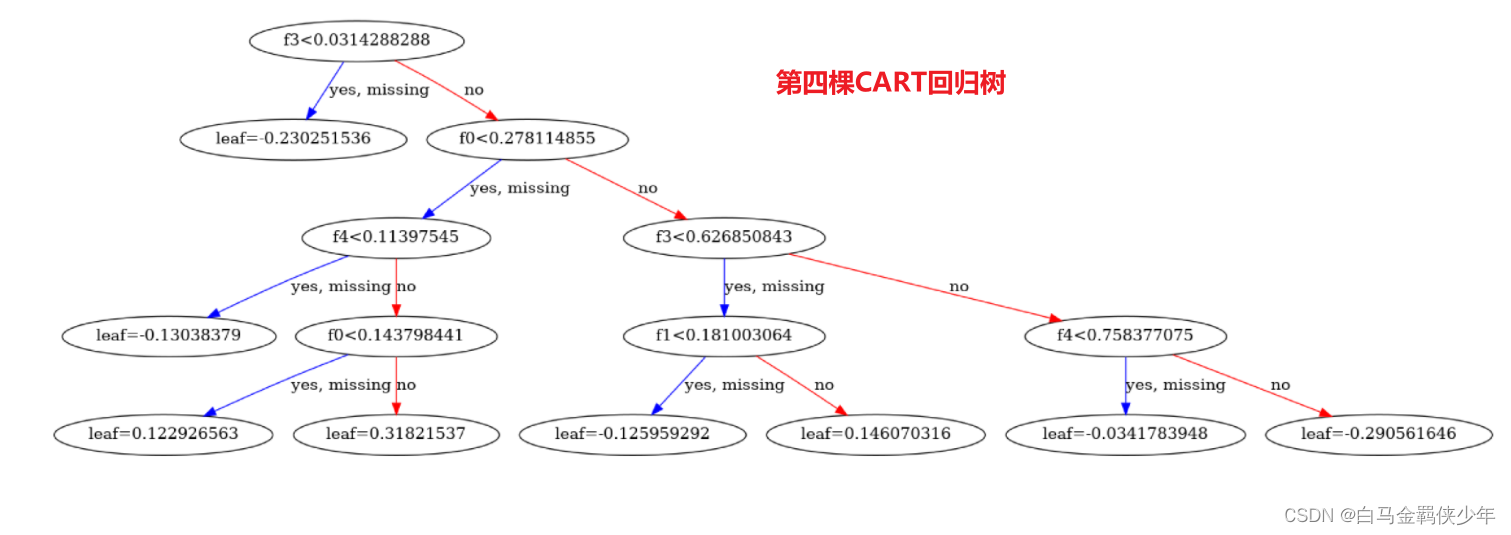

for i in range(model.best_ntree_limit):
    # 画出第i棵CART回归树
    plot_tree(model,num_trees=i)
    # 保存图片
    plt.savefig(f"tree{i}.png", dpi=900)

# plt.show()
print('*' * 25, '模型结构绘制结束', '*' * 25)

运行结果

************************* 开始模型训练 *************************
[0]     train-logloss:0.63596   train-auc:0.74390       valid-logloss:0.71601   valid-auc:0.45312
[1]     train-logloss:0.60108   train-auc:0.75217       valid-logloss:0.74161   valid-auc:0.48958
[2]     train-logloss:0.55854   train-auc:0.86606       valid-logloss:0.74433   valid-auc:0.53125
[3]     train-logloss:0.52843   train-auc:0.89004       valid-logloss:0.76378   valid-auc:0.53646
[4]     train-logloss:0.50814   train-auc:0.91381       valid-logloss:0.77606   valid-auc:0.53125
[5]     train-logloss:0.47967   train-auc:0.92476       valid-logloss:0.80379   valid-auc:0.46875
[6]     train-logloss:0.46174   train-auc:0.93365       valid-logloss:0.79062   valid-auc:0.48438
[7]     train-logloss:0.44558   train-auc:0.94729       valid-logloss:0.80327   valid-auc:0.47917
[1]     train-logloss:0.60108   train-auc:0.75217       valid-logloss:0.74161   valid-auc:0.48958
[2]     train-logloss:0.55854   train-auc:0.86606       valid-logloss:0.74433   valid-auc:0.53125
[3]     train-logloss:0.52843   train-auc:0.89004       valid-logloss:0.76378   valid-auc:0.53646
[4]     train-logloss:0.50814   train-auc:0.91381       valid-logloss:0.77606   valid-auc:0.53125
[5]     train-logloss:0.47967   train-auc:0.92476       valid-logloss:0.80379   valid-auc:0.46875
[6]     train-logloss:0.46174   train-auc:0.93365       valid-logloss:0.79062   valid-auc:0.48438
[7]     train-logloss:0.44558   train-auc:0.94729       valid-logloss:0.80327   valid-auc:0.47917
[8]     train-logloss:0.42358   train-auc:0.96693       valid-logloss:0.80089   valid-auc:0.50000
[9]     train-logloss:0.41019   train-auc:0.97127       valid-logloss:0.81481   valid-auc:0.46875
[10]    train-logloss:0.39895   train-auc:0.97127       valid-logloss:0.82640   valid-auc:0.45833
[11]    train-logloss:0.38496   train-auc:0.97520       valid-logloss:0.84798   valid-auc:0.45833
[12]    train-logloss:0.36452   train-auc:0.97933       valid-logloss:0.87036   valid-auc:0.41667
[13]    train-logloss:0.35660   train-auc:0.97974       valid-logloss:0.87867   valid-auc:0.42708
************************* 模型训练结束 *************************
************************* 开始模型结构绘制 *************************
model.best_ntree_limit: 4
************************* 模型结构绘制结束 *************************
