Install the FreeGlut plugin in Visual Studio

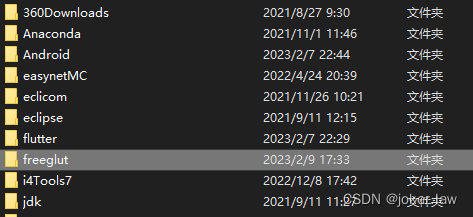

1.First download the freeGlut plugin and save it to the desired location

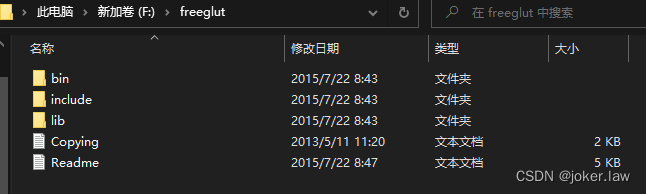

 2. Open freeGlut

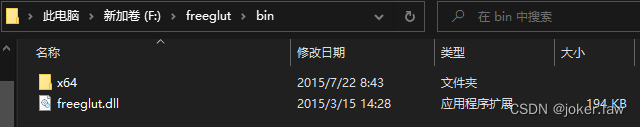

 3. Open bin

 4. Copy freeglut.dll

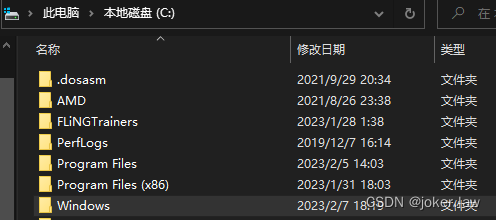

5. Open the C drive



 6. Open the "windows" folder, find the SysWOW64 folder, open it

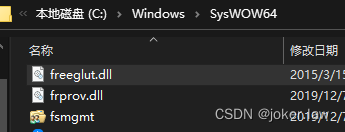

7. Paste the freeglut.dll file just copied into the SysWOW64 folder

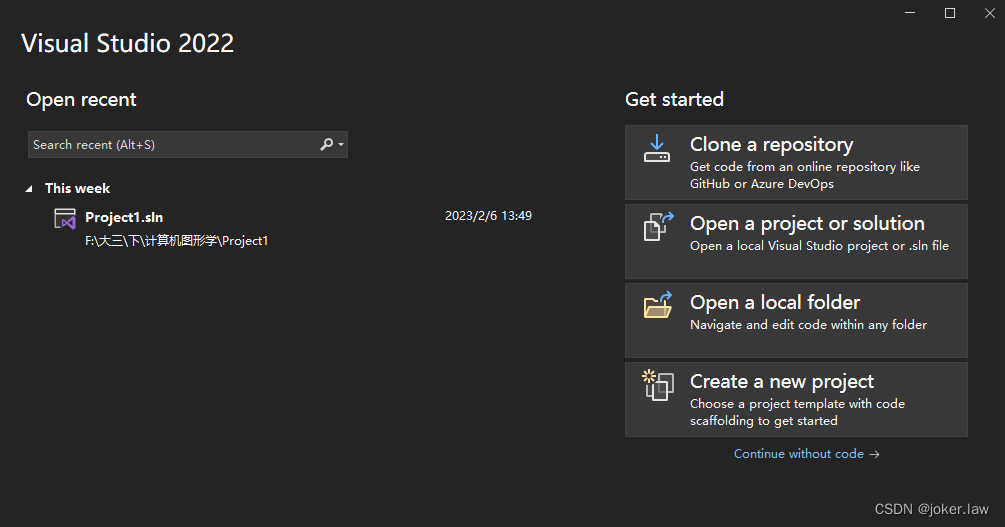

8. Open Visual Studio

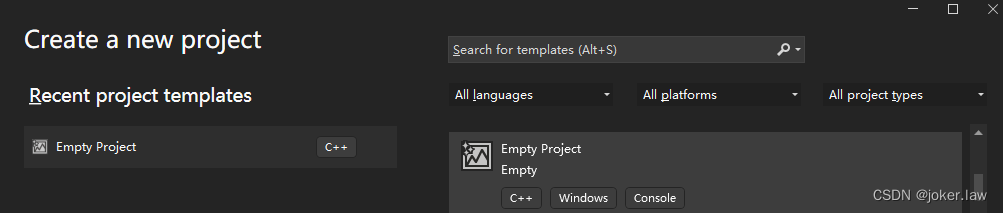

 9. Create a new empty project

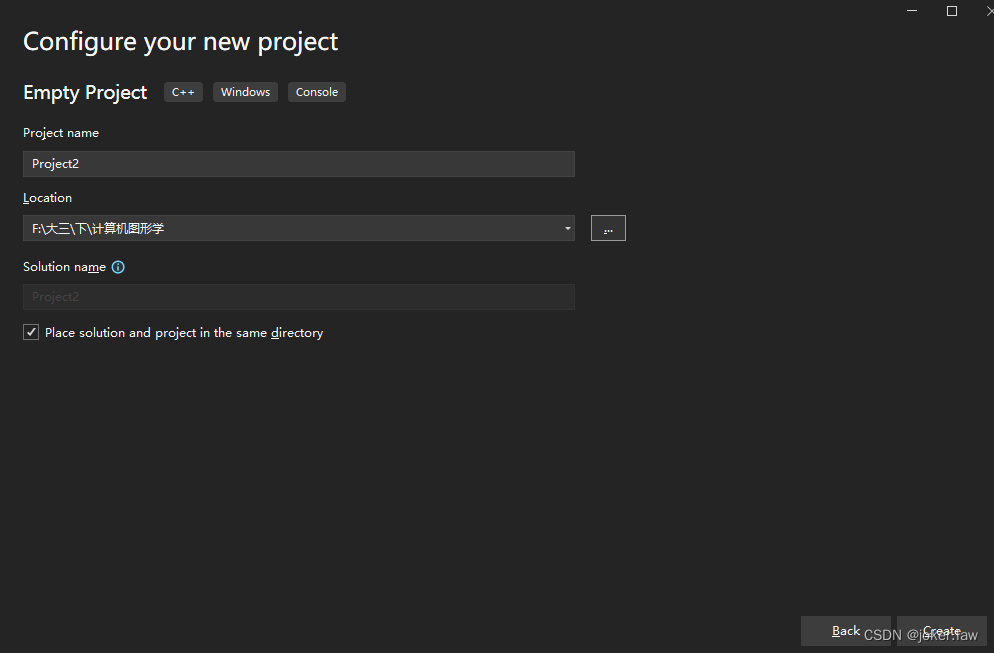

10. Set the save location for new projects

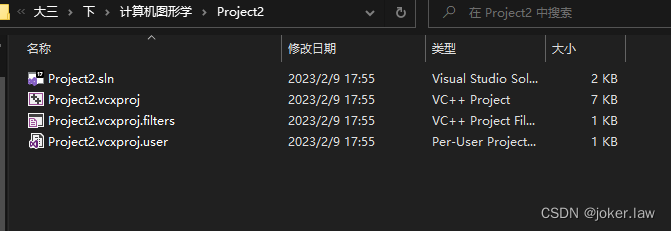

 11. Confirm that the new project already exists in the set address

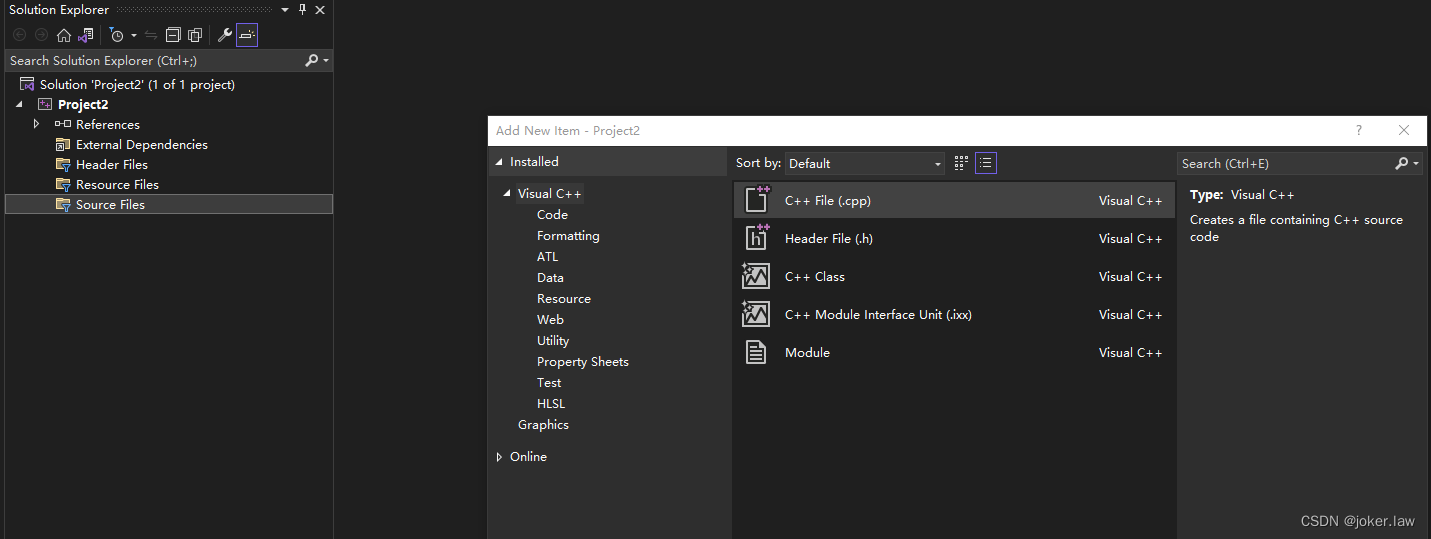

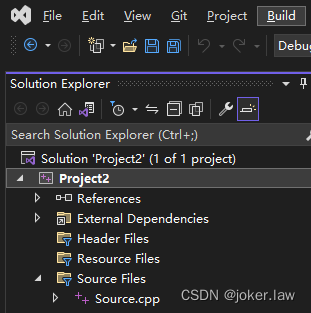

 12. Right click on resourceFile in VS, click Add, click new, click Empty file, and select C++file.

 13. Paste this code and save (for testing)

/* Extend the code to satisfy the assignment 1 requirements */

#include <stdio.h>
#include <math.h>
#include <memory.h>
#include <GL/glut.h>
#define WIDTH 400
#define HEIGHT 300
static GLubyte frame_buffer[HEIGHT][WIDTH][3];

// Fill each scanline
// yT = top of the scanline, yB = bottom of the scanline
void FillScanLine(int x, float yT, float rT, float gT, float bT, float yB, float rB, float gB, float bB)
{
  int yT_floor, yB_ceil;
  int y;
  float r, g, b, mr, mg, mb;

  yT_floor = floor(yT);
  yB_ceil  = ceil(yB);

  mr = (rT-rB)/(yT-yB);
  mg = (gT-gB)/(yT-yB);
  mb = (bT-bB)/(yT-yB);
  r  = rB + (yB_ceil-yB)*mr;
  g  = gB + (yB_ceil-yB)*mg;
  b  = bB + (yB_ceil-yB)*mb;

  for(y = yB_ceil; y <= yT_floor; y++) {
    frame_buffer[y][x][0] = (unsigned char)(r+0.5f);
    frame_buffer[y][x][1] = (unsigned char)(g+0.5f);
    frame_buffer[y][x][2] = (unsigned char)(b+0.5f);

    r += mr;
    g += mg;
    b += mb;
  }
}

// The main triangle scan conversion function
// Assumes x0 <= x1 <= x2
void ScanConvertTriangle(
  int x0, int y0, int r0, int g0, int b0,
  int x1, int y1, int r1, int g1, int b1,
  int x2, int y2, int r2, int g2, int b2)
{
  float l01_y, l01_m;
  float l01_r, l01_g, l01_b, l01_mr, l01_mg, l01_mb;
  float l02_y, l02_m;
  float l02_r, l02_g, l02_b, l02_mr, l02_mg, l02_mb;
  int x;

  // Computes the slopes for L01 and L02
  l01_m  = (float)(y1-y0)/(x1-x0);
  l01_mr = (float)(r1-r0)/(x1-x0);
  l01_mg = (float)(g1-g0)/(x1-x0);
  l01_mb = (float)(b1-b0)/(x1-x0);

  l02_m  = (float)(y2-y0)/(x2-x0);
  l02_mr = (float)(r2-r0)/(x2-x0);
  l02_mg = (float)(g2-g0)/(x2-x0);
  l02_mb = (float)(b2-b0)/(x2-x0);

  // Initializes the edge tracing
  l01_y = y0;
  l01_r = r0;
  l01_g = g0;
  l01_b = b0;

  l02_y = y0;
  l02_r = r0;
  l02_g = g0;
  l02_b = b0;

  // Scan the first half of the triangle
  // TODO: handle the case when x0==x1
  for(x=x0; x<x1; x++) {
    if (l02_y >= l01_y) {
      FillScanLine(x, l02_y, l02_r, l02_g, l02_b, l01_y, l01_r, l01_g, l01_b);
    } else {
      FillScanLine(x, l01_y, l01_r, l01_g, l01_b, l02_y, l02_r, l02_g, l02_b);
    }

    l01_y += l01_m;
    l01_r += l01_mr;
    l01_g += l01_mg;
    l01_b += l01_mb;

    l02_y += l02_m;
    l02_r += l02_mr;
    l02_g += l02_mg;
    l02_b += l02_mb;
  }

  // Scan the second half of the triangle
  // TODO: handle the case when x1==x2
}

/* Called when mouse button pressed: */
void mousebuttonhandler(int button, int state, int x, int y)
{
  static int cnt = 0;
  static int points[3][2];
  static unsigned char color[3][3] = {
    {255,   0,   0},      // r0, g0, b0
    {  0, 255,   0},      // r1, g1, b1
    {  0,   0, 255}       // r2, g2, b2
  };

  //printf("Mouse button event, button=%d, state=%d, x=%d, y=%d\n", button, state, x, y);

  // set a pixel's red color value when left mouse button is pressed down:
  if (button == GLUT_LEFT_BUTTON && state == GLUT_DOWN) {
    points[cnt][0] = x;
    points[cnt][1] = HEIGHT-y-1;
    cnt++;

    //printf("Mouse clicked=%d, x=%d, y=%d\n", cnt, x, y);
    if (cnt == 1) {
      memset(frame_buffer, 0, sizeof(frame_buffer));
    }

    if (cnt == 3) {
      // TODO: make sure point0, 1, 2 are passed in the correct order x0<=x1<=x2
      if (points[0][0] <= points[1][0]) {
        if (points[1][0] <= points[2][0]) { // x0 <= x1 <= x2
          ScanConvertTriangle(
            points[0][0], points[0][1], color[0][0], color[0][1], color[0][2],  // x0, y0, r0, g0, b0
            points[1][0], points[1][1], color[1][0], color[1][1], color[1][2],  // x1, y1, r1, g1, b1
            points[2][0], points[2][1], color[2][0], color[2][1], color[2][2]   // x2, y2, r2, g2, b2
          );
        } else
		    if (points[0][0] <= points[2][0]) { // x0 <= x2 <= x1
          ScanConvertTriangle(
            points[0][0], points[0][1], color[0][0], color[0][1], color[0][2],  // x0, y0, r0, g0, b0
            points[2][0], points[2][1], color[2][0], color[2][1], color[2][2],  // x2, y2, r2, g2, b2
            points[1][0], points[1][1], color[1][0], color[1][1], color[1][2]   // x1, y1, r1, g1, b1
          );
		    } else { // x2 <= x0 <= x1
          ScanConvertTriangle(
            points[2][0], points[2][1], color[2][0], color[2][1], color[2][2],  // x2, y2, r2, g2, b2
				    points[0][0], points[0][1], color[0][0], color[0][1], color[0][2],  // x0, y0, r0, g0, b0
				    points[1][0], points[1][1], color[1][0], color[1][1], color[1][2]   // x1, y1, r1, g1, b1
			    );
		    }
      } else { // x1 < x0
        // TODO: fill in the rest here
      }
      cnt = 0;
    }
  }

  // cause a display event to occur for GLUT:
  glutPostRedisplay();
}

/* Called by GLUT when a display event occurs: */
void display(void) {

	/*	Set the raster position to the lower-left corner to avoid a problem
		(with glDrawPixels) when the window is resized to smaller dimensions.*/
	glRasterPos2i(-1,-1);

	// Write the information stored in "frame_buffer" to the color buffer
	glDrawPixels(WIDTH, HEIGHT, GL_RGB, GL_UNSIGNED_BYTE, frame_buffer);
	glFlush();
}

int main(int argc, char **argv) {

	glutInit(&argc, argv);
	glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
	glutInitWindowSize(WIDTH, HEIGHT);
	glutCreateWindow("Frame Buffer Example");

	// Specify which functions get called for display and mouse events:
	glutDisplayFunc(display);
    glutMouseFunc(mousebuttonhandler);

	glutMainLoop();

	return 0;
}

14. Right-click the project name (project2) and select properties in the drop-down bar

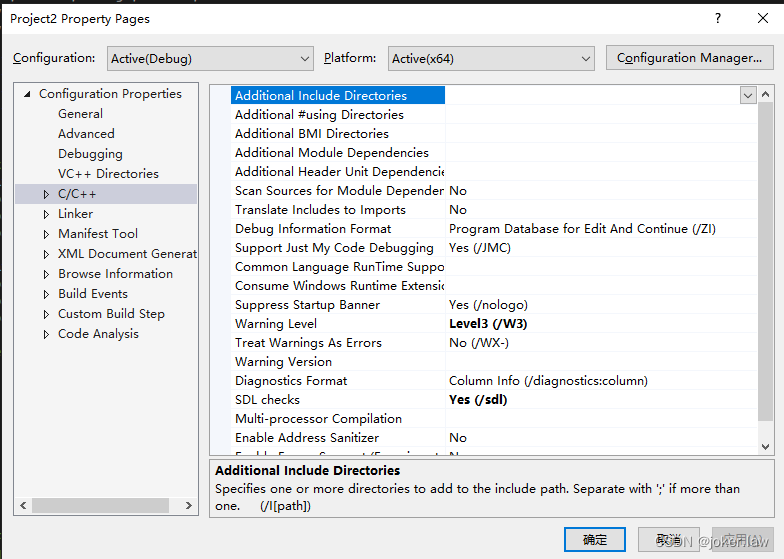

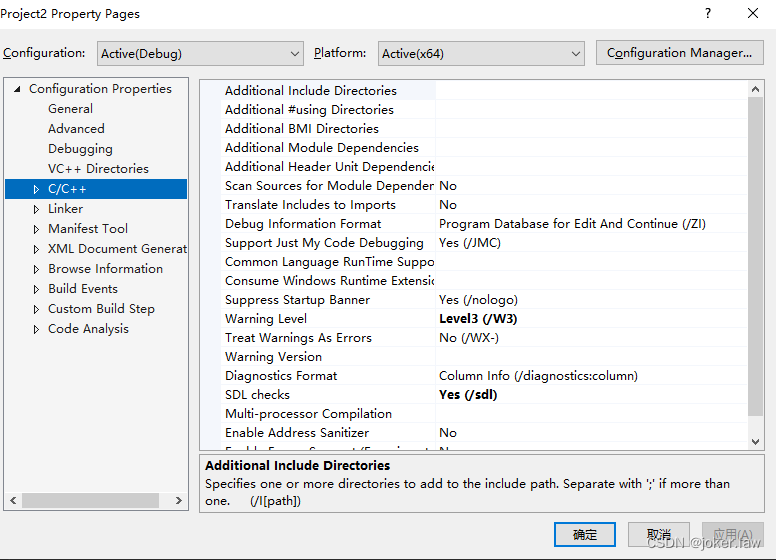

15. Find C/C++ in the properties

 16. Click "Additional Include Directories"

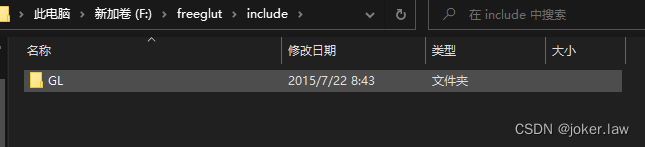

 17. Open the "include" folder in the freeglut folder and copy the file address

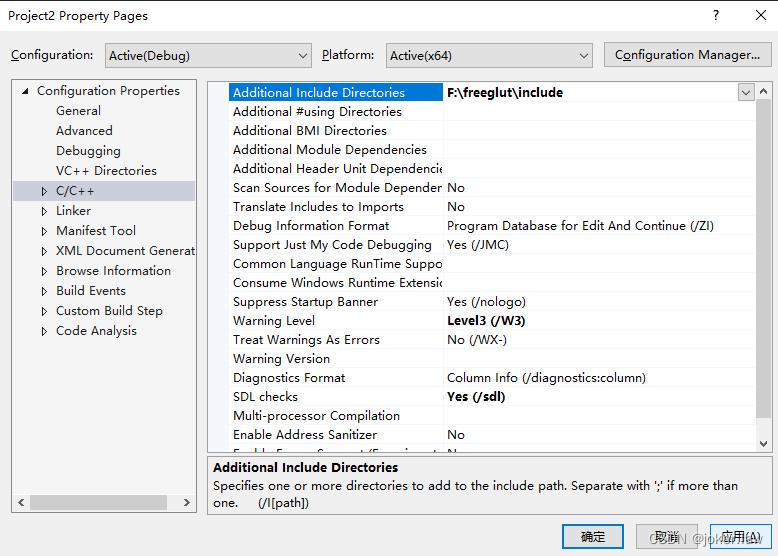

 18. Paste the file address into "Additional Include Directories", press Enter, and click Apply

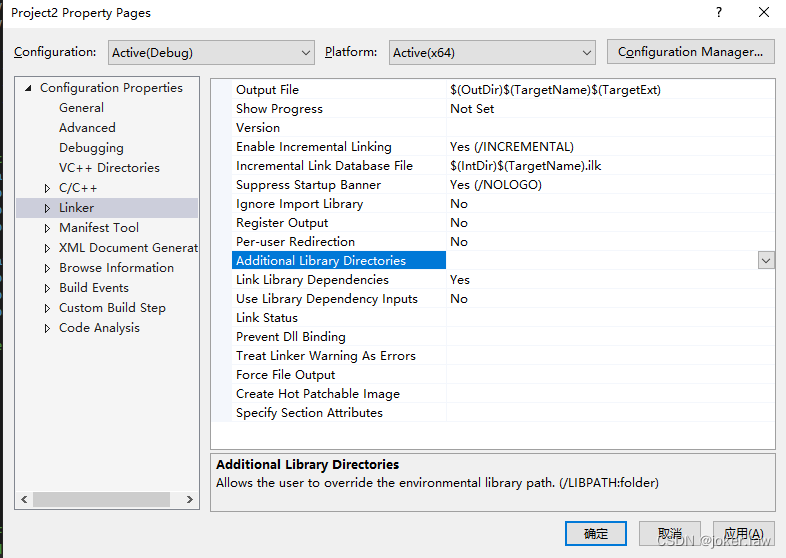

19. Continue to find the "Linker" in the properties and find the "Additional Library Directories"

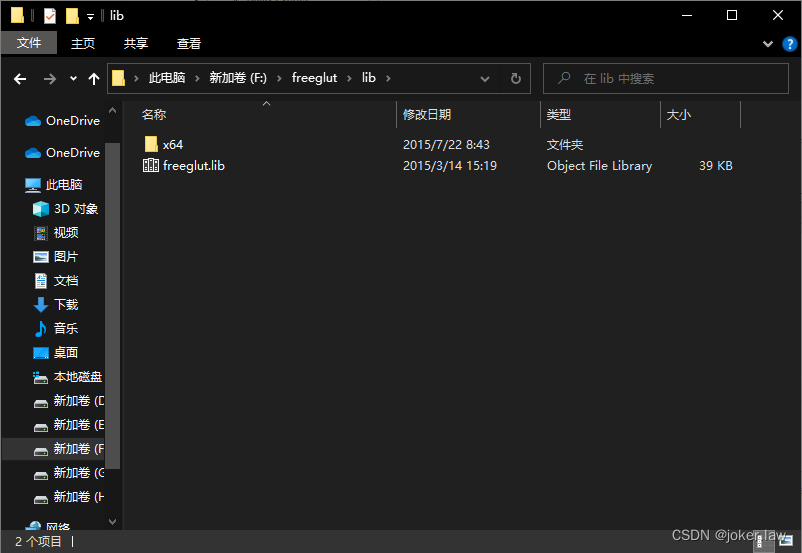

20. Find lib in the freeglut folder, copy the file address

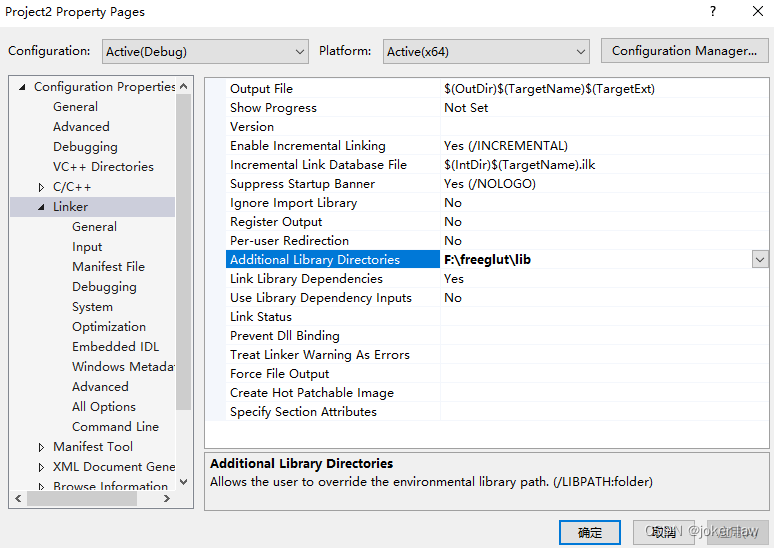

 21. Paste the address into "Additional Library Directories", press Enter, and apply.

 22.Select build in VisualStudio

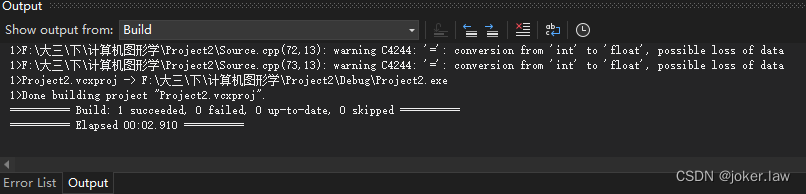

23. Check whether the build is successful (if "1 succeeed, 0 failed..." appears in the picture below, it is considered successful)

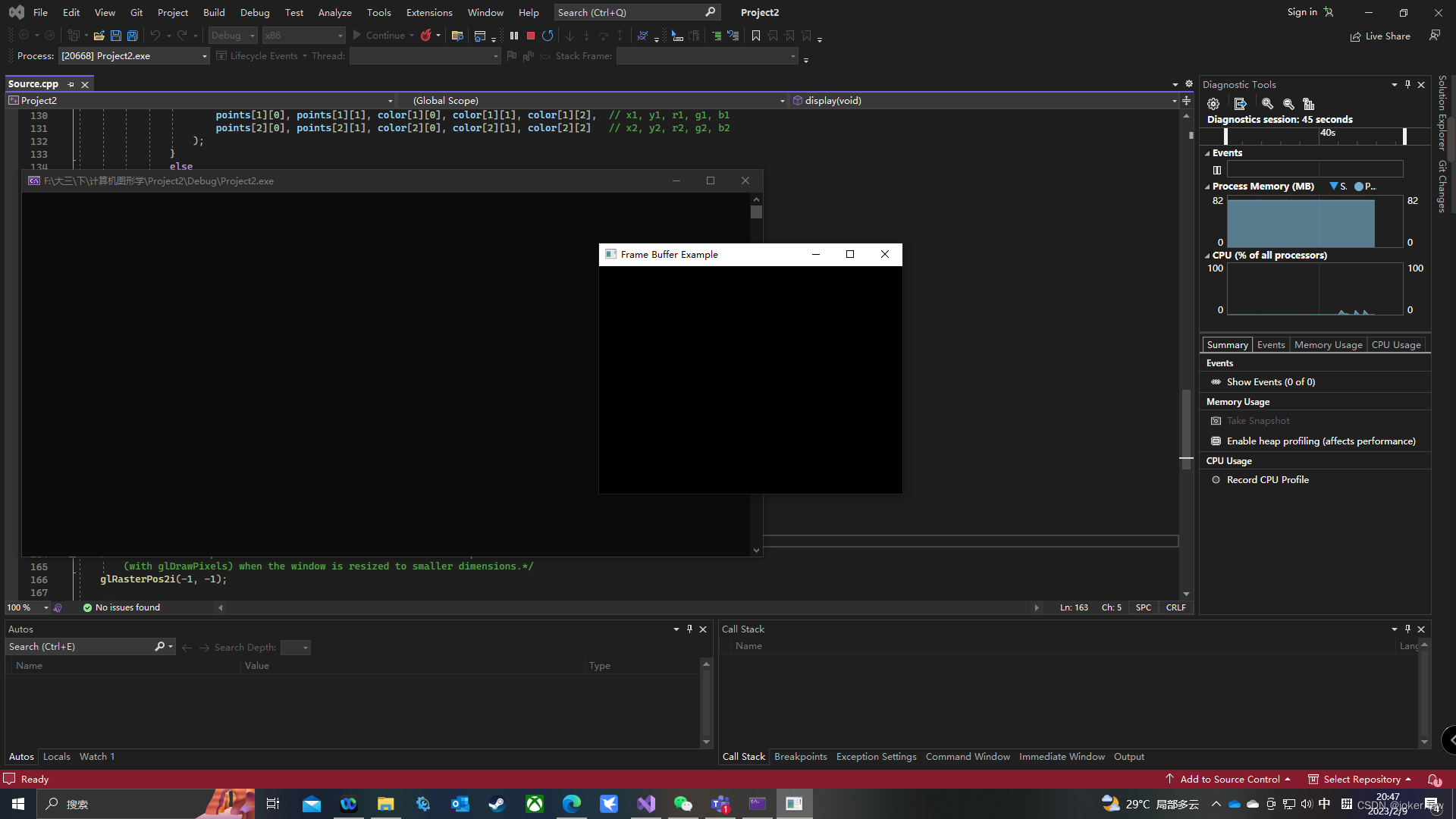

24. Run the program (click debug, then click start debug)

 25. Click three points at random positions in the small window to build a triangle (after the click is completed, the program will automatically generate a triangle, which will be half of the triangle constructed by the user)

26. Congratulations~
