背景
在现代应用系统中，事件审计是一个至关重要的功能。通过记录用户的操作行为，我们可以追踪问题、分析用户行为，甚至在出现安全问题时提供关键证据。由于目前没有较好的事件审计框架，笔者决定实现一套可扩展的事件审计组件，要求对业务低侵入性，可以轻松获取前后变更的内容。
目标
提供自定义注解给业务侧，实现开箱即用的事件审计存储功能。
实现
审计
我们定义了 @EventAuditor 注解，关键字段包括 operator（操作人）、content（操作内容模板）、bizScenario（事件发生的场景）等。
@Documented
@Inherited
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD})
public @interface EventAuditor {
/**
* 操作对象，支持 SpEL 表达式
*
* @return 操作对象
*/
String operator() default Strings.EMPTY;
/**
* 操作角色，支持 SpEL 表达式
* <br/> 用于区分运营人员和用户
*
* @return 操作角色
*/
String role() default Strings.EMPTY;
/**
* 业务场景，支持 SpEL 表达式
* <br/> 推荐风格：产品线+用例+场景
*
* @return 业务场景
*/
String bizScenario() default Strings.EMPTY;
/**
* 记录内容
*
* @return 记录内容，支持 SpEL 表达式
*/
String content() default Strings.EMPTY;
/**
* 额外信息
* <br/> 防止记录的内容过长无法展示，额外序列化保存
*
* @return 额外信息，支持 SpEL 表达式
*/
String extra() default Strings.EMPTY;
/**
* 触发条件
*
* @return 触发条件，为空表示默认触发
*/
String condition() default Strings.EMPTY;
/**
* 调用方法之前解析 SpEL 参数
* <br/>
*
* @return 是否提前解析
*/
boolean evalBeforeInvoke() default true;
/**
* 是否记录返回值
* <br/> 防止记录查询类返回的 List 大对象导致 OOM
*
* @return 是否记录
*/
boolean recordReturnValue() default false;
}
通过 Spring 的 MethodInterceptor，我们实现了 EventAuditorInterceptor 来捕获 @EventAuditor 注解，并在方法调用前后进行审计记录。
@RequiredArgsConstructor
@Slf4j
public class EventAuditorInterceptor implements MethodInterceptor {
private static final String RETURN = "_return";
private static final String ERROR_MSG = "_errorMsg";
private final EventAuditorConfig eventAuditorConfig;
private AsyncTaskExecutor asyncTaskExecutor;
/**
* 方法调用拦截处理
*
* @param invocation 方法调用元信息
* @return 返回值
* @throws Throwable 异常
*/
@Override
public Object invoke(@NotNull MethodInvocation invocation) throws Throwable {
if (AopUtils.isAopProxy(invocation.getThis())) {
return invocation.proceed();
}
LocalDateTime now = LocalDateTime.now();
Method method = invocation.getMethod();
EventAuditor[] eventAuditors;
try {
eventAuditors = method.getAnnotationsByType(EventAuditor.class);
} catch (Throwable throwable) {
// 如果解析异常，直接执行返回
return invocation.proceed();
}
List<AuditingEvent> events = Lists.newArrayList();
events.addAll(parseList(invocation, eventAuditors, true));
Object result = null;
boolean success = true;
long executionCost = 0L;
String errorMsg = null;
// 执行耗时
String watchId = invocation.getClass() + Strings.DOT + invocation.getMethod().getName();
StopWatch stopWatch = new StopWatch(watchId);
stopWatch.start();
try {
result = invocation.proceed();
} catch (Throwable e) {
if (stopWatch.isRunning()) {
stopWatch.stop();
executionCost = stopWatch.getTotalTimeMillis();
}
success = false;
errorMsg = e.getMessage();
SpelEvaluationContext.setVariable(ERROR_MSG, errorMsg); // 异常信息
throw e;
} finally {
if (stopWatch.isRunning()) {
stopWatch.stop();
executionCost = stopWatch.getTotalTimeMillis();
}
SpelEvaluationContext.setVariable(RETURN, result); // 返回值处理
events.addAll(parseList(invocation, eventAuditors, false));
for (AuditingEvent event : events) {
event.setSuccess(success);
event.setOperateDate(now);
event.setExecutionCost(executionCost);
if (errorMsg != null) {
event.setThrowable(errorMsg);
}
}
send(events);
SpelEvaluationContext.remove(); // 清理当前线程变量
}
return result;
}
/**
* 异步开启后需要设置 AsyncTaskExecutor
*
* @param asyncTaskExecutor 异步任务执行器
*/
public void setAsyncTaskExecutor(AsyncTaskExecutor asyncTaskExecutor) {
this.asyncTaskExecutor = asyncTaskExecutor;
}
/**
* 发送审计事件
*
* @param events 审计事件列表
*/
private void send(List<AuditingEvent> events) {
String senderType = eventAuditorConfig.getSender().getSenderType();
EventSenderBuilder eventSenderBuilder = ExtensionLoader.getExtensionLoader(EventSenderBuilder.class).getExtension(senderType);
eventSenderBuilder.setEventAuditorConfig(eventAuditorConfig);
EventSender eventSender = eventSenderBuilder.build();
if (eventAuditorConfig.getSender().isAsync() && asyncTaskExecutor != null) {
asyncTaskExecutor.execute(() -> eventSender.send(events));
} else {
eventSender.send(events);
}
}
/**
* 解析 {@code AuditingEvent} 列表
*
* @param invocation 方法调用元信息
* @param eventAuditors 审计注解
* @param evalBeforeInvoke 是否在调用方法之前提前解析
* @return {@code AuditingEvent} 列表
*/
private List<AuditingEvent> parseList(@NotNull MethodInvocation invocation, EventAuditor[] eventAuditors,
boolean evalBeforeInvoke) {
List<AuditingEvent> events = Lists.newArrayList();
for (EventAuditor eventAuditor : eventAuditors) {
if (eventAuditor.evalBeforeInvoke() == evalBeforeInvoke) {
AuditingEvent auditingEvent = this.parseModel(eventAuditor, invocation);
if (auditingEvent != null) {
events.add(auditingEvent);
}
}
}
return events;
}
/**
* 解析模型
*
* @param eventAuditor 事件审计注解
* @param invocation 方法调用元信息
* @return 目标模型
*/
private AuditingEvent parseModel(EventAuditor eventAuditor, MethodInvocation invocation) {
EvaluationContext context = SpelEvaluationContext.getContext();
CustomFunctionRegistrar.register((StandardEvaluationContext) context);
Method method = invocation.getMethod();
String[] parameterNames = SpelExpressionEvaluator.getParameterNameDiscoverer().getParameterNames(method);
Object[] arguments = invocation.getArguments();
if (parameterNames != null) {
int len = parameterNames.length;
for (int i = 0; i < len; i++) {
context.setVariable(parameterNames[i], arguments[i]);
}
}
ExpressionParser parser = SpelExpressionEvaluator.getExpressionParser();
if (StringUtils.isNotBlank(eventAuditor.condition())) {
Expression expression = parser.parseExpression(eventAuditor.condition());
if (!Boolean.TRUE.equals(expression.getValue(context, Boolean.class))) {
return null;
}
}
AuditingEvent auditingEvent = new AuditingEvent();
if (StringUtils.isNotBlank(eventAuditor.operator())) {
Expression expression = parser.parseExpression(eventAuditor.operator());
auditingEvent.setOperator(expression.getValue(context, String.class));
}
if (StringUtils.isNotBlank(eventAuditor.role())) {
Expression expression = parser.parseExpression(eventAuditor.role());
auditingEvent.setRole(expression.getValue(context, String.class));
}
if (StringUtils.isNotBlank(eventAuditor.bizScenario())) {
Expression expression = parser.parseExpression(eventAuditor.bizScenario());
auditingEvent.setBizScenario(expression.getValue(context, String.class));
}
if (StringUtils.isNotBlank(eventAuditor.content())) {
Expression expression = parser.parseExpression(eventAuditor.content());
auditingEvent.setContent(expression.getValue(context, String.class));
}
if (StringUtils.isNotBlank(eventAuditor.extra())) {
Expression expression = parser.parseExpression(eventAuditor.extra());
Object extra = expression.getValue(context, Object.class);
auditingEvent.setExtra(extra instanceof String ? (String) extra : JSONHelper.json().toJSONString(extra));
}
return auditingEvent;
}
}
上述代码中有 3 个关键类，分别是：
SpelExpressionEvaluator：处理 SpEL 表达式。CustomFunctionRegistrar：存储自定义函数和 Java 方法的关联关系，解析自定义函数时，通过缓存找到对应的 Java 方法反射调用。EventSenderBuilder：将事件内容往其他渠道发送，例如消息队列、数据库，便于存储。
接下来依次展开说明。
SpEL 表达式解析实现
SpEL 是 Spring 特有的表示解析格式，内部通过 StandardEvaluationContext 实现，我们可以在这个基础上进行封装。
public class SpelExpressionEvaluator {
private static final ExpressionParser PARSER = new SpelExpressionParser();
private static final ParameterNameDiscoverer DISCOVERER = new LocalVariableTableParameterNameDiscoverer();
public static ExpressionParser getExpressionParser() {
return PARSER;
}
public static ParameterNameDiscoverer getParameterNameDiscoverer() {
return DISCOVERER;
}
/**
* 解析 SpEL 表达式
*
* @param expressionString SpEL 表达式
* @param method 方法
* @param arguments 参数
* @return 解析后的内容
*/
public static String parseExpression(String expressionString, Method method, Object[] arguments) {
String[] params = DISCOVERER.getParameterNames(method);
if (params != null && params.length > 0) {
for (int i = 0; i < params.length; i++) {
SpelEvaluationContext.setVariable(params[i], arguments[i]);
}
}
Expression expression = PARSER.parseExpression(expressionString);
return expression.getValue(SpelEvaluationContext.getContext(), String.class);
}
}
public class SpelEvaluationContext {
private static final TransmittableThreadLocal<EvaluationContext> VARIABLES =
new TransmittableThreadLocal<EvaluationContext>() {
@Override
protected EvaluationContext initialValue() {
return new StandardEvaluationContext();
}
};
public static EvaluationContext getContext() {
return VARIABLES.get();
}
public static Object lookupVariable(String key) {
EvaluationContext context = getContext();
return context.lookupVariable(key);
}
public static void setVariable(String key, Object value) {
EvaluationContext context = getContext();
context.setVariable(key, value);
VARIABLES.set(context);
}
public static void remove() {
VARIABLES.remove();
}
}

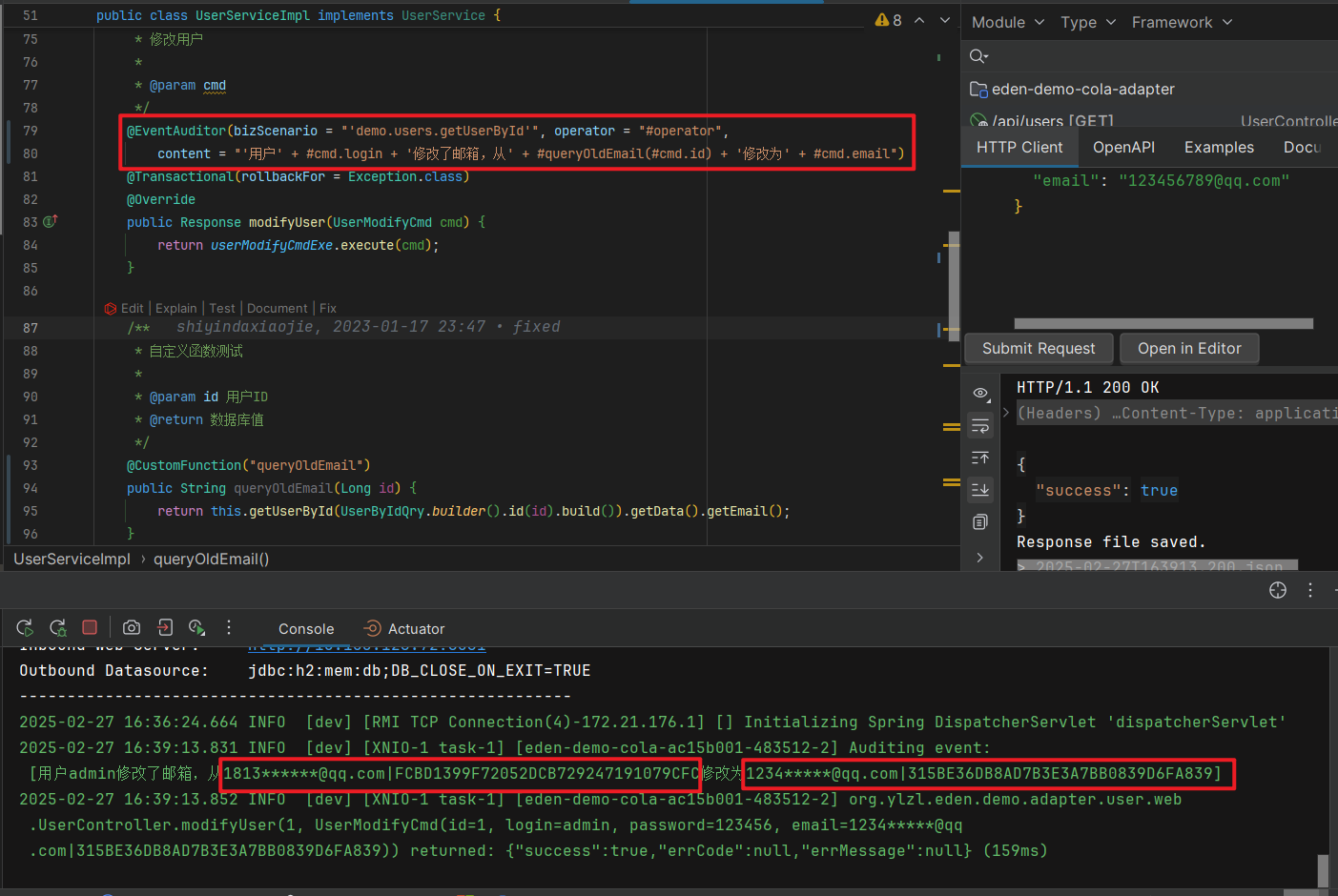

自定义函数解决上下文历史
通过 MethodInterceptor 方法拦截只能获取入参和返回值，对于修改内容的场景，没办法获取原始记录。我们引入了 CustomFunctionRegistrar 自定义函数，由用户来决定调用哪个 Java 方法。
在应用启动时，基于 Spring 自动扫描所有标记了 CustomFunctionRegistrar 的代码，通过 AOP 生成代理，将自定义函数和代理方法的映射存到缓存中，这样就可以通过自定义函数找到代理方法，调用业务指定的逻辑了。
@Slf4j
public class CustomFunctionRegistrar implements ApplicationContextAware {
private static final Map<String, Method> FUNCTION_CACHE = new ConcurrentHashMap<>();
/**
* 初始化
*
* @param applicationContext ApplicationContext
* @throws BeansException 初始化Bean异常
*/
@Override
public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
initialize(applicationContext);
}
/**
* 初始化自定义函数
*
* @param applicationContext ApplicationContext
*/
private void initialize(ApplicationContext applicationContext) {
Map<String, Object> components = applicationContext.getBeansWithAnnotation(Component.class);
components.values().forEach(component -> {
Method[] methods = component.getClass().getMethods();
if (methods.length == 0) {
return;
}
Object targetObject = AopUtils.getDynamicProxyTargetObject(component);
for (Method method : methods) {
CustomFunction annotation = AnnotatedElementUtils.findMergedAnnotation(method, CustomFunction.class);
if (annotation == null) {
continue;
}
if (ReflectionUtils.isStaticMethod(method)) {
cache(annotation, method);
continue;
}
ClassPool pool = ClassPool.getDefault();
Class<?> targetClass = targetObject.getClass();
String staticallyClassName = targetClass.getName() + "_Statically";
Class<?> delegateClass;
CtClass ctClass = pool.getOrNull(staticallyClassName);
try {
if (ctClass == null) {
ctClass = constructCtClass(method, pool, targetClass, staticallyClassName);
delegateClass = ctClass.toClass();
} else {
delegateClass = ctClass.getClass().getClassLoader().loadClass(staticallyClassName);
}
Object proxy = delegateClass.getConstructor(targetClass).newInstance(component);
Method[] proxyMethods = proxy.getClass().getDeclaredMethods();
Arrays.stream(proxyMethods).forEach(proxyMethod -> {
if (Arrays.equals(method.getParameterTypes(), proxyMethod.getParameterTypes()) &&
method.getName().equals(proxyMethod.getName())) {
cache(annotation, proxyMethod);
}
});
} catch (Exception e) {
throw new RuntimeException(e);
}
}
});
}
/**
* 注册自定义函数到 SpEL解析上下文
*
* @param context SpEL解析上下文
*/
public static void register(StandardEvaluationContext context) {
FUNCTION_CACHE.forEach(context::registerFunction);
}
private static void cache(CustomFunction annotation, Method method) {
String registerName = StringUtils.hasText(annotation.value()) ? annotation.value() : method.getName();
FUNCTION_CACHE.put(registerName, method);
log.info("Register custom function '{}' as name '{}'", method, registerName);
}
private CtClass constructCtClass(Method method, ClassPool pool, Class<?> targetClass, String staticallyClassName)
throws NotFoundException, CannotCompileException {
CtClass ctClass = pool.makeClass(staticallyClassName);
ctClass.addInterface(pool.get(Serializable.class.getName()));
CtField field = new CtField(pool.get(targetClass.getName()), "delegating", ctClass);
field.setModifiers(javassist.Modifier.STATIC | javassist.Modifier.PROTECTED);
ctClass.addField(field);
CtConstructor constructor = new CtConstructor(new CtClass[]{pool.get(targetClass.getName())}, ctClass);
constructor.setBody("{delegating = $1;}");
ctClass.addConstructor(constructor);
CtMethod getterMethod = new CtMethod(pool.get(targetClass.getName()), "getDelegating", new CtClass[]{}, ctClass);
getterMethod.setModifiers(javassist.Modifier.PUBLIC);
getterMethod.setBody("{return delegating;}");
ctClass.addMethod(getterMethod);
int modifier = method.getModifiers();
modifier |= javassist.Modifier.STATIC;
String methodName = method.getName();
Class<?> returnType = method.getReturnType();
StringBuilder builder = new StringBuilder();
builder.append(chooseModifier(modifier)).append(" ")
.append(returnType.getName()).append(" ")
.append(methodName).append("(");
Class<?>[] parameterType = method.getParameterTypes();
StringBuilder params = null;
for (int i = 0; i < parameterType.length; i++) {
builder.append(parameterType[i].getName()).append(" ");
builder.append("$_").append(i).append(",");
if (params == null) {
params = new StringBuilder();
}
params.append("$_").append(i).append(",");
}
if (params != null) {
builder.delete(builder.length() - 1, builder.length());
params.delete(params.length() - 1, params.length());
}
builder.append(")");
builder.append("{");
if (!returnType.equals(void.class)) {
builder.append("return").append(" ");
}
builder.append("delegating.").append(methodName).append("(");
if (params != null) {
builder.append(params);
}
builder.append(")").append(";");
builder.append("}");
CtMethod ctMethod = CtMethod.make(builder.toString(), ctClass);
ctClass.addMethod(ctMethod);
return ctClass;
}
private String chooseModifier(int modifier) {
StringBuilder builder = new StringBuilder();
if ((modifier & javassist.Modifier.PUBLIC) == javassist.Modifier.PUBLIC) {
builder.append("public").append(" ");
}
if ((modifier & javassist.Modifier.PRIVATE) == javassist.Modifier.PRIVATE) {
builder.append("private").append(" ");
}
if ((modifier & javassist.Modifier.PROTECTED) == javassist.Modifier.PROTECTED) {
builder.append("protected").append(" ");
}
if ((modifier & javassist.Modifier.ABSTRACT) == javassist.Modifier.ABSTRACT) {
builder.append("abstract").append(" ");
}
if ((modifier & javassist.Modifier.STATIC) == javassist.Modifier.STATIC) {
builder.append("static").append(" ");
}
if ((modifier & javassist.Modifier.FINAL) == javassist.Modifier.FINAL) {
builder.append("final").append(" ");
}
return builder.toString();
}
}
审计事件内容存储实现
拦截到审计信息后，接下来要做的事情就是存储。我们定义了 EventSender 接口和 AuditingEvent 审计事件模型。
public interface EventSender {
/**
* 发送审计事件列表
*
* @param events 审计事件列表
*/
void send(List<AuditingEvent> events);
}
@Accessors(chain = true)
@Builder
@NoArgsConstructor
@AllArgsConstructor
@EqualsAndHashCode
@ToString
@Data
public class AuditingEvent {
/** 操作对象 */
private String operator;
/** 操作角色 */
private String role;
/** 操作时间 */
private LocalDateTime operateDate;
/** 业务场景 */
private String bizScenario;
/** 记录内容 */
private String content;
/** 额外信息 */
private String extra;
/** 返回值 */
private String returnValue;
/** 执行耗时 */
private Long executionCost;
/** 执行是否成功 */
private Boolean success;
/** 异常信息 */
private String throwable;
}
在前面的 EventAuditorInterceptor#send() 方法，就是调用了这个接口。
关于接口的实现，我们预留了扩展点，可以本地日志打印、可以发送到 MQ 或者数据库，例如，本地日志打印实现代码。
@RequiredArgsConstructor
@Slf4j
public class LoggingEventSender implements EventSender {
public static final String AUDITING_EVENT = "Auditing event: {}";
private final Level level;
/**
* 发送审计事件列表
*
* @param events 审计事件列表
*/
@Override
public void send(List<AuditingEvent> events) {
if (CollectionUtils.isEmpty(events)) {
return;
}
List<String> contents = events.stream()
.map(AuditingEvent::getContent).collect(Collectors.toList());
switch (level) {
case DEBUG:
log.debug(AUDITING_EVENT, contents);
break;
case INFO:
log.info(AUDITING_EVENT, contents);
break;
case WARN:
log.warn(AUDITING_EVENT, contents);
break;
}
}
}
为了简化配置，我们基于 Spring Boot 的自动装配机制进一步封装。
@ConditionalOnProperty(
prefix = EventAuditorProperties.PREFIX,
name = Conditions.ENABLED,
havingValue = Conditions.TRUE,
matchIfMissing = true
)
@AutoConfigureAfter(AsyncTaskExecutionAutoConfiguration.class)
@EnableEventAuditor
@EnableConfigurationProperties(EventAuditorProperties.class)
@Slf4j
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
@Configuration(proxyBeanMethods = false)
public class EventAuditorAutoConfiguration {
}
@Setter
@Getter
@ConfigurationProperties(prefix = EventAuditorProperties.PREFIX)
public class EventAuditorProperties extends EventAuditorConfig {
public static final String PREFIX = "event-auditor";
private boolean enabled;
}
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
@Slf4j
@Configuration(proxyBeanMethods = false)
public class EventAuditorConfiguration implements ImportAware {
private AnnotationAttributes enableEventAuditor;
@Override
public void setImportMetadata(AnnotationMetadata importMetadata) {
this.enableEventAuditor = AnnotationAttributes.fromMap(
importMetadata.getAnnotationAttributes(EnableEventAuditor.class.getName(), false));
if (this.enableEventAuditor == null) {
log.warn("@EnableEventAuditor is not present on importing class");
}
}
@Bean
public EventAuditorInterceptor eventAuditorInterceptor(ObjectProvider<EventAuditorConfig> eventAuditorConfig,
ObjectProvider<AsyncTaskExecutor> asyncTaskExecutor) {
EventAuditorInterceptor interceptor = new EventAuditorInterceptor(eventAuditorConfig.getIfUnique(EventAuditorConfig::new));
asyncTaskExecutor.ifAvailable(interceptor::setAsyncTaskExecutor);
return interceptor;
}
@Bean
public EventAuditorPointcutAdvisor eventAuditorPointcutAdvisor(EventAuditorInterceptor eventAuditorInterceptor) {
EventAuditorPointcutAdvisor pointcutAdvisor = new EventAuditorPointcutAdvisor();
pointcutAdvisor.setAdviceBeanName("eventAuditorPointcutAdvisor");
pointcutAdvisor.setAdvice(eventAuditorInterceptor);
if (enableEventAuditor != null) {
pointcutAdvisor.setOrder(enableEventAuditor.getNumber("order"));
}
return pointcutAdvisor;
}
@Bean
public CustomFunctionRegistrar customFunctionRegistrar() {
return new CustomFunctionRegistrar();
}
}
@EqualsAndHashCode
@ToString
@Setter
@Getter
public class EventAuditorConfig {
private final Sender sender = new Sender();
@EqualsAndHashCode
@ToString
@Setter
@Getter
public static class Sender {
private String senderType = "logging";
private boolean async = true;
private final Logging logging = new Logging();
private final Kafka kafka = new Kafka();
private final RocketMQ rocketMQ = new RocketMQ();
@EqualsAndHashCode
@ToString
@Setter
@Getter
public static class Logging {
private Level level = Level.INFO;
}
@EqualsAndHashCode
@ToString
@Setter
@Getter
public static class Kafka {
private String topic;
}
@EqualsAndHashCode
@ToString
@Setter
@Getter
public static class RocketMQ {
private String topic;
private String namespace;
private String tags;
private String keys;
}
}
}
从配置类可以看到，我们为消息存储提供了 3 个选项: Logging 本地日志、RocketMQ 或 Kafka。
代码使用示例
假设我们在 UserService#modifyUser() 修改用户信息，需要记录修改了哪些内容。
@Service("userService")
public class UserServiceImpl implements UserService {
//...
/**
* 修改用户
*
* @param cmd
*/
@EventAuditor(bizScenario = "'demo.users.getUserById'", operator = "#operator",
content = "'用户' + #cmd.login + '修改了邮箱，从' + #queryOldEmail(#cmd.id) + '修改为' + #cmd.email")
@Transactional(rollbackFor = Exception.class)
@Override
public Response modifyUser(UserModifyCmd cmd) {
return userModifyCmdExe.execute(cmd);
}
/**
* 自定义函数
*
* @param id 用户ID
* @return 数据库值
*/
@CustomFunction("queryOldEmail")
public String queryOldEmail(Long id) {
return this.getUserById(UserByIdQry.builder().id(id).build()).getData().getEmail();
}
}
对应的 application.yaml 配置文件设置如下。
event-auditor:
enabled: true
sender:
type: logging
# type: kafka
# kafka:
# topic: demo
# type: rocketmq
# rocketmq:
# topic: demo
# namespace: test
因为笔者配置了 event-auditor.sender.type=logging，所以，审计内容输出到控制台日志，如下图，当调用用户信息更新接口，在控制台打印了 用户admin修改了邮箱 字眼。
产出
对业务代码的侵入性极小，扩展性很高，可以轻松实现事件审计的记录，并存储到你想要的位置。
本文涉及的代码完全开源，感兴趣的伙伴可以查阅 eden-event-auditor 和 eden-event-auditor-spring-boot-starter。
扫一扫
870
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
