高分宽幅多通道SAR——SAR最小天线面积限制

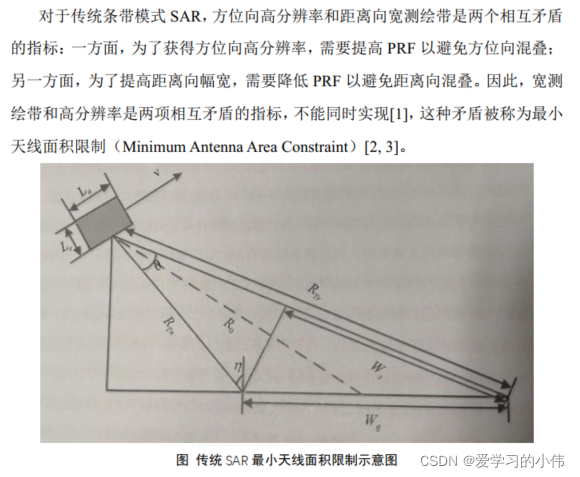

对于传统条带模式SAR，方位向高分辨率和距离向宽测绘带是两个相互矛盾的指标：一方面，为了获得方位向高分辨率，需要提高PRF以避免方位向混叠；另一方面，为了提高距离向幅宽，需要降低PRF以避免距离向混叠。因此，宽测绘带和高分辨率是两项相互矛盾的指标，不能同时实现，这种矛盾被称为最小天线面积限制（Minimum Antenna Area Constraint）。

这里以截图的形式分享给大家，如需Word版本，可去以下链接下载

方位多通道SAR_最小天线面积限制_word-教育文档类资源-CSDN下载对于传统条带模式SAR，方位向高分辨率和距离向宽测绘带是两个相互矛盾的指标：一方面，为了获得方位向高更多下载资源、学习资料请访问CSDN下载频道.https://download.csdn.net/download/smyounger/76973463













参考文献：

1.         Carrara, W.G., R.S. Goodman, and R.M. Majewski, Spotlight synthetic aperture radar: Signal processing algorithms. Journal of Atmospheric and Solar-Terrestrial Physics, 1995. 59(5): p. 597-598.

2.         Tomiyasu, K., Tutorial review of synthetic-aperture radar (SAR) with applications to imaging of the ocean surface. Proceedings of the IEEE, 1978. 66(5): p. 563-583.

3.         Suess, M., B. Grafmueller, and R. Zahn. A novel high resolution, wide swath SAR system. in Geoscience and Remote Sensing Symposium, 2001. IGARSS '01. IEEE 2001 International. 2001.

4.         Lanari, R., et al., Spotlight SAR data focusing based on a two-step processing approach. IEEE Transactions on Geoscience & Remote Sensing, 2001. 39(9): p. 1993-2004.

5.         Jr, C.V.J., et al., Spotlight-Mode Synthetic Aperture Radar: A Signal Processing Approach. 1996: Kluwer Academic Publishers. 330-332.

6.         Mittermayer, J., et al. Staring spotlight imaging with TerraSAR-X. in Geoscience and Remote Sensing Symposium. 2012.

7.         Mittermayer, J., et al., The TerraSAR-X Staring Spotlight Mode Concept. IEEE Transactions on Geoscience & Remote Sensing, 2014. 52(6): p. 3695-3706.

8.         Shang, M., et al., A High-Resolution SAR Focusing Experiment Based on GF-3 Staring Data. Sensors, 2018. 18(4).

9.         Lanari, R., et al., New approach for hybrid strip-map/spotlight SAR data focusing. Radar, Sonar and Navigation, IEE Proceedings -, 2001. 148(6): p. 363-372.

10.       Ossowska, A. and R. Speck. Hybrid strip-map/spotlight mode processing based on chirp scaling processing. in International Radar Symposium. 2008.

11.      Werninghaus, R. and S. Buckreuss, The TerraSAR-X Mission and System Design. IEEE Transactions on Geoscience & Remote Sensing, 2010. 48(2): p. 606-614.

12.       Jili Sun , W.Y.a.Y.D., The SAR Payload Design and Performance for the GF-3 Mission. 2017.

13.       Kankaku, Y., S. Suzuki, and Y. Osawa. ALOS-2 mission and development status. in Geoscience and Remote Sensing Symposium. 2014.

14.       Moore, R.K., J.P. Claassen, and Y.H. Lin, Scanning Spaceborne Synthetic Aperture Radar with Integrated Radiometer. IEEE Transactions on Aerospace & Electronic Systems, 1981. AES-17(3): p. 410-421.

15.       Zan, F.D. and A.M.M. Guarnieri, TOPSAR: Terrain Observation by Progressive Scans. IEEE Transactions on Geoscience & Remote Sensing, 2006. 44(9): p. 2352-2360.

16.       Currie, A. and M.A. Brown, Wide-swath SAR. Radar & Signal Processing Iee Proceedings F, 1992. 139(2): p. 122-135.
