图像分割2-DeepLabv3+实现

目录

一、模型结构

1.Backbone

2.Encoder

3.Decoder

二、模型实现

---



一、模型结构

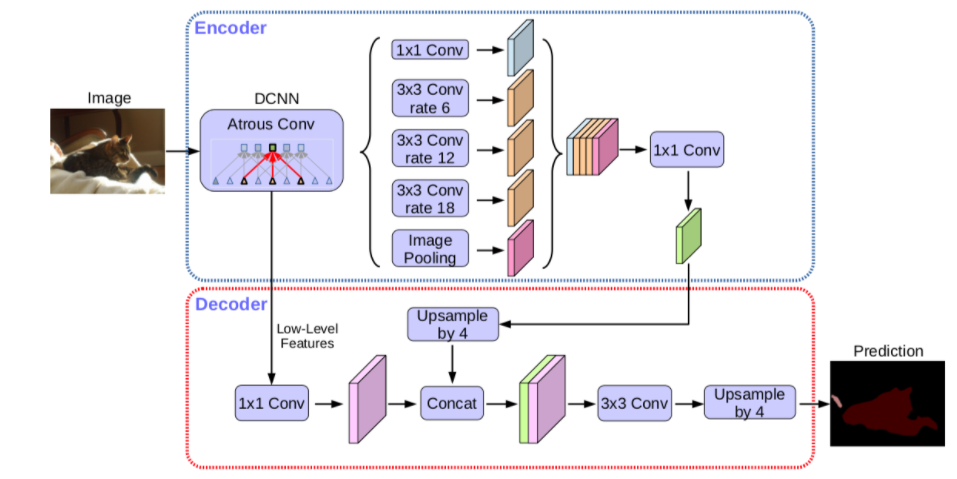

假设使用（4,3,128,128）的输入，也就是4张图，三通道，图片大小128*128。

1.Backbone

本模型使用resnet101作为backbone，通过backbone之后，得到的输出是（4,2048,8,8），同时我们在resnet101中，第一个block之后，就把结果作为一个底层特征输出出来，形状为（4,256,32,32），这里就是和deeplabv3不一样的地方，这个输出将输入decoder，进行特征融合。

2.Encoder

就是ASPP模块，这个模块中，有1个1*1卷积，3个3*3的膨胀卷积，以及一个全局的pooling，把这五个结果合并起来，在通过一个1*1卷积，就得到了encoder的输出，形状是（4,256,8,8），这个输出将进入decoder，和前面backbone过来的数据进行融合。

3.Decoder

这部分首先把encoder来的特征图进行上采样，使其和底层特征的尺寸一致，将这两个合并之后，在进行卷积，最后再次进行4倍上采样得到最终的输出。

二、模型实现

这里面的F.interpolate就是上采样的方法，和nn.Upsample效果一样。

import torch.nn as nn
import torch
from resnet import ResNet101
import torch.nn.functional as F


# 使用resnet101作为模型的backbone
net = ResNet101()

# ASPP模块
class _ASPPModule(nn.Module):
    def __init__(self, inplanes, planes, kernel_size, padding, dilation):
        '''这里定义膨胀卷积'''
        super(_ASPPModule, self).__init__()
        self.atrous_conv = nn.Conv2d(inplanes, planes,kernel_size=kernel_size,
                                     padding=padding,dilation=dilation)
        self.bn = nn.BatchNorm2d(planes)
        self.relu = nn.ReLU()
    def forward(self, x):
        x = self.atrous_conv(x)
        x = self.bn(x)
        return self.relu(x)

class ASPP(nn.Module):
    '''从resnet101的结果过来，通道2048
    这里进行四个卷积+一个pooling，然后合并起来，最后再来一个1*1卷积'''
    def __init__(self):
        super(ASPP, self).__init__()
        inplanes = 2048
        dilations = [1, 6, 12, 18]
        self.aspp1 = _ASPPModule(inplanes, 256, 1, padding=0, dilation=dilations[0])
        self.aspp2 = _ASPPModule(inplanes, 256, 3, padding=dilations[1], dilation=dilations[1])
        self.aspp3 = _ASPPModule(inplanes, 256, 3, padding=dilations[2], dilation=dilations[2])
        self.aspp4 = _ASPPModule(inplanes, 256, 3, padding=dilations[3], dilation=dilations[3])
        self.global_avg_pool = nn.Sequential(
            nn.AdaptiveAvgPool2d((1,1)),
            nn.Conv2d(inplanes, 256, 1, stride=1, bias=False),
            nn.BatchNorm2d(256),
            nn.ReLU()
        )
        self.conv1 = nn.Conv2d(1280, 256, 1, bias=False)
        self.bn1 = nn.BatchNorm2d(256)
        self.relu = nn.ReLU()
        self.dropout = nn.Dropout(0.5)


    def forward(self, x):
        x1 = self.aspp1(x)
        x2 = self.aspp2(x)
        x3 = self.aspp3(x)
        x4 = self.aspp4(x)
        x5 = self.global_avg_pool(x)
        # test = nn.Upsample(x4.size()[2:], mode='bilinear', align_corners=True)
        # testout = test(x5)
        x5 = F.interpolate(x5, size=x4.size()[2:], mode='bilinear', align_corners=True)
        x = torch.cat([x1,x2,x3,x4,x5], dim=1)
        x = self.conv1(x)
        x = self.bn1(x)
        x = self.relu(x)
        return self.dropout(x)

class Decoder(nn.Module):
    '''decoder部分，从resnet中取出的输出上采样后，与ASPP模块的输出合并，再进一步卷积+上采样'''
    def __init__(self, num_classes):
        super(Decoder, self).__init__()
        low_level_inplanes = 256
        self.conv1 = nn.Conv2d(low_level_inplanes, 48, 1, bias=False)
        self.bn1 = nn.BatchNorm2d(48)
        self.relu = nn.ReLU()
        self.last_conv = nn.Sequential(
            nn.Conv2d(304, 256, 3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(256),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Conv2d(256, 256, 3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(256),
            nn.ReLU(),
            nn.Dropout(0.1),
            nn.Conv2d(256, num_classes, kernel_size=1, stride=1)
        )

    def forward(self,x,low_level_feat):
        low_level_feat = self.conv1(low_level_feat)
        low_level_feat = self.bn1(low_level_feat)
        low_level_feat = self.relu(low_level_feat)

        x = F.interpolate(x, size=low_level_feat.size()[2:], mode='bilinear', align_corners=True)
        x = torch.cat([low_level_feat, x], dim=1)
        x = self.last_conv(x)
        return x

class DeepLab3p(nn.Module):
    def __init__(self, num_classes):
        super(DeepLab3p, self).__init__()
        self.backbone = ResNet101()
        self.aspp = ASPP()
        self.decoder = Decoder(num_classes=num_classes)

    def forward(self, x_in):
        x,low_level_feat = self.backbone(x_in)
        x = self.aspp(x)
        x = self.decoder(x, low_level_feat)
        x = F.interpolate(x, x_in.size()[2:], mode='bilinear', align_corners=True)
        return x
