本例参考某教学视频和某知乎文章，下载完他的github代码后找不到文章地址了，罪过罪过，自己敲了一遍代码并跑了一遍，添加了一些注释，再通过整理博客的方式加深理解。

该例子的主要目的是通过seq2seq训练一个模型，解决将输入字符串（乱序）按字母顺序排序输出的问题，例如“open”->enop。当然用简单的算法也可以很方便的将字符串排序输出，这不主要目的是为了理解seq2seq工作原理嘛！用个简单的例子易于理解！

查看TensorFlow版本

from distutils.version import LooseVersion
import tensorflow as tf
from tensorflow.python.layers.core import Dense


# Check TensorFlow Version
assert LooseVersion(tf.__version__) >= LooseVersion('1.1'), 'Please use TensorFlow version 1.1 or newer'
print('TensorFlow Version: {}'.format(tf.__version__))

数据加载

import numpy as np
import time
import tensorflow as tf

with open('data/letters_source.txt','r',encoding='utf-8') as f:
    source_data=f.read()
with open('data/letters_target.txt','r',encoding='utf-8') as f:
    target_data=f.read()

#数据预览
source_data.split('\n')[:10]

#数据预览

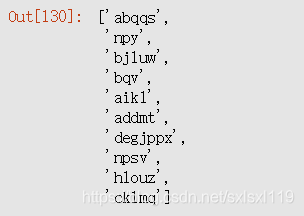

target_data.split('\n')[:10]

数据预处理

def extract_character_vocab(data):
    '''构造映射表'''
    special_words=['<PAD>','<UNK>','<GO>','<EOS>']
    #set()创建无序不重复集合
    set_words=list(set([character for line in data.split('\n') for character in line]))
    #这里要把四个特殊字符添加进词典
    int_to_vocab={idx:word for idx, word in enumerate(special_words+set_words)}
    vocab_to_int={word:idx for idx, word in int_to_vocab.items()}

    return int_to_vocab,vocab_to_int

#构造映射表
source_int_to_letter,source_letter_to_int=extract_character_vocab(source_data)
target_int_to_letter,target_letter_to_int=extract_character_vocab(target_data)


#对字母进行转换  ,get()函数返回letter所在下表索引，如果letter不在字典中就返回source_letter_to_int['<UNK>']
source_int=[ [source_letter_to_int.get(letter,source_letter_to_int['<UNK>'])
            for letter in line] for line in source_data.split('\n') ]
target_int=[[target_letter_to_int.get(letter,target_letter_to_int['<UNK>'])
            for letter in line] +[target_letter_to_int['<EOS>']] for line in target_data.split('\n')]

#查看一下转换结果

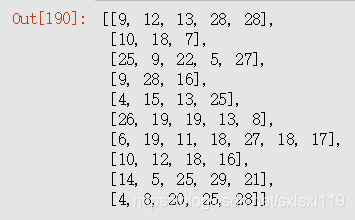

source_int[:10]

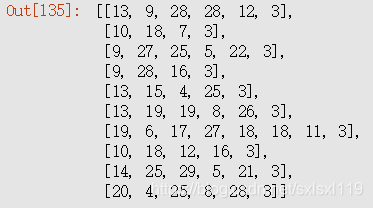

target_int[:10]

构建模型

输入层

def get_inputs():
    '''获得模型输入tensor，6个张量'''
    inputs=tf.placeholder(tf.int32,[None,None],name='inputs')     #输入
    targets=tf.placeholder(tf.int32,[None,None],name='targets')   #输出
    learning_rate=tf.placeholder(tf.float32,name='learning_rate') #学习率

    #定义target序列最大长度（之后target_sequence_length和source_sequence_length会作为feed_dice的参数）
    target_sequence_length=tf.placeholder(tf.int32,(None,),name='target_sequence_length')   #目标seq长度
    max_target_sequence_length=tf.reduce_max(target_sequence_length,name='max_target_len')  #目标seq最大长度
    source_sequence_length=tf.placeholder(tf.int32,(None,),name='source_sequence_length')   #源数据seq长度

    return inputs,targets,learning_rate,target_sequence_length,max_target_sequence_length,source_sequence_length

Encoder

在Encoder端，我们需要进行两步，第一步要对我们的输入进行Embedding，再把Embedding以后的向量传给RNN进行处理。

我们来看一个栗子，假如我们有一个batch=2，sequence_length=5的样本，features = [[1,2,3,4,5],[6,7,8,9,10]]，使用tf.contrib.layers.embed_sequence(features,vocab_size=n_words, embed_dim=10) 那么我们会得到一个2 x 5 x 10的输出，其中features中的每个数字都被embed成了一个10维向量。

def get_encoder_layer(input_data, rnn_size, num_layers,
                   source_sequence_length, source_vocab_size,
                   encoding_embedding_size):

    '''
    构造Encoder层

    参数说明：
    - input_data: 输入tensor
    - rnn_size: rnn隐层结点数量
    - num_layers: 堆叠的rnn cell数量
    - source_sequence_length: 源数据的序列长度
    - source_vocab_size: 源数据的词典大小
    - encoding_embedding_size: embedding的大小
    '''
    # Encoder embedding
    encoder_embed_input = tf.contrib.layers.embed_sequence(input_data, source_vocab_size, encoding_embedding_size)

    # RNN cell
    def get_lstm_cell(rnn_size):
        lstm_cell = tf.contrib.rnn.LSTMCell(rnn_size, initializer=tf.random_uniform_initializer(-0.1, 0.1, seed=2))
        return lstm_cell

    cell = tf.contrib.rnn.MultiRNNCell([get_lstm_cell(rnn_size) for _ in range(num_layers)])

    encoder_output, encoder_state = tf.nn.dynamic_rnn(cell, encoder_embed_input,
                                                      sequence_length=source_sequence_length, dtype=tf.float32)

    return encoder_output, encoder_state

Decoder

对target数据进行预处理

def process_decoder_input(data,vocab_to_int,batch_size):
    '''补充<GO>,并移除最后一个字符'''
    #cut掉最后一个字符
    ending=tf.strided_slice(data,[0,0],[batch_size,-1],[1,1])
    decoder_input=tf.concat([tf.fill([batch_size,1],vocab_to_int['<GO>']),ending],1) #按第一维进行合并

    return decoder_input

对数据进行embedding【*****】

同样地，我们还需要对target数据进行embedding，使得它们能够传入Decoder中的RNN。

def decoding_layer(target_letter_to_int, decoding_embedding_size, num_layers, rnn_size,
                   target_sequence_length, max_target_sequence_length, encoder_state, decoder_input):
    '''
    构造Decoder层

    参数：
    - target_letter_to_int: target数据的映射表
    - decoding_embedding_size: embed向量大小
    - num_layers: 堆叠的RNN单元数量
    - rnn_size: RNN单元的隐层结点数量
    - target_sequence_length: target数据序列长度
    - max_target_sequence_length: target数据序列最大长度
    - encoder_state: encoder端编码的状态向量
    - decoder_input: decoder端输入
    '''
    # 1. Embedding
    target_vocab_size = len(target_letter_to_int) #目标词向量长度
    decoder_embeddings = tf.Variable(tf.random_uniform([target_vocab_size, decoding_embedding_size]))
    decoder_embed_input = tf.nn.embedding_lookup(decoder_embeddings, decoder_input) #主要是选取一个张量里面索引对应的元素

    # 2. 构造Decoder中的RNN单元
    def get_decoder_cell(rnn_size):
        decoder_cell = tf.contrib.rnn.LSTMCell(rnn_size,
                                           initializer=tf.random_uniform_initializer(-0.1, 0.1, seed=2))
        return decoder_cell
    cell = tf.contrib.rnn.MultiRNNCell([get_decoder_cell(rnn_size) for _ in range(num_layers)])

    # 3. Output全连接层
    output_layer = Dense(target_vocab_size,
                         kernel_initializer = tf.truncated_normal_initializer(mean = 0.0, stddev=0.1))


    # 4. Training decoder
    with tf.variable_scope("decode"):
        # 得到help对象
        training_helper = tf.contrib.seq2seq.TrainingHelper(inputs=decoder_embed_input,
                                                            sequence_length=target_sequence_length,
                                                            time_major=False)
        # 构造decoder
        training_decoder = tf.contrib.seq2seq.BasicDecoder(cell,
                                                           training_helper,
                                                           encoder_state,
                                                           output_layer)
        training_decoder_output,_ , _ = tf.contrib.seq2seq.dynamic_decode(training_decoder,
                                                                       impute_finished=True,
                                                                       maximum_iterations=max_target_sequence_length)
    # 5. Predicting decoder
    # 与training共享参数
    with tf.variable_scope("decode", reuse=True):
        # 创建一个常量tensor并复制为batch_size的大小
        start_tokens = tf.tile(tf.constant([target_letter_to_int['<GO>']], dtype=tf.int32), [batch_size],
                               name='start_tokens')
        predicting_helper = tf.contrib.seq2seq.GreedyEmbeddingHelper(decoder_embeddings,
                                                                start_tokens,
                                                                target_letter_to_int['<EOS>'])
        predicting_decoder = tf.contrib.seq2seq.BasicDecoder(cell,
                                                        predicting_helper,
                                                        encoder_state,
                                                        output_layer)
        predicting_decoder_output,_, _ = tf.contrib.seq2seq.dynamic_decode(predicting_decoder,
                                                            impute_finished=True,
                                                            maximum_iterations=max_target_sequence_length)

    return training_decoder_output, predicting_decoder_output

Seq2Seq【*****】

上面已经构建完成Encoder和Decoder，下面将这两部分连接起来，构建seq2seq模型

def seq2seq_model(input_data, targets, lr, target_sequence_length,
                  max_target_sequence_length, source_sequence_length,
                  source_vocab_size, target_vocab_size,
                  encoder_embedding_size, decoder_embedding_size,
                  rnn_size, num_layers):

    # 获取encoder的状态输出
    _, encoder_state = get_encoder_layer(input_data,
                                  rnn_size,
                                  num_layers,
                                  source_sequence_length,
                                  source_vocab_size,
                                  encoding_embedding_size)


    # 预处理后的decoder输入
    decoder_input = process_decoder_input(targets, target_letter_to_int, batch_size)

    # 将状态向量与输入传递给decoder
    training_decoder_output, predicting_decoder_output = decoding_layer(target_letter_to_int,
                                                                       decoding_embedding_size,
                                                                       num_layers,
                                                                       rnn_size,
                                                                       target_sequence_length,
                                                                       max_target_sequence_length,
                                                                       encoder_state,
                                                                       decoder_input)

    return training_decoder_output, predicting_decoder_output

设置超参数

# 超参数
# Number of Epochs
epochs = 60
# Batch Size
batch_size = 128
# RNN Size
rnn_size = 50
# Number of Layers
num_layers = 2
# Embedding Size
encoding_embedding_size = 15
decoding_embedding_size = 15
# Learning Rate
learning_rate = 0.001

构造graph

# 构造graph
train_graph = tf.Graph()

with train_graph.as_default():

    # 获得模型输入
    input_data, targets, lr, target_sequence_length, max_target_sequence_length, source_sequence_length = get_inputs()

    training_decoder_output, predicting_decoder_output = seq2seq_model(input_data,targets,lr,target_sequence_length,
                                                                       max_target_sequence_length,source_sequence_length,
                                                                       len(source_letter_to_int),len(target_letter_to_int),
                                                                       encoding_embedding_size,decoding_embedding_size,
                                                                       rnn_size,num_layers)

     #tf.identity它返回一个和输入的 tensor 大小和数值都一样的 tensor ,类似于 y=x 操作
    training_logits = tf.identity(training_decoder_output.rnn_output, 'logits')
    predicting_logits = tf.identity(predicting_decoder_output.sample_id, name='predictions')

    masks = tf.sequence_mask(target_sequence_length, max_target_sequence_length, dtype=tf.float32, name='masks')

    with tf.name_scope("optimization"):

        # Loss function
        cost = tf.contrib.seq2seq.sequence_loss(
            training_logits,
            targets,
            masks)

        # Optimizer
        optimizer = tf.train.AdamOptimizer(lr)

        # Gradient Clipping
        gradients = optimizer.compute_gradients(cost)
        capped_gradients = [(tf.clip_by_value(grad, -5., 5.), var) for grad, var in gradients if grad is not None]
        train_op = optimizer.apply_gradients(capped_gradients)

设置Batches

def pad_sentence_batch(sentence_batch, pad_int):
    '''
    对batch中的序列进行补全，保证batch中的每行都有相同的sequence_length

    参数：
    - sentence batch
    - pad_int: <PAD>对应索引号
    '''
    max_sentence = max([len(sentence) for sentence in sentence_batch])
    return [sentence + [pad_int] * (max_sentence - len(sentence)) for sentence in sentence_batch]

def get_batches(targets, sources, batch_size, source_pad_int, target_pad_int):
    '''
    定义生成器，用来获取batch
    '''
    for batch_i in range(0, len(sources)//batch_size):  #//取整数
        start_i = batch_i * batch_size
        sources_batch = sources[start_i:start_i + batch_size]
        targets_batch = targets[start_i:start_i + batch_size]
        # 补全序列
        pad_sources_batch = np.array(pad_sentence_batch(sources_batch, source_pad_int))
        pad_targets_batch = np.array(pad_sentence_batch(targets_batch, target_pad_int))

        # 记录每条记录的长度
        targets_lengths = []
        for target in targets_batch:
            targets_lengths.append(len(target)) #每个batch中每条序列的长度

        source_lengths = []
        for source in sources_batch:
            source_lengths.append(len(source)) #每个batch中每条序列的长度

        #yield 是一个类似 return 的关键字，迭代一次遇到yield时就返回yield后面(右边)的值
        yield pad_targets_batch, pad_sources_batch, targets_lengths, source_lengths

Train训练

# 将数据集分割为train和validation
train_source = source_int[batch_size:]
train_target = target_int[batch_size:]
# 留出一个batch进行验证
valid_source = source_int[:batch_size]
valid_target = target_int[:batch_size]
(valid_targets_batch, valid_sources_batch, valid_targets_lengths, valid_sources_lengths) = next(get_batches(valid_target, valid_source, batch_size,
                           source_letter_to_int['<PAD>'],
                           target_letter_to_int['<PAD>']))

display_step = 50 # 每隔50轮输出loss

checkpoint = "trained_model.ckpt"
with tf.Session(graph=train_graph) as sess:
    sess.run(tf.global_variables_initializer())

    for epoch_i in range(1, epochs+1):
        for batch_i, (targets_batch, sources_batch, targets_lengths, sources_lengths) in enumerate(
                get_batches(train_target, train_source, batch_size,
                           source_letter_to_int['<PAD>'],
                           target_letter_to_int['<PAD>'])):

            _, loss = sess.run(
                [train_op, cost],
                {input_data: sources_batch,
                 targets: targets_batch,
                 lr: learning_rate,
                 target_sequence_length: targets_lengths,
                 source_sequence_length: sources_lengths})

            if batch_i % display_step == 0:

                # 计算validation loss
                validation_loss = sess.run(
                [cost],
                {input_data: valid_sources_batch,
                 targets: valid_targets_batch,
                 lr: learning_rate,
                 target_sequence_length: valid_targets_lengths,
                 source_sequence_length: valid_sources_lengths})

                print('Epoch {:>3}/{} Batch {:>4}/{} - Training Loss: {:>6.3f}  - Validation loss: {:>6.3f}'
                      .format(epoch_i,
                              epochs,
                              batch_i,
                              len(train_source) // batch_size,
                              loss,
                              validation_loss[0]))



    # 保存模型
    saver = tf.train.Saver()
    saver.save(sess, checkpoint)
    print('Model Trained and Saved')

代码运行结果：
Epoch   1/60 Batch    0/77 - Training Loss:  3.401  - Validation loss:  3.398
Epoch   1/60 Batch   50/77 - Training Loss:  2.781  - Validation loss:  2.785
Epoch   2/60 Batch    0/77 - Training Loss:  2.449  - Validation loss:  2.467
Epoch   2/60 Batch   50/77 - Training Loss:  2.122  - Validation loss:  2.125
Epoch   3/60 Batch    0/77 - Training Loss:  1.982  - Validation loss:  1.989
Epoch   3/60 Batch   50/77 - Training Loss:  1.801  - Validation loss:  1.781
Epoch   4/60 Batch    0/77 - Training Loss:  1.680  - Validation loss:  1.669
Epoch   4/60 Batch   50/77 - Training Loss:  1.527  - Validation loss:  1.521
Epoch   5/60 Batch    0/77 - Training Loss:  1.453  - Validation loss:  1.446
Epoch   5/60 Batch   50/77 - Training Loss:  1.350  - Validation loss:  1.334
Epoch   6/60 Batch    0/77 - Training Loss:  1.286  - Validation loss:  1.277
Epoch   6/60 Batch   50/77 - Training Loss:  1.184  - Validation loss:  1.156
Epoch   7/60 Batch    0/77 - Training Loss:  1.136  - Validation loss:  1.089
Epoch   7/60 Batch   50/77 - Training Loss:  1.018  - Validation loss:  0.982
Epoch   8/60 Batch    0/77 - Training Loss:  0.987  - Validation loss:  0.926
Epoch   8/60 Batch   50/77 - Training Loss:  0.889  - Validation loss:  0.841
Epoch   9/60 Batch    0/77 - Training Loss:  0.864  - Validation loss:  0.799
Epoch   9/60 Batch   50/77 - Training Loss:  0.782  - Validation loss:  0.732
Epoch  10/60 Batch    0/77 - Training Loss:  0.765  - Validation loss:  0.698
Epoch  10/60 Batch   50/77 - Training Loss:  0.697  - Validation loss:  0.646
Epoch  11/60 Batch    0/77 - Training Loss:  0.679  - Validation loss:  0.619
Epoch  11/60 Batch   50/77 - Training Loss:  0.618  - Validation loss:  0.573
Epoch  12/60 Batch    0/77 - Training Loss:  0.595  - Validation loss:  0.543
Epoch  12/60 Batch   50/77 - Training Loss:  0.548  - Validation loss:  0.504
Epoch  13/60 Batch    0/77 - Training Loss:  0.513  - Validation loss:  0.477
Epoch  13/60 Batch   50/77 - Training Loss:  0.478  - Validation loss:  0.441
Epoch  14/60 Batch    0/77 - Training Loss:  0.432  - Validation loss:  0.416
Epoch  14/60 Batch   50/77 - Training Loss:  0.408  - Validation loss:  0.378
Epoch  15/60 Batch    0/77 - Training Loss:  0.359  - Validation loss:  0.360
Epoch  15/60 Batch   50/77 - Training Loss:  0.343  - Validation loss:  0.324
Epoch  16/60 Batch    0/77 - Training Loss:  0.298  - Validation loss:  0.314
Epoch  16/60 Batch   50/77 - Training Loss:  0.291  - Validation loss:  0.277
Epoch  17/60 Batch    0/77 - Training Loss:  0.247  - Validation loss:  0.268
Epoch  17/60 Batch   50/77 - Training Loss:  0.249  - Validation loss:  0.238
Epoch  18/60 Batch    0/77 - Training Loss:  0.208  - Validation loss:  0.227
Epoch  18/60 Batch   50/77 - Training Loss:  0.215  - Validation loss:  0.205
Epoch  19/60 Batch    0/77 - Training Loss:  0.180  - Validation loss:  0.193
Epoch  19/60 Batch   50/77 - Training Loss:  0.184  - Validation loss:  0.177
Epoch  20/60 Batch    0/77 - Training Loss:  0.153  - Validation loss:  0.166
Epoch  20/60 Batch   50/77 - Training Loss:  0.158  - Validation loss:  0.155
Epoch  21/60 Batch    0/77 - Training Loss:  0.131  - Validation loss:  0.146
Epoch  21/60 Batch   50/77 - Training Loss:  0.137  - Validation loss:  0.137
Epoch  22/60 Batch    0/77 - Training Loss:  0.113  - Validation loss:  0.130
Epoch  22/60 Batch   50/77 - Training Loss:  0.119  - Validation loss:  0.122
Epoch  23/60 Batch    0/77 - Training Loss:  0.100  - Validation loss:  0.117
Epoch  23/60 Batch   50/77 - Training Loss:  0.104  - Validation loss:  0.110
Epoch  24/60 Batch    0/77 - Training Loss:  0.089  - Validation loss:  0.106
Epoch  24/60 Batch   50/77 - Training Loss:  0.093  - Validation loss:  0.103
Epoch  25/60 Batch    0/77 - Training Loss:  0.079  - Validation loss:  0.095
Epoch  25/60 Batch   50/77 - Training Loss:  0.084  - Validation loss:  0.098
Epoch  26/60 Batch    0/77 - Training Loss:  0.070  - Validation loss:  0.084
Epoch  26/60 Batch   50/77 - Training Loss:  0.081  - Validation loss:  0.086
Epoch  27/60 Batch    0/77 - Training Loss:  0.064  - Validation loss:  0.078
Epoch  27/60 Batch   50/77 - Training Loss:  0.071  - Validation loss:  0.078
Epoch  28/60 Batch    0/77 - Training Loss:  0.062  - Validation loss:  0.071
Epoch  28/60 Batch   50/77 - Training Loss:  0.061  - Validation loss:  0.071
Epoch  29/60 Batch    0/77 - Training Loss:  0.059  - Validation loss:  0.064
Epoch  29/60 Batch   50/77 - Training Loss:  0.054  - Validation loss:  0.064
Epoch  30/60 Batch    0/77 - Training Loss:  0.053  - Validation loss:  0.061
Epoch  30/60 Batch   50/77 - Training Loss:  0.049  - Validation loss:  0.059
Epoch  31/60 Batch    0/77 - Training Loss:  0.045  - Validation loss:  0.058
Epoch  31/60 Batch   50/77 - Training Loss:  0.047  - Validation loss:  0.054
Epoch  32/60 Batch    0/77 - Training Loss:  0.040  - Validation loss:  0.055
Epoch  32/60 Batch   50/77 - Training Loss:  0.043  - Validation loss:  0.050
Epoch  33/60 Batch    0/77 - Training Loss:  0.034  - Validation loss:  0.046
Epoch  33/60 Batch   50/77 - Training Loss:  0.036  - Validation loss:  0.047
Epoch  34/60 Batch    0/77 - Training Loss:  0.032  - Validation loss:  0.042
Epoch  34/60 Batch   50/77 - Training Loss:  0.032  - Validation loss:  0.045
Epoch  35/60 Batch    0/77 - Training Loss:  0.031  - Validation loss:  0.041
Epoch  35/60 Batch   50/77 - Training Loss:  0.029  - Validation loss:  0.043
Epoch  36/60 Batch    0/77 - Training Loss:  0.027  - Validation loss:  0.039
Epoch  36/60 Batch   50/77 - Training Loss:  0.027  - Validation loss:  0.040
Epoch  37/60 Batch    0/77 - Training Loss:  0.024  - Validation loss:  0.037
Epoch  37/60 Batch   50/77 - Training Loss:  0.025  - Validation loss:  0.037
Epoch  38/60 Batch    0/77 - Training Loss:  0.022  - Validation loss:  0.033
Epoch  38/60 Batch   50/77 - Training Loss:  0.024  - Validation loss:  0.035
Epoch  39/60 Batch    0/77 - Training Loss:  0.020  - Validation loss:  0.029
Epoch  39/60 Batch   50/77 - Training Loss:  0.022  - Validation loss:  0.033
Epoch  40/60 Batch    0/77 - Training Loss:  0.018  - Validation loss:  0.027
Epoch  40/60 Batch   50/77 - Training Loss:  0.020  - Validation loss:  0.031
Epoch  41/60 Batch    0/77 - Training Loss:  0.017  - Validation loss:  0.026
Epoch  41/60 Batch   50/77 - Training Loss:  0.018  - Validation loss:  0.029
Epoch  42/60 Batch    0/77 - Training Loss:  0.016  - Validation loss:  0.025
Epoch  42/60 Batch   50/77 - Training Loss:  0.017  - Validation loss:  0.028
Epoch  43/60 Batch    0/77 - Training Loss:  0.015  - Validation loss:  0.024
Epoch  43/60 Batch   50/77 - Training Loss:  0.016  - Validation loss:  0.027
Epoch  44/60 Batch    0/77 - Training Loss:  0.014  - Validation loss:  0.023
Epoch  44/60 Batch   50/77 - Training Loss:  0.015  - Validation loss:  0.027
Epoch  45/60 Batch    0/77 - Training Loss:  0.013  - Validation loss:  0.022
Epoch  45/60 Batch   50/77 - Training Loss:  0.014  - Validation loss:  0.026
Epoch  46/60 Batch    0/77 - Training Loss:  0.012  - Validation loss:  0.021
Epoch  46/60 Batch   50/77 - Training Loss:  0.013  - Validation loss:  0.025
Epoch  47/60 Batch    0/77 - Training Loss:  0.011  - Validation loss:  0.020
Epoch  47/60 Batch   50/77 - Training Loss:  0.012  - Validation loss:  0.024
Epoch  48/60 Batch    0/77 - Training Loss:  0.011  - Validation loss:  0.019
Epoch  48/60 Batch   50/77 - Training Loss:  0.012  - Validation loss:  0.023
Epoch  49/60 Batch    0/77 - Training Loss:  0.010  - Validation loss:  0.019
Epoch  49/60 Batch   50/77 - Training Loss:  0.011  - Validation loss:  0.022
Epoch  50/60 Batch    0/77 - Training Loss:  0.010  - Validation loss:  0.018
Epoch  50/60 Batch   50/77 - Training Loss:  0.011  - Validation loss:  0.021
Epoch  51/60 Batch    0/77 - Training Loss:  0.010  - Validation loss:  0.018
Epoch  51/60 Batch   50/77 - Training Loss:  0.011  - Validation loss:  0.020
Epoch  52/60 Batch    0/77 - Training Loss:  0.010  - Validation loss:  0.018
Epoch  52/60 Batch   50/77 - Training Loss:  0.010  - Validation loss:  0.020
Epoch  53/60 Batch    0/77 - Training Loss:  0.010  - Validation loss:  0.018
Epoch  53/60 Batch   50/77 - Training Loss:  0.010  - Validation loss:  0.020

Epoch  54/60 Batch    0/77 - Training Loss:  0.009  - Validation loss:  0.019
Epoch  54/60 Batch   50/77 - Training Loss:  0.010  - Validation loss:  0.020
Epoch  55/60 Batch    0/77 - Training Loss:  0.008  - Validation loss:  0.020
Epoch  55/60 Batch   50/77 - Training Loss:  0.009  - Validation loss:  0.021
Epoch  56/60 Batch    0/77 - Training Loss:  0.007  - Validation loss:  0.019
Epoch  56/60 Batch   50/77 - Training Loss:  0.007  - Validation loss:  0.017
Epoch  57/60 Batch    0/77 - Training Loss:  0.006  - Validation loss:  0.016
Epoch  57/60 Batch   50/77 - Training Loss:  0.006  - Validation loss:  0.016
Epoch  58/60 Batch    0/77 - Training Loss:  0.006  - Validation loss:  0.016
Epoch  58/60 Batch   50/77 - Training Loss:  0.006  - Validation loss:  0.015
Epoch  59/60 Batch    0/77 - Training Loss:  0.006  - Validation loss:  0.016
Epoch  59/60 Batch   50/77 - Training Loss:  0.006  - Validation loss:  0.015
Epoch  60/60 Batch    0/77 - Training Loss:  0.005  - Validation loss:  0.015
Epoch  60/60 Batch   50/77 - Training Loss:  0.005  - Validation loss:  0.014
Model Trained and Saved

预测

def source_to_seq(text):
    '''
    对源数据进行转换
    '''
    sequence_length = 7
    return [source_letter_to_int.get(word, source_letter_to_int['<UNK>']) for word in text] + [source_letter_to_int['<PAD>']]*(sequence_length-len(text))

# 输入一个单词
input_word = 'comoacxz'
text = source_to_seq(input_word)

checkpoint = "./trained_model.ckpt"

loaded_graph = tf.Graph()
with tf.Session(graph=loaded_graph) as sess:
    # 加载模型
    loader = tf.train.import_meta_graph(checkpoint + '.meta')
    loader.restore(sess, checkpoint)

    input_data = loaded_graph.get_tensor_by_name('inputs:0')
    logits = loaded_graph.get_tensor_by_name('predictions:0')
    source_sequence_length = loaded_graph.get_tensor_by_name('source_sequence_length:0')
    target_sequence_length = loaded_graph.get_tensor_by_name('target_sequence_length:0')

    answer_logits = sess.run(logits, {input_data: [text]*batch_size,
                                      target_sequence_length: [len(input_word)]*batch_size,
                                      source_sequence_length: [len(input_word)]*batch_size})[0]


pad = source_letter_to_int["<PAD>"]

print('原始输入:', input_word)

print('\nSource')
print('  Word 编号:    {}'.format([i for i in text]))
print('  Input Words: {}'.format(" ".join([source_int_to_letter[i] for i in text])))

print('\nTarget')
print('  Word 编号:       {}'.format([i for i in answer_logits if i != pad]))
print('  Response Words: {}'.format(" ".join([target_int_to_letter[i] for i in answer_logits if i != pad])))

代码运行结果：
原始输入: comoacxz
Source
  Word 编号:    [20, 29, 8, 29, 13, 20, 11, 21]
  Input Words: c o m o a c x z
Target
  Word 编号:       [13, 20, 20, 8, 29, 29, 11, 21]
  Response Words: a c c m o o x z

代码见我的github

业余狙击手19

关注

1
点赞
踩
2

收藏

觉得还不错? 一键收藏
7
评论
DL练习8—seq2seq小例子

本例参考某教学视频和某知乎文章，下载完他的github代码后找不到文章地址了，罪过罪过，自己敲了一遍代码并跑了一遍，添加了一些注释，再通过整理博客的方式加深理解。该例子的主要目的是通过seq2seq训练一个模型，解决将输入字符串（乱序）按字母顺序排序输出的问题，例如“open”->enop。当然用简单的算法也可以很方便的将字符串排序输出，这不主要目的是为了理解seq2seq工作原理嘛！用...
复制链接

扫一扫
