一点点读懂cpufreq（二）

目录

1、注册接口：

2、去注册接口：

3、使用样例

4、软件处理

4.1 对cpufreq_transition_notifier_list的处理

4.2 对cpufreq_policy_notifier_list的处理

---

本章节主要介绍cpufreq中的通知链实现，在调频策略以及频率变化时来通知对该事件敏感的模块，各个模块可以通过注册和去注册接口来加入到通知链中。

1、注册接口：



















       /**









































        * cpufreq_register_notifier - Register a notifier with cpufreq.









































        * @nb: notifier function to register.









































        * @list: CPUFREQ_TRANSITION_NOTIFIER or CPUFREQ_POLICY_NOTIFIER.









































        * Add a notifier to one of two lists: either a list of notifiers that run on









































        * clock rate changes (once before and once after every transition), or a list









































        * of notifiers that ron on cpufreq policy changes.









































        * This function may sleep and it has the same return values as









































        * blocking_notifier_chain_register().









































        */







































       int cpufreq_register_notifier(struct notifier_block *nb, unsigned int list)







































       {









































       int ret;









































       if (

       cpufreq_disabled())









































       return -EINVAL;









































       switch (list) {









































       case CPUFREQ_TRANSITION_NOTIFIER:









































       mutex_lock(&cpufreq_fast_switch_lock);









































       if (cpufreq_fast_switch_count >

       0) {









































       mutex_unlock(&cpufreq_fast_switch_lock);









































       return -EBUSY;







































                                   }







































                                   ret =

       srcu_notifier_chain_register(







































                                                               &cpufreq_transition_notifier_list, nb);









































       if (!ret)







































                                                 cpufreq_fast_switch_count--;









































       mutex_unlock(&cpufreq_fast_switch_lock);









































       break;









































       case CPUFREQ_POLICY_NOTIFIER:







































                                   ret =

       blocking_notifier_chain_register(







































                                                               &cpufreq_policy_notifier_list, nb);









































       break;









































       default:







































                                   ret = -EINVAL;







































                     }









































       return ret;







































       }







































       EXPORT_SYMBOL(cpufreq_register_notifier);







































































CPUFREQ_TRANSITION_NOTIFIER：对频率变化敏感，注册进来的模块添加到cpufreq_transition_notifier_list链表中进行维护及后续操作，模块在回调中进行处理时，可以通过CPUFREQ_PRECHANGE和CPUFREQ_POSTCHANGE来区分是在频率变化前做动作还是在变化后做动作。

CPUFREQ_POLICY_NOTIFIER：对策略变化敏感，注册进来的模块，添加到cpufreq_policy_notifier_list链表中进行维护及后续操作，模块在回调中进行处理时，可以通过CPUFREQ_CREATE_POLICY和CPUFREQ_REMOVE_POLICY来区分是在策略变化前做动作还是在变化后做动作。

2、去注册接口：



















       /**









































        * cpufreq_unregister_notifier - Unregister a notifier from cpufreq.









































        * @nb: notifier block to be unregistered.









































        * @list: CPUFREQ_TRANSITION_NOTIFIER or CPUFREQ_POLICY_NOTIFIER.









































        * Remove a notifier from one of the cpufreq notifier lists.









































        * This function may sleep and it has the same return values as









































        * blocking_notifier_chain_unregister().









































        */







































       int cpufreq_unregister_notifier(struct notifier_block *nb, unsigned int list)







































       {









































       int ret;









































       if (

       cpufreq_disabled())









































       return -EINVAL;









































       switch (list) {









































       case CPUFREQ_TRANSITION_NOTIFIER:









































       mutex_lock(&cpufreq_fast_switch_lock);







































                                   ret =

       srcu_notifier_chain_unregister(







































                                                               &cpufreq_transition_notifier_list, nb);









































       if (!ret && !

       WARN_ON(cpufreq_fast_switch_count >=

       0))







































                                                 cpufreq_fast_switch_count++;









































       mutex_unlock(&cpufreq_fast_switch_lock);









































       break;









































       case CPUFREQ_POLICY_NOTIFIER:







































                                   ret =

       blocking_notifier_chain_unregister(







































                                                               &cpufreq_policy_notifier_list, nb);









































       break;









































       default:







































                                   ret = -EINVAL;







































                     }









































       return ret;







































       }







































       EXPORT_SYMBOL(cpufreq_unregister_notifier);














去注册接口为注册接口的逆向操作，不再做过多解析。

3、使用样例

我们以loongson1-cpufreq.c作为样例



















       static int ls1x_cpufreq_notifier(struct notifier_block *nb,




















       unsigned

       long val,

       void *data)




















       {




















       if (val == CPUFREQ_POSTCHANGE)




















       		current_cpu_data.udelay_val = loops_per_jiffy;







































       return NOTIFY_OK;




















       }







































       static

       struct

       notifier_block ls1x_cpufreq_notifier_block = {




















       	.notifier_call = ls1x_cpufreq_notifier




















       };

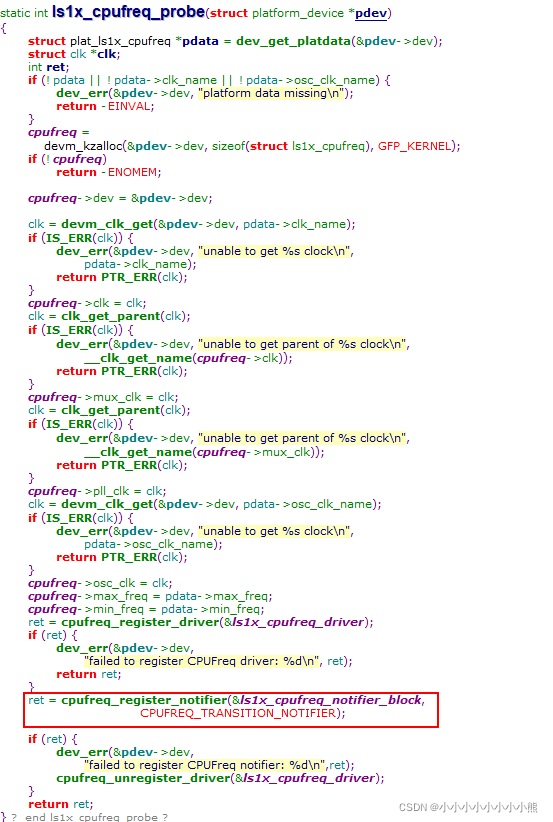

该模块需要感知到频率的变化，需要在频率变化后来做一些事务处理，于是该模块就在回调中通过判断阶段为CPUFREQ_POSTCHANGE时做对应动作，并在初始化时通过调用cpufreq_register_notifier来注册。

4、软件处理

4.1 对cpufreq_transition_notifier_list的处理

现在该注册的模块已经注册进来了，那么cpufreq.c是如何回调注册的回调函数呢？cpufreq对cpufreq_transition_notifier_list链表的处理，统一封装到了函数cpufreq_notify_transition中来实现。

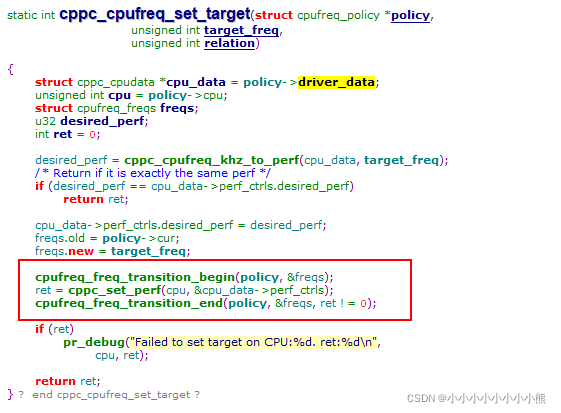

 实际代码以cppc_cpufreq.c为例：

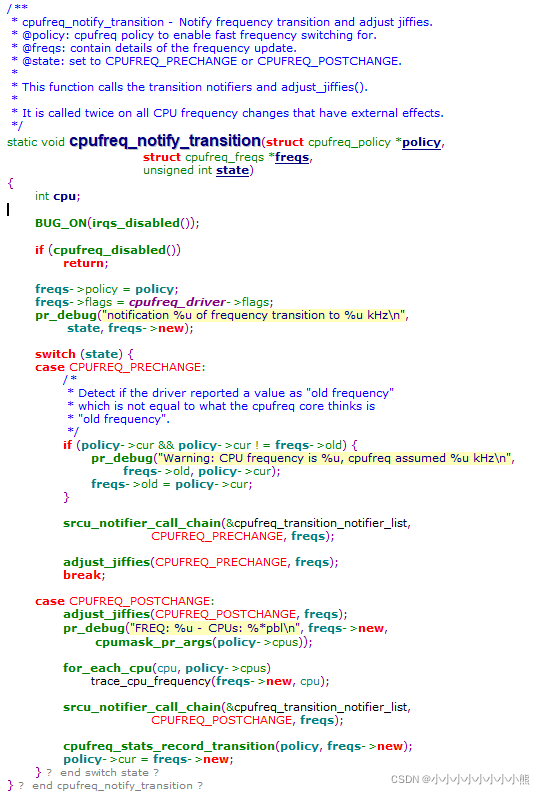

 其中核心函数cpufreq_notify_transition的实现也是正常的逻辑实现，根据入参的不同分别处理

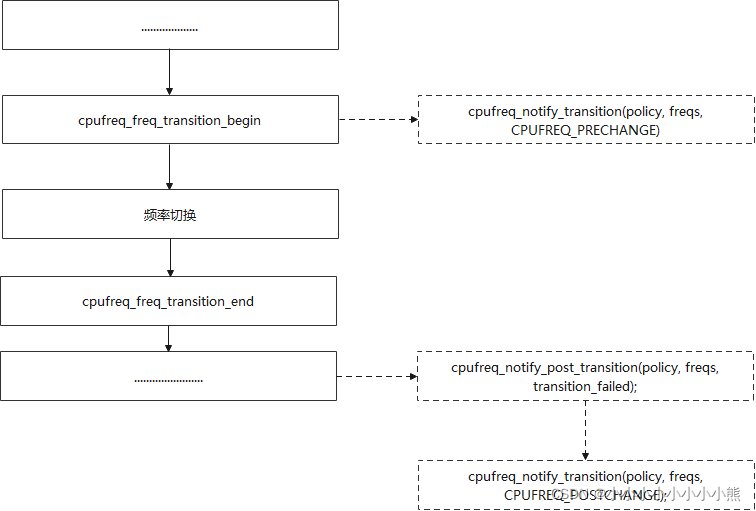

cpufreq_notify_transition函数会分别被cpufreq_freq_transition_begin和cpufreq_freq_transition_end来调用，而这2个函数则分别嵌入在了频率调换前和调换后调用，如此以来用户注册的回调会被最终调用到。

4.2 对cpufreq_policy_notifier_list的处理

对cpufreq_policy_notifier_list的调用，分别在cpufreq_policy_free和cpufreq_online中调用，分别针对policy移除和生效
