MYIR-ZYNQ7000系列-zturn教程(27)：lwip测试

开发板环境：vivado 2017.4 ，开发板型号xc7z010clg400-1，这个工程主要是进行eth测试

链接：https://pan.baidu.com/s/1dUm68xhKjobq1C6st9Zn3A
提取码：o868

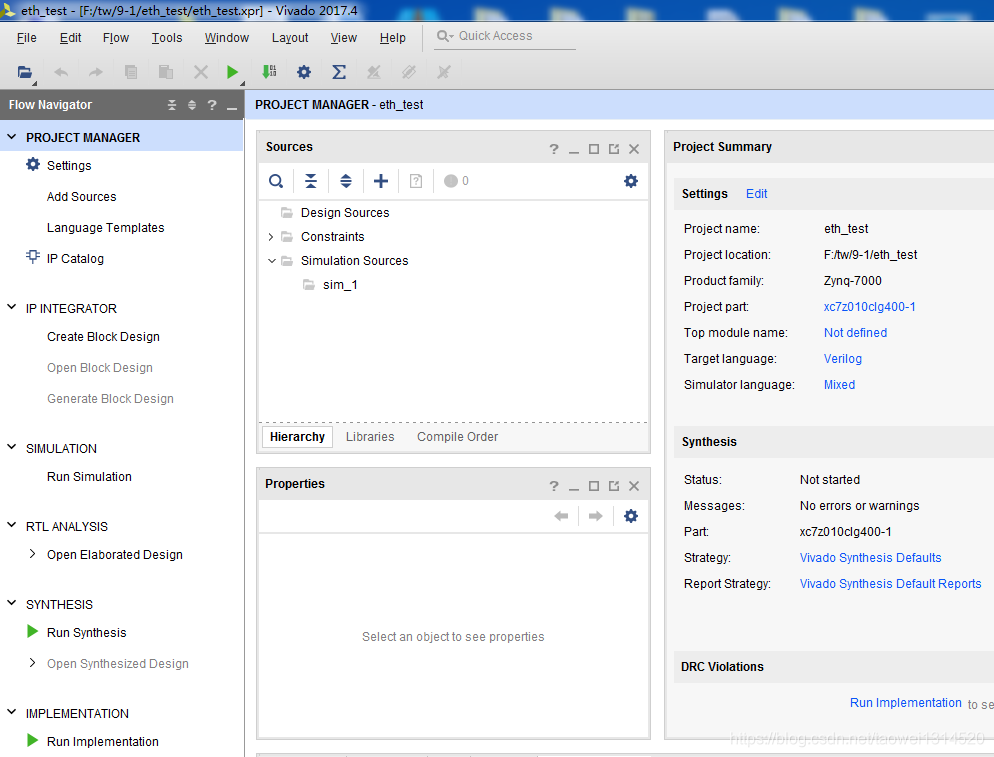

step1  新建一个vivado工程

step 2  导入zynq配置文件

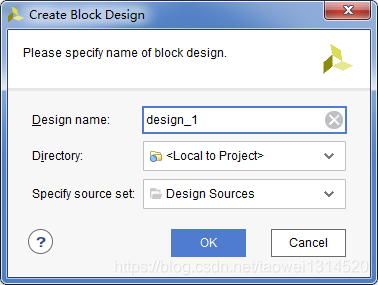

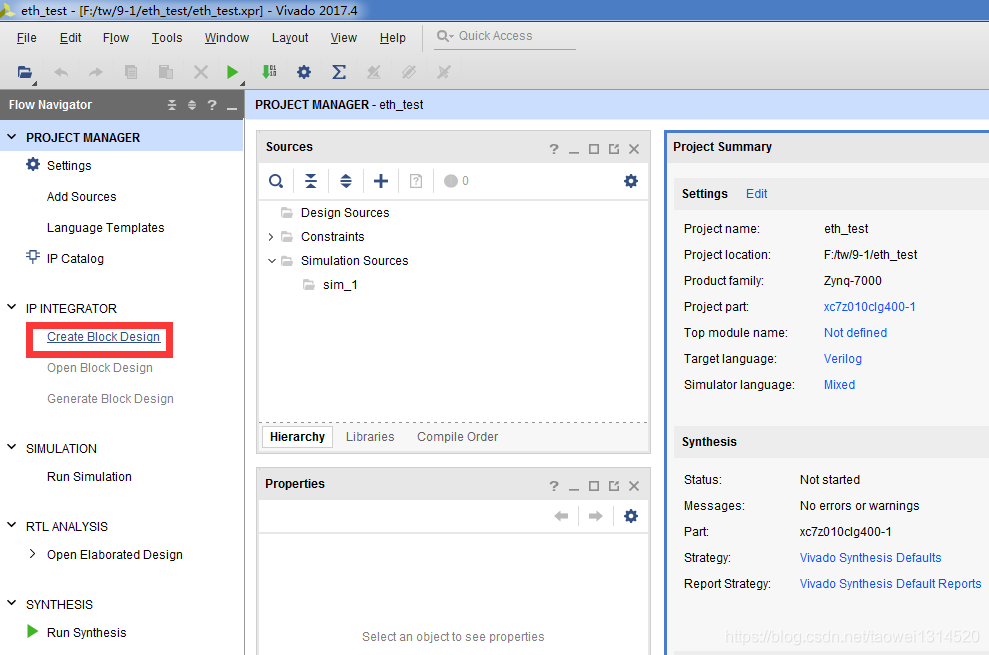

点击Create Block Design

点击OK

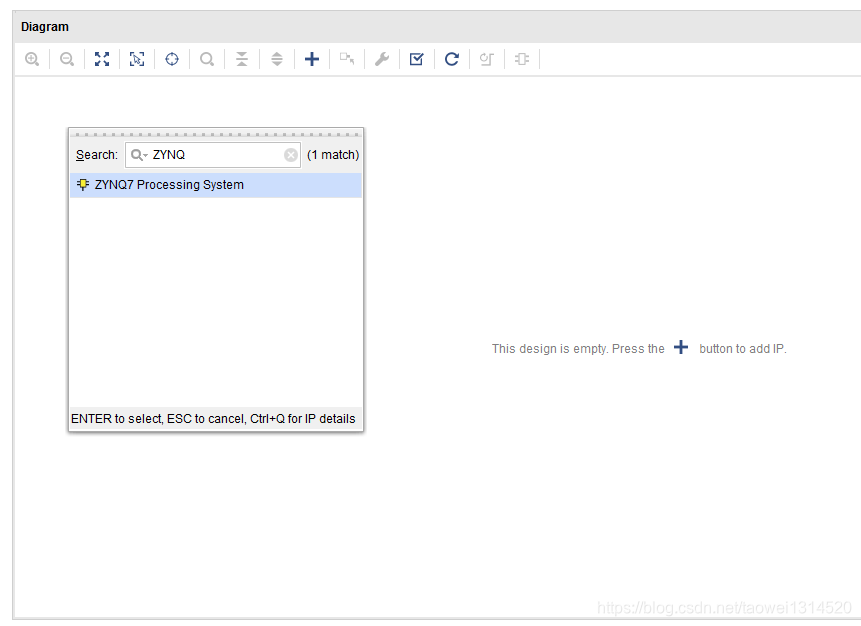

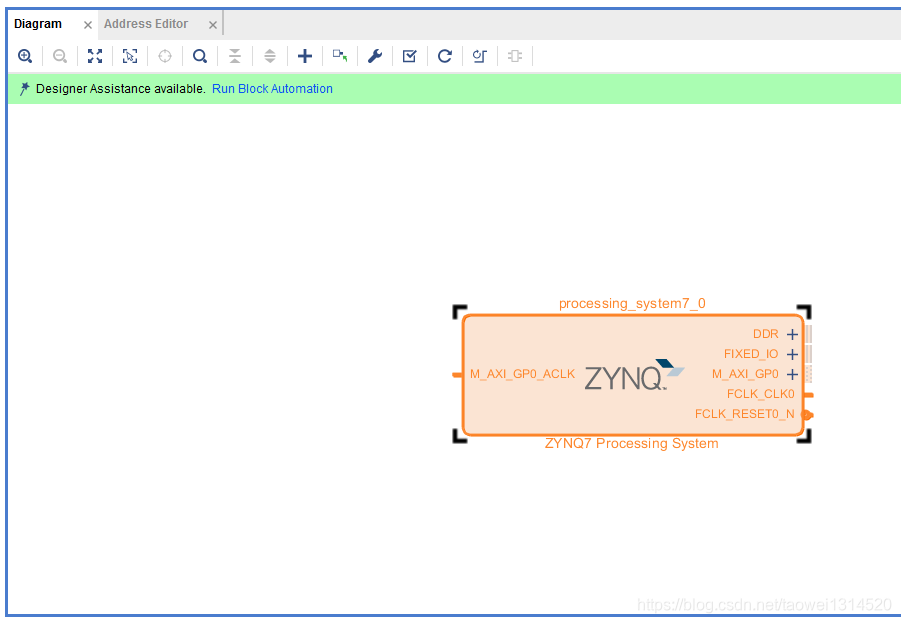

调用zynq核

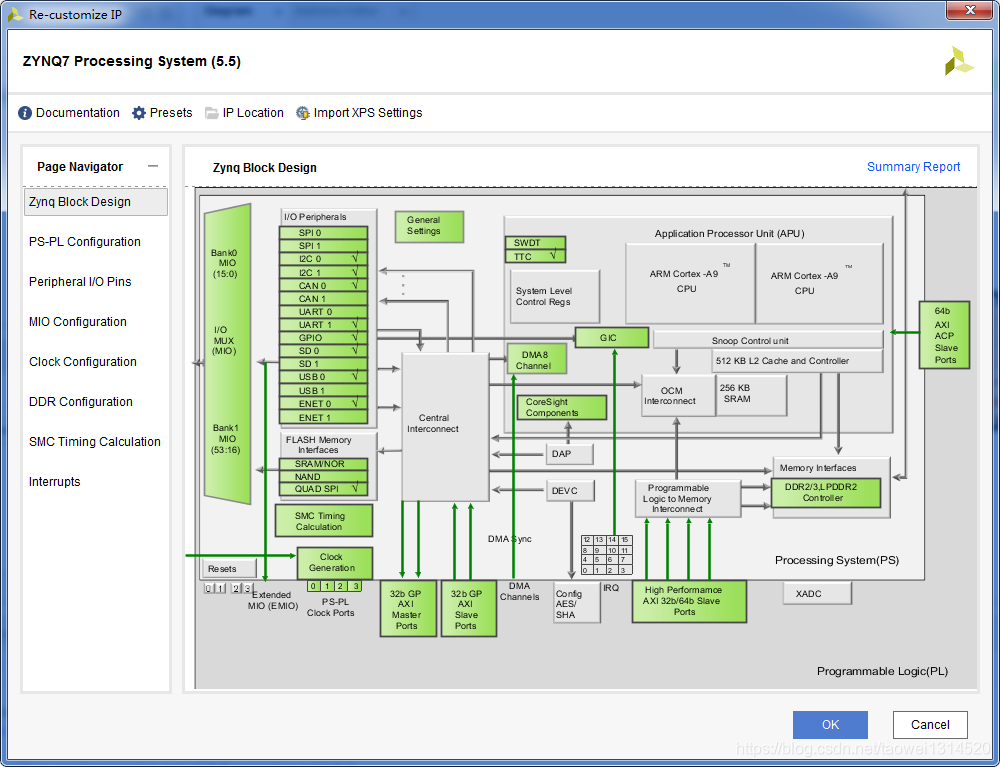

双击zynq核导入配置文件

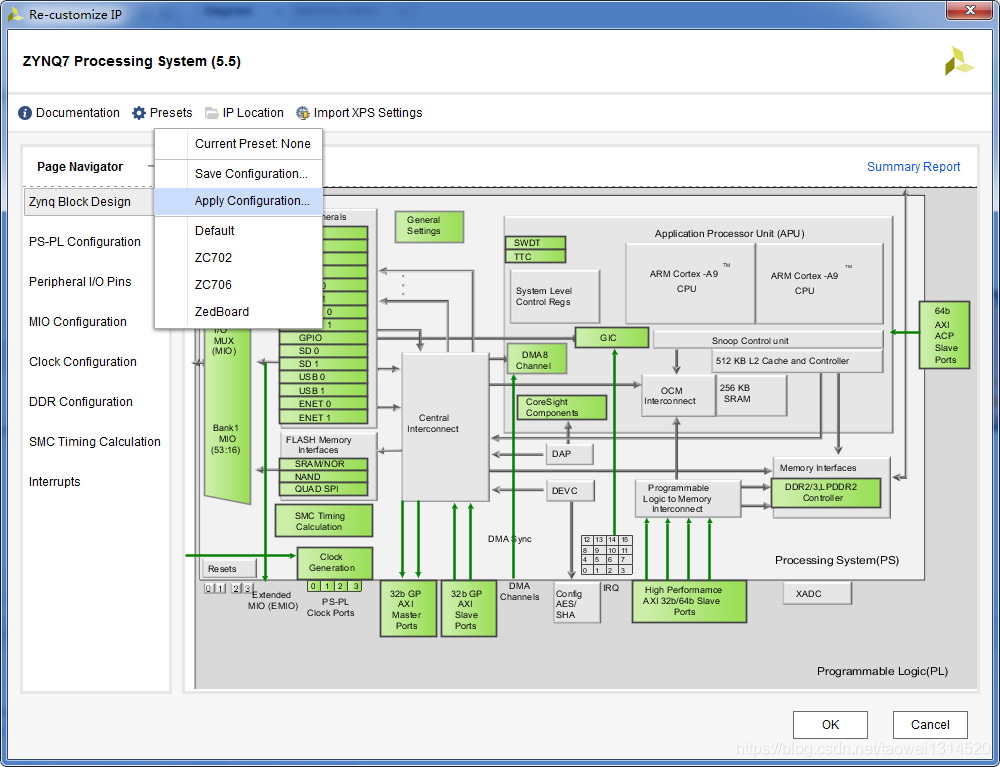

选择Apply Configuration导入配置文件

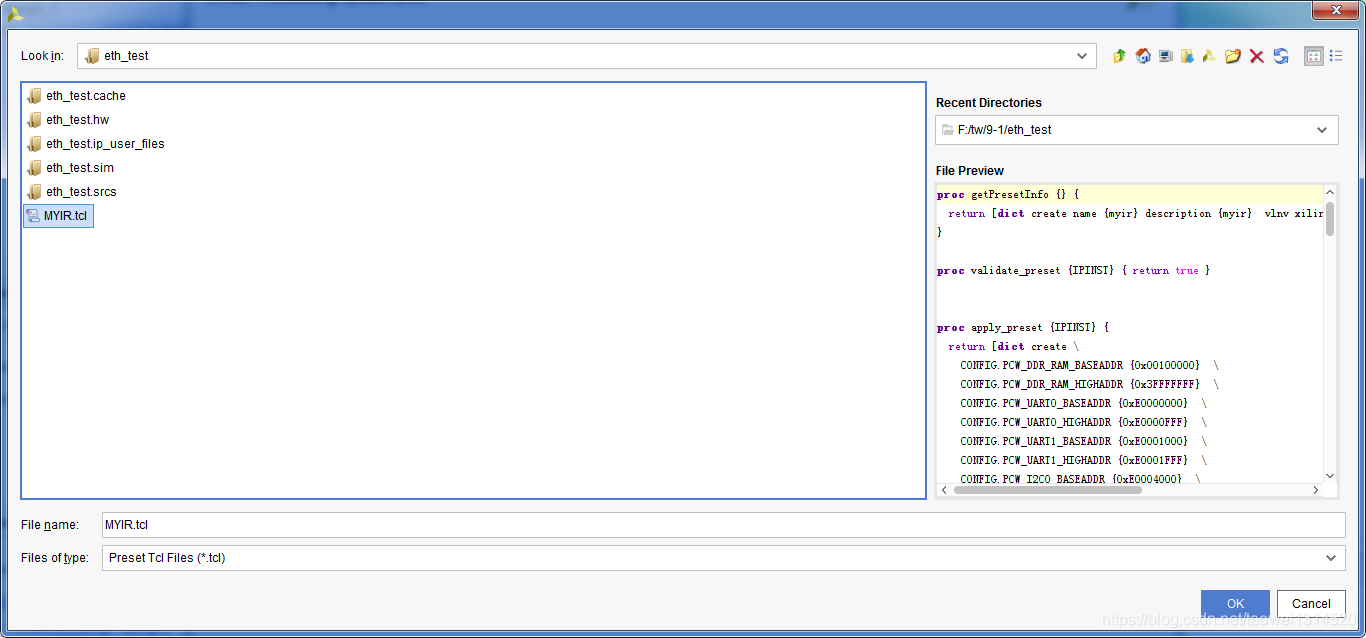

选择MYIR.tcl文件，点击OK

点击OK

配置完成后，如下图所示

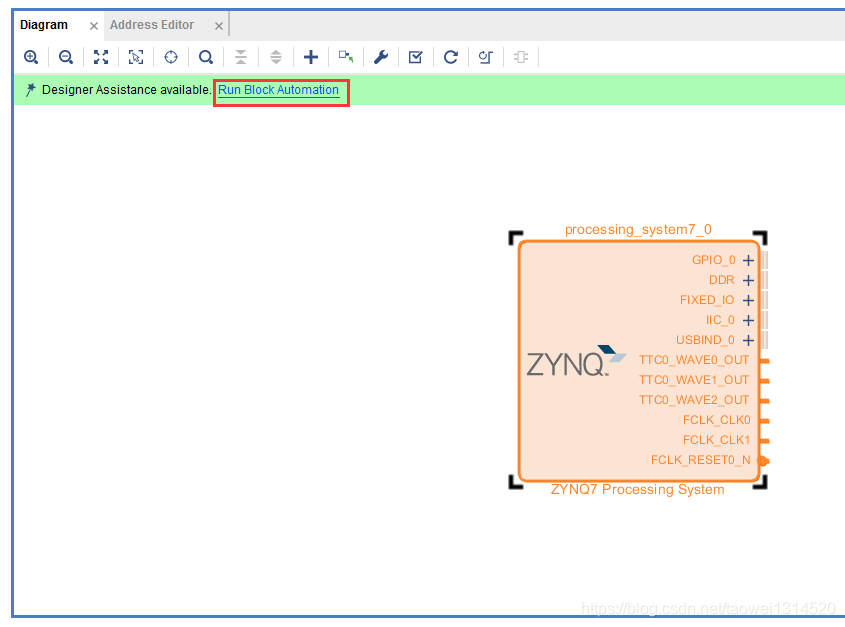

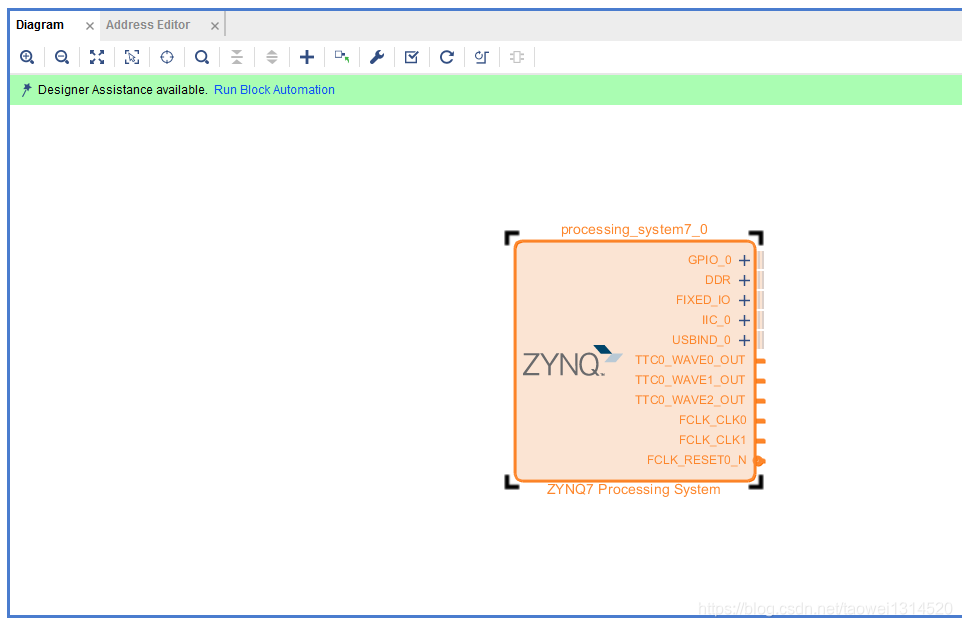

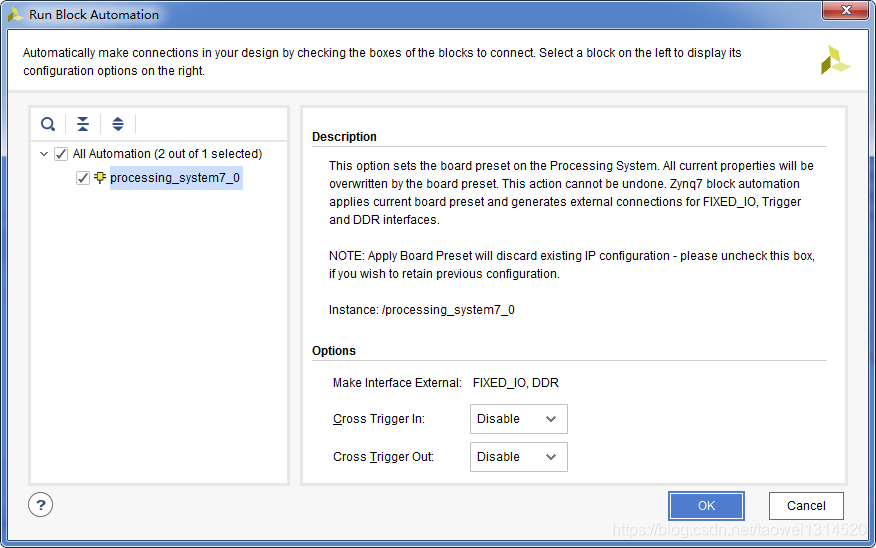

点击Run Block Automation 引出zynq管脚

点击OK

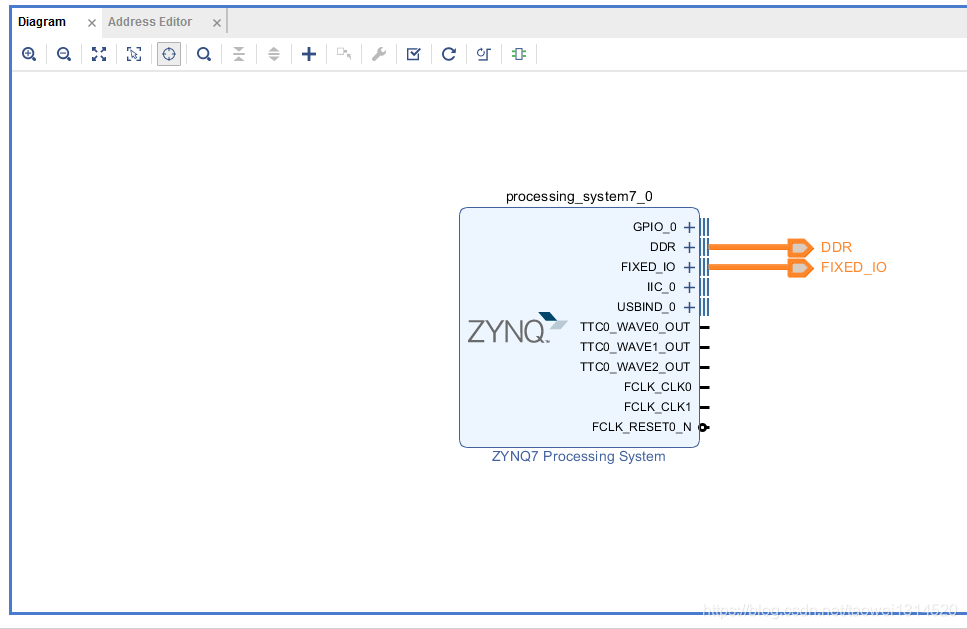

引出的管脚，如下图所示

step 3   综合

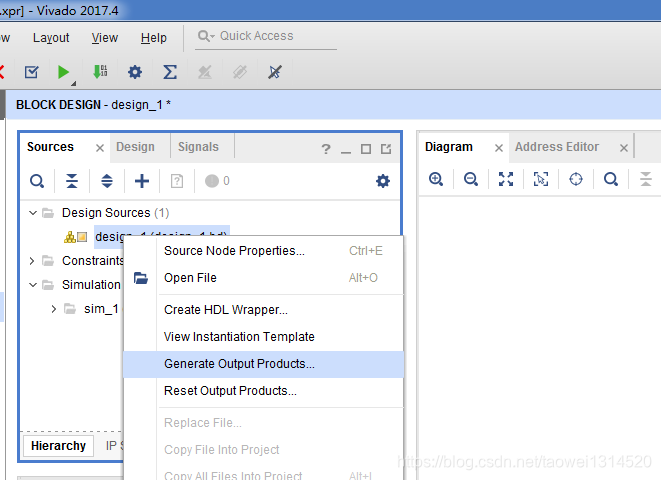

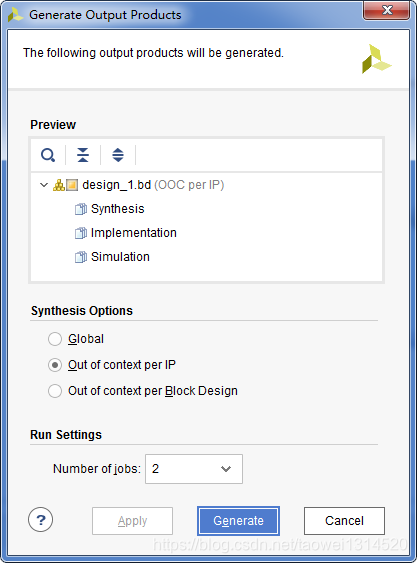

右击design_1-->Generate Output Products

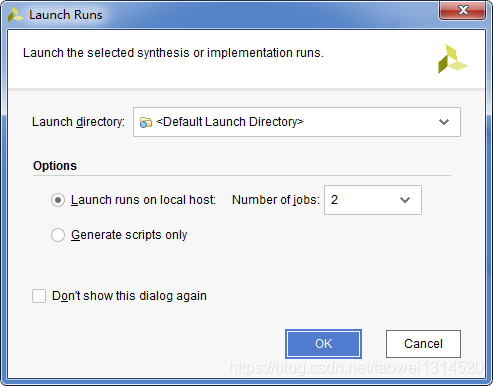

点击Generate

step 4   生成顶层文件

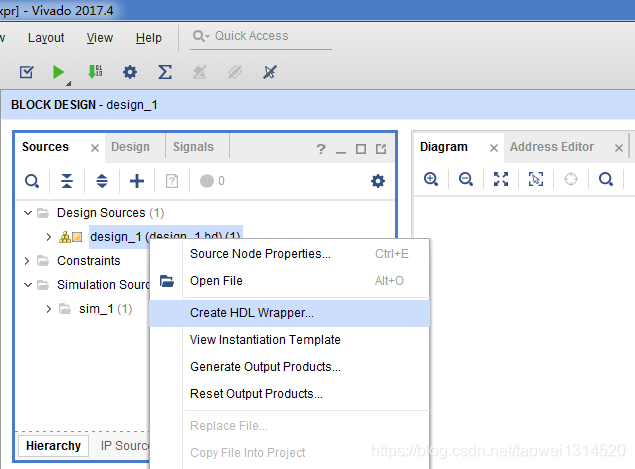

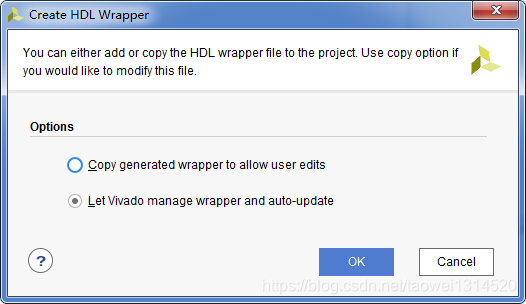

右击design_1-->Create HDL Wrapper  生成顶层文件

点击OK

step 5   生成bit文件

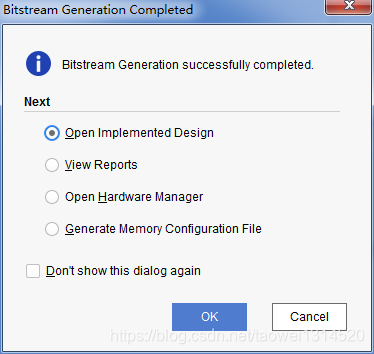

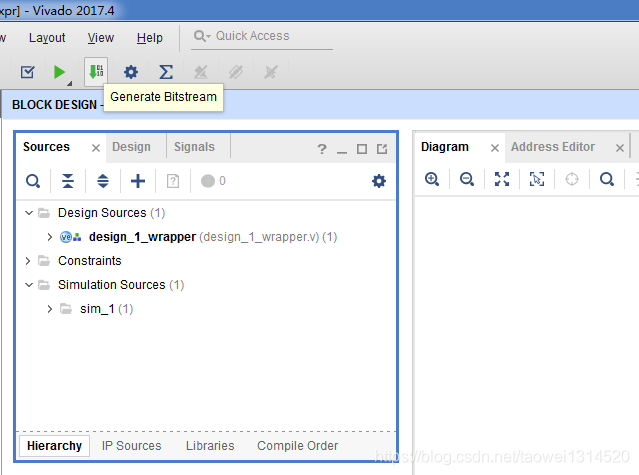

点击工具栏上的Generate Bitstream图标生成bit文件

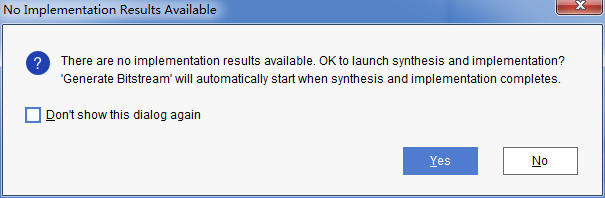

点击Yes

点击OK

生成完成后，点击Cancel

step 6   导出硬件配置并打开SDK

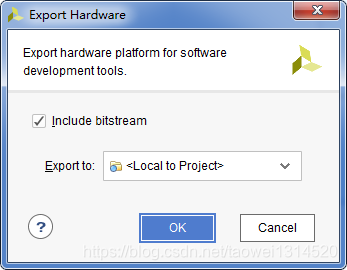

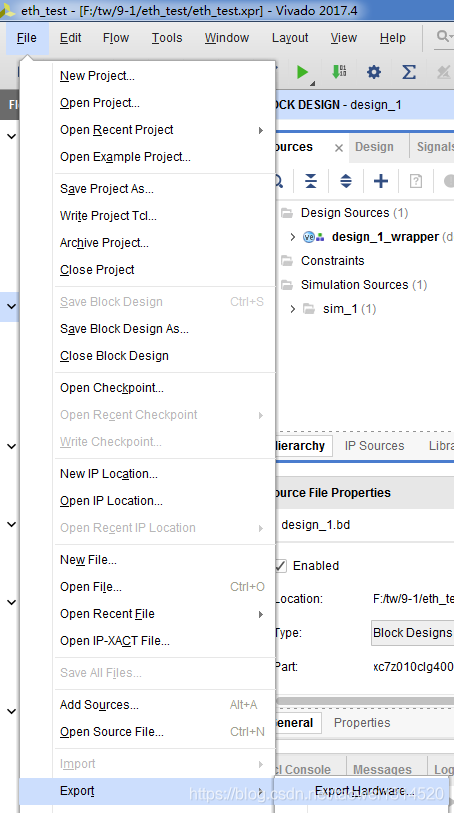

File--> Export-->Export Hardware  导出硬件配置

点击OK

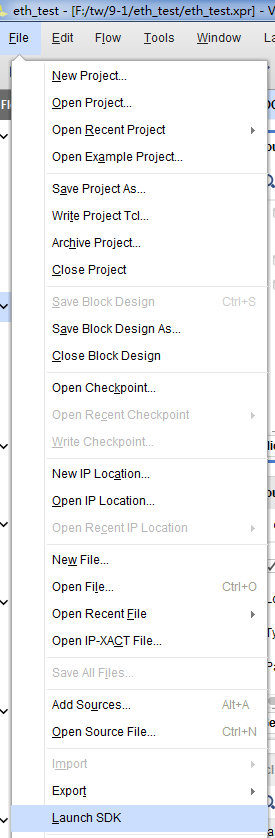

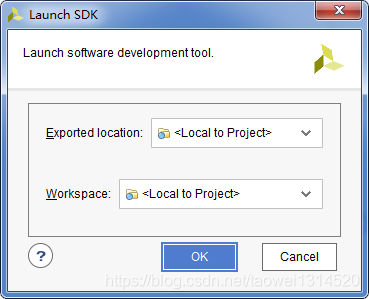

点击File-->Launch  SDK打开SDK

点击OK

step 7   新建eth_test工程

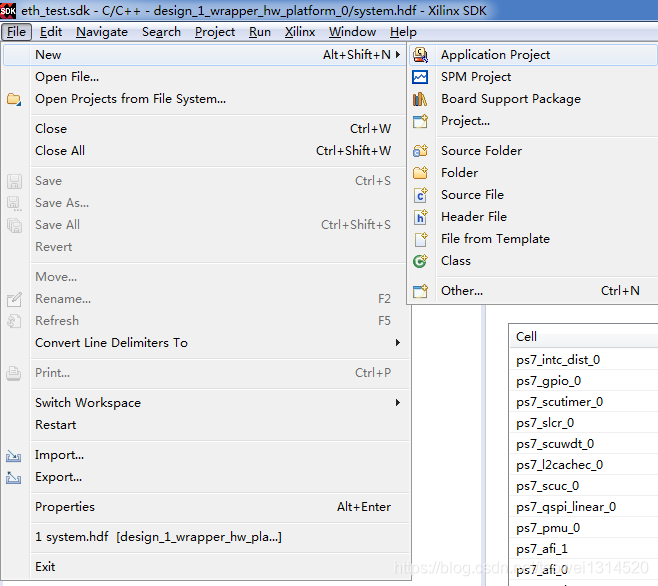

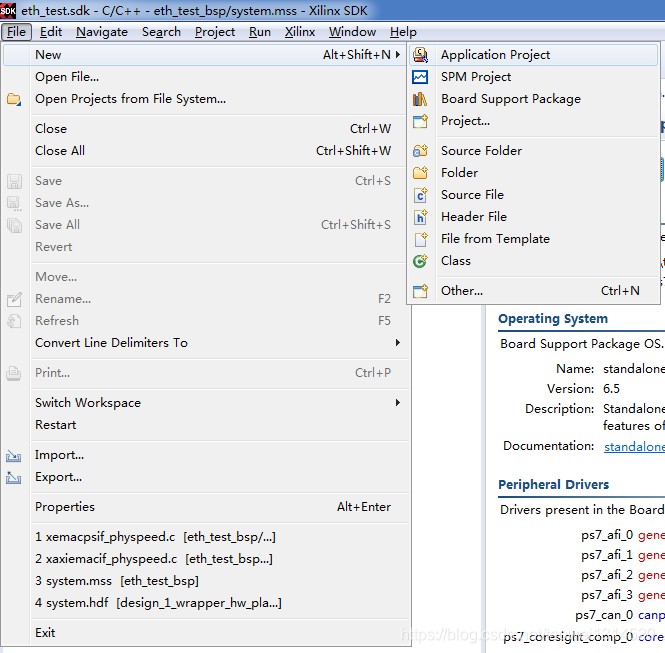

File-->Application Project

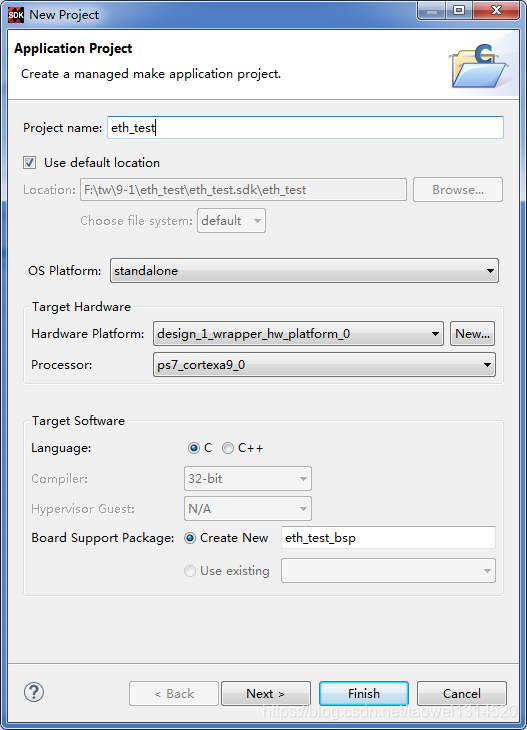

新建eth_test工程，点击Next

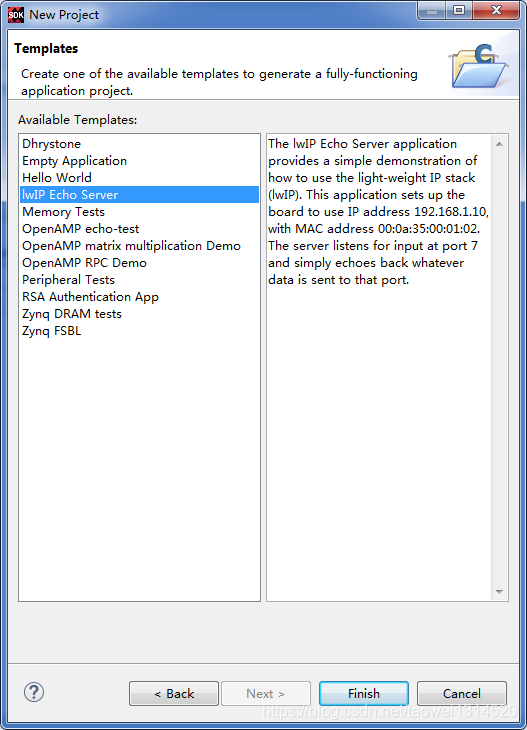

选择lwip模板，点击Finish

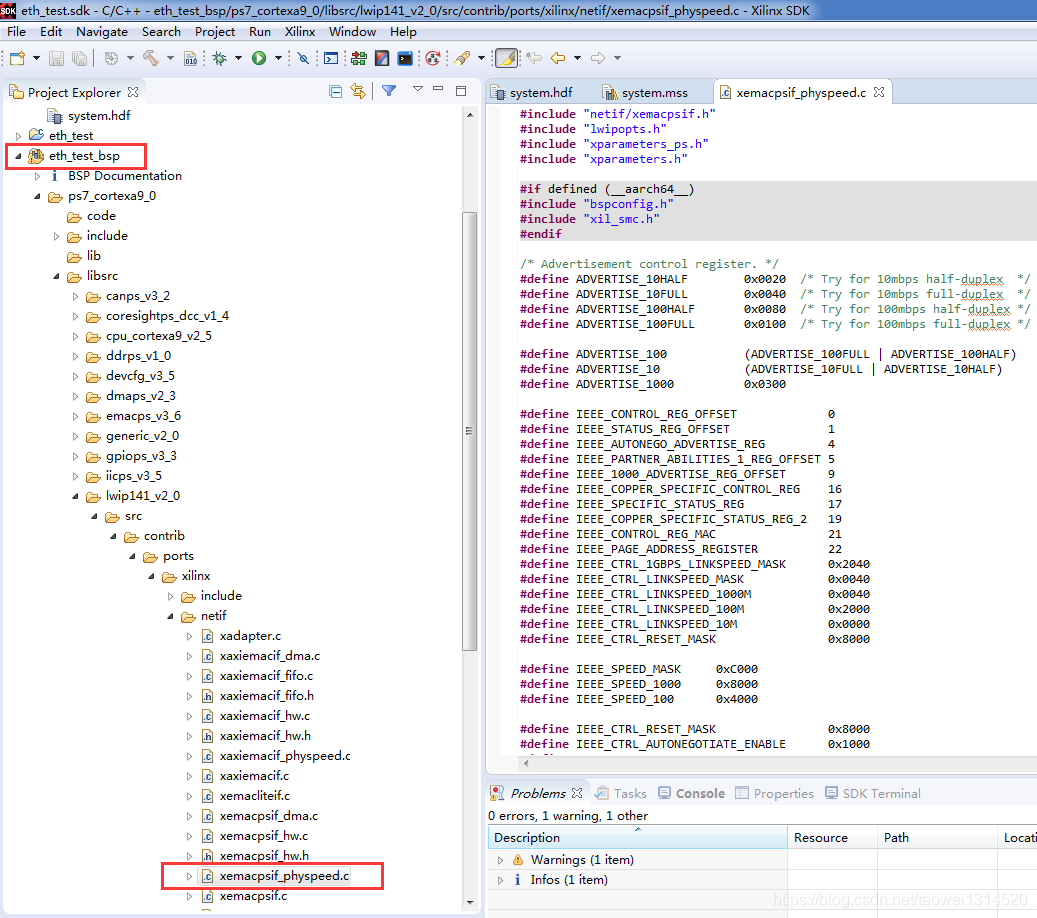

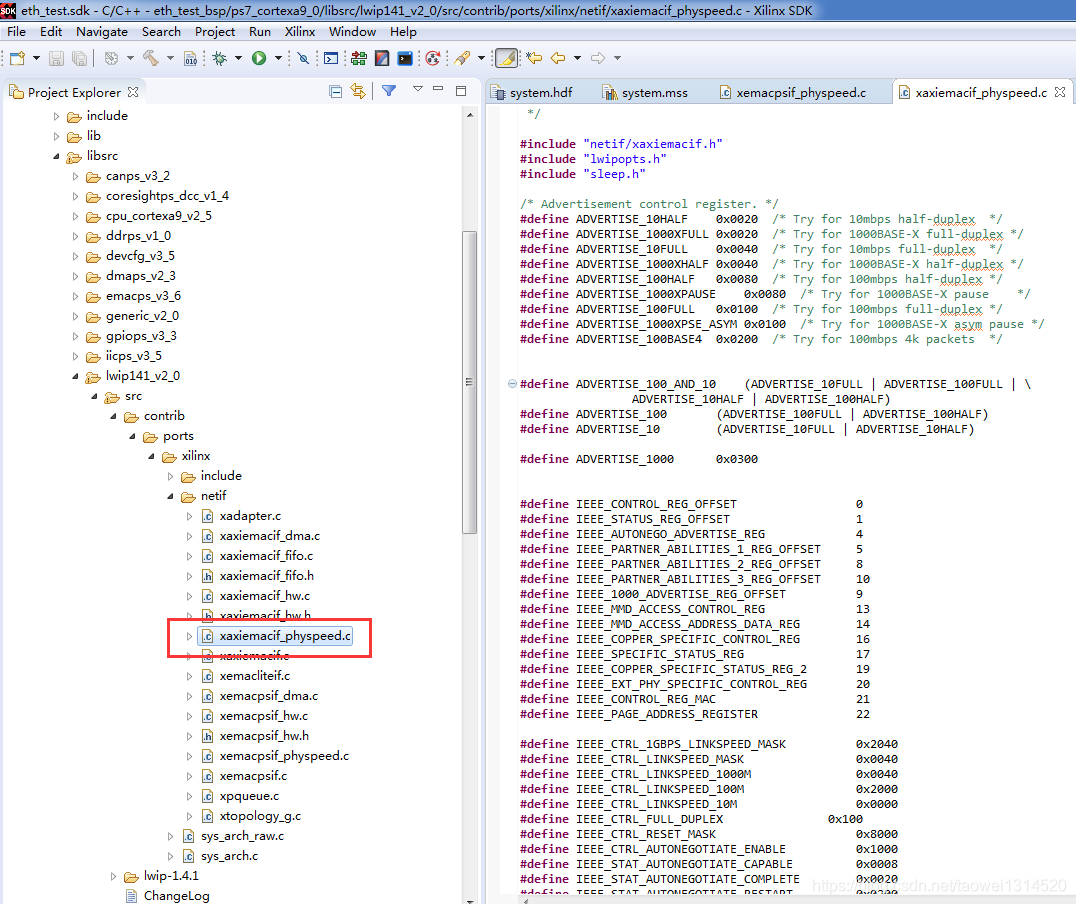

打开eth_test_bsp路径下的xemacpsif_physpeed.c文件（ksz9031需要改这里，其它的phy芯片有的新建lwip就可以直接用）

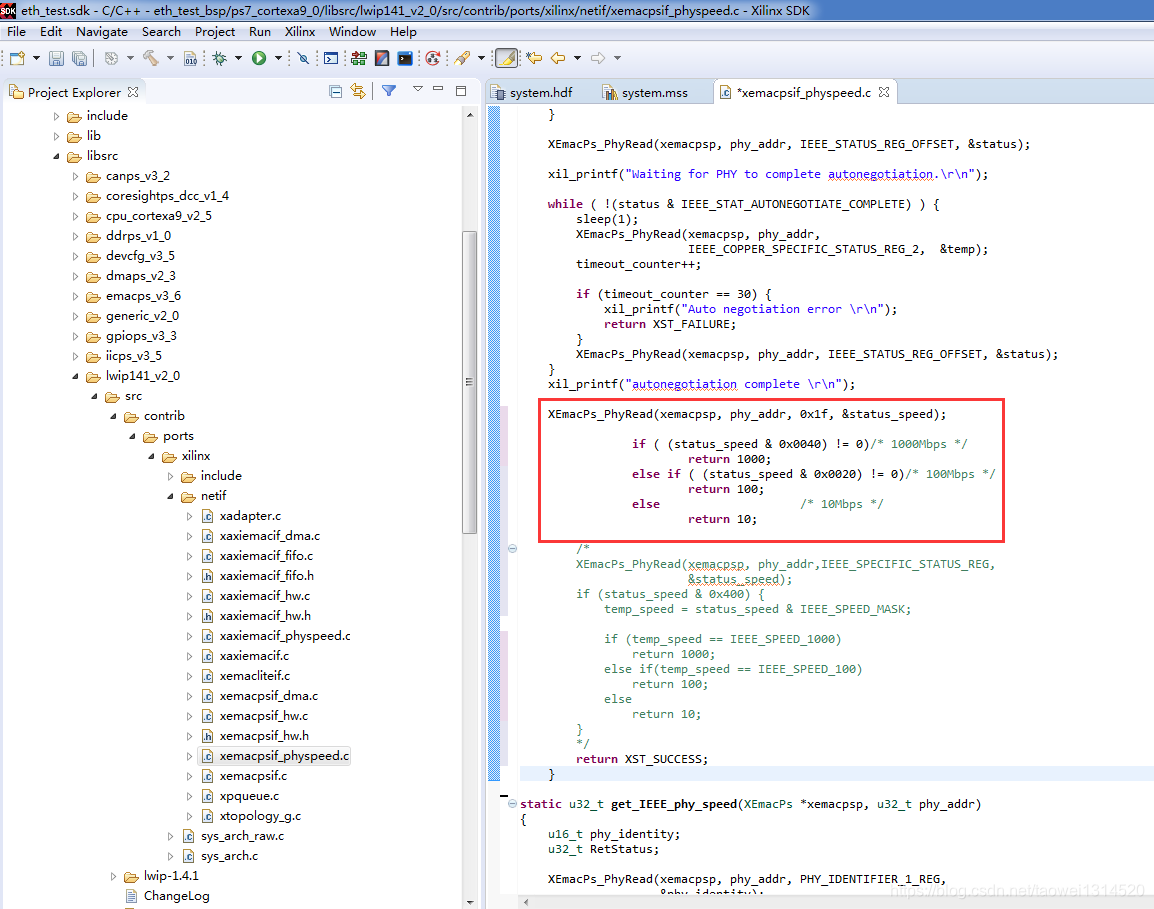

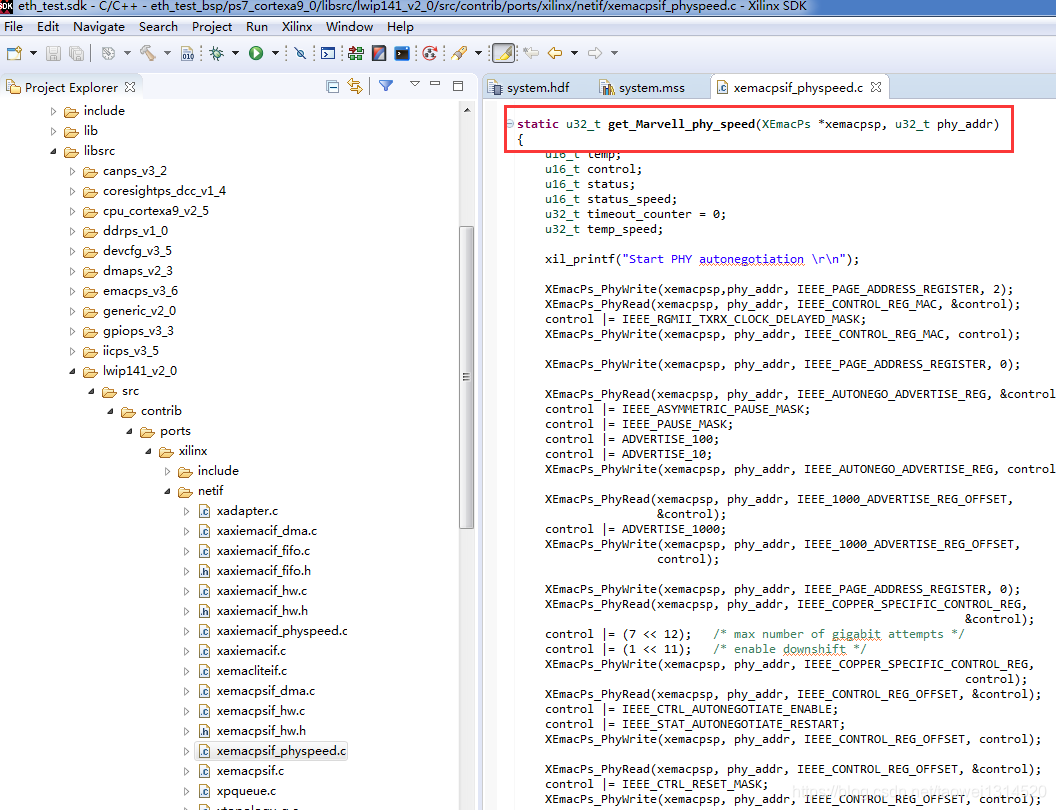

找到get_Marvell_phy_speed这个函数更改函数末尾读取phy速度部分

将函数末尾改为这样，点击保存

点击xaxiemacif_physpeed.c文件

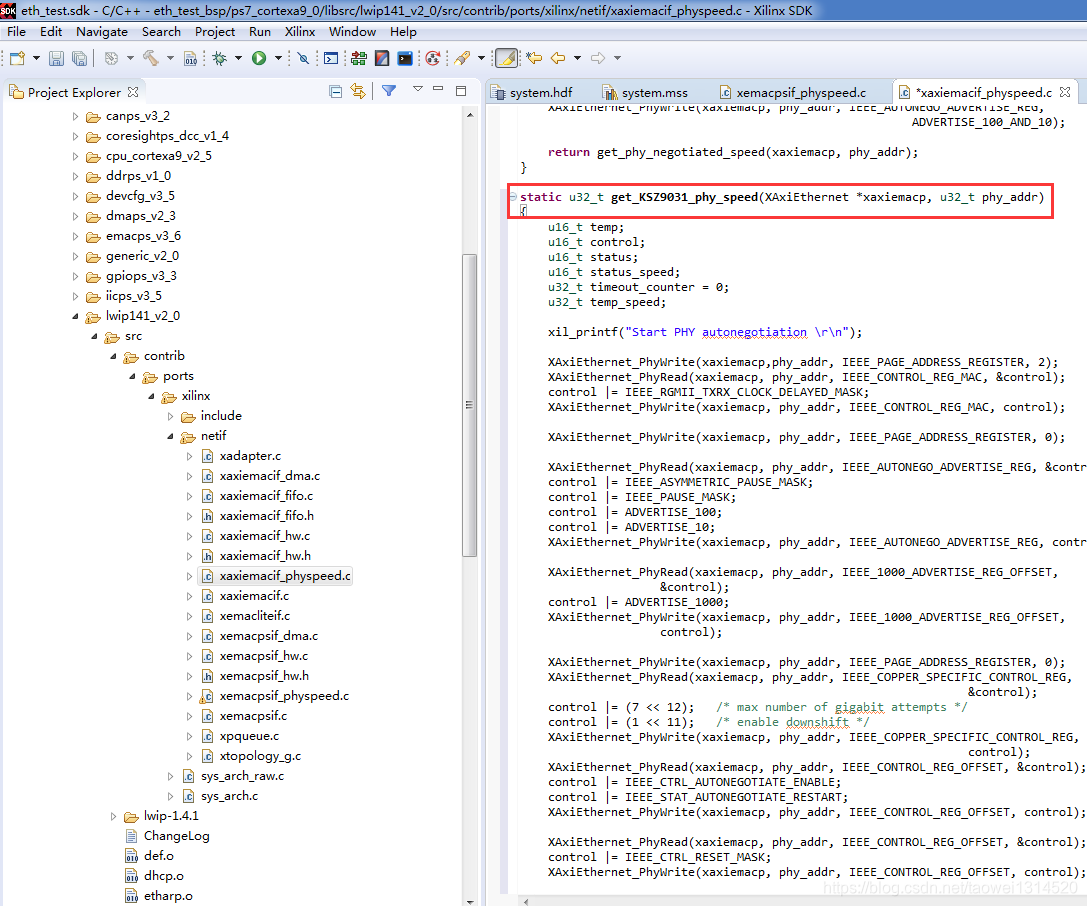

然后将这段get_KSZ9031_phy_speed一整个程序段添加进去，点击保存

static u32_t get_KSZ9031_phy_speed(XAxiEthernet *xaxiemacp, u32_t phy_addr)
{
	u16_t temp;
	u16_t control;
	u16_t status;
	u16_t status_speed;
	u32_t timeout_counter = 0;
	u32_t temp_speed;

	xil_printf("Start PHY autonegotiation \r\n");

	XAxiEthernet_PhyWrite(xaxiemacp,phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 2);
	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_MAC, &control);
	control |= IEEE_RGMII_TXRX_CLOCK_DELAYED_MASK;
	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_CONTROL_REG_MAC, control);

	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 0);

	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_AUTONEGO_ADVERTISE_REG, &control);
	control |= IEEE_ASYMMETRIC_PAUSE_MASK;
	control |= IEEE_PAUSE_MASK;
	control |= ADVERTISE_100;
	control |= ADVERTISE_10;
	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_AUTONEGO_ADVERTISE_REG, control);

	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_1000_ADVERTISE_REG_OFFSET,
					&control);
	control |= ADVERTISE_1000;
	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_1000_ADVERTISE_REG_OFFSET,
					control);

	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 0);
	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_COPPER_SPECIFIC_CONTROL_REG,
																&control);
	control |= (7 << 12);	/* max number of gigabit attempts */
	control |= (1 << 11);	/* enable downshift */
	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_COPPER_SPECIFIC_CONTROL_REG,
																control);
	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
	control |= IEEE_CTRL_AUTONEGOTIATE_ENABLE;
	control |= IEEE_STAT_AUTONEGOTIATE_RESTART;
	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, control);

	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
	control |= IEEE_CTRL_RESET_MASK;
	XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, control);

	while (1) {
		XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
		if (control & IEEE_CTRL_RESET_MASK)
			continue;
		else
			break;
	}

	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_STATUS_REG_OFFSET, &status);

	xil_printf("Waiting for PHY to complete autonegotiation.\r\n");

	while ( !(status & IEEE_STAT_AUTONEGOTIATE_COMPLETE) ) {
		sleep(1);
		XAxiEthernet_PhyRead(xaxiemacp, phy_addr,
						IEEE_COPPER_SPECIFIC_STATUS_REG_2,  &temp);
		timeout_counter++;

		if (timeout_counter == 30) {
			xil_printf("Auto negotiation error \r\n");
			return XST_FAILURE;
		}
		XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_STATUS_REG_OFFSET, &status);
	}
	xil_printf("autonegotiation complete \r\n");

	XAxiEthernet_PhyRead(xaxiemacp, phy_addr, 0x1f, &status_speed);

	if ( (status_speed & 0x0040) != 0)/* 1000Mbps */
		return 1000;
	else if ( (status_speed & 0x0020) != 0)/* 100Mbps */
		return 100;
	else					/* 10Mbps */
		return 10;
	/*
	XAxiEthernet_PhyRead(xaxiemacp, phy_addr,IEEE_SPECIFIC_STATUS_REG,
					&status_speed);
	if (status_speed & 0x400) {
		temp_speed = status_speed & IEEE_SPEED_MASK;

		if (temp_speed == IEEE_SPEED_1000)
			return 1000;
		else if(temp_speed == IEEE_SPEED_100)
			return 100;
		else
			return 10;
	}
	*/

	return XST_SUCCESS;
}

step 7   新建fsbl

File-->Application Project

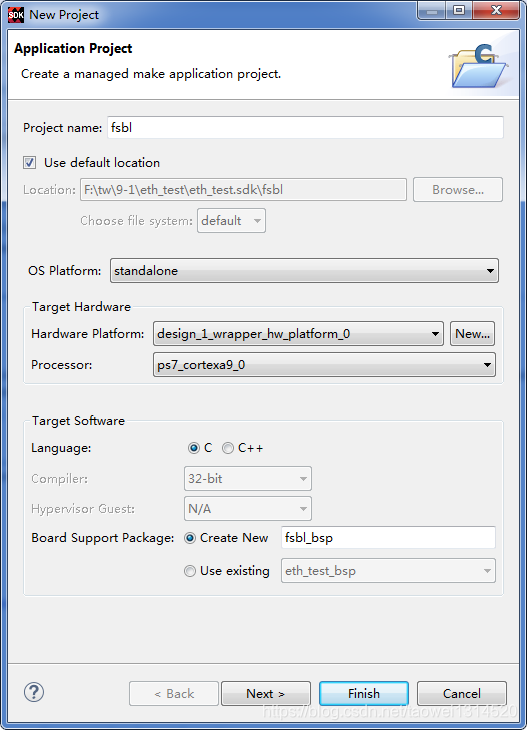

新建fsbl，点击Next

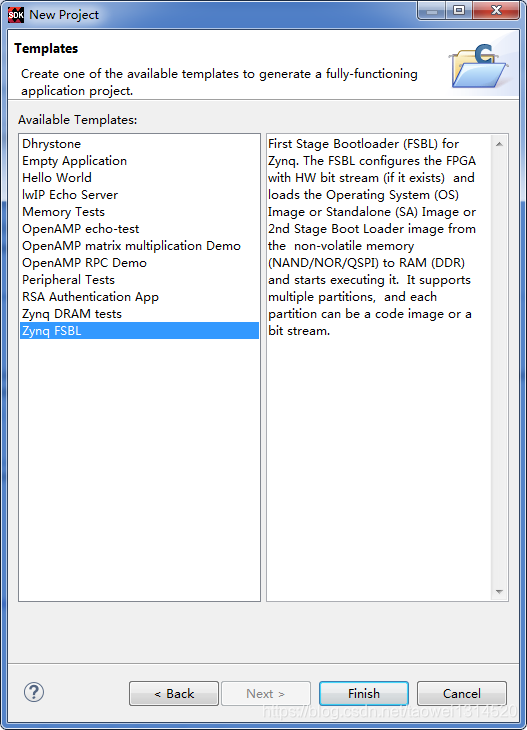

选择Zynq  FSBL，点击Finish

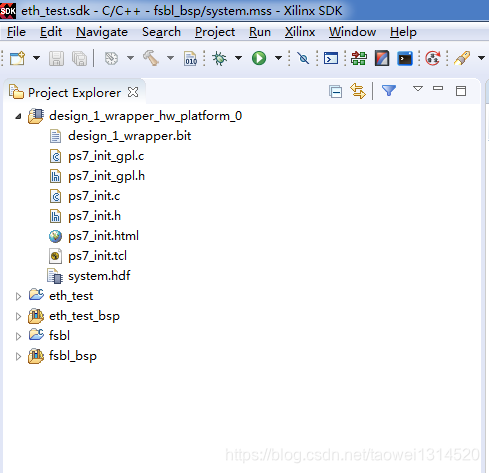

生成的fsbl

step 8   生成BOOT.bin文件

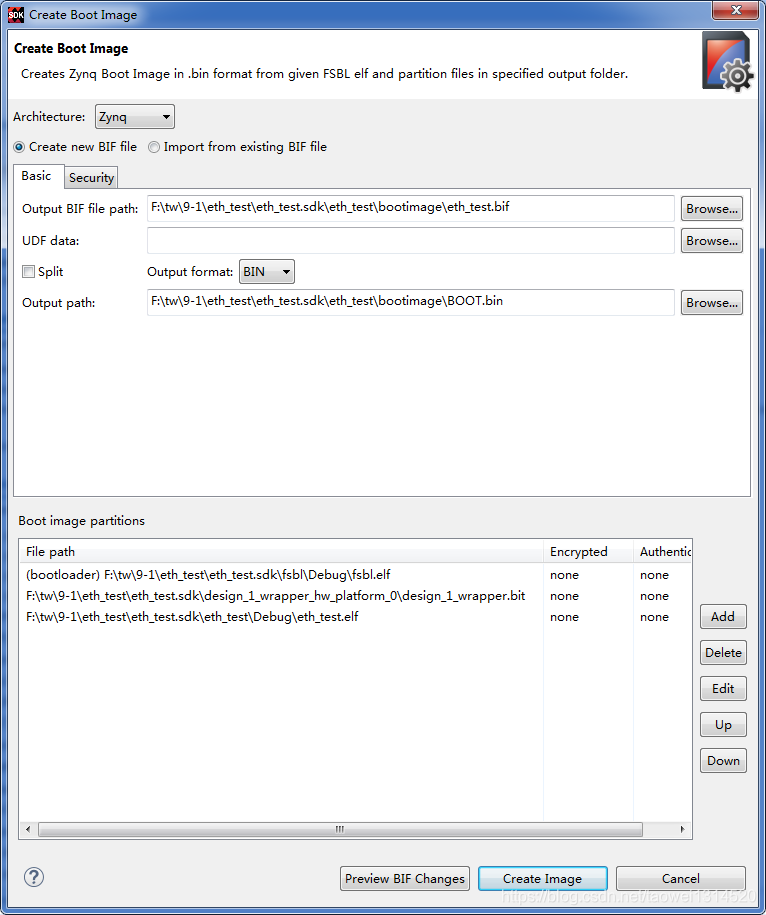

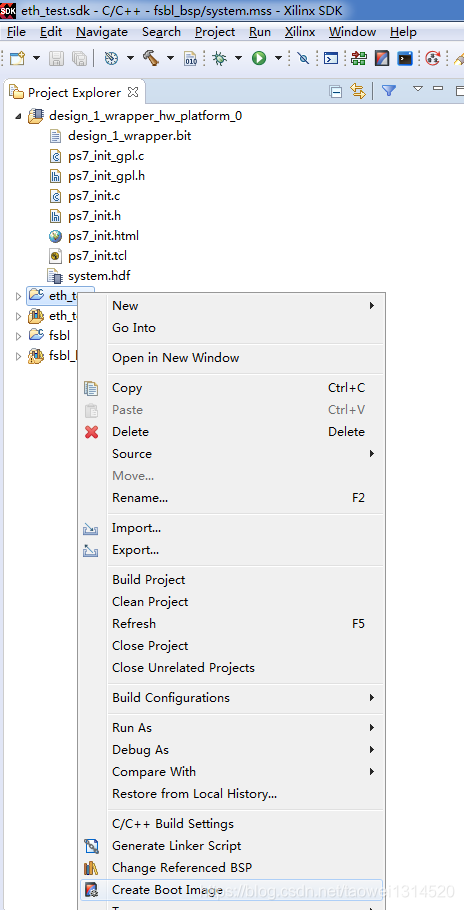

右击eth_test--->Create Boot  Image 生成BOOT.bin文件

点击  Create Image 生成BOOT.bin文件，将BOOT.bin文件拷贝到SD放到开发板上运行

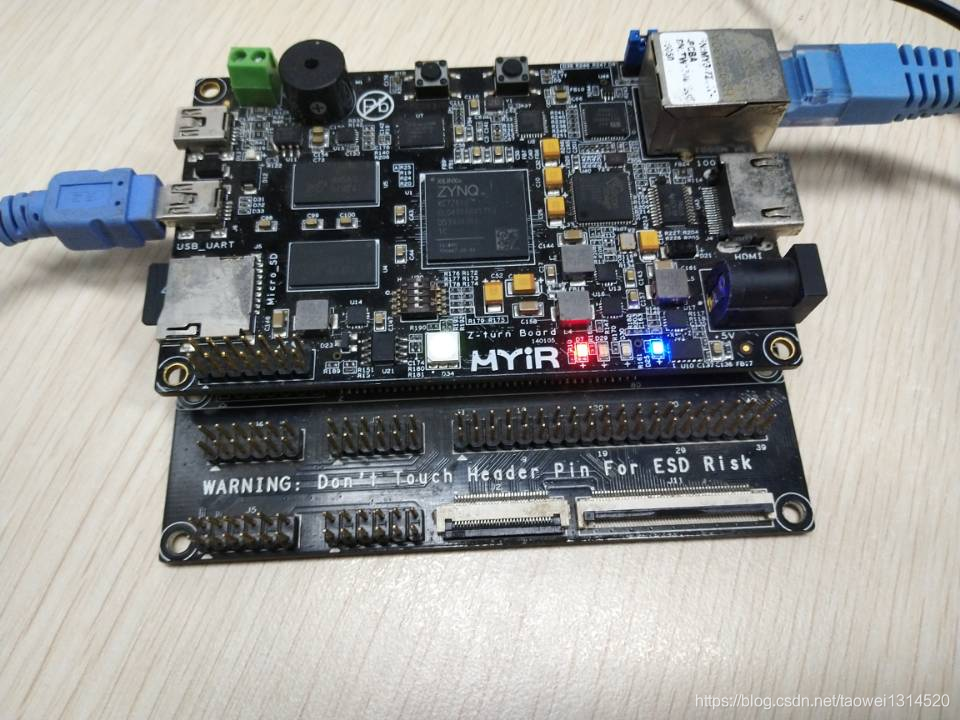

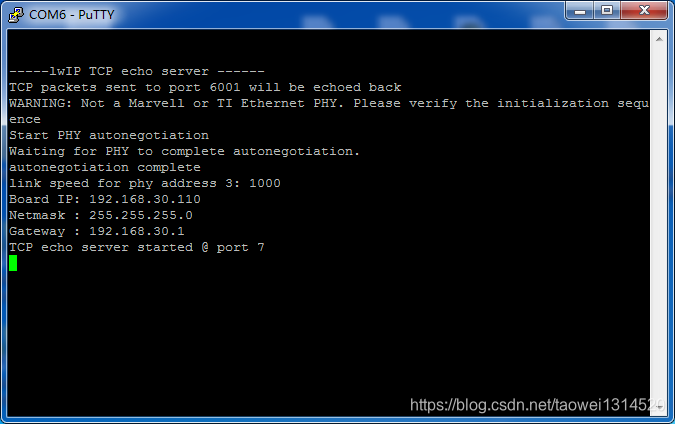

运行裸机程序开发板连接到路由器会自动分配一个IP地址

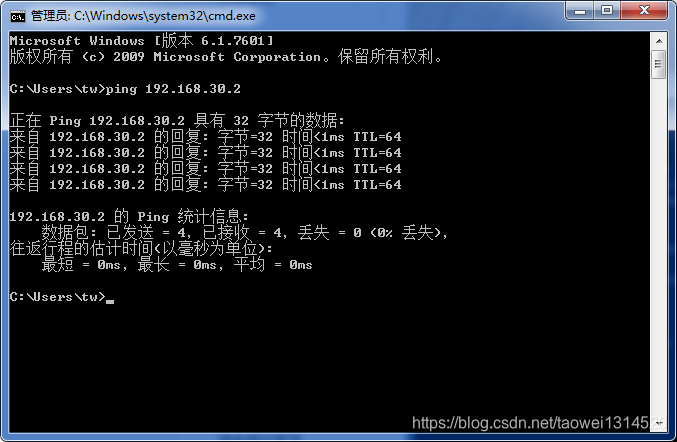

直接ping同一网段不同的的IP地址可以ping通
