matlab中变压器的连接方式,请问simulink中电动机与变压器如何相连啊？

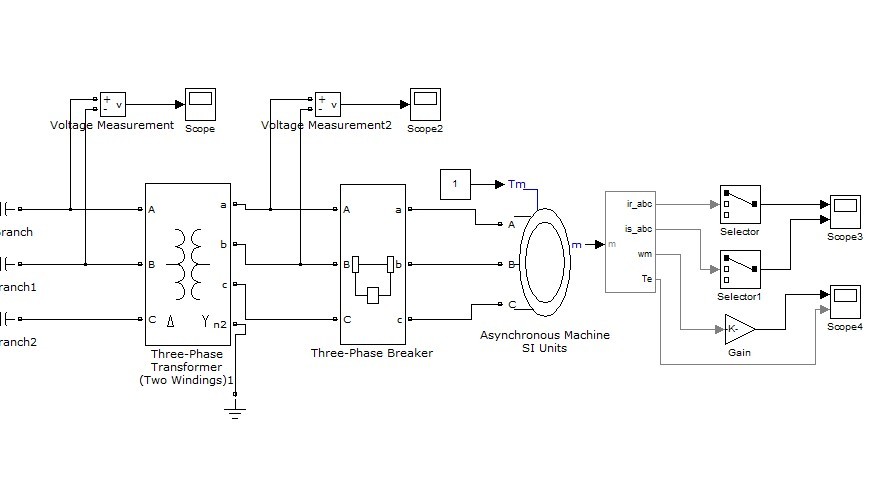

请问matlab中变压器与电机如何相连啊？我按附件的图相连，但提示错误

The following two blocks cannot be connected in series:

Block 1: 'A_stator: Asynchronous Machine SI Units'

Block 2: 'transfo_1_winding_2: Three-Phase Transformer (Two Windings)1'

The first block, modeled as a current source, cannot be connected in series with the inductive element of the second block.

Add a high-value resistance in parallel with one of the two block.

You can also specify high-value resistive snubbers if the blocks have a snubber device.难道在实际中变压器不能直接和电动机相连嘛？？


2012-2-4 19:51 上传
