统计推断(九) Graphical models

1. Undirected graphical models(Markov random fields)

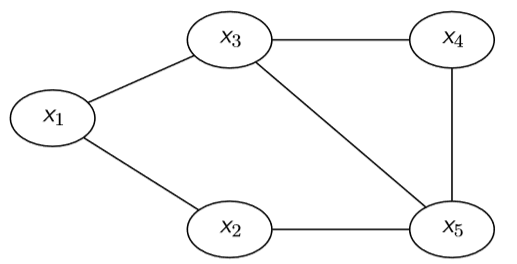

• 节点表示随机变量，边表示与节点相关的势函数
  $$p_{\mathbf{x}}(\mathbf{x})\propto {\phi }_{12}\left(x_1,x_2\right){\phi }_{13}\left(x_1,x_3\right){\phi }_{25}\left(x_2,x_5\right){\phi }_{345}\left(x_3,x_4,x_5\right)$$


• clique：全连接的节点集合

• maximal clique：不是其他 clique 的真子集

**Theorem (Hammersley-Clifford) **: A strictly positive distribution $p_{\mathsf{x}}(\mathbf{x})>0$ satisfies the graph separation property of undirected graphical models if and only if it can be represented in the factorized form
$$p_{\mathsf{x}}(\mathbf{x})\propto \prod _{\mathcal{A}\in \mathcal{C}}{\psi }_{{\mathbf{x}}_{\mathcal{A}}}\left({\mathbf{x}}_{\mathcal{A}}\right)$$

• conditional independence：${\mathbf{x}}_{{\mathcal{A}}_1}\perp {\mathbf{x}}_{{\mathcal{A}}_2}|{\mathbf{x}}_{{\mathcal{A}}_3}$

2. Directed graphical models(Bayesian network)

• 节点表示随机变量，有向边表示条件关系
  $$p_{{\mathrm{x}}_1,\dots ,{\mathrm{x}}_n}=p_{{\mathrm{x}}_1}\left(x_1\right)p_{{\mathrm{x}}_2|{\times }_1}\left(x_2|x_1\right)\cdots p_{{\mathrm{x}}_n|x_1,\dots ,x_{n-1}}\left(x_n|x_1,\dots ,x_{n-1}\right)$$


• Directed acyclic graphs (DAG)

• Fully-connected DAG

• conditional independence：${\mathbf{x}}_{{\mathcal{A}}_1}\perp {\mathbf{x}}_{{\mathcal{A}}_2}|{\mathbf{x}}_{{\mathcal{A}}_3}$



• Bayes ball algorithm

  • primary shade: ${\mathcal{A}}_3$ 中的节点
  • secondary shade: primary shade 的节点，以及 secondary shade 的父节点

  [外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-8UKlSiFL-1580777349196)(C:\Users\1\AppData\Roaming\Typora\typora-user-images\1574319393095.png)]

3. Factor graph

• 有 variable nodes 和 factor nodes，是 bipartitie graph
  $$p_{\mathbf{x}}(\mathbf{x})\propto \prod _j{f}_j\left({\mathbf{x}}_{f_j}\right)$$


• 因子图比 directed graph 和 undirected graph 的表示能力更强，比如 $p(x)=\frac{1}{Z}{\varphi }_{12}(x_1,x_2){\varphi }_{13}(x_1,x_3){\varphi }_{23}(x_2,x_3)$

• 因子图可以与 DAG 相互转化(根据 $x_1,...,x_n$ 依次根据 conditional independence 决定父节点)，DAG又可以转化为 undirected graph

4. Measuring goodness of graphical representations

• 给定分布 D 和图 G，他们之间没必要有联系
• $CI(D)$：the set of conditional independencies satisfied by $D$
• $CI(G)$： the set of all conditional independencies implied by $G$
• I-map：$CI(\mathcal{G})\subset CI(D)$
• D-map: ：$CI(\mathcal{G})\supset CI(D)$
• P-map：$CI(\mathcal{G})=CI(D)$
• minimal I-map: Aminimal I-mapisanI-mapwiththepropertythatremovinganysingle edge would cause the graph to no longer be an I-map.
  Remarks: G 中去掉一个边会使该 map 中有更多的 conditional independence，也即 $CI(G)$ 更大，更不易满足 I-map条件。I-map 可以表示分布 D，但是 D-map 不能

---
