Transformer编码器-解码器（Encoder-Decoder）架构介绍+代码实现

一，Transformer架构介绍：

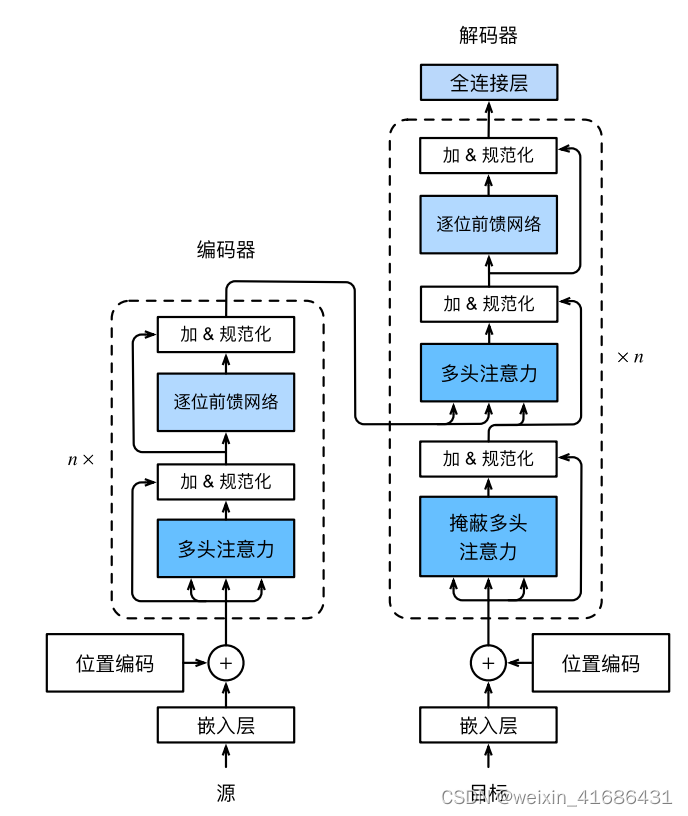

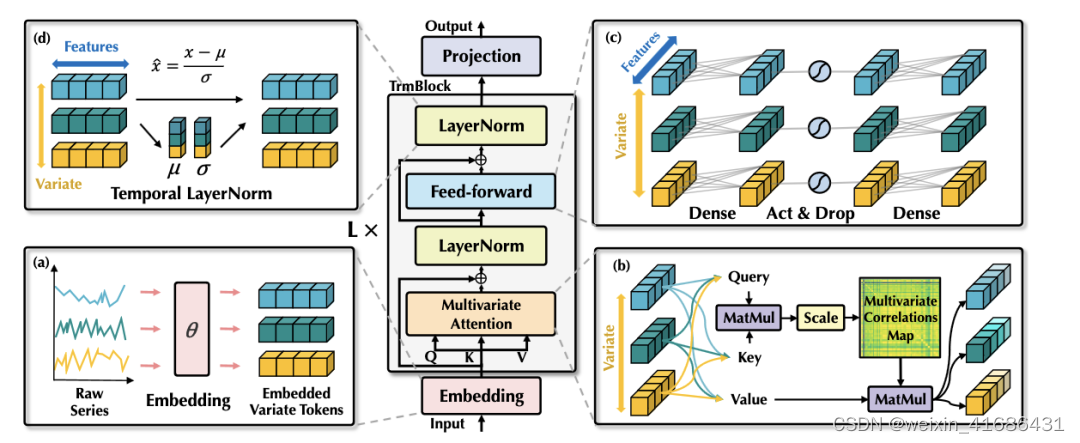

      Transformer的编码器-解码器是基于自注意力的模块叠加而成的，源序列（Input）和目标序列（Target）的嵌入（Embedding）表示将加上位置编码（Positional encoding）,再分别输入到编码器和解码器中。从宏观角度来看，Transformer的编码器是由多个相同的层叠加而 成的，每个层都有两个子层（子层表示为sublayer）。第一个子层是多头自注意力（multi‐head self‐attention）

汇聚；第二个子层是基于位置的前馈网络（ positionwise feed‐forward network ）。具体来说，在计算编码器 的自注意力时，查询、键和值都来自前一个编码器层的输出， 每个子层都采用

了残差连接（ residual connection ）。在 Transformer 中，对于序列中任何位置的任何输入 x ∈ R d ，都要求满 足sublayer ( x ) ∈ R d ，以便残差连接满足 x + sublayer ( x ) ∈ R d。在残差连接的加法计算之后，紧接着应用层 规范化（layer normalization）。因此，输入序列对应的每个位置，Transformer编码器都将输出一个 d维表示向量。 Transformer解码器也是由多个相同的层叠加而成的，并且层中使用了残差连接和层规范化。除了编码器中 描述的两个子层之外，解码器还在这两个子层之间插入了第三个子层，称为编码器－解码器注意力（encoder‐ decoder attention）层。在编码器－解码器注意力中，查询来自前一个解码器层的输出，而键和值来自整个 编码器的输出。在解码器自注意力中，查询、键和值都来自上一个解码器层的输出。但是，解码器中的每个位 置只能考虑该位置之前的所有位置。这种掩蔽（masked）注意力保留了自回归（auto‐regressive）属性，确 保预测仅依赖于已生成的输出词元。

二，嵌入层和位置编码的作用：

举个例子，假设我们正在处理一个英语到西班牙语的翻译问题，其中一个样本的源序列是 "The ball is blue"，目标序列是 "La bola es azul"。

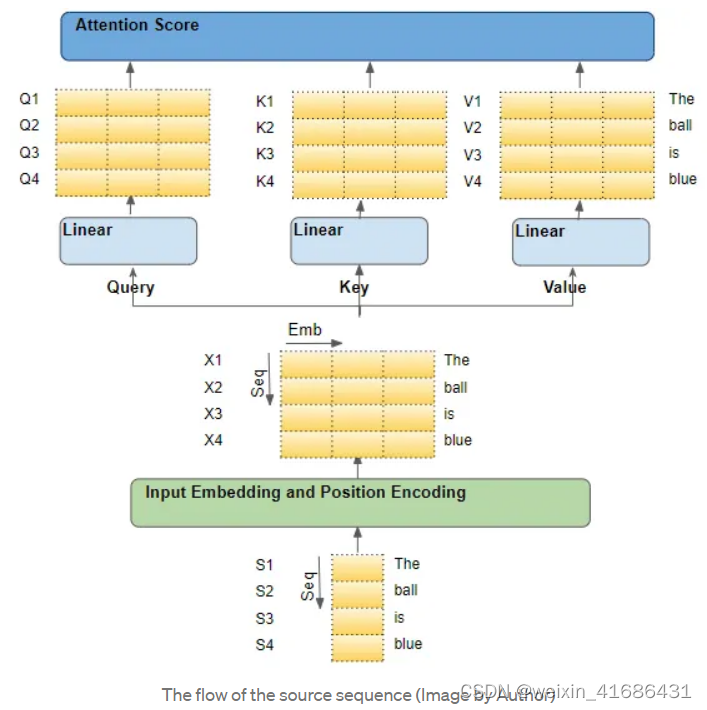

源序列首先通过 Embedding 和 Position Encoding 层，为序列中的每个单词生成嵌入。随后嵌入被传递到编码器，到达 Attention module.

Attention module 中，嵌入的序列通过三个线性层（Linear layers），产生三个独立的矩阵--Query、Key、Value。这三个矩阵被用来计算注意力得分。这些矩阵的每一 "行 "对应于源序列中的一个词。

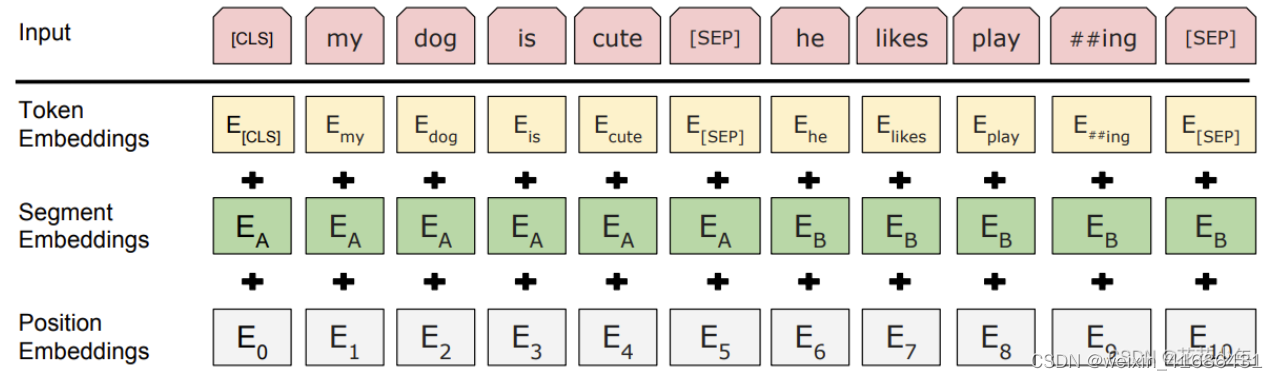

位置编码的简单图示：

三，多头自注意力网络（MultiHead Self-Attention）：

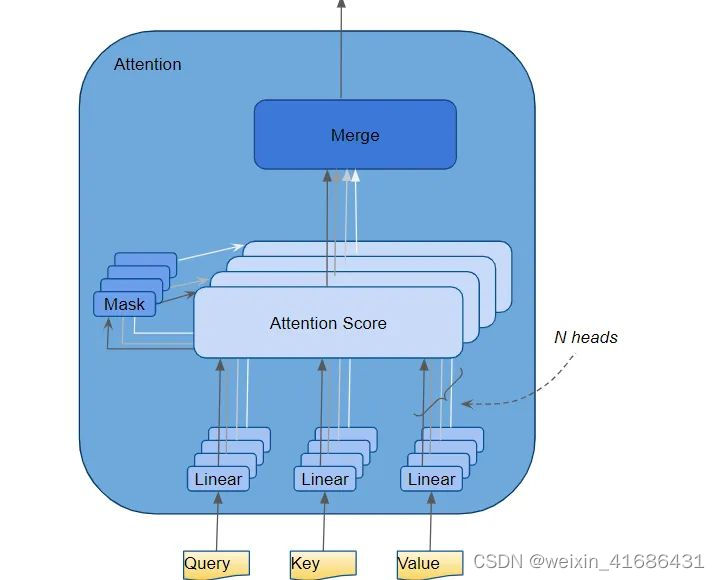

多头点积注意力：

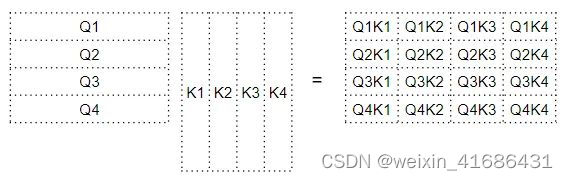

Query 与 Key 的转置进行点积，产生一个中间矩阵，即所谓“因子矩阵”。因子矩阵的每个单元都是两个词向量之间的矩阵乘法。

如下所示，因子矩阵第 4 行的每一列都对应于 Q4 向量与每个 K 向量之间的点积；因子矩阵的第 2 列对应与每个 Q 向量与 K2 向量之间的点积，这个“因子矩阵”就是注意力分数（Attention Score）

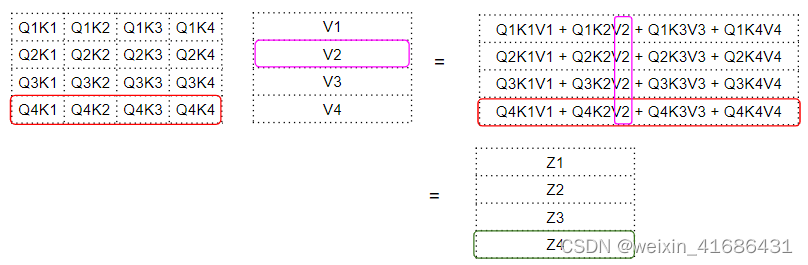

因子矩阵再经过Softmax函数生成一组概率分布也就是注意力权重（Attention Weights）再和 V 矩阵之间进行矩阵相乘，产生注意力池化（Attention Pooling）输出。可以看到，输出矩阵中第 4 行对应的是 Q4 矩阵与所有其他对应的 K 和 V 相乘：

可以将注意力得分理解成一个词的“编码值”。这个编码值是由“因子矩阵”对 Value 矩阵中的词加权而来。而“因子矩阵”中对应的权值则是该特定单词的 Query 向量与 Key 向量的点积。再啰嗦一遍：

1-一个词的注意力得分可以理解为该词的"编码值",它是注意力机制最终为每个词赋予的表示向量。

2-这个"编码值"是由"值矩阵"(Value矩阵)中每个词的值向量加权求和得到的。

3-加权的权重就是"因子矩阵"中对应的注意力权重。

4-"因子矩阵"中的注意力权重是通过该词的查询向量(Query)与所有词的键向量(Key)做点积计算得到的。

四，Transformer的Encoder与Decoder键值传递：

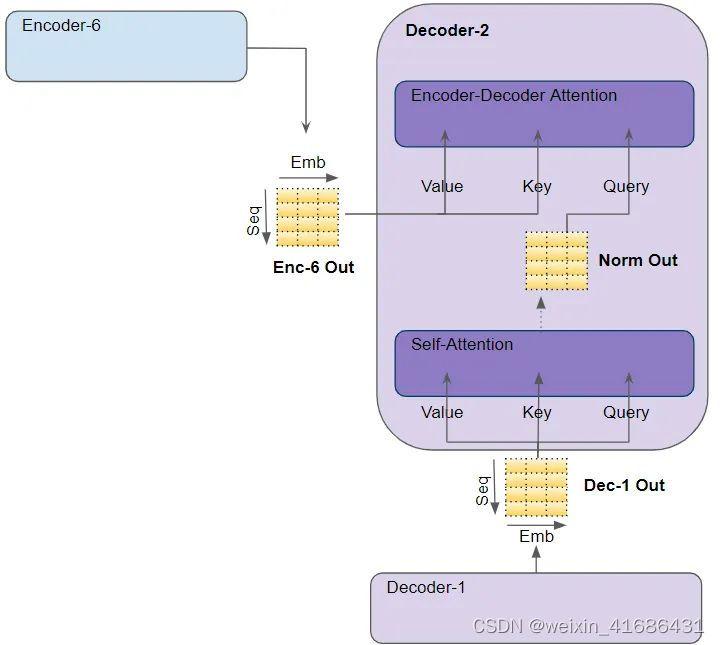

在 "Encoder-Decoder Attention "中，Query 来自Traget序列，而Key-Value来自Input序列。

五，Transformer的实战代码：

import math
import pandas as pd
import torch
from torch import nn
from d2l import torch as d2l
import matplotlib.pyplot as plt


# 1.1， 搭建多头注意力
def masked_softmax(X, valid_lens):
    """通过在最后一个轴上掩蔽元素来执行softmax操作"""
    # X:3D张量，valid_lens:1D或2D张量
    if valid_lens is None:
        return nn.functional.softmax(X, dim=-1)
    else:
        shape = X.shape
        if valid_lens.dim() == 1:
            valid_lens = torch.repeat_interleave(valid_lens, shape[1])
        else:
            valid_lens = valid_lens.reshape(-1)
        # 最后一轴上被掩蔽的元素使用一个非常大的负值替换，从而其softmax输出为0
        X = d2l.sequence_mask(X.reshape(-1, shape[-1]), valid_lens, value=-1e6)
        return nn.functional.softmax(X.reshape(shape), dim=-1)

class DotProductAttention(nn.Module):
    """缩放点积注意力"""
    def __init__(self, dropout, **kwargs):
        super(DotProductAttention, self).__init__(**kwargs)
        self.dropout = nn.Dropout(dropout)
    # queries的形状：(batch_size，查询的个数，d)
    # keys的形状：(batch_size，“键－值”对的个数，d)
    # values的形状：(batch_size，“键－值”对的个数，值的维度)
    # valid_lens的形状:(batch_size，)或者(batch_size，查询的个数)
    def forward(self, queries, keys, values, valid_lens=None):
        d = queries.shape[2]
        scores = torch.bmm(queries, keys.transpose(1, 2))/math.sqrt(d)
        self.attention_weights = masked_softmax(scores, valid_lens)
        return torch.bmm(self.dropout(self.attention_weights), values)

def transpose_qkv(tensor, num_heads):
    """为了多注意力头的并行计算而变换形状"""
    # 输入tensor的形状:(batch_size，查询或者“键－值”对的个数，num_hiddens)
    # 输出tensor的形状:(batch_size，查询或者“键－值”对的个数，num_heads，
    # num_hiddens/num_heads)
    tensor = tensor.reshape(tensor.shape[0], tensor.shape[1], num_heads, -1)
    # 输出X的形状:(batch_size，num_heads，查询或者“键－值”对的个数,
    # num_hiddens/num_heads)
    tensor = tensor.permute(0, 2, 1, 3)
    # 最终输出的形状:(batch_size*num_heads,查询或者“键－值”对的个数,
    # num_hiddens/num_heads)
    return tensor.reshape(-1, tensor.shape[2], tensor.shape[3])

def transpose_output(tensor, num_heads):
    """逆转transpose_qkv函数的操作"""
    tensor = tensor.reshape(-1, num_heads, tensor.shape[1], tensor.shape[2])
    tensor = tensor.permute(0, 2, 1, 3)
    return tensor.reshape(tensor.shape[0], tensor.shape[1], -1)

class MultiHeadAttention(nn.Module):
    def __init__(self, key_size, query_size, value_size, num_hiddens, num_heads, dropout, bias=False, **kwargs):
        super(MultiHeadAttention, self).__init__(**kwargs)
        print('MultiHeadAttention __init__:', file=log)
        self.num_heads = num_heads
        self.attention = DotProductAttention(dropout)
        self.weight_query = nn.Linear(query_size, num_hiddens, bias=bias)
        self.weight_key = nn.Linear(key_size, num_hiddens, bias=bias)
        self.weight_value = nn.Linear(value_size, num_hiddens, bias=bias)
        self.weight_output = nn.Linear(num_hiddens, num_hiddens, bias=bias)

    def forward(self, queries, keys, values, valid_lens):
        # queries, keys, values的形状：
        # （batch_size, 查询或者“键-值”对的个数，num_hiddens）
        # valid_lens 的形状：
        # （batch_size, ）或（batch_size, 查询的个数）
        # 经过变换后，输出的queries, keys, values的形状
        # （batch_size*num_heads, 查询或者“键-值”对的个数）
        # num_hiddens/num_heads
        queries = transpose_qkv(self.weight_query(queries), self.num_heads)
        # print('queries:', file=log)
        # print(queries.shape, file=log)
        # print(queries, file=log)

        keys = transpose_qkv(self.weight_key(keys), self.num_heads)
        # print('keys:', file=log)
        # print(keys.shape, file=log)
        # print(keys, file=log)

        values = transpose_qkv(self.weight_value(values), self.num_heads)
        # print('values:', file=log)
        # print(values.shape, file=log)
        # print(values, file=log)

        if valid_lens is not None:
            # 在轴0，将第一项（标量或者矢量）复制num_heads次，
            # 然后如此复制第二项，然后诸如此类。
            valid_lens = torch.repeat_interleave(valid_lens, repeats=self.num_heads, dim=0)
            # print('valid_lens:', file=log)
            # print(valid_lens.shape, file=log)
            # print(valid_lens, file=log)
            # output的形状:(batch_size*num_heads，查询的个数，num_hiddens/num_heads)
        output = self.attention(queries, keys, values, valid_lens)
        # print('output:', file=log)
        # print(output.shape, file=log)
        # print(output, file=log)
        # output_concat的形状:(batch_size，查询的个数，num_hiddens)
        output_concat = transpose_output(output, self.num_heads)
        # print('output_concat:', file=log)
        # print(output_concat.shape, file=log)
        # print(output_concat, file=log)
        return self.weight_output(output_concat)


# 2.1, 基于位置的前馈网络
class PositionWiseFFN(nn.Module):
    def __init__(self, ffn_num_input, ffn_num_hiddens, ffn_num_outputs, **kwargs):
        super(PositionWiseFFN, self).__init__(**kwargs)
        print('PositionWiseFFN __init__:', file=log)
        self.dense1 = nn.Linear(ffn_num_input, ffn_num_hiddens)
        self.relu = nn.ReLU()
        self.dense2 = nn.Linear(ffn_num_hiddens, ffn_num_outputs)

    def forward(self, X):
        return self.dense2(self.relu(self.dense1(X)))

"""
FFN = PositionWiseFFN(4, 4, 8)
FFN.eval()
print(FFN(torch.ones((2, 3, 4))).shape)
print(FFN(torch.ones((2, 3, 4))))
"""

# 3.1, 残差连接和层规范化
ln = torch.nn.LayerNorm(2)
bn = torch.nn.BatchNorm1d(2)
X = torch.tensor([[1, 2], [3, 4]], dtype=torch.float32)
# 在训练模式下计算x的均值和方差
print('layer norm:', ln(X), '\nbatch norm:', bn(X))

# 3.2, 使用残差连接和层规范化来实现AddNorm类，暂退法也被作为正则化方法使用。
class AddNorm(nn.Module):
    def __init__(self, normalized_shape, dropout, **kwargs):
        super(AddNorm, self).__init__(**kwargs)
        print('AddNorm __init__:', file=log)
        self.dropout = torch.nn.Dropout(dropout)
        self.ln = torch.nn.LayerNorm(normalized_shape)

    def forward(self, X, Y):
        return self.ln(self.dropout(Y) + X)

# 3.3 残差连接要求两个输入的形状相同，以便加法操作后输出张量的形状相同。
"""
add_norm = AddNorm([3, 4], 0.5)
add_norm.eval()
tensor1 = add_norm(torch.ones((2, 3, 4)), torch.ones((2, 3, 4)))
print(tensor1.shape)
print(tensor1)
"""

# 4.1, 位置编码
class PositionalEncoding(nn.Module):
    """位置编码"""
    def __init__(self, num_hiddens, dropout, max_len=1000):
        super(PositionalEncoding, self).__init__()
        self.dropout = nn.Dropout(dropout)
        # 创建一个足够长的P
        self.P = torch.zeros((1, max_len, num_hiddens))
        print('PositionalEncoding:', file=log)
        print(self.P.shape, file=log)
        X = torch.arange(0, max_len, step=1, dtype=torch.float32).reshape(-1, 1)
        print('X1:', file=log)
        print(X.shape, file=log)
        Y = torch.pow(10000, torch.arange(0, num_hiddens, step=2, dtype=torch.float32) / num_hiddens)
        print('Y:', file=log)
        print(Y.shape, file=log)
        print(Y, file=log)
        X = X/Y
        print('X3:', file=log)
        print(X.shape, file=log)
        print(X, file=log)

        self.P[:, :, 0:num_hiddens:2] = torch.sin(X)
        self.P[:, :, 1:num_hiddens:2] = torch.cos(X)
        print(self.P.shape, file=log)
        print(self.P, file=log)

    def forward(self, X):
        X = X + self.P[:, :X.shape[1], :].to(X.device)
        print('self.P:', file=log)
        print(self.P[:, :X.shape[1], :].to(X.device), file=log)
        print('X4:', file=log)
        print(X.shape, file=log)
        print(X, file=log)
        return self.dropout(X)

# 4.2, 位置编码测试
"""
encoding_dim, num_steps = 32, 60
pos_encoding = PositionalEncoding(encoding_dim, 0)
pos_encoding.eval()
tensor_pos = torch.zeros((1, num_steps, encoding_dim))
print('tensor_pos:')
print(tensor_pos.shape)
print(tensor_pos)
X = pos_encoding(tensor_pos)
print('X4:')
print(X.shape)
print(X)

P = pos_encoding.P[:, :X.shape[1], :]
d2l.plot(torch.arange(num_steps), P[0, :, 6:10].T, xlabel='Row(position)', figsize=(6, 2.5), legend=["Col %d" % d for d in torch.arange(6, 10)])
plt.show()
"""

# 5.1， 实现编码器中的一个层，EncoderBlock类包含两个子层：多头自注意力和基于位置的前馈网络，
# 这两个子层都使用了残差连接和紧随的层规范化。
class EncoderBlock(nn.Module):
    def __init__(self, key_size, query_size, value_size, num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens, num_heads, dropout, use_bias=False, **kwargs):
        super(EncoderBlock, self).__init__(**kwargs)
        print('EncoderBlock __init__:', file=log)
        self.attention = MultiHeadAttention(key_size, query_size, value_size, num_hiddens, num_heads, dropout, use_bias)
        self.addnorm1 = AddNorm(norm_shape, dropout)
        self.ffn = PositionWiseFFN(ffn_num_input, ffn_num_hiddens, num_hiddens)
        self.addnorm2 = AddNorm(norm_shape, dropout)

    def forward(self, X, valid_lens):
        print('EncoderBlock forward:', file=log)
        atten = self.attention(X, X, X, valid_lens)
        print('atten:', file=log)
        print(atten.shape, file=log)
        print(atten, file=log)

        Y = self.addnorm1(X, atten)
        print('Y:', file=log)
        print(Y.shape, file=log)
        print(Y, file=log)

        ff = self.ffn(Y)
        print('ff:', file=log)
        print(ff.shape, file=log)
        print(ff, file=log)

        return self.addnorm2(Y, ff)

"""
log = open('transformer1.txt', mode='a', encoding='utf-8')
# X = torch.ones((2, 100, 24))
valid_lens = torch.tensor([3, 2])
encoder_blk = EncoderBlock(24, 24, 24, 24, [100, 24], 24, 48, 8, 0.5)
encoder_blk.eval()
# encoder_blk(X, valid_lens).shape
"""

# 5.2, 实现Transformer编码器，堆叠num_layers个EncoderBlock类的实例。
class TransformerEncoder(d2l.Encoder):
    def __init__(self, vocab_size, key_size, query_size, value_size,
                 num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens,
                 num_heads, num_layers, dropout, use_bias=False, **kwargs):
        super(TransformerEncoder, self).__init__(**kwargs)
        self.num_hiddens = num_hiddens
        self.embedding = nn.Embedding(vocab_size, num_hiddens)
        self.pos_encoding = PositionalEncoding(num_hiddens, dropout)
        self.blks = nn.Sequential()
        for i in range(num_layers):
            print('EncoderBlock instance index:', file=log)
            print(i, file=log)
            self.blks.add_module("block"+str(i), EncoderBlock(key_size, query_size, value_size,
                                                              num_hiddens, norm_shape, ffn_num_input,
                                                              ffn_num_hiddens, num_heads, dropout, use_bias))

    def forward(self, X, valid_lens, *args):
        # 因为位置编码值在-1和1之间，
        # 因此嵌入值乘以嵌入维度的平方根进行缩放，
        # 然后再与位置编码相加。
        X = self.embedding(X) * math.sqrt(self.num_hiddens)
        print('TransformerEncoder:', file=log)
        print(X.shape, file=log)
        print(X, file=log)

        X = self.pos_encoding(X)
        print('TransformerEncoder:', file=log)
        print(X.shape, file=log)
        print(X, file=log)
        self.attention_weights = [None]*len(self.blks)
        for i, blk in enumerate(self.blks):
            X = blk(X, valid_lens)
            self.attention_weights[i] = blk.attention.attention.attention_weights
        return X

# 6.1, 指定超参数创建两层的Transformer编码器，Transformer编码器输出的形状是（批量大小，时间步数目，num_hiddens）

"""
encoder = TransformerEncoder(200, 24, 24, 24, 24, [100, 24], 24, 48, 8, 2, 0.5)
encoder.eval()
valid_lens = torch.tensor([3,2])
encoder(torch.ones((2, 100), dtype=torch.long), valid_lens).shape
"""

# 7.1, 解码器包含了三个子层：解码器自注意力、“编码器-解码器”注意力和基于位置的前馈网络。

class DecoderBlock(nn.Module):
    """解码器中第i个块"""
    def __init__(self, key_size, query_size, value_size, num_hiddens,
                norm_shape, ffn_num_input, ffn_num_hiddens, num_heads,
                dropout, i, **kwargs):
        super(DecoderBlock, self).__init__(**kwargs)
        print('DecoderBlock __init__:', file=log)
        self.i = i
        self.attention1 = MultiHeadAttention(key_size, query_size, value_size, num_hiddens, num_heads, dropout)
        self.addnorm1 = AddNorm(norm_shape, dropout)
        self.attention2 = MultiHeadAttention(key_size, query_size, value_size, num_hiddens, num_heads, dropout)
        self.addnorm2 = AddNorm(norm_shape, dropout)
        self.ffn = PositionWiseFFN(ffn_num_input, ffn_num_hiddens, num_hiddens)
        self.addnorm3 = AddNorm(norm_shape, dropout)
    def forward(self, X, state):
        enc_outputs, enc_valid_lens = state[0], state[1]
        # 训练阶段，输出序列的所有词元都在同一时间处理，
        # 因此state[2][self.i]初始化为None。
        # 预测阶段，输出序列是通过词元一个接着一个解码的，
        # 因此state[2][self.i]包含着直到当前时间步第i个块解码的输出表示
        print('DecoderBlock forward:', file=log)
        if state[2][self.i] is None:
            key_values = X
        else:
            key_values = torch.cat((state[2][self.i], X), axis=1)
        state[2][self.i] = key_values
        if self.training:
            batch_size, num_steps, _ = X.shape
            # dec_valid_lens的开头:(batch_size,num_steps),
            # 其中每一行是[1,2,...,num_steps]
            dec_valid_lens = torch.arange(1, num_steps + 1, device=X.device).repeat(batch_size, 1)
        else:
            dec_valid_lens = None
        # 自注意力
        X2 = self.attention1(X, key_values, key_values, dec_valid_lens)
        Y = self.addnorm1(X, X2)
        # 编码器－解码器注意力。
        # enc_outputs的开头:(batch_size,num_steps,num_hiddens)
        Y2 = self.attention2(Y, enc_outputs, enc_outputs, enc_valid_lens)
        Z = self.addnorm2(Y, Y2)
        return self.addnorm3(Z, self.ffn(Z)), state


class TransformerDecoder(d2l.AttentionDecoder):
    def __init__(self, vocab_size, key_size, query_size, value_size,
                num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens,
                num_heads, num_layers, dropout, **kwargs):
        super(TransformerDecoder, self).__init__(**kwargs)
        self.num_hiddens = num_hiddens
        self.num_layers = num_layers
        self.embedding = nn.Embedding(vocab_size, num_hiddens)
        self.pos_encoding = d2l.PositionalEncoding(num_hiddens, dropout)
        self.blks = nn.Sequential()
        for i in range(num_layers):
            self.blks.add_module("block" + str(i),
                                 DecoderBlock(key_size, query_size, value_size, num_hiddens,
                                              norm_shape, ffn_num_input, ffn_num_hiddens,
                                              num_heads, dropout, i))
        self.dense = nn.Linear(num_hiddens, vocab_size)

    def init_state(self, enc_outputs, enc_valid_lens, *args):
        return [enc_outputs, enc_valid_lens, [None] * self.num_layers]

    def forward(self, X, state):
        X = self.pos_encoding(self.embedding(X) * math.sqrt(self.num_hiddens))
        self._attention_weights = [[None] * len(self.blks) for _ in range(2)]
        for i, blk in enumerate(self.blks):
            X, state = blk(X, state)
            # 解码器自注意力权重
            self._attention_weights[0][i] = blk.attention1.attention.attention_weights
            # “编码器－解码器”自注意力权重
            self._attention_weights[1][i] = blk.attention2.attention.attention_weights
        return self.dense(X), state

    @property
    def attention_weights(self):
        return self._attention_weights

# 8.1, 训练
num_hiddens, num_layers, dropout, batch_size, num_steps = 32, 2, 0.1, 64, 10
lr, num_epochs, device = 0.005, 200, d2l.try_gpu()
ffn_num_input, ffn_num_hiddens, num_heads = 32, 64, 4
key_size, query_size, value_size = 32, 32, 32
norm_shape = [32]
log = open('transformer1.txt', mode='a', encoding='utf-8')

# 8.2, 加载数据集
train_iter, src_vocab, tgt_vocab = d2l.load_data_nmt(batch_size, num_steps)
encoder = TransformerEncoder(len(src_vocab), key_size, query_size, value_size,
                   num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens,
                   num_heads, num_layers, dropout)

decoder = TransformerDecoder(len(tgt_vocab), key_size, query_size, value_size,
                   num_hiddens, norm_shape, ffn_num_input, ffn_num_hiddens,
                   num_heads, num_layers, dropout)

net = d2l.EncoderDecoder(encoder, decoder)
d2l.train_seq2seq(net, train_iter, lr, num_epochs, tgt_vocab, device)

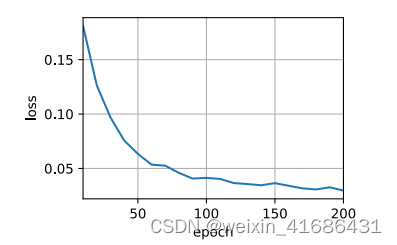

plt.show()
