Unity NatCorder录屏

---

前言

一、NatCorder

Unity全平台录屏工具,工具的具体内容在其他博客里都能找到,但找了很多博客内容都差不多,用的时候还要自己去看一下源码,官方的demo在笔记本上都会录制摄像头看到的画面,很不任性,

二、使用步骤

1.引入库

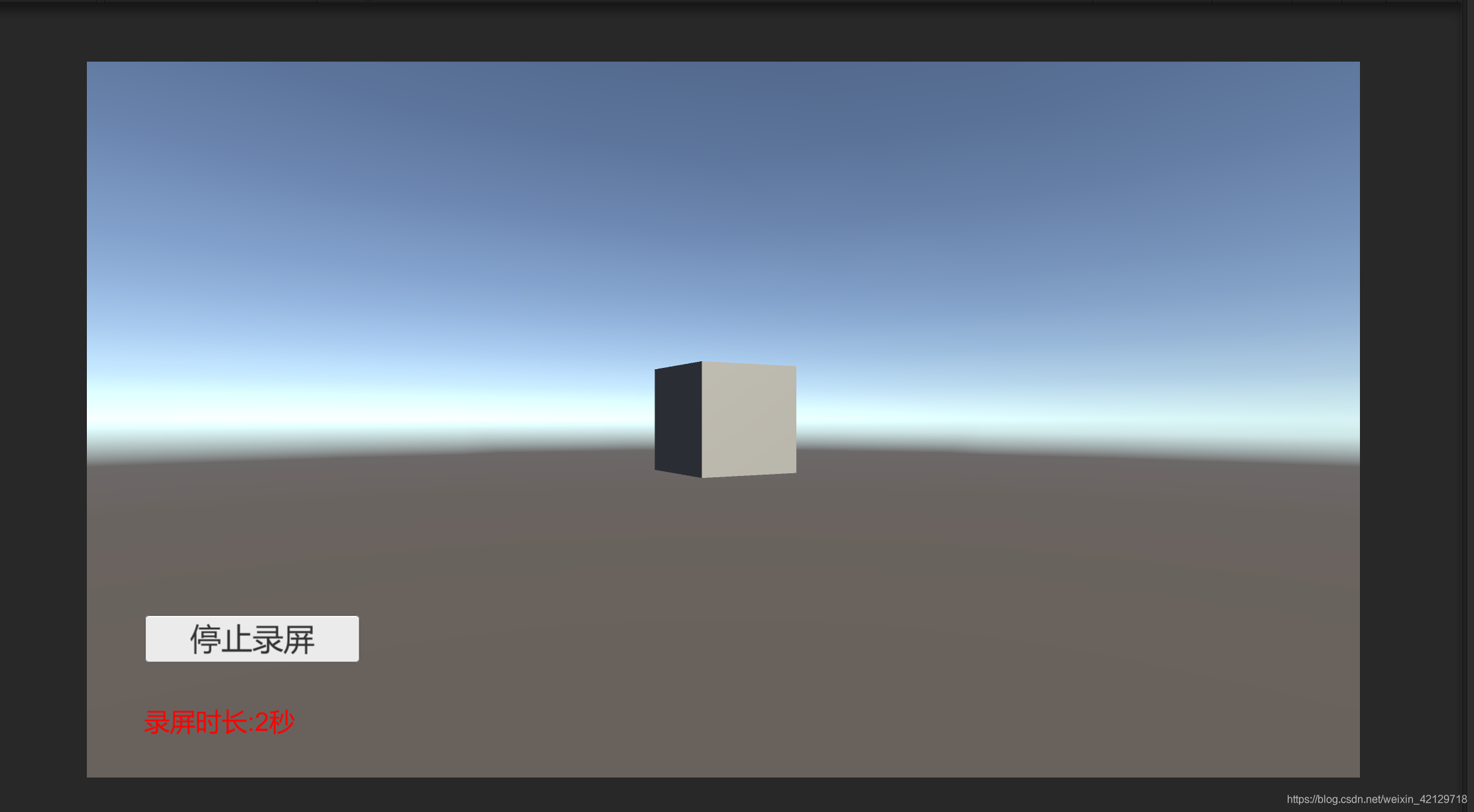

我使用的是NatCorder1.5.1,unity2019版本.在官方三个demo场景Replaycam里面修改来的.最后的效果.添加了一个开始时录屏和结束录屏的按钮,一个录制时长的Text.

2.Ui

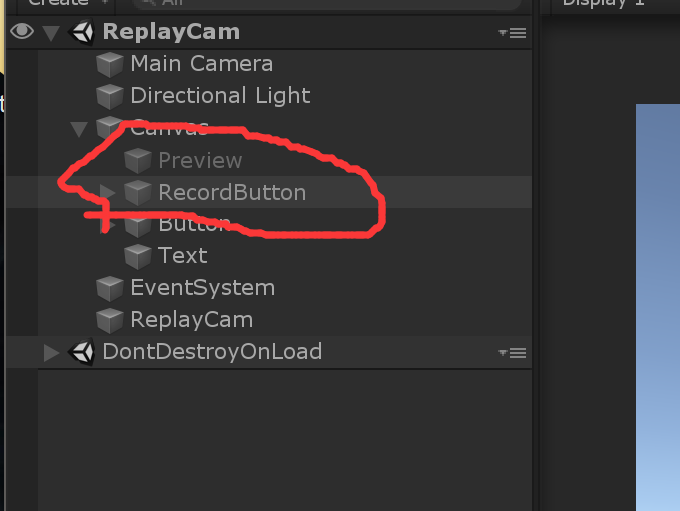

如果用到录制摄像头的功能,可以吧里面的预制UI隐藏掉或者删掉,同时添加一个开始和结束录屏的Button和显示录屏时长的Text,
录制视屏的脚本都在ReplayCam上面挂着,最后通过调用它上面的ReplayCam脚本里面的方法,录制.

3.ReplayCam官方脚本

官方脚本,大体上没动过,添加了一些自己理解的注释,和一个
internal Action replayAction;的委托方法,等会要在其他地方赋值,测试时发现录制完成后还要等点时长,可能是转码保存,如果不得他调用完录制完成方法就退出,视屏无法正常播放.

/*
*   NatCorder
*   Copyright (c) 2019 Yusuf Olokoba
*/

namespace NatCorder.Examples
{

#if UNITY_EDITOR
    using UnityEditor;
#endif
    using UnityEngine;
    using UnityEngine.UI;
    using System.Collections;
    using Clocks;
    using Inputs;
    using System;


    public class ReplayCam : MonoBehaviour
    {

        /**
        * ReplayCam Example
        * -----------------
        * This example records the screen using a `CameraRecorder`.
        * When we want mic audio, we play the mic to an AudioSource and record the audio source using an `AudioRecorder`
        * -----------------
        * Note that UI canvases in Overlay mode cannot be recorded, so we use a different mode (this is a Unity issue)
        */

        [Header("Recording")]
        public int videoWidth = 1280;
        public int videoHeight = 720;

        [Header("Microphone")]
        public bool recordMicrophone;
        public AudioSource microphoneSource;

        private MP4Recorder videoRecorder;
        private IClock recordingClock;
        private CameraInput cameraInput;
        private AudioInput audioInput;
        /// <summary>
        /// 接収录制完成是的委托方法
        /// </summary>
        internal Action replayAction;
        public void StartRecording()
        {
            SetWidthAndHight();
            // Start recording
            recordingClock = new RealtimeClock();
            videoRecorder = new MP4Recorder(
                videoWidth,
                videoHeight,
                30,
                recordMicrophone ? AudioSettings.outputSampleRate : 0,
                recordMicrophone ? (int)AudioSettings.speakerMode : 0,
                OnReplay
            );
            // Camera.main 设置录制那个摄像机的画面
            cameraInput = new CameraInput(videoRecorder, recordingClock, Camera.main);
            if (recordMicrophone)
            {
                StartMicrophone();
                audioInput = new AudioInput(videoRecorder, recordingClock, microphoneSource, true);
            }
        }

        private void StartMicrophone()
        {
#if !UNITY_WEBGL || UNITY_EDITOR // No `Microphone` API on WebGL :(
            // Create a microphone clip
            microphoneSource.clip = Microphone.Start(null, true, 60, 48000);
            while (Microphone.GetPosition(null) <= 0) ;
            // Play through audio source
            microphoneSource.timeSamples = Microphone.GetPosition(null);
            microphoneSource.loop = true;
            microphoneSource.Play();
#endif
        }

        public void StopRecording()
        {
            // Stop the recording inputs
            if (recordMicrophone)
            {
                StopMicrophone();
                audioInput.Dispose();
            }
            cameraInput.Dispose();
            // Stop recording
            videoRecorder.Dispose();
        }

        private void StopMicrophone()
        {
#if !UNITY_WEBGL || UNITY_EDITOR
            Microphone.End(null);
            microphoneSource.Stop();
#endif
        }
        /// <summary>
        /// 视频录制完成时调用,在下面上个平台上播放录制的视屏
        /// </summary>
        /// <param name="path"></param>
        private void OnReplay(string path)
        {
            replayAction();
            Debug.Log("Saved recording to: " + path);
            // Playback the video
#if UNITY_EDITOR
            EditorUtility.OpenWithDefaultApp(path);
#elif UNITY_IOS
            Handheld.PlayFullScreenMovie("file://" + path);
#elif UNITY_ANDROID
            Handheld.PlayFullScreenMovie(path);
#endif
        }
        /// <summary>
        /// 设置录制大小
        /// </summary>
        private void SetWidthAndHight()
        {
            videoWidth = UnityEngine.Screen.width;
            videoHeight = UnityEngine.Screen.height;
        }
    }
}

4.UiCanvas

挂载在上图Canvas上,主要是通过这个脚本来调用ReplayCam脚本上的方法.完成录屏和一些界面提示,

using NatCorder.Examples;
using UnityEngine;
using UnityEngine.UI;
public class UiCanvas : MonoBehaviour
{
    private Text uiText;
    private Text btnText;
    public ReplayCam cam;
    private int timeNum;
    private RecordType recordType;
    void Awake()
    {
        uiText = transform.Find("Text").GetComponent<Text>();
        btnText = transform.Find("Button/Text").GetComponent<Text>();
    }
    // Start is called before the first frame update
    void Start()
    {
        transform.Find("Button").GetComponent<Button>().onClick.AddListener(Btn);
        cam.replayAction += replayAction;
    }
    private void OnEnable()
    {
        recordType = RecordType.Null;
        SetRecordType();
    }
    private void Btn()
    {
        SetRecordType();
    }
    void SetRecordType()
    {
        switch (recordType)
        {
            case RecordType.Null:
                recordType = RecordType.StartRecord;
                break;
            case RecordType.StartRecord:
                StartRectord();
                recordType = RecordType.StopRecord;
                break;
            case RecordType.StopRecord:
                StopRectord();
                recordType = RecordType.StartRecord;
                break;
            default:
                break;
        }
        btnText.text = recordType == RecordType.StopRecord ? "停止录屏" : "开始录屏";
    }
    // Update is called once per frame
    void Update()
    {

    }
    /// <summary>
    /// 开始录屏,调用ReplayCam.StartRecording()方法
    /// </summary>
    public void StartRectord()
    {
        timeNum = 0;
        cam.StartRecording();
        //定时的方法
        TimerManager.instance.DoLoop(1000, SetTimeText);
    }
    /// <summary>
    /// 结束录屏,调用ReplayCam.StopRectord()方法
    /// </summary>
    public void StopRectord()
    {
        cam.StopRecording();
        TimerManager.instance.RemoveHandler(SetTimeText);
        uiText.text = "正在转译编码,缓存视屏";
    }
    /// <summary>
    /// 设置当前录屏时长
    /// </summary>
    public void SetTimeText()
    {
        timeNum++;
        uiText.text = "录屏时长:" + timeNum.ToString() + "秒";
    }
    /// <summary>
    /// sdk录屏,保存完成后调用这个方法
    /// </summary>
    private void replayAction()
    {
        uiText.text = "视屏保存完成,时长:" + timeNum.ToString() + "秒";
    }
}
public enum RecordType
{
    Null,
    StartRecord,
    StopRecord
    }

5.缓存路径

缓存路径的代码在MP4Recorder脚本那上面,我在Pc上开发,所以修改了子Pc端缓存的路径,在这个方法里也开始设置缓存视屏的名字.

  [Doc(@"MP4RecorderCtor")]
        public MP4Recorder (int videoWidth, int videoHeight, int videoFramerate, int audioSampleRate, int audioChannelCount, Action<string> recordingCallback, int videoBitrate = (int)(960 * 540 * 11.4f), int videoKeyframeInterval = 3) {
            videoWidth = videoWidth >> 1 << 1;
            videoHeight = videoHeight >> 1 << 1;
            var readbackFormat = TextureFormat.RGBA32;
            var recordingDirectory = Application.persistentDataPath;
            var recordingFilename = string.Format("recording_{0}.mp4", DateTime.Now.ToString("yyyy_MM_dd_HH_mm_ss_fff"));
            switch (Application.platform) {
                case RuntimePlatform.OSXEditor:
                    recordingDirectory = Directory.GetCurrentDirectory();
                    goto case RuntimePlatform.OSXPlayer;
                case RuntimePlatform.OSXPlayer:
                    readbackFormat = TextureFormat.ARGB32;
                    goto case RuntimePlatform.IPhonePlayer;
                case RuntimePlatform.WebGLPlayer:
                case RuntimePlatform.WindowsEditor:
                    recordingDirectory = Directory.GetCurrentDirectory();
                    goto case RuntimePlatform.IPhonePlayer;
                case RuntimePlatform.WindowsPlayer:
                    //在Win中视屏缓存路径在包体Exe程序所在目录
                    recordingDirectory = Directory.GetCurrentDirectory();
                    goto case RuntimePlatform.IPhonePlayer;
                case RuntimePlatform.IPhonePlayer: {
                    var recordingPath = Path.Combine(recordingDirectory, recordingFilename);
                        Debug.Log("下载路径:"+ recordingPath);
                    var nativeRecorder = MediaRecorderBridge.CreateMP4Recorder(videoWidth, videoHeight, videoFramerate, videoBitrate, videoKeyframeInterval, audioSampleRate, audioChannelCount);
                    this.internalRecorder = new MediaRecorderiOS(nativeRecorder, videoWidth, videoHeight, readbackFormat, recordingPath, recordingCallback);
                    break;
                }
                case RuntimePlatform.Android: {
                    var recordingPath = Path.Combine(recordingDirectory, recordingFilename);
                    var nativeRecorder = new AndroidJavaObject(@"com.yusufolokoba.natcorder.MP4Recorder", videoWidth, videoHeight, videoFramerate, videoBitrate, videoKeyframeInterval, audioSampleRate, audioChannelCount);
                    this.internalRecorder = new MediaRecorderAndroid(nativeRecorder, videoWidth, videoHeight, recordingPath, recordingCallback);
                    break;
                }
                default:
                    Debug.LogError("NatCorder Error: MP4Recorder is not supported on this platform");
                    this.internalRecorder = null; // Self-destruct >:D
                    break;
            }
        }

---

总结

记录NatCorder在Pc端录制视屏的简单demo.
基于natcorder1.5.1版本写的,
找我拿也行,下载也行,下面的下在连接是1.7版本的
