介绍RetinaNet目标检测算法及Focal Loss解决类别不平衡问题的方法，涵盖模型结构、损失函数公式与代码实现。
RetinaNet背景
RetinaNet算法源自2018年Facebook AI Research的论文 Focal Loss for Dense Object Detection，作者包括了Ross大神、Kaiming大神和Piotr大神。该论文最大的贡献在于提出了Focal Loss用于解决类别不均衡问题，从而创造了RetinaNet（One Stage目标检测算法）这个精度超越经典Two Stage的Faster-RCNN的目标检测网络。
上图出自https://blog.csdn.net/weixin_48167570/article/details/120937167

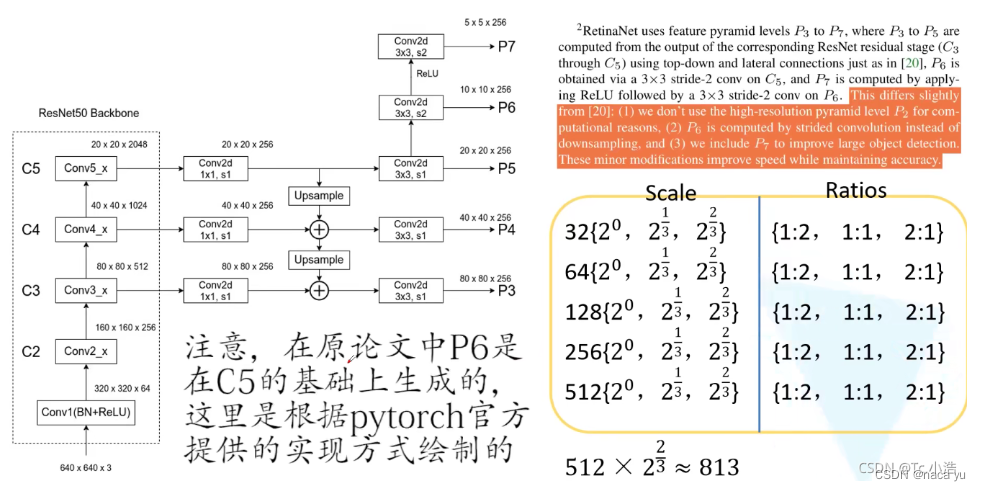

- 模型结构：
- 最后输出三层不同尺度的特征层:C3,C4,C5
- 经过RetinaNet的head，得到5个不同尺度的融合特征层，用于后面回归和分类

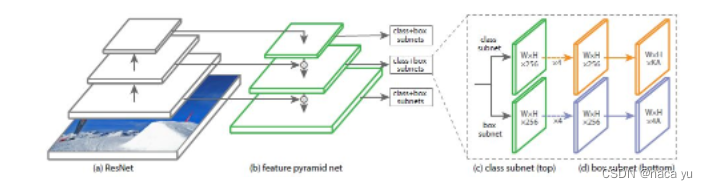

- 将三个特征层分别输入到classification和regression回归网络中
- 其中：A=9，4A代表每个锚点对应的九个不同锚框对应的x,y,w,h，KA代表每个锚框对应的K个种类
- 最终输出为：
features = self.fpn([x2, x3, x4]) # [bs, 9*h*w*5, 4] regression = torch.cat([self.regressionModel(feature) for feature in features], dim=1) # [bs, 9*h*w*5, classes] classification = torch.cat([self.classificationModel(feature) for feature in features], dim=1)
如上，最终所有尺度计算出来的向量被连接在一起(concatenate on dim=1)，送入下一阶段的损失计算部分中
if self.training:
return self.focalLoss(classification, regression, anchors, annotations)
IOU计算
这一步计算得到的IOU用作下一步的训练计算正负样本，保证训练时每个anchor都尽量对应着一个GT
def calc_iou(a, b):
# a,b分别是两个框的[x1,y1,x2,y2]坐标
area = (b[:, 2] - b[:, 0]) * (b[:, 3] - b[:, 1])
# 计算相交区域的宽和高
# 此处经过squeeze,向量从[n]到[n,1],iw * ih = interaction_area, iw.shape:[n,n]，iw是交叉区域的宽度，同理ih为高度
# 这里的torch.min操作可以看作一种广播机制，将每个anchor与所有的annotations bbox进行iou的计算
iw = torch.min(torch.unsqueeze(a[:, 2], dim=1), b[:, 2]) - torch.max(torch.unsqueeze(a[:, 0], 1), b[:, 0])
ih = torch.min(torch.unsqueeze(a[:, 3], dim=1), b[:, 3]) - torch.max(torch.unsqueeze(a[:, 1], 1), b[:, 1])
# 对宽高剪裁，防止为负数
iw = torch.clamp(iw, min=0)
ih = torch.clamp(ih, min=0)
# Sa + Sg - Si = Su：并区域面积=anchor面积+annotation面积-交叉区域面积
ua = torch.unsqueeze((a[:, 2] - a[:, 0]) * (a[:, 3] - a[:, 1]), dim=1) + area - iw * ih
# 限制最小的并区域面积，太小会导致交并比过大
ua = torch.clamp(ua, min=1e-8)
# 交叉的面积
intersection = iw * ih
# 最后的iou计算，IoU.shape:[9*h*w*5, n]其中shape[0]为anchor数量，shape[1]为anchor对应的所有annotations的交并比
IoU = intersection / ua
return IoU
Focal Loss
-
损失函数公式
上面是传统的二分类交叉熵损失，经过修改，简写为以下损失函数：
-
加入平衡因子平衡本身的不平均：
-
注：
- 经过修改：pt意为预测值和gt值得接近程度，在log前乘以 ( 1 − p t ) γ (1-p_t)^{\gamma} (1−pt)γ，使负样本(y=0)的损失乘以一个较小的权重，也就是对于真实值越接近预测值的样本损失占比越小，难分类的样本损失占比较大。
- RetinaNet等一阶段法在训练时不使用NMS，分配给每个anchor的IOU max annotation作为GT，基于anchor的单阶段法本身基于密集anchor预测，如果训练时采用NMS，会造成anchor大量缺失影响单阶段性能
-
下面着重于focal loss的代码实现：
class FocalLoss(nn.Module):
def forward(self, classifications, regressions, anchors, annotations):
alpha = 0.25
gamma = 2.0
batch_size = classifications.shape[0]
classification_losses = []
regression_losses = []
# anchors:[0,5 * h*w, 9] 多个特征图的anchor数组
anchor = anchors[0, :, :]
anchor_widths = anchor[:, 2] - anchor[:, 0]
anchor_heights = anchor[:, 3] - anchor[:, 1]
anchor_ctr_x = anchor[:, 0] + 0.5 * anchor_widths
anchor_ctr_y = anchor[:, 1] + 0.5 * anchor_heights
for j in range(batch_size):
# classification, regression = [bs, 5 * num_anchors * w * h, num_classes], [bs, 5 * num_anchors * w * h, 4]
# 第j个batch的所有anchor
classification = classifications[j, :, :]
regression = regressions[j, :, :]
# bbox_annotation = [bs, n, 5] 其中 5含有[x, y, x, y, label]
bbox_annotation = annotations[j, :, :]
bbox_annotation = bbox_annotation[bbox_annotation[:, 4] != -1] # 非填充目标
# 将classification的predict限制在一定范围内
classification = torch.clamp(classification, 1e-4, 1.0 - 1e-4)
'''
分为样本含有gt和不含有gt两种情况讨论
'''
# 1. 如果一个GT都没有的情况
if bbox_annotation.shape[0] == 0:
if torch.cuda.is_available():
# 计算平衡因子
alpha_factor = torch.ones(classification.shape).cuda() * alpha
alpha_factor = 1. - alpha_factor
# 计算focal weight
focal_weight = classification
focal_weight = alpha_factor * torch.pow(focal_weight, gamma)
# 计算bce
bce = -(torch.log(1.0 - classification))
# 最终的损失计算，回归损失按0计算
cls_loss = focal_weight * bce
classification_losses.append(cls_loss.sum())
regression_losses.append(torch.tensor(0).float().cuda())
# 2. batch的图片含有GT时
IoU = calc_iou(anchors[0, :, :], bbox_annotation[:, :4])
IoU_max, IoU_argmax = torch.max(IoU, dim=1) # num_anchors x 1，每个anchor对应的最大交并比和对应的IoU对应的annotation索引
# targets作为GT与classification计算损失，初始化为-1
targets = torch.ones(classification.shape) * -1 # shape:[9*w*h, K]
# 比较 IoU_max，分配targets的正负样本分配
targets[torch.lt(IoU_max, 0.4), :] = 0
positive_indices = torch.ge(IoU_max, 0.5)
# 正样本数数量
num_positive_anchors = positive_indices.sum()
# 给每个anchor分配的GT bbox, shape:[num_positive_anchors,5]
assigned_annotations = bbox_annotation[IoU_argmax, :]
targets[positive_indices, :] = 0
# 对targets中每个满足IoU要求的对应种类赋值1
targets[positive_indices, assigned_annotations[positive_indices, 4].long()] = 1
if torch.cuda.is_available():
alpha_factor = torch.ones(targets.shape).cuda() * alpha
else:
alpha_factor = torch.ones(targets.shape) * alpha
# 对于正样本，α=alpha_factor而负样本赋值1-alpha_factor
alpha_factor = torch.where(torch.eq(targets, 1.), alpha_factor, 1. - alpha_factor)
focal_weight = torch.where(torch.eq(targets, 1.), 1. - classification, classification)
# focal_weight
focal_weight = alpha_factor * torch.pow(focal_weight, gamma)
# binary crossentropy loss---bce.shape:[num_anchors, num_classes]
bce = -(targets * torch.log(classification) + (1.0 - targets) * torch.log(1.0 - classification))
# 最后的loss计算
cls_loss = focal_weight * bce
if torch.cuda.is_available():
cls_loss = torch.where(torch.ne(targets, -1.0), cls_loss, torch.zeros(cls_loss.shape).cuda())
else:
cls_loss = torch.where(torch.ne(targets, -1.0), cls_loss, torch.zeros(cls_loss.shape))
classification_losses.append(cls_loss.sum()/torch.clamp(num_positive_anchors.float(), min=1.0))
# 计算回归损失值，分为锚框的IoU满足阈值的正样本索引和负样本索引
if positive_indices.sum() > 0:
assigned_annotations = assigned_annotations[positive_indices, :]
anchor_widths_pi = anchor_widths[positive_indices]
anchor_heights_pi = anchor_heights[positive_indices]
anchor_ctr_x_pi = anchor_ctr_x[positive_indices]
anchor_ctr_y_pi = anchor_ctr_y[positive_indices]
# x,y,x1,y1 -> cx,cy,w,h
gt_widths = assigned_annotations[:, 2] - assigned_annotations[:, 0]
gt_heights = assigned_annotations[:, 3] - assigned_annotations[:, 1]
gt_ctr_x = assigned_annotations[:, 0] + 0.5 * gt_widths
gt_ctr_y = assigned_annotations[:, 1] + 0.5 * gt_heights
# clip widths to 1
gt_widths = torch.clamp(gt_widths, min=1)
gt_heights = torch.clamp(gt_heights, min=1)
# targets是真实中心坐标与预测的anchor中心坐标偏移与anchor长宽的比值，也就是需要预测的值
'''
梳理一下：
coco数据集标记的锚框是x,y,w,h格式
通过coco的工具包处理，处理成了x,y,x1,y1形式
预测的结果：cx,cy,logΔx,logΔy
'''
targets_dx = (gt_ctr_x - anchor_ctr_x_pi) / anchor_widths_pi
targets_dy = (gt_ctr_y - anchor_ctr_y_pi) / anchor_heights_pi
targets_dw = torch.log(gt_widths / anchor_widths_pi)
targets_dh = torch.log(gt_heights / anchor_heights_pi)
targets = torch.stack((targets_dx, targets_dy, targets_dw, targets_dh))
targets = targets.t()
if torch.cuda.is_available():
targets = targets/torch.Tensor([[0.1, 0.1, 0.2, 0.2]]).cuda()
else:
targets = targets/torch.Tensor([[0.1, 0.1, 0.2, 0.2]])
negative_indices = 1 + (~positive_indices)
regression_diff = torch.abs(targets - regression[positive_indices, :])
regression_loss = torch.where(
torch.le(regression_diff, 1.0 / 9.0),
0.5 * 9.0 * torch.pow(regression_diff, 2),
regression_diff - 0.5 / 9.0
)
regression_losses.append(regression_loss.mean())
else:
# 全是预测的负样本,回归损失置零
if torch.cuda.is_available():
regression_losses.append(torch.tensor(0).float().cuda())
else:
regression_losses.append(torch.tensor(0).float())
return torch.stack(classification_losses).mean(dim=0, keepdim=True), torch.stack(regression_losses).mean(dim=0, keepdim=True)
