A3C
由于DQN学习过程需要强大的计算能力和大量的训练过程。为此，DeeoMind团队提出了一种新的算法，称为异步优势行为者评论家(A3C)算法，该算法要优于其他深度强化学习算法，因为其需要较少的计算能力和训练时间。A3C的主要思想是通过多个智能体并行学习并整合其所有经验。
A3C网络还可以与其他算法产生更好的精度，在连续和离散行为空间中均有很好的效果。该网络是使用多个智能，且每个智能体在实际环境副本中以不同的探索策略进行并行学习。然后，将这些智能体所获得的经验整合在一起构成全局智能体。全局智能体也称为主网络或全局网络，而其他智能体称为工人。
异步优势行为者
在继续之前，首先分析什么是A3C？其中3个A有什么含义？
在A3C中，第1个A是异步，表明了它是如何工作的。 并不是像在DQN中只有一个智能体来学习最优策略，在此有多个智能体与环境交互。由于同时有多个智能体与环境交互，因此需对每个智能体提供环境副本，以便每个智能体都能与其各自的环境副本进行交互。因此，这些多个智能体称为工人智能体，且有一个称为全局网络的独立智能体、所有智能体均向其汇报。这种全局网络将经验整合在一起。
第2个A是指优势， 在讨论DQN的对抗网络架构时已了解了什么是优势函数。优势函数可定义为Q函数与值函数之差。已知Q函数是确定某一状态下行为的好坏程度，值函数是确定所处状态的好坏程度。那么，直观地考虑Q函数与值函数之差意味着什么呢？其实表明了与其他所有行为相比，智能体在状态s下执行动作a的好坏程度。
第3个A是行为者评论家，网络架构有两种类型：行为者和评论家。 行为者的作用是学习一种策略，而评论家的作用是对行为者所学习的策略评估其好坏。
A3C架构

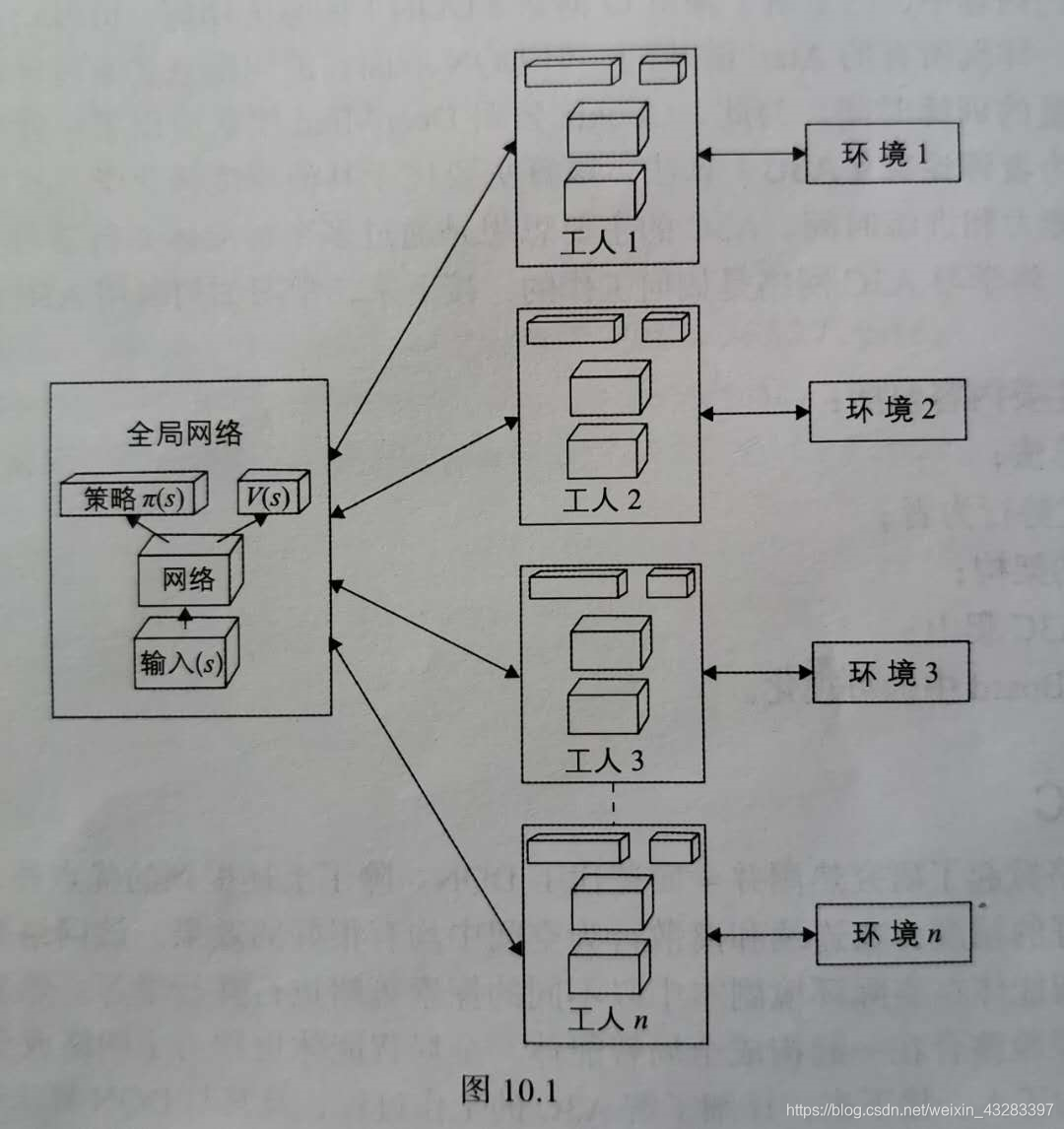

如上所述，图10.1中有多个工人智能体，且每个智能体都与其各自的环境副本进行交互。。然后，工人智能体学习策略，计算策略损失的梯度，并在全局网络中更新梯度。这个全局网络是同时由每个智能体进行更新的。A3C的最大优点之一就是在此不使用经验回放记忆。由于有多个智能体与环境交互，并将各自的信息整合到全局网络，因此，经验之间的相关性很小，甚至无相关性。经验回放需要大量记忆单元来保存所有的经验。由于A3C无需记忆，因此可大大减少存储空间和计算时间。
A3C工作原理
首先，工人智能体重置全局网络，然后开始与环境进行交互。每个工人智能体按照不同的探索策略来学习一个最优策略。接下来，计算值和策略损失，然后计算损失梯度，并在全局网络中更新梯度。工人智能体又重新开始重置全局网络并重复上述相同过程，周而复始。在分析值函数和策略损失函数之前，先了解如何计算优势函数。正如人们所知，优势函数是Q函数与值函数之差：
A ( s , a ) = Q ( s , a ) − V ( s ) A(s, a)=Q(s, a)-V(s) A(s,a)=Q(s,a)−V(s)
由于在A3C中实际上并没有直接计算Q值，在此使用折扣回报作为Q值的估计值。折扣回报R可表示为：
R = r n + γ r n − 1 + γ 2 r n − 2 R=r_{n}+\gamma r_{n-1}+\gamma^{2} r_{n-2} R=rn+γrn−1+γ2rn−2
用折扣函数R来代替Q函数：
A ( s , a ) = R − V ( s ) A(s, a)=R-V(s) A(s,a)=R−V(s)
这时，可以得到值损失为折扣回报与状态值之间的均方差：
值损失 ( L p ) = ∑ ( R − V ( s ) ) 2 (L_{p})=\sum(R-V(s))^{2} (Lp)=∑(R−V(s))2
那么，策略损失就可定义如下：
策略损失 ( L p ) = log ( π ( s ) ) A ( s ) β H ( π ) (L_{p})=\log (\pi(s)) A(s) \beta H(\pi) (Lp)=log(π(s))A(s)βH(π)
好的，那么上式中的新项
H
(
π
)
H(\pi)
H(π)是什么?这是熵，用于确保策略得到充分探索。熵表明了行为概率的传播。当熵值较大时，每个行为的概率都是相同的，因此，智能体不能确定执行哪个行为，而当熵值较小时，某一行为将会比其他行为具有更高的概率，那么智能体就会选择概率较大的行为。这样，在损失函数中增加熵将会鼓励智能体进一步探索，从
而避免陷人局部最优。
基于A3C爬山

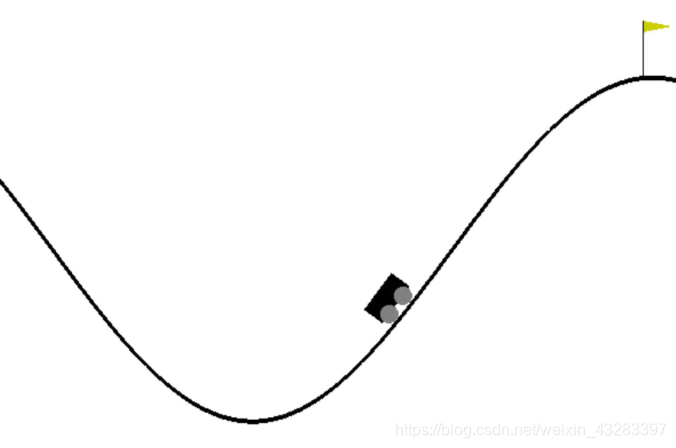

在此，以山地车为例来理解A3C。此时智能体是山地车，置于两座山之间。智能体的目标是向右侧爬山。然而，汽车不能一次就爬上山，必
须来回行驶来产生动力。若智能体花费了较少的能量来爬山，那么就会得到较高的奖励。
代码：
import gym
import multiprocessing
import threading
import numpy as np
import os
import shutil
import matplotlib.pyplot as plt
import tensorflow as tf
初始化所有参数
# number of worker agents
no_of_workers = multiprocessing.cpu_count()
# maximum number of steps per episode 每个情景中最大的时间步
no_of_ep_steps = 200
# total number of episodes
no_of_episodes = 2000
global_net_scope = 'Global_Net'
# sets how often the global network should be updated 设置全局网络更新频率
update_global = 10
# discount factor
gamma = 0.90
# entropy factor 熵因数
entropy_beta = 0.01
# learning rate for actor 行为者的学习速率
lr_a = 0.0001
# learning rate for critic 评论家的学习速率
lr_c = 0.001
# boolean for rendering the environment 是否渲染环境
render=False
# directory for storing logs 保存日志文件
log_dir = 'logs'
初始化MountainCar环境：
env = gym.make('MountainCarContinuous-v0')
env.reset()
得到states和actions值，以及action_bound:
# we get the number of states, actions and also the action bound
no_of_states = env.observation_space.shape[0]
no_of_actions = env.action_space.shape[0]
action_bound = [env.action_space.low, env.action_space.high]
在ActorCritic类中定义行为者评论家网络：
class ActorCritic(object):
def __init__(self, scope, sess, globalAC=None):
# first we initialize the session and RMS prop optimizer(RMS概率优化器) for both
# our actor and critic networks
self.sess=sess
self.actor_optimizer = tf.train.RMSPropOptimizer(lr_a, name='RMSPropA')
self.critic_optimizer = tf.train.RMSPropOptimizer(lr_c, name='RMSPropC')
# now, if our network is global then,
if scope == global_net_scope:
with tf.variable_scope(scope):
# initialize states and build actor and critic network
self.s = tf.placeholder(tf.float32, [None, no_of_states], 'S')
# get the parameters of actor and critic networks
self.a_params, self.c_params = self._build_net(scope)[-2:]
# if our network is local then,
else:
with tf.variable_scope(scope):
# initialize state, action and also target value as v_target(目标值)
self.s = tf.placeholder(tf.float32, [None, no_of_states], 'S')
self.a_his = tf.placeholder(tf.float32, [None, no_of_actions], 'A')
self.v_target = tf.placeholder(tf.float32, [None, 1], 'Vtarget')
# since we are in continuous actions space, we will calculate
# mean and variance for choosing action 由于是在连续行为空间，因此需计算选择行为的均值和方差
mean, var, self.v, self.a_params, self.c_params = self._build_net(scope)
# then we calculate td error as the difference between v_target - v 由v_target与v之间的差值来计算td误差
td = tf.subtract(self.v_target, self.v, name='TD_error')
# minimize the TD error
with tf.name_scope('critic_loss'):
self.critic_loss = tf.reduce_mean(tf.square(td))
# 通过均值乘以行为边界并将方差增加0.0001来更新均值与方差
with tf.name_scope('wrap_action'):
mean, var = mean * action_bound[1], var + 1e-4
# we can generate distribution using this updated mean and var 根据更新的均值和方差来生成概率分布
normal_dist = tf.contrib.distributions.Normal(mean, var)
# now we shall calculate the actor loss. Recall the loss function.
with tf.name_scope('actor_loss'):
# calculate first term of loss which is log(pi(s)) 计算损失的第一项log(pi(s))
log_prob = normal_dist.log_prob(self.a_his)
exp_v = log_prob * td
# calculate entropy from our action distribution for ensuring exploration 行为分布中计算熵，以确保探索
entropy = normal_dist.entropy()
# we can define our final loss as, 定义总损失为
self.exp_v = exp_v + entropy_beta * entropy
# then, we try to minimize the loss
self.actor_loss = tf.reduce_mean(-self.exp_v)
# now, we choose action by drawing from the distribution and clipping it between action bounds,
# 现在，通过绘制分布曲线并在行为范围内裁剪来选择一个行为
with tf.name_scope('choose_action'):
self.A = tf.clip_by_value(tf.squeeze(normal_dist.sample(1), axis=0), action_bound[0], action_bound[1])
# calculate gradients for both of our actor and critic networks, 计算行为者和评论家网络的梯度
with tf.name_scope('local_grad'):
self.a_grads = tf.gradients(self.actor_loss, self.a_params)
self.c_grads = tf.gradients(self.critic_loss, self.c_params)
# now, we update our global network weights,
with tf.name_scope('sync'):
# pull the global network weights to the local networks 将全局网络的权重复制到局部网络
with tf.name_scope('pull'):
self.pull_a_params_op = [l_p.assign(g_p) for l_p, g_p in zip(self.a_params, globalAC.a_params)]
self.pull_c_params_op = [l_p.assign(g_p) for l_p, g_p in zip(self.c_params, globalAC.c_params)]
# push the local gradients to the global network 将局部网络的梯度传给全局网络
with tf.name_scope('push'):
self.update_a_op = self.actor_optimizer.apply_gradients(zip(self.a_grads, globalAC.a_params))
self.update_c_op = self.critic_optimizer.apply_gradients(zip(self.c_grads, globalAC.c_params))
# next, we define a function called _build_net for building our actor and critic network
def _build_net(self, scope):
# initialize weights
w_init = tf.random_normal_initializer(0., .1)
with tf.variable_scope('actor'):
l_a = tf.layers.dense(self.s, 200, tf.nn.relu6, kernel_initializer=w_init, name='la')
mean = tf.layers.dense(l_a, no_of_actions, tf.nn.tanh,kernel_initializer=w_init, name='mean')
var = tf.layers.dense(l_a, no_of_actions, tf.nn.softplus, kernel_initializer=w_init, name='var')
with tf.variable_scope('critic'):
l_c = tf.layers.dense(self.s, 100, tf.nn.relu6, kernel_initializer=w_init, name='lc')
v = tf.layers.dense(l_c, 1, kernel_initializer=w_init, name='v')
a_params = tf.get_collection(tf.GraphKeys.TRAINABLE_VARIABLES, scope=scope + '/actor')
c_params = tf.get_collection(tf.GraphKeys.TRAINABLE_VARIABLES, scope=scope + '/critic')
return mean, var, v, a_params, c_params
# update the local gradients to the global network
def update_global(self, feed_dict):
self.sess.run([self.update_a_op, self.update_c_op], feed_dict)
# get the global parameters to the local networks
def pull_global(self):
self.sess.run([self.pull_a_params_op, self.pull_c_params_op])
# select action
def choose_action(self, s):
s = s[np.newaxis, :]
return self.sess.run(self.A, {self.s: s})[0]
现在，初始化worker类：
class Worker(object):
def __init__(self, name, globalAC, sess):
# intialize environment for each worker 对每个工人智能体初始化环境
self.env = gym.make('MountainCarContinuous-v0').unwrapped
self.name = name
# create ActorCritic agent for each worker
self.AC = ActorCritic(name, sess, globalAC)
self.sess=sess
def work(self):
global global_rewards, global_episodes
total_step = 1
# store state, action, reward
buffer_s, buffer_a, buffer_r = [], [], []
# loop if the coordinator is active and global episode is less than the maximum episode
# 如果合作者处于活动状态且全局情景小于最大回合，则继续循环
while not coord.should_stop() and global_episodes < no_of_episodes:
# initialize the environment by resetting 通过重设下列表来初始化环境
s = self.env.reset()
# store the episodic reward 保存情景奖励
ep_r = 0
for ep_t in range(no_of_ep_steps):
# Render the environment for only worker 1 仅对工人/渲染环境
if self.name == 'W_0' and render:
self.env.render()
# choose the action based on the policy 根据策略来选择行为
a = self.AC.choose_action(s)
# perform the action (a), recieve reward (r) and move to the next state (s_)
s_, r, done, info = self.env.step(a)
# set done as true if we reached maximum step per episode 若每个情景达到最大时间步，则设done为真
done = True if ep_t == no_of_ep_steps - 1 else False
ep_r += r
# store the state, action and rewards in the buffer(缓存中)
buffer_s.append(s)
buffer_a.append(a)
# normalize the reward
buffer_r.append((r+8)/8)
# we Update the global network after particular time step 经过一定时间步之后，更新全局网络
if total_step % update_global == 0 or done:
if done:
v_s_ = 0
else:
v_s_ = self.sess.run(self.AC.v, {self.AC.s: s_[np.newaxis, :]})[0, 0]
# buffer for target v 目标v值的缓存
buffer_v_target = []
for r in buffer_r[::-1]:
v_s_ = r + gamma * v_s_
buffer_v_target.append(v_s_)
buffer_v_target.reverse()
buffer_s, buffer_a, buffer_v_target = np.vstack(buffer_s), np.vstack(buffer_a), np.vstack(buffer_v_target)
feed_dict = {
self.AC.s: buffer_s,
self.AC.a_his: buffer_a,
self.AC.v_target: buffer_v_target,
}
# update global network
self.AC.update_global(feed_dict)
buffer_s, buffer_a, buffer_r = [], [], []
# get global parameters to local ActorCritic
self.AC.pull_global()
s = s_
total_step += 1
if done:
if len(global_rewards) < 5:
global_rewards.append(ep_r)
else:
global_rewards.append(ep_r)
global_rewards[-1] =(np.mean(global_rewards[-5:]))
global_episodes += 1
break
这时，启动Tensorflow会话，运行模型：
# create a list for string global rewards and episodes 创建保存全局奖励和情景的列表
global_rewards = []
global_episodes = 0
# start tensorflow session
sess = tf.Session()
with tf.device("/cpu:0"):
# create an instance to our ActorCritic Class 创建一个类实例
global_ac = ActorCritic(global_net_scope,sess)
workers = []
# loop for each workers
for i in range(no_of_workers):
i_name = 'W_%i' % i
workers.append(Worker(i_name, global_ac,sess))
coord = tf.train.Coordinator()
sess.run(tf.global_variables_initializer())
# log everything so that we can visualize the graph in tensorboard
# 日志任何信息，以便在tensorboard中可视化图表
if os.path.exists(log_dir):
shutil.rmtree(log_dir)
tf.summary.FileWriter(log_dir, sess.graph)
worker_threads = []
# start workers
for worker in workers:
job = lambda: worker.work()
t = threading.Thread(target=job)
t.start()
worker_threads.append(t)
coord.join(worker_threads)
