Android华为SDK接入之——联运游戏开发SDK

最近应公司项目需求接入华为联运游戏开发的SDK，特记录接入过程的那些坑！！
官网接入文档：
后台申请的过程自行到官网查看，此处只介绍接入流程。
注意事项：

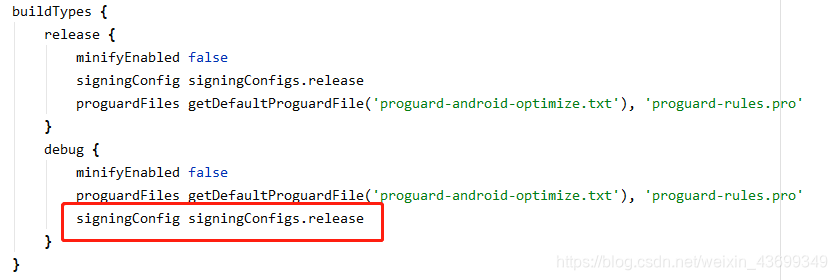

1.后台配置的SHA256必须要和打包的签名文件一致，debug也要用这个签名文件去跑

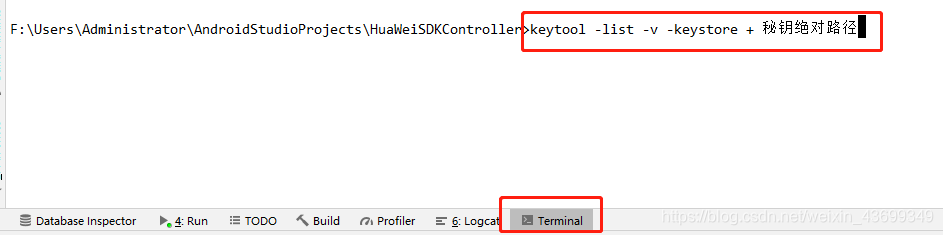

SHA256生成：keytool -list -v -keystore + 秘钥绝对路径

2.包名要以.huawei后缀 例：com.xxx.huawei

接入流程：

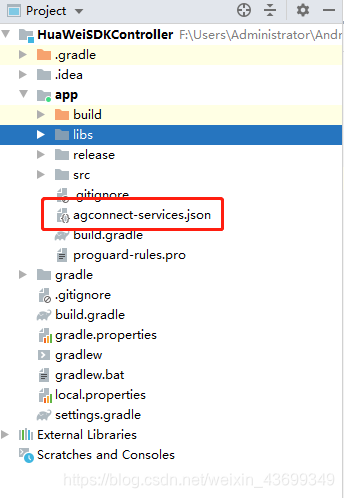

1.将“agconnect-services.json”文件拷贝到应用级根目录下：

2. 在build.gradle（project）添加HUAWEI agcp插件以及Maven代码库：

buildscript {
    repositories {
        google()
        jcenter()
        maven {url 'https://developer.huawei.com/repo/'}
    }
    dependencies {
        ...
        classpath 'com.huawei.agconnect:agcp:1.4.2.301'
    }
}
allprojects {
    repositories {
        google()
        jcenter()
        maven {url 'https://developer.huawei.com/repo/'}
    }
}

3.在build.gradle（app）添加依赖：

dependencies {
	......

    implementation 'com.huawei.hms:base:5.0.5.300'
    implementation 'com.huawei.hms:hwid:5.0.5.301'
    implementation 'com.huawei.hms:iap:5.0.4.301'
    implementation 'com.huawei.hms:game:5.0.4.302'
    implementation 'com.huawei.hms:hianalytics:5.0.5.301'
}

具体版本请参考官网
注意：如果还需接入华为Ads的不需要再加入广告接入文档中的base和ppskit，否则会闪退

4.在build.gradle（app）文件头apply plugin: 'com.android.application’下一行添加如下配置：

apply plugin: 'com.huawei.agconnect'

5.多语言设置：
参考官网语言设置：

6.混淆：
Android Studio开发环境里的配置文件是“proguard-rules.pro”

-ignorewarnings
-keepattributes *Annotation*
-keepattributes Exceptions
-keepattributes InnerClasses
-keepattributes Signature
-keepattributes SourceFile,LineNumberTable
-keep class com.hianalytics.**{*;}
-keep class com.huawei.updatesdk.**{*;}
-keep class com.huawei.hms.**{*;}
-keep interface com.huawei.hms.analytics.type.HAEventType{*;}
-keep interface com.huawei.hms.analytics.type.HAParamType{*;}
-keep class com.huawei.hms.analytics.HiAnalyticsInstance{*;}
-keep class com.huawei.hms.analytics.HiAnalytics{*;}

初始化：
在Application的onCreate方法中添加如下代码，用于注册Activity的回调监听

public class MyApplication extends Application{
    @Override
    public void onCreate(){
        super.onCreate();
        HuaweiMobileServicesUtil.setApplication(this);
    }
}

Manifest文件中配置：

在Activity onCreate中调用：

private void init() {
    JosAppsClient appsClient = JosApps.getJosAppsClient(this);
    appsClient.init();
    Log.i(TAG, "init success");
}

登录：
1.账号登录：
MainActivity.LOGIN_CODE 为 8000

 public void signIn(Activity activity) {
        Log.e(TAG, "signIn----:");

        HuaweiIdAuthParams authParams = new HuaweiIdAuthParamsHelper(HuaweiIdAuthParams.DEFAULT_AUTH_REQUEST_PARAM).setAuthorizationCode().createParams();
        HuaweiIdAuthService service = HuaweiIdAuthManager.getService(activity, authParams);
        activity.startActivityForResult(service.getSignInIntent(), MainActivity.LOGIN_CODE);
    }

登录授权完成后处理登录结果：

@Override
    protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
        //授权登录结果处理，从AuthHuaweiId中获取Authorization Code
        super.onActivityResult(requestCode, resultCode, data);
        if (LOGIN_CODE == requestCode) {
            Task<AuthHuaweiId> authHuaweiIdTask = HuaweiIdAuthManager.parseAuthResultFromIntent(data);
            if (authHuaweiIdTask.isSuccessful()) {
                //登录成功，获取用户的华为帐号信息和Authorization Code
                AuthHuaweiId huaweiAccount = authHuaweiIdTask.getResult();
                HuaWeiSDKController.getInstance().getCurrentPlayer(this);//登录成功，获取playerId
            } else {
                //登录失败
                Log.e(TAG, "sign in failed:" + ((ApiException) authHuaweiIdTask.getException()).getStatusCode());
            }
        }
    }

2.静默登录：

/**
     * sdk静默登录
     * @param activity
     */
    public void silenceIn(final Activity activity){
        Log.e(TAG, "login---");

        activity.runOnUiThread(new Runnable() {
            @Override
            public void run() {
                authParams = new HuaweiIdAuthParamsHelper(HuaweiIdAuthParams.DEFAULT_AUTH_REQUEST_PARAM).createParams();
                HuaweiIdAuthService service = HuaweiIdAuthManager.getService(activity, authParams);
                Task<AuthHuaweiId> task = service.silentSignIn();
                task.addOnSuccessListener(new OnSuccessListener<AuthHuaweiId>() {
                    @Override
                    public void onSuccess(AuthHuaweiId authHuaweiId) {
                        //获取华为帐号信息
                        Log.e(TAG, "displayName:" + authHuaweiId.getDisplayName());
                        getCurrentPlayer(activity);//登录成功，获取playerId
                    }
                });
                task.addOnFailureListener(new OnFailureListener() {
                    @Override
                    public void onFailure(Exception e) {
                        //登录失败，您可以尝试使用getSignInIntent()方法显式登录
                        if (e instanceof ApiException) {
                            ApiException apiException = (ApiException)e;
                            Log.e(TAG, "sign failed status:" + apiException.getStatusCode());
                            /**
                             * 静默登录失败
                             * 调用显式登录
                             */
                            signIn(activity);
                        }
                    }
                });
            }
        });
    }

3.登录成功后，从Player对象中获取玩家信息：

/**
     * 登录成功后调
     * 获取当前登录的玩家对象
     * 从Player对象中获取玩家信息。
     * @param activity
     */
    public void getCurrentPlayer(Activity activity) {
        //PlayersClientImpl playersClient = (PlayersClientImpl) Games.getPlayersClient(activity);

        Task<Player> task = client.getCurrentPlayer();
        task.addOnSuccessListener(new OnSuccessListener<Player>() {
            @Override
            public void onSuccess(Player player) {
                playerId = player.getPlayerId();
                EnterGame();//进入游戏，调用防沉迷监听，事件上传
                WeakReference_Timer.getInstance().intentTimer(activity);//每15分钟调一次
                Log.e(TAG,"onSuccess--playerId = "+player.getPlayerId());
            }
        }).addOnFailureListener(new OnFailureListener() {
            @Override
            public void onFailure(Exception e) {
                if (e instanceof ApiException) {
                    String result = "rtnCode:" + ((ApiException) e).getStatusCode();
                    Log.e(TAG,"onFailure--result = "+result);
                }
            }
        });
    }

浮标：
注意事项

发布地区包含中国大陆的联运游戏，要求必须集成游戏浮标，游戏的所有界面都需要展示游戏浮标。
对于EMUI 9.1.1以下版本的华为设备，您需要按照本文档要求集成游戏浮标，并且设备必须安装9.0以上版本华为应用市场客户端才能展示浮标。

对于EMUI 9.1.1及以上版本的华为设备，HMS Core（APK）会自动展示游戏浮标而忽略本接口的请求，您无需关注

BuoyClient 实例：

BuoyClient buoyClient = Games.getBuoyClient(this);

展示浮标：

 buoyClient.showFloatWindow();

隐藏浮标：

buoyClient.hideFloatWindow();

防沉迷：

/**
     * 检测是否已实名
     */
    public void preAddiction(){
        Log.e(TAG, "PreAddiction---");
        client.setGameTrialProcess(new GameTrialProcess() {
            @Override
            public void onTrialTimeout() {
                //试玩时间结束
                Log.e(TAG, "PreAddiction---onTrialTimeout");
            }
            @Override
            public void onCheckRealNameResult(boolean hasRealName) {
                Log.e(TAG, "PreAddiction---hasRealName = "+hasRealName);
                if (hasRealName) {
                    // 已实名，继续后续的游戏登录处理
                    return;
                }
                //未实名，建议您提示玩家后退出游戏或引导玩家重新登录并实名认证
            }
        });
    }

防沉迷监控：

/**
     * 防沉迷监听
     * 事件上传
     * 进入游戏
     */
    public void EnterGame(){
        Log.e(TAG, "EnterGame---");
        if (TextUtils.isEmpty(playerId)) {
            Log.e(TAG, "GetCurrentPlayer first.");
            return;
        }
        String uid = UUID.randomUUID().toString();
        Task<String> task = client.submitPlayerEvent(playerId, uid, "GAMEBEGIN");
        task.addOnSuccessListener(new OnSuccessListener<String>() {
            @Override
            public void onSuccess(String jsonRequest) {
                try {
                    JSONObject data = new JSONObject(jsonRequest);
                    sessionId = data.getString("transactionId");
                } catch (JSONException e) {
                    Log.e(TAG,"parse jsonArray meet json exception");
                    return;
                }
                Log.e(TAG,"submitPlayerEvent traceId: " + jsonRequest);
            }
        }).addOnFailureListener(new OnFailureListener() {
            @Override
            public void onFailure(Exception e) {
                if (e instanceof ApiException) {
                    String result = "rtnCode:" + ((ApiException) e).getStatusCode();
                    Log.e(TAG,"EnterGame--"+result);
                }
            }
        });
    }

	/**
     * 防沉迷监听
     * 事件上传
     * 退出游戏
     */
    public void ExitGame(){
        if (TextUtils.isEmpty(playerId)) {
            Log.e(TAG,"GetCurrentPlayer first.");
            return;
        }
        if (TextUtils.isEmpty(sessionId)) {
            Log.e(TAG,"SessionId is empty.");
            return;
        }

        Task<String> task = client.submitPlayerEvent(playerId, sessionId, "GAMEEND");
        task.addOnSuccessListener(new OnSuccessListener<String>() {
            @Override
            public void onSuccess(String s) {
                Log.e(TAG,"submitPlayerEvent traceId: " + s);
            }
        }).addOnFailureListener(new OnFailureListener() {
            @Override
            public void onFailure(Exception e) {
                if (e instanceof ApiException) {
                    String result = "rtnCode:" + ((ApiException) e).getStatusCode();
                    Log.e(TAG,"ExitGame--"+result);
                }
            }
        });
    }

内支付
MainActivity.PAYMENT_CODE 为 6000

/**
     * 判断是否支持应用内支付
     * @param activity
     */
    public void isSupportPay(final Activity activity){
        Log.e(TAG, "pay---");
        // 获取调用接口的Activity对象
        Task<IsEnvReadyResult> task = Iap.getIapClient(activity).isEnvReady();
        task.addOnSuccessListener(new OnSuccessListener<IsEnvReadyResult>() {
            @Override
            public void onSuccess(IsEnvReadyResult result) {
                // 获取接口请求的结果
                Log.e(TAG, "isSupportPay-支持应用内支付---");
            }
        }).addOnFailureListener(new OnFailureListener() {
            @Override
            public void onFailure(Exception e) {
                if (e instanceof IapApiException) {
                    IapApiException apiException = (IapApiException) e;
                    Status status = apiException.getStatus();
                    if (status.getStatusCode() == OrderStatusCode.ORDER_HWID_NOT_LOGIN) {
                        // 未登录帐号
                        Log.e(TAG, "isSupportPay-登录帐号---");
                        if (status.hasResolution()) {
                            try {
                                // 启动IAP返回的登录页面
                                Log.e(TAG, "isSupportPay-启动IAP返回的登录页面---");
                                status.startResolutionForResult(activity, MainActivity.PAYMENT_CODE);
                            } catch (IntentSender.SendIntentException exp) {
                            }
                        }
                    } else if (status.getStatusCode() == OrderStatusCode.ORDER_ACCOUNT_AREA_NOT_SUPPORTED) {
                        // 用户当前登录的华为帐号所在的服务地不在华为IAP支持结算的国家或地区中
                        Log.e(TAG, "isSupportPay-不在华为IAP支持结算的国家或地区中---");
                    }
                }
            }
        });
    }

	/**
     * 发起购买
     * @param activity
     */
    public void buyProduct(Activity activity){
        // 构造一个PurchaseIntentReq对象
        PurchaseIntentReq req = new PurchaseIntentReq();
        // 通过createPurchaseIntent接口购买的商品必须是您在AppGallery Connect网站配置的商品。
        req.setProductId("CProduct1");
        // priceType: 0：消耗型商品; 1：非消耗型商品; 2：订阅型商品
        req.setPriceType(0);
        req.setDeveloperPayload("test");
        // 调用createPurchaseIntent接口创建托管商品订单
        Task<PurchaseIntentResult> task = Iap.getIapClient(activity).createPurchaseIntent(req);
        task.addOnSuccessListener(new OnSuccessListener<PurchaseIntentResult>() {
            @Override
            public void onSuccess(PurchaseIntentResult result) {
                // 获取创建订单的结果
                Status status = result.getStatus();
                if (status.hasResolution()) {
                    try {
                        // 启动IAP返回的收银台页面
                        Log.e(TAG, "buyProduct-启动IAP返回的收银台页面---");
                        status.startResolutionForResult(activity, MainActivity.PAYMENT_CODE);
                    } catch (IntentSender.SendIntentException exp) {
                    }
                }
            }
        }).addOnFailureListener(new OnFailureListener() {
            @Override
            public void onFailure(Exception e) {
                if (e instanceof IapApiException) {
                    IapApiException apiException = (IapApiException) e;
                    Status status = apiException.getStatus();
                    int returnCode = apiException.getStatusCode();
                    Log.e(TAG, "buyProduct-onFailure---"+returnCode);
                } else {
                    // 其他外部错误
                    Log.e(TAG, "buyProduct-其他外部错误---");
                }
            }
        });
    }

	/**
     * 确认交易
     * @param activity
     * @param inAppPurchaseData 购买信息
     */
    public void confirmBuy(Activity activity,String inAppPurchaseData){
        // 构造ConsumeOwnedPurchaseReq对象
        ConsumeOwnedPurchaseReq req = new ConsumeOwnedPurchaseReq();
        String purchaseToken = "";
        try {
            // purchaseToken需从购买信息InAppPurchaseData中获取
            InAppPurchaseData inAppPurchaseDataBean = new InAppPurchaseData(inAppPurchaseData);
            purchaseToken = inAppPurchaseDataBean.getPurchaseToken();
        } catch (JSONException e) {
        }
        req.setPurchaseToken(purchaseToken);
        // 消耗型商品发货成功后，需调用consumeOwnedPurchase接口进行消耗
        Task<ConsumeOwnedPurchaseResult> task = Iap.getIapClient(activity).consumeOwnedPurchase(req);
        task.addOnSuccessListener(new OnSuccessListener<ConsumeOwnedPurchaseResult>() {
            @Override
            public void onSuccess(ConsumeOwnedPurchaseResult result) {
                // 获取接口请求结果
                Log.e(TAG, "confirmBuy-获取接口请求结果---");
            }
        }).addOnFailureListener(new OnFailureListener() {
            @Override
            public void onFailure(Exception e) {
                if (e instanceof IapApiException) {
                    IapApiException apiException = (IapApiException) e;
                    Status status = apiException.getStatus();
                    int returnCode = apiException.getStatusCode();
                    Log.e(TAG, "confirmBuy-onFailure---"+returnCode);
                } else {
                    // 其他外部错误
                    Log.e(TAG, "confirmBuy-其他外部错误---");
                }
            }
        });
    }

以上，此处接入流程已完成！
SDK中还有其它功能接入，具体按项目需求自行接入，此处就不再做详细介绍了。
最后附上完整demo：
华为ads sdk 完整demo
谢谢！！！
