记录一下我的失败想法：不用人工智能给嘴唇化妆

1、想法

我的想法就是有没有什么方法能够给嘴唇自动上妆，人工智能应该可以实现，在网上看了一下，感觉得静下心来，拿出时间好好研究，好久没有看神经网络了，就想着有没有什么简单的方法，然后突然我有一个大胆想法，就是能不能把嘴唇分成很多层，然后每一层上不同的颜色就可以让颜色看起来连贯起来，有点像微积分那味道了，不会突兀了，现在想想真后悔没有早早掐断这个鬼想法，我居然还想着试试看哈哈哈。

2、实现思路

2.1 嘴唇分层

首先把嘴唇分层，在每一层中填充上颜色，只要层足够多，看上去颜色就是渐变的，没有突变的感觉。

2.2 分配颜色

为每一层合理分配颜色，怎么分配呢，这是一个问题，我的想法比较简单，假如要涂上一个大红色的口红，嘴唇分了5层，那么我取第3层是口红的颜色，然后第一层和第五层的颜色选择是嘴唇的颜色，那好问题来了，嘴唇的颜色怎么选择呢，我的选择方法也简单粗暴，用的就是dlib人脸特征检测点中检测点颜色的平均值，有关dlib的内容大家可以参考树莓派上利用python+opencv+dlib实现嘴唇检测。

**存在问题：**在颜色分配中存在的主要问题是嘴唇的颜色选择平均值，对于嘴唇边缘和人脸相连的地方很违和，由于dlib的嘴唇特征点的数量是有限的，所以在分层的过程中我是依据特征点的分布来的，所以嘴唇上颜色填充的形状会在张开嘴的时候变得有点畸形。

3、代码

# -*- coding: utf-8 -*-
# from gpiozero import LED
from time import sleep
from subprocess import check_call
import cv2 as cv
import numpy as np
import dlib
import threading
import pygame
from pygame.locals import *
import sys


# 声明界面中按钮的界面
# 输入参数
# screen：主界面，按钮界面将绘制于主界面之上
# font：pygame字体全局变量
# color：字体颜色
# button_size：按钮形状，要是元组中包含三个参数则是圆形，四个是矩形
# text：按钮中的文字
# x：按钮界面位于主界面中x的相对位置
# y：按钮界面位于主界面中y的相对位置
class SurfaceButton:
    def __init__(self, screen, font, color, button_size, text, x=0, y=0):
        self.screen = screen
        self.color = color
        self.button_size = button_size
        self.text = font.render(text, True, (158, 16, 16))
        self.surface = pygame.Surface(screen.get_size())
        # 配合下面代码使用，使得创建界面默认的黑色背景最终是透明的
        self.surface.set_colorkey((0, 0, 0))
        self.surfaceX = x
        self.surfaceY = y
        # 用于调试中显示输入文字
        # self.text_show = text

    # 把按钮界面绘制到主界面上
    def draw(self):
        # 绘制矩形按钮
        if len(self.button_size) == 4:
            pygame.draw.rect(self.surface, self.color, pygame.Rect(self.button_size), width=0)
            self.surface.blit(self.text, (
                self.button_size[0] - self.text.get_width() // 2, self.button_size[1] - self.text.get_height() // 2))
            self.surface.convert_alpha()
            self.screen.blit(self.surface, (self.surfaceX, self.surfaceY))
        # 绘制圆形按钮
        elif len(self.button_size) == 3:
            pygame.draw.circle(self.surface, self.color, self.button_size[:2], self.button_size[2], width=0)
            self.surface.blit(self.text, (
                self.button_size[0] - self.text.get_width() // 2, self.button_size[1] - self.text.get_height() // 2))
            self.surface.convert_alpha()
            self.screen.blit(self.surface, (self.surfaceX, self.surfaceY))


# 多线程操作
class MyThread(threading.Thread):
    def __init__(self, func, args=()):
        super(MyThread, self).__init__()
        self.func = func
        self.args = args

    # 在执行函数的同时，把结果赋值给result,然后通过get_result函数获取返回的结果
    def run(self):
        self.result = self.func(*self.args)

    def get_result(self):
        try:
            return self.result
        except Exception as e:
            return e


# 利用dlib进行人脸和嘴唇检测并绘制
# 输入参数
# screen：主界面
# img：用于嘴唇检测的图片，格式是opencv的图片格式（BGR）
def lip_detector(img):
    landmarks_lip = []
    landmarks_lip_rgb = []
    img_rgb = cv.cvtColor(img, cv.COLOR_BGR2RGB)
    img_rgb = np.array(img_rgb).transpose(1, 0, 2)
    gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
    rects = detector(gray, 1)
    print('检测到了 %d 个人脸' % len(rects))
    for (i, rect) in enumerate(rects):
        # 标记人脸中的68个landmark点
        landmarks = predictor(gray, rect)
        landmarks_lip_tem = []
        landmarks_lip_rgb_tem = []
        for n in range(48, 68):
            x = landmarks.part(n).x
            y = landmarks.part(n).y
            landmarks_lip_tem.append((x, y))
            landmarks_lip_rgb_tem.append(list(img_rgb[x][y]))
            # cv.circle(img=img, center=(x, y), radius=3, color=(0, 255, 0), thickness=-1)
        landmarks_lip.append(landmarks_lip_tem)
        landmarks_lip_rgb.append(landmarks_lip_rgb_tem)
    return landmarks_lip, landmarks_lip_rgb


# 分割嘴唇区域
def split_area(lip_point, landmarks_lip, split_num):
    # for index, point_order in enumerate(lip_point):
    #     print(index,landmarks_lip[point_order])
    # print('-------------------------')
    lip_point_up = lip_point[1:6]
    lip_point_down = lip_point[7:12][::-1]
    split_step = []
    area_line = []
    for i in range(len(lip_point_up)):
        # print(landmarks_lip[up_lip_point_down[i]])
        split_step.append(
            np.array(landmarks_lip[lip_point_down[i]]) - np.array(landmarks_lip[lip_point_up[i]]))
    split_step = np.array(split_step) / split_num
    # print(split_step)
    # print('--------------------------')
    for m in range(split_num + 1):
        area_tem = []
        for n in range(len(lip_point_up)):
            if n == 0:
                area_tem.append(np.array(landmarks_lip[lip_point[0]]))
                # print((landmarks_lip[up_lip_point_up[n]] + split_step[n] * m))
                area_tem.append((landmarks_lip[lip_point_up[n]] + split_step[n] * m).astype(np.int16))
            elif n == (len(lip_point_up) - 1):
                area_tem.append((landmarks_lip[lip_point_up[n]] + split_step[n] * m).astype(np.int16))
                area_tem.append(np.array(landmarks_lip[lip_point[6]]))
            else:
                area_tem.append((landmarks_lip[lip_point_up[n]] + split_step[n] * m).astype(np.int16))
        area_line.append(area_tem)
    # print(area_line)
    return area_line


# 为每一个分割的区域分配颜色
def split_color(lipstick_color, lip_point, landmarks_lip_rgb, split_num):
    # print(landmarks_lip_rgb)
    color = []
    lip_point_up = lip_point[1:6]
    lip_point_down = lip_point[7:12][::-1]
    lip_point_up_avg = np.zeros((3))
    lip_point_down_avg = np.zeros((3))
    lip_point_up_step = []
    lip_point_down_step = []

    for i in range(len(lip_point_up)):
        lip_point_up_avg += np.array(landmarks_lip_rgb[i])
        lip_point_down_avg += np.array(lip_point_down[i])
    lip_point_up_avg = lip_point_up_avg / (len(lip_point_up))
    lip_point_down_avg = lip_point_down_avg / (len(lip_point_up))

    if split_num % 2 != 0:
        lip_point_up_step = (np.array(lipstick_color) - lip_point_up_avg) / ((split_num - 1) / 2)
        lip_point_down_step = (lip_point_down_avg - np.array(lipstick_color)) / ((split_num - 1) / 2)
        for j in range(split_num):
            if j < split_num // 2:
                color.append(lip_point_up_avg + lip_point_up_step * j)
            elif j == split_num // 2:
                color.append(np.array(lipstick_color))
            else:
                color.append(np.array(lipstick_color) + lip_point_down_step * (j - split_num // 2))

    else:
        lip_point_up_step = (np.array(lipstick_color) - lip_point_up_avg) / ((split_num - 2) / 2)
        lip_point_down_step = (lip_point_down_avg - np.array(lipstick_color)) / ((split_num - 2) / 2)
        print(np.array(lipstick_color), lip_point_down_avg)
        print(lip_point_up_step, lip_point_down_step)
        for j in range(split_num):
            if j < (split_num // 2 - 1):
                color.append(lip_point_up_avg + lip_point_up_step * j)
            elif j == (split_num // 2 - 1):
                color.append(np.array(lipstick_color))
            elif j == split_num // 2:
                color.append(np.array(lipstick_color))
            else:
                color.append(np.array(lipstick_color) + lip_point_down_step * (j - split_num // 2))
                # print('---------------------')
                # print(np.array(lipstick_color))
                # print(np.array(lipstick_color) + lip_point_down_step * j)
                # print('---------------------')
    return np.array(color).astype(np.int16)


# 绘制嘴唇线条或填充
def draw_lip(screen, img_makeup, area_line_up, color_up, area_line_down, color_down):
    # print(np.array(area_line).reshape(-1,14))
    area_lip = []

    # 绘制嘴唇线条,opencv中imshow中文显示存在问题
    # for i in range(np.array(area_line_up).shape[0]):
    #     for j in range(np.array(area_line_up).shape[1] - 1):
    #         cv.line(img, tuple(area_line_up[i][j]), tuple(area_line_up[i][j + 1]),
    #                 color=(0, 255, 0),
    #                 thickness=1, lineType=8)
    # cv.imshow(u'嘴唇分割线', img)

    # 填充嘴唇
    for i in range(np.array(area_line_up).shape[0] - 1):
        # print(tuple(color[i][::-1]))
        cv.fillPoly(img_makeup, [np.vstack((np.array(area_line_up[i]), np.array(area_line_up[i + 1])[::-1]))],
                    tuple([int(x) for x in color_up[i][::-1]]))

    for j in range(np.array(area_line_down).shape[0] - 1):
        # print(tuple(color[i][::-1]))
        cv.fillPoly(img_makeup, [np.vstack((np.array(area_line_down[j]), np.array(area_line_down[j + 1])[::-1]))],
                    tuple([int(x) for x in color_down[j][::-1]]))
    # screen.blit(cvimage_to_pygame(cv.cvtColor(img_makeup, cv.COLOR_BGR2RGB)), (0, 0))


# 获取摄像头序号
def search_cap_num():
    for i in range(2000):
        cap = cv.VideoCapture(i)
        cap_opened = cap.isOpened()
        if cap_opened == True:
            return i


# 获取摄像头所能拍摄的像素
# 注意这个地方输出的shape是高度，宽度，深度，所以要转化一下
def set_screen_size():
    ret, img = cap.read()
    return img.shape[1::-1]


# 将opencv图片转化为pygame中图片
def cvimage_to_pygame(image):
    """Convert cvimage into a pygame image"""
    return pygame.image.frombuffer(image.tobytes(), image.shape[1::-1], "RGB")


# 处理pygame按钮界面的点击事件
def deal_with_event():
    global button_makeup_clicked, button_quit_clicked, \
        button_circle_quit, button_circle_makeup
    for event in pygame.event.get():
        if event.type == QUIT:
            # 接收到退出事件后退出程序
            sys.exit()
        if event.type == MOUSEBUTTONDOWN:
            pressed_array = pygame.mouse.get_pressed()
            if pressed_array[0]:
                mouse_pos = pygame.mouse.get_pos()
                mouse_x = mouse_pos[0]
                mouse_y = mouse_pos[1]
                # print(mouse_pos)
                # print(button_circle.button_size[0]-button_circle.button_size[2],button_circle.button_size[0]+button_circle.button_size[2],button_circle.button_size[1] - button_circle.button_size[2],button_circle.button_size[1] + button_circle.button_size[2])

                if (not button_makeup_clicked) and \
                        button_circle_makeup.button_size[0] - button_circle_makeup.button_size[2] <= mouse_x <= \
                        button_circle_makeup.button_size[0] + button_circle_makeup.button_size[2] and \
                        button_circle_makeup.button_size[1] - button_circle_makeup.button_size[2] <= mouse_y <= \
                        button_circle_makeup.button_size[1] + button_circle_makeup.button_size[2]:
                    button_makeup_clicked = True
                    button_quit_clicked = False
                elif (not button_quit_clicked) and \
                        button_circle_quit.button_size[0] - button_circle_quit.button_size[2] <= mouse_x <= \
                        button_circle_quit.button_size[0] + button_circle_quit.button_size[2] and \
                        button_circle_quit.button_size[1] - button_circle_quit.button_size[2] <= mouse_y <= \
                        button_circle_quit.button_size[1] + button_circle_quit.button_size[2]:
                    button_quit_clicked = True
                    button_makeup_clicked = False


cap_num = search_cap_num()
cap = cv.VideoCapture(cap_num)

detector = dlib.get_frontal_face_detector()
predictor = dlib.shape_predictor("shape_predictor_68_face_landmarks.dat")
lip_order_dlib = np.array([[48, 49, 50, 51, 52, 53, 54, 64, 63, 62, 61, 60, 48],
                           [48, 59, 58, 57, 56, 55, 54, 64, 65, 66, 67, 60, 48]]) - 48
lip_order_num = lip_order_dlib.shape[1]

# 初始化pygame,为使用硬件做准备
pygame.init()
# 创建一个窗口
screen_video = pygame.display.set_mode(set_screen_size(), 0, 32)
screen_width = screen_video.get_size()[0]
screen_height = screen_video.get_size()[1]

white = (255, 255, 255)
button_circle_pos = [(screen_width - screen_width // 6), screen_height - screen_height // 7]
button_circle_raduis = [screen_height // 10]
button_circle_size = tuple(button_circle_pos + button_circle_raduis)

button_makeup_clicked = False
button_quit_clicked = True
# 字体
font = pygame.font.Font("font.ttf", 24)
# 字体
# font = pygame.font.SysFont(None, 24)

button_circle_makeup = SurfaceButton(screen_video, font, white, button_circle_size, "化妆")
button_circle_quit = SurfaceButton(screen_video, font, white, button_circle_size, "退出")
# 设置窗口标题
pygame.display.set_caption("Hello, World!")
img = {}
split_num = 20
# 主循环

while cap.isOpened():
    if button_makeup_clicked:
        # if True:
        area_line_up = []
        area_line_down = []
        color_up = []
        color_down = []
        # img = cv.imread('1.jpg')
        img_makeup = img.copy()
        landmarks_lip, landmarks_lip_rgb = lip_detector(img)
        # cv.imwrite('3.jpg', img)
        for i in range(np.array(landmarks_lip).shape[0]):
            print(i)
            area_line_up_tem = split_area(lip_order_dlib[0], landmarks_lip[i], split_num)
            area_line_down_tem = split_area(lip_order_dlib[1], landmarks_lip[i], split_num)
            color_up_tem = split_color((255, 0, 0), lip_order_dlib[0], landmarks_lip_rgb[i], split_num)
            color_down_tem = split_color((255, 0, 0), lip_order_dlib[1], landmarks_lip_rgb[i], split_num)

            area_line_up.append(area_line_up_tem)
            area_line_down.append(area_line_down_tem)
            color_up.append(color_up_tem)
            color_down.append(color_down_tem)

        for i in range(np.array(area_line_up).shape[0]):
            draw_lip(screen_video, img_makeup, area_line_up[i], color_up[i], area_line_down[i], color_down[i])
        screen_video.blit(cvimage_to_pygame(cv.cvtColor(img_makeup, cv.COLOR_BGR2RGB)), (0, 0))
        button_circle_quit.draw()
        pygame.display.flip()
        while True:
            deal_with_event()
            if button_quit_clicked:
                break

    elif button_quit_clicked:
        ret, img = cap.read()
        img_rgb = cv.cvtColor(img, cv.COLOR_BGR2RGB)
        screen_video.blit(cvimage_to_pygame(img_rgb), (0, 0))
        button_circle_makeup.draw()
        deal_with_event()
        pygame.display.flip()

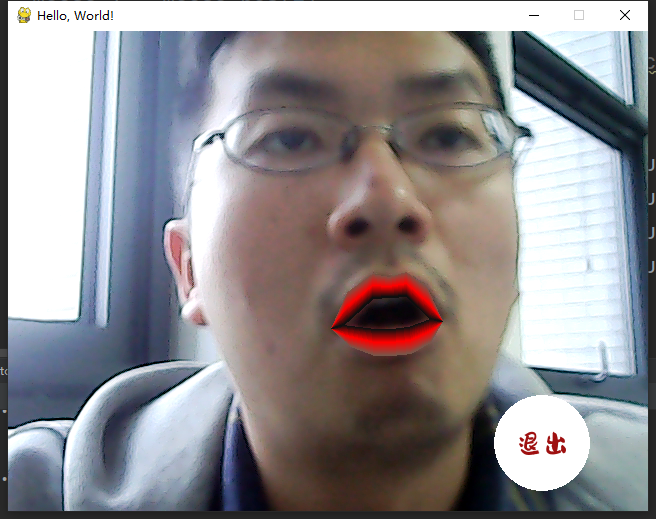

4、实现的效果

感觉不能说很违和把，只能说非常违和哈哈哈

5、改变方向

我觉得这种就应该是用神经网络来实现，这种方法永远做不到和人脸直接贴合的感觉。
