平台：Code Composer Studio 10.3.1
MSP430F5529 LaunchPad™ Development Kit
(MSP‑EXP430F5529LP)
上机实战
SPI 驱动 墨水屏
墨水屏介绍
F5529 口袋板上没有采用常见的点阵液晶、段式液晶、TFT 等屏幕，而是采用了电子纸
（电子墨水屏）这种革新的信息显示设备，它与传统的显示屏幕有很大不同，下面略作介绍。
电子纸的分类
如同其他显示技术一样，电子纸主要也分为以下以下几类：
电泳显示技术（EPD）：电泳显示技术系将黑、白两色的带电颗粒封装于微胞化液
滴结构中，由外加电场控制不同电荷黑白颗粒的升降移动，以呈现出黑白单色的显
示效果。由于 EPD 技术可呈现出高反射率、高对比的黑白显示效果，因此十分适合
做电子纸，F5529 口袋板上使用的电子纸屏幕采用的就是这种技术。
电子粉流体显示技术(QR-LPD)
胆固醇液晶显示技术(Ch-LCD)
双稳态向列液晶显示技术（Bi TNLCD)
这几种电子纸技术我们没有使用到，这里也就不展开介绍了。
电泳型电子纸技术详解

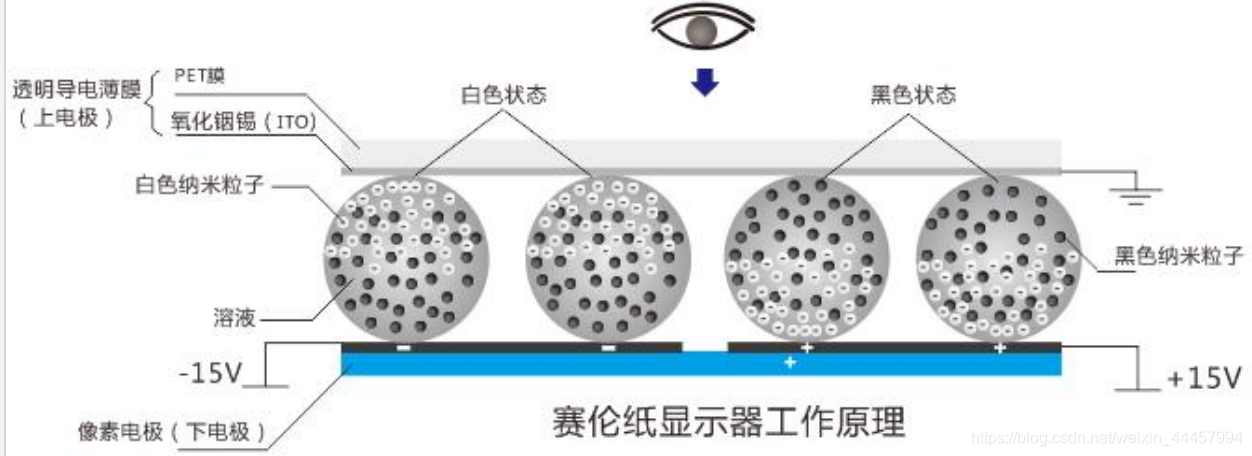

原理
电泳型电子纸技术（以下简称电子纸）是一种“微胶囊电泳显示”技术。其基本原理
是悬浮在液体中的带电纳米粒子受到电场作用而产生迁移。电子纸是一种薄膜状的材
料，它是由成千上万个微小的胶囊状颗粒（称为微胶囊）涂在一种塑料基材上而制成的。
微胶囊是电子纸的基本单元，它里面包含了两种不同颜色的纳米粒子。
结构
电子纸膜片：这是电子纸显示模组的核心材料，负责显示人眼实际看到的图案。
底板：作为电子纸显示屏的像素电极（下电极），用于控制电子纸每个像素的黑白
变化。底板有多种类型可选，包括 PCB、FPC、TFT 玻璃、PET 等，实际应用时
可根据具体需求选择不同的底板。电子纸膜片可通过层压的方式贴合在底板上。
驱动芯片：可根据控制指令和信号产生相应的逻辑电平和时序，用于控制底板每个
像素（或段码）的工作时序和状态，并使电子纸能够显示所需图案。
透明保护膜：一种高分子塑料薄膜，具有很强的防水汽透过性。用层压机将其紧密
贴合在电子纸膜片与底板上面，可有效防止水汽侵入赛伦纸膜片，避免电子纸因
受潮而损坏。
封边胶：一种特殊的化学胶水，将其均匀涂在透明保护膜的四周边缘处，起到隔离
水汽的作用。可避免水汽从透明保护膜四周渗入进去而对电子纸膜片造成损坏。
优势与不足
电子纸作为一种革新的信息显示的新方法和设备，区别于其他显示技术的具有以下
几个突出优势：
易阅读性：
电子纸是靠反射环境光来显示图案的，它具有纸张印刷般的效果。与传统透射
式液晶显示屏（TFT 等）相比，即使是在强烈的阳光底下，依然清晰可视；可视角
度几乎达到了 180°。另外电子纸显示柔和、无闪烁，因此“电纸书”都是采用电
子纸做屏幕。
超级省电：
电子纸只有在刷新屏幕的时候才会消耗电能，而且断电后能保持断电前最后一
帧图片的显示，这是其他屏幕都做不到的，再加上不需要背光，因此电子纸适合作
为电子标签使用。
轻薄灵活：
与其他显示屏幕相比，电子纸不管是在厚度还是重量上都有明显的优势，最薄
可以做到 0.1mm，和纸张的厚度差不多。如果采用塑料薄膜作为基材，还具有可弯
曲的特点。
以上说的都是电子纸的优势，下面说说电子纸目前的不足，这些技术不足，以
及成本上的居高不下今后随着技术发展会逐渐得到解决的。
刷新速度慢：
尤其是电泳型电子纸刷新速度是比较慢的，目前无法做动画或动态视
频显示。
色彩还原不好：
目前电子纸色彩还原还不如 TFT 等屏幕真实、鲜艳，无法很好的显
示彩色照片，再加上成本原因，目前电子纸以点色灰阶型为主。
实验电路介绍

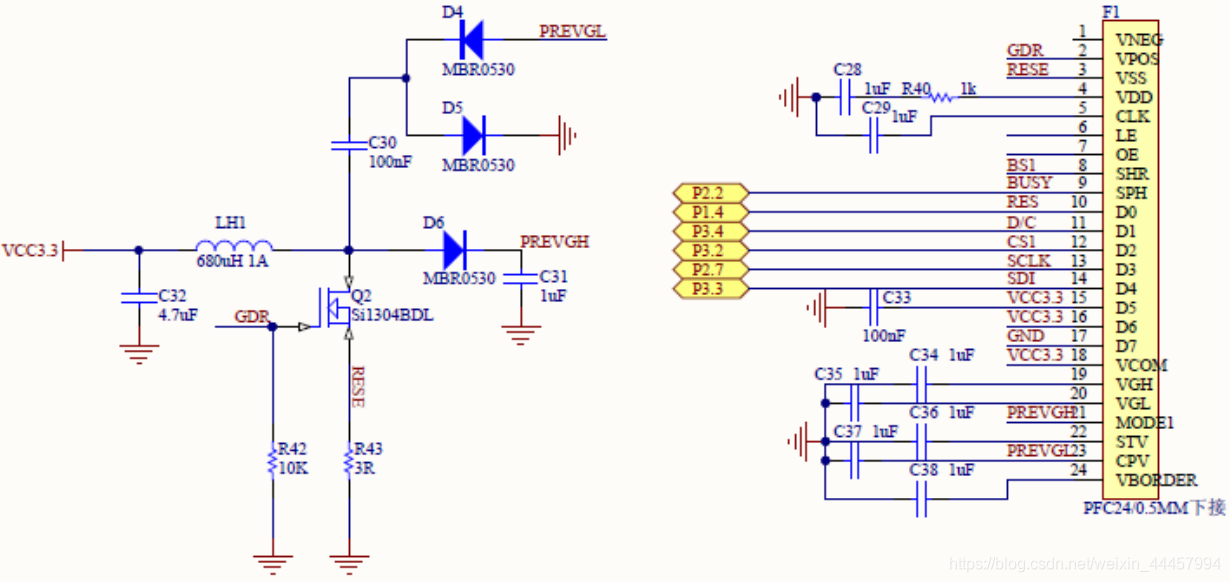

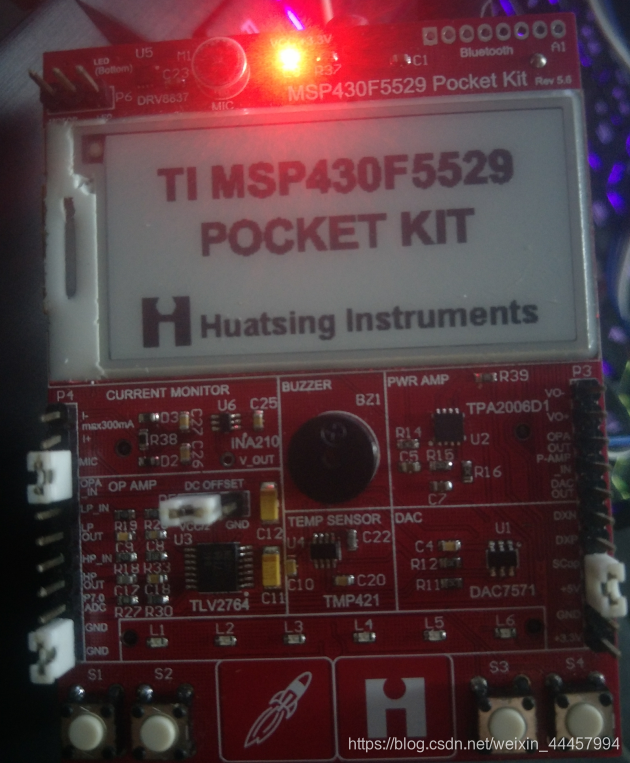

F5529 口袋板使用了一片分辨率为 250×122 的 2.1 英寸的电子纸，SPI 接口。
程序分析
引脚初始化

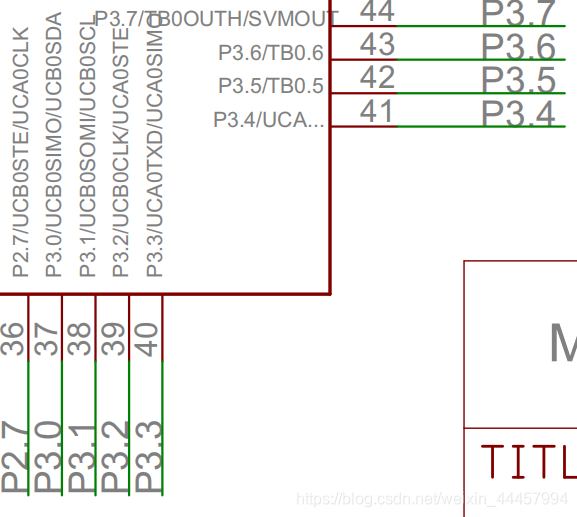

由原理图可知，P3.4并不作为SOMI脚，而是用于区分信号类型是控制命令还是数据，故只将P2.7复用为CLK，P3.3复用为SIMO，其他设为GPIO
void PaperIO_Int(void)
{
//Set P1.4 for slave reset
GPIO_setAsOutputPin(GPIO_PORT_P1, GPIO_PIN4);
//Set P2.2 for BUSY
GPIO_setAsInputPin(GPIO_PORT_P2, GPIO_PIN2);
//Set P3.2 for CS
GPIO_setAsOutputPin(GPIO_PORT_P3, GPIO_PIN2);
//Set P3.4 for output mode
GPIO_setAsOutputPin(GPIO_PORT_P3, GPIO_PIN4);
//P2.7 option select (CLK)
GPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P2, GPIO_PIN7);
//P3.3 option select (SIMO)
GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P3, GPIO_PIN3);
nCS_H;
}
SPI模块初始化
设置SPI时钟源，SPI CLK为5M，启用中断
#define SPICLK 5000000
//Initialize Master
USCI_A_SPI_initMasterParam param = {0};
param.selectClockSource = USCI_A_SPI_CLOCKSOURCE_SMCLK;
param.clockSourceFrequency = UCS_getSMCLK();
param.desiredSpiClock = SPICLK;
param.msbFirst = USCI_A_SPI_MSB_FIRST;
param.clockPhase = USCI_A_SPI_PHASE_DATA_CHANGED_ONFIRST_CAPTURED_ON_NEXT;
param.clockPolarity = USCI_A_SPI_CLOCKPOLARITY_INACTIVITY_HIGH;
if (STATUS_FAIL == USCI_A_SPI_initMaster(USCI_A0_BASE, ¶m))
return;
//Enable SPI module
USCI_A_SPI_enable(USCI_A0_BASE);
//Enable Receive interrupt
USCI_A_SPI_clearInterrupt(USCI_A0_BASE, USCI_A_SPI_RECEIVE_INTERRUPT);
USCI_A_SPI_enableInterrupt(USCI_A0_BASE, USCI_A_SPI_RECEIVE_INTERRUPT);
__bis_SR_register(GIE);
发送和接收
控制命令的发送
void SPI4W_WRITECOM(unsigned char INIT_COM)
{
unsigned char TEMPCOM;
unsigned char scnt;
TEMPCOM=INIT_COM;
nCS_H;
nCS_L;
nDC_L;
//USCI_A0 TX buffer ready?
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
//Transmit Data to slave
USCI_A_SPI_transmitData(USCI_A0_BASE, TEMPCOM);
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
nCS_H;
}
数据的发送
void SPI4W_WRITEDATA(unsigned char INIT_DATA)
{
unsigned char TEMPCOM;
unsigned char scnt;
TEMPCOM=INIT_DATA;
nCS_H;
nCS_L;
nDC_H;
//USCI_A0 TX buffer ready?
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
//Transmit Data to slave
USCI_A_SPI_transmitData(USCI_A0_BASE, TEMPCOM);
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
nCS_H;
}
中断服务函数
本例其实并不需要接收数据，但需要启用发送中断，这里的接收函数留给大家拓展
//******************************************************************************
//
//This is the USCI_A0 interrupt vector service routine.
//
//******************************************************************************
uint8_t receiveData = 0x00;
#pragma vector=USCI_A0_VECTOR
__interrupt
void USCI_A0_ISR (void)
{
switch (__even_in_range(UCA0IV,4)){
//Vector 2 - RXIFG
case 2:
//USCI_A0 TX buffer ready?
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT));
receiveData = USCI_A_SPI_receiveData(USCI_A0_BASE);
break;
default: break;
}
}
全部源代码
main.c
#include "main.h"
#include "Paper_Display.h"
void SystemClock_Init(void)
{
PMM_setVCore(PMM_CORE_LEVEL_3); //高主频工作需要较高的核心电压
//XT1引脚复用
GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P5, GPIO_PIN4);
GPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P5, GPIO_PIN5);
//起振XT1
UCS_turnOnLFXT1(UCS_XT1_DRIVE_3,UCS_XCAP_3);
//XT2引脚复用
GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P5, GPIO_PIN2);
GPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P5, GPIO_PIN3);
//起振XT2
UCS_turnOnXT2(UCS_XT2_DRIVE_4MHZ_8MHZ);
//XT2作为FLL参考时钟
UCS_initClockSignal(UCS_FLLREF, UCS_XT2CLK_SELECT, UCS_CLOCK_DIVIDER_8);
UCS_initFLLSettle(25000, 50);
//XT1作为ACLK时钟源 = 32768Hz
UCS_initClockSignal(UCS_ACLK, UCS_XT1CLK_SELECT, UCS_CLOCK_DIVIDER_1);
//DCOCLK作为MCLK时钟源
UCS_initClockSignal(UCS_MCLK, UCS_DCOCLK_SELECT, UCS_CLOCK_DIVIDER_1);
//DCOCLK作为SMCLK时钟源
UCS_initClockSignal(UCS_SMCLK, UCS_DCOCLK_SELECT, UCS_CLOCK_DIVIDER_1);
//设置外部时钟源的频率，使得在调用UCS_getMCLK, UCS_getSMCLK 或 UCS_getACLK时可得到正确值
UCS_setExternalClockSource(32768, 4000000);
}
#define SPICLK 5000000
int main(void)
{
WDT_A_hold(WDT_A_BASE);
SystemClock_Init();
PaperIO_Int();
//Initialize Master
USCI_A_SPI_initMasterParam param = {0};
param.selectClockSource = USCI_A_SPI_CLOCKSOURCE_SMCLK;
param.clockSourceFrequency = UCS_getSMCLK();
param.desiredSpiClock = SPICLK;
param.msbFirst = USCI_A_SPI_MSB_FIRST;
param.clockPhase = USCI_A_SPI_PHASE_DATA_CHANGED_ONFIRST_CAPTURED_ON_NEXT;
param.clockPolarity = USCI_A_SPI_CLOCKPOLARITY_INACTIVITY_HIGH;
if (STATUS_FAIL == USCI_A_SPI_initMaster(USCI_A0_BASE, ¶m))
return;
//Enable SPI module
USCI_A_SPI_enable(USCI_A0_BASE);
//Enable Receive interrupt
USCI_A_SPI_clearInterrupt(USCI_A0_BASE, USCI_A_SPI_RECEIVE_INTERRUPT);
USCI_A_SPI_enableInterrupt(USCI_A0_BASE, USCI_A_SPI_RECEIVE_INTERRUPT);
__bis_SR_register(GIE);
INIT_SSD1673();
Init_buff();
// display(" ", 42, 0,TimesNewRoman,size8,1,0);
// display(" Huatsing Instruments ", 42, 16,TimesNewRoman,size8,1,0);
// display("012abcABC",80, 0,TimesNewRoman,size16,0,0);
// display("012abcABC", 0,50,Arial,size8,1,0);
// display("012abcABC",80,50,Arial,size16,1,0);
// display("012abcABC", 0,90,ArialBlack,size8,1,0);
// display("012abcABC",80,90,ArialBlack,size16,1,0);
// DIS_IMG(1);
DIS_IMG(2);
// DIS_IMG(3);
while(1)
{
}
}
//******************************************************************************
//
//This is the USCI_A0 interrupt vector service routine.
//
//******************************************************************************
uint8_t receiveData = 0x00;
#pragma vector=USCI_A0_VECTOR
__interrupt
void USCI_A0_ISR (void)
{
switch (__even_in_range(UCA0IV,4)){
//Vector 2 - RXIFG
case 2:
//USCI_A0 TX buffer ready?
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT));
receiveData = USCI_A_SPI_receiveData(USCI_A0_BASE);
break;
default: break;
}
}
main.h
/*
* main.h
*
* Created on: 2021年7月31日
* Author: Royic
*/
#ifndef MAIN_H_
#define MAIN_H_
#include "driverlib.h"
#define MCLK_IN_HZ 25000000
#define delay_us(x) __delay_cycles((MCLK_IN_HZ/1000000*(x)))
#define delay_ms(x) __delay_cycles((MCLK_IN_HZ/1000*(x)))
void SystemClock_Init(void);
#endif /* MAIN_H_ */
墨水屏相关
Paper_Display.c
#include "Include.h"
#include "Paper_Display.h"
#include "main.h"
#define DELAY_TIME 50 // 图片显示完停留时间(单位:秒)
// 测试图
#define PIC_WHITE 255 // 全白
#define PIC_BLACK 254 // 全黑
#define PIC_Orientation 253 // 方向图
#define PIC_LEFT_BLACK_RIGHT_WHITE 249 // 左黑右白
#define PIC_UP_BLACK_DOWN_WHITE 248 // 上黑下白
const unsigned char init_data[]=
{
0x50,0xAA,0x55,0xAA,0x55,0xAA,0x11,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x0F,0x0F,
0x0F,0x0F,0x0F,0x01,0x00,0x00,0x00,0x00,0x00,
};
void MyRESET()
{
nRST_L;
delay_ms(10);
nRST_H;
delay_ms(10);
}
void DELAY_S(unsigned int delaytime) // 1s
{
unsigned int i;
for(i = 0; i < delaytime; ++i)
delay_ms(1000);
}
void DELAY_M(unsigned int delaytime) // 1M
{
unsigned int i;
for(i = 0; i < delaytime; i++)
DELAY_S(60);
}
void READBUSY()
{
while(1)
{
if(nBUSY == 0)
return;
else
DELAY_S(1);
}
}
void FIRST_PICTURE()
{
SPI4W_WRITECOM(0x21);
SPI4W_WRITEDATA(0x83);
SPI4W_WRITECOM(0x22);
SPI4W_WRITEDATA(0xC4);
}

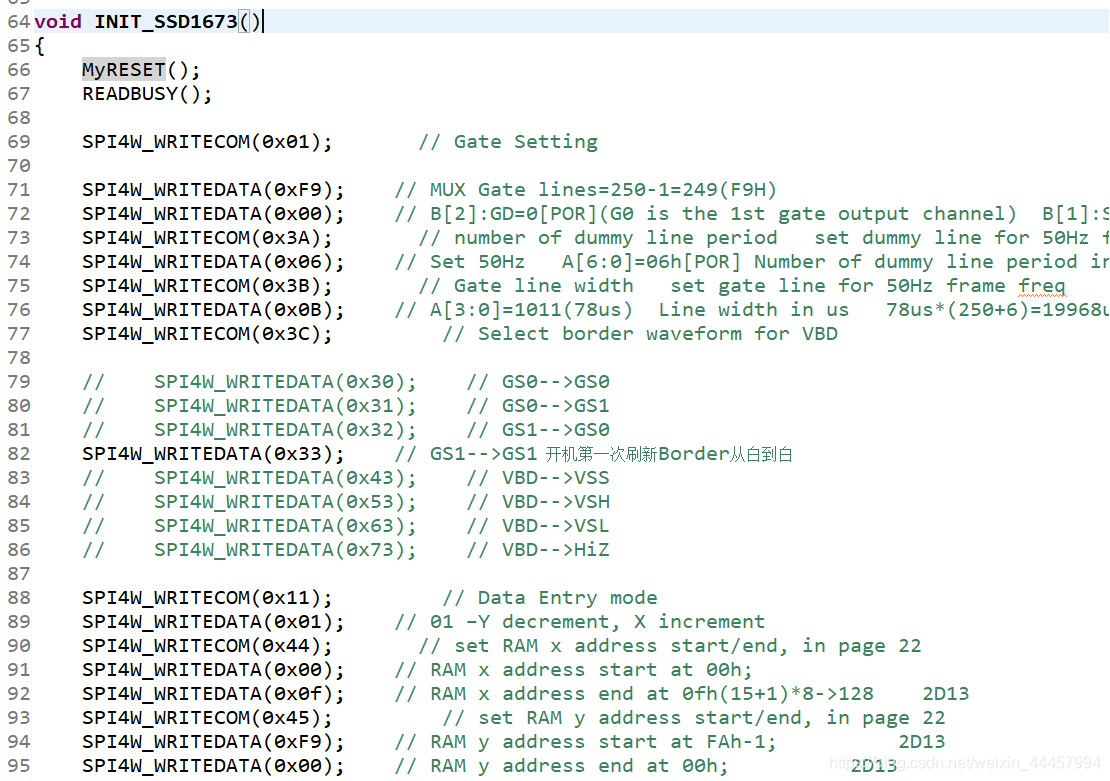

void INIT_SSD1673()
{
MyRESET();
READBUSY();
SPI4W_WRITECOM(0x01); // Gate Setting
SPI4W_WRITEDATA(0xF9); // MUX Gate lines=250-1=249(F9H)
SPI4W_WRITEDATA(0x00); // B[2]:GD=0[POR](G0 is the 1st gate output channel) B[1]:SM=0[POR](left and right gate interlaced) B[0]:TB=0[POR](scan from G0 to G319)
SPI4W_WRITECOM(0x3A); // number of dummy line period set dummy line for 50Hz frame freq
SPI4W_WRITEDATA(0x06); // Set 50Hz A[6:0]=06h[POR] Number of dummy line period in term of TGate
SPI4W_WRITECOM(0x3B); // Gate line width set gate line for 50Hz frame freq
SPI4W_WRITEDATA(0x0B); // A[3:0]=1011(78us) Line width in us 78us*(250+6)=19968us=19.968ms
SPI4W_WRITECOM(0x3C); // Select border waveform for VBD
// SPI4W_WRITEDATA(0x30); // GS0-->GS0
// SPI4W_WRITEDATA(0x31); // GS0-->GS1
// SPI4W_WRITEDATA(0x32); // GS1-->GS0
SPI4W_WRITEDATA(0x33); // GS1-->GS1 开机第一次刷新Border从白到白
// SPI4W_WRITEDATA(0x43); // VBD-->VSS
// SPI4W_WRITEDATA(0x53); // VBD-->VSH
// SPI4W_WRITEDATA(0x63); // VBD-->VSL
// SPI4W_WRITEDATA(0x73); // VBD-->HiZ
SPI4W_WRITECOM(0x11); // Data Entry mode
SPI4W_WRITEDATA(0x01); // 01 –Y decrement, X increment
SPI4W_WRITECOM(0x44); // set RAM x address start/end, in page 22
SPI4W_WRITEDATA(0x00); // RAM x address start at 00h;
SPI4W_WRITEDATA(0x0f); // RAM x address end at 0fh(15+1)*8->128 2D13
SPI4W_WRITECOM(0x45); // set RAM y address start/end, in page 22
SPI4W_WRITEDATA(0xF9); // RAM y address start at FAh-1; 2D13
SPI4W_WRITEDATA(0x00); // RAM y address end at 00h; 2D13
SPI4W_WRITECOM(0x2C); // Vcom= *(-0.02)+0.01???
// SPI4W_WRITEDATA(0x82); //-2.5V
// SPI4W_WRITEDATA(0x69); //-2V
SPI4W_WRITEDATA(0x4B); //-1.4V
// SPI4W_WRITEDATA(0x50); //-1.5V
// SPI4W_WRITEDATA(0x37); //-1V
// SPI4W_WRITEDATA(0x1E); //-0.5V
WRITE_LUT();
SPI4W_WRITECOM(0x21); // Option for Display Update
SPI4W_WRITEDATA(0x83); // A[7]=1(Enable bypass) A[4]=0全黑(value will be used as for bypass)
DIS_IMG(PIC_WHITE); // 全黑到全白清屏，这样可防止开机出现花屏的问题
SPI4W_WRITECOM(0x21); //
SPI4W_WRITEDATA(0x03); // 后面刷新恢复正常的前后2幅图比较
SPI4W_WRITECOM(0x3C); // Select border waveform for VBD
SPI4W_WRITEDATA(0x73); // VBD-->HiZ 后面刷新时Border都是高阻
}
void WRITE_LUT()
{
unsigned char i;
SPI4W_WRITECOM(0x32);//write LUT register
for(i=0;i<29;i++)
SPI4W_WRITEDATA(init_data[i]);//write LUT register
}
void Init_buff(void)
{
int i;
for(i=0;i<4000;i++)
{
DisBuffer[i]=gImage_logo[i];
}
}
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
//xx 图片显示函数 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
void DIS_IMG(unsigned char num)
{
unsigned int row, col;
unsigned int pcnt;
SPI4W_WRITECOM(0x4E);
SPI4W_WRITEDATA(0x00); // set RAM x address count to 0;
SPI4W_WRITECOM(0x4F);
SPI4W_WRITEDATA(0xF9); // set RAM y address count to 250-1; 2D13
//DELAY_S(5);
delay_ms(5);
SPI4W_WRITECOM(0x24);
//DELAY_S(5);
delay_ms(5);
pcnt = 0; // 复位或保存提示字节序号
for(col=0; col<250; col++) // 总共250 GATE列 // send 128x250bits ram 2D13
{
for(row=0; row<16; row++) // 总共128 SOURCE行，每个像素1bit,即 128/8=16 字节
{
switch (num)
{
case 1:
SPI4W_WRITEDATA(DisBuffer[pcnt]);
break;
case 2:
SPI4W_WRITEDATA(gImage_logo[pcnt]);
break;
case PIC_WHITE:
SPI4W_WRITEDATA(0xff);
break;
default:
break;
}
pcnt++;
}
}
SPI4W_WRITECOM(0x22);
SPI4W_WRITEDATA(0xC7); // (Enable Clock Signal, Enable CP) (Display update,Disable CP,Disable Clock Signal)
// SPI4W_WRITEDATA(0xF7); // (Enable Clock Signal, Enable CP, Load Temperature value, Load LUT) (Display update,Disable CP,Disable Clock Signal)
SPI4W_WRITECOM(0x20);
delay_ms(1);
READBUSY();
//DELAY_S(DELAY_TIME);
delay_ms(50);
}
void SetpointXY(unsigned int xs,unsigned int xe,unsigned int ys,unsigned int ye)
{
SPI4W_WRITECOM(0x44);//set RAM x address start/end, in page 36
SPI4W_WRITEDATA(xs);//RAM x address start at 00h;
SPI4W_WRITEDATA(xe);//RAM x address end at 11h(17)->72: [because 1F(31)->128 and 12(18)->76]
SPI4W_WRITECOM(0x45);//set RAM y address start/end, in page 37
SPI4W_WRITEDATA(ys);//RAM y address start at 00h;
SPI4W_WRITEDATA(ye);//RAM y address start at ABh(171)->172: [because B3(179)->180]
SPI4W_WRITECOM(0x4E);//set RAM x address count to 0;
SPI4W_WRITEDATA(xs);
SPI4W_WRITECOM(0x4F);//set RAM y address count to 0;
SPI4W_WRITEDATA(ye);
SPI4W_WRITECOM(0x24);
}
void enterdeepsleep()
{
SPI4W_WRITECOM(0x10);
SPI4W_WRITEDATA(0x01);
}
void SPI4W_WRITECOM(unsigned char INIT_COM)
{
unsigned char TEMPCOM;
unsigned char scnt;
TEMPCOM=INIT_COM;
nCS_H;
nCS_L;
nDC_L;
//USCI_A0 TX buffer ready?
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
//Transmit Data to slave
USCI_A_SPI_transmitData(USCI_A0_BASE, TEMPCOM);
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
nCS_H;
}
void SPI4W_WRITEDATA(unsigned char INIT_DATA)
{
unsigned char TEMPCOM;
unsigned char scnt;
TEMPCOM=INIT_DATA;
nCS_H;
nCS_L;
nDC_H;
//USCI_A0 TX buffer ready?
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
//Transmit Data to slave
USCI_A_SPI_transmitData(USCI_A0_BASE, TEMPCOM);
while (!USCI_A_SPI_getInterruptStatus(USCI_A0_BASE, USCI_A_SPI_TRANSMIT_INTERRUPT)) ;
nCS_H;
}
unsigned char FontSize[]={16,32};
void display(unsigned char *str, //字符串
unsigned int xsize, //x方向位置
unsigned int ysize, //y方向位置
unsigned int font, //字体 0,1,2
unsigned int size, //字号 0,1
unsigned int reverse,//反显 0 正常显示， 1 反显
unsigned int fresh //立即刷新
)
{
unsigned char i,j,k;
unsigned char *zimoPoint;
unsigned char zimoW;
unsigned char zimoH;
unsigned char moveBytes; //移动字节数
unsigned char moveBits; //移动位数
volatile unsigned char zimoBufferTemp[6];
zimoW=FontSize[size]/2; //x向行数
zimoH=FontSize[size]/8; //y向字节数
moveBits=ysize%8;
if((moveBits)!=0) //非完整字节处理
{
moveBytes=zimoH+1;
}
else moveBytes=zimoH;
while(*str)
{
if((font==TimesNewRoman) && (size==size8)) zimoPoint=(unsigned char *)&TimesNewRoman8;
else if((font==TimesNewRoman) && (size==size16)) zimoPoint=(unsigned char *)&TimesNewRoman16;
zimoPoint=zimoPoint+((*str)-0x20)*zimoW*zimoH; //指向字符字模的开始地址。
for(i=0;i<zimoW;i++)
{
//读出字模一列数据
for(j=0;j<6;j++) zimoBufferTemp[j]=0;
if(reverse==0)
{
for(j=0;j<zimoH;j++)
{
zimoBufferTemp[j]=~(*(zimoPoint+i+j*zimoW));
}
}
else
{
for(j=0;j<zimoH;j++)
{
zimoBufferTemp[j]=(*(zimoPoint+i+j*zimoW));
}
}
//字模一列数据移位操作
if (moveBits==0);
else
{
for(k=0;k<moveBits;k++)
{
for(j=moveBytes;j>0;j--)
{
zimoBufferTemp[j]=zimoBufferTemp[j]>>1;
if ((zimoBufferTemp[j-1]&0x01)>0) zimoBufferTemp[j]=zimoBufferTemp[j]+0x80;
}
zimoBufferTemp[0]=zimoBufferTemp[0]>>1;
}
}
//DisBuffer处理
if (moveBits==0);
else
{
k=(0xff>>moveBits);
zimoBufferTemp[moveBytes-1]=zimoBufferTemp[moveBytes-1] | (DisBuffer[(xsize+i)*16+((ysize/8)+zimoH)] & k);
k=~k;
zimoBufferTemp[0]=zimoBufferTemp[0] | (DisBuffer[(xsize+i)*16+(ysize/8)] & k);
}
//更新 DisBuffer
for(j=0;j<moveBytes;j++)
{
DisBuffer[(xsize+i)*16+((ysize/8)+j)]=zimoBufferTemp[j];
}
}
xsize=xsize+zimoW;
str++;
}
}
void PaperIO_Int(void)
{
//Set P1.4 for slave reset
GPIO_setAsOutputPin(GPIO_PORT_P1, GPIO_PIN4);
//Set P2.2 for BUSY
GPIO_setAsInputPin(GPIO_PORT_P2, GPIO_PIN2);
//Set P3.2 for CS
GPIO_setAsOutputPin(GPIO_PORT_P3, GPIO_PIN2);
//Set P3.4 for output mode
GPIO_setAsOutputPin(GPIO_PORT_P3, GPIO_PIN4);
//P2.7 option select (CLK)
GPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P2, GPIO_PIN7);
//P3.3 option select (SIMO)
GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P3, GPIO_PIN3);
nCS_H;
}
Paper_Display.h
#include "main.h"
#define TimesNewRoman 0
#define Arial 1
#define ArialBlack 2
#define size8 0
#define size16 1
#define nRST_H GPIO_setOutputHighOnPin(GPIO_PORT_P1, GPIO_PIN4)
#define nRST_L GPIO_setOutputLowOnPin(GPIO_PORT_P1, GPIO_PIN4)
#define nCS_H GPIO_setOutputHighOnPin(GPIO_PORT_P3, GPIO_PIN2)
#define nCS_L GPIO_setOutputLowOnPin(GPIO_PORT_P3, GPIO_PIN2)
#define nDC_H GPIO_setOutputHighOnPin(GPIO_PORT_P3, GPIO_PIN4)
#define nDC_L GPIO_setOutputLowOnPin(GPIO_PORT_P3, GPIO_PIN4)
#define nBUSY GPIO_getInputPinValue(GPIO_PORT_P2, GPIO_PIN2)
extern volatile unsigned char DisBuffer[250*16];
void SPI4W_WRITECOM(unsigned char INIT_COM);
void SPI4W_WRITEDATA(unsigned char INIT_DATA);
void SPI4W_WRITE(unsigned char INIT_COM,unsigned char INIT_DATA);
void MYRESET(void);
void WRITE_LUT(void);
void INIT_SSD1673(void);
void DIS_IMG(unsigned char num);
void FIRST_PICTURE(void);
void IMAGE_WRITE(unsigned char patt_num);
void DELAY_S(unsigned int delaytime);
void DELAY_M(unsigned int delaytime);
void RING(void);
void READBUSY(void);
void closebump(void);
void DisplayString(const char* str, unsigned int sx, unsigned int sy);
void enterdeepsleep(void);
void Init_buff(void);
void SET_EYEONE(void);
void PaperIO_Int(void);
void display(unsigned char *str, //字符串
unsigned int xsize, //x方向位置
unsigned int ysize, //y方向位置
unsigned int font, //字体 0,1,2
unsigned int size, //字号 0,1
unsigned int reverse,//反显 0 正常显示， 1 反显
unsigned int fresh //立即刷新
);
Include.h
/*
* Include.h
*
* Created on: 2013-11-12
* Author: Lenovo
*/
#ifndef INCLUDE_H_
#define INCLUDE_H_
#include <string.h>
#endif /* INCLUDE_H_ */
#define uchar unsigned char
#define uint unsigned int
#define TimesNewRoman 0
#define Arial 1
#define ArialBlack 2
#define size8 0
#define size16 1
volatile unsigned char DisBuffer[250*16];
const unsigned char TimesNewRoman8[]=
{
/* */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ! */
0x00,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE8,0x00,0x00,0x00,0x00,0x00,
/* " */
0x00,0x1E,0x00,0x1E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* # */
0x02,0x02,0x07,0x3A,0x02,0x07,0x3A,0x02,0x40,0x78,0xC0,0x40,0x78,0xC0,0x40,0x40,
/* $ */
0x00,0x0E,0x11,0x3F,0x10,0x0C,0x00,0x00,0x00,0x30,0x08,0xFC,0x88,0x70,0x00,0x00,
/* % */
0x0E,0x11,0x11,0x0E,0x00,0x00,0x01,0x06,0x00,0x00,0x08,0x30,0x40,0x80,0x00,0x00,
/* & */
0x00,0x00,0x00,0x00,0x0F,0x11,0x12,0x1C,0x00,0x70,0x98,0x88,0x08,0xC8,0x30,0x28,
/* ' */
0x00,0x1E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ( */
0x00,0x03,0x0C,0x10,0x20,0x00,0x00,0x00,0x00,0xF0,0x0C,0x02,0x01,0x00,0x00,0x00,
/* ) */
0x20,0x10,0x0C,0x03,0x00,0x00,0x00,0x00,0x01,0x02,0x0C,0xF0,0x00,0x00,0x00,0x00,
/* * */
0x00,0x12,0x0C,0x3F,0x0C,0x12,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* + */
0x01,0x01,0x01,0x0F,0x01,0x01,0x01,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,
/* , */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0A,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,
/* - */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x00,0x00,0x00,0x00,
/* . */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00,
/* / */
0x00,0x01,0x0E,0x30,0x00,0x00,0x00,0x00,0x18,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
/* 0 */
0x00,0x0F,0x10,0x10,0x10,0x0F,0x00,0x00,0x00,0xF0,0x08,0x08,0x08,0xF0,0x00,0x00,
/* 1 */
0x00,0x00,0x08,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,0x00,0x00,
/* 2 */
0x00,0x08,0x10,0x10,0x11,0x0E,0x00,0x00,0x00,0x18,0x28,0x48,0x88,0x18,0x00,0x00,
/* 3 */
0x00,0x08,0x10,0x11,0x13,0x0C,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0xF0,0x00,0x00,
/* 4 */
0x00,0x01,0x06,0x08,0x1F,0x00,0x00,0x00,0xC0,0x40,0x40,0x40,0xF8,0x40,0x00,0x00,
/* 5 */
0x00,0x02,0x0E,0x12,0x11,0x10,0x00,0x00,0x00,0x08,0x08,0x08,0x10,0xE0,0x00,0x00,
/* 6 */
0x00,0x03,0x05,0x0A,0x12,0x11,0x00,0x00,0x00,0xF0,0x08,0x08,0x08,0xF0,0x00,0x00,
/* 7 */
0x08,0x10,0x10,0x10,0x10,0x17,0x18,0x00,0x00,0x00,0x00,0x18,0xE0,0x00,0x00,0x00,
/* 8 */
0x00,0x0C,0x12,0x11,0x12,0x0C,0x00,0x00,0x00,0x70,0x88,0x08,0x88,0x70,0x00,0x00,
/* 9 */
0x00,0x0F,0x10,0x10,0x10,0x0F,0x00,0x00,0x00,0x08,0x88,0x90,0xA0,0xC0,0x00,0x00,
/* : */
0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00,
/* ; */
0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0A,0x0C,0x00,0x00,0x00,0x00,0x00,
/* < */
0x00,0x01,0x02,0x02,0x04,0x04,0x08,0x00,0x00,0x00,0x80,0x80,0x40,0x40,0x20,0x00,
/* = */
0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,
/* > */
0x00,0x08,0x04,0x04,0x02,0x02,0x01,0x00,0x00,0x20,0x40,0x40,0x80,0x80,0x00,0x00,
/* ? */
0x00,0x0C,0x10,0x10,0x11,0x0E,0x00,0x00,0x00,0x00,0x00,0xE8,0x00,0x00,0x00,0x00,
/* @ */
0x00,0x03,0x04,0x08,0x11,0x22,0x24,0x24,0x00,0xF8,0x04,0x02,0xF1,0x08,0x08,0x10,
/* A */
0x00,0x00,0x00,0x01,0x06,0x18,0x06,0x01,0x08,0x08,0x38,0xC8,0x40,0x40,0x40,0xC8,
/* B */
0x00,0x10,0x1F,0x11,0x11,0x11,0x11,0x0E,0x00,0x08,0xF8,0x08,0x08,0x08,0x08,0x90,
/* C */
0x00,0x07,0x08,0x10,0x10,0x10,0x10,0x08,0x00,0xE0,0x10,0x08,0x08,0x08,0x08,0x10,
/* D */
0x00,0x10,0x1F,0x10,0x10,0x10,0x10,0x08,0x00,0x08,0xF8,0x08,0x08,0x08,0x08,0x10,
/* E */
0x00,0x10,0x1F,0x11,0x11,0x13,0x10,0x18,0x00,0x08,0xF8,0x08,0x08,0x88,0x08,0x18,
/* F */
0x00,0x10,0x1F,0x11,0x11,0x13,0x10,0x18,0x00,0x08,0xF8,0x08,0x00,0x80,0x00,0x00,
/* G */
0x00,0x07,0x08,0x10,0x10,0x10,0x10,0x08,0x00,0xE0,0x10,0x08,0x08,0x08,0x08,0x88,
/* H */
0x00,0x10,0x1F,0x11,0x01,0x01,0x01,0x11,0x00,0x08,0xF8,0x08,0x00,0x00,0x00,0x08,
/* I */
0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,0x00,0x00,0x00,
/* J */
0x00,0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x18,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,
/* K */
0x00,0x10,0x1F,0x11,0x01,0x02,0x14,0x18,0x00,0x08,0xF8,0x08,0x80,0x40,0x28,0x18,
/* L */
0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x08,0x08,0x08,0x18,
/* M */
0x00,0x10,0x1F,0x18,0x07,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,0xE0,0x18,0xE0,
/* N */
0x00,0x10,0x1F,0x04,0x02,0x01,0x00,0x10,0x00,0x08,0xF8,0x08,0x00,0x80,0x40,0x20,
/* O */
0x00,0x07,0x08,0x10,0x10,0x10,0x10,0x10,0x00,0xE0,0x10,0x08,0x08,0x08,0x08,0x08,
/* P */
0x00,0x10,0x1F,0x10,0x10,0x10,0x10,0x0F,0x00,0x08,0xF8,0x88,0x80,0x80,0x80,0x00,
/* Q */
0x00,0x07,0x08,0x10,0x10,0x10,0x10,0x10,0x00,0xE0,0x10,0x08,0x08,0x0C,0x0A,0x0A,
/* R */
0x00,0x10,0x1F,0x11,0x11,0x11,0x11,0x0E,0x00,0x08,0xF8,0x08,0x00,0x80,0x60,0x18,
/* S */
0x00,0x0E,0x11,0x11,0x10,0x08,0x1C,0x00,0x00,0x38,0x10,0x08,0x88,0x88,0x70,0x00,
/* T */
0x18,0x10,0x10,0x10,0x1F,0x10,0x10,0x10,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,0x00,
/* U */
0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x10,0x00,0x00,0xE0,0x10,0x08,0x08,0x08,0x10,
/* V */
0x10,0x10,0x1C,0x13,0x00,0x00,0x00,0x13,0x00,0x00,0x00,0x80,0x70,0x18,0x60,0x80,
/* W */
0x10,0x10,0x1E,0x11,0x00,0x10,0x13,0x1E,0x00,0x00,0x00,0xE0,0x18,0xE0,0x00,0x00,
/* X */
0x10,0x10,0x18,0x14,0x13,0x01,0x12,0x14,0x08,0x08,0x18,0x28,0x40,0x80,0x68,0x18,
/* Y */
0x00,0x10,0x10,0x1C,0x13,0x00,0x01,0x16,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,
/* Z */
0x00,0x1C,0x10,0x10,0x11,0x16,0x18,0x10,0x08,0x18,0x68,0x88,0x08,0x08,0x08,0x18,
/* [ */
0x00,0x3F,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0xFF,0x01,0x01,0x00,0x00,0x00,0x00,
/* \ */
0x30,0x0E,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x18,0x00,0x00,0x00,0x00,
/* ] */
0x20,0x20,0x3F,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0xFF,0x00,0x00,0x00,0x00,0x00,
/* ^ */
0x03,0x0C,0x10,0x10,0x0C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* _ */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,
/* ` */
0x00,0x10,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* a */
0x00,0x01,0x02,0x02,0x02,0x01,0x00,0x00,0x00,0x30,0x48,0x48,0x48,0xF8,0x08,0x00,
/* b */
0x10,0x3F,0x01,0x02,0x02,0x01,0x00,0x00,0x00,0xF0,0x08,0x08,0x08,0xF0,0x00,0x00,
/* c */
0x00,0x01,0x02,0x02,0x02,0x01,0x00,0x00,0x00,0xF0,0x08,0x08,0x08,0x10,0x00,0x00,
/* d */
0x00,0x01,0x02,0x02,0x11,0x3F,0x00,0x00,0x00,0xF0,0x08,0x08,0x10,0xF8,0x10,0x00,
/* e */
0x00,0x01,0x02,0x02,0x02,0x01,0x00,0x00,0x00,0xF0,0x88,0x88,0x88,0x90,0x00,0x00,
/* f */
0x00,0x02,0x1F,0x22,0x22,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,
/* g */
0x00,0x01,0x02,0x02,0x02,0x03,0x02,0x00,0x00,0xD6,0x29,0x29,0x29,0xC9,0x06,0x00,
/* h */
0x10,0x3F,0x01,0x02,0x02,0x01,0x00,0x00,0x08,0xF8,0x08,0x00,0x08,0xF8,0x08,0x00,
/* i */
0x01,0x23,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,
/* j */
0x01,0x23,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,
/* k */
0x10,0x3F,0x00,0x00,0x03,0x02,0x02,0x00,0x08,0xF8,0x48,0xC0,0x28,0x18,0x08,0x00,
/* l */
0x10,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,
/* m */
0x01,0x03,0x01,0x02,0x02,0x01,0x01,0x02,0x08,0xF8,0x08,0x00,0x08,0xF8,0x08,0x00,
/* n */
0x01,0x03,0x01,0x02,0x02,0x01,0x00,0x00,0x08,0xF8,0x08,0x00,0x08,0xF8,0x08,0x00,
/* o */
0x00,0x01,0x02,0x02,0x02,0x01,0x00,0x00,0x00,0xF0,0x08,0x08,0x08,0xF0,0x00,0x00,
/* p */
0x01,0x03,0x01,0x02,0x02,0x01,0x00,0x00,0x01,0xFF,0x11,0x08,0x08,0xF0,0x00,0x00,
/* q */
0x00,0x01,0x02,0x02,0x01,0x03,0x00,0x00,0x00,0xF0,0x08,0x08,0x11,0xFF,0x01,0x00,
/* r */
0x01,0x03,0x01,0x02,0x02,0x00,0x00,0x00,0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,
/* s */
0x00,0x01,0x02,0x02,0x03,0x00,0x00,0x00,0x00,0x98,0x48,0x48,0x30,0x00,0x00,0x00,
/* t */
0x02,0x0F,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0xF8,0x08,0x10,0x00,0x00,0x00,0x00,
/* u */
0x02,0x03,0x00,0x00,0x02,0x03,0x00,0x00,0x00,0xF0,0x08,0x08,0x10,0xF8,0x10,0x00,
/* v */
0x02,0x03,0x02,0x00,0x02,0x03,0x02,0x00,0x00,0x80,0x70,0x08,0x70,0x80,0x00,0x00,
/* w */
0x02,0x03,0x02,0x00,0x02,0x03,0x02,0x00,0x00,0x80,0x70,0x18,0x60,0x80,0x70,0x18,
/* x */
0x02,0x03,0x02,0x00,0x02,0x03,0x02,0x00,0x08,0x18,0xA8,0x40,0xA8,0x18,0x08,0x00,
/* y */
0x02,0x03,0x02,0x00,0x02,0x03,0x02,0x00,0x01,0x81,0x62,0x1C,0x60,0x80,0x00,0x00,
/* z */
0x00,0x03,0x02,0x02,0x03,0x02,0x00,0x00,0x08,0x18,0x68,0x88,0x08,0x18,0x00,0x00,
/* { */
0x00,0x00,0x00,0x0F,0x10,0x20,0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x01,0x00,0x00,
/* | */
0x00,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
/* } */
0x00,0x20,0x10,0x0F,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x7E,0x80,0x00,0x00,0x00,
/* ~ */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x80,0x80,0x40,0x40,0x40,0x80,
};
const unsigned char TimesNewRoman16[]=
{
/* */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ! */
0x00,0x00,0x00,0x07,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x98,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* " */
0x00,0x00,0x07,0x07,0x00,0x00,0x07,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xF0,0x80,0x00,0x00,0xF0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* # */
0x00,0x00,0x00,0x01,0x0E,0x00,0x00,0x00,0x01,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,
0x21,0x21,0x27,0xF9,0x21,0x21,0x21,0x27,0xF9,0x21,0x21,0x00,0x00,0x00,0x00,0x00,
0x00,0x38,0xC0,0x00,0x00,0x00,0x38,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* $ */
0x00,0x01,0x03,0x06,0x04,0x0F,0x04,0x04,0x02,0x03,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xE0,0xF0,0x38,0x18,0xFF,0x0C,0x06,0x03,0xC3,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x70,0x18,0x08,0x08,0xFC,0x08,0x08,0x10,0xF0,0xE0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* % */
0x00,0x01,0x03,0x06,0x04,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x04,
0x00,0xF0,0xF8,0x0C,0x04,0x0C,0xF8,0xF0,0x03,0x04,0x08,0x30,0x43,0x87,0x0C,0x08,
0x00,0x00,0x00,0x00,0x08,0x10,0x60,0x80,0x00,0x00,0x00,0x00,0xE0,0xF0,0x18,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* & */
0x00,0x00,0x00,0x00,0x00,0x01,0x03,0x06,0x04,0x04,0x06,0x03,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0x02,0x04,0xE8,0xF8,0x1E,0x17,0x23,0x41,0x80,0x11,0x1E,0x18,0x10,
0x00,0xE0,0xF0,0x18,0x08,0x08,0x08,0x08,0x10,0xA0,0xE0,0xF0,0x30,0x18,0x18,0x18,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ' */
0x00,0x07,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xF0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ( */
0x00,0x00,0x00,0x00,0x03,0x06,0x04,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x1F,0x7F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xF8,0x1C,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ) */
0x08,0x04,0x06,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xE0,0x7F,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0x03,0x1C,0xF8,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x40,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* * */
0x00,0x00,0x03,0x03,0x01,0x00,0x0F,0x00,0x01,0x03,0x03,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x30,0x30,0xE0,0xC0,0xFC,0xC0,0xE0,0x30,0x30,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* + */
0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x08,0x08,0x08,0x08,0x08,0xFF,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* , */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x18,0x18,0x19,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* - */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x03,0x03,0x03,0x03,0x03,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* . */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* / */
0x00,0x00,0x00,0x00,0x00,0x07,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0x1C,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x70,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 0 */
0x00,0x00,0x01,0x03,0x06,0x04,0x04,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x7F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0xFF,0x7F,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0xE0,0x70,0x18,0x08,0x08,0x18,0x70,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 1 */
0x00,0x00,0x00,0x02,0x02,0x07,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 2 */
0x00,0x00,0x03,0x06,0x06,0x06,0x06,0x07,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0x00,0x00,0x00,0x00,0x03,0x06,0xF8,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x08,0x18,0x38,0x58,0x98,0x18,0x18,0x18,0x38,0x20,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 3 */
0x00,0x01,0x02,0x06,0x06,0x06,0x07,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x08,0x18,0x1C,0xEE,0xCF,0x03,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x18,0x18,0x08,0x08,0x08,0x08,0x10,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 4 */
0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0x02,0x0C,0x30,0x40,0x80,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0x80,0x80,0x80,0x80,0x80,0xF8,0xF8,0x80,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 5 */
0x00,0x00,0x00,0x01,0x06,0x06,0x06,0x06,0x06,0x04,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x60,0xE0,0x60,0x70,0x30,0x38,0x1F,0x07,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x10,0x18,0x08,0x08,0x08,0x08,0x10,0x60,0x80,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 6 */
0x00,0x00,0x00,0x00,0x01,0x01,0x02,0x02,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,
0x00,0x0F,0x3F,0xE8,0x90,0x10,0x10,0x18,0x1C,0x0F,0x07,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0xE0,0x30,0x18,0x08,0x08,0x08,0x10,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 7 */
0x00,0x01,0x07,0x06,0x06,0x06,0x06,0x06,0x06,0x07,0x04,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0x00,0x00,0x00,0x00,0x03,0x1C,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x08,0x70,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 8 */
0x00,0x01,0x03,0x06,0x04,0x04,0x04,0x04,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xE3,0x72,0x3C,0x1C,0x0C,0x1E,0x27,0xE3,0xC1,0x00,0x00,0x00,0x00,0x00,
0x00,0xE0,0xF0,0x18,0x08,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* 9 */
0x00,0x00,0x01,0x02,0x04,0x04,0x04,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xF8,0xFC,0x0E,0x06,0x02,0x02,0x02,0x05,0xFF,0x7C,0x00,0x00,0x00,0x00,0x00,
0x00,0x08,0x08,0x08,0x10,0x10,0x20,0x60,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* : */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ; */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x18,0x18,0x19,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* < */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x04,0x0A,0x0A,0x0A,0x11,0x11,0x20,0x20,0x20,0x40,0x40,0x40,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x40,0x40,0x40,0x20,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* = */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* > */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x80,0x40,0x40,0x40,0x20,0x20,0x20,0x11,0x11,0x0A,0x0A,0x0A,0x04,0x00,0x00,
0x00,0x20,0x40,0x40,0x40,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ? */
0x00,0x01,0x02,0x04,0x04,0x04,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xC0,0x00,0x01,0x02,0x1C,0xF0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xD8,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* @ */
0x00,0x00,0x00,0x00,0x01,0x03,0x02,0x04,0x04,0x08,0x08,0x08,0x08,0x08,0x08,0x04,
0x00,0x0F,0x38,0xC0,0x80,0x00,0x01,0x07,0x1F,0x38,0x20,0x40,0x40,0x23,0x3F,0x7C,
0x00,0xF0,0x0C,0x03,0x01,0x00,0xF0,0xF8,0x08,0x08,0x10,0x20,0x78,0xF8,0x88,0x08,
0x00,0x00,0x00,0x00,0x80,0x80,0x40,0x40,0x20,0x20,0x20,0x20,0x20,0x20,0x40,0x40,
/* A */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x01,0x0F,0x31,0xC1,0x01,0x81,0xF1,0x7D,0x0F,0x03,0x00,0x00,0x00,
0x08,0x18,0x78,0x88,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x88,0xF8,0x78,0x18,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* B */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x04,0x04,0x04,0x06,0x03,0x03,0x01,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x08,0x08,0x08,0x08,0x08,0x0C,0x1C,0xF6,0xE7,0x01,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x08,0x08,0x08,0x08,0x18,0x30,0xF0,0xC0,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* C */
0x00,0x00,0x00,0x01,0x03,0x02,0x04,0x04,0x04,0x04,0x04,0x06,0x02,0x03,0x07,0x00,
0x00,0x3F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0x00,
0x00,0x00,0xC0,0xE0,0x30,0x10,0x08,0x08,0x08,0x08,0x08,0x10,0x10,0x20,0x40,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* D */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x04,0x04,0x04,0x06,0x02,0x03,0x01,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xFF,0x3F,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x08,0x08,0x08,0x18,0x10,0x30,0xE0,0xC0,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* E */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x04,0x04,0x04,0x04,0x06,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x80,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x08,0x08,0x08,0x08,0x18,0x38,0x40,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* F */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x04,0x04,0x04,0x04,0x06,0x07,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x08,0x08,0x08,0x08,0x3E,0x00,0x00,0x80,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* G */
0x00,0x00,0x00,0x01,0x03,0x02,0x04,0x04,0x04,0x04,0x04,0x06,0x02,0x03,0x07,0x00,
0x00,0x3F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x8F,0xCF,0x08,
0x00,0x00,0xC0,0xE0,0x30,0x10,0x18,0x08,0x08,0x08,0x08,0x08,0x18,0xF0,0xF0,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* H */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x00,0x00,0x00,0x04,0x04,0x07,0x07,0x04,0x04,
0x00,0x00,0x00,0xFF,0xFF,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0xFF,0xFF,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* I */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* J */
0x00,0x00,0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x30,0x38,0x18,0x08,0xF0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* K */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x00,0x00,0x00,0x04,0x07,0x06,0x06,0x04,0x04,
0x00,0x00,0x00,0xFF,0xFF,0x0C,0x1E,0x17,0x23,0x41,0x80,0x00,0x00,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x80,0xC0,0xE8,0x78,0x38,0x18,0x18,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* L */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x08,0x08,0x08,0x08,0x18,0x78,0xE0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* M */
0x00,0x04,0x04,0x07,0x07,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,
0x00,0x00,0x00,0xFF,0x80,0xE0,0xF8,0x3F,0x07,0x01,0x00,0x00,0x03,0x1C,0x60,0x80,
0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0xC0,0xF0,0x78,0x60,0x80,0x00,0x08,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* N */
0x04,0x04,0x06,0x07,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x07,0x04,0x04,
0x00,0x00,0x00,0xFF,0x80,0xC0,0xF0,0x78,0x1C,0x0F,0x07,0x01,0x00,0xFF,0x00,0x00,
0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x80,0xC0,0xF0,0xF8,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* O */
0x00,0x00,0x00,0x01,0x03,0x02,0x04,0x04,0x04,0x04,0x04,0x02,0x03,0x01,0x00,0x00,
0x00,0x3F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xFF,0x3F,
0x00,0x00,0xC0,0xE0,0x30,0x10,0x08,0x08,0x08,0x08,0x08,0x10,0x30,0x60,0xC0,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* P */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x04,0x04,0x06,0x03,0x03,0x01,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x04,0x04,0x04,0x04,0x0C,0x1C,0xF8,0xF0,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* Q */
0x00,0x00,0x00,0x01,0x03,0x02,0x04,0x04,0x04,0x04,0x04,0x02,0x03,0x01,0x00,0x00,
0x00,0x3F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xFF,0x3F,
0x00,0x00,0xC0,0xE0,0x30,0x18,0x0C,0x0C,0x0E,0x0F,0x0B,0x11,0x30,0x60,0xC0,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0x40,0x40,
/* R */
0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x04,0x04,0x06,0x07,0x03,0x01,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x04,0x04,0x04,0x07,0x0F,0x19,0xF8,0xE0,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x80,0xE0,0x70,0x18,0x18,0x08,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* S */
0x00,0x01,0x03,0x06,0x04,0x04,0x04,0x02,0x03,0x07,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xF0,0x30,0x38,0x18,0x0C,0x0E,0x07,0xC3,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0xF8,0x30,0x10,0x08,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* T */
0x07,0x06,0x04,0x04,0x04,0x04,0x07,0x07,0x04,0x04,0x04,0x04,0x06,0x07,0x00,0x00,
0x80,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,
0x00,0x00,0x00,0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* U */
0x04,0x04,0x07,0x07,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x07,0x04,0x04,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,
0x00,0x00,0xC0,0xF0,0x30,0x18,0x08,0x08,0x08,0x08,0x08,0x10,0x20,0xC0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* V */
0x04,0x04,0x06,0x07,0x05,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x07,0x06,0x04,
0x00,0x00,0x00,0xC0,0xF8,0x3E,0x07,0x00,0x00,0x00,0x07,0x18,0x60,0x80,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xF8,0x38,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* W */
0x04,0x04,0x06,0x07,0x07,0x04,0x00,0x00,0x04,0x04,0x07,0x07,0x04,0x04,0x00,0x00,
0x00,0x00,0x00,0xC0,0xF0,0x3E,0x07,0x01,0x00,0x01,0x0E,0xF8,0xFC,0x1F,0x03,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x38,0xC0,0x00,0x00,0x00,0x80,0xE0,0x78,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* X */
0x00,0x04,0x04,0x06,0x07,0x07,0x04,0x04,0x00,0x00,0x00,0x04,0x04,0x07,0x06,0x04,
0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0x73,0x1C,0x0E,0x33,0x41,0x80,0x00,0x00,0x00,
0x00,0x08,0x08,0x18,0x38,0x68,0x80,0x00,0x00,0x00,0x88,0xC8,0x78,0x38,0x18,0x08,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* Y */
0x00,0x04,0x04,0x06,0x07,0x07,0x04,0x00,0x00,0x00,0x00,0x00,0x04,0x07,0x06,0x04,
0x00,0x00,0x00,0x00,0x80,0xC0,0xF0,0x38,0x0F,0x07,0x18,0x20,0xC0,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* Z */
0x00,0x07,0x06,0x04,0x04,0x04,0x04,0x04,0x04,0x05,0x07,0x06,0x04,0x00,0x00,0x00,
0x00,0x80,0x00,0x00,0x03,0x07,0x1C,0x38,0xF0,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,
0x08,0x38,0x78,0xE8,0x88,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x38,0x60,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* [ */
0x00,0x00,0x0F,0x0F,0x08,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xC0,0xC0,0x40,0x40,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* \ */
0x08,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0x1C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0x70,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ] */
0x00,0x08,0x08,0x08,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x40,0x40,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ^ */
0x00,0x00,0x00,0x03,0x04,0x04,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x30,0xC0,0x00,0x00,0x00,0x00,0xC0,0x30,0x08,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* _ */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x00,0x00,
/* ` */
0x00,0x04,0x06,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* a */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x1C,0x1C,0x21,0x21,0x21,0x32,0x3F,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x70,0xF8,0x98,0x08,0x08,0x10,0xF8,0xF8,0x08,0x10,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* b */
0x04,0x04,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x10,0x20,0x20,0x20,0x38,0x1F,0x0F,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xF0,0xF0,0x18,0x08,0x08,0x08,0x30,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* c */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x07,0x0F,0x10,0x20,0x20,0x20,0x30,0x1C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xF0,0x70,0x38,0x18,0x18,0x18,0x30,0x40,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* d */
0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x07,0x0F,0x18,0x20,0x20,0x20,0x10,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xF0,0x38,0x18,0x08,0x08,0x10,0xF8,0xF8,0x10,0x10,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* e */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x07,0x1F,0x12,0x22,0x22,0x22,0x32,0x1E,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xF0,0x70,0x38,0x18,0x18,0x10,0x30,0x40,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* f */
0x00,0x00,0x00,0x01,0x07,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x20,0x20,0xFF,0xFF,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* g */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x0F,0x1F,0x30,0x20,0x20,0x30,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00,0x00,0x00,
0x01,0x33,0xBC,0xD8,0x58,0x58,0xD8,0x98,0x18,0x19,0x0E,0x00,0x00,0x00,0x00,0x00,
0x80,0x80,0xC0,0x40,0x40,0x40,0x40,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* h */
0x04,0x04,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x10,0x10,0x20,0x20,0x3F,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x08,0xF8,0xF8,0x08,0x00,0x00,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* i */
0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0x10,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* j */
0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0x10,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x40,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* k */
0x04,0x04,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x01,0x03,0x04,0x28,0x30,0x20,0x20,0x00,0x00,0x00,0x00,0x00,
0x08,0x08,0xF8,0xF8,0x08,0x88,0xC0,0x68,0x38,0x18,0x08,0x08,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* l */
0x04,0x04,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* m */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0x10,0x3F,0x3F,0x10,0x10,0x20,0x30,0x3F,0x1F,0x10,0x10,0x20,0x20,0x3F,0x1F,
0x08,0x08,0xF8,0xF8,0x08,0x00,0x00,0x08,0xF8,0xF8,0x08,0x00,0x00,0x08,0xF8,0xF8,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* n */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0x10,0x3F,0x3F,0x10,0x10,0x20,0x20,0x3F,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x08,0xF8,0xF8,0x08,0x00,0x00,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* o */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x07,0x0F,0x10,0x20,0x20,0x20,0x30,0x18,0x1F,0x07,0x00,0x00,0x00,0x00,0x00,
0x00,0xC0,0xF0,0x30,0x18,0x08,0x08,0x08,0x10,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* p */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0x10,0x3F,0x3F,0x10,0x20,0x20,0x20,0x38,0x1F,0x0F,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFF,0x10,0x08,0x08,0x08,0x30,0xF0,0xC0,0x00,0x00,0x00,0x00,0x00,
0x40,0x40,0xC0,0xC0,0x40,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* q */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x07,0x0F,0x18,0x20,0x20,0x20,0x30,0x1F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xE0,0xF0,0x38,0x08,0x08,0x08,0x10,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0xC0,0xC0,0x40,0x40,0x00,0x00,0x00,0x00,
/* r */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x10,0x10,0x3F,0x3F,0x10,0x20,0x30,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x08,0xF8,0xF8,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* s */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x0E,0x37,0x23,0x23,0x21,0x19,0x3C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x78,0x30,0x18,0x88,0x88,0xD0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* t */
0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0x20,0xFF,0xFF,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xF0,0xF8,0x08,0x08,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* u */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0x20,0x3F,0x3F,0x00,0x00,0x20,0x20,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xF0,0xF8,0x08,0x08,0x08,0x10,0xF8,0xF8,0x10,0x10,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* v */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0x30,0x3C,0x3F,0x23,0x00,0x00,0x00,0x27,0x38,0x20,0x20,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xC0,0xF0,0x38,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* w */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0x20,0x3C,0x3F,0x27,0x00,0x20,0x23,0x3C,0x3F,0x27,0x00,0x00,0x27,0x38,0x20,
0x00,0x00,0x00,0x80,0xF0,0x78,0xE0,0x00,0x00,0x80,0xF0,0x78,0xE0,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* x */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0x20,0x30,0x38,0x2E,0x07,0x07,0x28,0x30,0x20,0x20,0x00,0x00,0x00,0x00,0x00,
0x08,0x18,0x18,0x68,0x80,0x00,0xC0,0xE8,0x78,0x18,0x08,0x08,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* y */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x20,0x30,0x3C,0x3F,0x23,0x00,0x00,0x00,0x27,0x38,0x20,0x20,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xC1,0xF7,0x38,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0xC0,0xC0,0xC0,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* z */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x38,0x20,0x20,0x21,0x27,0x2E,0x3C,0x30,0x20,0x00,0x00,0x00,0x00,0x00,0x00,
0x08,0x18,0x78,0xE8,0xC8,0x08,0x08,0x08,0x08,0x38,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* { */
0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x02,0x05,0xFD,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0x40,0x00,0x00,0x00,0x00,0x00,0x00,
/* | */
0x00,0x00,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* } */
0x00,0x00,0x08,0x08,0x04,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xF8,0xFD,0x05,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x40,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/* ~ */
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x03,0x06,0x04,0x04,0x04,0x02,0x02,0x02,0x01,0x01,0x01,0x03,0x06,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};
const unsigned char gImage_logo[4000] = { /* 0X01,0X01,0XFA,0X00,0X80,0X00, */
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE3,0XC0,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XEF,0XF0,0X7F,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF8,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XEF,0XF0,0X7F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE3,0XC0,0X00,0X01,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X00,0X00,0X01,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XE3,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XE3,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XE3,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC3,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XE3,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC3,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XE3,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC3,0XC3,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC3,0XC3,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC3,0XC3,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC1,0X83,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC0,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X0F,0XFF,0XFF,0XE0,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X3F,0XFF,
0XFF,0XFF,0XC0,0X00,0XFF,0XFF,0XE0,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XE0,0X00,0X0F,0XFF,0XF0,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFE,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,
0XFF,0XFF,0XFF,0XE0,0X07,0XFF,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,
0XFF,0XFF,0XFF,0XE0,0X07,0XFF,0XFC,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0X3F,0XFF,
0XFF,0XFF,0XFF,0X00,0X07,0XFF,0XF8,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XE0,0X00,0X0F,0XFF,0XE0,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0XFF,0XFF,0XE0,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X0F,0XFF,0XFF,0XC0,0XFE,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC1,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC3,0XFF,0X87,0XFF,0XFF,0XFF,0XFF,0XEE,0X3F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0X83,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0XCC,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0X83,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0X98,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0X99,0X9F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC3,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0X93,0X9F,0XFF,
0XFF,0XFF,0XFF,0XFC,0X7F,0XFF,0XC1,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X3F,0XFF,
0XFF,0XFF,0XF0,0X3C,0X1F,0XFF,0XC0,0XFE,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XE0,0X1C,0X0F,0XFF,0XE0,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XC0,0X1F,0XFF,
0XFF,0XFF,0XC0,0X0C,0X07,0XFF,0XE0,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XDF,0XFF,
0XFF,0XFF,0XC0,0X0C,0X07,0XFF,0XF0,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC2,0X07,0X07,0XFF,0XFC,0X00,0X3F,0XFF,0XFF,0XFF,0XFE,0X00,0X3F,0XFF,
0XFF,0XFF,0XC3,0X07,0X83,0XFF,0XFF,0X01,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0X83,0X07,0X83,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0X83,0X87,0X83,0XFF,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0X9F,0XFF,
0XFF,0XFF,0XC3,0X83,0X83,0XFF,0XFC,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0X9F,0X9F,0XFF,
0XFF,0XFF,0XC1,0X83,0X87,0XFF,0XF0,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0XC0,0X07,0XFF,0XE0,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XC7,0X3F,0XFF,
0XFF,0XFF,0XC0,0XC0,0X07,0XFF,0XE0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X83,0X1F,0XFF,
0XFF,0XFF,0XE0,0XE0,0X0F,0XFF,0XC0,0XFE,0X07,0XFF,0XFF,0XFF,0XFF,0X81,0X1F,0XFF,
0XFF,0XFF,0XF0,0XE0,0X1F,0XFF,0XC1,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0X91,0X9F,0XFF,
0XFF,0XFF,0XFF,0XF8,0X3F,0XFF,0XC3,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0X98,0X9F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0X88,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0X8C,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC3,0XFF,0X83,0XFF,0XFF,0XFF,0XFF,0XCE,0X3F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC1,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC0,0X78,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XE0,0X7C,0X0F,0XFF,0XFF,0XFF,0XFC,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XE0,0X7C,0X0F,0XFF,0XFF,0XFF,0XFC,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0XC3,0XFF,0XFF,0XF0,0XFC,0X1F,0XFF,0XFF,0XFF,0XFC,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0XC3,0XFF,0XFF,0XFC,0XFC,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC1,0X83,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X03,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X03,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XCF,0XFF,0XFF,
0XFF,0XFF,0XE0,0X07,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XF0,0X0F,0XFF,0XFF,0XFF,0X81,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XF8,0X1F,0XFF,0XFF,0XFF,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XF8,0X3F,0XFF,0XFE,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XF0,0X3F,0XFF,0XFC,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X1F,0XFF,
0XFF,0XFF,0XFF,0XC0,0X3F,0XFF,0XF8,0X00,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0X80,0X3F,0XFF,0XE0,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFE,0X00,0X3F,0XFF,0XC0,0X40,0X0F,0XFF,0XFF,0XFF,0XFF,0XE0,0X73,0XFF,
0XFF,0XFF,0XFC,0X08,0X3F,0XFF,0XC0,0XF0,0X07,0XFF,0XFF,0XFF,0XFF,0XC0,0X31,0XFF,
0XFF,0XFF,0XF0,0X18,0X3F,0XFF,0XC1,0XF8,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X11,0XFF,
0XFF,0XFF,0XE0,0X38,0X3F,0XFF,0XC3,0XFE,0X07,0XFF,0XFF,0XFF,0XFF,0X8F,0X19,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC7,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0X9F,0X99,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XCF,0XFF,0XC7,0XFF,0XFF,0XFF,0XFF,0XCF,0X39,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XDF,0XFF,0XF7,0XFF,0XFF,0XFF,0XFF,0X80,0X01,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X03,0XFF,
0XFF,0XFF,0XFF,0XF8,0X3F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X07,0XFF,
0XFF,0XFF,0XFF,0XF8,0X3F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XF8,0XFE,0X3F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XF0,0XFE,0X0F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XE0,0XFE,0X07,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0XFE,0X07,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0X87,0X87,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0X87,0XC3,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC3,0X87,0XC3,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC0,0X07,0X83,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XE0,0X00,0X07,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XE0,0X00,0X0F,0XFF,0XC3,0X87,0X87,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XF8,0X60,0X1F,0XFF,0XC3,0XFF,0X87,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XF8,0X3F,0XFF,0XFF,0XFF,0X87,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XCF,0XFF,0XFF,
0XFF,0XFF,0XFC,0X00,0X7F,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XF0,0X00,0X1F,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XE0,0X00,0X0F,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X1F,0XFF,
0XFF,0XFF,0XC3,0XFF,0X83,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0XC3,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0X83,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XC7,0X3F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X83,0X1F,0XFF,
0XFF,0XFF,0XE0,0X00,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X81,0X1F,0XFF,
0XFF,0XFF,0XE0,0X00,0X0F,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X91,0X9F,0XFF,
0XFF,0XFF,0XF8,0X00,0X1F,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X98,0X9F,0XFF,
0XFF,0XFF,0XFF,0X00,0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X88,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X8C,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XCE,0X3F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0X00,0X3F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XC3,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0X9F,0XFF,
0XFF,0XFF,0XC3,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0X9F,0XFF,
0XFF,0XFF,0XC3,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0X87,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0X87,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0X87,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0X87,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XCF,0XFF,0XFF,
0XFF,0XFF,0XC3,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X81,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0X03,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XE6,0X3F,0XFF,0XFC,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X3F,0XFF,
0XFF,0XFF,0XF8,0X06,0X0F,0XFF,0XF8,0X01,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X06,0X07,0XFF,0XF0,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X06,0X07,0XFF,0XE0,0X00,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,
0XFF,0XFF,0XC0,0X0F,0X87,0XFF,0XC0,0X60,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,
0XFF,0XFF,0XC1,0X0F,0XC3,0XFF,0XC0,0XF8,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0X3F,0XFF,
0XFF,0XFF,0XC3,0X0F,0XC3,0XFF,0XC1,0XFC,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0X0F,0X83,0XFF,0XC3,0XFF,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0X00,0X07,0XFF,0XCF,0XFF,0X87,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0X00,0X07,0XFF,0XDF,0XFF,0XE7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0X80,0X0F,0XFF,0XFF,0XFF,0XF7,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC3,0XC0,0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XF0,0X7F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XE6,0X3F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XCF,0XFF,0XFF,
0XFF,0XFF,0XFC,0X06,0X0F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X06,0X07,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X06,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X0F,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X0F,0X83,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X1F,0XFF,
0XFF,0XFF,0XC3,0X0F,0XC3,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XCF,0XFF,0XFF,
0XFF,0XFF,0XC3,0X0F,0X83,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC3,0X00,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC3,0X00,0X07,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0X80,0X0F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0XC0,0X1F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XC0,0X1F,0XFF,
0XFF,0XFF,0XFF,0XE0,0X3F,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFC,0XFF,0XC7,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE0,0X7F,0XFF,
0XFF,0XFF,0XF0,0XFF,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X3F,0XFF,
0XFF,0XFF,0XE0,0X7E,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X7C,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X99,0X9F,0XFF,
0XFF,0XFF,0XC0,0XF8,0X07,0XFF,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X99,0X9F,0XFF,
0XFF,0XFF,0XC3,0XF0,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X99,0X9F,0XFF,
0XFF,0XFF,0XC3,0XE0,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X81,0X1F,0XFF,
0XFF,0XFF,0XC3,0XC0,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC1,0X3F,0XFF,
0XFF,0XFF,0XC0,0X01,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XE1,0X7F,0XFF,
0XFF,0XFF,0XC0,0X03,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XE0,0X07,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XF0,0X1F,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFC,0X7F,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XF8,0X1F,0X3F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XCF,0XFF,0XFF,
0XFF,0XFF,0XF0,0X07,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XE0,0X03,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X01,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC0,0X81,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X80,0X1F,0XFF,
0XFF,0XFF,0XC3,0XE1,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC0,0X1F,0XFF,
0XFF,0XFF,0XC3,0XE1,0XC3,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XC1,0XE1,0X87,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0XFF,0XFF,
0XFF,0XFF,0XC0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0X00,0X3F,0XFF,
0XFF,0XFF,0XE0,0X00,0X07,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XE0,0X00,0X0F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFC,0X00,0X1F,0XFF,
0XFF,0XFF,0XF0,0X00,0X1F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0X9F,0XFF,
0XFF,0XFF,0XFC,0X00,0X7F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X9F,0X9F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XC7,0X3F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X83,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X81,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X91,0X9F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X98,0X9F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X88,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X8C,0X1F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XCE,0X3F,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
};
实验结果
现象
波形对应
扫一扫
684
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
