目录
Step 0.基本环境要求
需要conda及CUDA版本如下，本次复现不用重新创建docker，直接使用宿主机（因为重新创建Docker并在里面安装CUDA和conda太占地方了）
Step1.环境配置
获取终端代码(建议还是直接下载zip吧，clone有点大(2G)。下载之后可以删掉.git文件夹 没什么影响)
git clone https://github.com/threedle/text2mesh在text2mesh文件夹内执行
conda env create --file text2mesh.yml好不容易下载完各种包，出现以下错误：
出现问题1：
ERROR conda.core.link:_execute(502): An error occurred while installing package ‘conda-forge::colorama-0.4.4-pyh9f0ad1d_0’.
FileNotFoundError(2, “No such file or directory: ‘XXXX/bin/python3.7’”)
Attempting to roll back.
解决方法：更新源
conda update -n base -c defaults conda更新完后，重复执行创建环境语句

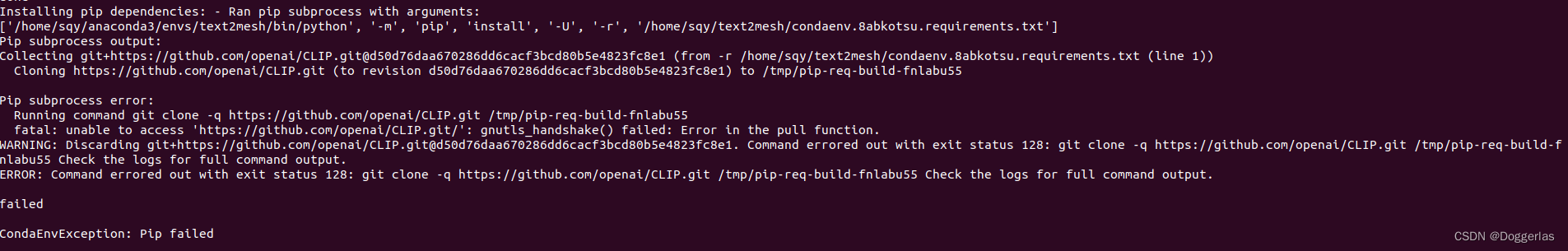

conda env create --file text2mesh.yml出现问题2：安装yml文件时，最后的包找不到。
查看yml文件打开这两个网址，也显示not found
https://github.com/openai/CLIP.git@d50d76daa670286dd6cacf3bcd80b5e4823fc8e1
https://github.com/NVIDIAGameWorks/kaolin@a00029e5e093b5a7fe7d3a10bf695c0f01e3bd98 我的想法是，可以先根据网址，打开这两个前向网站 看下这两个开源库怎么安装
GitHub - NVIDIAGameWorks/kaolin: A PyTorch Library for Accelerating 3D Deep Learning Research
GitHub - openai/CLIP: Contrastive Language-Image Pretraining
解决方法：分别手动安装clip与kaolin

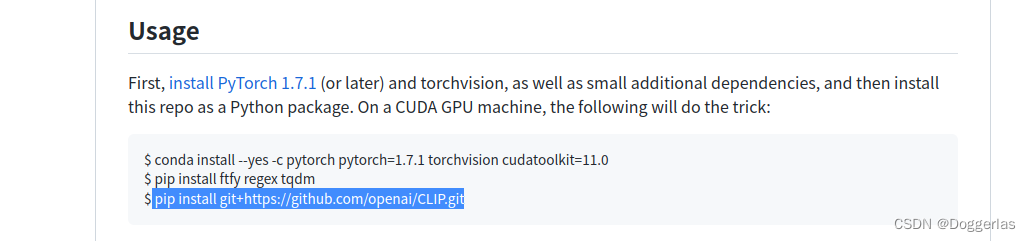

首先发现了CLIP的安装方法,比较简单，直接执行pip安装
pip install git+https://github.com/openai/CLIP.git

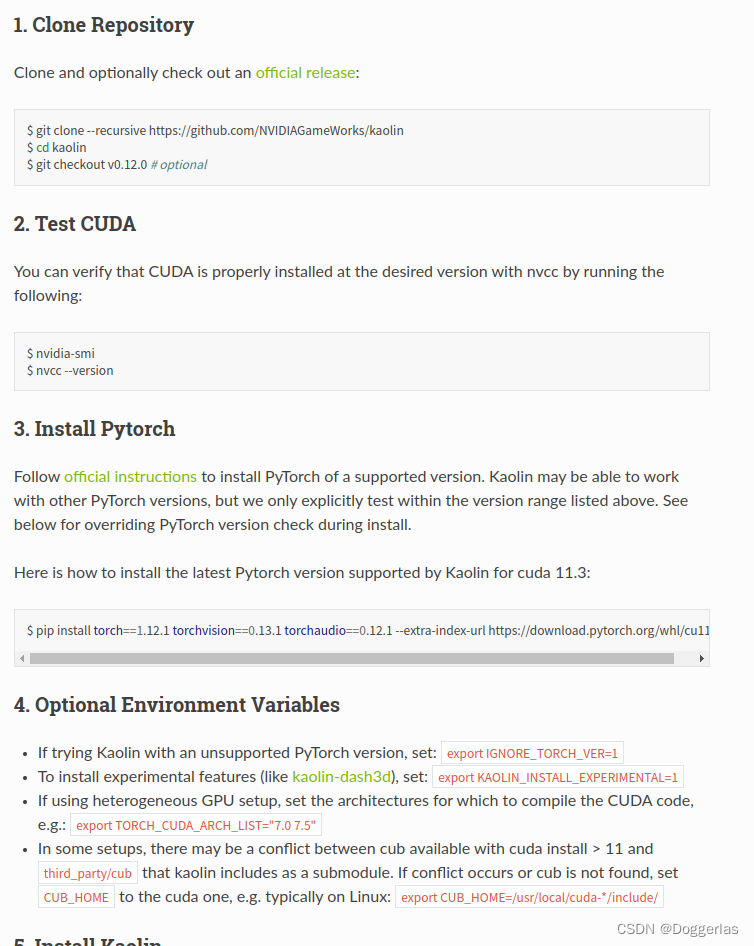

然后发现了kaolin的安装方法
看着很多 实际上只需执行1和5 因为2是测试有没有CUDA 3已经在yml安装完了 4是可选的一般用不到 不用管
执行以下命令：
# 首先配置环境变量CUDA_HOME
vi ~/.bashrc
export CUDA_HOME=/usr/local/cuda # bashrc在最底下加入,注意这个路径要实际存在，可以先cd验证下。有的文件夹名称不是cuda 需要改一下
source ~/.bashrc # 执行更改后生效
conda activate text2mesh # 重新激活环境
git clone --recursive https://github.com/NVIDIAGameWorks/kaolin
cd kaolin
git checkout v0.12.0

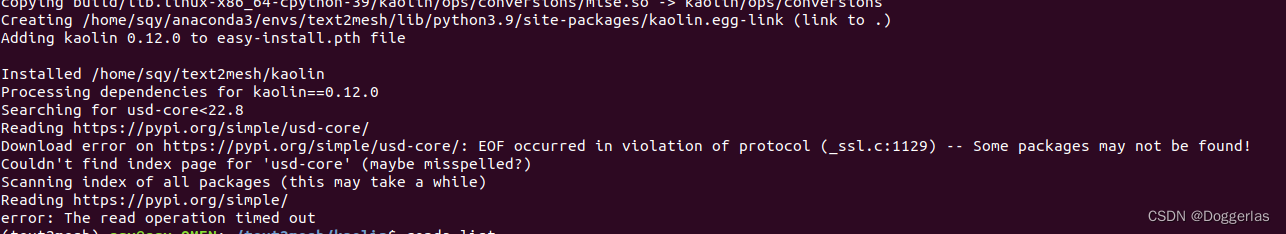

python setup.py develop # 编译虽然最后编译报错 显示因为网络原因usd-core安装失败
但是kaolin编译已完成，已经能在conda list中查到。刚才的报错只是说明kaolin的依赖库usd-core没安装上
所以再手动安装usd-core和scipy
注意安装的kaolin是0.12.0，依赖的scipy<=1.7.2,>=1.2.0 usd-core<22.8，所以我选择安装scipy1.7.2 usd-core21.8(老规矩 使用清华景象 方便又快捷)
pip install usd-core==21.8 -i https://pypi.tuna.tsinghua.edu.cn/simple
pip install scipy==1.7.2 -i https://pypi.tuna.tsinghua.edu.cn/simple
测试kaolin是否安装成功：
python -c "import kaolin; print(kaolin.__version__)"显示如下即可
搞定 然后开始跑程序
Step2：代码测试
给脚本赋予777权限
sudo chmod 777 /demo/run_alien_cobble.sh 然后执行即可
./demo/run_alien_cobble.sh
Step3：执行结果

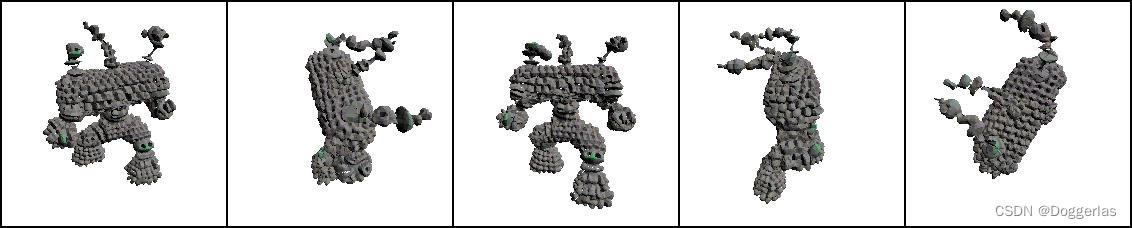

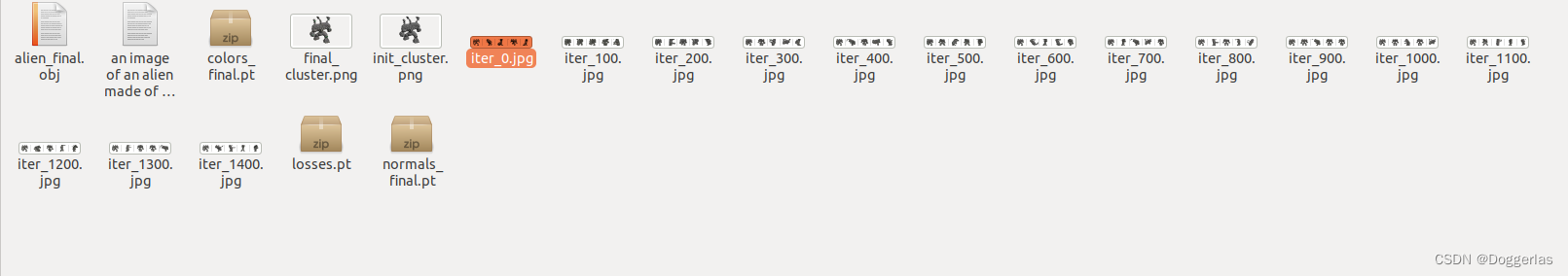

输出将保存到text2mesh/demo/results/demo中，其中包含风格化的 .obj 文件、彩色和非彩色渲染视图以及训练期间的屏幕截图。

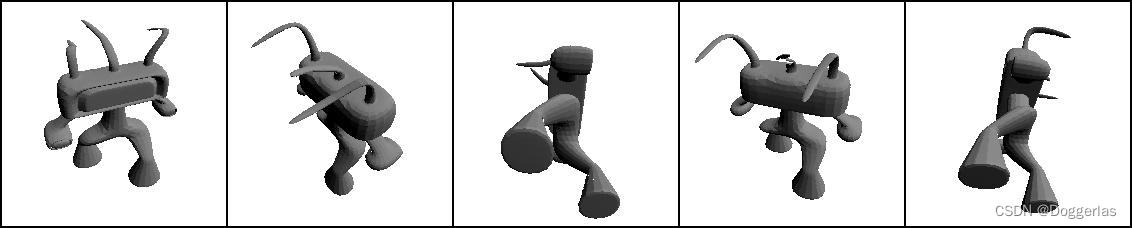

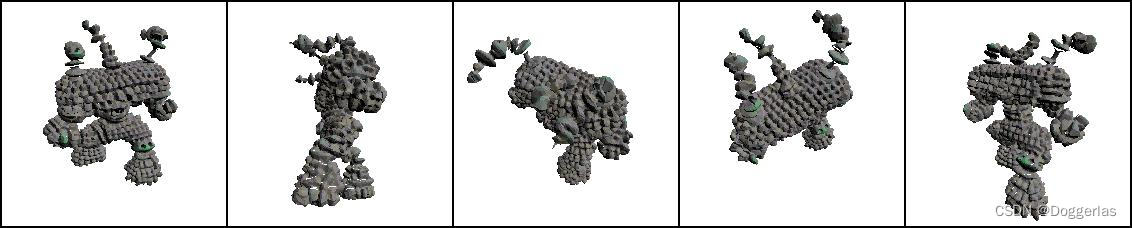

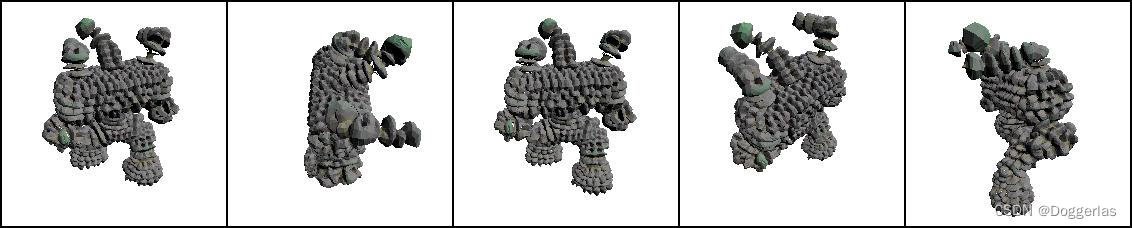

init_cluster

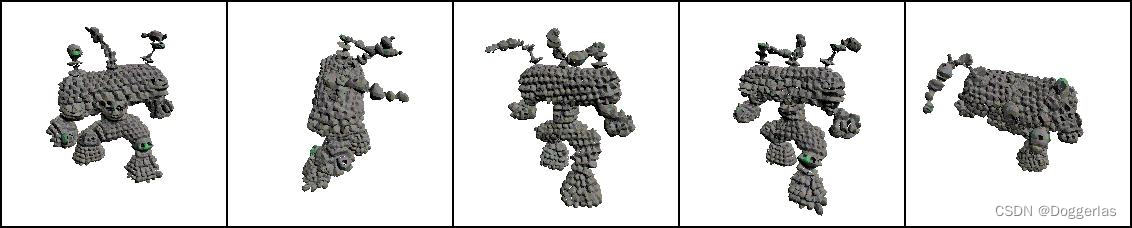

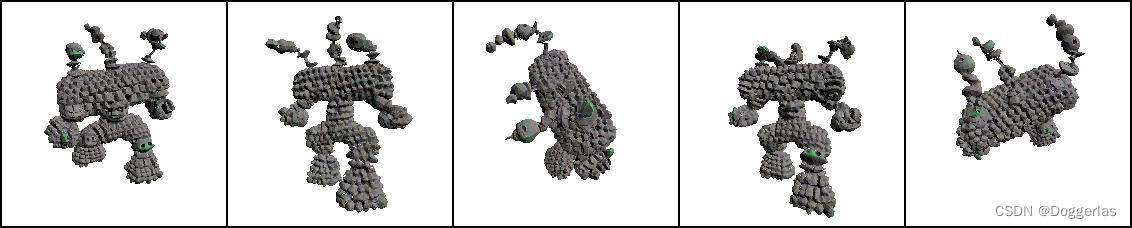

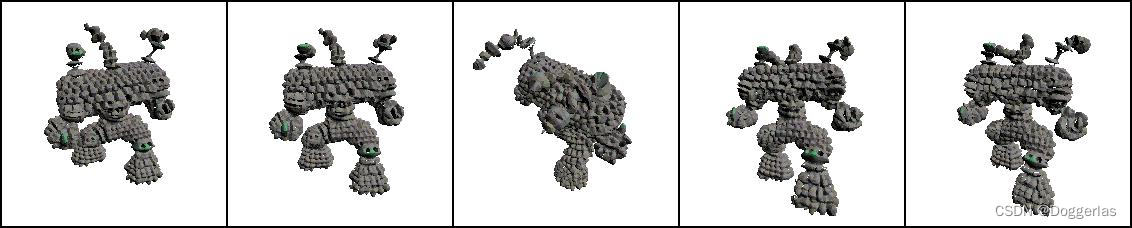

final_cluster

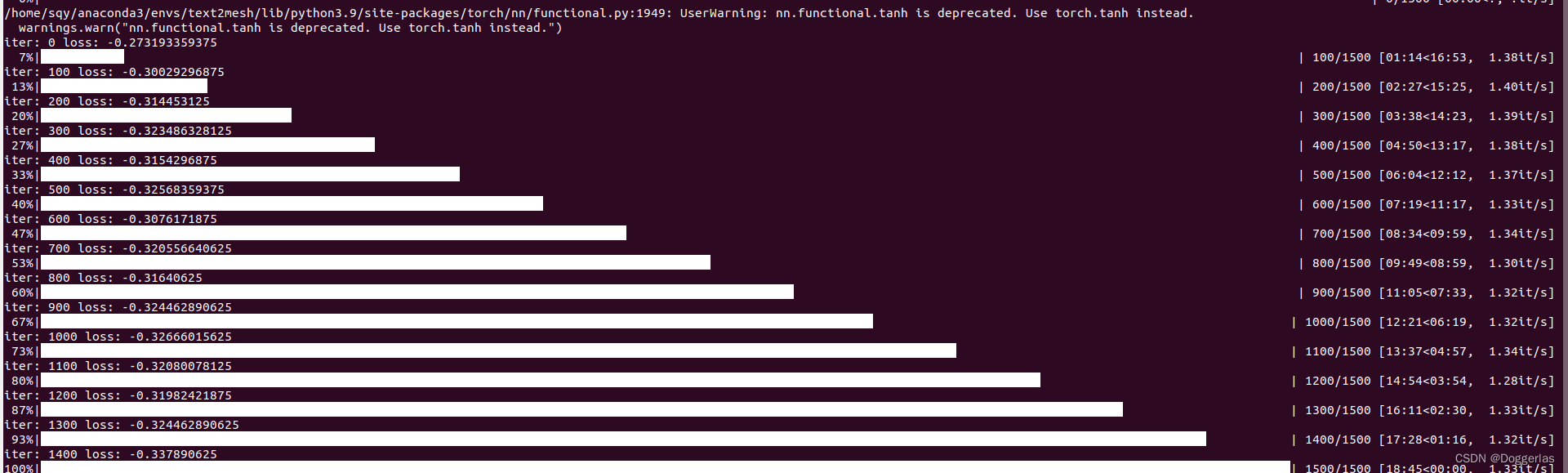

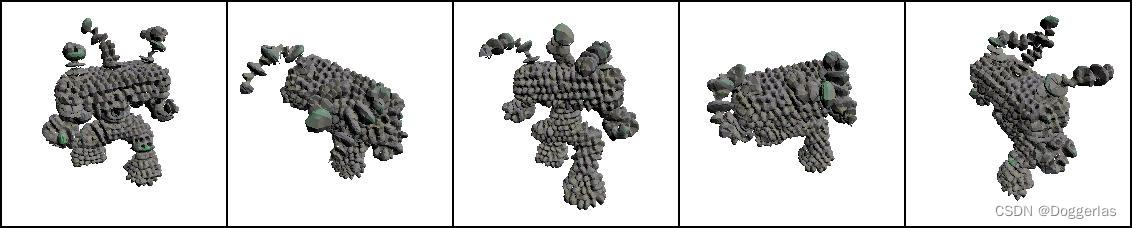

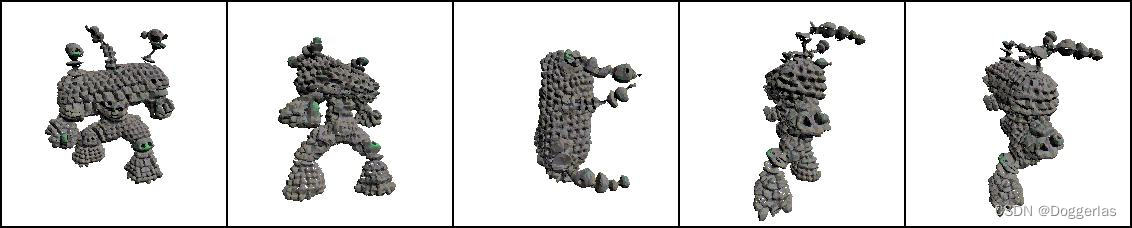

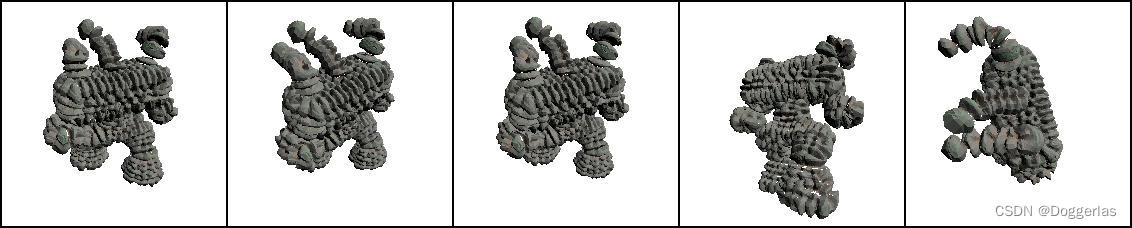

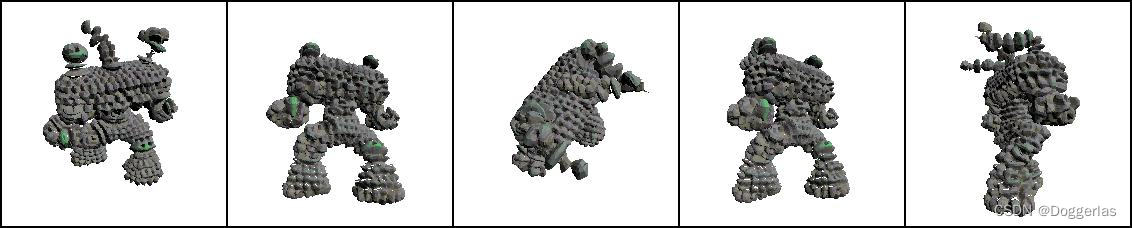

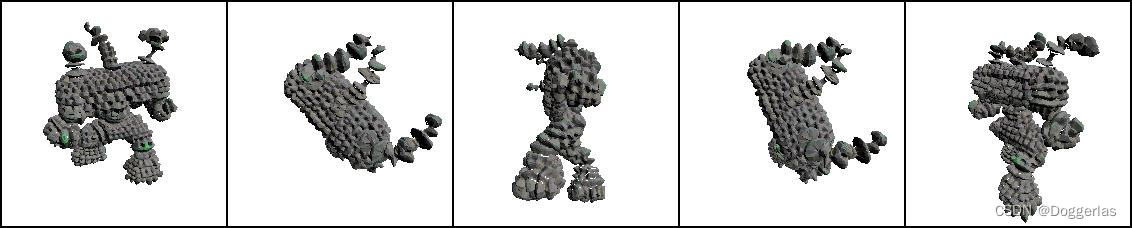

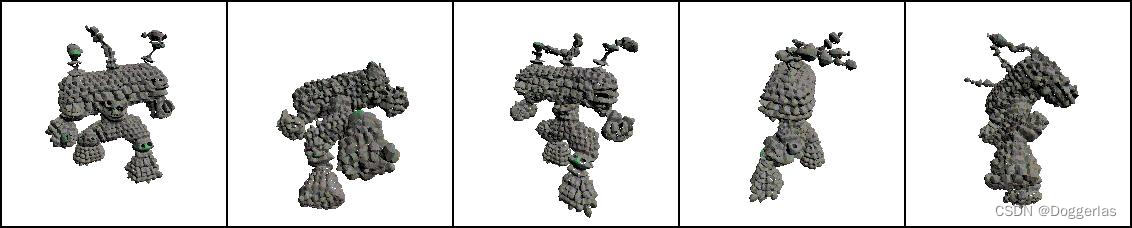

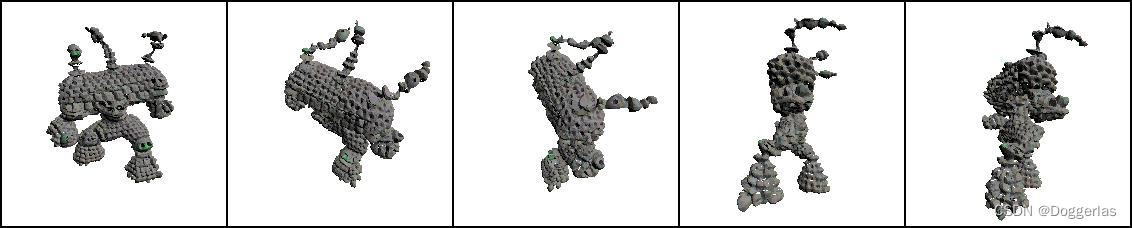

训练期间 iter_0 iter_100 ... iter_1400的屏幕截图

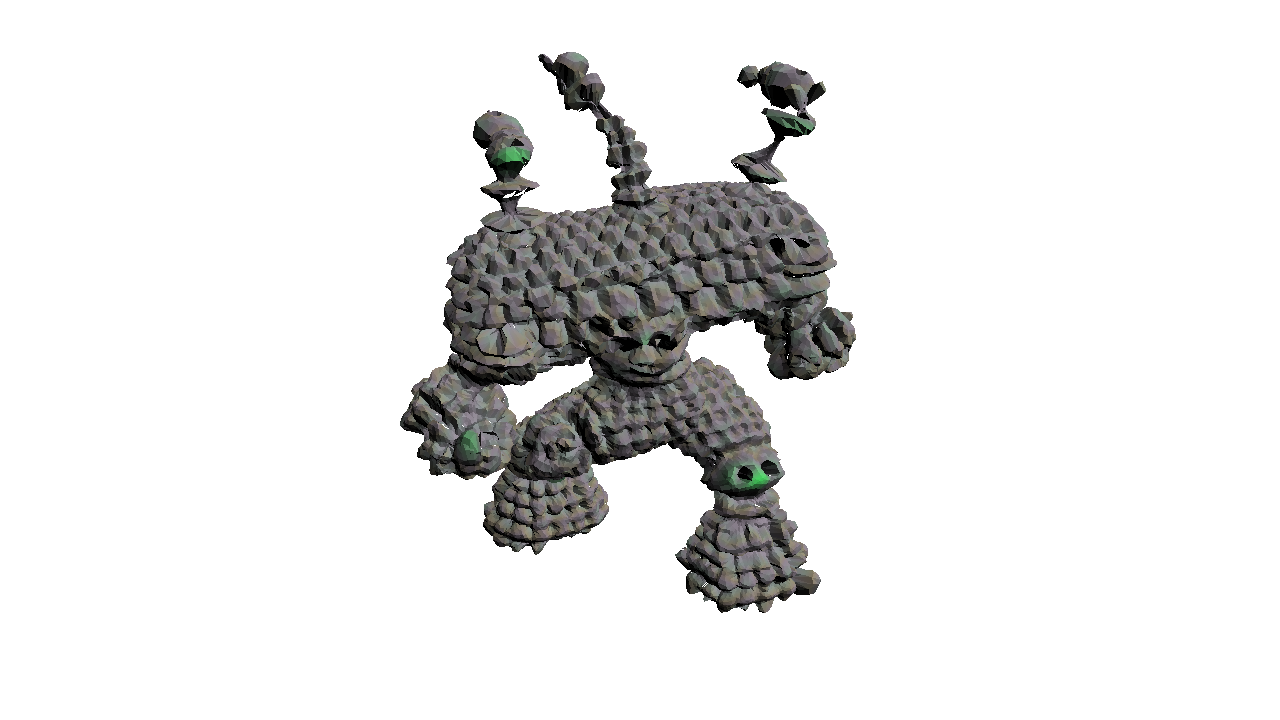

可以用在线的obj工具进行显示(把obj文件放到这里)

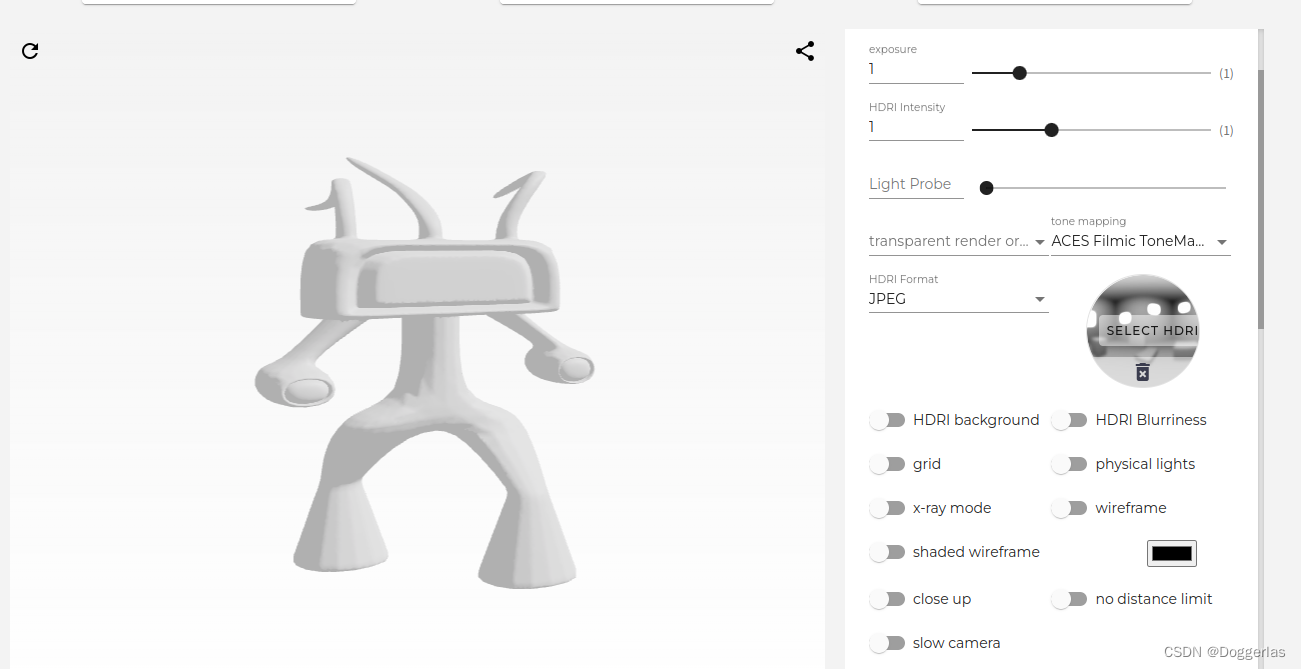

转换前text2mesh/data/source_meshes/alien.obj

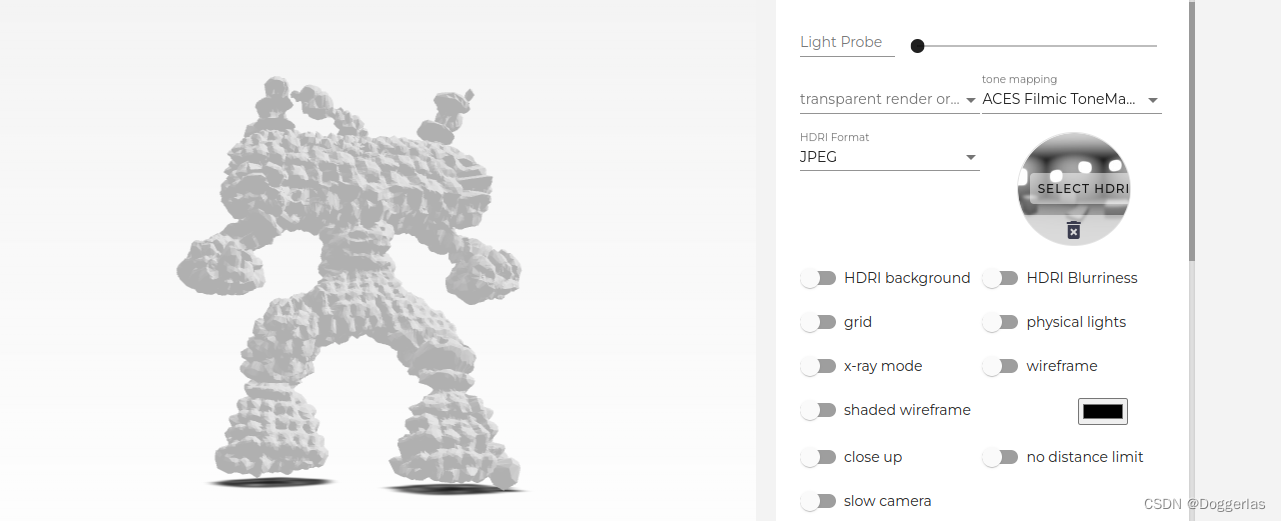

转换后text2mesh/demo/results/demo/alien/cobblestone/alien_final.obj
