Verilog中的^~、~^、~&、~|运算符

今天看书上的Verilog代码中,出现了运算符~^,从来没见过,搜了一些资料,记录一下。

assign slt_result[0]    = (alu_src1[31] & ~alu_src2[31])
                        | ((alu_src1[31] ~^ alu_src2[31]) & adder_result[31]);

结论

~^^~作为二元运算符时,是同或;~^^~作为一元运算符时,是缩减异或的取反(感谢@smile、陌离老哥在评论区指正);

~&只能作为一元运算符,是对缩减&结果的取反;

~|只能作为一元运算符,是对缩减|结果的取反;

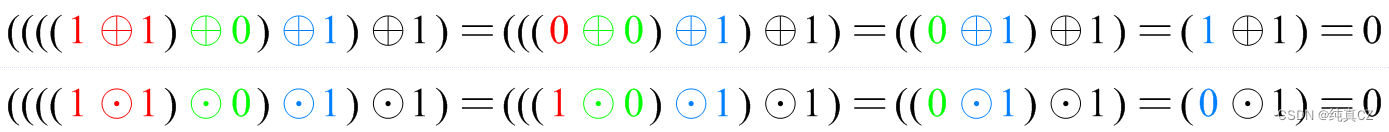

对缩减异或取反不等于缩减同或!例如5'b11011
( ( ( ( 1 ⊕ 1 ) ⊕ 0 ) ⊕ 1 ) ⊕ 1 ) = ( ( ( 0 ⊕ 0 ) ⊕ 1 ) ⊕ 1 ) = ( ( 0 ⊕ 1 ) ⊕ 1 ) = ( 1 ⊕ 1 ) = 0 ( ( ( ( 1 ⊙ 1 ) ⊙ 0 ) ⊙ 1 ) ⊙ 1 ) = ( ( ( 1 ⊙ 0 ) ⊙ 1 ) ⊙ 1 ) = ( ( 0 ⊙ 1 ) ⊙ 1 ) = ( 0 ⊙ 1 ) = 0 ∴ ¬ ( 1 ⊕ 1 ⊕ 0 ⊕ 1 ⊕ 1 ) ≠ ( 1 ⊙ 1 ⊙ 0 ⊙ 1 ⊙ 1 ) ((((1\oplus 1)\oplus 0)\oplus 1)\oplus 1)=(((0\oplus 0)\oplus 1)\oplus 1)=((0\oplus 1)\oplus 1)=(1\oplus 1)=0 \\ ((((1\odot 1)\odot 0)\odot 1)\odot 1)=(((1\odot 0)\odot 1)\odot 1)=((0\odot 1)\odot 1)=(0\odot 1)=0 \\ \therefore \lnot (1\oplus 1\oplus 0\oplus 1\oplus 1) \neq (1\odot 1\odot 0\odot 1\odot 1) ((((11)0)1)1)=(((00)1)1)=((01)1)=(11)=0((((11)0)1)1)=(((10)1)1)=((01)1)=(01)=0¬(11011)=(11011)
.

有没有&~|~呢?
譬如a[2:0] &~ b[2:0],这里便不能将&~整体看做一个单独的运算符了,~作为一元操作,优先级最高,先将b[2:0]做按位取反,再通过&a[2:0]做位与,|~类似。

再补充HDLBits的一些说明(https://hdlbits.01xz.net/wiki/Reduction):
The reduction operators can do AND, OR, and XOR of the bits of a vector, producing one bit of output:

& a[3:0]     // AND: a[3]&a[2]&a[1]&a[0]. Equivalent to (a[3:0] == 4'hf)
| b[3:0]     // OR:  b[3]|b[2]|b[1]|b[0]. Equivalent to (b[3:0] != 4'h0)
^ c[2:0]     // XOR: c[2]^c[1]^c[0]

These are unary operators that have only one operand (similar to the NOT operators ! and ~).
You can also invert the outputs of these to create NAND, NOR, and XNOR gates, e.g., (~& d[7:0]).

测试过程

~^^~作为二元运算符时

reg [1:0] x;

initial
    begin
        x <= 2'b00 ~^ 2'b00;
        #5 x <= 2'b01 ~^ 2'b00;
        #5 x <= 2'b10 ~^ 2'b00;
        #5 x <= 2'b11 ~^ 2'b00;
        #5 $finish;
    end

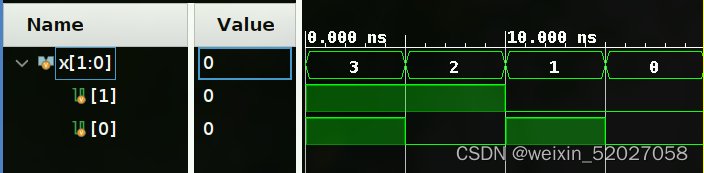

结果如下图所示(^~结果亦如下),为同或
二元~^测试结果图,结果验证为同或运算

~^^~作为一元运算符时

reg x;

initial
    begin
        x <= ~^ 2'b00;
        #5 x <= ~^ 2'b01;
        #5 x <= ~^ 2'b10;
        #5 x <= ~^ 2'b00;
        #5 $finish;
    end

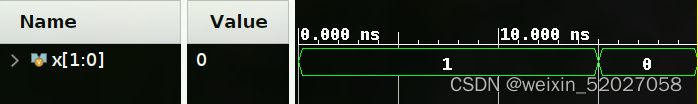

结果如下图所示(^~结果亦如下),为缩减异或的取反。
一元~^测试结果图,结果验证为缩减同或运算

~&作为一元运算符时

reg [1:0] x;

initial
    begin
        x <= ~& 2'b00;
        #5 x <= ~& 2'b01;
        #5 x <= ~& 2'b10;
        #5 x <= ~& 2'b11;
        #5 $finish;
    end

结果如下图所示,为缩减&取反的结果。
一元~&测试结果图,结果验证为缩减&取反的结果

~|作为一元运算符时

reg [1:0] x;


initial
    begin
        x <= ~| 2'b00;
        #5 x <= ~| 2'b01;
        #5 x <= ~| 2'b10;
        #5 x <= ~| 2'b11;
        #5 $finish;
    end

结果如下图所示,为缩减|取反的结果。
一元~|测试结果图,结果验证为缩减|取反的结果

吐槽

好想过年前写完龙芯杯初赛,然后PASS掉啊啊啊啊!!!
已经写完的啦,不过是年后写完的 : )
